Product type	Portable CD player with FM/MW radio and cassette recorder
Brand	Philips
Model	AZ1120
Power supply	6 R14/UM2/C batteries (alkaline recommended) or AC via power cord
Power consumption	Not specified
Radio	FM/MW with telescopic antenna for FM and built-in antenna for MW
CD player	Digital audio CD, programming up to 20 tracks, Shuffle/Repeat/Repeat All modes
Cassette recorder	Playback and recording on NORMAL (IEC I) cassettes, synchronized recording from CD
Remote control	Yes, supplied, powered by 2 AAA batteries
Headphone output	3.5 mm jack socket
Controls	Source selector OFF/TAPE/CD/FM/MW, volume, DBB (Dynamic Bass Boost)
Display	CD display: total number of tracks, track number, SHUFFLE/REPEAT/PROGRAM modes
Cleaning	Clean the cassette heads with a cotton swab moistened with alcohol after 50 hours of use; clean the CD with a soft cloth from the center to the edge
Precautions	Do not expose to moisture, rain, sand or excessive heat; ensure ventilation of at least 15 cm
Batteries	R14/UM2/C batteries (6) for the unit; AAA batteries (2) for the remote control
Environment	Packaging materials are recyclable; the appliance is recyclable by a specialized company

Frequently Asked Questions - AZ1120 PHILIPS

How to turn on the unit and select the source?

Use the source selector (OFF / TAPE, CD, BAND (FM/MW)) to choose the audio source. To turn off, set it to OFF/TAPE.

How to improve the bass sound?

Press the DBB (Dynamic Bass Boost) button to enhance bass.

How to play a CD?

Set the source selector to CD. Open the compartment, insert the CD with the printed side facing up, close. Press PLAY/PAUSE to start playback.

How to program tracks on the CD?

In stop mode, use SEARCH to select a track, then press CD MODE to memorize it. Repeat for up to 20 tracks. To play, press PLAY/PAUSE.

How to record from CD to cassette?

Set the selector to CD, insert a CD and a blank cassette. Press RECORD ●, CD playback starts automatically. To pause, use PAUSE II.

How to clean the cassette deck heads?

After approximately 50 hours of use, open the compartment, press PLAY and clean the pinch rollers (C) with a cotton swab moistened with alcohol. Press PAUSE and clean the heads (A) and the capstan (B).

What to do if the CD skips tracks?

Check if the CD is scratched or dirty. Clean it from the center to the edge with a soft cloth. Deactivate SHUFFLE or PROGRAM modes if active.

How to use the remote control?

Insert two AAA batteries into the remote control. Point it at the unit's remote detector. The buttons allow you to start, stop CD playback and navigate between tracks.

What type of batteries to use and how to replace them?

Use six batteries of type R14, UM-2 or C (alkaline recommended) for the unit, and two AAA batteries for the remote control. Observe the polarity indicated in the compartment.

What to do if the unit does not turn on?

Check the volume setting, disconnect the headphones, make sure the power cord is properly connected or that the batteries are inserted correctly and not worn. In case of electrostatic discharge, unplug then reconnect after a few seconds.

USER MANUAL AZ1120 PHILIPS

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).

As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

• Connect the blue wire to the terminal marked N or coloured black.
• Connect the brown wire to the terminal marked L or coloured red.
• Do not connect either wire to the earth terminal in the plug, marked E (or 12 ) or coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires. Copyright in the U.K.:

Recording and playback of material may require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Norge

Philips Consumer Electronics

Philips, Glaslaan 2

5616 JB Eindhoven, The Netherlands

English 4

Francais 12

Espanol 20

Deutsch 28

Nederlands 36

Italiano 44

Portugues 52

Dansk 60

Svenska 68

Suomi 76

'ELAnvika 84

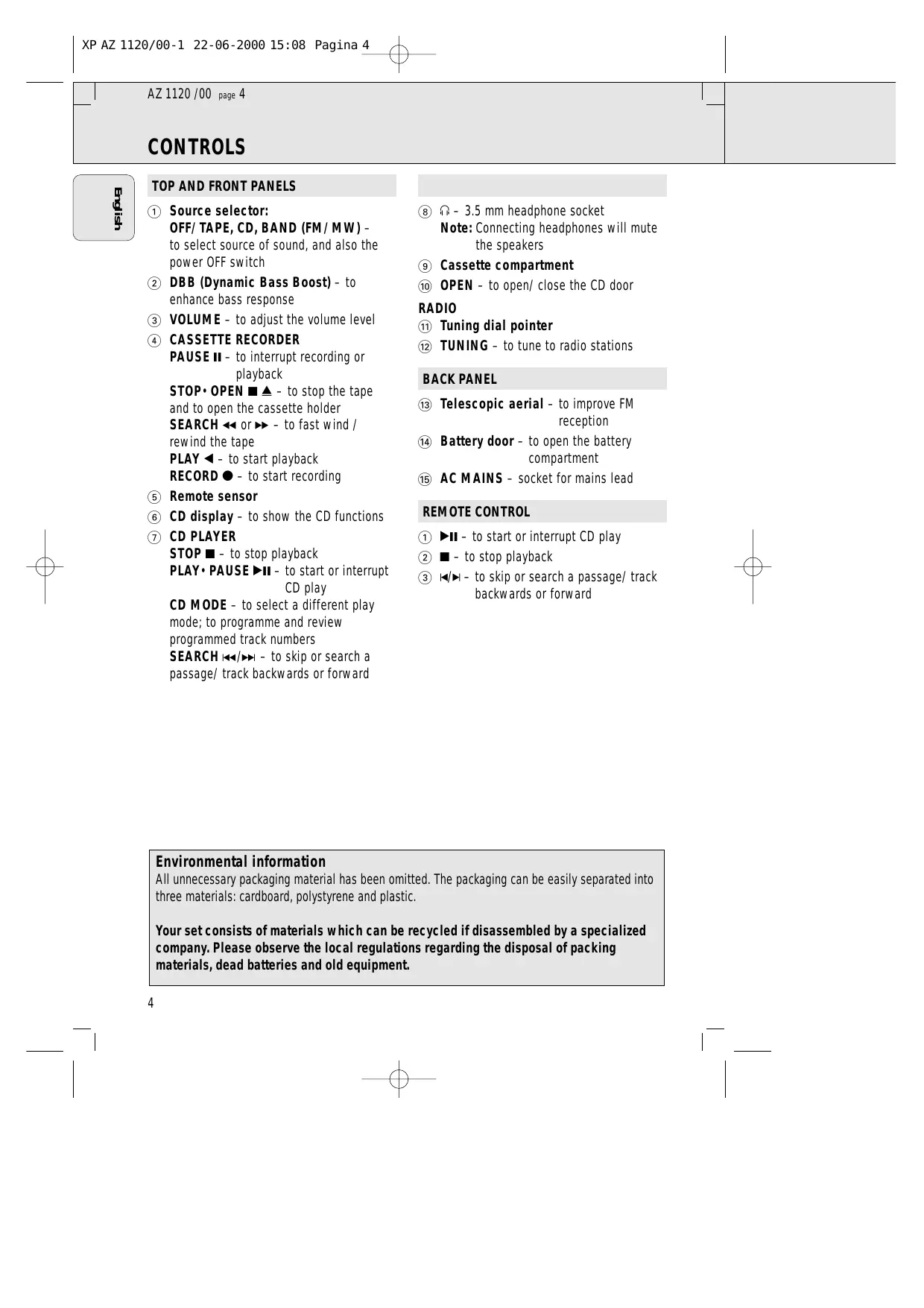

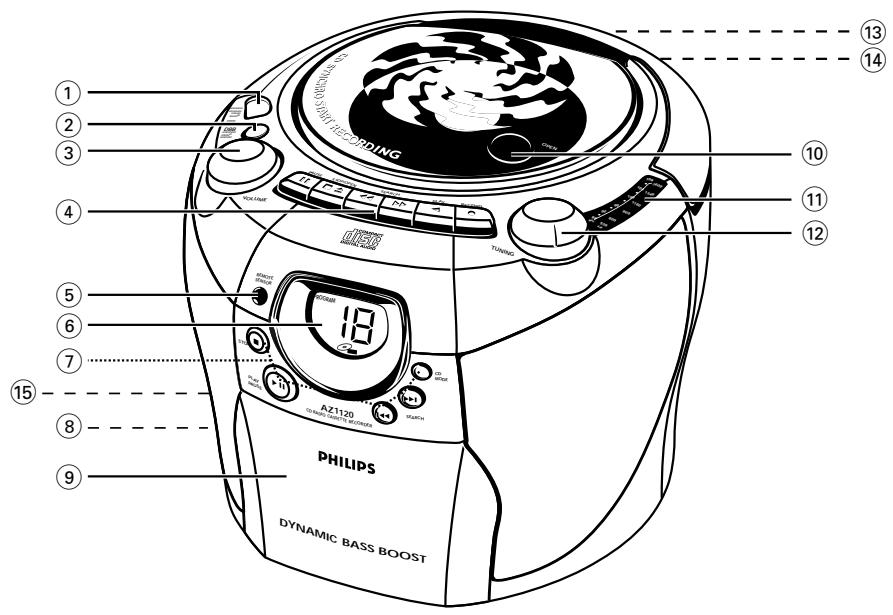

TOP AND FRONT PANELS

① Source selector: OFF/ TAPE, CD, BAND (FM/ MW) – to select source of sound, and also the power OFF switch
② DBB (Dynamic Bass Boost) - to enhance bass response
③ VOLUME - to adjust the volume level
4 CASSETTE RECORDER PAUSE II - to interrupt recording or playback

STOP·OPEN ▲- to stop the tape and to open the cassette holder

SEARCH or - to fast wind / rewind the tape

PLAY - to start playback

RECORD - to start recording

⑤ Remote sensor
⑥ CD display - to show the CD functions
⑦ CD PLAYER

STOP - to stop playback

PLAY·PAUSE ▶ - to start or interrupt CD play

CD MODE - to select a different play mode; to programme and review programmed track numbers

SEARCH - to skip or search a passage/ track backwards or forward

⑧ H - 3.5mm headphone socket

Note: Connecting headphones will mute the speakers

Cassette compartment
10 OPEN - to open/ close the CD door

RADIO

① Tuning dial pointer
12 TUNING - to tune to radio stations

BACK PANEL

13 Telescopic aerial - to improve FM reception
14 Battery door - to open the battery compartment
15 AC MAINS - socket for mains lead

REMOTE CONTROL

① ▶II - to start or interrupt CD play
(2) - to stop playback
(3) - to skip or search a passage/ track backwards or forward

Environmental information

All unnecessary packaging material has been omitted. The packaging can be easily separated into three materials: cardboard, polystyrene and plastic.

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, dead batteries and old equipment.

Whenever convenient, use the power supply if you want to conserve battery life. Make sure you remove the plug from the set and wall socket before inserting batteries.

BATTERIES (OPTIONAL)

1. Open the battery compartment and insert six batteries, type R-14, UM-2 or C-cells, (preferably alkaline) with the correct polarity as indicated by the "+" and "-" symbols inside the compartment.

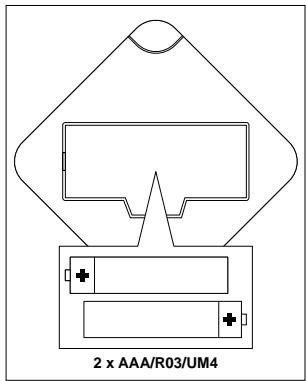

Remote control (supplied)

Open the battery compartment and insert two batteries, type AAA, R03 or UM4 (preferably alkaline).

1. Replace the compartment door, making sure the batteries are firmly and correctly in place. The set is now ready to operate.

2. Incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst. Therefore:

3. Do not mix battery types, e.g. alkaline with carbon zinc. Only use batteries of the same type for the set.

4. When inserting new batteries, do not try to mix old batteries with the new ones.
5. Remove the batteries if the set is not to be used for a long time.

Note: The battery supply is switched off when the set is connected to the mains.

Batteries contain chemical substances, so they should be disposed of properly

For users in the U.K.: please follow the instructions on page 2.

Using the AC MAINS

1. Check if the mains voltage as shown on the type plate located on the base of the set, corresponds to your local power supply. If it does not, consult your dealer or service centre.
2. Connect the mains lead to the MAINS socket and the wall socket. The power supply is now connected and ready for use.
3. To switch off completely, withdraw the mains lead from the wall socket.
4. Disconnect the mains lead from the wall socket to protect your set during heavy thunderstorms.

Radio reception

1. To select the desired wavereange, set the source selector to FM/MW.
2. Tune to a radio station using the tuning knob.
3. For FM, pull out the telescopic aerial. Incline and turn the aerial. Reduce its length if the signal is too strong (very close to a transmitter).
4. For MW, the set is provided with a built-in aerial so the telescopic aerial is not needed. Direct the aerial by turning the whole set.
5. Adjust the sound using the VOLUME and DBB controls.
6. To switch off the radio, adjust the source selector to the OFF/ TAPE position (with the cassette keys released).

CD PLAYER

Display indication for CD functions:

• Total track number: in stop mode
• Current track number: during CD play
• Current track number flashes when on PAUSE
• SHUFFLE/ REPEAT: modes: when the respective mode is activated
• PROGRAM: when active: also appears briefly when you store a track
• no disc/ error in CD operation or with the CD (see Troubleshooting)
• F : programme memory full

Playing a CD

1. Set the source selector to CD.
2. To open the CD door, press OPEN on the CD door.
3. Insert a CD with the printed side facing up and press the CD door gently close.
4. The CD player scans the contents of the CD and the total number of tracks is shown.
5. Press PLAY·PAUSE on the set/ remote control to start playback.
6. Adjust the sound using theVOLUME and DBB controls.
7. To interrupt playback press PLAY·PAUSE II. To resume, press PLAY·PAUSE II again.
8. To stop CD play, press STOP on the set/remote control.
9. To switch off the set, adjust the source selector to the OFF/ TAPE position (with the cassette keys released).

Note: CD playback will also stop when:

• you press the CD door open;
• the source selector is in OFF/ TAPE or FM/ MW position;
• the CD has reached the end.

Selecting a different track

During playback, you can use the SEARCH keys to select a particular track.

• If you have selected a track number in the stop or pause position, press PLAY·PAUSE▶II to start playback.
• Press SEARCH once for the next track, or press repeatedly until the desired track number appears in the display.
• Press SEARCH once to return to the beginning of a current track.
• Press SEARCH more than once for a previous track.

Finding a passage within a track

1. Press and hold down SEARCH or .
2. The CD is played at high speed and low volume.
3. When you recognize the passage you want, release SEARCH.

CD MODE: SHUFFLE and REPEAT

The CD MODE button allows you to select 4 different play modes. The modes can be selected or changed during playback.

• SHUFFLE - all tracks are played in random order.
  SHUFFLE REPEAT ALL

• repeats the entire CD in random order.

• REPEAT - plays the current track continuously.

• REPEAT ALL - repeats the entire CD

• During playback, select your play mode by pressing CD MODE once or more until the desired play mode is shown.

• You can use SEARCH or to skip tracks during CD MODE playback.

• To return to normal playback press the CD MODE until the SHUFFLE/ REPEAT modes is no longer shown in the display.

• You can also press STOP to quit the play mode.

CD MODE: Programming track numbers

You may store up to 20 tracks in the desired sequence. If you like, store any track more than once.

1. In the STOP position, press SEARCH or for your desired track.
2. When your chosen track number appears, press CD MODE once to store the track.
3. The display shows 'P' briefly & PROGRAM followed by your selected track number.
4. Repeat steps 1. and 2. to select and store all desired tracks in this way.

To review your set programme

• In the stop position, press and hold down CD MODE for more than one second.
• The display shows all your stored track numbers in sequence.
  To play your programme press PLAY·PAUSE II.

Erasing a programme

You can erase the contents of the memory by:

• pressing the CD door open;
• moving the source selector position;
• pressing STOP twice during playback/ in the stop position.
• The display shows 'n o' briefly and PROGRAM will disappear when the programme is cancelled.

PLAYING A CASSETTE

1. Set the source selector to TAPE.
2. Press STOP-OPEN to open the cassette holder and insert a cassette.
3. Press the cassette holder shut.
4. Press PLAY to start playback.
5. Adjust the sound using the VOLUME and DBB controls.
6. To interrupt playback press PAUSE II. To resume, press the key again.
7. By pressing or , fast winding of the tape is possible in both directions. To stop fast winding, press STOP·OPEN ▲.
8. To stop the tape, press STOP·OPEN ▲
9. The keys are automatically released at the end of the tape, except if PAUSE II has been activated.
10. With the source selector in OFF/ TAPE position, the set is switched off when all the cassette keys are released.

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of third parties are not infringed.
• This deck is not suited for recording on CHROME (IEC II) or METAL (IEC IV) type cassettes. For recording, use only NORMAL type cassettes (IEC I) on which the tabs have not been broken.
• The best recording level is set automatically. Altering the VOLUME and DBB controls will not affect the recording in progress.
• At the very beginning and end of the tape, no recording will take place during the 7 seconds, when the leader tape passes the recorder heads.
• To protect a tape from accidental erasure, have the tape in front of you and break out the left tab. Recording on this side is no longer possible. To record over this side again, cover the tabs with a piece of adhesive tape.

Synchro Start CD recording

1. Set the source selector to CD.
2. Insert a CD and if desired, programme track numbers.
3. Press STOP·OPEN ▲ to open the cassette holder. Insert a blank tape.
4. Press the cassette holder shut.
5. Press RECORD to start recording.
6. Playing of the CD programme starts automatically from the beginning of the programme. It is not necessary to start the CD player separately.
7. For brief interruptions press PAUSE II. To resume recording, press PAUSE II again.
8. To stop recording, press both STOP·OPEN ▲

To select and record a particular passage

During CD playback, press and hold down the SEARCH buttons

or to find your passage.

• Press PLAY*PAUSE to put the CD player on pause at the selected passage.
• Recording will begin from this exact point in the track when you press RECORD .

Recording from the radio

1. Set the source selector to FM/MW.
2. Tune to the desired radio station using (see RADIO RECEPTION).
3. Press STOP-OPEN ▲ to open the cassette holder. Insert a blank tape
4. Press the cassette holder shut.

1. Press RECORD to start recording.
2. For brief interruptions, press PAUSE II. To resume recording, press PAUSE II again.
3. To stop recording, press STOP·OPEN ▲

PRECAUTIONS AND SYSTEM MAINTENANCE

• Place the set on a hard, flat surface so that the system does not tilt.
• Do not expose the set, batteries, CDs or cassettes to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.
• Do not cover the set. Adequate ventilation with a minimum gap of 15cm between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up.
• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.
• To clean the set, use a soft, slightly dampened chamois leather. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

Tape deck maintenance

To ensure quality recording and playback of the tape deck, clean parts A, B and C shown in the diagram below, after approx. 50 hours of operation, or on average once a month. Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean both decks.

1. Open the cassette holder by pressing STOP-OPEN ▲
2. Press PLAY and clean the rubber pressure rollers (C).
3. Press PAUSE II and clean the magnetic heads (A) and also the capstan (B).
4. After cleaning, press STOP·OPEN ▲

CD player and CD handling

• The lens of the CD player should never be touched!
• Sudden changes in the surrounding temperature can cause condensation to form and the lens of your CD player to cloud over. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.
• Use only Digital Audio CDs.
• To take a CD out of its box, press the centre spindle while lifting the CD. Always pick up the CD by the edge and replace the CD back in its box after use to avoid scratching and dust.
• To clean the CD, wipe in a straight line from the centre towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.
• Never write on a CD or attach any stickers to it.

If a fault occurs, first check the points listed below before taking the set for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre. WARNING: Do not open the set as there is a risk of electric shock! Under no circumstances should you try to repair the set yourself, as this would invalidate the warranty.

PROBLEM

• POSSIBLE CAUSE
• REMEDY

No sound/power

VOLUME is not adjusted
- Adjust the VOLUME
- Headphones connected
- Disconnect headphones
- Mains lead not securely connected
- Connect AC mains lead properly
- Batteries exhausted/ incorrectly inserted
- Insert (fresh) batteries correctly

Display does not function properly/ No reaction to operation of any of the controls

• Electrostatic discharge
• Switch off set, disconnect the mains plug and reconnect after a few seconds

CD playback does not work

• CD is badly scratched/ dirty
• Replace/ clean CD (see maintenance)
• Laser lens steamed up
• Wait until lens has acclimatized

The CD skips tracks

• CD is damaged or dirty
• Replace or clean the CD
• SHUFFLE or PROGRAM is active
• Quit SHUFFLE/PROGRAM mode(s)

Poor cassette sound quality

• Dust and dirt on the heads, etc.
• Clean deck parts etc., see Maintenance
• Use of incompatible cassette types (METAL or CHROME)
• Only use NORMAL (IEC I) for recording

Recording does not work

• Cassette tab(s) may be broken
• Apply a piece of adhesive tape over the missing tab space

Remote control does not function properly

• Batteries exhausted/ incorrectly inserted
• Insert (fresh) batteries correctly
• Distance/ angle between the set too large
• Reduce the distance/ angle

PANNEAU SUPÉRIEUR ET AVANT

CD player and CD handling

• CAUSE POSSIBLE
• REMEDE

Display indication for CD functions:

• POSIBLE CAUSA
• REMEDIO

• POSSIBLE CAUSA
  RIMEDIO
