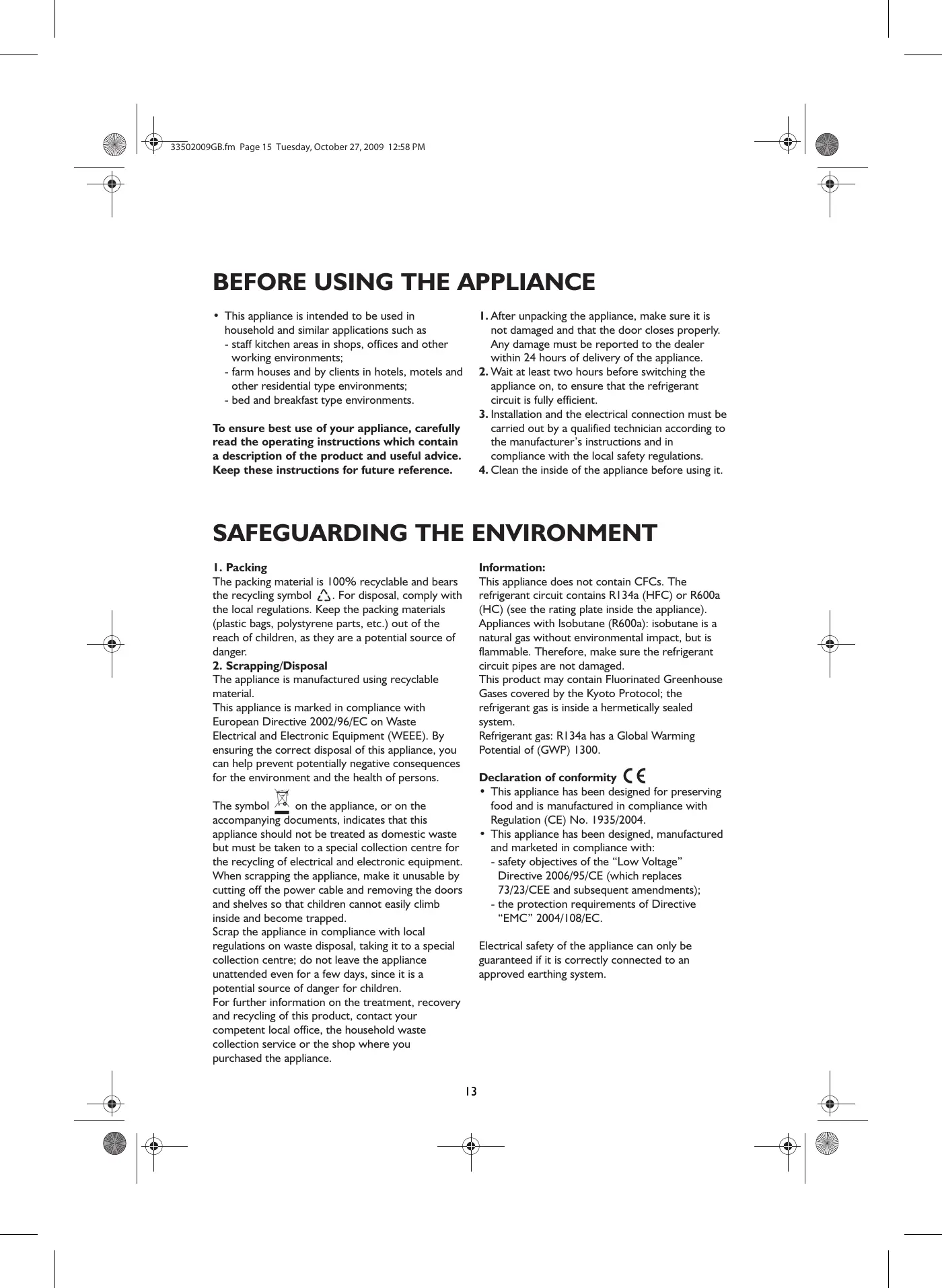

BEFORE USING THE APPLIANCE

• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

To ensure best use of your appliance, carefully read the operating instructions which contain a description of the product and useful advice. Keep these instructions for future reference.

I. After unpacking the appliance, make sure it is not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the appliance.
2. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.
3. Installation and the electrical connection must be carried out by a qualified technician according to the manufacturer's instructions and in compliance with the local safety regulations.
4. Clean the inside of the appliance before using it.

SAFEGUARDING THE ENVIRONMENT

I. Packing

The packing material is 100% recyclable and bears the recycling symbol ⬆. For disposal, comply with the local regulations. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material.

This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct disposal of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons.

The symbol 📋 on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a special collection centre for the recycling of electrical and electronic equipment. When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside and become trapped.

Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children.

For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance.

Information:

This appliance does not contain CFCs. The refrigerant circuit contains R134a (HFC) or R600a (HC) (see the rating plate inside the appliance). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged.

This product may contain Fluorinated Greenhouse Gases covered by the Kyoto Protocol; the refrigerant gas is inside a hermetically sealed system.

Refrigerant gas: RI34a has a Global Warming Potential of (GWP) 1300.

Declaration of conformity CE

• This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.
• This appliance has been designed, manufactured and marketed in compliance with:
• safety objectives of the “Low Voltage” Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments);
• the protection requirements of Directive "EMC" 2004/108/EC.

Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system.

PRECAUTIONS AND GENERAL RECOMMENDATIONS

INSTALLATION

• The appliance must be handled and installed by two or more persons.
• Be careful not to damage the floors (e.g. parquet) when moving the appliance.
• During installation, make sure the appliance does not damage the power cable.
• Make sure the appliance is not near a heat source.
• To guarantee adequate ventilation, leave a space on both sides and above the appliance and follow the installation instructions.
• Keep the appliance ventilation openings free.
• Do not damage the appliance refrigerant circuit pipes.
  • Install and level the appliance on a floor strong enough to take its weight and in a place suitable for its size and use.
• Install the appliance in a dry and well-ventilated place. The appliance is arranged for operation in places where the temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class	Amb. T. (°C)	Amb. T. (°F)
SN	From 10 to 32	From 50 to 90
N	From 16 to 32	From 61 to 90
ST	From 16 to 38	From 61 to 100
T	From 16 to 43	From 61 to 110

• Make sure the voltage specified on the rating plate corresponds to that of your home.
• Do not use single/multi adapters or extension cords.
• For the water connection, use the pipe supplied with the new appliance; do not reuse that of the previous appliance.
• Power cable modification or replacement must only be carried out by qualified personnel or by After-sales Service.
• It must be possible to disconnect the appliance from the power supply by unplugging it or by means of a mains two-pole switch installed upstream of the socket.

SAFETY

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions.
• Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.
• Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the appliance.
• Do not swallow the contents (non-toxic) of the ice packs (in some models).
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

USE

• Before carrying out any maintenance or cleaning operation, unplug the appliance or disconnect it from the power supply.
• All appliances equipped with an automatic ice-maker and water dispenser must be connected to a water supply that only delivers drinking water (with mains water pressure of between 0.17 and 0.81 Mpa (1.7 and 8.1 bar)). Automatic ice-makers and/or water dispensers not directly connected to the water supply must be filled with drinking water only.
• Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• Do not store glass containers with liquids in the freezer compartment since they may break.
• Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.
• "The bulb used inside the appliance is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009)".

The Manufacturer declines any liability if the above advice and precautions are not respected.

HOW TO USE THE FREEZER

The freezer can be used for storing already frozen food and for freezing fresh food.

Switching on the freezer for the first time

• There is no need to set the freezer temperature on the thermostat because the appliance is already factory set.
• Plug in the appliance.
• Only place food in the freezer 2 hours after switching on.

Adjusting temperature

From MIN to MAX: make the internal temperature colder.

• Thermostat setting indicator:

MIN - for storing food for short periods;

NORMAL - for storing food for longer periods;

MAX - for storing food for long periods.

Note:

Ambient air temperature, the frequency of door opening and the position of the appliance can affect the freezer internal temperature.

Take these factors into consideration when setting the thermostat knob.

Freezing

Place the amount of fresh food indicated on the rating plate in the middle compartment. Take care not to place the food directly in contact with food already frozen.

It is advisable to maintain the thermostat position used in normal operation.

Important:

When freezing only small amounts of food, the food can be placed in any compartment, with the exception of the bottom drawer.

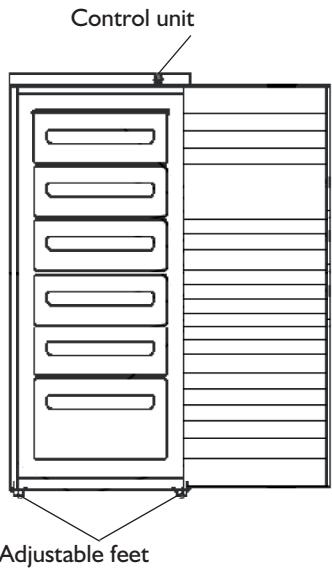

Control unit Adjustable feet

Control unit

NORMAL MIN MAX

Tips for freezing and storing fresh food.

• Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
• Food must be fresh and of prime quality.
• Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavour.

Note:

• Always leave hot food to cool before placing in the freezer.
- Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen.

Important:

The table alongside shows the recommended maximum storage time for frozen fresh foods.

Classification of frozen foods

Put the frozen products into the freezer and classify them. The storage date should be indicated on the packs, to allow use within expiry dates.

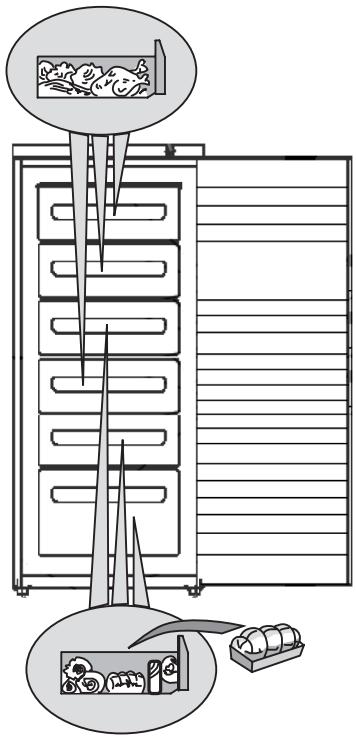

Advice for storing frozen food

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Once at home, place the frozen foods immediately in the freezer.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.
• Always observe the storage guidelines on the frozen food packages.

Diagram illustrating a food processing or processing process with labeled components and directional arrows

MONTHS	FOOD
1-3
4-7
8-12		[###]	[###]

Removing the baskets

- Pull the baskets out fully, then lift them up slightly in order to remove.

Note:

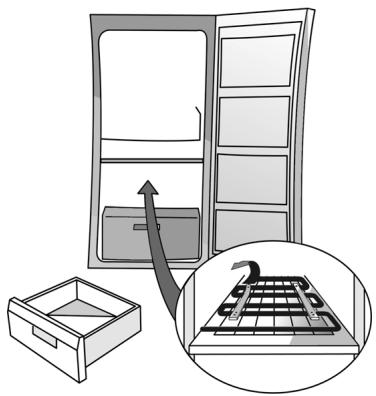

Drawers may be removed in order to obtain increased storage space.

Ensure that the load does not exceed the limit (if present) indicated on the side walls of the appliance.

Making ice cubes

• Fill the ice cube tray 2/3 full and place it in the special freezer compartment.
• Do not use sharp or pointed instruments to detach the tray if it is stuck to the bottom of the freezer.
• Bend the ice tray slightly to remove the cubes.

Note:

The freezer door will not re-open easily immediately after closing. Wait a few minutes before opening again in order to allow for compensation of the vacuum created.

Illustration of a refrigerator with an arrow pointing to its side, and a magnified inset showing the exterior wall structure (no text or symbols)

Fig. I

HOW TO DEFROST AND CLEAN THE FREEZER

Before any cleaning or maintenance operation, always unplug the appliance or disconnect it from the power supply.

Defrost the freezer once or twice a year, or when the formation of ice on the refrigeration grilles is excessive.

It is perfectly normal for ice to form on the grilles. The amount of ice which forms and the rate at which it accumulates will depends on room temperature and humidity, and on the frequency with which the door is opened.

If possible, defrost the freezer when it is nearly empty.

• Remove the food from the freezer, wrap in newspaper and group together in a cool place or in a portable cooler.
• Leave the freezer door open to allow the frost to melt.
• Clean the interior of the freezer with a sponge and warm water and/or neutral detergent. Do not use abrasive substances.
• Rinse the interior and dry thoroughly.
• Put the food back into the freezer.
• Close the freezer door.
• Plug in the appliance once again.
• Switch on the freezer.

CLEANING AND MAINTENANCE

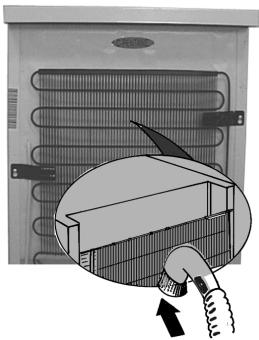

Periodically clean the condenser at the rear of the appliance with a vacuum cleaner or brush.

Prolonged disuse

• Empty the freezer.
• Disconnect the freezer from the mains power supply.
• Defrost and clean.
• Leave the door open to prevent formation of unpleasant odours and to eliminate any dampness.

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

TROUBLESHOOTING GUIDE

I. The appliance is not working.

• Is there a power failure?
• Is the main power switch on?
- Do the household electrical system protection devices work correctly?
• Is the thermostat setting correct?
- Was the appliance switched on correctly?

2. Excessive frost build-up.

• Has the defrost water drain been positioned correctly?
  • Is the door shut properly?

AFTER-SALES SERVICE

Before contacting the After-Sales Service:

I. See if you can solve the problem yourself (see "Troubleshooting guide").
2. Switch the appliance off and then on again to see if the problem has been solved. If it has not, switch off the appliance again and repeat the operation after one hour.
3. If the problem persists after this course of action, contact After-sales Service.

Specify:

• the nature of the fault,
• the model,

Attention:

• The front edge of the appliance may be hot. This prevents the formation of condensation and is not a defect.

• Gurgling and hissing noises due to expansion in the refrigerant circuit are normal.

• The Service number (the number after the word SERVICE on the rating plate inside the appliance),

• Your full address,
• Your telephone number and area code.

SERVICE 0000 000 00000

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty. The door cannot be reversed on models with front handle.

INSTALLATION

• Install the appliance away from heat sources. Installation in a hot environment, direct exposure to the sun or installation near heat sources (heaters, radiators, cookers) will increase power consumption and should therefore be avoided.
• If this is not possible, the following minimum distances must be respected:
• 30 cm from coal or paraffin stoves;
• 3 cm from electric and/or gas stoves.
• To optimize appliance efficiency, leave a 5 cm gap above the appliance and make sure that adjacent kitchen units are sufficiently distanced to allow air circulation.
• Install the appliance in a dry, well-ventilated place, and ensure it is level, using the front adjustment feet if necessary.
• Clean the interior.
• Fit the accessories.

Electrical connection

• Electrical connections must be made in accordance with local regulations.
• Voltage and power consumption are indicated on the rating plate inside the appliance.
• Regulations require that the appliance be earthed. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders.
• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.
• Do not use extension leads or adapters.

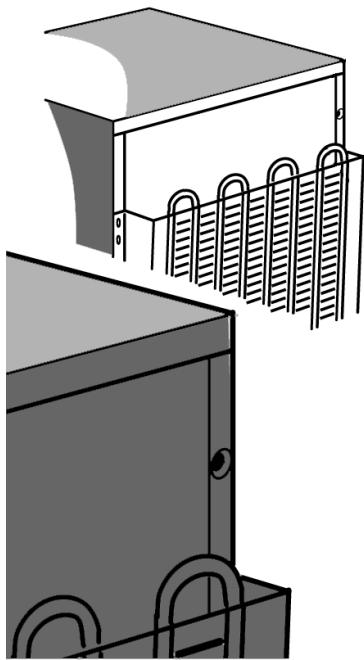

Disconnecting the appliance

It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket.

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

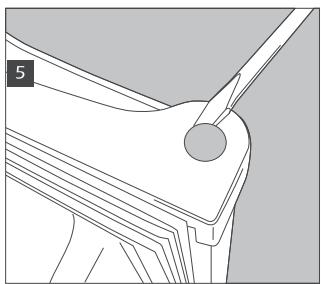

DOOR REVERSIBILITY

The direction of door opening of your freezer can be changed.

• Make sure that the freezer is not connected to the power supply and that it is empty.
• Reversing the direction of door opening is a task which requires two people.

Tools required

• Phillips style screwdriver
- Flat bladed screwdriver
• 8 mm and 10 mm socket or spanner.

Lay the fridge/freezer on its back in order to gain access to the base, being careful not to tip it back by more than 45^ . Rest it on the soft foam packaging or similar material to avoid damaging the cooling pipes at the rear of the appliance.

Remove the two screws on the rear of the fridge/freezer. Lift the top off the fridge/freezer.

Use the 8 mm socket or spanner to remove the 2 hinge bolts. Remove the 2 bolts from the opposite side.

Remove the bracket and plastic surround. Remove and replace the pin in the bracket. Refit on the opposite side of the fridge/freezer cabinet.

Remove the blanking plug from the new hinge side and refit it on the opposite side.

Line drawing of a mechanical assembly with a labeled component (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Remove the levelling feet by unscrewing.

Remove the bottom bracket using an 8 mm socket or spanner. Remove and replace the pin, using a 10 mm socket to unscrew the nut and a flat bladed screwdriver to remove the pin. You may need to push the pin through from the underside to remove fully.

Remove the screw on the base and refit it on the other side. Remove the blanking plates from the unused side of the fridge/freezer and refit them in the holes left by the brackets. Replace the door and brackets in reverse order. When replacing the feet take care to ensure the larger foot is on the side without the bracket. Check the door is aligned horizontally and vertically and that the seal fits properly all around before tightening the bottom hinge.

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

Line drawing of a mechanical device with a square opening and mounting base (no text or symbols)

Two metallic bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

ELECTRICAL CONNECTION

I) For Great Britain only

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

I. Remove the fuse cover (A) and fuse (B).
2. Fit replacement I3A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.

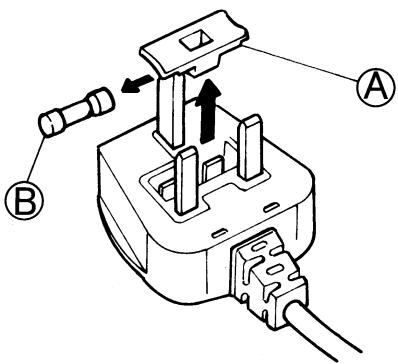

Technical diagram of a plug-in socket with labeled components A and B, showing internal structure and directional arrows.

AVANT D'UTILISER L'APPAREIL

NORMAL MIN MAX

Diagram illustrating a food processing or processing process with labeled components and directional arrows

MOIS ALIMENTS

1-3
4-7
8-12		[AXDB]	[YA06]

Illustration of a refrigerator with an arrow pointing to its side, and a magnified inset showing the exterior wall structure (no text or symbols)

Fig. I

COMMENT DÉGIVRER ET NETTOYER LE CONGÉLATEUR

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

DIAGNOSTIC

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

INVERSION DU SENS D'OUVERTURE DE LA PORTE

Line drawing of a cabinet with a hand holding a cable, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand holding a tool over a battery (no text or symbols visible)

Pure technical diagram showing a vertical rod inserted into a rectangular plate with holes, no text or symbols present

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a mechanical device with a square opening and mounting base (no text or symbols)

Two metallic bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

ALVORENS HET APPARAAT TE GEBRUIKEN

NORMAL MIN MAX

Diagram illustrating a food processing or processing process with labeled components and directional arrows

MAANDEN VOEDSEL

1-3
4-7
8-12

Illustration of a refrigerator with an arrow pointing to its door, and a magnified inset showing the exterior wall structure (no text or symbols)

Afb. I

DE VRIEZER ONTDOOIEN EN REINIGEN

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

OPSPOREN VAN STORINGEN

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

OMKEREN VAN DE DEUR

Line drawing of a mechanical assembly with a labeled component (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a mechanical device with a central opening and side-mounted ports (no text or symbols)

Two mechanical bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

MESES ALIMENTOS

1-3
4-7
8-12		[26ZZ]

Illustration of a refrigerator with an arrow pointing to its door, and a magnified inset showing the interior wall structure (no text or symbols)

Fig. I

CÓMO DESCONGELAR Y LIMPIAR EL CONGELADOR

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

Line drawing of a mechanical assembly with a labeled component (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a rectangular kitchen appliance with a square opening and side handles (no text or symbols)

Two mechanical bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

ANTES DE USAR O PRODUTO

NORMAL MIN MAX

Diagram illustrating a food processing or processing process with labeled components and directional arrows

MESES ALIMENTOS

1-3
4-7
8-12

Illustration of a refrigerator with an arrow pointing to its door, and a magnified inset showing the interior wall structure (no text or symbols)

Fig. I

COMO DESCONGELAR E LIMPAR O CONGELADOR

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

REVERSIBILIDADE DA PORTA

Line drawing of a mechanical assembly with a labeled component (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a rectangular kitchen appliance with a central sink and side handles (no text or symbols)

Two metallic bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

PRIMA DI USARE L'APPARECCHIO

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

MESI	CIBI
1-3
4-7
8-12		[ΣB+3]	[XGOS]

Illustration of a refrigerator with an arrow pointing to its side, and a magnified inset showing the exterior wall structure (no text or symbols)

Fig. I

COME SBRINARE E PULIRE IL CONGELATORE

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

GUIDA RICERCA GUASTI

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

REVERSIBILITA' PORTA

Line drawing of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a rectangular kitchen appliance with a central sink and side handles (no text or symbols)

Two mechanical bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

ΜΗΝΕΣ ΤΡΟΦΙΜΑ

1-3
4-7
8-12		[69H4]	[C60K]

Illustration of a refrigerator with an upward arrow and a magnified inset showing a grid pattern (no text or symbols)

Eik. 1

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

ΑΝΑΣΤΡΟΦΗ ΠΟΡΤΑΣ

Line drawing of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a rectangular kitchen appliance with a square opening and side handles (no text or symbols)

Two mechanical bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

INNAN APPARATEN ANVÄNDS

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

MÅNADER LIVSMEDEL

1-3
4-7
8-12		DAVWI	[THXI]

Illustration of a refrigerator with an arrow pointing to its door, and a magnified inset showing the exterior wall structure (no text or symbols)

Fig. I

AVFROSTNING OCH RENGÖRING AV FRYSEN

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

FELSÖKNING

I. Apparaten fungerar inte.

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

OMHÄNGNING AV DÖRRAR

Line drawing of a hand holding a tool above a cabinet with a window (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a mechanical device with a square opening and mounting base (no text or symbols)

Two mechanical bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

F∅R DU BRUKER APPARATET

NORMAL MIN MAX

Diagram illustrating a food processing or processing process with labeled components and directional arrows indicating flow or movement.

MÅNEDER MATVARER

1-3
4-7
8-12		[6CHO]	[TSA7]

Illustration of a refrigerator with an arrow pointing to its door, and a magnified inset showing the interior wall structure (no text or symbols)

Fig. I

AVRIMING OG RENGJ∅RING AV FRYSEREN

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

FEILS∅KINGSLISTE

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

OMHENGLING AV D∅REN

Line drawing of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a rectangular kitchen appliance with a central sink and side handles (no text or symbols)

Two mechanical bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

F∅R APPARATET TAGES I BRUG

OPLYSNINGER OM MILJ∅HENSYN

I. Emballage

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

MÅNEDER MADVARER

1-3
4-7
8-12

Illustration of a refrigerator with an arrow pointing to its side, and a magnified inset showing the exterior wall structure (no text or symbols)

Fig. I

AFRIMNING OG RENG∅RING AF FRYSEREN

Diagram of a heater panel with a magnified view showing internal structure and a tool interacting with the lid (no text or symbols present)

FEJLFINDINGSOVERSIGT

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

VENDING AF D∅REN

Line drawing of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Skru nivelleringsbenene af.

Line drawing of a rectangular kitchen appliance with a square opening and side handles (no text or symbols)

Two mechanical bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

ENNEN TUOTTEEN KÄYTTÖÖNOTTOA

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

KK	RUOKALAJI
1-3
4-7
8-12			[YBKG]

Korien poistaminen

Illustration of a refrigerator with an arrow pointing to its side, and a magnified inset showing the exterior wall structure (no text or symbols)

Kuva I

PAKASTIMEN SULATUS JA PUHDISTUS

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

VIANMÄÄRITYS

I. Laite ei toimi.

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

OVEN KÄTISYYS

Line drawing of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a rectangular kitchen appliance with a square opening and side handles (no text or symbols)

Two mechanical bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

NORMAL MIN MAX

Diagram illustrating a food processing or processing process with labeled components and directional arrows

MIESIĄCE PRODUKTY

1-3
4-7
8-12		[X二8H]	[YX26]

Wyjmowanie szuflad

Illustration of a refrigerator with an arrow pointing to its door, and a magnified inset showing the exterior wall structure (no text or symbols)

Rys.1

JAK ODSZRONIĆ I WYCZYŚCIĆ ZAMRAŻARKE

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

INSTRUKCJA WYSZUKIWANIA USTEREK

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

ZMIANA KIERUNKU OTWIERANIA DRZWI

Line drawing of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a rectangular kitchen appliance with a central sink and side handles (no text or symbols)

Two mechanical bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

PŘED PRVNÍM POUŽITÍM SPOTŘEBIČE

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

MĚSÍCE POTRAVINY

1-3
4-7
8-12

Vyjmutí zásuvek

Illustration of a refrigerator with an arrow pointing to its door, and a magnified inset showing the interior wall structure (no text or symbols)

obr. 1

JAK ODMRAZOVAT A ČISTIT MRAZNIČKU

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

JAK ODSTRANIT PORUCHU

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

ZMĚNA STRANY OTEVÍRÁNÍ DVEŘÍ

Line drawing of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a rectangular kitchen appliance with a central sink and side handles (no text or symbols)

Two mechanical bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

PRED UVEDENÍM SPOTREBIČA DO ČINNOSTI

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

MESIACE POTRAVINY

1-3
4-7
8-12			[KBZ2]

Vybratie zásuviek

Illustration of a refrigerator with an arrow pointing to its side, and a magnified inset showing the exterior wall structure (no text or symbols)

Obr. 1

AKO MRAZNIČKU ROZMRAZOVAŤ A ČISTIŤ

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

PRÍRUČKA NA ODSTRAŇOVANIE PROBLÉMOV

1. Spotrebič nefunguje.

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

ZMENA SMERU OTVÁRANIA DVERÍ

Smer otvárania dverí na mrazničke sa dá zmenit.

Line drawing of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a mechanical device with a square opening and mounting base (no text or symbols)

Two mechanical bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

A KÉSZÜLÉK HASZNÁLATA ELŐTT

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

HÓNAP	ÉTEL
1-3
4-7
8-12

A kosarak kivétele

Illustration of a refrigerator with an arrow pointing to its side, and a magnified inset showing the exterior wall structure (no text or symbols)

1. ábra

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

HIBAELHÁRÍTÁSI ÚTMUTATÓ

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

AZ AJTÓNYITÁSI IRÁNY MEGFORDÍTHATÓSÁGA

Line drawing of a cabinet with a hand holding a cable, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand holding a tool over a mechanical component (no text or symbols visible)

Pure technical diagram showing a vertical rod inserted into a rectangular plate with holes, no text or symbols present.

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a square opening and mounting base (no text or symbols)

Two mechanical bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

1-3
4-7
8-12		[0A4C]	[CS4T]

Извлечение корзин

Illustration of a refrigerator with an arrow pointing to its side, and a magnified inset showing the exterior wall structure (no text or symbols)

Рис. 1

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

Line drawing of a mechanical assembly with a lever and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a mechanical device with a square opening and mounting base (no text or symbols)

Two mechanical bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

МЕСЕЦИ		ХРАНИ
1-3
4-7
8-12

Illustration of a refrigerator with an arrow pointing to its door, and a magnified inset showing the interior scene (no text or symbols)

Фиг. 1

ОБЕЗСКРЕЖАВАНЕ И ПОЧИСТВАНЕ НА ФРИЗЕРА

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

ОБРЬЩАНЕ НА ВРАТАТА

Line drawing of a cabinet with a hand holding a cable (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal compartments (no text or symbols)

Illustration of a hand using a tool to cut or install a piece of paper (no text or symbols visible)

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a mechanical device with a square opening and mounting base (no text or symbols)

Two mechanical bracket components with mounting holes and a cylindrical pin (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

ÎNAINTE DE A FOLOSI APARATUL

NORMAL MIN MAX

Diagram illustrating a food processing or processing setup with labeled components and processing steps

LUNI	ALIMENTE
1-3
4-7
8-12

Scoaterea sertarelor

Illustration of a refrigerator with an arrow pointing to its door, and a magnified inset showing the interior wall structure (no text or symbols)

Fig. 1

DEZGHETAREA ŞI CURĂTAREA CONGELATORULULUI

Diagram of a heater panel with a hand inserting a plug into the cover (no text or symbols visible)

GHIDUL DE DETECTARE A DEFECTIUNILOR

Illustration of a cabinet with metal grilles and a curved roof, no text or symbols present

REVERSIBILITATEA UŞII

Line drawing of a hand holding a tool above a box with a window, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to cut or install a component, no text or symbols present

Pure technical diagram showing a vertical rod inserted into a horizontal surface with circular holes, no text or symbols present.

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Line drawing of a rectangular kitchen appliance with a central sink and side handles (no text or symbols)

Two mechanical bracket components with mounting holes and cylindrical pins (no text or symbols)

Pure technical line drawing of a structural joint or bracket (no text or symbols)

5019 "!" 0"' \$%
