DISHWASHER SAFETY 2

Dishwasher Safety 2

DISHWASHER MAINTENANCE AND CARE ....4

User-Maintenance Instructions ....4

Error Codes/Blinking Lights....6

INSTALLATION REQUIREMENTS....7

Tools and Parts 7

Location Requirements 10

Cabinet Opening Dimensions 10

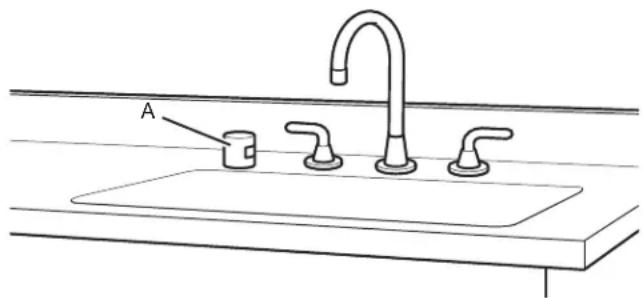

Drain Requirements 11

Water Supply Requirements.... 11

Electrical Requirements 11

INSTALLATION INSTRUCTIONS 12

Before You Begin.... 12

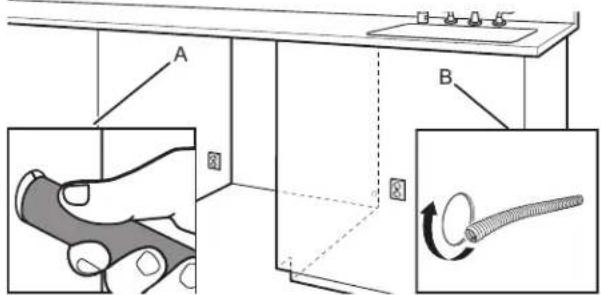

Prepare Cabinet Opening - New Utilities.... 12

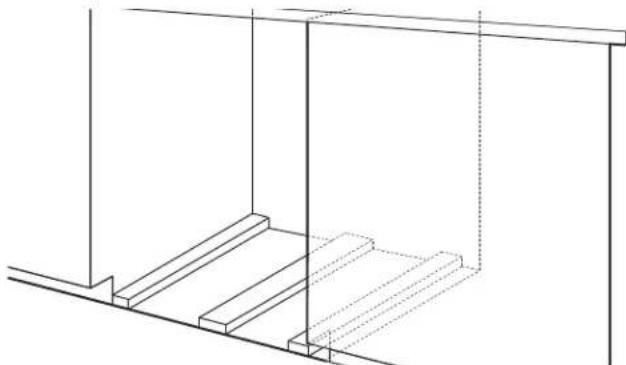

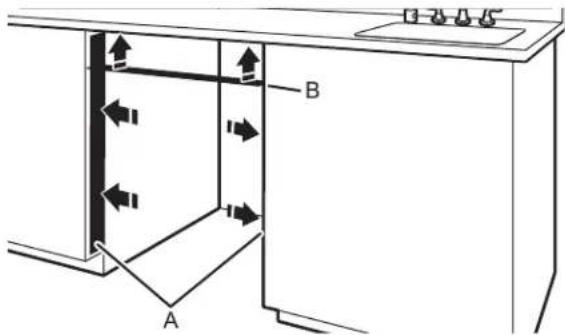

Install Moisture Barrier (Recommended for Wood

Countertops).... 13

Prepare Dishwasher.... 14

Remove Access and Toe Panels 14

Connect Water Line to Fill Valve.... 14

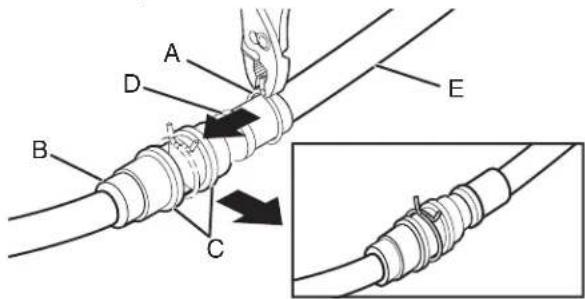

If a Drain Hose Extension is Required 15

Install Door Handle (on some models) 15

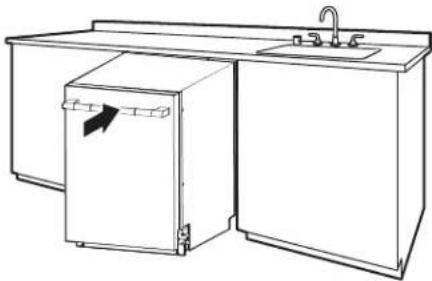

Place Dishwasher in Cabinet.... 16

Custom Panel Installation (on some models).... 17

Electrical Connection.... 18

Direct Wire Connection 19

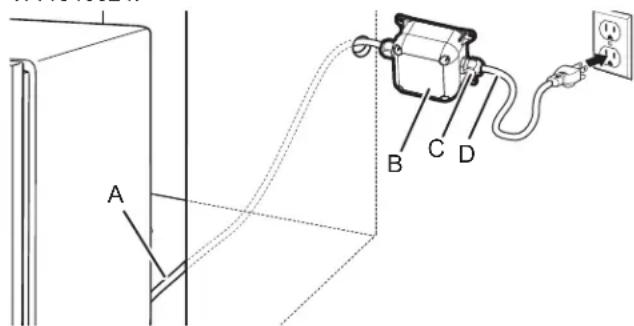

Power Cord Connection 19

Junction Box Assembly 19

Final Installation Check 21

Secure Dishwasher in Cabinet Opening.... 22

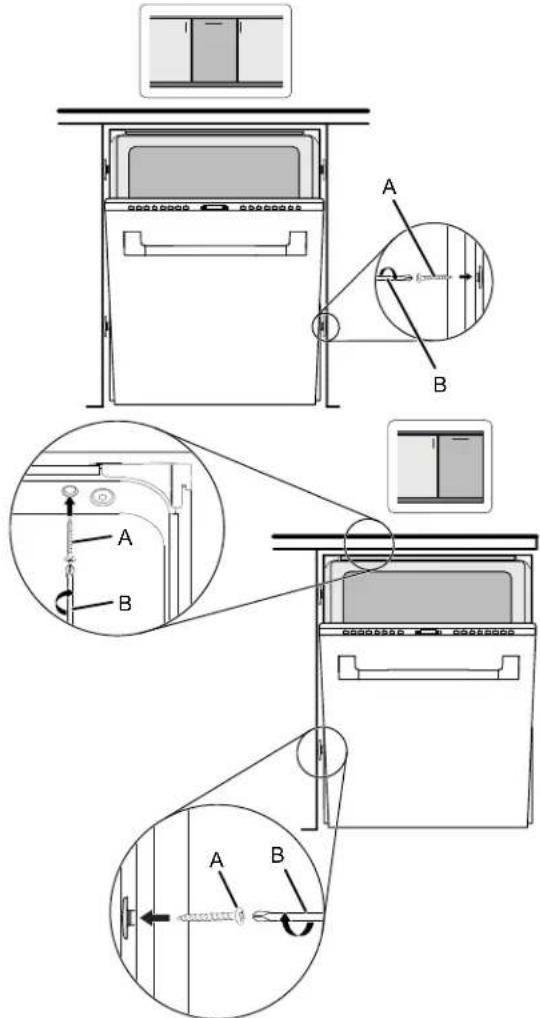

Choose Anchor Attachment Method.... 24

Connect Water Line to House Shutoff Valve.... 25

Connect Drain Hose 25

Complete Installation 27

Install Access Panel 27

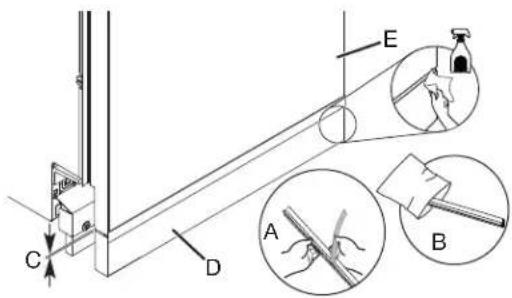

T-Gasket Installation (on some models) 28

Check Operation.... 28

If Dishwasher Does Not Operate 28

Additional Tips.... 28

SÉCURITÉ DU LAVE-VAISSELLE.... 29

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using your dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
  ■ Use the dishwasher only for its intended function.
  ■ Use only detergents or wetting agents recommended for use in a dishwasher and keep them out the reach of children.
  ■ When loading items to be washed:

• Locate sharp items so that they are not likely to damage the door seal; and

• Load sharp knives with the handles up to reduce the risk of cut-type injuries.

• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
  ■ Do not touch the heating element during or immediately after use.
  ■ Do not operate your dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.
■ To reduce the risk of injury, do not allow children to play in or on a dishwasher.
■ Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucers and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
■ Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

For a grounded, cord-connected appliance:

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinance.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance — If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected appliance:

This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

SAVE THESE INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

DISHWASHER MAINTENANCE AND CARE

User-Maintenance Instructions

Cleaning the Exterior

Clean the exterior of the dishwasher with only a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, it may have a coating that is resistant to fingerprints. Avoid using abrasive cleaning products on the exterior of the dishwasher.

Cleaning and Maintaining the Interior

Many detergents may leave white spots or a white residue on dishwasher and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh ^+ Dishwasher Cleaner can help to remove the residue. Monthly use of affresh ^ Dishwasher Cleaner is recommended to help maintain the dishwasher. Follow package directions.

Another method to remove white residue is to use a vinegar rinse. However, vinegar is an acid and using it too often could damage your dishwasher.

Place (do not pour) 2 cups (500 mL) white vinegar in a glass of dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry or an energy-saving dry option. Do not use detergent. Vinegar will mix with the wash water.

NOTE: We recommend the use of high-quality, premeasured detergent tablets or packs and the use of rinse aid for dishwash cleaning and daily care.

If you have a drain air gap, check and clean it if the dishwas not draining well.

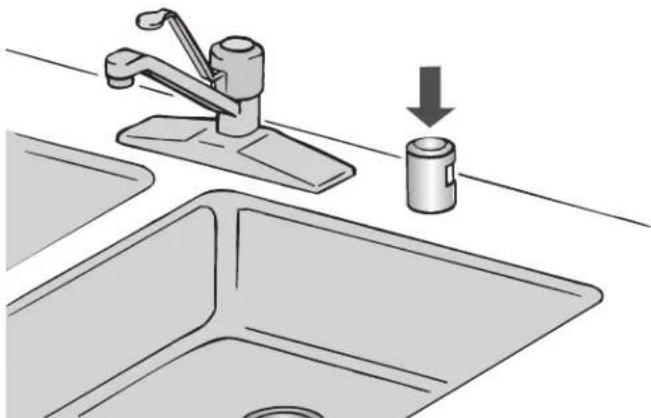

Illustration of a kitchen sink with a faucet and a cylindrical container, showing a downward arrow indicating a drop (no text or symbols present)

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use

■ When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.

■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. Damage from freezing is not covered by the warranty.

■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Setting Menu

1. Press and hold the "Hi Temp" button for 5 seconds.
2. Release "Hi Temp" and press the "Start/Resume" button within 2 seconds. If you do not press Start within 2 seconds, then the display will turn off and you will need to start over and go back to step 1.
3. To go to a feature other than Water Hardness Level, press the "Normal" button to move to the feature you would like to change (Rinse Aid Level, Sound Level, Light in Tub, Kosher Friendly, Factory Reset). See the table for what is shown on the display to indicate these features.
4. Press the "Start/Resume" button to select the feature and enter the sub-menu. The display will change to show the current setting of the feature. (For example, if you selected Sound Level and you haven't changed it before, then "S1" will show).
5. Press "Normal" button to change the value of the feature setting. (For example, if you want to turn the sound off, then press the "Normal" button and "S0" shows on display models).
6. Press the "Start/Resume" button to confirm the new selection. se. The feature setting will not be changed until the e "Start/Resume" button is pressed.

The dishwasher will return to the Off state when the Start button is pressed.

LETTER SETTING(Features varies by model)		VALUES(Default - in bold)
er-1r is	Water Hardness Level(see “SETTING THE WATER HARDNESS” and “WATER HARDNESS TABLE”)	0 | 1 | 2 | 34 | 5
[-]	Rinse Aid Level(see “ADJUSTING THE DOSAGE OF RINSE AID”)	0 | 1 | 2 | 34 | 5 | 6
[-]	Sound“1” = On, “0” = Off	1 | 0
[-]	Light in the Tub(on some models)“1” = On, “0” = Off	1 | 0
[-]	Kosher Friendly mode“1” = On, “0” = Off	1 | 0
[-]er.	Display on the floor(on some models)“1” = On, “0” = Off	1 | 0
[-]	Factory SettingsPress START/Pause to restore to the factory default all the values of the settings included in the settings menu.	-

LETTER SETTING(Features varies by model)		VALUES(Default - in bold)
er-1r is	Water Hardness Level(see “SETTING THE WATER HARDNESS” and “WATER HARDNESS TABLE”)	0 | 1 | 2 | 34 | 5
[-]	Rinse Aid Level(see “ADJUSTING THE DOSAGE OF RINSE AID”)	0 | 1 | 2 | 34 | 5 | 6
[-]	Sound“1” = On, “0” = Off	1 | 0
[-]	Light in the Tub(on some models)“1” = On, “0” = Off	1 | 0
[-]	Kosher Friendly mode“1” = On, “0” = Off	1 | 0
[-]er.	Display on the floor(on some models)“1” = On, “0” = Off	1 | 0
[-]	Factory SettingsPress START/Pause to restore to the factory default all the values of the settings included in the settings menu.	-

NOTE: Refer to the online Cycle Guide for complete cycle and setting details.

†affresh® is a registered trademark of Whirlpool, U.S.A.

Water Softening System

IMPORTANT: If you have hard water (above 15 grains) and do not have a whole house water softener, the water softener and the heating element may be damaged as a result of limescale accumulation. In such instances of hard water, the water softener in the dishwasher should be used.

The water softener reduces water hardness thereby reducing calcium buildup on the heater, inside the dishwasher, and on your dishes. Soft water also allows your detergent to operate more efficiently. This system regenerates using salt, so it is necessary re

to keep the salt reservoir filled. The regeneration process occurs as needed during a cycle to keep the water softener operating properly. The frequency of regeneration depends on the water hardness level setting. The water softener system is "OFF" by default from the factory, so if the water softener is to be used, system must be set to "ON" by selecting a water hardness level using setting menu. See water hardness setting table.

Water Hardness Setting

Determine your water hardness by obtaining information from a water quality report from your water supplier or purchase a water hardness test kit at a hardware store.

The water softening system is turned off from the factory (hardness setting "0"). To turn on your water softener, you must set the water hardness level in the "SETTING MENU" using the hardness setting value from the following "WATER HARDNESS TABLE". Once the system is turned on, the salt reservoir must be filled with special dishwasher softener salt and water.

Water Hardness Table
Level Grains per gallon (gpg)		Parts per million (ppm)
0	Water softener off (factory setting)
1	0-6 0-100
2	6-12 100-200
3	12-18 200-300
4	18-36 300-600
5	>36 >600

Filling The Salt Reservoir

The salt reservoir is located in the lower part of the dishwasher (under the lower rack on the left side). Once your water softener system is turned on, you must fill the reservoir with dishwasher softener salt and water. As the salt supply is used up with successive system regenerations, a low-salt indicator will light on the control panel indicating it's time to refill the salt. Once salt is refilled, the light will turn off.

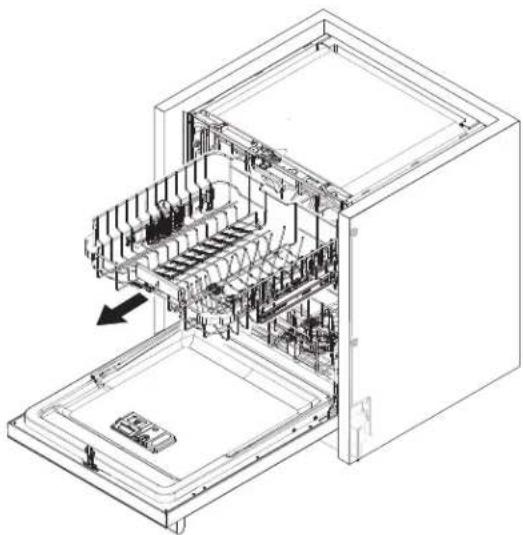

1. Remove the lower rack and unscrew the reservoir cap (by turning the cap counter-clockwise).
2. Position a funnel (comes along with your dishwasher) and fill the salt reservoir right up to its edge (approximately 0.5 kg); it is not unusual for a little water to leak out.

Line drawing of a cooking step with a bowl containing granular material and a side pot (no text or symbols)

1. If filling the reservoir for the first time, it is also necessary to fill the reservoir with water after filling with salt. When refilling salt, there is no need to add more water.
2. Remove the funnel and wipe any salt residue away from the opening. Make sure the cap is screwed on tightly so that no detergent or food can get into the reservoir during the dishwasher use (this could damage the water softener beyond repair).

IMPORTANT: Run a cycle every time as soon as you completed refilling the salt reservoir to avoid corrosion.

Cleaning the Filters

It is very easy to remove and maintain the filters. The chart below shows the recommended cleaning frequency.

Recommended Time Interval to Clean Your Filter
Number of loads per week	If you only scrape before loading*	If you scrape and rinse before loading	If you wash before loading
8–12 Every two months	Every four months	Once per year
4–7 Every two months	Once per year	Once per year
1–3 Twice per year	Once per year	Once per year

*Manufacturer's recommendation: This practice will conserve the water and energy that you would have used to prepare your dishes. This will also save you time and effort.

Very Hard Water

If you have hard water (above 15 grains) and you do not have a whole house water softener system, be sure to turn on and use the water softener in the dishwasher. Also clean your filter at least once per month. Building up of white residue on your dishwasher indicates hard water. For tips on removing spots and stains, see the online “Troubleshooting” section.

NOTE: Online references can be found in the Quick Start Guide.

Filter Removal Instructions

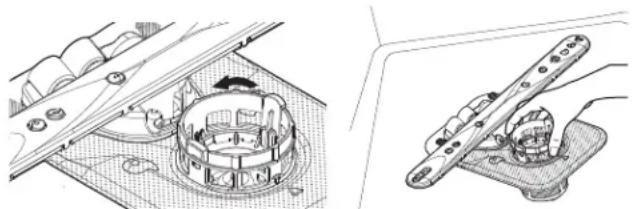

1. Turn the upper filter assembly 1/4 turn counterclockwise and lift out.
2. Separate the upper filter assembly by gently pulling apart.
3. Clean the filters as shown.

Technical line drawing of a mechanical assembly with internal components and a close-up view (no text or symbols)

Cleaning Instructions

IMPORTANT: Do not use wire brush, scouring pad, etc., as they may damage the filters.

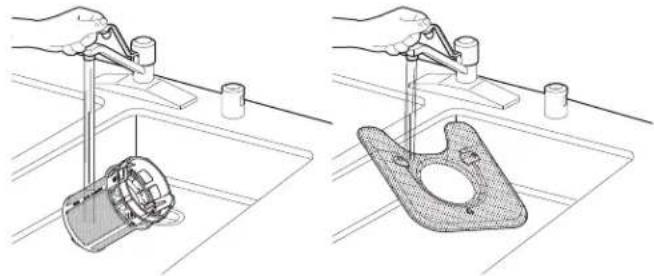

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

For more detailed instructions on how to install the filter after cleaning, watch the video by scanning the QR code:

Two technical illustrations showing hands using a tool to clean a mechanical component (no text or symbols present)

Error Codes/Blinking Lights

Issue Code	Shown(7 Seg Display)(if present)	Code Shown on Front Panel LED*(# blinks, Pause, # blinks)	What will happen? What to do?
Dishwasher fails to operate fill valve correctly	F1E1/F1E5 1	Pause 1Pause - pause, repeat	Drain sequence will begin, machine operation will be prevented.
Motor controller failure	F1E2 1 Pause	2Pause, repeat	Cycle ends. Call service.
No water present at dishwasher	H2O 8 Pause	1Pause - pause, repeat	Cycle is paused. Ensure fill hose is connected to product. Ensure water supply is turned ON. Press Start to resume cycle. alarm still present, call service.
User interface service communication fault	F6E1 6 Pause	1Pause - pause, repeat	Product will not able to start or resume cycles.
Wash motor failure	F7E2 7 Pause	1Pause, repeat/7Pause 2 Pause, repeat	Cycle ends. Call service.
Sensor detects water left in the sump	F7E3 7 Pause	3Pause - pause, repeat	Cycle ends. Call service.

Issue Code	Shown(7 Seg Display)(if present)	Code Shown on Front Panel LED*(# blinks, Pause, # blinks)	What will happen? What to do?
Dishwasher overfills	F8E4 8 Pause	4Pause - pause, repeat	Drain sequence will begin, machine operation will be prevented.	For Professional InstallersTurn off water to unit (if possible). Turn off power to unit. If the water cannot be turned off, DO NOT turn off power and keep door closed. Press Cancel key one time to silence alarm tone. Call service.For Self Installers■ Press CANCEL button twice or cycle power. This may clear the issue.■ Check to see if the wire connector is connected to the float switch on the drip tray. If the wire is off, reconnect and then hit the cancel button twice.■ Check to see if there is any water in the drip tray. If water is in the drip tray, remove the water and reinstall the drip tray. Make sure to connect the wiring to the float. Check to see where water may have leaked into the drip tray (Check the water inlet fittings to see if they are leaking).■ If water was in the tray and no leaks were found, run the product on the shortest installation cycle while checking for leaks. The access panel should be off to observe any leaks.■ If problem still exists, call for service.
Fill valve stuck on	F8E5 8 Pause	5Pause - pause, repeat	Drain sequence will begin, machine operation will be prevented.	Turn off water to unit (if possible).Turn off power to unit. If the water cannot be turned off, DO NOT turn off power and keep door closed. Press Cancel key one time to silence alarm tone. Call service.
Dishwasher will not drain	F9E1 9 Pause	1Pause - pause, repeat	Cycle ends. If drain hose is connected to a garbage disposal, confirm that drain hose is not clogged and disposal plug has been knocked out. If unit still will not drain, call service.
Variable Speed Drain Motor Fault - Locked Rotor or Not Primed	F9E3 9 Pause	3Pause - pause, repeat	Cycle ends. Call service.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the recommended tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed:

Two identical line drawings of pliers with handles, shown in side profile (no text or symbols)

Pliers Flat-blade screwdriver

Line drawing of a screwdriver with a flat blade (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flat tool with a handle and central grip (no text or symbols)

2 Phillips screwdriver Utility knife

Simple line drawing of a screwdriver with a handle and shaft (no text or symbols)

Simple line drawing of a rectangular object with three circular holes, no text or symbols present.

5/16" (8 mm) and 1/4" Small level (6.35 mm) nut drivers or hex sockets

Line drawing of a measuring tape (no text or symbols)

Measuring tape

Line drawing of a pair of eyeglasses (no text or symbols)

Safety Glasses

Line drawing of a mechanical device with internal components and connectors (no text or symbols)

Portable vacuum cleaner

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

10" (254 mm) adjustable wrench that opens to 1/8" (29 mm)

Simple line drawing of a dropper or pipette (no text or symbols)

Awl

Other Useful Items You May Need:

Simple line drawing of a flashlight with a bulb and handle (no text or symbols)

Flashlight

Simple line drawing of a bucket with handle (no text or symbols)

Bucket or Shallow pan

Line drawing of a handheld electric drill bit with trigger and cable (no text or symbols)

Oscillating Tool Sand paper

Two rectangular panels with dot patterns, no text or symbols present

[Non-Text]

Simple line drawing of a folded paper or sheet (no text or symbols)

Bath towel

Line drawing of a folded or curled fabric or scroll (no text or symbols)

Moving blanket

Line drawing of a pair of pliers (no text or symbols)

Pliers

Line drawing of a pair of pliers with labeled terminals (no text or symbols on the pliers themselves)

Wire strippers

Simple line drawing of a rolled-up sheet on a flat surface (no text or symbols)

Floor protector Laser level

Line drawing of a 3D cube-shaped device with internal components and mounting holes (no text or symbols)

Technical line drawing of a protractor and ruler (no text or symbols)

Line drawing of a handheld electric drill bit (no text or symbols)

With 1/2" (38 mm) Forstner

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Double sided adhesive

AIR

Air shim (3)
Combination square

Drill Bit, 3/4" (19 mm) Forstner

Drill Bit, and 1/16" (2.38 mm)

Drill Bit, 3/4"-2" (45-50 mm)

Forstner Drill Bit

Parts Supplied:

Two identical line drawings of a magnifying glass (no text or symbols)

Simple line drawing of a horizontal cylindrical object with two ends and a small circular mark at the top (no text or symbols)

Drain hose clamps (2) One Large (Black) and One Small (Silver)

Door handle (on some models)

Line drawing of a screw with two metal fasteners and a plus button (no text or symbols)

Technical line drawing of a mechanical device with mounting flanges and a central housing (no text or symbols)

3.5 mm x 18 mm Phillips head junction box screw (2)

Technical line drawing of a mechanical connector (no text or symbols)

Three identical conical objects with candle-like bodies, arranged horizontally (no text or symbols)

Cable fittings (2) inside the junction box

Wire nuts (3) inside the junction box

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with mounting holes and a central housing (no text or symbols)

Plastic thick spacers (4) Metal brackets (4)

Simple line drawing of a diagonal bracket or beam (no text or symbols)

Line drawing of a screw with threaded shaft (no text or symbols)

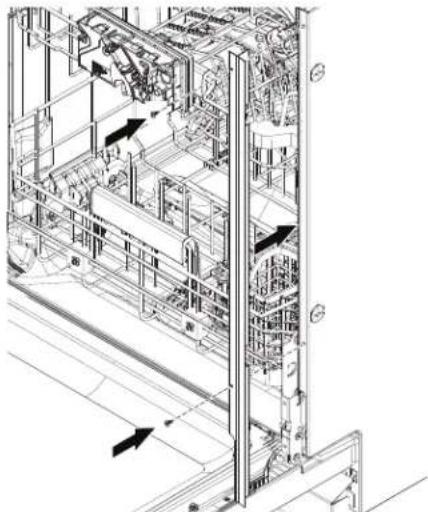

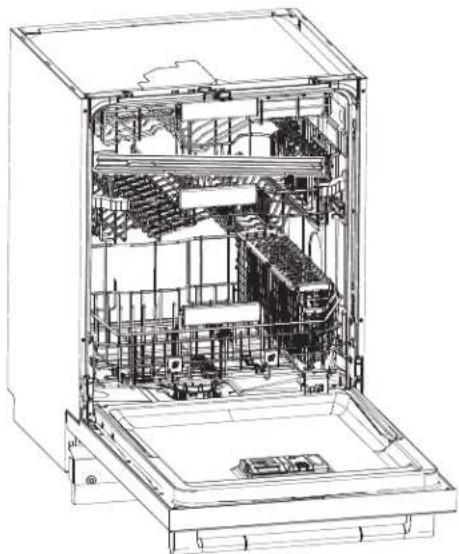

Side gap covers (2) #4 x 38 mm screws (4) for Panel ready mount

Line drawing of a mechanical connector or fitting with threaded ends and a flanged shaft (no text or symbols)

Simple line drawing of a rectangular metal profile with two notches (no text or symbols)

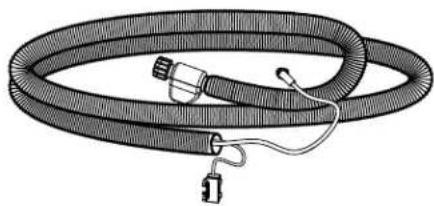

Water Inlet Adapter for hose with Leak Detection System (on some models)

Additional/tall Toe Panel shipped uninstalled at the back of the dishwasher.

Line drawing of a coiled, ribbed wire or filament (no text or symbols)

Simple geometric shape: a diagonal line inside a rectangle (no text or symbols)

Cabinet Grommet (corrugated Moisture Barrier Tape

tubing)

For 1/2" (38 mm) hole in cabinet

NOTE: Required for metal cabinets.

NOTE: Moisture barrier tape is recommended if installing a dishwasher under a wooden countertop.

Simple line drawing of a screw with threaded shaft (no text or symbols)

Simple line drawing of a conical object with a central hole and side supports (no text or symbols)

3.5 x 18 mm screws (4) for Salt funnel Cabinet mount

Pure 3D geometric shape diagram without any text, numbers, or symbols

Two identical cylindrical mechanical components with flanges, shown in line drawing style (no text or symbols)

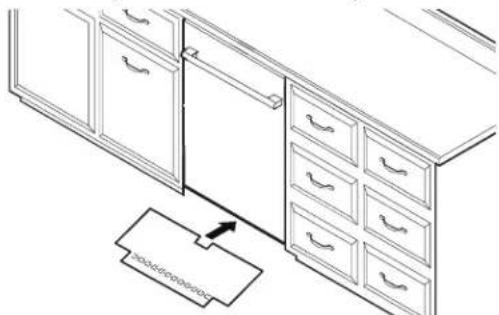

Floor insulation (on some models)

Studs (on some models)

Simple line drawing of a diagonal line with no text or symbols

T-Gasket

(on some models)

Make sure all these parts are included in the literature package.

Optional Accessory Parts Available:

Call us at our toll-free number or visit our website listed on the Quick Start Guide for optional accessory part information.

First-Time Installations

Check local codes. Check existing electrical supply. See the "Electrical Requirements" section. It is recommended that electrical connections be made by a licensed electrical installer.

Additional Parts Needed (not provided):

Illustration of a coiled cable with connectors (no text or symbols)

3/8" (9.5 mm) to 3/4" (19 mm) elbow fitting adapter with inlet hose

Whirlpool Part Number, W10278635RP, 6 ft (1.8 m) inlet hose

Whirlpool Part Number, 8212486, 12ft (3.6 m) inlet hose

Two interlocked metal rings with metal clips attached (no text or symbols)

Screw-Type Clamps

1^1/2 -2" (38 mm-50 mm) (3 maximum)

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

For Power Cord

Line drawing of a cable with a connector (no text or symbols)

Simple line drawing of a plug with three pins, no text or symbols present

Power Cord Kit

Kit typically includes power cord (Cord Kit - Straight: Whirlpool Part Number W11670634, Right Angle: Whirlpool Part Number W11546624), Cable fitting.

NOTE: The Cord Kit - Straight: Whirlpool Part Number W11670634 is recommended for most installations.

For proper installation, refer to the installation instructions provided with the kit.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

Location Requirements

Dishwasher must be fully enclosed (top, sides, back, and floor) upon installation.

An optional moisture barrier accessory is also available for installing underneath a wooden countertop.

Check location where dishwasher will be installed. The location must provide:

■ Convenient access for loading and unloading dishes. Corner locations require a 2" (51 mm) minimum clearance between the side of the dishwasher door and the wall or cabinet.
■ Easy access to water, electricity, and drain:

• Grounded electrical supply is required.
• This dishwasher has a water-heating feature and also requires a connection to a hot water supply line.
• Make sure pipes, wires, and drain hose are within the shaded area shown in the "Cabinet Opening Dimensions" section.
• Do not run drain lines, water lines, or electrical wiring where they can interfere with or contact dishwasher legs.
• Shelter dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty.

NOTE: If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by authorized service personnel.

■ A square opening for proper operation and appearance.
■ The cabinet front to be perpendicular to floor.
■ A level floor.

Helpful Hint: If floor at front of opening is not level with floor at rear of opening, shims may be used to level dishwasher. Optional alignment method using a laser square; review the product help videos.

NOTE: To avoid shifting during dishwasher operation, shims must be securely attached to the floor.
■ Do not install dishwasher over carpeted flooring.

Cabinet Opening Dimensions

Clearances

Check that all surfaces have no protrusions that would prohibit dishwasher installation.

A B C

A. 32 516 "-35 516 " (820-900 mm) measured from the lowest point on the underside of the countertop.

B. 22 116 " (560 mm) Minimum

C. 23 58 " (600 mm) Minimum, measured from narrowest point of opening.

Drain Requirements

■ A new drain hose is supplied with your dishwasher. If drain hose is not long enough, use a drain hose extension with a maximum length of 12 ft (3.7 m).

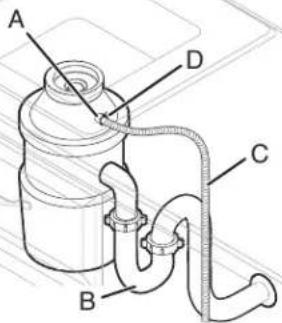

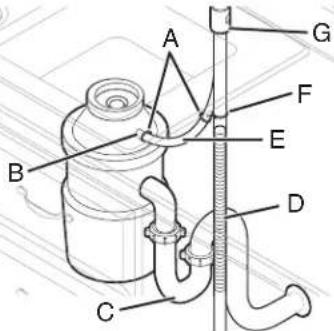

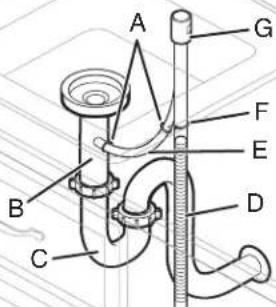

■ Make sure to connect drain hose to waste tee or disposer above drain trap in house plumbing and 20" (508 mm) minimum above the floor. It is recommended that the drain hose either be looped up and securely fastened to the underside of the counter or be connected to an air gap.

IMPORTANT: This product is not equipped with a high loop on side of the dishwasher. The installer is responsible for adding a high loop in the adjacent cabinet. A high loop is required if the dishwasher will drain into a floor drain. This prevents water draw off from the dishwasher during operation. When the drain is connected to a sink drain, counter-top air-gap or disposer, the high loop is generally not required. An check valve internal to the drain prevents back-flow into the dishwasher.

■ Make sure to use an air gap if the drain hose is connected house plumbing lower than 20" (508 mm) above subfloor or floor.

Line drawing of a kitchen sink with four faucet handles and a labeled component 'A' (no text or symbols beyond label)

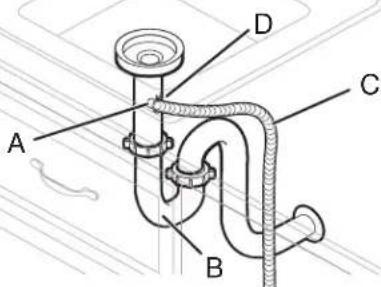

A. Air gap

If required, the air gap should be installed in accordance with the air gap installation instructions. When you are connecting the air gap, a rubber hose (not provided) will be needed to connect to the waste tee or disposer inlet.
■ Use 1/2" (12.7 mm) minimum I.D. drain line fittings.

Water Supply Requirements

This dishwasher maybe fitted with a smart inlet hose with a water cut off valve. Do not cut the water inlet hose for any reason, to install, adapt or shorten.
■ This dishwasher has a water heating feature and also requires a connection to a hot water supply line.
■ A hot water line with 20 psi to 120 psi (138 kPa to 827 kPa) water pressure can be verified by a licensed plumber.
■ 120°F (49°C) water at dishwasher
■ 3/8" (9.5 mm) O.D. tubing with compression fitting or flexible braided or non braided water supply line.
■ Included water inlet hose with Leak Detection System for some models.
■ Included 3/8" (9.5 mm) Compression x 3/4" (19 mm) Water inlet adapter (only for models with Leak Detection System).
If installed in new construction, make sure the house water supply lines have been flushed prior to connecting the dishwasher to remove any debris that may exist in the supply line.

Electrical Requirements

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances.

for a fee, a copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

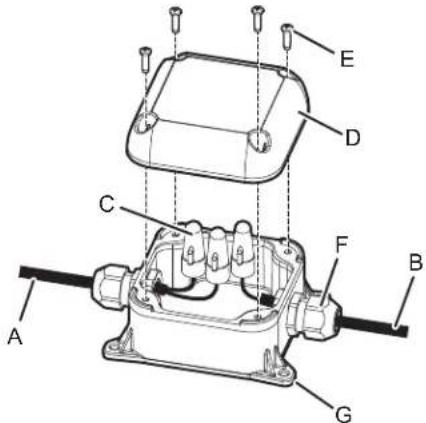

the You Must Have:

■ 120 V, 60 Hz, AC-only, 15 A or 20 A, fused electrical supply.
Copper wire only.
■ A maximum of 2 field wiring supply conductors (12 AWG largest size) plus 1 grounding conductor are permitted in the terminal box.
■ An included junction box for electrical connection.

^t We Recommend:

■ Install the dishwasher on a circuit with appropriate interrupter per your local code. The dishwasher is compatible with time delay fuses, standard circuit breakers, and GFCI and AFCI circuit breakers.

Circuit Requirement:

■ The dishwasher may be installed on the same circuit as a garbage disposal providing that the branch circuit cannot exceed rated circuit load and must comply with all governing codes and regulations such as but not limited to National Electrical Code, ANSI/NFPA 70 - latest edition.

■ No electrical connections other than the dishwasher power and ground connections can be made inside of the dishwasher junction box.

If Connecting Dishwasher with a Power Cord:

■ Use a UL-listed power cord kit marked for use with dishwasher. See the "Tools and Parts" section for part details.

- Plug into a grounded 3-prong outlet. Outlet must meet all local codes and ordinances.

If Connecting Dishwasher with Direct Wiring:

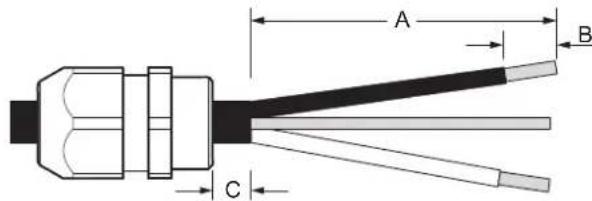

Use flexible, armored, or nonmetallie sheathed copper wire with grounding wire that meets the wiring requirements for your home and local codes and ordinances.

Use only the supplied plastic cable fittings for flexible and non-metallic sheathed wiring (Romex, etc.). Do not use metallic strain reliefs for these wire constructions.

■ Use a UL-listed/CSA-approved metallic strain relief for armored cable installations (21 mm diameter) if using armored cable. Install the strain relief per the strain relief manufacturer's installation instructions.

■ Use a UL-listed/CSA-approved metallic strain relief for flexible metal conduit installations if using flexible metal conduit. Install the strain relief per the strain relief manufacturer's installation instructions.

INSTALLATION INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

You Need To:

■ Slowly open the dishwasher door while someone grasps the rear of the dishwasher. Remove shipping materials. Place included parts and literature aside in a safe place for later. Close dishwasher door until latched.

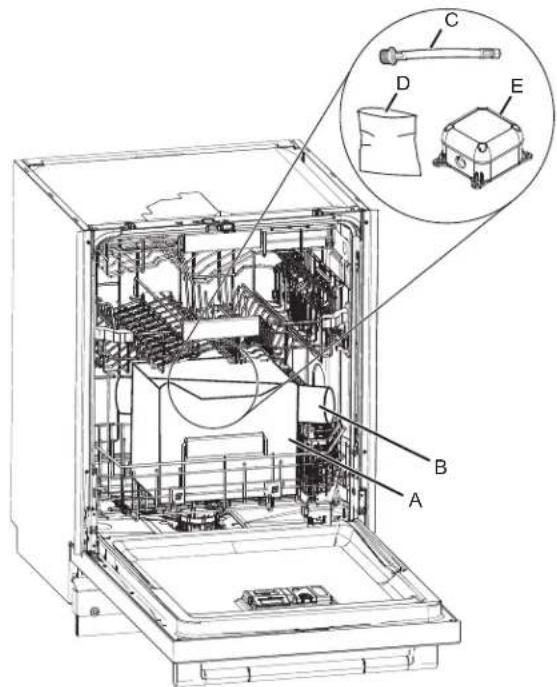

Technical diagram of a refrigerator interior with labeled components A, B, C, D, and E, including an inset view of a device.

A. Cardboard box containing the Accessories
B. Cardboard tube containing the Handle (on some models)
C. 3/8" to 3/4" (9.5 mm to 19 mm) Water Inlet Adapter
D. Assembly accessories

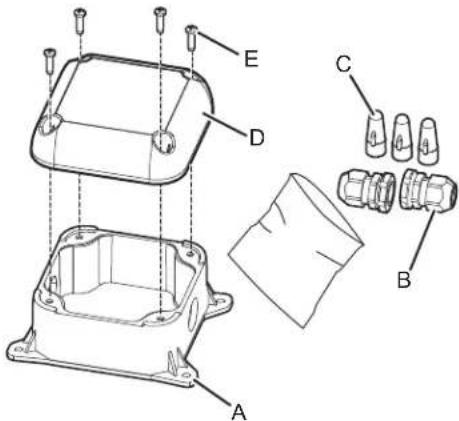

E. Junction box

IMPORTANT: Do not throw away the Cardboard box. It contains installation materials inside.

NOTE: Each dishwasher is tested at the factory and may contain some residual water in the tub as a result of the test.

■ Observe all governing codes and ordinances.
■ Install this dishwasher as specified in these instructions.
■ The dishwasher must be installed to meet all electrical and plumbing national and local codes and ordinances.
■ Be sure when installing or moving the appliance that the power cord is not kinked or damaged.

WARNING: To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation.

Before You Begin

WARNING

Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before installing appliance.

Failure to do so can result in death or electrical shock.

1. Disconnect power

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

2. Shut off water supply

Shut off water supply to the dishwasher.

Prepare Cabinet Opening – New Utilities

NOTE: The electric and water holes may or may not be on the same cabinet wall. It will depend on the location of water and electric connections.

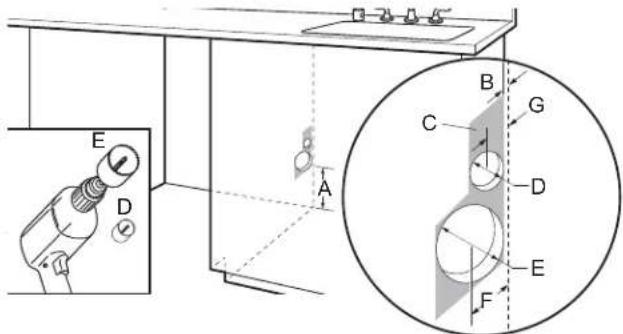

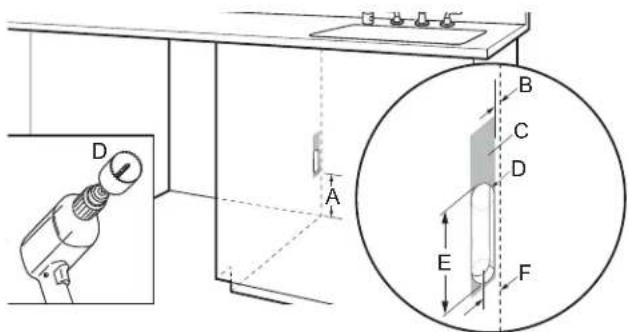

3. Drill hole location for Water Supply and Drain hose (Preferred hole type)

Technical diagram showing a lamp installation setup with labeled components A, B, C, D and dimensions E, F, including an inset view of the lamp.

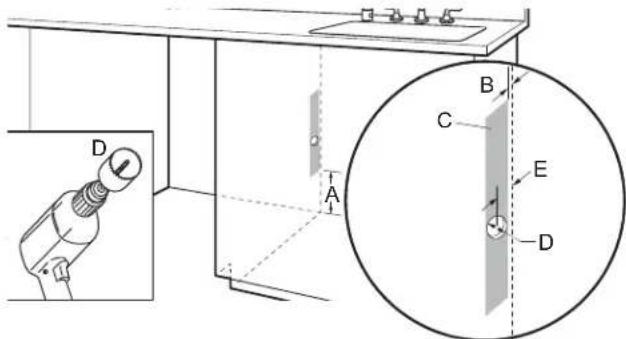

A. 6" (152 mm), minimum height of allowable area from bottom for utility connections.
B. 1/2" (12.7 mm), Thickness of back cabinet wall.
C. 2 ^1/4 " width x 16 " height (57.20 x 154.40 mm), Allowable area for utility connections.
D. 1^3/4 " (44.4 mm), Diameter of Oval hole for water supply and drain hose.
E. 3 ^3/4 " (95.3 mm), Height of Oval hole for water supply and drain hose.
F. 2 ^1/4 " (57.1 mm), Distance between center of Oval hole to the back of the cabinet wall.

1. Drill hole locations for Water Supply and Drain hose (Optional hole type)

E D A B C G D E F

A. 6" (152 mm), minimum height of allowable area from bottom for utility connections.
B. 1/2" (12.7 mm), Thickness of back cabinet wall.
C. 3 ^1/2 " width x 6" height (88.9 x 152.4 mm), Allowable area for utility connections.
D. 1 ^1/2 " (38.1 mm), Diameter for drain hose hole.
E. 3 ^1/2 " (88.9 mm), Diameter for water supply hose hole.
F. 2 ^1/4 " (57.1 mm), Distance between center of water supply hose hole to the back of the cabinet wall.
G. 1 ^1/4 " (31.7 mm), Distance between center of Drain hose hole to the back of the cabinet wall.

1. Drill location for Electrical conduit hole

Technical diagram showing a device with labeled components A, B, C, D, and E, including an inset view of a plug.

A. 6" (152 mm), minimum height of allowable area from bottom for utility connections.
B. 1/2" (12.7 mm), Thickness of back cabinet wall.
C. 1 ^1/2 " width x 12" height (38.1 x 304.8 mm), Allowable area for utility connections.
D. 1½" (38.1 mm), Diameter for Electrical conduit hole.
E. 1 ^1/4 " (31.7 mm), Distance between center of Electrical conduit hole to the back of the cabinet wall.

1. Sand holes smooth

Diagram illustrating hand positioning and cable rotation in a kitchen, with labeled parts A and B and a magnified inset showing the cable's rotation.

A. Wood cabinet
B. Metal cabinet

Wood cabinet: Sand the hole until smooth.

Metal cabinet: Cover edges of hole with grommet (corrugated tubing) included with installation materials inside the dishwasher. Cut length to match hole perimeter.

Install Moisture Barrier (Recommended for Wood Countertops)

Moisture barrier/Wood shims

Diagram of a kitchen or appliance interior showing labeled components A and B with directional arrows indicating movement or flow.

A. Install wood shims
B. Moisture barrier

Make sure the area under the countertop is clean and dry for installation of the moisture barrier. Remove the backing of the moisture barrier and apply to underside of the countertop along the front edge of the counter. Trim the moisture barrier as required.

NOTE: Install wood shims if side anchoring and the gap between sides of the dishwasher are greater than 1/2" (12.7 mm) on each side or are greater than the length of the anchor screws.

1. Built-up floors - add shims as needed

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Built-up floors: If the kitchen floor is higher than the cabinet opening's floor—for example, the kitchen floor tile does not extend into the cabinet opening—add shims, as needed, in the area shown to bring the dishwasher up to 34" (864 mm) below the countertop.

NOTE: Shims must be securely attached to floor to avoid movement when the dishwasher is in use.

Prepare Dishwasher

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

Remove Access and Toe Panels

8. Access panel

Technical line drawing of a mechanical bracket assembly with dimension arrows (no text or symbols)

Using a 1/4" (6.35 mm) nut driver or Phillips screwdriver, remove 4 screws attaching Access panel to dishwasher.

Technical line drawing of a mechanical assembly with two arrows indicating motion (no text or symbols)

Slowly lift and remove the Access panel from the hooks of dishwasher.

9. Toe panel

Technical line drawing of a mechanical bracket assembly with an arrow indicating direction (no text or symbols)

After removing the access panel remove the toe panel.

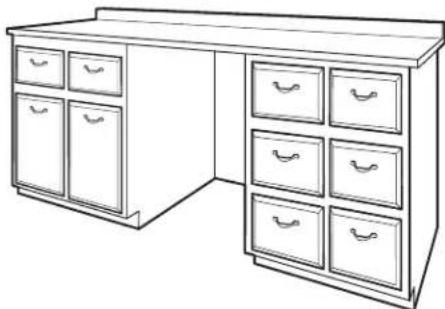

10. Measure cabinet opening

Line drawing of a standard office desk with multiple drawers and cabinets (no text or symbols)

There is a leveling system on the front of the base carrier. Once the dishwasher is within the cabinet space, use the leveling adjuster to adjust the dishwasher up to the height of the cabinet.
Adjust both front and back leveling legs to the same height.

Connect Water Line to Fill Valve

The dishwasher may come with the inlet hose already attached with a threaded connection. It needs to be connected to the inlet end on the house connection.

11. Leak Detection System Hose (on some models)

Illustration of a coiled hose with connectors and a clip, no text or symbols present

Use the Leak Detection System hose with included 3/8" (9.5 mm) to 3/4" (19 mm) water inlet adapter.

1. Add 3/8" (9.5 mm) to 3/4" (19 mm) water inlet adapter to the Leak Detection System Hose (on some models) Install Door Handle (on some models)

Line drawing of a mechanical connector or tool with threaded ends and a flanged shaft (no text or symbols)

Connect the 3/8" (9.5 mm) compression fitting of the water inlet adapter to the water supply line and attach the 3/4" (19 mm) connection to the Leak Detection System hose.

1. Accessory inlet hose

Illustration of a coiled hose with connectors (no text or symbols)

See the "Tools and Parts" section at the front of the guide for part details and order. Connect the 3/8" (9.5 mm) compression fitting to the water supply line and Attach the 3/4" (19 mm) elbow fitting connection to the dishwasher facing upward as shown above. Confirm the flexible braided or non braided line is long enough to reach the house water connection. If the hose is not long enough, have a plumber install a supply valve closer to the dishwasher.

If a Drain Hose Extension is Required

1. Slide clamp onto connector

A D B C E

A. Silver clamp

B. Rubber drain hose connector

C. Stop

D. Drain hose stop

E. Drain hose

Using pliers, squeeze open the silver drain hose clamp, and slide it onto the connector between stops.

1. Install Door Handle

Technical diagram of an open refrigerator with labeled parts A and B, showing internal structural layout.

A. Cardboard box containing the Accessories
B. Cardboard tube containing the Door Handle (on some models)

Technical diagram showing a device with labeled components A, B, C, D and an inset circular view of a mechanical component with directional arrows.

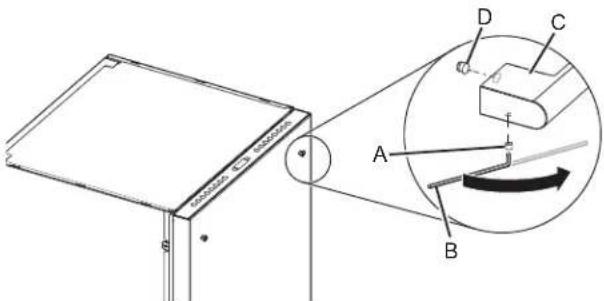

A. Setscrew (in the bottom of the handle)
B. Hex key
C. Handle
D. Mounting stud

IMPORTANT: Do not scratch the front panel during this procedure. If door panel has a protective film, peel film back past the point of the handle studs before installing handle. Handle is easiest to install while unit is on its back.

Remove the door handle and hex key from the packaging. Setscrews are already installed in the handle. Place handle on mounting studs with the setscrews facing towards the bottom of dishwasher. Push the door handle tightly against the door. Insert the short end of the hex key into the setscrews. Tighten the setscrews 1/4 turn past snug.

Retain hex key with Owner's Manual.

Place Dishwasher in Cabinet

Refer to the section "Electrical Connection" in this Owner's Manual for connecting to the power supply before placing the dishwasher in the cabinet.

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

NOTE: Route water supply, drain hose, and power cord out the rear of the dishwasher.

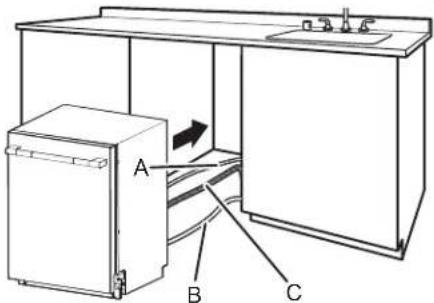

16. Move dishwasher close to cabinet opening

A B C

A. Water line

C. Drain hose

B. Junction box cable

Route the utilities through the holes in the cabinet and pull the slack out at the same time as the dishwasher is pushe into the cabinet.

NOTE: Route electrical lines only through the electrical conduit hole that was previously sanded or protected by a grommet.

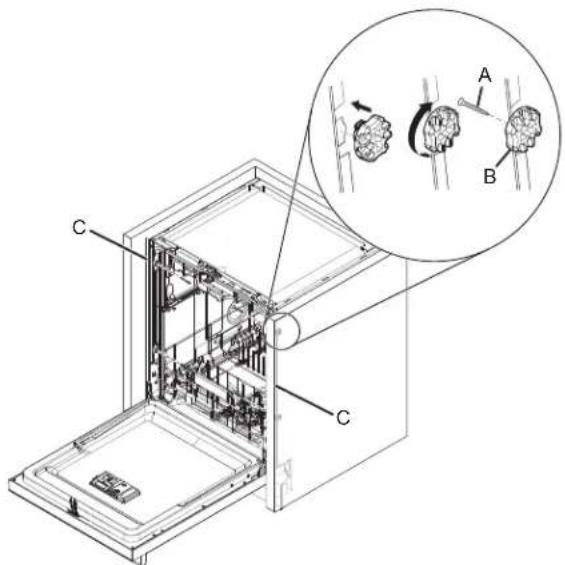

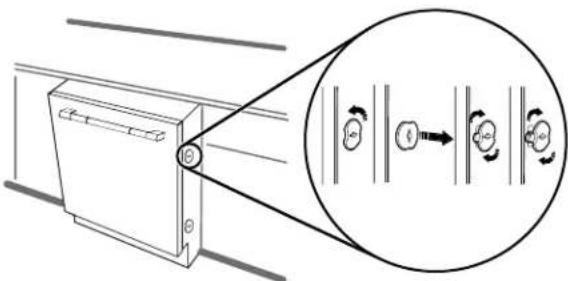

17. Adjust side spacers

Diagram illustrating a mechanical or electrical component with rotating components and directional arrows, including a magnified inset showing rotational motion.

Measure the top and bottom width of opening of the frame less cabinet. Remove and adjust the 4 included dishwasher spacers, by turning 90 degrees, and removing with a slotted screwdriver. Each spacer has 3 positions.

NOTE: If the cabinets are not frame less, additional spacers will be required (included) and need to be applied by the installer.

Types of Cabinets Types of Attachment
Frame less cabinets Plastic	spacers
Face frame cabinets Metal	brackets

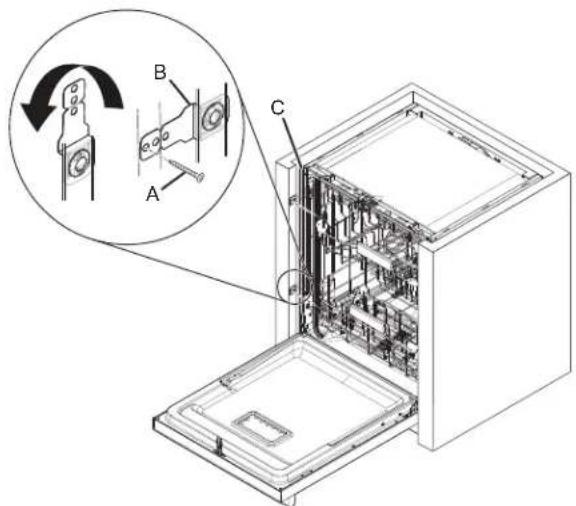

See section "Secure Dishwasher in Cabinet Opening" in this Owner's Manual for Securing dishwasher with different types of cabinets.

18. Move Dishwasher into final position

Line drawing of a kitchen sink with a refrigerator and water dispenser (no text or symbols)

19. Place foam insulation pad below the dishwasher (on some models)

Line drawing of a kitchen drawer with drawers and a hanging drawer (no text or symbols)

After pushing the dishwasher in the cabinet opening, adjust the leveling feet to standard height of 33(860 mm) and up. Then take the floor insulation pad and slide it from the front (gap between the floor & the drip tray).

The floor pad is designed to go around the leveling legs.

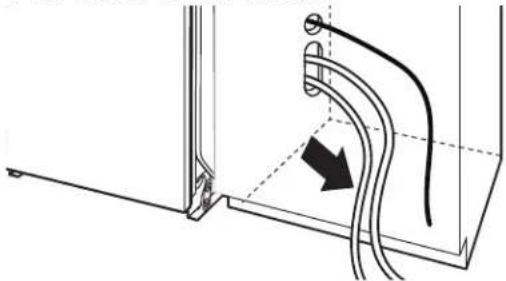

Pull slack from utilities

Technical line drawing of a mechanical assembly with curved pipes and a directional arrow (no text or symbols)

NOTE: Pull slack out of utilities at the same time the dishwasher is pushed into the cabinet opening to avoid any kinks.

Custom Panel Installation (on some models)

Custom Panel Dimension

Make sure that the custom panel is as per the recommended dimensions. See below image for the recommended dimensions.

A B C

A. 239/16" (598 mm)
B. 283/8"-30" (720-762 mm)
C. 5/8"-1" (16-25 mm)

A customer supplied door panel must weigh no more than 16 lb ^5 (7.3 kg) with the handle (together). And must be made to specific dimensions as given above. It is recommended that a cabinet maker cut the custom panel because of the precise dimensions 6. needed.

NOTE: The handle for the custom panel is not included.

Custom Panel Installation steps

1. In an area that is flat and clear of debris, place down a blanket as a work surface.
2. Attach the custom panel handle as you would any other cabinet handle. Be sure to protect the finished surface with painters tape when preparing and recessing the rear panel to conceal attachment hardware.
3. Install the custom hardware handle(s) on the front of the custom panel, inside dotted line as shown below

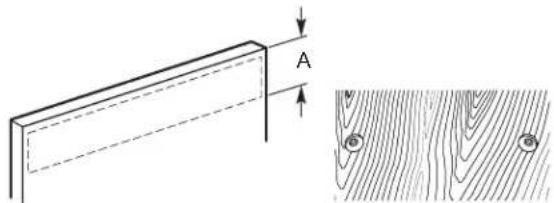

Technical diagram showing a wooden plank with labeled dimension A and a corresponding cross-section of wood grain texture (no text or symbols)

A. 6" (152.4 mm)

IMPORTANT: If the handle is attached from the back of the custom panel, the screw holes should be countersunk for the screw heads to be flush with the panel. If the handle is attached to the front of the custom panel, the screw lengths cannot exceed the panel thickness.

1. Place the custom panel with the face side down on the blanket, and note the planned top and bottom of the panel if applicable.

A B C

A. 23 ^5/8 " (600 mm)
B. 22 ^1/16 " (560 mm)
C. 2^9/_16 " (65 mm)

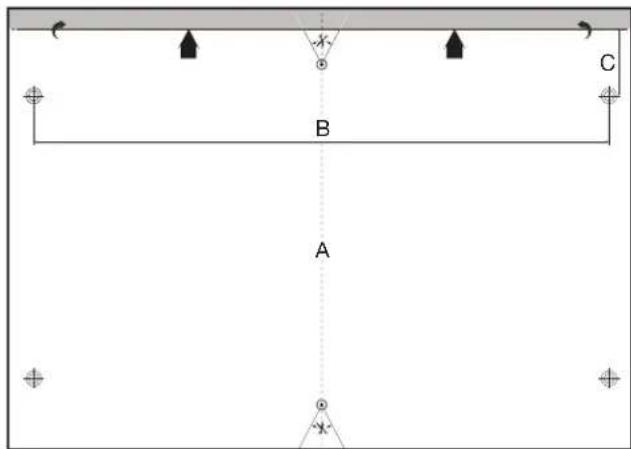

1. Using a tape measure, measure the top, center and bottom width of the panel, and mark the center location with either the edge of a tape piece or with a fine point pencil.
2. Using the straight edge draw a line connecting all the marked center lines so that the center of the panel is identified.
3. Using the provided template, align the centerline of the template with the center line of the door.

Two abstract line drawings: a dropper tip and a segmented bar with segmented lines (no text or symbols)

Awl Center punch

1. Using a center punch or awl, mark the 2 locations on the template to be used for attaching the door studs. Remove the template. Attach the 2 door studs to custom panel using the included screws.

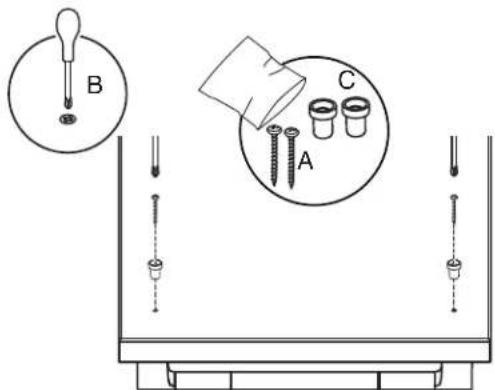

Diagram illustrating a mechanical setup with labeled components A, B, and C, showing tool application and assembly steps.

A. 3.5 mm x 18 mm Phillips head screw (2)
B. #2 Phillips screwdriver
C. Studs

1. Attach double sided adhesive to the door panel in the lower half, to temporarily aid in door alignment. These pieces of adhesive can be removed later after getting all the holes perfectly aligned.

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Double sided adhesive

1. Insert one of the wood blocks from the packaging across the door opening to prop the door slightly open.
2. Align the two door studs to the referenced tracks on the door, lifting up the door until the top panel is flush with the top of the dishwasher door.

Technical line drawing of a mechanical assembly with an inset magnified detail (no text or symbols)

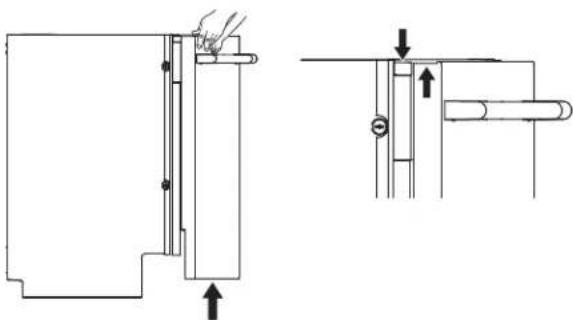

1. While holding the alignment, press on the lower section of door, to allow the double sided tape to grab and hold your alignment.

Technical line drawing showing mechanical assembly with no visible text or symbols

1. If this process needs adjusting, Use a plastic putty knife between the panel and the door to relieve the double sided tape and free the panel.

2. Open the door and panel together to the fully open position, making sure the panel has not shifted.

3. Consider the material choice of the custom panel and attach the 1st of the 4 included door panel screws using a Phillips screwdriver. Check to ensure the door panel is still aligned. Repeat the screw installation for the hole.

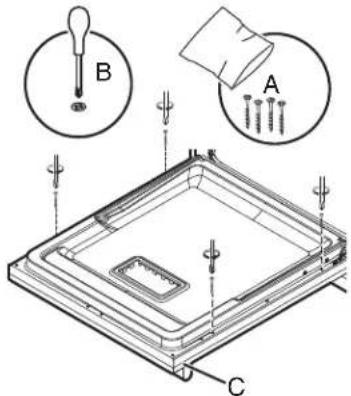

Technical diagram showing a component with labeled parts A, B, and C, including a dropper and screw assembly.

A. 4 x 38 mm Phillips head screw (4)
B. #2 Phillips screwdriver
C. Custom panel

1. Check to ensure the door panel is still aligned.
2. Repeat the screw installation for the last 2 screws.
3. If desired, remove the screws and the panel to remove the temporary double sided tape.
4. If the door to cabinet gaps are not even, make an adjustment to the dishwasher by loosening all 4 screws mounted to the adjacent cabinets. Make the position adjustment.
5. Retighten all 4 screws mounted to the adjacent cabinets. All screws need to be tight to prevent the dishwasher from moving.

Electrical Connection

If house wiring does not reach into the adjacent cabinet to the dishwasher junction box mounting location, the house wiring will first need to be corrected by a qualified electrician in conformance with the National Electrical Code, ANSI/NFPA 70 - latest edition, and all local codes and ordinances.

WARNING

Fire Hazard

Use only the junction box supplied with the product when making electrical connections.

Do not bypass the junction box.

Failure to follow these instructions can result in death, fire, or electrical shock.

WARNING

Electrical Shock Hazard

Electrically ground appliance.

Connect wires together inside the junction box using the supplied wire nuts.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Direct Wire Connection

1. Route the junction box cable from the dishwasher through the electrical conduit hole in the cabinet wall. Also route the home wiring through the same hole as shown below.

Technical diagram showing a mechanical assembly with labeled components A, B, C, and D, including a dashed line indicating connection or motion.

A. Junction box cable
B. Junction box
C. Cable fittings (2)
D. Home wiring

1. Refer to "Junction Box Assembly" section of this Owner's Manual to attach cable fitting to the home wiring and its assembly.
2. After the complete assembly of Junction box with home wiring, Secure the junction box to the back of the cabinet wall using four screws (not provided). Be sure to avoid driving screws into utility lines possibly located in the wall behind the junction box.

Power Cord Connection

1. Use power cord kit (sold separately per Whirlpool Part Number W11670634) and Junction box assembly (included) for connecting the dishwasher to the power supply as shown below. The power cord kit includes a straight plug that is recommended for most installations.

NOTE: To ease some installations, a power cord with a right angle plug is also available per Whirlpool Part Number W11546624.

Technical diagram showing wiring connections between a wall panel, a switch, and an electrical outlet with labeled points A, B, C, D.

A. Junction box cable
B. Junction box
C. Cable fittings (2)
D. Power cord

IMPORTANT: Do not plug cord into an outlet until instructed to do so.

1. Refer to "Junction Box Assembly" section of this Owner's Manual to attach cable fitting to the power cord and its assembly.
2. After complete assembly of Junction box with Power cord, Secure the junction box to the back of the cabinet wall using four screws (not provided). Be sure to avoid driving screws into utility lines possibly located in the wall behind the junction box.

Junction Box Assembly

1. The junction box comes in a plastic bag located inside a cardboard box in the lower rack of the dishwasher (previously removed at the beginning of the installation process).

DANGER

Electrical Shock Hazard

Disconnect power before servicing.

Fully assemble cable fittings.

Place all wiring inside junction box.

Replace cover before reconnecting power.

Failure to do so can result in death, fire, or electric shock.

1. Route the junction box cable from the dishwasher through the electrical conduit hole in the cabinet wall.

2. Use a #2 Phillips screwdriver to remove the Junction box lid from the junction box (4 screws).

3. Remove the plastic bag containing cable fittings and wire nuts7, from the inside of the junction box. Take out the cable fittings and wire nuts from plastic bag.

Technical diagram of a mechanical assembly with labeled parts A, B, C, D, and E

A. Junction box base

D. Junction box lid

B. Cable fittings (2)

E. Screws (4)

C. Wire nuts (3)

1. Remove the mounting nuts from cable fittings as shown below.

A B C

A. Elongated (strain relief) nut
B. Strain relief body
C. Mounting nut

1. Attach one cable fitting to the junction box cable from the dishwasher paying thorough attention to the orientation (see below figure). The cable fitting shall tighten against the secondary insulation (PVC jacket).

Diagram of a cable connector with labeled section A (no text or symbols beyond label)

A. 0.25" (6.35 mm) minimum

Diagram of a mechanical component with three wires and a rotating arrow indicating rotation (no text or symbols)

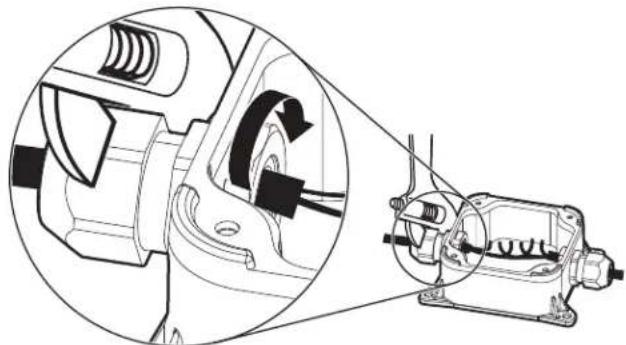

Use wrench and/or pliers to fully tighten the elongated (strain relief) nut against the strain relief body.

For Direct (home) wire connection (12-2/14-2 non-metallic sheathed/Romex), Strip jacket insulation of the home wire to expose the wires to the length of 5(129.3 mm) as shown below. Strip each wire end by 0.75" (19 mm). Attach the second cable fitting to home wiring paying attention to the orientation (see below figure). Use wrench and/or pliers to fully tighten the elongated (strain relief) nut against the strain relief body.

A B C

A. 3^3/_4 " (95 mm)
B. 0.75" (19 mm)
C. 0.25" (6.35 mm) minimum

1. For Direct (home) wire connection using armored cable or flexible metal conduit use only a UL/CSA-approved metallic strain relief for the type of conduit being used. Ensure 4" (101.6 mm) of wire is extending out past the end of the strain relief. Strip each wire end by 0.75" (19 mm). Attach the strain relief to the home wiring per the strain relief manufacturer's instructions. Attach strain relief to the box per the strain relief manufacturer's installation instructions.

If installing the junction box using armored cable or flexible metal conduit, either mount the box in a horizontal orientation so the strain reliefs are on the left and right side of the box when looking at it from the front, or if installing the box in a vertical orientation (with the strain reliefs above and below the box when viewing form the front), install it with the plastic strain relief coming from the product at the top and the metal strain relief at the bottom.

1. For power cord connection, attach the second cable fitting to the power cord paying attention to the orientation (see below figure). Use wrench and/or pliers to fully tighten the elongated (strain relief) nut against the strain relief body.

Cross-sectional diagram of a cable or connector with labeled section A (no text or symbols beyond label)

A. 0.25" (6.35 mm) minimum

NOTE: Non-metallic sheathed wire is for direct wire connection only.

1. Route wire ends into the junction box through the round holes on the sides. Securely attach the cable fittings to the junction box using plastic mounting nuts supplied with the cable fittings. Hand tighten the mounting nuts to the cable fittings and then use a crescent wrench to tighten another 1/4 turn. Use a second wrench or pliers to secure the cable fitting body when tightening the mounting nut.

Technical line drawing of a mechanical assembly showing gear and motor components (no text or labels)

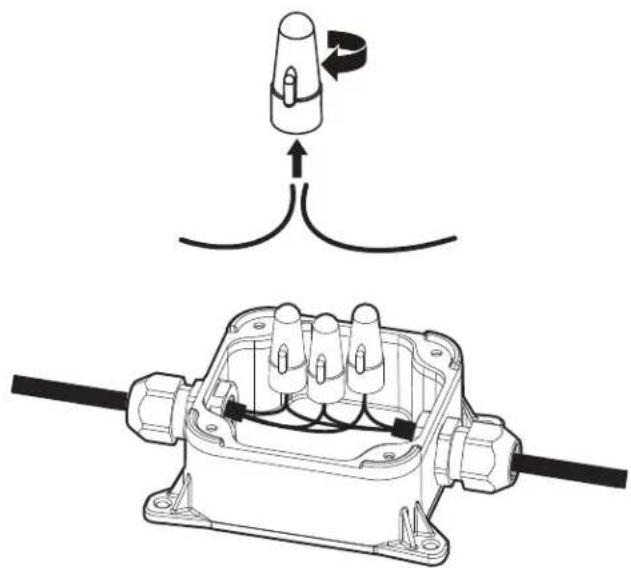

1. Connect wires together inside the junction box using the supplied wire nuts. Connect wires of the same color together (black to black, white to white, and bare/green to green). NOTE: Do not pre-twist wires before making connections.

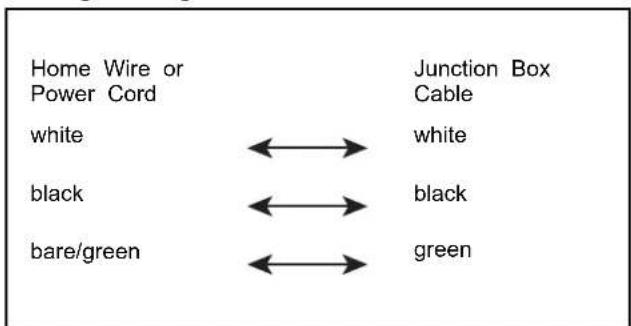

Wiring configuration

1. To apply a wire nut, hold the stripped/bare ends of wires parallel to each other with their ends aligned. Firmly push wires into a wire nut and twist clockwise until secure (the insulated wires outside the connector begin to twist). Gently tug on each wire making sure they are secure.

Technical diagram showing a connector assembly with wiring and a close-up of its internal structure (no text or symbols)

Re-attach the junction box lid using a #2 Phillips screwdriver. Ensure that wires are not being pinched between the lid and base of the junction box. The Junction box lid must be attached with the 4 screws removed in step 3 and ensure the lid is fully closed and snugly attached to base.

Technical diagram of an electrical switch assembly with labeled components A through G

A. Junction box cable

E. Screws (4)

B. Power cord or Home wiring

F. Cable fittings (2)

C. Wire nuts (3)

G. Junction box base

D. Junction box lid

1. The junction box is not intended to be used with rigid metal conduit.

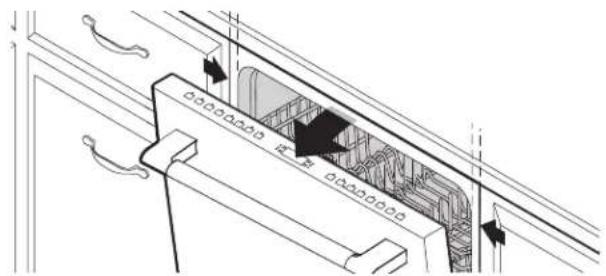

Final Installation Check

Line drawing of a kitchen appliance with a diagonally open drawer and a hanging rack, showing internal structure (no text or symbols)

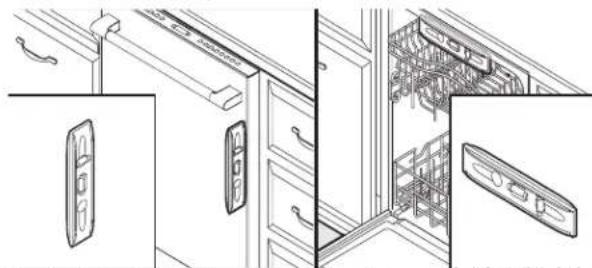

22. Align Dishwasher Flush to Cabinet

Line drawing of a cabinet drawer with drawers and a handle, no text or symbols present

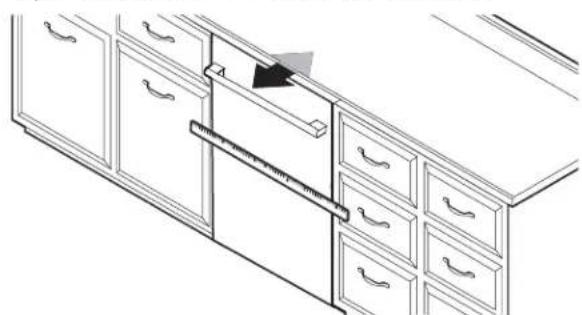

Align dishwasher flush to cabinet.

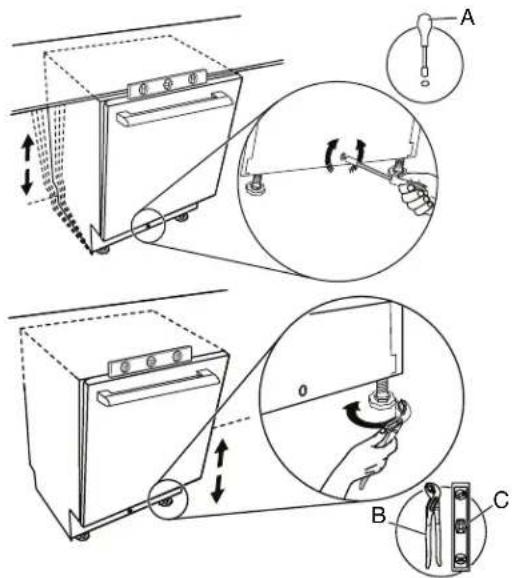

23. Check for plumb and adjust legs if needed

Technical diagram illustrating a washing machine operation with labeled parts A, B, and C showing hand positions and tool paths.

A. 5/16" (8 mm) nut drivers or hexsockets
B. Pliers - Adjustable upto 2" (5.0 cm)
C. Small level

Use an adjustable wrench to adjust the front feet and a 5/16" (8 mm) socket to adjust the rear foot. Raise the dishwasher to 1/8" (3 mm) of the counter top. Check that the dishwasher is centered from left to right in the opening. If needed, adjust the leveling legs until the dishwasher is plumb.

Helpful Tip: If the front leveling feet are hard to adjust, protect the customer's floor and use an adjustable wrench. Or alternately, use of 2 or more air shims to temporarily lift the front of the dishwasher.

Secure Dishwasher in Cabinet Opening

24. Double-check dishwasher alignment in cabinet opening

Line drawing of a kitchen appliance interior showing door, drawer, and cabinet (no text or symbols)

Check that dishwasher is still level front to back and side to side in the cabinet opening.

Open dishwasher door and place towel over pump assembly and spray arm of dishwasher. For some models, you may have to remove lower dish rack. This will keep screws from falling into pump area when you are securing dishwasher to countertop or cabinet.

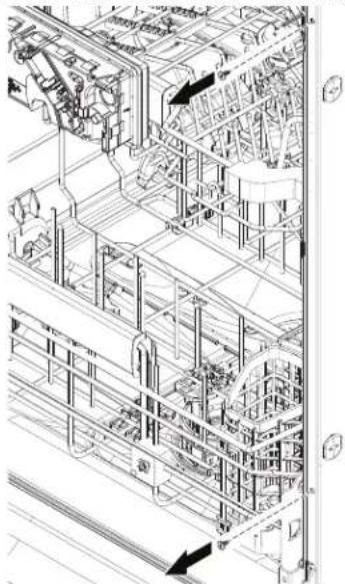

25. Side Gap Covers

1. Remove the Side Gap Covers from the level rack of the dishwasher.

Technical line drawing of an open refrigerator interior showing internal components and structural layout (no text or labels)

1. Remove the four screw from dishwasher.

Technical line drawing of an industrial facility interior with structural framework and piping (no text or symbols)

1. Position the Side Gap Cover as shown below and make sure to install the top screw first and the bottom screw at last.

Technical line drawing of an industrial facility interior with structural framework and directional arrows (no text or labels)

1. Repeat above step to install the other Side Gap Cover to the dishwasher.

26. For Frame less Cabinets

1. Remove upper rack for easier access.

Technical line drawing of an open refrigerator internal compartments, showing internal structure and housing (no text or labels)

1. Use four Thick plastic (included) spacers between cabinet wall and the side wall panels of the dishwasher.

2. Each spacers has three positions depending on the gap available, insert the spacer into the side panel of the dishwasher and turn the spacer by 90 degrees.

Technical diagram of a device with labeled components A and B, showing internal structure and assembly details.

A. 3.5 mm x 18 mm

B. Thick plastic spacers (4)

Phillips-head screws (4)

C. Side gap covers (2)

1. Once the spacers are locked into the position. Secure the dishwasher to cabinet with four 3.5 mm x 18 mm Phillips-head screws (included).

NOTE:

■ The dishwasher must be secured to keep it from shifting when the door is opened or closed.

■ Do not drop screws into bottom of dishwasher.

27. For Face Frame Cabinets

1. Use four Metal brackets (included) between Face frame and the side wall panels of the dishwasher.

2. Each bracket needs to be inserted into the slots at the side panel of the dishwasher and turn the brackets by 90 degrees towards the cabinet opening.

3. Once the spacers are locked into position, Secure the dishwasher to cabinet with four 3.5 mm x 18 mm Phillips-head screws (included).

Technical diagram of a server rack with labeled components A, B, and C, showing internal structure and component assembly.

A. 3.5 mm x 18 mm
Phillips-head screws (4)
B. Metal brackets (4)
C. Side gap covers (2)

NOTE:

■ The dishwasher must be secured to keep it from shifting when the door is opened or closed.
■ Do not drop screws into bottom of dishwasher.

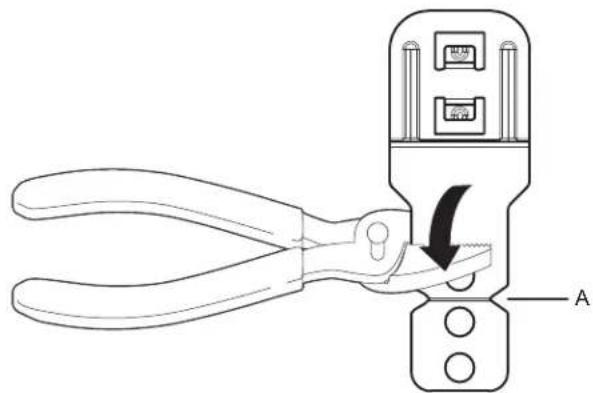

28. Break end of the brackets

Depending on the depth of the gap between dishwasher and the face of the frame, Break off the end of the brackets along the scored line using pliers to adjust the required length of the bracket. Use sandpaper to smooth any burrs.

Technical diagram of a wire crimping tool with labeled component A and internal components

A. Score line

29. Check inner spacing

00000000 送车 00000000

Open door and check that space between dishwasher cabinet opening and tub is equal on both sides. If spacing is not equal, loosen bracket screws and shift tub. Tighten bracket screws.

Choose Anchor Attachment Method

IMPORTANT: The dishwasher must be secured to the cabinet as one of the final steps. Prepare the dishwasher for this by attaching the dishwasher to the cabinets using at least 4 of the 6 available screw holes.

30. Cabinet Attachment:

Technical diagram of a refrigerator with labeled parts A and B, showing internal components and wiring connections.

A. #3.5 x 18 mm screws (4) for Cabinet mount
B. #2 Phillips screwdriver

Remove the short screws from the package and insert them1. Fit rubber end (A) of drain hose to waste tee and cut if into four of the six mounting holes provided. Using a Phillips needed.

head screw driver, screw them into the cabinet. If longer screws are needed, the installer will need to provide.

Connect Water Line to House Shutoff Valve

31. Attach water supply line

Line drawing of a pipe fitting with a valve and connecting rod (no text or symbols)

Attach the water supply line (flexible braided line) to the hot water line using a connection configuration that is in compliance with local codes and ordinances. The water supply to the dishwasher should have a manual shutoff valve located under the sink.

Connect Drain Hose

32. Connect drain hose

Connect drain hose to waste tee or waste disposer using one of the following options:

■ Option A: Waste disposer – no air gap
■ Option B: No waste disposer – no air gap
■ Option C: Waste disposer – with air gap
■ Option D: No waste disposer – with air gap

IMPORTANT: The drain hose connection of the disposer or a waste tee must be made before the drain trap and at least 20" (508 mm) above the floor where the dishwasher will be installed.

Helpful Tip: To reduce vibration of the hose, keep the hose away from the floor.

Option A: Waste disposer - no air gap

A D C B

A. Disposer inlet
B. Drain trap

C. Drain hose
D. Drain hose clamp (black color)

Helpful Tip: Remove disposer knockout plug.

A. Two cut lines

NOTE: Do not cut ribbed section.

1. Using a hammer and screwdriver, knock plug into disposer.

Line drawing of a hand holding a tool next to a cylindrical object (no text or symbols)

1. Use needle-nose pliers to remove plug.

1. Attach drain hose to disposer inlet with drain hose clamp (black color) (provided). Use pliers to squeeze clamp open a and move into position.

Line drawing of a mechanical component with a cylindrical body and threaded end (no text or symbols)

Option B: No waste disposer - no air gap

A B C D

A. Waste tee
B. Drain trap

C. Drain hose
D. Drain hose clamp (black color)

1. Fit rubber end (A) of drain hose to waste tee and cut if needed.

A. Two cut lines

1. Connect rubber end (A) of drain hose to air gap and cut if needed.

A. Two cut lines

NOTE: Do not cut ribbed section.

NOTE: Do not cut ribbed section.

1. Attach rubber end of drain hose to waste tee with a drain hose Attach drain hose to air gap with drain hose clamp (black clamp (black color) (provided). Use pliers to squeeze clamp color) (provided). Use pliers to squeeze clamp open and move open and move into position. If the drain hose was cut, use a into position. If the drain hose was cut, use a 1½" to 2" 1½" to 2" (38 mm to 50 mm) screw-type clamp (not provided). (38 mm to 50 mm)screw-type clamp (not provided).

Technical line drawing of a mechanical assembly with a circular component and a tool inserted into a housing (no text or symbols)

Option C: Waste disposer – with air gap

Labeled diagram of a mechanical device with parts A through G, likely for plumbing or piping reference.

A. Screw-type clamps

E. Rubber hose connector

B. Disposer inlet

F. Drain hose clamp (black color)

C. Drain trap

G. Air gap

D. Drain hose

Helpful Tip: Remove disposer knockout plug.

1. Using a hammer and screwdriver, knock plug into disposer.

Line drawing of a hand holding a tool next to a cylindrical container (no text or symbols)

1. Use needle-nose pliers to remove plug.

Diagram of a medical or laboratory procedure showing a coiled tube connected to a rod with a cap and an arrow indicating direction (no text or symbols present)

1. Use a rubber hose (not provided) with screw-type clamps (not provided) to connect from air gap to disposer inlet.

Simple line drawing of a mechanical component with a curved pipe and attached ring (no text or symbols)

Option D: No waste disposer - with air gap

A G F E B C D

A. Screw-type clamps

E. Rubber hose connector

B. Waste tee

F. Drain hose clamp (black color)

C. Drain trap

G. Air gap

D. Drain hose

1. Connect rubber end (A) of drain hose to air gap and cut if needed.

A. Two cut lines

NOTE: Do not cut ribbed section.

1. Attach drain hose to air gap with drain hose clamp (black color) (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use a 1 ^1/2 " to 2" (38 mm to 50 mm) screw-type clamp (not provided).

1. Use a rubber hose (not provided) with screw-type clamps (not provided) to connect from waste tee to air gap.

Technical line drawing of a mechanical assembly with a bolt and nut (no text or symbols)

Complete Installation

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Power supply cord - Plug into a grounded 3 prong outlet

A B C D

A. Junction box cable

B. Junction box

C. Cable fittings (2)

D. Power cord

Plug into a grounded 3-prong outlet.

34. Reconnect power

Reconnect electrical power at the fuse box or circuit breaker box.

NOTE: With the access panel off, start the dishwasher and allow it to complete the shortest wash cycle. After the first 2 minutes, unlatch door, wait 5 seconds, and then open door. Check that there is water in the bottom of the dishwasher tub. Check that dishwasher is working properly.

Install Access Panel

1. Install the toe panel

Technical line drawing of a mechanical bracket with an arrow indicating direction (no text or symbols)

Install the toe panel as shown in the above image.

1. Check toe panel edge

Technical line drawing of a mechanical assembly with two downward arrows indicating motion or force directions (no text or symbols present)

Check that the lower edge of the toe panel touches the floor. Adjust if necessary.

IMPORTANT: If there is visible gap to the floor after installing the toe panel, replace it with alternate (tall) toe panel supplied with dishwasher, shipped at the back of the dishwasher.

Simple line drawing of a rectangular beam with two side supports (no text or symbols)

37. Install access panels

Technical line drawing of a mechanical assembly with no visible text or symbols

Place the access panel against dishwasher legs. Using a Phillips screwdriver or 1/4" nut driver, reinstall the screws through the holes in the access panel.

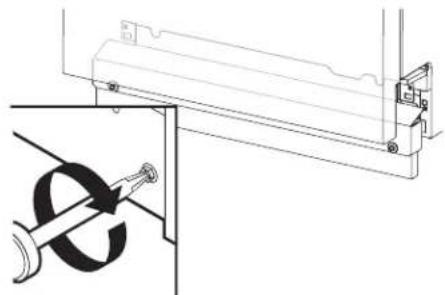

38. Tighten screws

Technical line drawing of a mechanical assembly with a cylindrical component inserted into a bracket (no text or symbols)

Tighten access panel screws.

T-Gasket Installation (on some models)

If an installer will be using a custom access panel to be mounted on top of the unit's access panel and if the installer chooses to cover the seam gap then the T-Gasket bottom could be attached between the custom front panel & the access panel.

Custom access panel can be attached to the top of the dishwasher access panel. Installer can use T-Gasket to fill the g between custom access panel and custom panel door (as shown below).

Technical diagram showing a mechanical assembly with labeled components and three-view views (A, B, C) of a tool or device.

A. T-Gasket

B. Polybag

C. 3/16" (5 mm)

D. Custom Access Panel

E. Custom Panel Door

1. Remove the adhesive strips from the T-Gasket and attach it to the top surface of custom access panel. Start along the left or right edge and continue along that edge.
2. Using a paper towel or cloth, press along the front surface of the T-Gasket to ensure it is flushed well.

Check Operation

• Read the dishwasher Quick Start Guide that came with your dishwasher.
  ■ Check that all parts have been installed and no steps were skipped.

If the dishwasher is not working properly, disconnect power or unplug dishwasher and refer to the "If Dishwasher Does Not Operate" section.

If Dishwasher Does Not Operate

First try the solutions suggested here to possibly avoid the cost of a service call.

■ Has the circuit breaker tripped or the house fuse blown?
■ Is the door closed tightly and latched?
■ Has the cycle been set correctly to start the dishwasher?
■ Is the water turned on?

If none of these possible solutions work, refer to the contact information referenced in your Quick Start Guide.

Additional Tips

Expect longer wash times. Your new dishwasher will average 2–5 hours per load but use nearly 40% less energy than older models. Designed with a low-wattage, low-energy-consumption

Motor, your dishwasher washes longer to ensure exceptional cleaning. Certain models are equipped with an optical water sensor, so the first cycle will run longer to calibrate the optical sensor. Selecting certain options could increase cycle time past 3.5 hours.

Rinse aid is necessary for good drying results:

This dishwasher is designed to be used with rinse aid for good drying performance and controlling hard-water-deposit buildup. Energy-efficient dishwashers use less water and energy, so they depend on the water sheeting action of rinse aid for good drying performance.

Start/Resume light may flash:

When pressing Start/Resume, you must make sure the door is closed within 4 seconds. If you do not close the door within 4 seconds, the Start/Resume light will flash until you press it again. (You must also do this when adding a dish during the middle of a cycle.)

SÉCURITÉ DU LAVE-VAISSELLE

Illustration of a kitchen sink with a faucet and a cylindrical sink, showing a downward arrow indicating a drop (no text or symbols present)

Line drawing of a kitchen utensil with a bowl containing granular material and a side dish (no text or symbols)

Technical illustration of a mechanical assembly with a central component and a separate view showing a clamping mechanism (no text or symbols present)

Two technical diagrams showing hands operating a mechanical device on a sink, with no visible text or symbols.

Line drawing of two pair of pliers (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a screwdriver (no text or symbols)

Simple line drawing of a flat tool with a handle and central grip (no text or symbols)

Simple line drawing of a screwdriver with a cylindrical head and shaft (no text or symbols)

Simple 3D diagram of a rectangular block with three circular holes, no text or symbols present

Line drawing of a tape measure (no text or symbols)

Ruban à mesurer

Line drawing of a pair of eyeglasses (no text or symbols)

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

Simple line drawing of a dropper or pipette (no text or symbols)

Poinçon

Line drawing of a handheld electric tool with a strap and handle (no text or symbols)

Two rectangular panels with dot patterns, no text or symbols present

Line drawing of a pair of pliers with metal fasteners (no text or symbols)

Pince à dénuder

Simple line drawing of a folded paper or plastic sheet (no text or symbols)

Serviette de bain

Simple line drawing of a folded or curled object resembling a rolled-up document or scroll (no text or symbols)

Line drawing of a pair of scissors (no text or symbols)

Pince

Simple line drawing of a rolled-up tape or tape (no text or symbols)

Adhésif double face

Simple line drawing of a rolled-up sheet on a flat surface (no text or symbols)

Line drawing of a 3D cube-shaped device with a handle and control panel (no text or symbols)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic/background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

Line drawing of a handheld electric drill bit (no text or symbols)

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Adhésif double face

Air AIR

Technical line drawing of a protractor and ruler (no text or symbols)

Line drawing of a mechanical device with internal components and connectors (no text or symbols)

Aspirateur portable

Two identical line drawings of a magnifying glass (no text or symbols)

Simple line drawing of a horizontal cylindrical object with rounded ends and a small protrusion at the top (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting flanges and a central hub (no text or symbols)

Simple line drawing of a flashlight with a handle and bulb (no text or symbols)

Lampe de poche

Simple line drawing of a bucket with handle (no text or symbols)

Simple line drawing of a screw with two circular heads and two threaded ends (no text or symbols)

Technical line drawing of a mechanical connector (no text or symbols)

Three identical conical objects with central candles, shown in line drawing style (no text or symbols)

Line drawing of a screw with threaded shaft (no text or symbols)

Simple line drawing of a speaker cone (no text or symbols)

laEntonnoir à sel

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with mounting holes and a central housing (no text or symbols)

Brides en métal (4)

Isometric view of a mechanical part with two stacked rectangular sections and a notch (no text or symbols)

Two identical cylindrical mechanical components with flanges, shown in line drawing style (no text or symbols)

Pure technical line drawing of a diagonal bracket (no text or symbols)

Line drawing of a screw with a circular head and threaded shaft (no text or symbols)

Simple diagonal line drawing with no text, numbers, or symbols

Line drawing of a mechanical tool or connector with threaded ends and a flanged shaft (no text or symbols)

Isometric line drawing of a rectangular metal beam or support structure (no text or symbols)

Illustration of a coiled, ribbed wire or filament (no text or symbols)

Simple geometric shape: a diagonal line inside a rectangle (no text or symbols)

Illustration of a coiled cable or hose with a terminal connector (no text or symbols)

Two interlocked circular pipe clips with metal fasteners (no text or symbols)

Bride à vis

Line drawing of a USB connector with terminal ports (no text or symbols)

Simple line drawing of a plug with two pins, no text or symbols present

Line drawing of a kitchen sink with faucet and three washers (no text or symbols)

A. Brise-siphon

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

Il vous faut :

Technical diagram of an open refrigerator with labeled components A, B, C, D, and E, including internal wiring and a magnified inset showing component details.

Technical diagram showing a lamp installation setup with labeled components A, B, C, D, E, F and an inset view of the lamp's internal structure.

Technical diagram showing a mechanical assembly with labeled components and an inset view of a cylindrical component with cross-sectional views.

Technical diagram showing a device with labeled components A, B, C, D, and E, including an inset image of a lamp labeled D.

Diagram illustrating a hand holding a flexible hose with labeled parts A and B, showing internal components and a schematic of the cable being twisted.

Diagram of a kitchen or appliance interior with labeled parts A and B, showing directional arrows indicating movement or flow.

Pure technical line drawing of a structural frame with no text, numbers, or symbols

Technical line drawing of a mechanical bracket assembly with directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical bracket assembly with an arrow indicating direction (no text or symbols)

Line drawing of a standard office desk with drawers and drawers (no text or symbols)

Illustration of a coiled hose with a connector and cable (no text or symbols)

Line drawing of a mechanical tool or connector with threaded ends and a flanged shaft (no text or symbols)

Illustration of a coiled hose with connectors (no text or symbols)

Technical diagram of an open refrigerator with labeled parts A and B

Technical diagram showing a device with labeled components A, B, C, D and an inset view of a mechanical component with rotational motion indicated.

Diagram of a refrigerator with labeled parts A, B, and C showing internal components and airflow direction

Diagram showing a mechanical assembly with rotating components and a magnified view of the mechanism.

Line drawing of a kitchen appliance with a refrigerator and sink (no text or symbols)

Line drawing of a kitchen cabinet with drawers and drawers, showing a door opening and a hanging paper (no text or symbols)

Technical diagram showing a pipe connection with a directional arrow indicating flow or movement (no text or symbols present)

Technical diagram showing a wooden plank with cross-section and corresponding wood grain pattern (no text or symbols)

A. 6 po (152,4 mm)

Two abstract line drawings: a simple bulb-like shape and a segmented rectangular bar (no text or symbols)

Poinçon Pointeau

Diagram illustrating a mechanical setup with labeled components A, B, and C, showing tool application and assembly steps.

Simple line drawing of a rolled-up adhesive tape (no text or symbols)

Adhésif double face

Technical line drawing of a mechanical assembly with an inset magnified detail (no text or symbols)

Technical line drawing showing mechanical assembly with no visible text or symbols

Technical diagram showing a device with labeled components A, B, and C, including a dropper and screw assembly.

Technical diagram showing a mechanical assembly with labeled components A, B, C, and D, including a dashed line indicating connection or motion.

Technical diagram showing wiring connections between a wall panel, a switch, and an electrical outlet with labeled points A, B, C, D.

Technical diagram of a mechanical assembly with labeled parts A, B, C, D, and E

Cross-sectional diagram of a cable or connector with labeled section A (no text or symbols beyond label)

A. 0,25 po (6,35 mm) minimum

Diagram of a screwdriver with three wires inserted, showing internal components and rotation direction (no text or labels)

Cross-sectional diagram of a cable or connector with labeled section A (no text or symbols beyond label)

A. 0,25 po (6,35 mm) minimum

Technical line drawing of a mechanical assembly showing internal components and motion direction (no text or labels)

Technical diagram showing a connector assembly with wiring and a close-up of its internal structure (no text or symbols)

Technical diagram of an electrical connector with labeled parts A through G

Line drawing of a kitchen appliance with a drawer and drawer stack, showing a black arrow indicating a process or operation (no text or symbols present)

Line drawing of a cabinet drawer with drawers and a handle, no text or symbols present

Technical diagram illustrating a mechanical assembly with labeled components A, B, and C, showing motion directions and component positioning.

Line drawing of a refrigerator interior showing door, drawer, and rack arrangement (no text or symbols)

Technical line drawing of an open refrigerator interior showing internal components and wiring (no text or labels)

Technical line drawing of an industrial facility interior with structural framework and piping (no text or labels)

Technical line drawing of an industrial facility interior with structural components and directional arrows (no text or labels)

Isometric line drawing of a multi-chamber refrigerator internal structure, showing internal compartments and housing (no text or labels)

Technical diagram of a mechanical device with labeled components A and B, showing internal structure and assembly details.

Technical diagram of an internal device with labeled components A, B, and C, showing a close-up view of mechanical parts.

Diagram of a wire crimping tool with labeled component A and internal components

Technical diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating flow or movement.

Technical diagram of a kitchen appliance with labeled parts A and B, showing internal components and assembly steps.

Line drawing of a pipe fitting with a valve and hose (no text or symbols)

Line drawing of a hand holding a tool next to a cylindrical container (no text or symbols)

Line drawing of a mechanical component with a cylindrical top and threaded end (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical top and attached fastener (no text or symbols)

Labeled diagram of a mechanical device with parts A through G, showing components like a cylinder and pipe connection.

A. Bride à vis

Line drawing of a hand holding a tool inside a cylindrical container (no text or symbols)

Diagram of a medical or laboratory procedure showing tubing and a connector (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and a curved pipe fitting (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and nut (no text or symbols)

A G F E B C D

Technical line drawing of a mechanical bracket assembly with an arrow indicating direction (no text or symbols)

Pure technical diagram showing a mechanical assembly with two downward arrows indicating force or direction (no text or symbols)

Simple line drawing of a two-bar rectangular object with vertical supports (no text or symbols)

Technical line drawing of a mechanical bracket or support structure with directional arrows indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical assembly with a tool inserted into a bracket (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A, B, C, D, E and a magnified view of detail A and B.
