TL100N - Cooler Eldom - Free user manual and instructions

Brand	Eldom
Model	TL100N
Type	Portable Thermoelectric Cooler
Capacity	40 L
Dimensions (W x D x H)	45 x 30 x 38 cm
Weight	5.5 kg
Power Supply	12V DC (cigarette lighter) or 230V AC via adapter
Power Consumption	45 W (cooling) / 50 W (heating)
Cooling Function	Cools down to 18°C below ambient temperature
Heating Function	Heats up to 65°C
Temperature Control	Manual thermostat dial
Interior Material	ABS plastic
Exterior Material	Steel with powder coating
Door Lock	Integrated lock with keys
Lighting	Interior LED light
Removable Shelves	2 adjustable wire shelves
Noise Level	< 40 dB
Maintenance & Cleaning	Wipe with damp cloth; do not immerse in water
Safety Features	Overheat protection, reverse polarity protection
Spare Parts	Power cord, fan, thermostat, shelves
Repairability Index	7.8 / 10

Frequently Asked Questions - TL100N Eldom

How do I switch between cooling and heating mode?

Turn the thermostat dial to the desired temperature: below ambient for cooling, above ambient for heating. The device will automatically switch modes.

Can I use this cooler while camping with a 12V battery?

Yes, the cooler is designed for 12V DC operation. Connect via the cigarette lighter plug. Ensure the battery can support 45W continuous draw.

How to clean the interior of the cooler?

Unplug the device, remove all contents and shelves. Wipe the interior with a soft cloth dampened with mild soapy water. Dry thoroughly before reuse. Do not use abrasive cleaners or immerse in water.

What is the lowest temperature the cooler can achieve?

The cooler can chill items down to 18°C below the ambient temperature. For example, if it's 30°C outside, the interior can reach about 12°C.

Does the cooler have a heating function?

Yes, it can heat up to 65°C, making it suitable for keeping food warm or defrosting items.

What type of power adapter is included?

The package includes a 12V DC cigarette lighter cable and a 230V AC power adapter with a standard household plug.

How long does it take to cool down?

Cooling time depends on ambient temperature and load. Typically, it reaches 18°C below ambient within 1-2 hours when empty.

Is the cooler noisy?

No, it operates with a quiet fan. Noise level is below 40 dB, similar to a quiet conversation.

Can I lock the cooler to prevent unauthorized access?

Yes, the cooler has an integrated lock with two keys. Turn the key clockwise to lock, counterclockwise to unlock.

Where can I purchase spare parts or get repairs?

Spare parts such as power cords, fans, and shelves are available from authorized Eldom service centers. Check the warranty card for contact information.

USER MANUAL TL100N Eldom

Exterior view of a gray industrial kitchen appliance with ventilation slots and a logo (no visible text or symbols on the device itself)

LODÓWKA TURYSTYCZNA • PORTABLE FRIDGE • TURISTCKÁ CHLADNIČKA •

REISEKÜHLBOX • ХОЛОДИЛЬНИК ПЕРЕНОСНОЙ •

TURISTICKÁ CHLADNIČKA • ELEKTROMOS HÚTÓTÁSKA • NEVERA PORTÁTIL

Eldom Sp. z o.o.

Exterior view of a modern gray industrial waste bin with labeled components (no text or symbols on the device itself)

1

Two electrical probes with labeled parts 4 and 5, shown against a plain background (no text or symbols on the probes themselves)

Close-up of a white electronic device with labeled parts (6, 7), no readable text or symbols beyond labels

OPIS OGÓLNY

Please read all these instructions carefully before using this appliance.

1. Before plugging the appliance in, make sure that the data on the rating plate is in conformity with the parameters of the network.
2. Never pull the cable to unplug the device.
3. When the appliance is in operation, do not cover the ventilation holes in the lid (3).
4. Do not change the supply mode when the appliance is in operation it can cause its damage.
5. Do not expose the product to direct sunlight, rain, snow, excessive humidity etc.
6. The power cable should not be close to heat sources.
7. Always use the handle (1) while moving the appliance.
8. Close the lid carefully (3) using the handle in its front part.
9. Do not bend back the lid too much, as it can cause mechanical damage not covered by the guarantee.
10. Use the fridge only in vertical position, do not put it upside down.
11. Do not overload the fridge. The lid (3) must close easily. Make sure that the products stored do not cover the fan inlet in the lid.
12. Exercise great caution when transporting the operating appliance by car. Prevent from falling during transport.
13. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out

by children without supervision. Protect the appliance and the power cord against children under 8 years old.

1. Always unplug the device before cleaning.
2. The appliance is intended for domestic use only.
3. Use only with originally enclosed accessories.
4. Do not use the fridge when the power cable is damaged.
5. When the power cable is damaged, it has to be replaced in the Manufacturer's Service Center to avoid danger.
6. To avoid any risks, if the power cord is damaged, it should be replaced with a new one at an authorised Manufacturer's Servicing Point. The list of Servicing Points can be found in the attachment and on www.eldom.eu.
7. The appliance can be repaired only at an authorised servicing centre. Any upgrades or the use of non-original spare parts or components is forbidden and poses a hazard for the user.
8. Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

Exterior view of a gray industrial waste bin with labeled parts (no text or symbols on the device itself)

1

Two electrical probes with labeled parts (4 and 5) against a plain background, no text or symbols on the devices themselves.

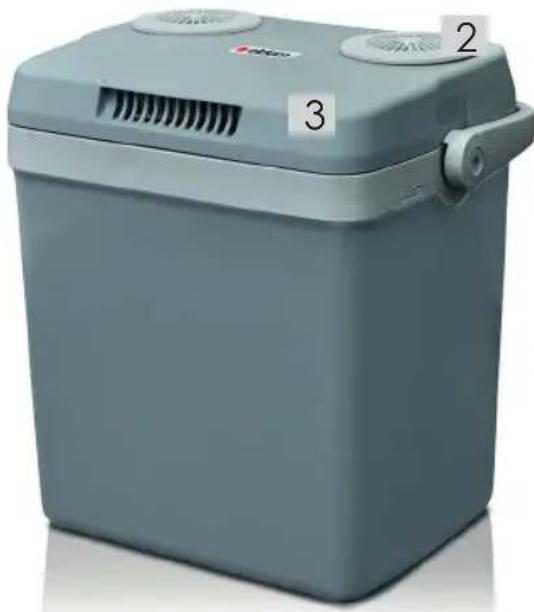

GENERAL DESCRIPTION

1. Handle
2. The lid of control panel and power cord storage compartment
3. Lid
4. Power cable 12 V (car)
5. Power cable 230 V
6. Power cord storage compartment

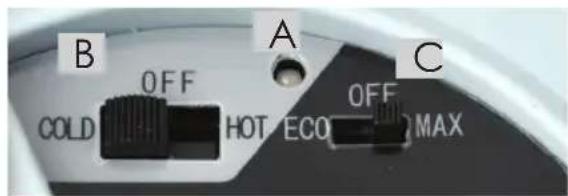

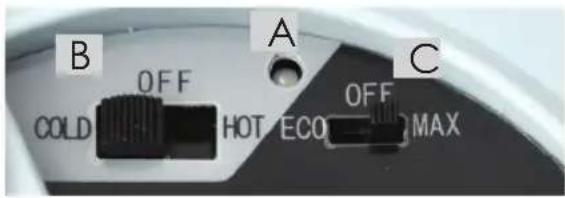

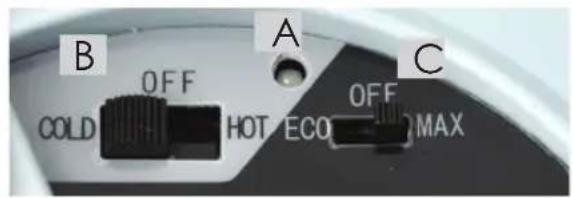

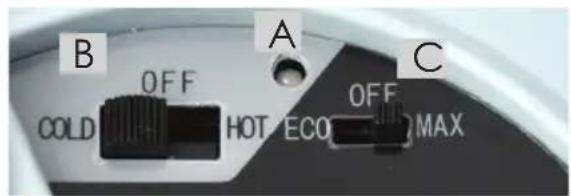

7. Control panel

A. Control lamp

B. COLD/HOT switch

C. ECO/MAX switch

APPLIANCE DESCRIPTION

TECHNICAL DATA

- wattage for 12V power supply:

cooling: 48W

heating: 40W

- wattage for 230V power supply:

MAX:

• cooling: 58W
• heating: 52W

ECO: 8W

• supply voltage: 230 V \~ 50Hz or 12V
• storage capacity: 25 l

The product combines double, integrated functions of cooling and heating through application of semiconductor (Peltier's cell) without using a compressor or cryogenics. The qualities of the appliance especially worth mentioning are: environmental friendliness, small dimensions, low weight, long life and low energy consumption.

The portable fridge TL100N cannot entirely replace a stationary fridge. It operates according to a different cooling technique and in changeable outdoor conditions and, consequently, the parameters, operation and performance of these two appliances are

not comparable.

The appliance cools to 15°C below the ambient temperature. It heats up to circa 60°C.

In order to achieve the optimal cooling effect it is recommended to put non-frozen products inside the appliance. The cooling process lasts from 2 to 3 hours.

This appliance is not designed for heating cold products but for preserving the high temperature of hot meals.

Provided the appliance is operated properly and in accordance with these instructions, the temperature can be maintained for many hours.

Handle (1) prevents the lid from opening. Opening the lid (3) is possible only when the handle is folded.

OPERATING THE APPLIANCE

The fridge can be supplied with both 12 V or 230 V voltage using the provided power cables (4) and (5) without additional accessories.

ALTERNATING CURRENT SUPPLY 230 V

• Move the lid of the control panel and power cord storage compartment (2) as indicated
• Remove the cord (5) from the power cord storage compartment trough the special groove (6)
• Before switching the appliance on pull the switches (B) and (C) into the "OFF" position (appliance switched off).
• Plug the appliance in.
• Pull the switch (C) in the ECO/MAX position.
• Chose the function with the switch (B):
• "COLD" position – COOLING. Signalized with the green control light.
• "HOT" position – HEATING. Signalized with the red control light.

ECO function works only when the device is connected to the alternating current 230V power.

The output is reduced in the operating mode ECO. Use this operating mode when there are smaller loads in the cooler box, for example.

DIRECT CURRENT SUPPLY 12V (CAR SUPPLY)

• Move the lid of the control panel and power cord storage compartment (2) as indicated
• Remove the cord (4) from the power cord storage compartment trough the special groove (6)
• Before switching the appliance on pull the switches (B) and (C) into the "OFF" position (appliance switched off).
• Put the power cable plug (4) into the lighter socket.
• Chose the function with the switch (B):
• "COLD" position – COOLING. Signalized with the green control light.
• "HOT" position – HEATING. Signalized with the red control light.

The appliance can be switched off any time by pulling the switch „B“ into the “OFF” position.

CAUTION.

Do not plug both power cables at the same time.

Changing the supply mode when the appliance is in operation can lead to damage of the appliance and loss of the guarantee.

Do not change the HOT or COLD function during the operation of the appliance. The function can be changed 30 minutes after the appliance has been switched off.

CLEANING AND MAINTENANCE

• Before cleaning, plug the power cable out and wait till it defrosts or cools entirely.
• Do not rinse the appliance or immerse it in water.
• Do not clean with sharp, abrasive clothes or sponges as it may cause damage to the appliance.
• The casing and the inside can be cleaned with a damp cloth and should be dried with clean, dry cloth afterwards.

TIPS

• Foodstuffs should be stored in additional wrapping, which will secure them against direct exposure to frost, condensation or smell diffusion.
• In case of car supply, during the stopover (engine turned off) do not supply the fridge from the lighter socket longer than 3 hours. Longer operation can cause excessive discharge of the battery.
• Change of temperatures inside the isolated container (frequent opening or switching off) leads to natural effects of frost or condensation that can be visible on the inside walls, under the lid or directly on the food.
• The optimal temperature inside the isolated container is achieved usually between 2-4 hours from the moment of switching the appliance on, provided that some constant external parameters are maintained.
• The appliance is not designed for cooling warm or hot foodstuffs.

ENVIRONMENTAL PROTECTION

The appliance is made of materials which can be recovered or recycled. The blanket should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment.

WARRANTY

• the appliance is intended for personal use at a household,
• it is not intended for professional purposes,
• in case of misuse, the warranty is rendered null and void. Warranty terms and conditions: see the attachment.

BEZPEČNOSTNÍ PODMÍNKY

Exterior view of a gray industrial waste bin with labeled components (no text or symbols on the device itself)

1

Two black cables with labeled connectors, one black and one red, against a white background (no text or symbols beyond labels)

POPIS

Exterior view of a gray industrial waste bin with labeled parts (1, 2, 3), no visible text or symbols on the device itself.

Two electrical components: a black cable with red connector and a black plug with power outlet, labeled 4 and 5 (no text or symbols on the devices themselves)

Close-up of a white electronic device with labeled parts (6, 7), no readable text or symbols beyond labels

Exterior view of a gray industrial waste bin with labeled components (no text or symbols on the device itself)

1

Two electrical plugs with labels 4 and 5, one black and one black with a power plug (no text or symbols on the plugs themselves)

Exterior view of a modern gray industrial waste bin with labeled components (no text or symbols on the device itself)

1

Close-up of two electrical plugs with labeled parts (4 and 5), no text or symbols on the plugs themselves.

ÁLTALÁNOS LEÍRÁS

Exterior view of a gray rectangular kitchen appliance with ventilation slots and labeled parts (no readable text or symbols beyond labels)

1

Two electrical plugs with labeled parts (4 and 5) showing different connection points (no text or symbols on the plugs themselves)

DESCRIPCIÓN GENERAL
