Product Type	Stroller
Brand	Emmaljunga
Model	Viking
Category	Stroller
Dimensions (Open)	Approx. 90 x 60 x 100 cm
Dimensions (Folded)	Approx. 70 x 50 x 30 cm
Weight	12.5 kg
Recommended Age	From birth to approx. 4 years
Maximum Child Weight	22 kg
Handle Height	Adjustable, 80–110 cm
Seat Recline	Multiple positions including flat
Harness Type	5-point adjustable safety harness
Brake System	Foot brake on rear wheels
Wheel Configuration	4 wheels, front swivel/lockable
Safety Certification	EN 1888
Maintenance	Clean with damp cloth; avoid abrasives
Spare Parts Availability	From Emmaljunga or authorized dealers
Frame Material	Aluminum
Fabric Material	Polyester
Basket Capacity	5 kg

Frequently Asked Questions - Viking Emmaljunga

How do I assemble the Emmaljunga Viking stroller?

Refer to the included manual for step-by-step instructions. Typically, you attach the wheels, push handle, and seat unit. Use the quick-release mechanisms for tool-free assembly.

What is the maximum weight capacity for the seat?

The seat supports a child up to 22 kg. The basket holds up to 5 kg. Overloading may affect stability.

Can the stroller be used from birth?

Yes, the seat reclines to a flat position suitable for newborns. For added comfort, use a carrycot or bassinet accessory if available.

How do I clean the fabric?

Remove the fabric covers if detachable. Wash with mild soap and cold water. Do not machine wash or use bleach. Air dry only. The frame can be wiped with a damp cloth.

Are replacement parts available?

Yes, spare parts such as wheels, harnesses, and canopy can be ordered from Emmaljunga or authorized dealers. Check the manual for part numbers.

Is the Viking compatible with car seats?

With an appropriate adapter, the Viking can be used as a travel system. Consult Emmaljunga for compatible car seat models. Adapters are sold separately.

How do I fold the stroller?

First, remove the seat unit if necessary. Pull up the folding triggers on the handle and push forward. The stroller folds compactly for storage. Ensure the locking mechanism engages.

What type of brake does the stroller have?

It has a foot-operated parking brake on the rear wheels. Step on the pedal to lock both wheels. Release by lifting the pedal.

How do I adjust the seat recline?

Use the recline strap or lever at the back of the seat. Adjust to multiple positions, including fully flat. Ensure the child is properly secured with the harness.

What is the warranty period?

Emmaljunga offers a 2-year warranty against manufacturing defects. Register your product on their website to activate. Warranty terms may vary by region.

USER MANUAL Viking Emmaljunga

UK IMPORTANT! KEEP FOR FUTURE REFERENCE. FOR THE PROPER USE OF THIS VEHICLE, BE SURE TO READ THIS USER'S MANUAL CAREFULLY. This product complies with DIN EN 1888:2012, EN 1466:2008, EN 1466:2004+A1:2007

This product is suitable for one (1) child from 0 months - 3 years.

WARNING! The seat-unit is not suitable for children under 6 months. Don't use the seat-unit until your child can sit unaided. Maximum weight of the child: 15kg.

WARNING! The product is not suitable for running or skating. The outer length and width of the Viking Carry Cot is 795 mm/360 mm.

WARNING! The carrycot / pram body (accessory) can only be used for the transportation of one child from 0 to 6 months. This product is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9kg.

WARNING! Never use this carrycot on a stand.

WARNING! Please visit www.emmaljunga.co.uk for the latest version of this information before using the product.

DK LÆS DISSE INSTRUKTIONER OMHYGGELIGT F∅R BRUG OG GEM DEM FOR FREMTIDIG REFERENCE. DIT BARNS SIKKERHED KAN PÅVIRKES HVIS DU IKKE F∅LGER DISSE INSTRUKTIONER!

Dette produkt opfylder DIN EN 1888:2012, EN 1466:2008, EN 1466:2004+A1:2007

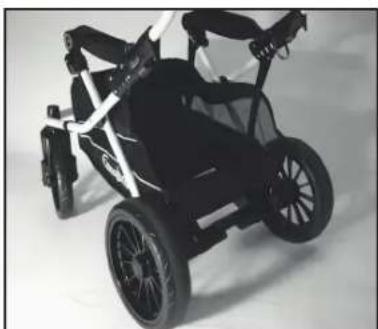

Black and white photo of a baby stroller with black wheels and white frame (no text or symbols visible)

5

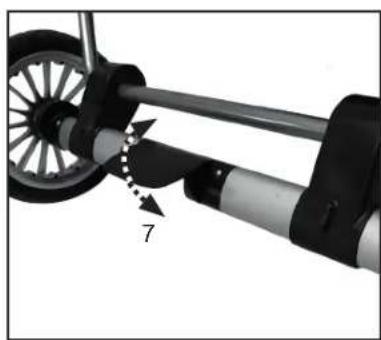

Mechanical assembly diagram showing a wheel and shaft with a numbered component (7), no text or symbols present.

Viking v. 2.1

WARNING

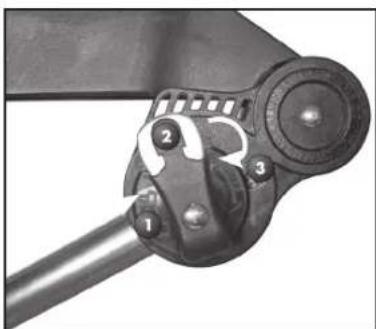

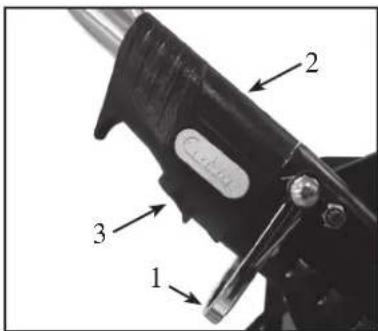

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols.

Emmaljunga Adjustable Comfort System

Close-up of a hand holding a mechanical component with a circular arrow labeled '10' pointing to it (no text or symbols beyond the number)

WARNING

• Ta ur barnet ur vagnen innan du justerar lutningen.

VIKTIGT

Close-up of a hand adjusting a black motorcycle wheel, with a 11-inch measurement arrow visible (no text or symbols on the car itself)

Close-up of a hand using a crimping tool to adjust a mechanical component (no visible text or symbols)

12

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black mechanical component (no visible text or symbols)

WARNING

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

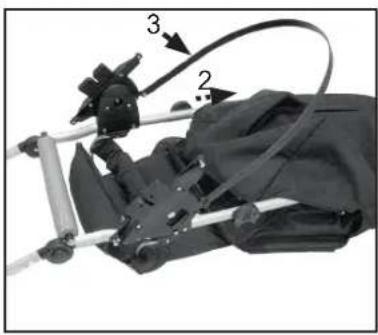

Mechanical device with labeled parts (2, 3) showing a linkage mechanism and assembly (no readable text or symbols)

Close-up of a person adjusting a backpack with straps and cables (no visible text or symbols)

Close-up of a hand adjusting a mechanical component, possibly a valve or grip (no visible text or symbols)

Montera suffletten

Close-up of a person's backpack with visible straps and straps (no text or symbols)

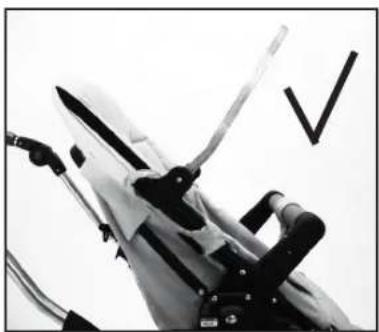

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

WARNING

- Klämrisk.

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Viking v. 2.1

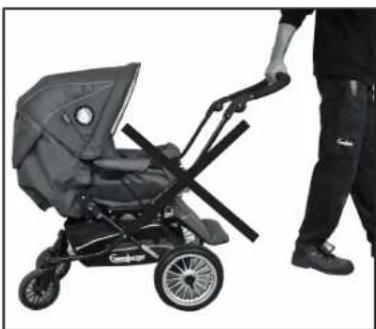

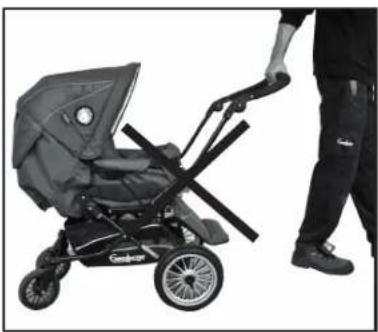

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols present)

12

Close-up of a mechanical device with a cross symbol on its side (no readable text or labels)

13

Close-up of hands adjusting a mechanical component with a bracket (no visible text or symbols)

14

Close-up of hands adjusting a dark mechanical component with a numbered label (12), no visible text or symbols beyond the number.

15

Close-up of hands installing a mechanical component with a numbered arrow and label (no readable text or symbols)

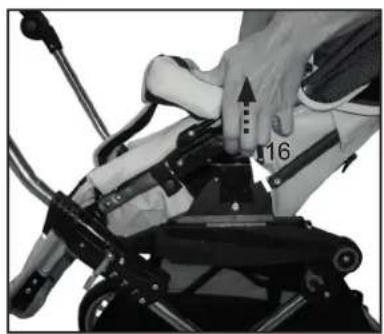

16

Montera frambågen

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no readable text or symbols beyond labels.

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

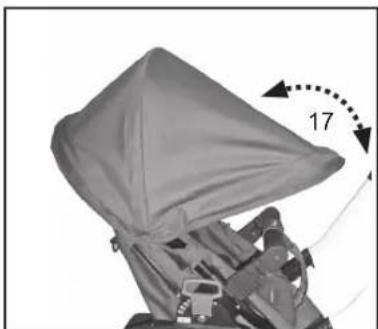

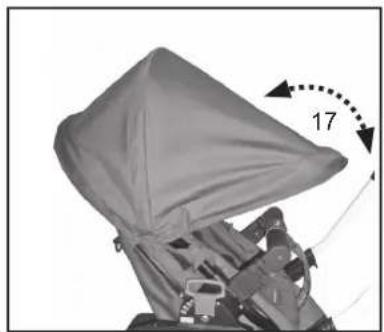

Mechanical component with a triangular cover and arrow indicating 17 degrees of motion (no text or symbols)

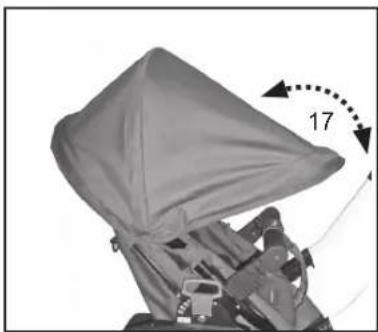

Justera suffletten

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

25

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

18

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical device with a grid pattern and an arrow pointing to a numbered component (no text or symbols visible)

5

Viking v. 2.1

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Montera suffletten

Close-up of a small car seatbelt with a numbered label '14' pointing to the seat area (no other text or symbols visible)

VIKTIGT

Close-up of a mechanical component with a curved surface and a labeled part '17' (no text or symbols on the main subject)

WARNING

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

WARNING

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

2

3

Close-up of hands using a bicycle to adjust the wheel rim (no text or symbols visible)

4

Black and white photo of a two-wheeled baby stroller with wheels and seat (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft components with numbered annotation (7), no readable text or symbols present.

34

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols beyond labels

Emmaljunga Adjustable Comfort System

Close-up of a hand holding a mechanical knob with a 10-degree arrow indicator (no text or symbols on the knob itself)

Close-up of a hand adjusting a black stroller wheel, with a 11-inch measurement arrow indicating size (no text or symbols on the wheel itself)

Close-up of a hand using a crimping tool to adjust a mechanical component (no visible text or symbols)

12

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black bicycle skis with visible joints and wheels (no text or symbols)

WARNUNG

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a hand adjusting a backpack with straps and a cable (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

WARNUNG

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

38

Black and white photo of a bicycle with a cross symbol on the right side (no text or symbols on the main subject)

12

Close-up of a person wearing a white safety vest with a cross symbol on the right side (no text or symbols visible)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a dark fabric item with a white arrow and number 12 label (no readable text or symbols)

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (13), no visible text or symbols.

Viking v. 2.1

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Close-up of a baby's seat with a triangular hat and arrow indicating 17° angle (no text or symbols)

19

20

40

Illustration of a stroller with a 31-degree angle indicator (no text or symbols on the device itself)

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

Close-up of a medical device with a white arrow pointing to a numbered component (6), no visible text or symbols.

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray patterned object resembling a vehicle seat or cushion, with a white arrow pointing to a feature labeled '11' (no text or symbols on the object itself)

Close-up of a person's seatbelt device with a numbered label '14' pointing to the seat area (no other text or symbols visible)

WICHTIG!

Close-up of a mechanical component with a curved base and a vertical panel, labeled '17' (no text or symbols on the main subject)

WARNUNG

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

WARNUNG

Close-up of a robotic arm handling a metallic kettle and a small container (no visible text or symbols)

Two car wheel components: a black tire and a gas cylinder (no text or symbols visible)

Contents of the box 51

Emmaljunga's original accessories 51

Important safety information 52-55

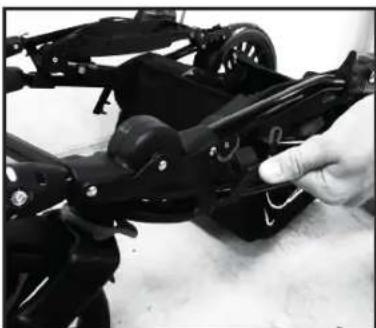

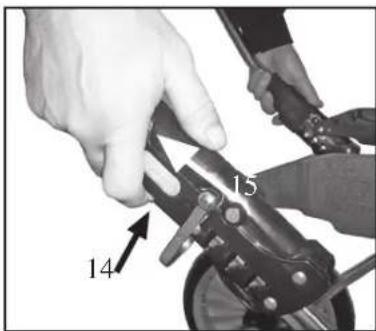

Assembly and usage of chassis 56-58

Assembly and usage of seat unit.... 59-63

Assembly and usage of carrycot 64-66

Care and maintenance 67-68

Service Documentation.... 69

Delivery Check.... 70

Service Protocol.... 71

Contents of the box:

Viking Chassis

1 pc folded chassis with tray
2 pc wheel 250 mm
2 pc Swivel wheels
1 pc Instruction manual

Viking Seat unit

1 pc seat unit incl 5-point harness
1 set shoulder harness pads
1 pc hood
1 pc seat-unit fabrics
1 pc bumper bar cover

Viking Carrycot

1 pc carrycot
1 pc hood fabric
1 pc apron
1 pc mattress

Emmaljunga's original accessories

Please use Emmaljunga's original accessories for maximum safety and comfort. Information about co-ordinating accessories can be found in our brochure or at any of our authorised retailers.

Important Safety Information

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you don't follow these instructions.

Important keep these instructions for future reference.

Note! This manual includes instructions for the chassis, seat unit and bassinet. Therefore it's very important to read through this manual if any additional accessories (seat unit and/or bassinet) is purchased at a later date.

WARNING Never leave your child unattended.

WARNING Ensure that all the locking devices are engaged before use.

WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING Do not let your child play with this product.

WARNING Use a harness as soon as your child can sit unaided.

WARNING This seat unit is not suitable for children under 6 months.

WARNING Always use the restraint system.

WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

WARNING This product is not suitable for running or skating.

Warning sentences according to EN1888:2012

WARNING A child's safety is your responsibility. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.

Warning sentences according to BS 7409:1996

WARNING Follow the manufacturer's instructions.

WARNING Put on all the brakes whenever you park the stroller.

WARNING Do not leave children unattended.

WARNING Do not carry extra children or bags on this stroller.

Important Safety Information

WARNING Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Mandatory warning sentences Australia

To avoid injury or death:

WARNING Always apply the brakes whenever the pram/stroller is stationary.

WARNING Do not leave children unattended.

WARNING Secure the child in the harness at all times.

WARNING Do not carry extra children or bags on this pram/stroller.

WARNING Make sure children are clear of any moving parts if you adjust the pram/stroller.

WARNING When not in use disconnect shoulder straps from the waist strap and/or buckle.

WARNING Do not use this bassinet once the child can sit up unaided.

WARNING Do not use or park the vehicle close to open fires or other sources of heat such as radiators for example.

WARNING Avoid steps, stairs and escalators whenever possible. Always stand below the stroller if used on an escalator.

Warning sentences according to AS/NZS 2088:2009

WARNING This product is only suitable for a child who cannot sit up unaided.

WARNING Do not let other children play unattended near the bassinet.

WARNING Do not use the bassinet if any part is broken, torn or missing.

WARNING Use only replacement parts supplied or approved by the manufacturer.

WARNING Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of the carrycot.

WARNING The handles and the bottom of the bassinet should be inspected regularly for signs of damage and wear.

WARNING Never use the bassinet on a stand.

WARNING Do not leave your child unattended.

WARNING Only use the bassinet on a firm, horizontal level and dry surface.

Warning sentences according to EN 1466:2004+A1:2007, Bassinet.

Important Safety Information

WARNING Accessories or spare parts that the manufacturer has not approved must not be used.

WARNING It may be dangerous to leave your child unattended.

WARNING Any load attached to the handle affects the stability of the pram/pushchair.

WARNING Always use the crutch strap in combination with the waist belt.

WARNING Never pull a pram with swivel front wheels behind you. The pram might self turn which can lead to a safety risk if you are not cautious and attentive.

WARNING This product is designed and built according to the standard EN1888/EN1466. This product should not be used as a medical treatment device. If your child has special medical needs in connection with transportation you should consult your doctor.

WARNING Do not modify this product as it may compromise the safety of your child. The manufacturer is NOT liable for any modifications to the product.

WARNING Do not use this product in strong winds or thunderstorms.

WARNING Please note that train or underground stations may cause sudden high pressure changes in the air (wind or vacuum). Never place this product near any rails without having both hands on the handle as the braking device alone may not be sufficient to keep your stroller safely in place.

WARNING Do not cross rails when the child is placed in the stroller or the prambody. Wheels may get stuck!

WARNING When transporting on public transport (bus, underground, train etc.) it is not enough to use the pram's parking brake only. The pram can be exposed to conditions (abrupt braking, turns and bumps in the road surface, acceleration etc.) that it has not been tested for according to the current pram standard EN1888. Follow the recommendations and instructions regarding the safe anchorage of prams during transport that public transport operators are obliged to supply.

Important Safety Information

WARNING Keep away from fire.

- Your child's safety is your responsibility.

- This product is suitable for one (1) child from 0 months - 3 years. Only use the pram for the number of children it is intended for.

- The seat-unit is not suitable for children under 6 months. Don't use the seat-unit until your child can sit unaided. Maximum weight of the child: 15kg.

- The carrycot / pram body (accessory) can only be used for the transportation of one child from 0 to 6 months. This product is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9kg.

• Viking chassis should only be used together with a Viking carrycot or a Viking Seat Unit.

- Follow the care and maintenance instructions.

- The safety instructions and directions in this manual cannot cover all possible conditions and unforeseeable situations which may occur. It must be understood that common sense, caution and care are factors that cannot be built into a product. These factors are the responsibility of the person(s) caring for and operating the pram.

- It is important that these instructions are understood and followed by everyone that uses the pram and accessories. Always inform and instruct each person using the pram and accessories on how they should be used, even if the person(s) in question will only use them for a short time.

- The maximum weight for one child using the Toddler Roller accessory on the pram is 20 kg.

- Use a maximum of one accessory on the pram at any one time e.g. Toddler Roller or car seat adaptor.

- Do not place objects on the hood. Never use the pram without the hood.

- If any part of this manual is unclear or requires further explanation, please contact an authorised Emmaljunga retailer who will be able to assist you.

- The pram is intended for transportation only. Never use the pram as a bed for your child.

- Never leave the pram with a child in it without engaging the brake.

• The brake should always be engaged when you lift your child in and out of the pram.

- Never park the pram on a hill or an uneven surface.

- Do not stand or sit on the footrest. The footrest must only be used as a support for one (1) child's legs and feet. Any other usage may lead to serious personal injury. The maximum load for the footrest is 3 kg.

- Never use the product if a part is faulty or damaged.

- Check that all zips and poppers are securely fastened before use.

• Always remove the child before you fold the pram.

- Do not place any additional mattresses in the bassinet. Only use the original Emmaljunga mattress that is included with the product.

• Overloading, incorrect folding and the use of non-approved accessories may cause injury to your child/children and/or damage the pram.

- Any load that is placed on the pram (e.g. on the handle, backrest or on the sides of the pram) will affect the stability of the pram. Do not use non-approved accessories.

- The shopping tray has a maximum weight limit of 5 kg. Always place heavier objects in the centre of the tray. The pram may become unstable if the weight in the tray is une venly distributed.

- Only use original replacement parts supplied by Emmaljunga.

- Items in the shopping tray should not protrude over the sides as items could get caught in the wheel spokes.

- The seat unit or carrycot must not be used as a car seat.

- The outer length and width of the Viking Bassinet is 795 mm / 360 mm.

- If you need to identify this product there is a sticker showing the model name and serial number placed on the chassis / pram body / bassinet.

- For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable place such as a cot or a bed.

Assembly and usage of chassis

WARNING

Make sure that children are kept away from moving parts when assembling the pram, otherwise they might be at risk of injury.

Unfolding the chassis

- Apply the brake on the pram. To unfold the chassis, pull the handle upwards, whilst holding down the side of the chassis.

WARNING

• Always make sure that the main locking device (2) and the button (3) on both sides clicks into the locked position.
- The safety catch (1) (secondary locking mechanism) is activated to prevent unintentional folding if the chassis locks are not locked into position.
- Make sure, before you use the pram that both chassis locks are in the locked position.

Attaching the wheels

• Remove the plastic protection from the axles. Save them for future use.
• Release the brake by pushing the brake pedal upwards using minimum force with your foot.
• Press in the hub cap's release button (4 or 4a), push the wheel onto the axle as far as it can go. Release the button and pull the wheel towards you, until you hear a definite click. Repeat the same procedure for both rear wheels. Make sure that the wheels are attached properly and cannot be pulled off the axle.

IMPORTANT

• The wheels are greased and can leave marks on textiles. Please use wheel protection indoors to protect your floors.
• Risk of suffocation. Don't let your child play with or in some other way handle the plastic protectors.

Attaching the front wheels to chassis.

(Only for chassis with removable front wheels.)

- Depress the release button (5) and push the front wheel in place (6).

Important.

• Before use, always make sure that the front wheels are correct mounted to the chassis.
• Attach the shopping tray to the chassis according to the included instruction.

Engaging the parking device

• Engage the parking device by pushing the brake pedal (7) all the way down with your foot.
  • Disengage the parking device by lifting the pedal up with your foot.

WARNING

• Never leave the vehicle without first engaging the parking device.
• The brake should always be engaged when you lift your child in and out of the stroller/pram.
• Avoid uphill or downhill parking.
• Make sure that the cogs are attached properly on both back wheels.
• Make sure that the brake pin engages into the cogs when the vehicle is parked.

1

2

3

4

Black and white photo of a baby stroller with black wheels and silver frame (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with a numbered component (7), no text or symbols present.

Assembly and usage of chassis

6

How to adjust the height of the handle

- Adjust the height by pressing the grey buttons on the inside of the handle (8). Keep the buttons pressed in while you adjust the handle to the required position (9).

7

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols beyond labels

Emmaljunga Adjustable Comfort System

- To maximize the comfort for the child you can adjust the angle on the pram body/seat unit.

How to use the Adjustable Comfort System

- The Adjustable Comfort System on the chassis enables you to adjust the angle on the pram body/seat unit.

• The angle may be adjusted into three different positions.

1. Low
2. Medium
3. High

WARNING

- Remove your child from the pram before adjusting the angle. Important

- Adjust the tilt when the chassis is folded to avoid unnecessary wearing of the mechanism.

- Adjust the angle by pulling the grey tab (10) outwards and twist the knob until the grey button locks into the desired position: 1, 2 or 3. Repeat on the other side of the chassis - make sure the knobs are in the same positions on both sides of the chassis.

WARNING

- The angle must be in the same position on both sides of the chassis to avoid uneven strain and possible damage to the chassis.

8

Close-up of a hand holding a mechanical component with a circular arrow labeled '10' pointing to it (no other text or symbols visible)

9

Close-up of a hand adjusting a black motorcycle wheel, with a 11-inch measurement arrow indicating size (no text or symbols on the car itself)

The front wheel can be fixed or swivel 360 degrees.

• The wheels are fixed by pressing the locking ring (11) down when the wheels are positioned straight forward.
• The wheels can rotate freely 360 degrees by pulling the locking ring up.

10

Viking v. 2.1

Removing front wheels from cahssis.

(Only for chassis with removable front wheels.)

- Depress the release button (12) and pull out the front wheel (13).

Assembly and usage of chassis

11

Close-up of a hand using a crimping tool to adjust a mechanical component (no visible text or symbols)

12

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black bicycle skis with visible joints and wheels (no text or symbols)

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Folding the chassis

- Start by making sure that the brake is engaged. - Lower the backrest/seat unit into its lowest position by pulling the backrest lever and lowering the seat unit down to it's lowest position before it is folded.

IMPORTANT!

• The backrest/seat unit should always be in its lowest position (fully reclined) before the pram is folded. Please note! The lowest recline position should only be used when folding the stroller.
• When folding: Make sure the Adjustable Comfort System is set in the highest position to avoid pressure marks on the rear wheels while the chassis is in the folded position.
• Ensure the front wheels are in the swivel position by pulling the locking rings up.
• Fold the chassis by first pressing in the buttons (14) at the same time and pull the two main locking devices, one on each side upwards (15).
• Lift the secondary locking device (16) and fold the handle forward.
• If you need to make more space you can remove the wheels by pressing in the hub cap's release mechanism and pulling the wheel off the axle.
• Wipe off any dirt or grease from the axles before you replace the wheels.

WARNING

- Never pull a pram with swivel front wheels behind you. The pram might self turn which can lead to a safety risk if you are not cautious and attentive.

Transport clip

A transport clip is attached to the chassis.

- Fold the chassis and snap the clip over the chassis frame to secure it in place.

Assembly and usage of seat unit

1

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Removing and assembling the seat-fabrics

• The fabrics of the pram are assembled at delivery, but can be removed to be washed.
• Before washing, remove the wooden seat plate which you will find within the seat unit fabrics. Open with the aid of the zipper (1).

IMPORTANT

- Follow the washing instructions in this instruction manual's section for care and maintenance.

2

Mechanical device with labeled parts (2, 3) showing a linkage mechanism and lever assembly (no text or symbols beyond labels)

• To assemble the seat unit fabrics, open all of the zippers on the seat-fabrics. Insert the wooden seat plate. Insert the seat unit's aluminium frame into the fabric as shown in the picture (2).
• The black plastic strap on the seat unit frame (3) should be placed on the outside of the fabric.

3

- Place the shoulder harness straps through the holes – (4) or (5) depending on the size of the child – in the backrest of the seat fabric.

- Put the shoulder harness protection pads back on the harness.

4

- Place the crutch strap through the holes – (6) or (7) in the seat fabric and the wooden seat plate.

5

Close-up of a person adjusting a backpack with straps and cable (no visible text or symbols)

- Secure the black plastic strap to the seat fabric with the aid of the two Velcro straps on the fabrics.

Viking v. 2.1

Assembly and usage of seat unit

6

- Check that all zips are attached, (five in total):

- For the wooden plate

- 1 pc under the seat (8)

- 1 pc under the footrest (9)

- 1 on each side of the seat along the black plastic Easy fix attachment points (10 and 11).

WARNING

- Before you use the pram, make sure that the seat fabrics are correctly attached and that all 5 zippers are correctly fastened.

7

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Assembly of the hood

- Affix both the hood clips on the side of the seat unit.

WARNING

- The hood should be assembled when the pram is in use.

Height adjustment of the hood

- The height of the hood can be adjusted by sliding the hood up and down on the frame of the seat unit.

8

Close-up of a backpack with visible straps and straps (no text or symbols)

Removing the hood fabric

- Open the zipper and remove the fabric.

9

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

WARNING

• Shearing and Compression points

Note the following when assembling a hood fabric on the aluminium hood frame. Make sure that the hood frame is assembled as shown in pictures 9 and 10. Incorrect assembly as shown in picture 11 and 12 can cause shearing and compression points.

This is both for disassembling to wash and changing the hood fabric.

10

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

60

Assembly and usage of seat unit

11

Black and white photo of a bicycle with a cross symbol on the right side (no text or symbols on the main subject)

12

Close-up of a person wearing a white safety vest with a cross symbol on the right side (no text or symbols visible)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a cable or cable connector with a numbered label (12) on the fabric, no readable text or symbols present.

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (13), no visible text or symbols.

Viking v. 2.1

Assembly of the bumper bar

• Slot both attachments pieces located at each end of the bumper bar, on to the plastic pieces on the seat unit.
• The crutch strap is assembled around the bumper bar with the popper.

WARNING

- Make sure that the bumper bar is attached when the child is placed in the pram.

Open the bumper bar

• Press the button (12) and open the bumper bar.
• The complete bumper bar can be removed by opening the bumper bar on both sides.

WARNING

- Make sure that the bumper bar is attached when the child is placed in the pram.

Repositioning of the bumper bar

- Lower the bumper bar and press it back into the reciever (13).

WARNING

• The bumper bar shall always be assembled when using the pram.
- Before use, make sure that the bumper bar is securely attached to the seat unit.

Assembly and usage of seat unit

16

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Close-up of a baby's seat with a triangular hat and arrow indicating 17° angle (no text or symbols)

19

20

62

Attaching and releasing the seat-unit.

• Attaching the seat-unit: Engage the parking device: Lift the seat unit and push the Easy Fix pieces (14) into the receivers on both sides of the chassis (15) until it locks into position with an audible "click".
  • The seat-unit can be attached in both driving directions.

WARNING

• Make sure that the seat-unit is correctly assembled on the chassis before usage.
• To release the seat-unit: Start by engaging the parking device. Press the handles upwards (16) on both sides at the same time and then lift the seat-unit straight up.

WARNING

• Don't allow any child to be placed in the vehicle when it is being folded/unfolded.
• Hold the handles steadily until the seat unit is in place.

IMPORTANT

• Make sure that the seat-unit is in place, before you start to use the vehicle.
- Never lift the top part when it is assembled onto the chassis.

Adjusting the hood

- Adjust the hood by gently pulling the front backwards/forwards (17) until it reaches the desired position.

IMPORTANT!

• Never lift the stroller by holding on to the hood.
• Never lift the top part when it is assembled on the chassis.

Note

- If the hood is moved up and down on the handlebar legs scratches can occur on the paint. Keep the handlebar legs clean from dirt and dust.

Sun Canopy

- The hood can be pulled forward to provide sun protection.

Adjusting the footrest

• The footrest can be adjusted into different positions. Adjust the footrest to the down position by pushing in the release buttons (18) on each side. Keep the release buttons pushed in and adjust (19) into the desired position.
  • To adjust into the horizontal position lift the footrest upwards.
• The stroller features an automatic adjustment of the footrest into the horizontal position which is required for folding.

WARNING

- Do not let the child/children stand on the footrest.

Positioning of the shoulder straps

Moving from the lowest to the highest position.

• In order to move the shoulder straps to the highest position. Remove the shoulder harness protection pads
• Open all the zippers to enable to access the backrest of the seat unit.
• Move the straps from the lower holes (20) to the higher position (21).

Moving from the highest to the lowest position.

- In order to move the shoulder straps from the highest to the lowest position, follow the same steps as above.

Assembly and usage of seat unit

21

22

23

24

Illustration of a stroller with a bag and seat, showing a 31-degree angle indicator (no text or symbols on the diagram itself)

25

Viking v. 2.1

Positioning of the crutch strap

Moving from the inner to the outer position.

• In order to move the crutch strap from the inner to the outer hole, open the zipper (22) to access the bottom of the seat unit.
• Pull out the strap from the under side (23) and insert the strap in the outer hole through the fabrics and the wooden seat plate (24).
• Close the zipper (22).

Moving from the outer to the inner position.

- In order to move the crutch strap from the outer to the inner hole, follow the same steps as above.

WARNING

- Before you use the pram, make sure that the seat fabrics are correctly attached and that all 5 zippers are correctly fastened

Adjust the 5-point harness

• Bring crutch strap (25) forward between the child's legs and up toward the front of the waist. Insert the waist straps (26) into the harness buckle until they "click" into place. Make sure the waist straps are fastened securely.
• Adjust all sliders (27) on the waist and shoulder strap so that the straps fit snugly around the child.
• To release the shoulder and waist straps, press the buttons (28) in the centre of the harness buckle.
• Attachment points are provided at the ends of each waist strap for a separate harness complying with BS 6684

WARNING

- Always fasten the child in with the harness when they are placed in the pram. Make sure that all attachment points are correctly fastened and that the harness is assembled in the pram.

Adjusting the backrest/seat unit

- Pull the backrest lever (plastic strap) (29) and lower/ raise the backrest/seat unit into the desired position (30).

WARNING

- Make sure that the backrest/seat unit is locked into one of its 4 positions by pushing the backrest/seat unit backwards until it locks into one of its positions. Please note! The lowest recline position should only be used when folding the stroller.

WARNING

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Folding of the chassis

- Apply the brake on the pram. Push back the hood (31) towards the backrest.

WARNING

• Always remove the child before you fold or unfold the vehicle.
- Keep children away when folding or unfolding the vehicle.
- Lower the backrest/seat unit into its lowest position by pulling the backrest lever and lowering the seat unit down to its lowest position before it is folded (32).

IMPORTANT!

• The backrest/seat unit should always be in its lowest position (fully reclined) before the pram is folded. Please note! The lowest recline position should only be used when folding the stroller.
• Fold the chassis according to the instructions accompanying picture 9-10.
  • To make the pram more compact when folding, the bumper can be removed according to the instructions in accompanying pictures 4-5.

Assembly and usage of carrycot

1

2

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical device with a white arrow pointing to a numbered component (6), no visible text or symbols.

5

Assembly of pram body

- Remove plastic covers from mattress and fabrics and discard. The bottom of the carrycot is made out of wood.

WARNING

- Risk of suffocation. Do not let your children play with the plastic bag.

Assembly of pram body

• In order to extend the pram body, slide the metal bar along the carrycot base until it clicks into one of the plastic receivers.
• Pull one side of each metal bar into position (1) and then the other side (2) so that both sides clicks into the plastic recievers (3).
• Repeat the same steps with the metal bar on the other side of the pram body.

WARNING

- Before using the carrycot, make sure that the metal bars have clicked into all four plastic recievers (3) so that the frame of the pram body is held firmly in place.

Folding the carrycot

• Lift the mattress.
• Push down the button on the plastic part (4).
• Push the metal bar past the button (5).
• Repeat same steps on all four corners on the carrycot base.
• Slide the metal bars along the bottom and fold the carrycot base.

- Turn over the backrest (6) to its layback position. (Available on certain models only)

Adjusting the Backrest (Available on certain models only)

- Raise the backrest (7), push the plastic legs (8) so that it rests against the metal support bars.

Assembly and usage of carrycot

6

- Insert the mattress (9)

WARNING

- Do not place any additional mattresses in the carrycot. Only use the original Emmaljunga mattress that is included with the product.

7

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Removing the hood fabric

- Open the zipper (10) and remove the fabric.

8

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Attach the hood

- Attach the velcro to the exterior of the carrycot (11).

9

Adjust the hood

- Press both buttons (12) on the inside of the hood before adjusting the hood (13).

IMPORTANT

- Never lift the carrycot when it is assembled onto the chassis.

10

Close-up of a small car seatbelt with a numbered label '14' pointing to the seat area (no other text or symbols visible)

Attachment of the carrycot

- Engage the parking device: Lift the carrycot by the handles and push the Easy Fix attachments into the receivers (14) on both sides of the chassis until it locks into its position.

WARNING

- Make sure that the top part is in locked into position on both sides.

Assembly and usage of carrycot

11

Remove the carrycot

• Engage the parking device.
• Push in the button and pull the lever on the underside of the carrycot (15). Lift the carrycot (16). Depending on the position of the child lift the carrycot with the handle in one of the two lift positions as shown in the pictures 12 and 13. This is very important, never lift the carrycot in any other position than these two!

12

Close-up of a mechanical component with a curved base and a vertical panel, labeled '17' (no text or symbols on the main subject)

WARNING

• Always carry the carrycot with the handle (17) as shown in the pictures 12 and 13 depending on the position of the child.
- Only carry the carrycot with the lifting handle in one of these two positions. This is very important.

13

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

WARNING

• Never place pram body near stairs, on top of tables or in other areas where it might fall down.
• Never use the carrycot as a cradle outdoors or on uneven surfaces.
• Never use the carrycot as a permanent bed for your child.
• For models without mosquito net. To prevent the child from grabbing and pulling the net, only use a mosquito net that is appropriate for the pram and that can be secured to the carrycot.

Care and maintenance

General care advice

• Never expose your vehicle to excessive sunlight for long periods of time.
  • Always use a raincover when it is snowing or raining.
• Never store your vehicle in cold and/or damp places. In order to avoid mould it is important that you make sure that it is completely dried in room temperature after use.
• Should the chassis become wet, dry it off promptly. Make sure the vehicle is completely dry before storing.
• Rinse and dry off the pram, if you have used the pram close to the sea or on salted roads or pavements.
• Take care when transporting or storing the chassis. The chassis surface is delicate. Scratches to the chassis surface, that arise after purchase are not cause for a valid complaint.

Routine Inspection

• Regularly clean the chassis and metal parts of the vehicle -dry off and lubricate all joints of the chassis. When the pram is used during the winter time, cleaning of the pram should be done at least once a week. Lack of maintenance could cause corrosion. Should corrosion on the surface occur, which is a possibility, you are required to remove this with car wax in order to avoid rust. (never use a corrosion cleaning agent on the wheels)
• It is recommended to lubricate the wheel axles and suspension system every three months (clean axles with a cloth prior to lubrication). Axles may be lubricated with petroleum jelly or automobile oil.

Check regularly that:

• all chassis locking devices are functioning properly.
• all rivets, nuts and bolts are firmly tightened and not broken or damaged.
• all plastic parts are not cracked or broken.
  • the wheel bushings are in a good condition.
• both velcros are securely fastened around the plastic strap on the backrest/seat unit
• all elastic straps are in a good condition.
• the secondary locking mechanism is intact and can move freely.
  • the brake works and the brake cogs are intact
• the tyre air pressure is correct (only air tyre) (see marking on tyre: 28 P.S.I. = 1,8 bar; 35 PSI = 2,5 bar)
• check the handle regularly and the bottom of the carry-cot/lift for damage or wear and tear.

PLEASE OBSERVE

• When in need of servicing with original parts and other technical issues that require a professional decision, always get in touch with your retailer where your Emmaljunga product was purchased.
• The product that you have chosen follows the guarantee regulations valid from the 1st of July 2002 (SFS 2002:587) You have a right to demand this information when you purchase your pram at your retailer.

WARNING

- Tyres can when in contact with PVC-floor or other plastic materials cause discoloration. Always use wheel protection if the pram/stroller is stored on delicate surfaces.

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a plain white background (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

Viking v. 2.1

• The parking brake consists of moving parts and requires regular maintenance for correct function.
• To ensure effective functioning always make sure that the parking brake is well lubricated. Immediately remove sand, snow, ice and dirt from any moving part of the braking system.
• Use a silicon or oil based lubricant to lubricate the brake pedal, wheel axle and brake pins on both sides of the parking brake at least once a month. Also lubricate the release mechanism on the wheels on a similarly regular basis.
• If you use your Emmaljunga pram/stroller on sandy beaches or under other dirty and wet conditions make sure to take extra care of the parking brake and maintain the braking system and wheels as detailed above whenever needed.

Care and maintenance

Washing instructions

- Hood:

Take off and extend the hood. Shower the hood from the inside (interior fabric) with lukewarm water. Use mild liquid soap as detergent. Cleanse it thoroughly. Drip dry the fully extended hood.

- Seat fabric and 5-point harness:

Remove the seat fabric from the chassis and remove the wooden seat board from the seat unit fabrics. Hand wash seat fabrics in lukewarm water. Use mild liquid soap as detergent. Cleanse thoroughly. Drip dry the seat fabric. Only wipe the nylon straps and plastic parts clean with a damp cloth. Do not hand wash. Make sure the harness is dry before reassembly.

• Bumper bar padding:

Remove the bumper bar fabric from the bumper bar. Handwash in lukewarm water. Use mild liquid soap as detergent on the surface of the exterior fabric. Handle non-woven interior material with care. Drip-dry.

- Carrycot:

Remove hood and mattress. Wipe the exterior fabric and the interior nonwoven material, clean with a damp cloth. Do not hand wash. Dry the pram body in its fully extended position. Make sure the wooden base is protected from any water.

General Information

- Ironing:

If any fabric part needs to be ironed, always use a 100 % cotton cloth in-between the iron and the fabric to protect the fabric surface. Iron the exterior fabrics (100 %) polyester and the interior fabrics on gentle heat (110°C on the iron).

• Make sure all parts are completely dry before reassembly. Check the trimmings and the seam on the seat fabric underneath the backrest-pocket.
• You may apply a material protector on the exterior fabric after washing. Always apply before reassembly.

WARNING

- Do not place your child/children in the stroller for at least 24 hours after applying a material protector.

WARNING

• Make sure all parts are assembled correctly according to the instructions in this manual.
• Make sure the seat base board is correctly positioned before reassembly and use.

IMPORTANT

Washing advice for leatherette fabrics

- Fabrics made of leatherette must not be washed according to the above instructions. Leatherette fabrics must only be cleaned with a drop of uncoloured washing up detergent and wiped down with a damp cloth, dry at room temperature.

Emmaljunga

Service Documentation

Your pushchair requires regular care and maintenance. We recommend that you have your product serviced regularly, following the suggested service intervals in order for you to take full advantage of and maintain the quality of the product and to minimize the effects of wear and tear.

Always take your product to an authorised Emmaljunga retailer to carry out the service. After every service you will receive a report covering what has been inspected and checked together with a note stating the date on which the service has been carried out.

Before the pram is sent from the factory it has undergone regular checks and testing. Another check is completed before the product is given to you to ensure that it fulfills all safety and quality requirements. In addition to the regular service by your authorised retailer it is very important that you also check and maintain the product. You can find out more about this under the care and maintenance section in the product manual.

Chassis number

Delivery control

0

Date, stamp, customer name, signature

6 month service

6

Date, stamp, customer name, signature

12 month service

12

Date, stamp, customer name, signature

24 month service

24

Date, stamp, customer name, signature

36 month service

36

Date, stamp, customer name, signature

Emmaljunga

Delivery Check

1. Check that the following items are present in the correct numbers:

Viking Chassis

☐ 1 pc folded chassis with tray
□ 2 pc wheel 250 mm
□ 2 pc Swivel wheels
□ 1 pc Instruction manual

Viking Seat Unit

□ 1 pc seat unit incl 5-point harness
□ 1 set shoulder harness pads
□ 1 pc hood
□ 1 pc seat-unit fabrics
□ 1 pc bumper bar cover

Viking Carrycot

□ 1 pc carrycot
□ 1 pc hood fabric
□ 1 pc apron
□ 1 pc mattress

2. Check the functions of the chassis.

Unfold the chassis.

□ Check that the chassis locks function on both sides.
☐ Check that the safety catch/safety buttons function correctly by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.
☐ Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.
☐ Check the harness function on the seat unit by locking and unlocking the harness.
☐ Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.
☐ Check that the Emmaljunga Adjustable Comfort System - adjustable suspension function can be secured into the three positions on both sides of the chassis.
☐ Check that the backrest can be adjusted and locks securely into each of its four positions.
☐ Check that the footrest can be adjusted and locks securely into each of its two positions.

3. Wheel and brakes

□ Lubricate the ends of the axles.
□ Attach the wheels and make sure that the wheels lock into position.
☐ Check that the parking device locks both rear wheels when engaged.

4. Overall inspection of the product

☐ Check that all rivets, screws and nuts are securely fastened.
☐ Check that all poppers and zips on the seat fabrics and the tray are correctly and securely attached.
□ Make sure that there are no other visible differences on the chassis, seat fabrics, tray and wheels.

Emmaljunga

Service Protocol

Service

Chassis/seat unit/carry cot function

Check that the chassis locks function on both sides.

Check that the safety catch/safety buttons function correctly by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.

Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.

Check the harness function on the seat unit by locking and unlocking the harness.

Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.

Check that the Emmaljunga Adjustable Comfort System - adjustable suspension function can be secured into the three positions on both sides of the chassis.

Check that the backrest can be adjusted and locks securely into each of its four positions.

Check that the footrest can be adjusted and locks securely into each of its two positions.

Wheels and brakes

Check that the wheels are removable and that they lock onto the axles

Check that the brakes lock both rear wheels

Visual overview

Check that all rivets and screws are tightened correctly

Check that all buttons and zippers are intact and correctly fastened

Check for any other visible deviations on the chassis, fabrics, tray and wheels

Lubrication

Clean and lubricate the wheels, axles, chassis locks, footrest and the safety catch

Other notes (further adjustments or changed details)

Indholdsfortegnelse

Afsnit

Kassens indhold.... 72

Emmaljunga Original-tilbehør.... 72

2

3

4

Black and white photo of a baby stroller with black wheels and white frame (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with a numbered component (7), no text or symbols present.

Viking v. 2.1

ADVARSEL

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols.

Emmaljunga Adjustable Comfort System

- For at maksimere komforten for dit barn, kan overdelens/klapvognsdelens hældning justeres.

Close-up of a hand holding a mechanical component with a circular arrow labeled '10' pointing to it (no text or symbols beyond the number)

VIGTIGT

Close-up of a hand adjusting a black motorcycle wheel, with a 11-inch measurement arrow visible (no text or symbols on the car itself)

Forhjulene kan låses fast eller rotere i 360 grader.

- Hjulene låses ved at trykke ned på plastringene (11) når hjulene befinder sig i "fremad rettet position"

- Hjulene kan rotere frit i 360 grader ved at låse plastringene op igen.

10

Close-up of a hand using a crimping tool to adjust a mechanical component (no visible text or symbols)

12

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black bicycle tricycle component (no visible text or symbols)

ADVARSEL

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Close-up of a hand adjusting a dark fabric bag with attached straps and straps (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Close-up of a backpack with visible straps and straps (no text or symbols)

Afmontering af kalechestoffet

Black-and-white photo of a robotic arm holding a tool, with a large checkmark symbol above (no text or symbols on the robot or background)

ADVARSEL

• Klemrisiko

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Viking v. 2.1

Black and white photo of a bicycle with a cross symbol on the right side (no text or symbols on the main subject)

12

Close-up of a white mechanical device with a black X symbol on its side (no text or symbols visible)

13

Close-up of hands adjusting a mechanical component with a clip and bracket (no visible text or symbols)

14

Close-up of a hand adjusting a cable or connector with a numbered label (12) on the fabric, no readable text or symbols present.

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (13), no visible text or symbols.

82

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

• Afmontering: Start med at bremse vognen. Tryk op i håndtagene (16) på begge sider samtidig og løft op i overdelen.
  • Overdelen kan monteres i begge retninger.

ADVARSEL!

Mechanical device with a triangular cover and attached components, showing a 17-degree angle indicator (no text or symbols on the device itself)

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

ADVARSEL

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical device with a numbered component and an arrow indicating direction (no text or symbols present)

5

Viking v. 2.1

Montering af barnevogns overdel

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Afmontering af kalechestoffet

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Close-up of a person wearing a seatbelt and holding a device, with a numbered arrow pointing to the seat area (no text or symbols visible)

VIGTIGT

Close-up of a mechanical component with a curved base and a vertical panel, labeled '17' (no text or symbols on the main subject)

ADVARSEL

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

ADVARSEL

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Product photo of a black and silver bicycle wheel with a gas can beside it (no text or symbols visible)

2

3

4

Black and white photo of a baby stroller with black wheels and silver frame (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with a numbered component (7), no text or symbols present.

Viking v. 2.1

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols.

Emmaljunga Adjustable Comfort System

Close-up of a hand holding a mechanical component with a circular arrow labeled '10' pointing to it (no text or symbols beyond the number)

VIKTIG

Close-up of a hand adjusting a black motorcycle wheel, with a 11-inch measurement arrow visible (no text or symbols on the car itself)

Framhjulene kan låses fast eller rotere i 360 grader.

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no text or symbols visible)

14

Close-up of a hand adjusting a black athletic roller skis (no visible text or symbols)

ADVARSEL

Sjekk at ingen barn er i nærheten av bevegelige deler när vognen justeres. Hvis ikke kan de komme til skade.

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2, 3) showing a linkage mechanism and mechanical components (no readable text or symbols)

Close-up of a person adjusting a backpack with straps and cables (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

ADVARSEL

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Viking v. 2.1

Black and white photo of a bicycle with a cross symbol on the right side (no text or symbols on the main subject)

12

Close-up of a white mechanical device with black clamps and a cross symbol on the side (no readable text or labels)

13

Close-up of hands adjusting a mechanical component with a bracket and cable (no visible text or symbols)

14

Close-up of a hand adjusting a cable or connector with a numbered label (12), no visible text or symbols beyond the number.

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (13), no visible text or symbols.

104

Close-up of a person adjusting a bicycle seatbelt device with numbered labels (14 and 15) on the handle (no text or symbols on the device itself)

Close-up of a person using a bicycle pedal device with a hand adjusting the pedal (no visible text or symbols)

- Avmontering: Brems vognen. Trekk samtidig handtakene (16) (et på hver side) opp, og løft samtidig sportsvogndelen opp.

ADVARSEL

Close-up of a mechanical component with a triangular cover and arrow indicating angle 17 (no text or symbols)

Illustration of a baby stroller with a numbered arrow indicating '31' (no text or symbols on the device itself)

25

106

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical or surgical device with a numbered component and directional arrow (no visible text or symbols)

5

Viking v. 2.1

Montering av Bagen

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Feste kalesjen

Close-up of a person wearing a seatbelt and holding a device, with a numbered arrow pointing to the seat area (no text or symbols visible)

Montering av bagen på understellet

Close-up of a gray fabric or cushion with a vertical seam and label '17' (no other text or symbols visible)

ADVARSEL

Open gray cylindrical device with internal structure, labeled '17' (no text or symbols on device)

ADVARSEL

• Plasser aldri bagen i nærheten av trapper, oppe på bord eller på andre steder der den kan falle ned.
• Bruk ikke bagen som vugge utomhus eller på ujevne underlag
• Bruk ikke bagen som seng til ditt barn.
• Modeller som ikke har myggnett: Bruk kun myggnett som passer vognen og som sitter slik fast at barnet ikke kan komme til å trekke i det.

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

Black and white photo of a two-wheeled stroller with wheels and seat (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with labeled component '7' (no text or symbols beyond label)

Viking v. 2.1

VAROITUS

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols.

Emmaljunga Adjustable Comfort System

Close-up of a hand holding a small mechanical knob with a 10-degree arrow indicator (no text or symbols on the knob itself)

VAROITUS

Close-up of a black stroller with wheels and a hand adjusting the wheel (no text or symbols visible)

Eturenkaiden irrotus.

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black athletic roller skis (no visible text or symbols)

VAROITUS

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Close-up of a hand adjusting a dark fabric bag with attached straps and straps (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Kuomun kasaaminen

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

VAROITUS

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Viking v. 2.1

Black and white photo of a bicycle with a cross symbol on the right side (no text or symbols on the main subject)

12

Close-up of a white mechanical device with a black X symbol on its side (no text or symbols visible)

13

Close-up of hands adjusting a mechanical component with a clip and bracket (no visible text or symbols)

14

Close-up of a hand adjusting a cable or connector with a numbered label (12) on the fabric, no readable text or symbols present.

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (13), no visible text or symbols.

126

Turvakaaren asennus

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Mechanical device with a triangular cover and attached components, showing a 17-degree angle indicator (no text or symbols on the device itself)

19

20

Viking v. 2.1

Illustration of a stroller with a bag and seat, showing body positioning and a 31-degree rotation indicator (no text or symbols on the diagram itself)

VAROITUS

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

TÄRKEÄÄ

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

Close-up of a medical or surgical device with a numbered component and directional arrow (no visible text or symbols)

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Kuomun kiinnitys

Close-up of a small car seat with a numbered arrow pointing to the side panel (no visible text or symbols)

TÄRKEÄÄ

Close-up of a gray mechanical component with a visible part labeled '17' (no text or symbols on the object itself)

VAROITUS

Open gray fabric bag with visible internal structure and label '17' (no text or symbols on the bag itself)

VAROITUS

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two automotive components: a black wheel with metallic blades and a gas cylinder (no text or symbols visible)

Oluline ohutusalane teave

Oluline ohutusalane teave

Oluline ohutusalane teave

Oluline ohutusalane teave

2

3

4

Black and white photo of a baby stroller with black wheels and white frame (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with a numbered component (7), no text or symbols present.

Viking v. 2.1

HOIATUS!

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols.

Close-up of a hand holding a mechanical component with a circular arrow labeled '10' pointing to it (no text or symbols beyond the number)

9

Close-up of a hand adjusting a black motorcycle wheel, with a 11-inch measurement arrow visible (no text or symbols on the car itself)

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

TÄHELEPANU!

Person walking beside a baby stroller with a child's seat (no visible text or symbols)

HOIATUS!

Close-up of a hand adjusting a black roller skis with a handle (no visible text or symbols)

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2 and 3) showing a linkage mechanism (no text or symbols beyond labels)

Close-up of a hand adjusting a cable or cable device on a dark, curved surface (no text or symbols visible)

- Kinnitage musta värvi plastrihm isteosa riidest kattele kahe Velcro rihma abil.

Close-up of a hand adjusting a mechanical component, possibly a valve or grip (no visible text or symbols)

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

HOIATUS

• Katuse alumiiniumkarkassi kinnitus.

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Viking v. 2.1

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols present)

12

Close-up of a mechanical device with a cross symbol on its side (no readable text or labels)

13

Close-up of hands adjusting a mechanical component with a bracket (no visible text or symbols)

14

Close-up of hands adjusting a dark mechanical component with a numbered label (12), no visible text or symbols beyond the number.

15

Close-up of hands installing a mechanical component with a numbered arrow and label (no readable text or symbols)

148

Turvakaare kinnitamine

Close-up of a person adjusting a bicycle seatbelt device with labeled parts (14 and 15), no visible text or symbols beyond labels.

17

Close-up of a person using a robotic device with a hand adjusting the seat area (no visible text or symbols)

18

Close-up of a mechanical component with a triangular cover and dotted arc indicating 17 degrees (no text or symbols)

19

20

Viking v. 2.1

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the diagram itself)

25

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

150

Close-up of a mechanical component with a labeled part '3' and circular holes (no text or symbols beyond the number)

3

4

Close-up of a medical device with a numbered arrow pointing to a textured surface (no visible text or symbols)

5

Viking v. 2.1

Vankri monteerimine

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Paigaldage korvile kaarvari-katus

Close-up of a person wearing a seatbelt and holding a device, with a numbered arrow pointing to the seat area (no text or symbols visible)

TÄHELEPANU!

Close-up of a mechanical component with a curved surface and a label '17' (no readable text or symbols)

HOIATUS!

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

HOIATUS!

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

2

3

4

Black and white photo of a baby stroller with black wheels and silver frame (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with a numbered component (7), no text or symbols present.

BRĪDINĀJUMS

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols.

Close-up of a hand holding a mechanical knob with a 10-degree arrow indicator (no text or symbols on the knob itself)

BRĪDINĀJUMS

Close-up of a hand adjusting a black stroller wheel, with a 11-inch measurement arrow indicating size (no text or symbols on the wheel itself)

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black athletic roller skis (no visible text or symbols)

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Close-up of a robotic arm with labeled parts (2 and 3), no visible text or symbols beyond labels

Close-up of a hand adjusting a backpack with straps and clips (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Jumtiņa montāža

Close-up of a backpack with visible straps and straps (no text or symbols)

Pârsega auduma nonemšana

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

BRĪDINĀJUMS

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

170

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols present)

12

Close-up of a person wearing a white safety vest and black mechanical equipment, with a large 'X' symbol in the background (no readable text or symbols)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a car seatbelt with a white arrow pointing to the belt (no text or symbols visible)

15

Close-up of hands installing a mechanical component with a numbered arrow (13), no visible text or symbols

Viking v. 2.1

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Close-up of a baby's seat with a triangular hat and arrow indicating 17° angle (no text or symbols)

19

20

172

Illustration of a stroller with a bag and seat, showing a 31-degree angle indicator (no text or symbols on the device itself)

25

Illustration of a baby stroller with a dotted arrow indicating measurement (no text or symbols present)

Viking v. 2.1

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

Close-up of a textured, dark object with a white arrow and number 6, possibly part of a device or device component (no readable text or symbols)

Close-up of a fabric or cushion with a numbered arrow pointing to a seam or edge (no text or symbols visible)

Black and gray children's backpack with a white arrow pointing to the side of the seat (no text or symbols visible)

Close-up of a small car seat with a numbered label '14' pointing to the seat area (no other text or symbols visible)

Close-up of a mechanical component with a textured surface and a labeled part '17' (no readable text or symbols)

BRĪDINĀJUMS

Open gray fabric or cushion device with a numbered label '17' on the side (no other text or symbols visible)

BRĪDINĀJUMS

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a white background (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

Viking v. 2.1

2

3

Close-up of hands using a bicycle to adjust the wheel rim (no text or symbols visible)

4

Black and white photo of a two-wheeled baby stroller with wheels and seat (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with labeled component '7' (no text or symbols beyond label)

ISPÉJIMAS

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols beyond labels

Close-up of a hand holding a mechanical component with a circular arrow labeled '10' pointing to it (no other text or symbols visible)

9

Close-up of a hand adjusting a black stroller wheel with a 11-inch angle indicator (no text or symbols on the wheel itself)

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black bicycle skis with visible joints and wheels (no text or symbols)

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Sédynès apvalkalo nuèmimas ir uždéjimas

Close-up of a robotic arm with labeled parts (2 and 3), no visible text or symbols beyond labels

Close-up of a person adjusting a backpack with straps and straps (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Gaubto montavimas

Close-up of a backpack with visible straps and straps (no text or symbols)

Gaubto audinio nuèmimas

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

ISPÈJIMAS

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

192

Black and white photo of a bicycle with a cross symbol on the right side (no text or symbols on the main subject)

12

Close-up of a person wearing a white safety vest with a cross symbol on the right side (no text or symbols present)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a cable or connector with a numbered label (12), no visible text or symbols beyond the number.

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (13), no visible text or symbols.

Viking v. 2.1

Buomelio montavimas

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

Mechanical device with a triangular cover and attached components, showing a 17-degree angle indicator (no text or symbols on the device itself)

Gaubto reguliavimas

Illustration of a stroller with a bag and seat, showing a 31-degree angle indicator (no text or symbols on the diagram itself)

25

Viking v. 2.1

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a textured, dark object with a white arrow and number 6 label, possibly part of a medical or industrial device (no readable text or symbols)

5

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Gaubto apvalkalo nuémimas

Black and gray baby walker device with a white arrow pointing to the side panel (no text or symbols visible)

Gaubto tvirtinimas

Close-up of a small car seat with a numbered arrow pointing to the side panel (no visible text or symbols)

Close-up of a mechanical component with a textured surface and a labeled part '17' (no readable text or symbols)

ISPÉJIMAS

Open cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

JSPÈJIMAS

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a white background (no text or symbols visible)

Two automotive components: a black wheel with metallic rim and a gas cylinder (no text or symbols visible)

Viking v. 2.1

2

3

4

Black and white photo of a baby stroller with black wheels and silver frame (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with a numbered component (7), no text or symbols present.

Viking v. 2.1

OSTRZEŻENIE

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols beyond labels

Close-up of a hand holding a mechanical component with a circular arrow labeled '10' pointing to it (no text or symbols beyond the number)

WAŻNA INFORMACJAI

Close-up of a hand adjusting a black motorcycle wheel, with a 11-inch measurement arrow visible (no text or symbols on the car itself)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black bicycle tricycle component (no visible text or symbols)

OSTRZEŻENIE

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Close-up of a robotic arm with labeled parts (2 and 3), no visible text or symbols beyond labels

Close-up of a hand adjusting a dark fabric bag with attached straps and straps (no visible text or symbols)

Close-up of a hand adjusting a mechanical component, possibly a valve or grip (no visible text or symbols)

Montaż budki

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

OSTRZEŻENIE

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols on the device itself)

Viking v. 2.1

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols present)

12

Close-up of a mechanical device with a cross symbol on its side (no readable text or labels)

13

Close-up of hands adjusting a mechanical component with a bracket (no visible text or symbols)

14

Close-up of hands adjusting a dark mechanical component with a numbered label (12), no visible text or symbols beyond the number.

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (13), no visible text or symbols.

Montaż barierki

Close-up of a person using a robotic device with labeled parts (14 and 15), no visible text or symbols beyond labels.

Close-up of a person adjusting a bicycle seatbelt mechanism, no visible text or symbols

OSTRZEŻENIE

Close-up of a baby's shoulder cover with a curved arrow indicating rotation (no text or symbols)

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

WAŻNA INFORMACJA!

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical device with a numbered component and an arrow indicating direction (no text or symbols visible)

5

Viking v. 2.1

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray children's seat with a white arrow pointing to the side of the seat (no text or symbols visible)

Mocowanie budki

Close-up of a small car seatbelt with a numbered label '14' pointing to the seat area (no other text or symbols visible)

WAŻNA INFORMACJA

Close-up of a mechanical component with a curved surface and a labeled part '17' (no text or symbols on the main subject)

OSTRZEŻENIE

Open gray cylindrical device with a label '17' on the side, no visible text or symbols on the device itself.

OSTRZEŻENIE

Close-up of a robotic arm handling a metallic cylindrical component with a tool, against a plain white background (no text or symbols visible)

Product photo of a black and silver bicycle wheel with a gas cylinder beside it (no text or symbols visible)

Black and white photo of a two-wheeled baby stroller with black wheels and a seat (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with a numbered component (7), no text or symbols present.

Viking v. 2.1

Mechanical linkage component with numbered parts (1, 2, 3) and a shaft, no visible text or symbols

Close-up of a hand holding a mechanical knob with a 10-degree rotation arrow (no text or symbols on the knob itself)

ВАЖНО!

Close-up of a black toy car with wheels and a hand adjusting the wheel (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black athletic roller skis (no visible text or symbols)

ПРЕДУПРЕЖДЕНИЕ

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Mechanical device with labeled parts (2, 3) showing a linkage mechanism and lever assembly (no text or symbols beyond labels)

Close-up of a hand adjusting a cable or cable device on a dark, curved surface (no text or symbols visible)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Монтаж капюшона

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

ПРЕДУПРЕЖДЕНИЕ

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Viking v. 2.1

Black and white photo of a bicycle with a cross symbol on the right side (no text or symbols on the main subject)

12

Close-up of a mechanical device with a cross symbol on its side (no readable text or labels)

13

Close-up of hands adjusting a mechanical component with a clip and bracket (no visible text or symbols)

14

Close-up of a hand adjusting a dark mechanical component with a numbered label (12), no visible text or symbols beyond the number.

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow (13), no visible text or symbols.

Монтаж бампера

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

Mechanical device with a triangular cover and attached components, showing a 17-degree angle indicator (no text or symbols on the device itself)

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

25

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical or surgical device with a numbered component and directional arrow (no visible text or symbols)

5

Viking v. 2.1

Сборка люльки

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Black and gray athletic bag with a white arrow pointing to the side of the lid (no text or symbols visible)

Крепление капюшона

Close-up of a person wearing a seatbelt and holding a device, with a numbered arrow pointing to the seat area (no text or symbols visible)

Крепление люльки

Close-up of a gray fabric or cushion with a vertical seam and label '17' (no other text or symbols visible)

ПРЕДУПРЕЖДЕНИЕ

Open gray fabric bag with visible internal structure and label '17' (no text or symbols on the bag itself)

ПРЕДУПРЕЖДЕНИЕ

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two automotive wheel components: a black and silver wheel and a gas cylinder (no text or symbols visible)

2

3

4

Black and white photo of a baby stroller with black wheels and silver frame (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with a numbered component (7), no text or symbols present.

Viking v. 2.1

VAROVÁNÍ

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols.

Close-up of a hand holding a mechanical component with a circular arrow labeled '10' pointing to it (no text or symbols beyond the number)

VAROVÁNÍ

Close-up of a hand adjusting a black motorcycle wheel, with a 11-inch measurement arrow visible (no text or symbols on the car itself)

VAROVÁNÍ

Close-up of a hand using a crimping tool to adjust a mechanical component (no visible text or symbols)

12

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black bicycle skis with visible joints and wheels (no text or symbols)

VAROVÁNÍ

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Close-up of a robotic arm with labeled parts (2 and 3), no visible text or symbols beyond labels

Close-up of a hand adjusting a dark fabric bag with attached straps and straps (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Montáž stříšky

Close-up of a backpack with visible straps and straps (no text or symbols)

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

VAROVÁNÍ

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Viking v. 2.1

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols present)

12

Close-up of a mechanical device with a cross symbol on its side (no readable text or labels)

13

Close-up of hands adjusting a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

14

Close-up of a hand adjusting a cable or connector component, with no visible text or symbols

15

Close-up of hands installing or adjusting a mechanical component with a numbered arrow pointing to the part (no visible text or symbols)

Montáž madla

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no visible text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal mechanism, no visible text or symbols

18

Mechanical device with a triangular cover and attached components, showing a 17-degree angle indicator (no text or symbols on the device itself)

19

20

Viking v. 2.1

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

VAROVÁNÍ

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical or surgical device with a numbered component and directional arrow (no visible text or symbols)

5

Viking v. 2.1

Montáž korbičky

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Připevnění stříšky

Black and gray children's seat with a white arrow pointing to the side of the seat (no text or symbols visible)

Nastavení stříšky

Close-up of a small car seatbelt with a numbered label '14' pointing to the seat area (no other text or symbols visible)

DÜLEŽITÉ

Close-up of a mechanical component with a lid and handle, no visible text or symbols

VAROVÁNÍ

Open gray fabric bag with visible internal structure and label '17' (no text or symbols on the bag itself)

VAROVÁNÍ

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Product photo of a black and silver bicycle wheel with a gas cylinder beside it (no text or symbols visible)

2

3

4

Black and white photo of a two-wheeled baby stroller with wheels and seat (no text or symbols visible)

5

Mechanical assembly diagram showing a wheel and shaft with labeled component '7' (no text or symbols beyond label)

Viking v. 2.1

ADVERTENCIA

Close-up of a mechanical linkage component with numbered parts (1, 2, 3), no visible text or symbols.

Sistema de confort ajustable Emmaljunga

Close-up of a hand holding a small mechanical knob with a 10-degree arrow indicator (no text or symbols on the knob itself)

Close-up of a hand adjusting a black motorcycle wheel, with a 11-inch measurement arrow visible (no text or symbols on the car itself)

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

13

Side view of a baby stroller with a person walking beside it (no visible text or symbols)

14

Close-up of a hand adjusting a black mechanical component (no visible text or symbols)

ADVERTENCIA

Close-up of a black fabric garment with a numbered label pointing to a seam or seam (no text or symbols on the garment itself)

Close-up of a robotic arm with labeled parts (2 and 3), no visible text or symbols beyond labels

Close-up of a hand adjusting a dark fabric bag with attached straps and clips (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with a spring-like tool (no visible text or symbols)

Close-up of a backpack with visible straps and straps, no text or symbols present

Black-and-white photo of a robotic arm with a checkmark symbol (no text or labels)

ADVERTENCIA

Close-up of a mechanical device with a checkmark symbol (no readable text or symbols)

Viking v. 2.1

Black-and-white photo of a bicycle with a cross symbol on the wall (no text or symbols present)

12

Close-up of a mechanical device with a cross symbol on its side (no readable text or labels)

13

Close-up of hands adjusting a mechanical component with a bracket (no visible text or symbols)

14

Close-up of hands adjusting a dark mechanical component with a numbered label (12), no visible text or symbols beyond the number.

15

Close-up of hands installing a mechanical component with a numbered arrow and label (no readable text or symbols)

Close-up of a hand adjusting a bicycle seat frame with numbered labels (14 and 15) on the base, no readable text or symbols beyond labels.

17

Close-up of a person using a bicycle pedal device with a hand adjusting the seat (no visible text or symbols)

18

Close-up of a baby's seat with a triangular hat and attached equipment, no visible text or symbols

19

20

Viking v. 2.1

Illustration of a stroller with a bag and side arm, showing body positioning and a 31-degree rotation indicator (no text or symbols on the device itself)

25

Illustration of a baby stroller with a dotted arrow indicating a measurement of 32 units (no text or symbols on the device itself)

288

Close-up of a mechanical component with a black bracket and circular holes, labeled with number 3 (no text or symbols on the main subject)

3

4

Close-up of a medical device with a grid pattern and an arrow pointing to a numbered section (no text or symbols visible)

5

Viking v. 2.1

Close-up of a mechanical component with a numbered arrow and label '10' (no readable text or symbols beyond the number)

Extraer la tela de la capota

- Abra la cremallera (10) y extraiga la tela.

8

Black and gray children's seat with a white arrow pointing to the side of the seat (no text or symbols visible)

Colocar la capota

Close-up of a person wearing a seatbelt and holding a device, with a numbered arrow pointing to the seat area (no text or symbols visible)

IMPORTANTE

Close-up of a mechanical component with a curved surface and a label '17' (no readable text or symbols)

ADVERTENCIA

Open gray cylindrical device with a lid, labeled '17' on the left side (no other text or symbols visible)

ADVERTENCIA

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Product photo of a black and silver bicycle steering wheel next to a gas cylinder (no text or symbols visible)
