MODE D'EMPLOI IMPRESSA S75 JURA
IMPRESSA S70
IMPRESSA X70
Instructions for use
Legend:
DISPLAY DISPLAY: serves as information.
■ DISPLAY DISPLAY: please follow the instructions shown.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9

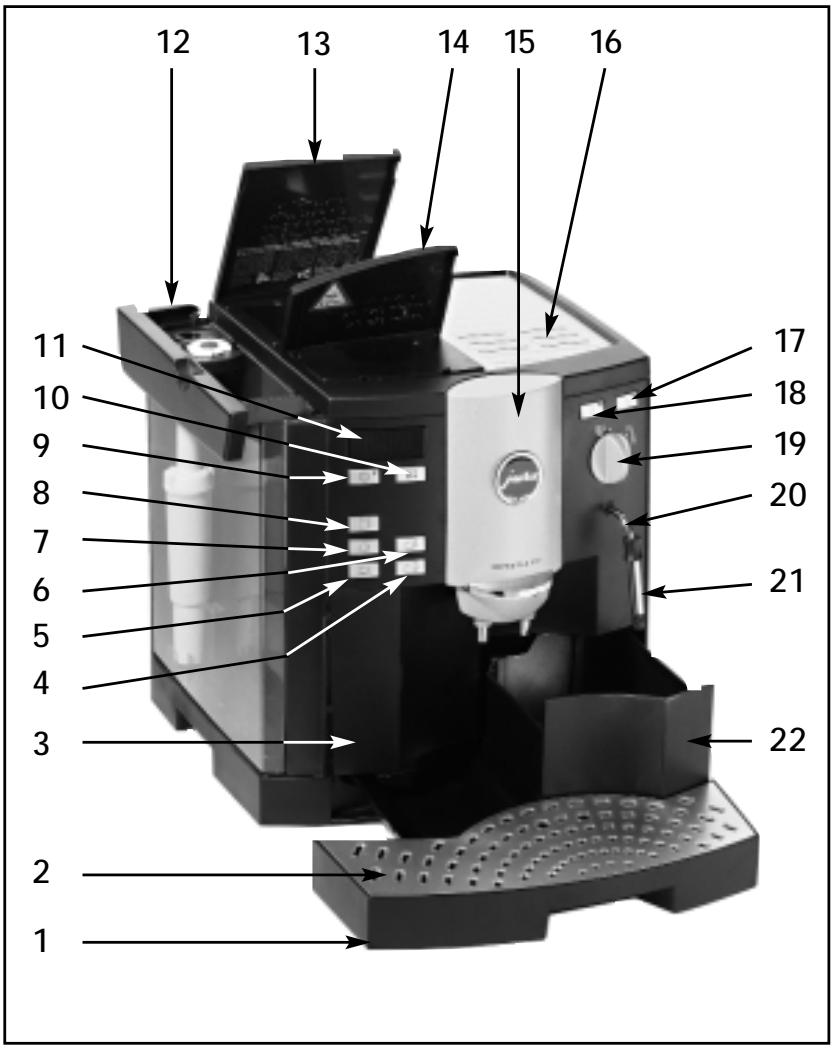

Operating elements Jura Impressa S70/X70
1 Drip tray / residual water container
2 Drip tray cover
3 Cover for programming keys
4 Coffee key for 2 normal cups
5 Coffee key for 1 normal cup
6 Coffee key for 2 small cups
7 Coffee key for 1 small cup
8 Key for special coffee
9 ON/OFF switch
10 Rinsing key
11 Display dialogue system
12 Water tank with carrying handle
13 Cover for bean container and aroma protection lid
14 Cover for pre-ground coffee filler funnel
15 Height-adjustable coffee-spout
16 Cup warming tray
17 Selector key for steam
18 Selector key for hot water
19 Selector switch for coffee or hot water/steam
20 Pivoting nozzle for hot water/steam
21 Frothing nozzle
22 Container for coffee grounds

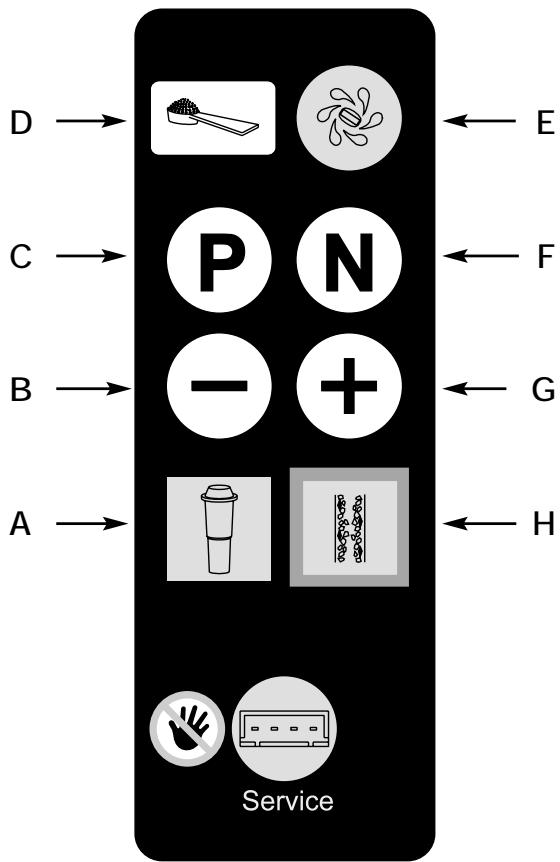

Programming keys
A Change filter
B Back-setting of criteria / changing of memory indications downwards
C Open program
D Selector switch for pre-ground coffee
E Key for cleaning program
F Correction of program / close
G Forward-setting of criteria / changing of memory indications up-wards
H Key for decalcifying program
Table of contents
Jura Impressa S70/X70
1.Description page 7
2. Safety instructions page 7
2.1Warnings page 7
2.2 Safety precautions.. page 7
- Check before use.. page 8
3.1 Checking mains voltage . page 8
3.2 Checking fuse.. page 8
3.3 Adding coffee beans.. page 8
3.4 Adjusting grinder page 8
4.Preparing machine page 8
5. Rinsing the machine page 9
6. Adjusting for water hardness page 9
7.Use of Claris filter cartridges page 9
7.1 Placing filter.. page 9
7.2 Replacing of filter page 10
- Drawing off coffee.. page 10
8.1 Drawing off powder coffee.. page 11 - Drawing off hot water page 11
- Using steam.. page 11
- Switching off machine.. page 12
- Programming page 12
12.1 Programming POWDER QUANTITY.... page 12
12.2 Programming coffee temperature.. page 12
12.3 Programming water quantity.. page 12
12.4 Programming FILTER.. page 13
12.5 Programming WATER HARDNESS ..... page 13
12.6 Programming ECONOMY MODE page 13
12.7 Programming TIMER CLOCK.. page 13
12.8 Programming automatic switch on time....page 14
12.9 Programming automatic switch off time.....page 14
12.10 Cup counter page 14
12.11 Programming language selection.. page 14
12.12 Program key N page 14
- Care and maintenance.. page 14
13.1 Fill water.. page 14
13.2 Empty grounds container page 14
13.3 Empty drip tray page 15
13.4 Fill beans page 15
13.5 Removing foreign objects page 15
13.6 Clean machine page 15
13.7 Unit calcified page 15

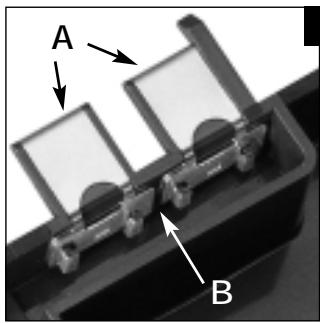

13.8 Cleaning metal contacts page 15
13.9 General cleaning instructions page 16
- Cleaning . page 16
15.Decalcifying. page 16
15.1 Decalcifying coffee sector.. page 16
15.2 Decalcifying water sector page 17
- Disposal.. page 18
- Tips for a perfect coffee page 18
- Messages page 19
19.Problems page 21 - Legal information . page 22
- Technical specifications.. page 22
Important information for the user
Thank you for choosing this Jura product.
Please study these instructions carefully before using your new machine and keep them in a safe place for easy reference in the future.
Should you require further information or should particular problems occur that are not dealt with in these operating instructions in sufficient detail for you, then please ask your local dealer for the information you require or contact Jura Elektroapparate AG directly.
1. Description
This fully-automatic espresso/coffee machine impresses because of its user-friendly operational mode and its ingenious technology. In just one brewing-process it can prepare 1 or 2 cups of excellent, professional-quality espresso/coffee with guaranteed froth. Originating from professional sectors and having been refined and further developed by Jura, the Intelligent Pre Brew Aroma System (I.P.B.A.S) ensures full coffee aroma. The Impressa S70 enables you to adapt the resulting coffee to your personal taste due to the possibility of programming coffee-powder and water quantities as well as the brewing temperature.
The machine works fully-automatically at the press of a key. A decoded text-display shows messages and simplifies the operation considerably. Because of the integrated rinsing, cleaning and decalcifying programs care and maintenance is quick and easy.
2. Safety instructions
2.1Warnings
Children are unaware of the dangers that electrical machines represent. Therefore children should never be left unsupervised with electrical machines.
This machine should only be used by people who have read and understood the operating instructions.
- Never use a faulty machine or one with a damaged power cable.
- Never immerse the machine in water.
2.2 Safety precautions
- Never expose the machine to the effects of rain, snow or frost and never operate it with wet hands.
- Place your machine on a solid level surface. Never leave it on a surface that is warm or hot (hob etc.). Choose a location that is inaccessible for children or pets.
- Remove plug from power socket if an absence for a longer period of time (holidays etc.) is planned.
Always remove plug from power socket before cleaning. - When removing plug from power socket, never tug on the cord or on the machine itself.
- Never repair or open the machine yourself. All repairs should be performed by authorised service centres only using original Jura spare parts and accessories.
- The machine is connected to the mains power socket via an electric cable. Ensure that no-one trips over this cable and pulls down the machine. Keep children and animals at a distance to the machine.
- Never put the machine or even parts of it in the dishwasher.
To prevent overheating place the machine in an airy place.
If using acidic decalcifying agents be sure to immediately remove any splashes and drops from delicate surfaces, especially natural stone and wooden surfaces, or take corresponding precautions.
3. Check before use
3.1 Checking mains voltage
The machine is set for the correct voltage before leaving our factory. Ensure that your mains voltage corresponds to the details quoted on the rating plate attached to the bottom of the machine.
3.2 Checking fuse
The machine is designed for a current of 10 amps. Check that an appropriate fuse is fitted.
3.3 Adding coffee beans
To ensure that your machine will work perfectly for a long time and to avoid damage, please note that the grinding gear of your Jura coffee machine is not suitable for coffee beans which were treated, during or after roasting, with additives (e.g. sugar). Such coffee blends may damage the grinding gear. Any repair costs resulting from the use of such blends are not covered by warranty.
- Lift up cover of the bean container (13) and remove aroma protection lid.
Clean out any dirt or foreign object from the bean container. - Fill the grinder container with coffee beans, replace aroma protection lid and close the cover.

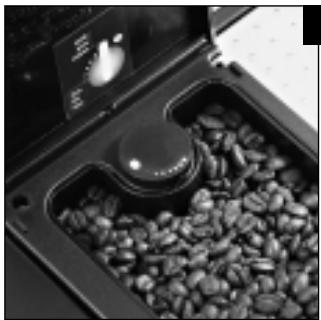

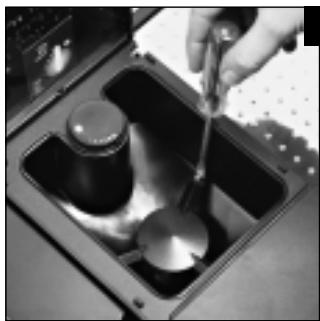

3.4 Adjusting grinder
You can adjust the grinder to the roast of your coffee. We recommend the following:
for a light roast a finer adjustment for a dark roast a coarser adjustment
- Open the cover of the bean container (13).
- To adjust grinding turn selector switch (Fig. 1) to the desired position.
■ You have the following possibilities: the smaller the dots, the finer the grinding the bigger the dots, the coarser the grinding
The grinding grade should only be adjusted while the grinder is working.
4. Preparing machine
- Switch your machine on by pressing ON/OFF key ①. The machine adjusts fully-automatically to the starting position.
■ DISPLAY FILL WATER
Remove water tank and rinse well with clear tap-water. - Fill water tank and replace. Make sure that tank engages well. (Abb. ...).
DISPLAYPLEASEWAIT
■ DISPLAY RINSE UNIT - Place a container under the coffee-spout (15) and press rinsing key.
DISPLAY UNIT RINSING
DISPLAY COFFEE READY
5. Rinsing the machine
DISPLAY RINSE UNIT
Place an empty cup under the coffee-spout (15).
Press rinsing key
If the machine has been switched off and has already cooled down it will be necessary to carry out this rinsing function when the machine is switched on again.
After switching off the machine, the rinsing sets off automatically.
6. Adjusting for water hardness
The water is heated inside the machine. With use, this leads to calcium deposits (furring) forming on the machine. This will be automatically indicated on the display.
For this reason, it is necessary to adjust the machine to the hardness of your local water before you use it for the first time. Use the enclosed test-sticks for this purpose.
1^ water hardness on the German scale represents 1.79^ on the French scale.
The machine has got 5 hardness settings to choose from. While adjusting the chosen grade is shown on the display.
The symbols on the display mean:
HARDNESS
LEVEL- - water hardness function is switched off
HARDNESS German water hardness 1 - 7^
LEVEL 1 French water hardness 1.79 - 12.53^
HARDNESS German water hardness 8 - 15^
LEVEL 2 French water hardness 14.32 - 26.85^
HARDNESS German water hardness 16 - 23^
LEVEL 3 French water hardness 28.64 - 41.14^
HARDNESS German water hardness 24 - 30^
LEVEL 4 French water hardness 42.96 - 53.7^
The machine is adjusted to hardness level 3 before it leaves the factory. You can alter this setting by following the instructions below:
- Switch the machine on by pressing ON/OFF key ①. The machine adjusts fully-automatically to the starting position.
DISPLAY PLEASE WAIT - Open cover (3) and press key , until you hear an acoustic signal
■ DISPLAY PRESS KEY / POWDER QUANTITY
Press key several times until the following message appears:
■ DISPLAY HARDNESS LEVEL 3 - By pressing key you can hear an acoustic signal, the set hardness level flashes
- You can alter the hardness level by pressing key or + . After setting, press key once again to confirm. An acoustic signal can be heard.
Press key to return to stand-by-status.

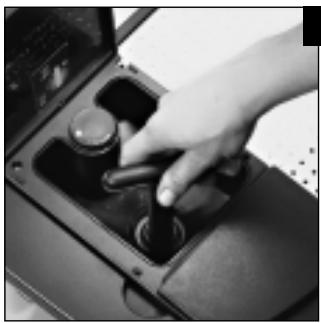

7. Use of Claris filter cartridges
Under proper implementation of Claris filter cartridges, decalcifying of the machine becomes unnecessary. For further information, please read the brochure "Claris. Tough to calcium deposits, gentle to your coffee machine".
7.1 Placing filter
Pull up cartridge mounting. Pressing lightly, place the filter cartridge in the water tank (Fig. 2).
Pull down cartridge mounting, until it engages audibly.
■ Fill water tank with cold, fresh tap-water and replace it.
- Switch the machine on by pressing key ON/OFF.
- Open front cover (3) and press key until you hear an acoustic signal.
DISPLAY PRESS KEY/POWDER QUANTITY
Press key several times until the following message appears:
DISPLAY FILTER NO
■ By pressing key you can hear an acoustic signal.
■ DISPLAY NO flashes
You can alter the setting by pressing key or .
■ DISPLAY YES flashes
To confirm press key . An acoustic signal can be heard.
DISPLAY RINSE FILTER / OPEN TAP - Place a sufficiently large container (approx. 1 litre) under the pivoting nozzle (20). Turn selector switch for coffee or hot water/steam (19) to position .
■ DISPLAY PLEASE WAIT / FILTER RINSING
■ DISPLAY CLOSE TAP (the system gives off steam)
DISPLAY FILTER YES
Press key
DISPLAY COFFEE READY
The water might be slightly discoloured (this is not damaging to the health).
7.2 Replacing of filter
After drawing off 50 litres the filter loses its effect.
DISPLAY REPLACE FILTER
If only a little water is drawn off the filter should be changed every 2 months. However no message will appear on the display. You will find a special turntable on the cartridge mounting to set the replacement date.
- Empty water tank and pull up cartridge mounting. Pressing lightly, place the filter cartridge in the water tank (Fig. 2).
Pull down cartridge mounting, until it engages audibly.
■ Fill water tank with cold, fresh tap-water and replace it. - Switch the machine on by pressing key ON/OFF ①.
- Open front cover (3) and press key , until you hear an acoustic signal.
■ DISPLAY RINSE FILTER / OPEN TAP - Place a sufficiently large container (approx. 1 litre) under the pivoting nozzle (20). Turn selector switch for coffee or hot water/steam (19) to position .
■ DISPLAY PLEASE WAIT / FILTER RINSING
■ DISPLAY CLOSE TAP (the system gives off steam)
DISPLAY COFFEE READY
The water might be slightly discoloured (this is not damaging to the health).
8. Drawing off coffee
- Switch the machine on by pressing key ON/OFF ①.
DISPLAYPLEASEWAIT
■ DISPLAY RINSE UNIT
Put an empty cup under the coffee-spout (15) and press rinsing key.
DISPLAY UNIT RINSING
DISPLAY COFFEE READY - Put 1, respectively 2 cups under the coffee-spout and press the required key. The pre-brew system (I.P.B.A.S) moistens the coffee powder, briefly interrupts the flow and then starts the real brewing process.
You can interrupt the flow of coffee at any time by simply pressing any of the coffee keys.
To obtain a perfect head of froth adjust the coffee-spout (15) to the size of your cups (Fig. 3).
8.1 Drawing off powder coffee
Open cover (3)
Press selector key for pre-ground powder coffee
■ DISPLAY FILL POWDER
Now put 1 or 2 level measuring spoons of pre-ground coffee into the pre-ground powder funnel (14).
Put 1, respectively 2 cups under the coffee-spout and press the required key.
Never use soluble instant coffee or quick coffee. Only use coffee powder from freshly ground beans or pre-ground vacuum-packed coffee. Never fill the funnel with more than 2 portions of coffee powder at a time. The powder funnel is not intended as a storage container.
If selector key ≈ is pressed by mistake this can be corrected by pressing one of the coffee keys.
9. Drawing off hot water
Press selector key for hot water. Wait until the flashing of the lamp turns into a constant light.
Put a cup under the pivoting nozzle and turn selector switch for coffee or hot water / steam (19) to the symbol . The machine will now deliver hot water.
■ DISPLAY WATER SUPPLIED
To stop this process turn selector switch for hot water / steam (19) back to the symbol t . The cup should only be removed when the hot water has stopped its flow.
The machine has a stand-by-status for hot water. If you want to alternate between drawing off coffee and hot water, the selector switch for hot water can be left turned on. If you draw off hot water only once, then the selector switch for hot water should be turned off by pressing the selector key anew.
When hot water is first drawn off, there is a possibility of spattering. The pivoting nozzle becomes hot. Avoid direct contact with the skin.
10. Using steam
Steam can be used for heating up liquids as well as for frothing up milk for cappuccinos.
To heat up liquids remember to push the frothing nozzle (21) up. For frothing up liquids push the frothing nozzle (21) down (Fig. 4).
Press selector key for steam. Wait until the flashing of the lamp turns into a constant light.
Put a cup under the pivoting nozzle (20).
- Immerse the frothing nozzle (21) into the milk you want to froth or into the liquid you want to heat up. Turn selector switch for coffee or hot water / steam (19) to the symbol .
■ DISPLAY STEAM INTAKE
To stop steam-function turn selector switch for coffee or hot water / steam (19) back to the symbol
After drawing off steam immediately draw off approx. 1dl of water and clean the outside of the nozzle with a cloth.
If you want to draw off steam several times, the selector key for steam can be left on. The drawing off of steam is on stand-by-status. If you draw off steam only once, then the selector switch for steam should be turned off by pressing the selector key anew.
When steam is first drawn off, there is a possibility of spattering. The pivoting nozzle becomes hot. Avoid direct contact with the skin.
11. Switching off machine
When the machine is switched off, the rinsing program is automatically run again. Therefore place an empty container under the coffee-spout (15) and press ON/OFF key ①. When the rinsing water has run into the container, the machine powers down. Discard the water.
12. Programming
Before leaving our factory, the machine is adjusted to enable you to obtain coffee without any additional programming. In order to adapt the result to your personal taste, various settings can be programmed individually. The programming keys are located behind the front cover (3).
The following settings can be programmed:
Powder quantity
Brewing temperature
Water quantity
Filter
Water hardness
Economy mode
Timer clock
Automatic switch on time
Automatic switch off time
Supplies and cup counter
▶ Language selection
12.1 Programming POWDER QUANTITY
- Switch the machine on by pressing ON/OFF key ①.
Press key until you can hear an acoustic signal.
■ DISPLAY POWDER QUANTITY / SELECT KEY
- Now press the key that you want to programme. Use the key for 1 cup only. The corresponding quantity for 2 cups is adjusted automatically by the machine after programming is finished.
DISPLAY POWDER
$$ - \dots \dots \dots \dots \dots \dots + $$
The powder quantity can be selected by pressing keys or briefly.
To store the new powder quantity in memory briefly press key
DISPLAY POWDER QUANTITY / SELECT KEY.
- You can go to the next setting by pressing key .
12.2 Programming coffee temperature
DISPLAY TEMPERATURE COFFEE / SELECT KEY
Now press the key that you want to programme.
- Select the required temperature (high or normal) by activating key or .
To store the new coffee temperature in memory briefly press key
■ DISPLAY TEMPERATURE COFFEE / SELECT KEY
- You can call up the next setting by pressing key .
12.3 Programming water quantity
DISPLAY WATER QUANTITY / SELECT KEY
- Put a cup under the coffee-spout (15) and then press the key that you want to programme.
DISPLAY The selected value is confirmed
Now your machine prepares a coffee.
DISPLAY ENOUGH COFFEE / PRESS KEY P
DISPLAY OK? P - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- When the required water quantity is reached press key . You can call up the next setting by pressing key .
There is an additional possibility to alter the water quantity anew. Press key or for this purpose.
If you wish to draw another coffee to control the water quantity, press key again otherwise press key briefly to store water quantity in memory. - You can call up the next setting by pressing key .
12.4 Programming FILTER
Please read chapter 7.1 "Placing filter".
12.5 Programming WATER HARDNESS (only with setting FILTER NO)
■ DISPLAY HARDNESS LEVEL 3
Press key P
- By pressing key or briefly you can programme the water hardness level.
- Then press key briefly to store the water hardness level in memory.
- You can call up the next setting by pressing key .
To determine the water hardness level please read chapter 6. "Adjusting for water hardness".
12.6 Programming ECONOMY MODE
■ DISPLAY ECONOMY MODE OFF
Press key P
■ DISPLAY ECONOMY (MODE OFF flashes)
■ By briefly pressing key or you can programme the mode you would like.
Then press key briefly to store mode in memory
You can call up the next setting by pressing key
You can programme your machine to "economy mode". In the setting ECONOMY MODE ON the steam heating-system is switched off. The heating for the cup warming tray is switched off too. If you want to draw off steam you need to press the steam key , warning lamps flash and your machine heats up.
After 10 minutes the steam heating-system switches off automatically. The warning lamps go out. By pressing the steam key anew, you return to stand-by-status for drawing off steam.
ECONOMY MODE OFF means that the stand-by-status for steam is set to 10 minutes and the heating for the cup warming tray is on. After 10 minutes the heating-system switches down to a stand-by temperature. By pressing the steam key anew, the machine returns to stand-by-status for drawing off steam.
12.7 Programming TIMER CLOCK
A programming of the timer clock is necessary if an automatic switch on time is required.
DISPLAY TIME --
Press key
■ By briefly pressing key or you can set the hours and then confirm by pressing key
■ By briefly pressing key or you can set the minutes and then confirm by pressing key
You can call up the next setting by pressing key
12.8 Programming automatic switch on time
A programming of the timer clock is necessary if an automatic switch on is needed.
DISPLAY UNIT ON--
Press key
- By briefly pressing key or you can set the hours and then confirm by pressing key .
- By briefly pressing key or you can set the minutes and then confirm by pressing key .
- You can call up the next setting by pressing key .
To switch off the automatic timer proceed as follows:
Press key P
Press key
DISPLAY UNIT ON :
12.9 Programming automatic switch off time
DISPLAY OFF AFTER 5.0 HOURS
Press key P
- By briefly pressing key or you can set the hours and then confirm by pressing key (0.5 to 9.0 hours).
- You can call up the next setting by pressing key .
12.10 Cup counter
DISPLAY 200 SUPPLIED (TOTAL SUPPLIED)
To obtain the information press the required key. The display will show you the number of times the function has been chosen.
- You can call up the next setting by pressing key .
It is not possible to call up hot water and steam supplies.
12.11 Programming language selection
Press key P
- By briefly pressing key or call up the language desired and then confirm by pressing key .
- By pressing key you can leave the programming modus or you can call up the next setting by pressing key .
12.12 Program key N
By using key N you can set back the following settings (powder quantity, coffee temperature, water quantity) to their original standard settings.
DISPLAY COFFEE READY
Press key until you can hear an acoustic signal.
If a mistake occurs while programming one of the above settings, just press key and the chosen setting moves back to its original standard setting.
13. Care and maintenance
13.1 Fill water
■ DISPLAY FILL WATER
If this message shows on the display no more coffee can be drawn off. Top up water.
The water tank should be rinsed and filled with fresh water daily. Only use fresh, cold water. Never top up with milk, mineral water or any other liquids. You can top up water without removing tank.
13.2 Empty grounds container
Coffee grounds are collected in the grounds container.
■ DISPLAY EMPTY GROUNDS
If this message shows on the display no more coffee can be drawn off. It is necessary to empty the grounds container.
Remove drip tray carefully as there is water in it.
Do not disconnect the machine from power socket while you empty grounds.
13.3 Empty drip tray
DISPLAY EMPTY TRAY
If this message shows on the display no more coffee can be drawn off. It is necessary to empty the drip tray.
Remove drip tray carefully as there is water in it.
13.4 Fill beans
■ DISPLAY FILL BEANS
Fill in beans as described in chapter 3.3.
The message FILL BEANS will only disappear after drawing off a coffee. We recommend cleaning the bean container from time to time with a dry cloth before you refill beans. Switch off the machine for this purpose.
13.5 Removing foreign objects
- Switch off your machine by pressing ON/OFF ① key.
Remove plug from power socket. - Open bean container (13) and remove the beans. The remaining beans can be removed with a vacuum cleaner.
- Loosen both screws in the bean container and then remove container (Fig. 5+6)
- Remove any remaining beans with a vacuum cleaner.

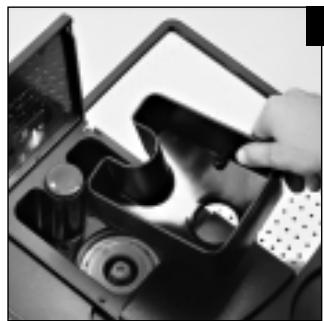

Put the spanner on (Fig. 7).
■ Now turn spanner anticlockwise until the foreign object loosens.
- Remove remaining powder with a vacuum cleaner.
Replace bean container and fasten screws.
13.6 Clean machine
DISPLAY CLEAN UNIT
After coffee, etc., has been drawn off 220 times or after 180 rinsing programs have been run, the machine must be cleaned. You can continue to draw off coffee and hot water / steam. However we recommend that you clean the machine (as described in chapter 14) within the next few days.
■ DISPLAY CLEAN NOW
An acoustic signal indicates the need of an immediate cleaning.
13.7 Unit calcified
DISPLAY UNIT CALCED
The machine signals when decalcifying becomes necessary.
Under the correct implementation of Claris filter cartridges, decalcifying of the machine becomes unnecessary. For further indications read Chapter 7 "Use of Claris filter cartridges".
13.8 Cleaning metal contacts
DISPLAY EMPTY TRAY
To switch off this message you need to remove calcified deposits from the metal contacts. Proceed as follows:
- Rinse fastenings in groove (B) (Fig. 8) as well as the metal contacts (A) with hot water and some washing-up liquid. Then clean the fastenings in groove (B) as well as metal contacts with a brush.
13.9 General cleaning instructions
- Never use abrasive articles or corrosive chemicals to clean your machine.
■ Wipe down the casing inside and out using a soft damp cloth.
Clean the pivoting hot water / steam nozzle after every use.
After warming milk, draw off some hot water to clean the pivoting nozzle inside.
■ You can take off the pivoting nozzle for a thorough cleaning
The water tank should be rinsed and filled with clean water daily.
If you notice any furring in the water tank, this can be decalcified separately with a customary decalcifying agent. Remove the tank from the machine for this purpose.
If a Claris filter cartridge is used, remove it beforehand.
14. Cleaning
The machine has an integrated cleaning program. The procedure lasts about 15 minutes. Please use Jura cleaning tablets only. These are available from your Jura dealer.
It is essential not to interrupt the process once it has been started.
Switch on machine by pressing ① key.
Press key until you can hear an acoustic signal.
■ DISPLAY EMPTY TRAY (FILL WATER might show as well)
Put a sufficiently large container under the coffee-spout (15) in order to prevent cleaning liquid from running into the drip tray.
■ DISPLAY ADD TABLET (Fig. 9) / PRESS CLEANING
DISPLAY UNIT CLEANING
DISPLAY EMPTY TRAY
■ DISPLAY RINSE UNIT
DISPLAY COFFEE READY
The powder funnel for pre-ground coffee should be cleaned after each cleaning process. Remove it from the machine, rinse it with hot tap water and replace it after drying.
15. Decalcifying
Your machine has an integrated decalcifying program (duration approx. 35 min.).
Please use Jura decalcifying tablets only. These are available from your Jura dealer.
Run the decalcifying program only after the machine has been switched off for at least 5 hours and has cooled down completely. The running decalcifying program must not be interrupted.
If using acidic decalcifying agents be sure to immediately remove any splashes and drops from delicate surfaces, especially natural stone and wooden surfaces, or take corresponding precautions.
In any case please wait until the filled decalcifying agent is used up and the tank is empty. Never top up the decalcifying agent.
15.1 Decalcifying coffee sector
Remove and empty water tank.
Replace empty water tank.
- Switch off your machine by pressing ON/OFF ① key.
Open cover (3).
Press key until you can hear an acoustic signal.
DISPLAY EMPTY TRAY
■ DISPLAY AGENT IN TANK
Pour 0.6 litres of water into a container and completely dissolve the contents of a blister pack (2 tablets). Then fill the mixture into the water tank.
■ DISPLAY CHOOSE SECTOR / AGENT IN TANK / PRESS CALC
Turn selector switch for coffee to the symbol 12 .
Press key H.
■ DISPLAY COFFEE SECTOR / UNIT DECALCIFYING
- Inside the machine the decalcifying agent is conducted to the drip tray.
DISPLAY EMPTY TRAY
■ DISPLAY FILL WATER
DISPLAY PRESSCALC
DISPLAY COFFEE SECTOR / UNIT DECALCIFYING
Inside the machine the water is conducted to the drip tray.
DISPLAY EMPTY TRAY / CLEAN CONTACTS (please refer to chapter 13.8)
DISPLAYPLEASE WAIT
■ DISPLAY RINSE UNIT
- Place a container under the coffee-spout (15) and press rinsing key.
DISPLAY UNIT RINSING
DISPLAY COFFEE READY
15.2 Decalcifying water sector
This message will only appear if the unit is ready to draw off water or steam.
Remove and empty water tank.
Replace empty water tank.
Switch off your machine by pressing ON/OFF ① key.
Open cover (3).
Press key until you can hear an acoustic signal.
DISPLAY EMPTY TRAY
■ DISPLAY AGENT IN TANK
Pour 0.6 litres of water into a container and completely dissolve the contents of a blister pack (2 tablets). Then fill the mixture into the water tank.
■ DISPLAY AGENT IN TANK / CHOOSE SECTOR / PRESS CALC
- Place a container under the pivoting nozzle and turn selector switch for coffee or hot water/steam (19) to the symbol .
Press key H.
DISPLAY UNIT DECALCIFIYING/WATER SECTOR
■ DISPLAY FILL WATER
Rinse water tank well and top it up with fresh tap water.
DISPLAY PRESS CALC
■ DISPLAY WATER SECTOR / UNIT DECALCIFYING
■ DISPLAY CLOSE TAP
DISPLAY RINSE UNIT
DISPLAY UNIT RINSING
DISPLAY COFFEE READY
16. Disposal
For correct disposal, you should return your coffee machine to your dealer, Jura service centre or Jura Elektroapparate AG.
17. Tips for a perfect coffee
Height adjustable coffee-spout
You can adjust the height of the coffee-spout to your cup sizes.
Grinding
Please refer to chapter 3.4 "Adjusting grinder".
Pre-warm cups
You should warm cups in advance with hot water or steam. The smaller the quantity of coffee, the more important warming the cups is.
Sugar and cream
Warmth is lost by stirring the contents of the cup. Adding milk or cream from the refrigerator considerably lowers the temperature of the coffee.
- Messages
| DISPLAY | Cause | Action |
| FILL WATER | Water tank is empty | Top up with water |
| Water level indicator in tank is jammed | Empty tank, rinse out, fill up and replace | |
| Tank is calcified, water level indicator is stuck | Remove tank, decalcify, rinse well, fill up with water and replace | |
| FILL BEANS | Bean container is empty | Top up with beans |
| Message still displayed, although beans filled | Draw off cup of coffee. FILL BEANS message only disappears after coffee is drawn off | |
| A foreign object is stuck in the grinder | Remove foreign object as described in chapter 13.5 “Removing foreign objects” | |
| EMPTY GROUND | Coffee grounds container is full | Remove drip tray, empty grounds container, replace tray |
| Message still displayed, although grounds container emptied. | The tray was out of the machine for less than 8 sec for emptying. Take tray out again for approx. 10 sec and replace | |
| The message appears after only a few cups have been drawn off | Leave the machine switched on while the grounds container is being emptied. The counter is only reset to zero if the machine is left switched on | |
| TRAY MISSING | Tray has not been replaced correctly | Insert tray correctly |
| Grounds have fallen under tray and are preventing it from being correctly inserted | Remove tray, clean inside of machine, replace tray | |
| EMPTY TRAY | The residual water container is full | Remove container carefully, empty, rinse out and replace |
| Message still displayed, although container emptied | Remove container, clean metal contacts (please refer to chapter 13.8) | |
| CLEAN UNIT | You have drawn off coffee 220 times or run the rinsing program 180 timesMessage still displayed, although machine cleaned | Clean as described in chapter 14Run cleaning program again; this time do not add cleaning tablet |
| UNIT CALCED COFFEE SECTOR WATER SECTOR | The appropriate sector needs decalcifyingMessage still displayed, although machine decalcified | Run decalcifying program as described in chapter 15Run cleaning program again; this time using water only and without decalcifying agent |
| CLOSE TAP | Not ready to provide water or steam | Switch over to coffee sector, press water or steam key and then draw off the water or steam required |
| FAULT | Various causes | Ring the hotline |
19. Problems
| Problem | Cause | Action |
| Coffee only flows in dribs and drabs while drawing off | - Powder too fine | - Adjust grinder to a coarser grinding - Run one or two rinse programs If result is no better, clean the machine as per instruction |
| Coffee flow is stopped after pre-brewing | - Not enough coffee powder in the system | - Draw off one cup of coffee |
| Grinder is extremely noisy | - Foreign element in grinder | - Proceed as described in chapter 13.5 |
| Not enough froth while frothing up milk | - Frothing nozzle blocked - Frothing nozzle in wrong position | - Clean frothing nozzle - Draw off steam |
If the above mentioned problems and/or messages still persist, please contact your dealer or get in touch directly with Jura Elektroapparate AG.
20. Legal information
These operating instructions contain all the information necessary for the correct use, operation and maintenance of your espresso/ coffee machine.
Understanding and complying with the directions contained in these operating instructions are essential to ensure that the machine is utilised without risk and to ensure safety during operation and maintenance.
These operating instructions cannot cover all the possible ways in which this machine may be used. This machine has been designed for private use in households.
We would like to further point out that the contents of these operating instructions in no way constitute a part of, or alter, any previous or existing contract, agreement or legal relationship. All obligations on the part of Jura Elektroapparate AG result solely from the relevant sales agreement which also contains full details of the only warranty terms valid in respect of this machine. The contractual terms of this warranty are neither extended nor limited in any form by the information in these operating instructions.
These operating instructions contain information that is protected by copyright. The photocopying or translation into any other language of these instructions without prior written authorisation from Jura Elektroapparate AG is strictly prohibited.
21. Technical specifications

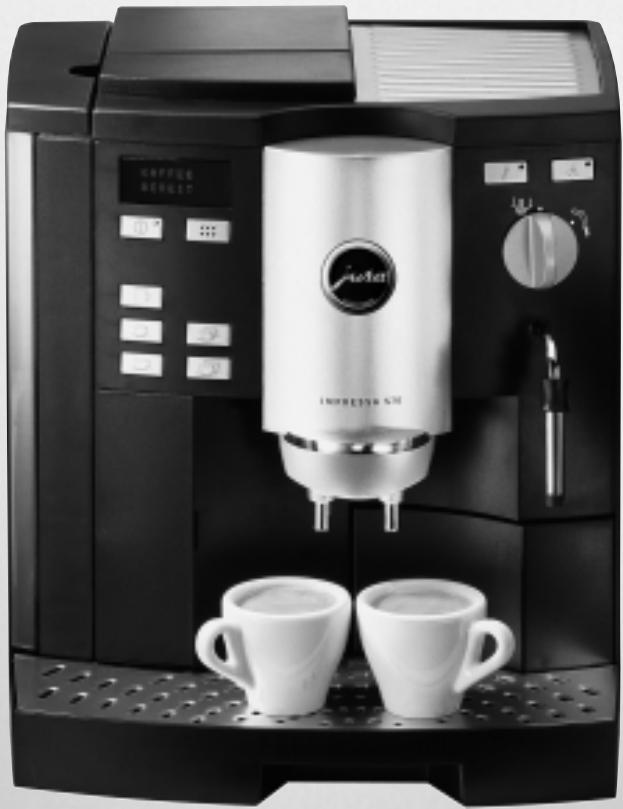

Impressa S70
Voltage: 230 V AC
Power consumption: 1350 W
Fuse: 10 A
Safety measures exam:
Energy consumption standby:
Energy consumption ready to make coffee:
approx. 4,4
approx. 31 Wh, Economy Mode on approx. 41 Wh, Economy Mode off
max. 15 bar
2,7 litres
280 gr.
max. 16 port.
approx. 1,1m
11,7 kg
34,5× 35× 39cm
Pump pressure:
Water tank:
Capacity, bean container:
Capacity, grounds container:
Cable length:
Weight:
Dimensions (BxHxD):
Impressa X70
Water tank: 5,7 litres
Capacity, grounds container: max. 40 port.
Weight: 15 kg
Dimensions (BxHxD): 41 × 47 × 39 ~cm
The machine complies with the following EU directives:
73/23/EWG dated 19/02/1973 "Low Voltage Directive" including Modification Directive 93/336/EWG
89/336/EWG dated 03/05/1989 "EMC Directive" including Modification Directive 92/31/EWG
