MODE D'EMPLOI WT 1030 GARDENA

GARDENA WT 1030 - 1

GARDENA®

GARDENA WT 1030 - GARDENA® - 1

GB Operating Instructions

Water Timer electronic

S Bruksanvising

Bevattningstimer electronic

NL Gebruiksaanwijzing

Elektronische watertimer

D Gebrauchsanweisung

Bewässerungsuhr electronic

FIN Käyttohje

Elektroninen kasteluajastin

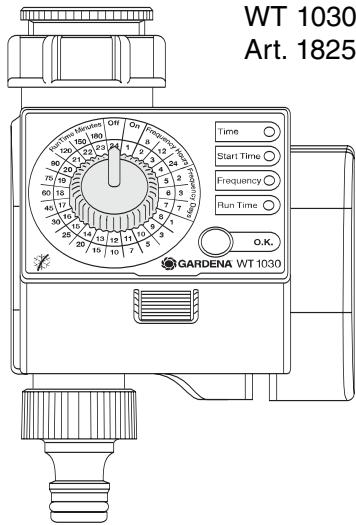

GARDENA Water Timer electronic WT 1030

Welcome to the Garden of GARDENA...

GARDENA WT 1030 - GARDENA Water Timer electronic WT 1030 - 1

Please read these operating instructions carefully and observe the notes given. Use these instructions to familiarise yourself with the Water Timer electronic and its proper use as well as the notes on safety.

GARDENA WT 1030 - GARDENA Water Timer electronic WT 1030 - 2

For safety reasons, children and young people under 16 as well as anyone who is not familiar with these operating instructions may not use the Water Timer.

Please keep these operating instructions in a safe place.

Contents

  1. Where to Use Your GARDENA Water Timer 3
  2. For Your Safety 3
  3. Function 5
  4. Putting Your Water Timer into Operation 6
  5. Operating Your Water Timer 8
  6. Trouble-Shooting 12
  7. Putting Your Water Timer Out of Operation 13
  8. Technical Data 13
  9. Service 14

1. Where to Use Your GARDENA Water Timer

Intended use

The GARDENA Water Timer is intended for private use in domestic and hobby gardens, exclusively for outdoor use, to control sprinklers and watering systems.

Please note

GARDENA WT 1030 - Where to Use Your GARDENA Water Timer - 1

The GARDENA Water Timer must not be used for industrial purposes or in conjunction with chemicals, foodstuffs, easily flammable and explosive materials.

2. For Your Safety

Use:

Warning!

Only use the Water Timer outdoors.

The water timer is not approved for indoor use.

The minimum operating pressure is 1 bar, the maximum operating pressure is 12 bar.

Check the filter in the sleeve nut regularly and clean if necessary.
Do not pull the hose connected to the Water Timer and avoid tensile strain.

Battery:

For functional safety reasons, only use a 9V alkali-manganese (alkaline) battery type IEC 6LR61.

The Water Timer will only run for approx. 1 year if the new alkaline battery has a nominal voltage of at least 9V .

Check the battery before you buy it.

Putting your Water Timer into operation:

To prevent water entering the battery compartment, the Water Timer must only be mounted in a perpendicular position with the sleeve nut pointing upwards.

After you have selected the watering program, the Water Timer opens at the selected starting time. To avoid getting wet when operating the Water Timer, connect the hose or turn off the tap before selecting the program. Alternatively, the control unit can be removed for programming.

Water flow:

The max. temperature for the water is 40^

Only use clear fresh water.

3. Function

GARDENA WT 1030 - Function - 1

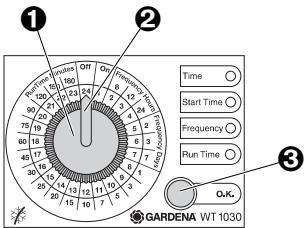

Control knob and OK button:

Control knob
Control knob pointer
OK button

Battery status display:

The GARDENA Water Timer electronic allows you to set different watering cycles for different watering times independent of whether you are using a sprinkler, a sprinkler system installation or driphead watering system to irrigate your garden.

Your Water Timer electronic will water your garden completely automatically according to the program you choose. You can set the timer to water your garden early in the morning or late at night when water evaporates the least, or while you are away on holiday.

You simply program the time (to the nearest hour), watering starting time / duration and cycle by turning the pointer ② of the control knob ① to the correct time and pressing the OK button ③. The Water Timer opens at the starting time you have selected.

The 3 LEDs Time, Start Time and Frequency flash to indicate that the battery is flat.

Replace the battery (see 4. Operation "Inserting the Battery").

GARDENA WT 1030 - Function - 2

The functional safety of the water timer depends on the capability of the battery.

If you change the battery the program is not saved. You must reprogram the Water Timer (see 5. Operation).

4. Putting Your Water Timer into Operation

Inserting the battery:

GARDENA WT 1030 - Inserting the battery: - 1

GARDENA WT 1030 - Inserting the battery: - 2

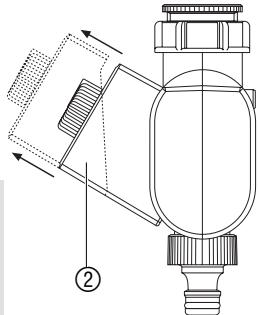

  1. Press the release button ① and remove the control unit ② from the housing of the Water Timer.
  2. Insert the battery ③ in the battery compartment. Pay attention to the polarity ⑨ (+/- markings).
  3. Re-attach the control unit ② to the housing.

Make sure you exchange the battery at the right time to prevent the Water Timer failing due to a low battery when you are away for longer periods of time.

GARDENA WT 1030 - Inserting the battery: - 3

Make sure that the time the battery has been in operation and the time you are planning to be away does not add up to more than a year.

Even if the battery is almost empty, the Water Timer ensures that an open valve is always closed since less energy is required to close the valve than to open it.

GARDENA WT 1030 - Inserting the battery: - 4
Connecting your Water Timer:

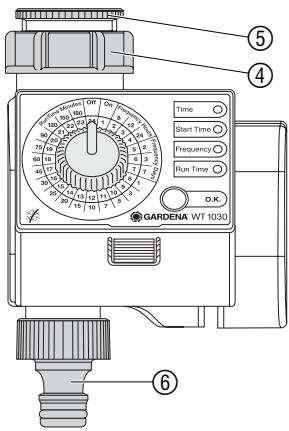

The Water Timer is fitted with a sleeve nut ④ for taps with a 33.3 mm (G1") thread. The adapter supplied ⑤ allows the Water Timer to be connected to taps with a 26.5 mm (G 34^ ) thread.

Connecting the Water Timer to taps with a 33.3mm (G1") thread:

  1. Screw the sleeve nut ④ of the Water Timer onto the thread of the tap by hand (do not use pliers).
  2. Screw the threaded tap connector ⑥ onto the Water Timer.

Connecting the Water Timer to taps with a 26,5 mm (G 3/4'' ) thread:

  1. Screw the adapter ⑤ onto the tap by hand (do not use pliers).
  2. Screw the sleeve nut ④ of the Water Timer onto the thread of the adapter ⑤ by hand (do not use pliers).
  3. Screw the threaded tap connector ⑥ onto the Water Timer.

Installing the anti-theft protection (optional):

GARDENA WT 1030 - Installing the anti-theft protection (optional): - 1

To protect your Water Timer against theft, the GARDENA Anti-Theft Protection Art. No. 1815-00.791.00 is available from the GARDENA Service.

  1. Fasten the bracket ⑦ to the back of the Water Timer using the screw ⑧.
  2. The bracket can be used to attach a chain, for example.

The screw cannot be loosened once it has been screwed in.

5. Operation

Setting the watering program:

GARDENA WT 1030 - Setting the watering program: - 1

The Water Timer control unit ② can be removed. This allows you to set the watering program somewhere other than where the Water Timer is to be used.

The time of day and watering starting time are entered to the nearest hour.

  1. Turn the control knob to OFF and confirm by pressing the OK button.

The program stored in the memory is overwritten.

The Time LED flashes.

1.

2.

GARDENA WT 1030 - 2. - 1

3.

GARDENA WT 1030 - 3. - 1

4.

GARDENA WT 1030 - 4. - 1

Setting the time of day:

  1. Set the time on the inner light-grey scale by turning the control knob and confirm the time you have selected by pressing the OK button (e.g.: 10:00 am).

The Start Time LED flashes.

Setting the watering starting time:

  1. Set the watering starting time on the inner light-grey scale by turning the control knob and confirm the time you have selected by pressing the OK button (e.g.: 20:00).

The Frequency LED flashes.

Setting the Watering Cycle:

  1. Set the watering cycle on the outer grey scale (Frequency Hours / Days) using the control knob and confirm your selection by pressing the OK button (e.g.: 12 hour cycle).

The Run Time LED flashes.

5.

GARDENA WT 1030 - 5. - 1

Setting the Watering Time:

  1. Set the watering time on the outer black scale (Run Time Minutes) using the control knob and confirm your selection by pressing the OK button (e.g.: 30 minutes).

The program you have selected is now active.

Changing the watering time:

GARDENA WT 1030 - Changing the watering time: - 1

On hot or cooler days you can change the watering time before the program starts without having to re-enter the time of day, watering starting time or watering cycle.

  1. Select the changed watering time on the outer black scale (Run Time Minutes) by turning the control knob. (e.g.: 20 minutes). The Run Time LED flashes.
  2. Confirm the watering time you have selected by pressing the OK button.

The changed watering time is now active.

Manual watering (ON):

GARDENA WT 1030 - Manual watering (ON): - 1

Bad-weather function (OFF):

GARDENA WT 1030 - Bad-weather function (OFF): - 1

On especially hot days the programmed watering cycle is sometimes insufficient. You can then turn on your sprinkler or irrigation system manually.

The program you have set remains unchanged.

Turn the control knob to ON.

The valve opens for 30 minutes independent of the set program.

To activate the set program again, you must reset the watering time to the time originally set.

On rainy days the programmed watering cycle is often unnecessary. You can therefore stop the programmed watering cycle (bad-weather function).

The program you have set remains unchanged.

Turn the control knob to OFF.

The valve closes and remains closed, independent of the watering cycle you have set.

To reactivate the set program, you must first reset the watering time.

6. Trouble-Shooting

FaultPossible causeRemedy
Not able to open the Water Timer manually using “ON/OFF”.Battery capacity too low (3 LEDs flash).→ Insert a new alkaline battery.
Tap turned off.→ Turn on tap.
Watering not initiated.Control knob turned to “Frequency” or “ON/OFF”.→ Turn the control knob to “Run Time Minutes”.
Battery capacity too low 3 LEDs flash).→ Insert a new alkaline battery.
Data input/changes made while the program was starting or immediately before.→ Input data or make changes before or after the starting times you have chosen.
Tap turned off.→ Turn on tap.
Battery flat after working for a short time.The battery you inserted is not an alkaline battery.→ Use an alkaline battery.

If you have any other problems with your Water Timer, please contact GARDENA Service.

7. Putting Your Water Timer Out of Operation

Disposing of flat batteries:

Please return flat batteries to a GARDENA dealer or dispose of them properly at your nearest recycling centre.

Only dispose of batteries when they are flat.

Storage/Wintering:

Store your Water Timer in a dry place away from frost before the first frost sets in.

Disposal:

(in accordance with RL2002/96/EC)

GARDENA WT 1030 - Disposal: - 1

The product must not be added to normal household waste. It must be disposed of properly.

8. Technical Data

Min./max. operating pressure:1 bar / 12 bar
Flow medium:Clean fresh water
Max. water temperature:40°C
Number of program-controlled watering cycles per day:Up to 3
Watering cycles per week:Every day, every 2nd, 3rd or 7th day
Watering time per program:1, 3, 5, 7, 10, 15, 20, 25, 30, 45, 60, 75, 90, 120, 150 or 180 minutes
Battery:1 x 9 V alkali-manganese (alkaline) type IEC 6LR61

Running time: Approx. 1 year

9. Service

Warranty

GARDENA honours the guarantee legally required for this product (starting from the date of purchase). This guarantee covers all serious defects of the unit that can be proved to be material or manufacturing faults.

Under warranty we will either replace the unit or repair it free of charge if the following conditions apply:

  • The unit must have been handled properly and in keeping with the requirements of the operating instructions.
  • Neither the purchaser or a non-authorised third party have attempted to repair the unit.
  • Faults which occur as a result of incorrectly installed or leaking batteries are not covered by the guarantee.

This manufacturer's guarantee does not affect the user's existing warranty claims against the dealer/seller.

If you have any problems with your Water Timer, please contact our Customer Service or return the defective unit together with a short description of the problem directly to one of the GARDENA Service Centres listed on the back of this leaflet.

CB Product Liability We expressly point out that, in accordance with the product liability law, we are not liable for any damage caused by our units if it is due to improper repair or if parts exchanged are not original GARDENA parts or parts approved by us, and, if the repairs were not carried out by a GARDENA Service Centre or an authorised specialist. The same applies to spare parts and accessories.
S Produktansvar Tillverkaren ar inte anvari g für skada som orskats av Produkten om skadan beror på attprodukten har reparerats felaktigt eller om, vid reparation eller utbyte, andra øn Original GARDENA reservdilar har an-vänts. Samma sak gäller für kompletteringsdilar och tillbehör.
N Productaansprakelijkheid Wij wijzen er nadrukkelijk op, dat wij op grond van de wet aanssprakelijkheid voor producten Niet aanspra-kelijk zijn voor schade ontstaan door once apparaten, indien deze door onvakkundige reparatie veroorzaakt zich, of er bij het uitwissenlen van onderdelen geen gebruik gemaaakt werk van once originele GARDENA onderden of door ons vrijgeveen onderdelen en de reparatie Niet door de GARDENA technische Dienst of de bevoegde vakman uitgevoerd werk. Ditzelfde geldt voor extra-onderdelen en accessoires.
D Produkttaftung Wir weisen ausdrücklich darauf auf hin, dass wir nach dem Produkttaftungsgesetz nicht für durch unsere Geräte hervorerufene Schäden einzustehen haben, sofern diese durch unsachgemäße Reparatur verwur-sacht oder bei einem Teileauustausch nicht unsere Original GARDENA Teile oder von uns freiigegebene Teile verwendet werden und die Reparatur nicht vom GARDENA Service oder dem autorisierten Fachmann durchgefuhrt wird. Entsprechendes gilt für Ergänzungsteile und Zubehör.

GARDENA WT 1030 - Warranty - 1

Product Liability

Painotamme tuotevastuulain mukaisesti erityisesti sitä seikkaa, etta emme vastaa elektroniselle vesiajastimelle aiheutuneista tai sen aiheuttamasta vahingoista, mikali ne ovat aiheutuneet epapatevän korjauksen takia, mikäli elektronisen veisajastimeen on vaidhettu osia, jotka eivat ole alkuperäisia GARDENA-osia tai meidän hyväksymä ösia tai mikäli korjauksen on tehnyt jokin muu kuin GARDENA-huolto tai valtuutettu huolto. Sama koskee myös lisälaitteita ja -varusteita.

GARDENA WT 1030 - Product Liability - 1

EU Certificate of Conformity

The undersigned GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, hereby certifies that, when leaving our factory, the unit indicated below is in accordance with the harmonised EU guidelines, EU standards of safety and product specific standards. This certificate becomes void if the unit is modified without our approval.

GARDENA WT 1030 - EU Certificate of Conformity - 1

EU Tillverkarintyg

Undertechnadirma GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, intygar hamed att nedan namnda producerk overensstämmer med EU:s direktiv, EU:s sakerhetsstandard och produktspecifikation. Detta intyg uphor att galla omprodukten andras utan vart tillstand.

GARDENA WT 1030 - EU Tillverkarintyg - 1

EU-overeenstemmingsverklaring

Ondergetekende GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, bevestigt, dat het volgende genoeme代表团 in de door ons in de handel gebrachte uitvoerig voldoet aan de eis van, en in overeenstemming is met de EU-richtlijnen, de EU-veiligheidsstandzaand en de voor het product specifieke staandaard. Bij een net met ons afgestemde verandering aan het代表团 verliest deze verwklaring haar geldigheid.

GARDENA WT 1030 - EU-overeenstemmingsverklaring - 1

EU-Konformitätserklarung MaschinenVerordnung (9. GSGVO) / EMVG / Niedersp. RL

Der Unterzeichnete GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, bestätigt, dass das nachfolgend bezeichnete Gerät in der von uns in Verkehr gebrachten Ausführung die Anforderungen der harmonisierten EU-Richtlinien, EU-Sicherheitsstandards und Produktspezifischen Standards erfüllt. Bei einer nicht mit uns abgestimmten Änderung des Gerätes verliert diese Erklärung ihre Gültigkeit.

GARDENA WT 1030 - EU-Konformitätserklarung MaschinenVerordnung (9. GSGVO) / EMVG / Niedersp. RL - 1

EU-Vakuustodistus

Allekrijoittanut, GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm, vahvistaa, etta lahtiessaaan tehtaalto ko. tuote (tuotteet) on valmistetu EU-ohjeiden, EU-turvalliusus - ja tuote-erittelystandardien mukaisesti. Tama vakuus mitatöyy, mikäli tuotetta (tuotteita) muutetaan ilman hyväksytäämme.

Description of the unit: Produktbeskrivning: Omschrijving van het apparaat: Bezeichnung des Gerätes: EU-direktivit:Water Timer electronic Bevattningsstimer electronic Elektronische watertimer Bewässerungssuhr electronic Elektroninen kasteluajastinType: Type: Typ: WT 1030Art. No.: Art.nr.: Art.nr.: Art.-Nr.: art.-nro1825
EU directives: EU direktiv: EU-richtlijnen: EU-Richtlinien: EU-direktivit:89/336/EC 93/68/ECYear of CE marking: CE-Märkningsår: Installatiejaar van de CE-aanduiding: Anbringungsjahr der CE-Kennzeichnung: CE-hyväksyntä vuosi:2001
Thomas Heinl
Ulm, 20.07.2001Technical Dept. Manager
Ulm, 2001.07.20.Technical Director
Ulm, 20-07-2001Hoofd technische dienst
Ulm, 20.07.2001Technische Leitung
Ulm, 20.07.2001Tekn. osaston päällikkö

Deutschland

GARDENA

Manufacturing GmbH

Service Center

Hans-Lorenser-StraBe 40

D-89079 Ulm

Produktfragen:

(0731)490-246

Reparaturen:

(0731)490-290

Argentina

Argensem S.A.

Calle Colonia Japonesa s/n

(1625)Loma Verde

Buenos Aires

Australia

Nylex Consumer Products

50-70 Stanley Drive

Somerton

Victoria, 3062

Austria

GARDENA Österreich

Ges.m.b.H.

Stettnerweg 11-15

2100 Korneuburg

Belgium

MARKT (Belgium) NV/SA

Sterrebeekstraat 163

1930 Zaventem

Brazil

RGS Comercial Ltda

Av. Marginal do

Rio Pinheiros, 5200

Edificio Montreal

Bloco e-Terreo

05693-000 Sao Paulo - SP

Bulgaria

DENEX LTD.

2 Luis Ahalier Str.

7th floor

Sofia 1404

Canada

GARDENA Canada Ltd.

100 Summerlea Road

Brampton, Ontario

Canada L6T 4X3

Chile

Antonio Martinic Y CIA. LTDA.

Gilberto Fuenzalida 185 Loc.

Las Condes

Santiago de Chile

Costa Rica

Compania Exim

Euroiberoamericana S.A.

Av. 12 bis Calle 16 y 18

Bodegas Keith y Ramirez

San José

Cyprus

FARMOKIPIKI LTD

P.O.Box 7098

74, Digeni Akrita Ave.

1641 Nicosia

Czech Republic

GARDENA spel. s.r.o.

Ripska 20a, c.p. 1153

62700 Brno

Denmark

GARDENA Danmark A/S

Naverland 8

2600 Glostrup

Finland

Habitec Oy

Martinkylantie 52

01720 Vantaa

France

GARDENA France

ServiceAprès-Vente

BP 57080

95948 ROISSY CDG Cedex

Great Britain

GARDENA UK Ltd.

27-28 Brenkley Way

Blezard Business Park

Seaton Burn

Newcastle upon Tyne

NE13 6DS

Great Britain

GARDENA UK Ltd.

27-28 Brenkley Way

Blezard Business Park

Seaton Burn

Newcastle upon Tyne

NE13 6DS

Greece

Agrokip

G. Psomadopoulos & Co.

33 A, Ifestou str. - 194 00

Industrial Area Koropi

Athens

Hungary

GARDENA Magyarország Kft.

Kesmárk utca 22

1158 Budapest

Iceland

Heimilistaeki hf

Saetun 8

P.O.Box 5340

125 Reykjavik

Republic of Ireland

Michael McLoughlin & Sons

Hardware Limited

Long Mile Road

Dublin 12

Italy

GARDENA Italia S.p.A.

Via Donizetti 22

20020 Lainate (Mi)

Japan

KAKUICHI Co. Ltd.
Yamato Bldg., 5-3-1,
Kojimachi
Chiyoda-ku, Tokyo 102

Luxembourg

Magasins Jules Neuberg Grand Rue 30 Case Postale No.12 Luxembourg 2010

Netherlands

GARDENA Nederland B.V. Postbus 50176 1305 AD ALMERE

Neth. Antilles

Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao

New Zealand

NYLEX New Zealand Limited
22 Saleyards Road Otahuhu
Private Bag 94001
SAMC Manukau

Norway

GARDENA Norge A/S Postboks 214 2013 Skjetten

Poland

GARDENA Polska Sp. z o.o. Szymanow 9 d 05-532 Baniocha

Portugal

GARDENA Portugal Lda.
Recta da Granja do Marqués
Edif. GARDENA
Algueirão
2725-596 Mem Martins

Romania

MADEX INTERNATIONAL
Str. Avionului nr. 17
BI.6D, Ap.1
Sect. 1
Bucureşti

Russia / Pocsn

AO AMNDA TTU
yI. MocpinMoBcKa 66
117330 MoKBa

Singapore

Hy - Ray Enterprises
Block 1002 Toa Payoh Industrial Park

07-1433/1435/1451

Singapore 319074

Slovakia

GARDENA Slovensko, s.r.o. Bohrova c. 1 85101 Bratislava

Slowenia / Croatia

Silk d.o.o. Trgovina Brodišče 15 1236 Trzin

South Africa

GARDENA
South Africa (Pty.)
P.O. Box 11534
Vorna Valley 1686

Spain

GARDENA IBÉRICA S.L.U.
C/ Basauri, n° 6
La Florida
28023 Madrid

Sweden

GARDENA Norden AB
Box 9003
20039 Malmö

Switzerland

GARDENA AG
Bitziberg 1
8184 Bachenbulach

Ukraine / Ykpanha AO3T AIlbIeCT yn. faIapa 50 r.KneB 01033

Turkey

GARDENA/Dost Dis Ticaret
Mümessillik A.Ş.
Yesilbaugh Mah. Baskent
Cad. No.26
Pendik - Istanbul

USA

GARDENA
3085 Shawnee Drive
Winchester, VA 22604

1825-28.960.02/0041
© GARDENA
Manufacturing GmbH
D-89070 Ulm
http://www.gardena.co

Sommaire Cliquez un titre pour y accéder
Assistant notice
Powered by Anthropic
En attente de votre message
Informations produit

Marque : GARDENA

Modèle : WT 1030

Catégorie : Système d'irrigation
