ZU607TST - Projector OPTOMA - Free user manual and instructions

Product type	DLP laser projector
Brand	Optoma
Model	ZU607TST
Display technology	DLP 0.67"
Native resolution	WUXGA (1920 x 1200)
Brightness	6,000 ANSI lumens
Contrast ratio	300,000:1
Light source	Laser (lifespan up to 30,000 hours)
Throw ratio	0.78:1
Keystone correction	Vertical ±30°, horizontal ±30°
Video inputs	2x HDMI, 1x VGA, 1x DisplayPort
Audio inputs	1x 3.5 mm jack
Audio outputs	1x 3.5 mm jack
Control ports	1x RS-232, 1x USB-A (power), 1x RJ45
Built-in speaker	1 x 10 W
Dimensions (W x D x H)	384 x 310 x 99 mm
Weight	5.3 kg
Power supply	AC 100-240 V, 50/60 Hz
Power consumption	380 W (max), 0.5 W (standby)
Maintenance and cleaning	Clean the air filter every 1,000 hours; vacuum the air outlet
Security	Kensington lock, password lock
Spare parts and repairability	Filter kit available; parts available through authorized after-sales service
General information	Professional laser projector, 24/7 compatible, ideal for education and conferences

Frequently Asked Questions - ZU607TST OPTOMA

How to clean the air filter of the OPTOMA ZU607TST projector?

Turn off and unplug the projector. Open the filter cover on the side. Remove the filter and gently tap it or use a low-power vacuum cleaner. Replace the filter and close the cover. It is recommended to clean the filter every 1,000 hours of use.

What to do if the projector does not turn on?

Check that the power cord is properly connected and the electrical outlet works. Make sure the power indicator is on. If the indicator blinks red, it may indicate overheating or a lamp problem. Consult the manual for error codes.

How to adjust keystone on the ZU607TST?

Use the keystone correction dials on the projector or settings in the OSD menu. You can correct vertical and horizontal distortion up to ±30°.

What is the lifespan of the laser light source?

The laser light source can last up to 30,000 hours in normal mode, which reduces maintenance compared to traditional lamps.

Can I project in 3D with this projector?

Yes, the projector supports 3D via HDMI with DLP Link compatible glasses. Activate 3D mode in the OSD menu.

How to connect my computer to the projector?

Use an HDMI, VGA, or DisplayPort cable to connect your computer to the projector. Select the corresponding source in the Input menu.

Can the projector be ceiling mounted?

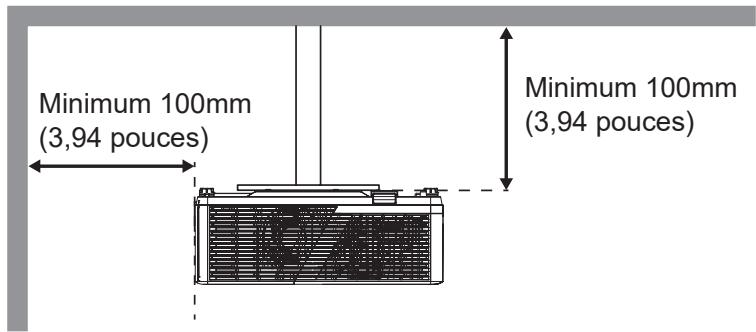

Yes, the ZU607TST is compatible with a standard ceiling mount (not included). Make sure to use a mounting kit suitable for the device weight (5.3 kg).

How to update the projector firmware?

Download the latest firmware version from Optoma's website. Copy the file to a USB drive formatted in FAT32. Plug the drive into the projector's USB port and follow the instructions in the Service menu.

What types of audio cables can I use?

The projector has a 3.5 mm audio input and output. You can connect an external speaker or audio system via these jacks. The built-in 10 W speaker is also available.

How to reset the projector to factory settings?

Go to the OSD menu, select 'Settings' then 'Reset settings'. Confirm the operation. The projector will restart with default values.

USER MANUAL ZU607TST OPTOMA

Line drawing of a portable projector with control panel and display (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019. IEC 60825-1:2014 等級1雷射產品RG2危險等級 IEC 60825-1:2014 1类激光产品RG2危险等级

This Class B digital apparatus complies with Canadian ICES-003.

Illustration of a projector device with a labeled projection (no text or symbols on the device itself)

Line drawing of a person sitting in a chair watching TV, with a monitor on a desk and a wall-mounted screen (no text or symbols)

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Line drawing of a person sitting in a chair watching a projector screen (no text or symbols)

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Circular diagram showing six different kitchen appliances arranged in a ring, with no text or symbols present.

Illustration of two stacked heat sinks with a red X symbol crossed out (no text or symbols present)

Technical line drawing of a washing machine with control knobs and fan (no text or symbols)

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

État du système

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

LPCM(IEC 60958 PCM[30,31]
