USER MANUAL CH-180 Heinner

Line drawing of a kitchen air conditioner cover with ventilation grilles (no text or symbols)

• Hota traditionala
• Capacitate absorbtie: 130 ~m^3 / h
  • Culoare: alb/negru/maro

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Pic 3

Line drawing of a rectangular electronic device with two circular ports, placed on a grid background (no text or symbols)

Pic 4

Metoda B

Pic 5

Nota: Sunt disponibile doua moduri de ventilare: ventilare orizontala si ventilare verticala.

Va rugam sa acordati atentie metodei dorite de ventilare inainte de a alege metoda de instalare.

Simple line drawing of a rectangular electronic component with two circular arrows indicating upward motion (no text or symbols)

A

Technical line drawing of a mechanical housing with mounting holes and a rectangular component (no text or symbols)

B
Pic 6

Setare ventilare

Diagram of a rectangular electronic device with internal components and directional arrows indicating motion (no text or symbols)

C

B

3D diagram of a rectangular block with internal holes and directional arrows indicating movement or force (no text or symbols)

D
Pic 7

V. UTILIZARE

1. Pozitia "0" – hota va fi oprita
2. Butoanele "low", "middle" and "high" vor actiona motorul sa functionze la viteza mica, medie si, respectiv, mare
3. Daca apasati o data butonul "light", lumina se va aprinde. Pentru a stinge lumina, mai apasati o data.

VI. CURATARE SI MENTENANTA

A. Schimbarea si curatarea

Diagram of a flat-screen air conditioner with airflow arrows indicating cooling or ventilation (no text or symbols)

Diagram of a flat-screen air conditioner with airflow arrows and a magnified inset showing a device (no text or symbols)

Pic 9

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro

Line drawing of a kitchen air conditioner cover with ventilation grilles (no text or symbols)

• Traditional cooker hood
• Suction power: 130 m³/h
• Color: white/ black, brown

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

▶ Traditional cooker hood
User manual
Warranty card

i

III. SAFETY PRECAUTIONS

If this product has arrived damaged please return for change or repair.

DO NOT INSTALL THIS APPLANCE IF YOU FOUND IT DANAGED.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is designed for domestic use only.

Any installation work must be carried out by a qualified electrician or competent person.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Details concerning the method and frequency of cleaning are stated in the section.

"INSTALLATION AND MAINTENANCE".

Do not pull on the connection cord, but rather on the plug, to separate the appliance from the mains.

When cleaning the appliance, it must be off power first.

IV. INSTALLATION

INSTALLATION

Method A

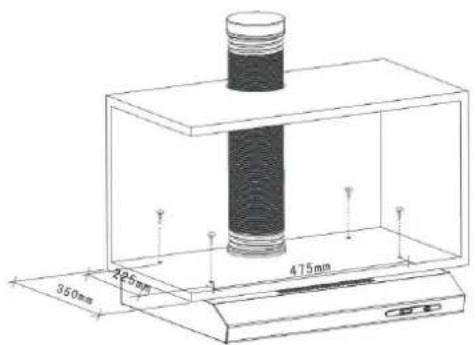

1. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface
   for best effect.

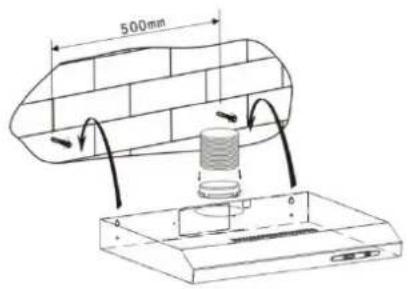

2. To install onto the wall, drill 4 holes of ∅ 8mm on a suitable place according with the center distance of hole in the back of the cooker hood.
3. Insert the nut into the holes.
4. Insert the screws into the nuts and tight

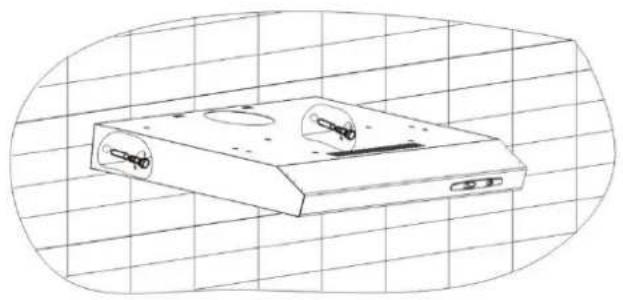

5. Put up the cooker hood onto the fixed screws
6. Then use the attached accessories enclosed to turn the screws into the two holes of inside the hood, and then fix the screws to tighten the hood onto the wall.
7. Put the one way valve onto the cooker hood.

Pic 1

Pic 2

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Pic 3

Line drawing of a computer monitor with two ports and a grid background (no text or symbols)

Pic 4

Method B

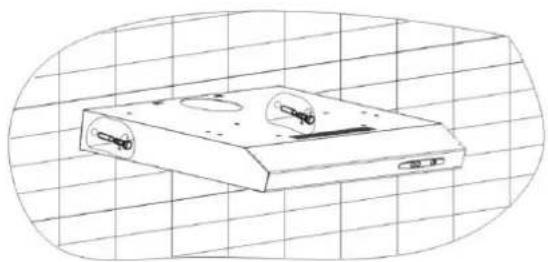

1) Drill 4 holes of ∅ 6mm at the bottom of the hanging Cup board.
2) Put the one way valve on the cooker hood, then install the cooker hood on the bottom of the cupboard, tighten the hood with enclosed 4 screws.
3) Install the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.

Pic 5

Notice

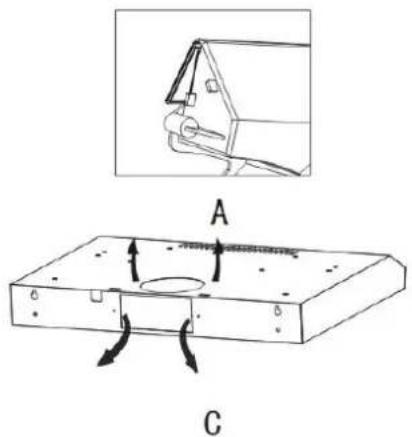

There are 2 methods for ventilation, including 'horizontal ventilation' and 'vertical ventilation'. Please pay attention to the ventilation method when installation.

Vertical ventilation: As shown in pic 6A, please use the cover to seal the outlet on the back, then the air can be vented from top.

Horizontal ventilation: As shown in pic. 6B, please use the cover to seal the outlet on the top, then the air can be vented from back.

Technical line drawing of a rectangular electronic device with mounting holes and a circular component, labeled 'A' (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with a circular opening and labeled component B (no text or symbols beyond labels)

Pic 6

Air ventilation setting

Outdoor air ventilation: Turn the adjuster to outdoor position (pic. 7A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet (pic. 7C).

Indoor air ventilation: Turn the adjuster to indoor position (pic. B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet (pic. 7D).

Pic 7

Technical line drawings of a mechanical component with sectional view and cross-sectional view (no text or symbols)

V. OPERATION

The switch is operated as below :

1. Press "0", the motor will be off.
2. Press the button to "low", "middle" and "high", the motor will be turned on at "low", "middle" and "high" speed respectively.
3. Press "light", the light will be on. Press it again, the light will be off..

VI. CLEANING AND MAINTENANCE

Changing and cleaning the filter

Diagram of a flat-screen air conditioner with airflow arrows indicating cooling or ventilation (no text or symbols)

1. Put the filter into the water of 40-50°C, put some detergent in, and leave it for 2-3 minutes. Then use the soft brush to clean it with proper strength, in order not to damage the filter.
2. The filter can be cleaned by dish washer. Put the filter into the dish washer and put some detergent in, then turn the temperature to 60^ C.

The filter is made of acryl. Please do not use any corrosive detergent when cleaning.

Notice: Please unplug before cleaning.

VII. TROUBLESHOOTING

Symptom	Solution
The cooker hood does not start.	Check that the hood is connected to the electricity supply.Check that the fan speed control is set properly.
The cooker hood is not working Effectively.	The fan speed is not set high enough.The grease filter is dirty.The kitchen is not ventilated well enough.If the hood is set for recirculation, check that the carbon filters have not expired.If the hood is set for extraction, check that the ducting and outlets are not blocked.
The cooker hood has switched off during operation.	The safety cut-out device has been tripped.Turn off the hob and then wait for the device to reset.Note that if you have installed your cooker hood too low, this will happen.If it happens frequently, it will be damaged.

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Str. Marcel Iancu, nr 3-5, Bucuresti, Romania

Tel: [phone], www.heinner.com, www.nod.ro

Product fiche according to Commission Delegated Regulation (EU) No. 65/2014
