Product Type	Range Hood
Brand	Heinner
Model	DCH-350RGWH
Width	35 cm
Height	14 cm (approx.)
Depth	48 cm (approx.)
Weight	10 kg (approx.)
Power Supply	220-240 V ~ 50/60 Hz
Motor Power	150 W
Maximum Extraction Rate	350 m³/h (approx.)
Number of Speeds	3
Lighting	1 x 20 W halogen or LED (depending on version)
Filter Type	Aluminum grease filter (washable)
Optional Carbon Filter	Yes (for recirculation mode)
Control Type	Sliding control or push buttons
Energy Class	A (approx.)
Noise Level	55 dB (approx.)
Installation Type	Under-cabinet or wall-mounted
Exhaust Diameter	150 mm (approx.)
Maintenance	Clean grease filter monthly; replace carbon filter every 3-6 months
Safety Features	Thermal protection for motor
Spare Parts Available	Grease filter, carbon filter, halogen/LED bulb
Warranty	2 years

Frequently Asked Questions - DCH-350RGWH Heinner

How do I install the Heinner DCH-350RGWH range hood?

Installation should be done by a qualified technician. Ensure the hood is mounted at least 65-75 cm above the cooking surface. Follow the manual for electrical and ducting connections.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every month to maintain performance. You can wash it with warm water and mild detergent or in the dishwasher.

Does this range hood support recirculation mode?

Yes, the DCH-350RGWH can be used in recirculation mode with an optional carbon filter (not included). The filter must be replaced every 3-6 months.

How do I replace the light bulb?

First, disconnect power. Remove the bulb cover (usually clipped or screwed). Replace the old bulb with a new one of the same type and wattage (e.g., 20W halogen or LED). Reattach the cover.

What is the noise level of this hood?

The noise level is approximately 55 dB on max speed, which is comparable to a normal conversation.

Can I use the hood without ducting to the outside?

Yes, you can use it in recirculation mode by installing a carbon filter. The air is then filtered and returned into the kitchen.

How do I change the carbon filter?

Remove the grease filter first. The carbon filter is usually located behind it. Unclip or unscrew the old filter and install the new one. Replace the grease filter.

What should I do if the hood stops working?

Check the power supply and circuit breaker. Ensure the plug is connected. If the motor thermal protection has tripped, wait 15 minutes and try again. If the issue persists, contact Heinner support.

What are the dimensions of the DCH-350RGWH?

The hood is approximately 35 cm wide, 48 cm deep, and 14 cm high. Exact dimensions are in the manual.

Does the hood come with a warranty?

Yes, Heinner provides a 2-year warranty for the DCH-350RGWH. Keep your purchase receipt for service requests.

USER MANUAL DCH-350RGWH Heinner

Front view of a white stainless steel kitchen range hood (no visible text or symbols)

• Decorative cooker hood
• Suction power: 276.6 m³/h
- Color: white

Thank you for purchasing this product!

I. INTRODUCTION

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

II. PACKAGE CONTENT

➢ Decorative cooker hood
User manual
Warranty card

III. SAFETY PRECAUTION

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

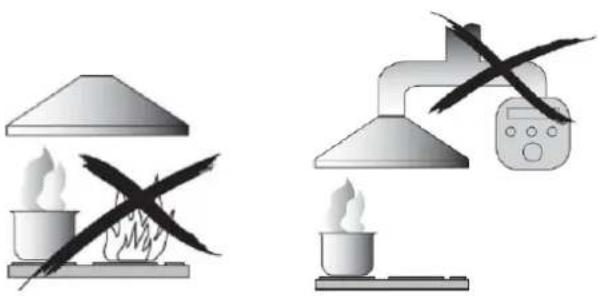

NEVER TO DO:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high-level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
• Never leave naked flames under the cooker hood.
• If the cooker hood is damaged, do not attempt to use.
• Do not flambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Two experimental setups showing heating and cooling systems with no visible text or symbols

ALWAYS TO DO:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.

- When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be:

Gas cookers: 75 cm

Electric cookers: 65 cm

Coal or oil cookers: 75 cm

• Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Always put lids on pots and pans when cooking on a gas cooker.

- When in extraction mode, air in the room is being removed by the cooker hood.

- Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.

• Cooker hood is for domestic use only.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.

- There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.

There is a fire risk if cleaning is not carried out in accordance with the instructions

- Regulations concerning the discharge of air have to be fulfilled.

- Clean your appliance periodically by following the method given in the chapter MAINTENANCE.

- For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

- Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.

- Cleaning and user maintenance shall not be made by children without supervision. When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

IV. INSTALLATION INSTRUCTIONS (VENT OUTSIDE)

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extractions duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm).

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

2. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

Pic 1

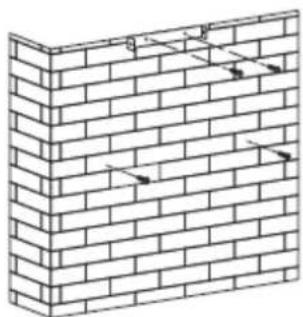

1. After deciding the cooker hood height, measure the position of the holes for hanging hood and inside chimney bracket. Drill 4 8 holes, 2 for inside chimney bracket and 2 for hanging the hood, and keep the hood level. The fixed position of the inside chimney bracket is the highest place of chimney. See pic 2.

Isometric line drawing of a brick wall with construction lines (no text or symbols)

Pic 2

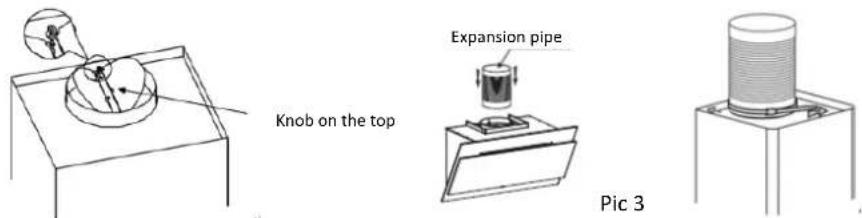

1. Screw two 4 x 30mm screws on the wall with wall plugs to fix the hood, then use two 4mm x 40mm screws to fix the inside chimney bracket. See Pic 2.

2. Equip the Valve. Install the expansion pipe onto the cooker hood. Fix the expansion pipe on the valve by cable tie. See Pic 3.

1. Install the outside chimney bracket onto the outside chimney, here should be sure the inside chimney can be flexed freely. See Pic 4.

Pic 4

1. Make the hood hang on the wall in the fixed position, adjusting the cooker hood position, fix the cooker hood with safety screws.

Technical line drawing of a mechanical device mounted on a brick wall, no text or symbols present

Pic 5

The safety vents are positioned on the back housing, with diameter of 6mm.

1. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw. See Pic 6.

Technical line drawing of a brick wall with an attached structure and directional arrows (no text or symbols)

Pic 6

V. HINTS FOR EXHAUST DUCT INSTALLATION

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.

- Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.

- Any installation work must be carried out by a qualified electrician or competent person.

- Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.

- The angle of the bend of the expansion pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

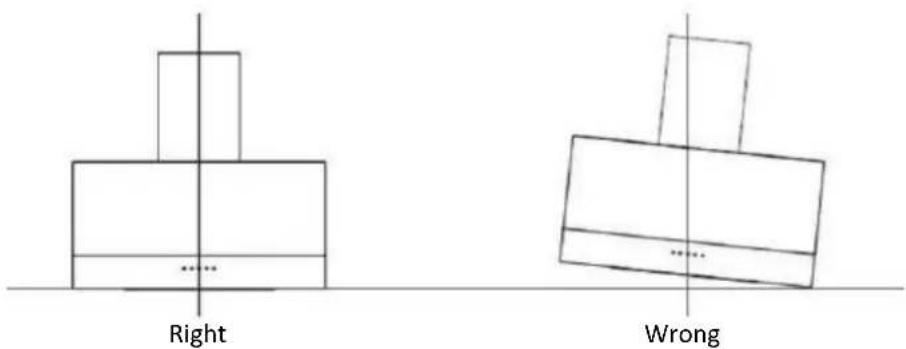

After the installation, make sure that the cooker hood is level to avoid grease collection at on end.

- Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.

WARNING:

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

➢ Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

VI. USING THE APPLIANCE

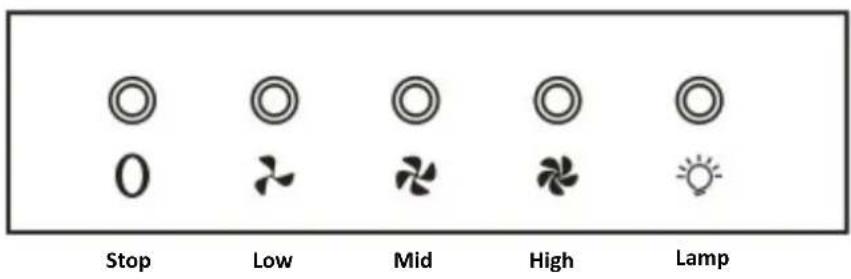

Push button

1. Push stop button, and the motor will stop.
2. Push the low button, and the motor runs at low speed.
3. Push the middle button, and the motor runs at mid speed.
4. Push the high button, and the motor runs at high speed.

VII. TROUBLESHOOTING

FAULT	POSSIBLE CAUSE	SOLUTION
Light on, but motor does not work	Fan switched turned off	Select a fan switch position
	Fan switch failed	Contact service center
	Motor failed	Contact service center
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses
	Power cord loose or disconnected	Refit cord to power outlet. Switch power outlet on.
Oil leakage	One-way valve and the air ventilation entrance are not tightly sealed	Take down the one-way valve and seal with sealant.
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal

NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

VIII. CLEANING AND MAINTENANCE

CAUTION

Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless-steel cleaning fluid may be used.

NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

IMPORTANT

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand.

Soak them for about 3 minutes in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid damaging it. (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

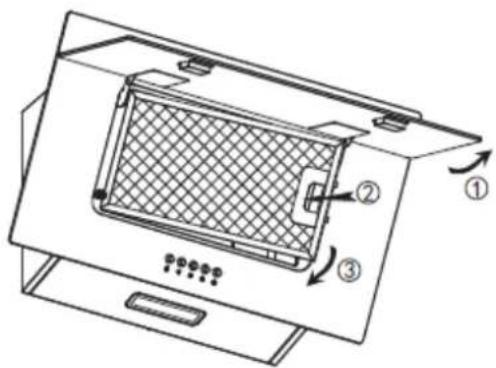

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
• Angle the filter into slots at the back of the hood.
• Push the button on handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

CARBON FILTER – buy separately

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

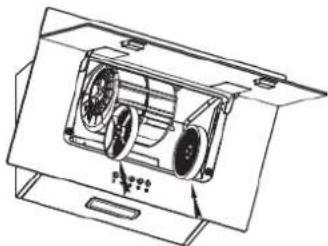

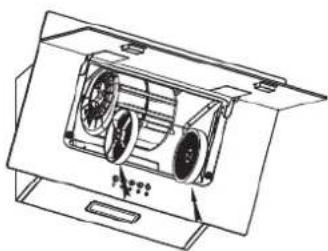

In order to install the activated carbon filter, the aluminium filter should be detached first. Firstly, open carefully the stainless-steel cover, then press the lock of aluminium filter and remove it.

Diagram showing a downward arrow with a horizontal line above, no text or symbols present

Technical line drawing of a mechanical device with two fans and a housing (no text or symbols)

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

• The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
• Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
• When handling globes hold with a cloth or gloves to ensure perspiration does not meet the globe as this can reduce the life of the globe.

LED LIGHTS

Use the screw driver loosen the ST4*8MM self tapping screw (2pcs) from the lighting panel, take out the lighting fixture. Open the terminal box that connected with the wire, disconnect the wire connector and replace the lamp.

ILCOS D code for this lamp is: DBS-2.5/65-H-120/33

-LED modules – rectangle lamp

-Max. wattage: 2W

-Voltage range: AC 220-240V

-Dimensions:

Technical line drawing of a rectangular electronic component with mounting holes and side connectors (no text or symbols)

IMPORTANT

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with your Local Authority or retainer for recycling advice.

IX. TECHNICAL FICHE

Product fiche according to Commission Delegated Regulation (EU) No. 65/2014
Trademark	Heinner
Model	DCH-350RGWH
Annual energy consumption (kWh/year)	28.9
Energy efficiency class	B
Fluid dynamic efficiency	11.8
Fluid dynamic efficiency class	E
Lighting efficiency (lux/W)	49.5
Lighting efficiency class	A
Grease filtering efficiency (%)	71
Grease filtering efficiency class	D
Airflow at minimum and maximum speed under normal conditions of use (m3/h)	212.5/276.6
Airborne acoustical A-weighted sound power emissions at minimum and maximum speed under normal conditions of use (dB(A))	56/61
Time increase factor	1.6
Energy efficiency index	68.3
Measured airflow rate at best efficiency point (m3/h)	147.3
Measured airflow pressure at best efficiency point (Pa)	136
Measured electric power at best efficiency point (W)	47
Nominal power of the lighting system (W)	2.0
Average illumination of the lighting system on the cooking surface (lux)	99
Power consumption in standby mode (W)	-
Power consumption in off mode (W)	0

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

HOTĂ DECORATIVĂ

Model: DCH-350RGWH

Front view of a white stainless steel kitchen range hood (no visible text or symbols)

Two experimental setups showing heating and cooling methods with no visible text or symbols

AVERTISMENTE:

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Isometric line drawing of a brick wall with construction lines and arrows indicating material (no text or symbols)

Fig. 2

Diagram of a brick wall with a cylindrical object mounted on an electrical box, no text or symbols present.

Fig. 5

Architectural diagram of a brick wall with an open door and chimney (no text or symbols)

Fig. 6

V. SFATURI PENTRU INSTALAREA TUBULUI DE EVACUARE

SFATURI PENTRU INSTALAREA TUBULUI DE EVACUARE

INSTALAREA FILTRELOR DE GRĂSIME

Technical diagram showing a mechanical component with a downward arrow and a close-up of its internal structure (no text or symbols)

NOTĂ:

Technical line drawing of a rectangular electronic component with mounting holes and side connectors (no text or symbols)

IMPORTANT

Front view of a white stainless steel kitchen range hood (no visible text or symbols)

Two experimental setups showing heating and cooling methods with no visible text or symbols

ПРЕДУПРЕЖДЕНИЯ:

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols)

Isometric line drawing of a brick wall with construction lines (no text or symbols)

Фиг. 2

Diagram of a brick wall with a cylindrical object mounted on an open base, no text or symbols present

Фиг. 5

Architectural diagram of a brick wall with an open door and ventilation duct (no text or symbols)

Фиг. 6

V. СЪВЕТИ ЗА ИНСТАЛИРАНЕ НА ТРЪБАТА ЗА ИЗВЕЖДАНЕ НА ВЪЗДУХА

СЪВЕТИ ЗА ИНСТАЛИРАНЕ НА ТРЪБАТА ЗА ИЗВЕЖДАНЕ НА ВЪЗДУХА

Pure geometric diagram of stacked rectangles with a vertical centerline and base line, no text or symbols present.

Правилно

Simple line drawing of a 3D block structure with no text or symbols

Неправил

ИНСТАЛИРАНЕ НА ФИЛТРИТЕ ЗА МАЗНИНА

Diagram showing a downward arrow with a small object above it, no text or symbols present

Technical line drawing of a mechanical device with two fans and a housing (no text or symbols)

ЗАБЕЛЕЖКИ:

Technical line drawing of a rectangular electronic component with mounting holes and side connectors (no text or symbols)

ВАЖНО

Front view of a white stainless steel kitchen range hood (no visible text or symbols)

Two experimental setups showing heating and cooling systems with no visible text or symbols

FIGYELMEZTETÉSEK:

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Isometric line drawing of a brick wall with visible mortar joints and brickwork (no text or symbols)

Diagram of a brick wall with a cylindrical object mounted on an electrical box (no text or symbols)

1. ábra

Technical line drawing of a brick wall with an open door and support structure (no text or symbols)

1. ábra

V. TANÁCSOK AZ ELSZÍVÓCSŐ ÜZEMBEHELYEZÉSÉHEZ

TANÁCSOK AZ ELSZÍVÓCSŐ ÜZEMBEHELYEZÉSÉHEZ

A ZSÍRSZÚRÓK BEÜZEMELÉSE

Simple line drawing of a mechanical or structural component with a downward arrow, no text or symbols present.

Technical line drawing of a mechanical device with two fans inside a housing (no text or symbols)

MEGJEGYZÉS:

Technical line drawing of a rectangular electronic component with mounting holes and mounting brackets (no text or symbols)

FONTOS
