HTCH-440FS - Range hood Heinner - Free user manual and instructions

Product Type	Under-cabinet range hood
Brand	Heinner
Model	HTCH-440FS
Width	44 cm (440 mm)
Depth	30 cm
Height	15 cm
Weight	8 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	150 W
Extraction Rate (max)	450 m³/h
Number of Speeds	3
Noise Level (max)	62 dB(A)
Lighting	LED, 2 x 1.5 W
Filter Type	Aluminum grease filter (washable)
Charcoal Filter (optional)	For recirculation mode (not included)
Ducting Diameter	150 mm
Control Type	Push buttons
Mounting	Under cabinet or wall mount
Maintenance	Clean grease filter every month; replace charcoal filter every 3-6 months
Safety Features	Auto shut-off timer (if equipped)
Spare Parts Available	Grease filter, charcoal filter, LED lamp

Frequently Asked Questions - HTCH-440FS Heinner

How do I install the Heinner HTCH-440FS range hood?

Installation requires mounting under a cabinet or on a wall. Ensure the ducting (150 mm diameter) is connected for extraction mode, or install a charcoal filter for recirculation. Follow the detailed steps in the manual. Always disconnect power before installation.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every month with warm soapy water or in a dishwasher. A clogged filter reduces efficiency and may cause overheating.

Can I use the hood in recirculation mode?

Yes, you can use recirculation mode by installing a charcoal filter (not included). The air is filtered and returned to the kitchen. Charcoal filters must be replaced every 3-6 months.

What is the noise level of this range hood?

The maximum noise level is approximately 62 dB(A) at the highest speed. Lower speeds are quieter, around 50-55 dB(A).

How do I replace the LED light?

To replace the LED lamp, disconnect the power, remove the lamp cover, and replace the LED module with a compatible type (2 x 1.5 W, G4 base). Use only original spare parts.

Why is my range hood not extracting properly?

Check if the grease filter is dirty or the ducting is blocked. Ensure the charcoal filter (if used) is not saturated. Also verify that the hood is installed at the correct height (65-75 cm above the cooktop).

What is the warranty period for the Heinner HTCH-440FS?

Heinner typically offers a 2-year warranty from the date of purchase. Keep your receipt and register your product if required. Warranty covers manufacturing defects, not misuse.

Can I wash the charcoal filter?

No, charcoal filters are not washable. They must be replaced every 3 to 6 months depending on usage. Washing destroys the active carbon layer.

Does the hood have a remote control?

No, the HTCH-440FS model is controlled via push buttons on the front panel. It does not include a remote control.

How do I reset the filter cleaning indicator?

If your model has a filter cleaning indicator, after cleaning or replacing the filter, press and hold the light or speed button for 5 seconds until the indicator turns off. Refer to the manual for exact procedure.

USER MANUAL HTCH-440FS Heinner

Exterior view of a modern stainless steel kitchen air conditioner unit (no visible text or symbols)

• Telescopic cooker hood
• Suction power: 325,1 m³/h
• Color: Inox painted

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

Telescopic cooker hood
User manual
Warranty card

i

III. SAFETY PRECAUTIONS

If this product has arrived damaged, please return for change or repair.

DO NOT INSTALL THIS APPLIANCE IF YOU FOUND IT DANAGED.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is designed for domestic use only.

Any installation work must be carried out by a qualified electrician or competent person.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Details concerning the method and frequency of cleaning are stated in the section.

"INSTALLATION AND MAINTENANCE".

Do not pull on the connection cord, but rather on the plug, to separate the appliance from the mains.

When cleaning the appliance, it must be off power first.

Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.

The cooker hood must be installed in accordance with the installation instructions and all measurements followed.

Please dispose of the packing material carefully. Children are vulnerable to it.

Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.

Cooker hood is for domestic use only.

Do not flambé under the cooker hood.

Do no try to use the cooker hood without the grease filters or if the filters are excessively greasy!

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Do not leave frying pans unattended during use because overheated fats or oils might catch fire.

Never leave naked flames under the cooker hood.

If the cooker hood is damaged, do not attempt to use.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

The plug must be accessible after installation for isolation in case of any emergency.

The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood shall be at least 65cm.

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels

Clean your appliance periodically by following the method given in the chapter MAINTENANCE

Regulations concerning the discharge of air have to be fulfilled.

Clean the grease filter every month can prevent any risk of fire.

The charcoal filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

CAUTION: Accessible parts of the hood can become very hot during use with cooking appliances.

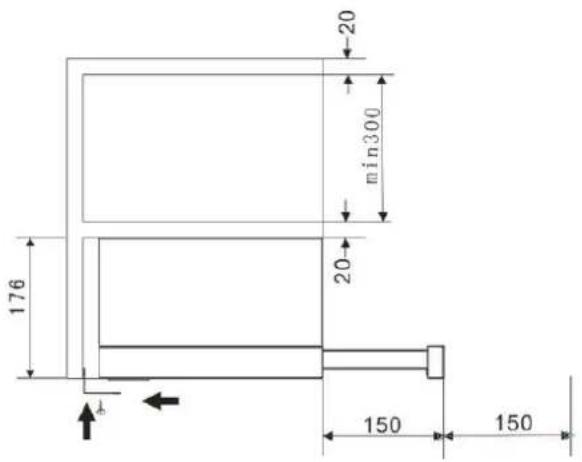

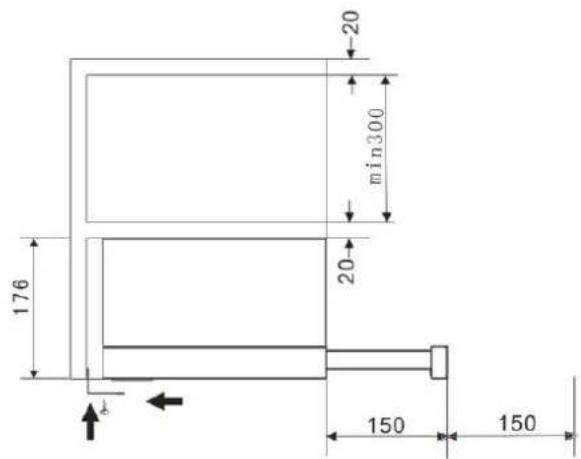

Regarding the instructions for the all necessary spaces with dimensions, the method of fixing and how the appliance is to be fixed to its support, thanks to refer to the section "INSTALLATION AND FIXING"

Regarding the instructions for the bulbs replacement information, thanks to refer to the section "Replacement of the bulb"

IV. INSTALLATION

METHOD A

1. Decide the location of the holes for fixing the cooker hood.

1. Install the L-shaped bracket on the top of the hood by two screws (4mm x 10mm)
2. The cooker hood is wall mounted by 4 screws (4mm x 30mm) and wall plugs. Mount the cooker hood on the wall on the back of the cooker hood by 2 screws (4mm x 30mm) and wall plugs. Then fix the cooker hood on the wall by 2 screws (4mm x 30mm) and wall plugs through the small L-shaped bracket.

1. Fix the one-way-valve to the air outlet of the cooker hood.

Technical line drawing of a mechanical housing or enclosure with a circular component and mounting base (no text or symbols)

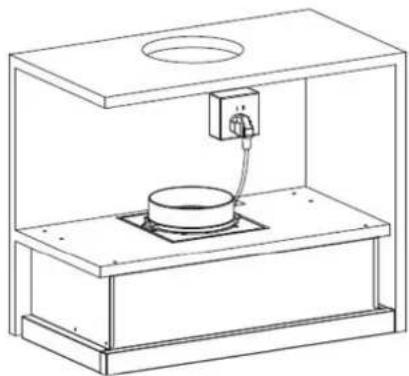

METHOD B

1. Fix the one-way-valve to the air outlet of the cooker hood.

Technical line drawing of a mechanical housing or enclosure with a circular component and mounting base (no text or symbols)

1. Mount the cooker hood on the cabinet by 6 screws (4x35mm) and flat washers.

Technical line drawing of a mechanical housing or enclosure assembly (no text or symbols)

Technical line drawing of a mechanical testing setup with a central component and mounting base (no text or symbols)

If there is gap between the wall and the cooker hood, you may install the L-shaped bracket on the bottom of the hood by two screws (3 x 12mm). The installation of the L-shaped bracket is optional.

- For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

- Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

V. OPERATION

1. Insert the power plug into the socket.

Connect the plug into the power.

Push switch ① to 📄, the lamp will be on; push switch ① to “0”, the lamp will be off. Push the switch ② into “I、II”, the motor will be on “low、high” two speeds, push into “0”, the motor will be off. The power will be connected when pull out the front panel. Conversely, the power will be automatically disconnected.

CAUTION

Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless-steel cleaning fluid may be used.

NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

IMPORTANT

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand.

Soak them for about 3 minutes in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid damaging it. (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

BULB REPLACEMENT

• The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
• Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
• When handling globes hold with a cloth or gloves to ensure perspiration does not meet the globe as this can reduce the life of the globe.

CHANGING A LAMP BULB FOR HIGH PRESSURE LED

1. Switch the unit off and pull out the plug first.
2. Wait until the light bulb is cooled down before replacement.

Changing the lights:

Remove the grease filter.

☐ Find out the junction box, unscrew the screws on the junction box cover, then take down the junction box cover (If there is wire pressing plate which pressed the light wire, the wire pressing plate needs to be dismantled first). See pic 1. The junction box has version a and b, depending on different models.

? Find out the terminal of the light connecting wire and pull it out. See pic 2.

? Way 1. Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out, see pic 3. Then slightly pull the light connecting wire out, see pic 4.

Way 2. Use straight screwdriver to prize up the LED light bottom edge, see pic 5, then slightly pull out the light connecting wire, see pic 4.

? Apply the reverse procedure to install the light back

• ILCOS D code for this lamp is: DBS-2/65-H-120/33

- LED modules - rectangle lamp

- Max wattage: 1x2 W

- Voltage range: AC 220-240V

- Dimensions:

IMPORTANT

When handling globes hold with a cloth or gloves to ensure perspiration does not meet the globe as this can reduce the life of the globe.

Charcoal Filter Replacement (not supplied)

(1) Slide the front part of the cooker hood.
(2) The al filter should be detached first. Press the lock and pull it downward.
(3) Take out the carbon filter by rotating the carbon filter anti-clockwise.
(4) Replace the new carbon filter.

VII. TROUBLESHOOTING

FAULT	POSSIBLE CAUSE	SOLUTION
Light on, but motor does not work	Fan switched turned off	Select a fan switch position
	Fan switch failed	Contact service center
	Motor failed	Contact service center
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One-way valve and the air ventilation entrance are not tightly sealed	Take down the one-way valve and seal with sealant.
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal

NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above.
Always disconnect the unit from the power source when opening the unit

Product fiche according to Commission Delegated Regulation (EU) No. 65/2014
Trademark	Heinner
Model	HTCH-440FS
Annual energy consumption (kWh/year)	37.8
Energy efficiency class	C
Fluid dynamic efficiency	8.1
Fluid dynamic efficiency class	E
Lighting efficiency (lux/W)	30.4
Lighting efficiency class	A
Grease filtering efficiency (%)	63
Grease filtering efficiency class	E
Airflow at minimum and maximum speed under normal conditions of use (m3/h)	220.8/325.1
Airborne acoustical A-weighted sound power emissions at minimum and maximum speed under normal conditions of use (dB(A))	58/63
Power consumption in standby mode (W)	0
Power consumption in off mode (W)	0

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

HOTĂ TELESCOPICA Model: HTCH-440FS

Exterior view of a Heinmer air conditioner unit (no text or symbols visible on the fan or background)

Technical line drawing of a mechanical housing or enclosure with a circular component and two downward arrows indicating motion (no text or symbols present)

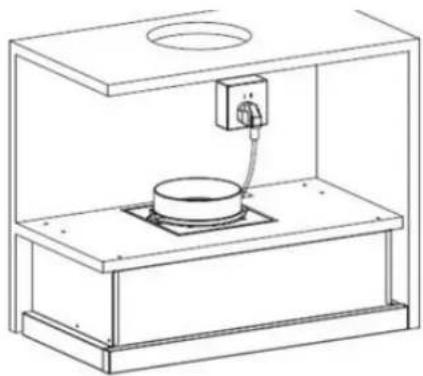

METODA B

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a laboratory apparatus with a central component and a circular top (no text or symbols)

ÎNLOCUIREA BECULUI

IMPORTANT

Exterior view of a Heimer air conditioner unit (no text or symbols on the device itself)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

B MÓDSZER

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical testing setup with a central component and base (no text or symbols)

MEGJEGYZÉS:

Exterior view of a HEINNER air conditioner unit (no text or symbols on the device itself)

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

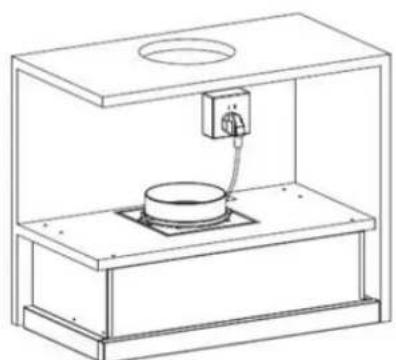

МЕТОД Б

Technical line drawing of a mechanical assembly with a circular component and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a laboratory apparatus with a central component and a circular top (no text or symbols)

ВАЖНО
