CG 27EJ (SLD) - Hedge Trimmer HITACHI - Free user manual and instructions

Product Type	Gas Hedge Trimmer
Brand	Hitachi
Model	CG 27EJ (SLD)
Engine Displacement	27 cm³
Engine Type	2-stroke, gasoline
Cutting Length	600 mm (approx.)
Blade Type	Double Steel Blade
Tooth Spacing	30 mm
Fuel Tank Capacity	0.5 L
Weight (without fuel)	5.0 kg
Noise Level	105 dB(A) (guaranteed)
Vibrations (front handle)	4.1 m/s²
Vibrations (rear handle)	5.0 m/s²
Power Source	Gasoline with 2-stroke mix 50:1
Main Functions	Cutting hedges, shrubs, branches
Maintenance and Cleaning	Clean blades after use, periodic sharpening, drain fuel before storage
Safety	Blade guard, emergency stop, anti-vibration handle
Spare Parts and Repairability	Blades, spark plugs, filters, cables available from authorized dealers
Included Documents	User manual in French, quick start guide
Warranty	2 years (parts and labor)

Frequently Asked Questions - CG 27EJ (SLD) HITACHI

What type of fuel should I use for the Hitachi CG 27EJ (SLD) hedge trimmer?

Use a mixture of unleaded gasoline and quality 2-stroke oil at a ratio of 50:1. Do not use gasoline with more than 10% ethanol.

How to start the engine when cold?

Set the switch to ON, close the choke, pump the primer bulb until fuel appears, pull the starter until the engine sputters, open the choke and pull again.

How to adjust the idle speed?

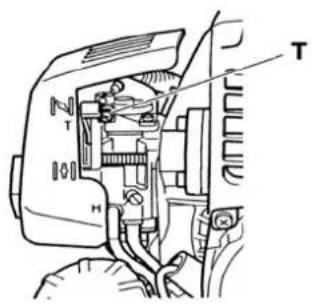

The idle speed screw is on the carburetor. Turn it to achieve a stable speed without the blade moving. Consult the manual for precise adjustments.

What to do if the blade no longer cuts properly?

Sharpen the blades with a file or replace them if they are too worn. Also check that the tooth spacing is correct.

How to clean the hedge trimmer after use?

Use a brush to remove plant debris. Clean the air filter and spark plug. Do not use a high-pressure cleaner.

What is the maximum cutting length?

The cutting length is about 600 mm, allowing to cut branches up to 18 mm in diameter.

How to change the blade?

Disconnect the spark plug, remove the blade mounting bolts, install the new blade respecting the orientation, tighten the bolts to the torque specified in the manual.

What to do in case of fuel leak?

Immediately stop the machine, check the hoses and seals. Do not use before repair. Consult a professional.

How to store the machine in winter?

Empty the fuel tank and run the engine until it stops. Clean the entire unit, apply oil to the blades and store in a dry place.

Where to find spare parts?

Spare parts are available from authorized Hitachi dealers or online. Always use original parts.

USER MANUAL CG 27EJ (SLD) HITACHI

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Owner's manual

Mode d'emploi

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Read the manual carefully before operating this machine.

Owner's manual

Meanings of symbols or labels. (NOTE! Some units do not carry them)

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.

Read, understand and follow all warnings and instructions in this manual and on the unit.

Circular icon with a stylized character wearing a helmet and sunglasses, enclosed in a black border (no text or symbols)

Always wear eye, head and ear protectors when using this unit.

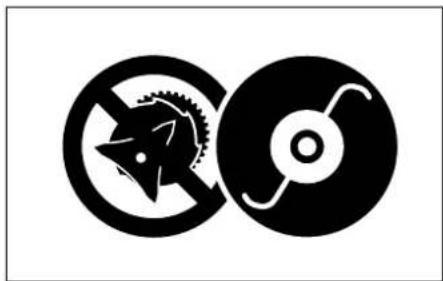

Two circular icons with a gear and crossed-out shapes, one containing a stylized shark face (no text or symbols)

Do not use metal/rigid blades when this sign is shown on the unit.

Two black-and-white icons: one showing a person reading a book, the other showing an open book with a lowercase 'i' symbol (no text or labels)

It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the unit may cause serious or fatal injury.

Keep all children, bystanders and helpers 15m away from the unit. If anyone approaches you, stop the engine and cutting attachment immediately.

Be careful of thrown objects.

Circular black-and-white road sign with a stylized white lightning bolt symbol (no text or numbers)

Use anti-slip and sturdy footwear.

Shows maximum shaft speed. Do not use the cutting attachment whose max rpm is below the shaft rpm.

Blade thrust may occur when the spinning blade contacts a solid object in the critical area. A dangerous reaction may occur causing the entire unit and operator to be thrust violently. This reaction is called BLADE THRUST. As a result, the operator may lose control of the unit which may cause serious or fatal injury. Blade thrust is more likely to occur in areas where it is difficult to see the material to be cut.

Symbol of two gloves inside a circle, no text or numbers present

Gloves should be worn when necessary, e. g., when assembling cutting equipment.

Indicates blade guard location for a trimmer head or Brain head®.

Indicate handle location. Do not attach handle above this point.

! WARNING!

• Read the Operator's Manual and follow all warnings and safety instructions. Failure to do so can result in serious injury to the operator and/or bystanders.
• Objects may be thrown or ricochet in all directions. ALWAYS WEAR EYE PROTECTION.
• Keep bystanders at least 50 feet (15m) away.
  • To reduce the chance of hearing loss, always wear ear protection.
  • To reduce the risk of injury from loss of control, never use a metal blade on a curved shaft grass trimmer. Never use a metal blade on any brushcutter without barrier bar or bicycle handle configuration and safety strap
• Use of a blade may cause a sudden sideways, forward or backward motion of the brushcutter when the blade contacts a solid object. See Owner's manual for model specific details.

Before using your machine

• Read the manual carefully.
• Check that the cutting equipment is correctly assembled and adjusted.
• Start the unit and check the carburetor adjustment. See "Maintenance".

Declaration of conformity

We, Nikko Tanaka Engineering Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japan Declare under our sole responsibility that the product, brushcutter model

CG25EJ/CG25EJ (L)/CG25EJ (SL)

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

to which this declaration relates is in conformity with the essential safety requirements of directives.

98/37/EC, 89/336/EEC, 2000/14/EC

The following standards have been taken into consideration

ISO 7112/7113/7916/7917/7918/8380/11682

(EN ISO 12100-1/2, EN ISO 11806)

Manufactured at : Chiba, Japan

Signature:

Serial No. up from

E570001

Yoshio Osada

Position:

Director

Index

What is what? 5

Warnings and safety instructions 6

Assembly procedures 7

Operating procedures 10

Maintenance 13

Specifications 15

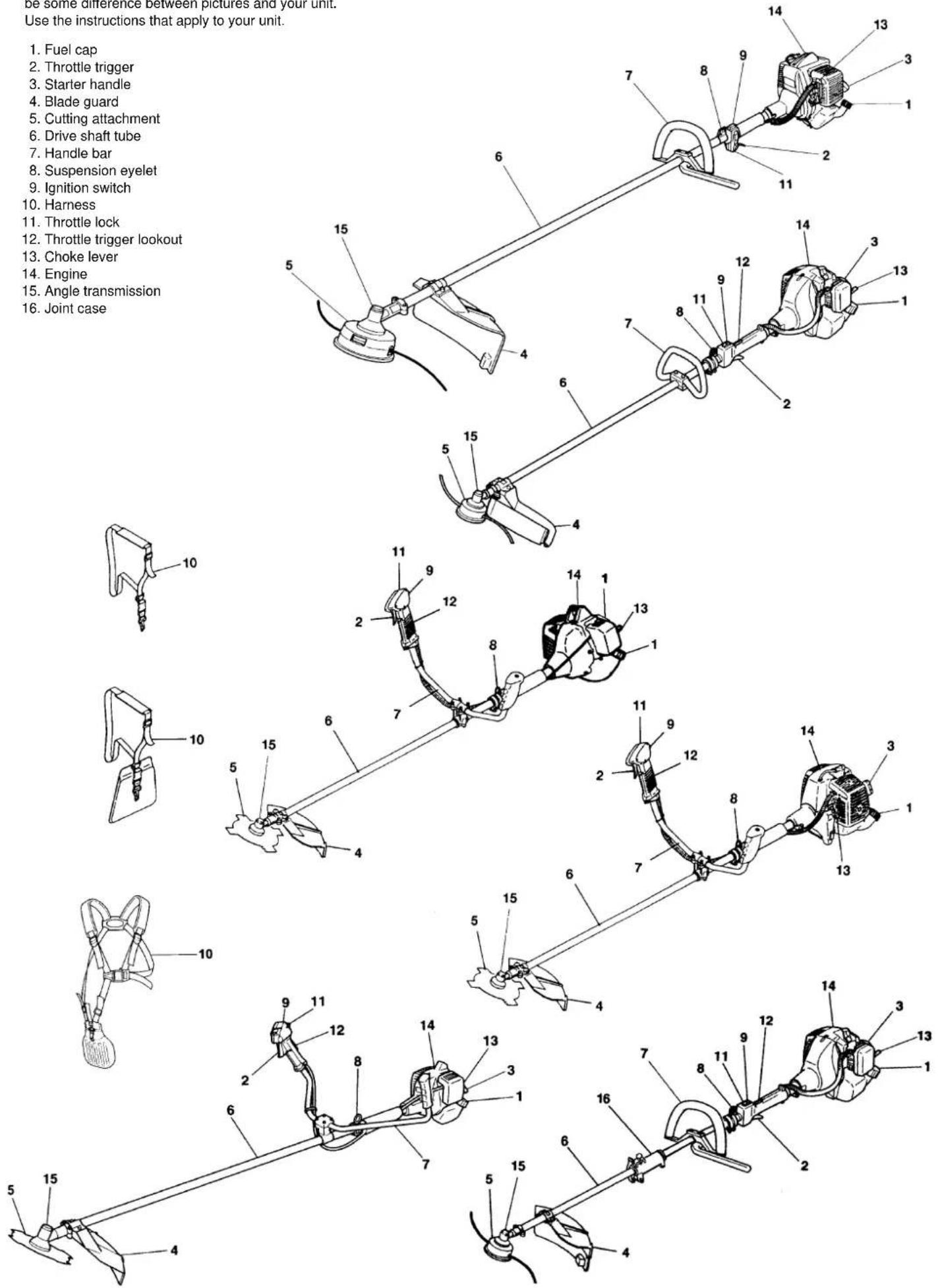

1. What is what?

Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to your unit.

1. Fuel cap
2. Throttle trigger
3. Starter handle
4. Blade guard
5. Cutting attachment
6. Drive shaft tube
7. Handle bar
8. Suspension eyelet
9. Ignition switch
10. Harness
11. Throttle lock
12. Throttle trigger lookout
13. Choke lever
14. Engine
15. Angle transmission
16. Joint case

2. Warnings and safety instructions

Operator safety

• Always wear a safety face shield or goggles.
• Always wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.
- Do not operate this tool when you are tired, ill or under the influence of alcohol, drugs or medication.
- Never let a child or inexperienced person operate the machine.
- Wear hearing protection.
- Never start or run the engine inside a closed room or building. Breathing exhaust fumes can kill.
- Keep handles free of oil and fuel.
- Keep hands away from cutting equipment.
- Do not grab or hold the unit by the cutting equipment.
- When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.
- When operation is prolonged, take a break from time to time so that you may avoid possible whitefinger disease which is caused by vibration.

Unit / machine safety

• Inspect the entire unit/machine before each use. Replace damaged parts. Check for fuel leaks and make sure all fasteners are in place and securely tightened.
• Replace parts that are cracked, chipped or damaged in any way before using the unit/machine.
• Make sure the safety guard is properly attached.
• Keep others away when making carburetor adjustments.
• Use only accessories as recommended for this unit/machine by the manufacturer.

WARNING!

Never modify the unit/machine in any way. Do not use your unit/machine for any job except that for which it is intended.

Fuel safety

• Mix and pour fuel outdoors and where there are no sparks or flames.
• Use a container approved for fuel.
• Do not smoke or allow smoking near fuel or the unit/machine or while using the unit/machine.

• Wipe up all fuel spills before starting engine.

• Move at least 3 m away from fueling site before starting engine.

• Stop engine before removing fuel cap.
• Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
• Store unit/machine and fuel in area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces. etc.

WARNING!

Antivibration systems do not guarantee that you will not sustain whitefinger disease or carpal tunnel syndrome.

Therefore, continual and regular users should monitor closely the condition of their hands and fingers. If any of the above symptoms appear, seek medical advice immediately.

Cutting safety

• Do not cut any material other than grass and brush.
• Inspect the area to be cut before each use. Remove objects which can be thrown or become entangled.
• For respiratory protection, wear an aerosol protection mask when cutting the grass after insecticide is scattered.
• Keep others including children, animals, bystanders and helpers outside the 15 m hazard zone. Stop the engine immediately if you are approached.
• Always keep the engine on the right side of your body.
• Hold the unit/machine firmly with both hands.
• Keep firm footing and balance. Do not over-reach.
• Keep all parts of your body away from the muffler and cutting attachment when the engine is running.
• Keep cutting attachment below waist level.

Maintenance safety

• Maintain the unit/machine according to recommended procedures.
• Disconnect the spark plug before performing maintenance except for carburetor adjustments.
• Keep others away when making carburetor adjustments.
• Use only genuine HITACHI replacement parts as recommended by the manufacturer.

Transport and storage

• Carry the unit/machine by hand with the engine stopped and the muffler away from your body.
• Allow the engine to cool, empty the fuel tank, and secure the unit/machine before storing or transporting in a vehicle.
• Empty the fuel tank before storing the unit/machine, It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
• Store unit/machine out of the reach of children.
• Clean and maintenance the unit carefully and store it in a dry place
• Make sure engine switch is off when transporting or storing.
• When transporting in a vehicle, cover blade with blade cover.

If situations occur which are not covered in this manual, take care and use common sense. Contact HITACHI dealer if you need assistance. Pay special attention to statements preceded by the following words:

WARNING!

Indicates a strong possibility of severe personal injury or loss of life, if instructions are not followed.

CAUTION!

Indicates a possibility of personal injury or equipment damage, if instructions are not followed.

NOTE!

Helpful information for correct function and use.

CAUTION!

Do not disassemble the recoil starter. You may get a possibility of personal injury with recoil spring.

Fig.1-1 Fig.1-1B

Three mechanical diagrams showing a clamp mechanism with arrows indicating motion (no text or symbols)

Fig.1-2

Fig.1-3

Fig.1-3B

3. Assembly procedures

Drive shaft to engine (Fig. 1-1)

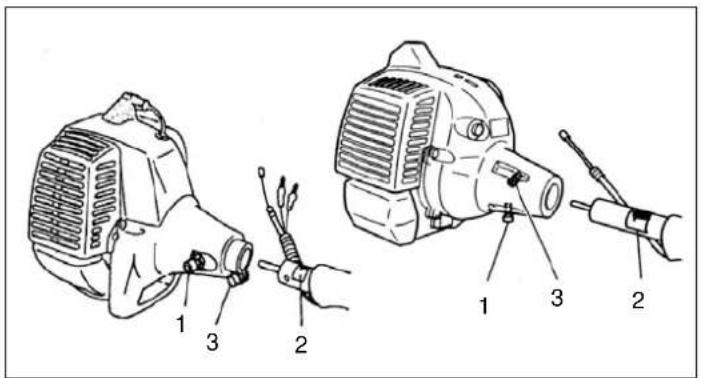

Loosen tube locking bolt (1) about ten turns so that the bolt point will not obstruct drive shaft tube to be inserted. When inserting drive shaft tube, hold the tube locking bolt outward preventing inside fitting from obstructing as well. Insert the drive shaft into the clutch case of the engine properly until the marked position (2) on the drive shaft tube meets the clutch case.

NOTE!

When it is hard to insert drive shaft up to the marked position on the drive shaft tube, turn drive shaft by the cutter mounting end clockwise or counter-clockwise. Tighten tube locking bolt lining up the hole in the shaft tube. Then tighten clamp bolt securely (3).

Installation of attachment

1. Join the attachment in place of it.
2. Make sure the lock pin (1) fits in the location hole (2) of tube and that the tube will not come off. (Fig. 1-1B)
3. Tighten the knob nut (3) securely. (Fig. 1-1B)

Installation of handle

! WARNING!

When you use steel/rigid blads on straight shaft trimmers or brush cutters, always use barrier bar (2) and shoulder harness with the loop handle. (Fig.1-2)

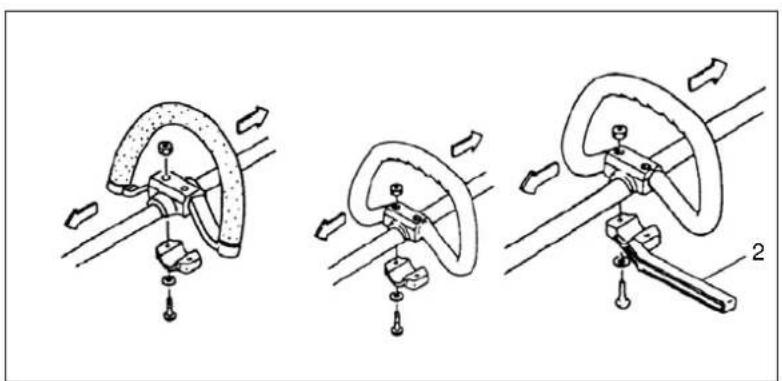

Attach the handle to the drive shaft tube with the angle towards the engine. Adjust the location to the most comfortable position before operation.

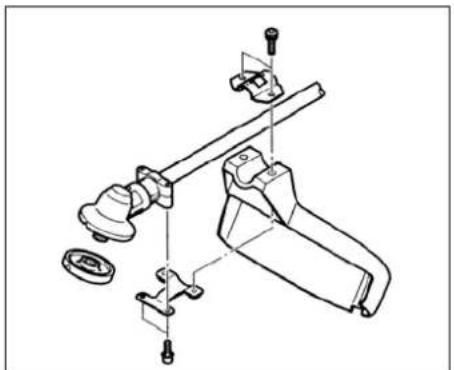

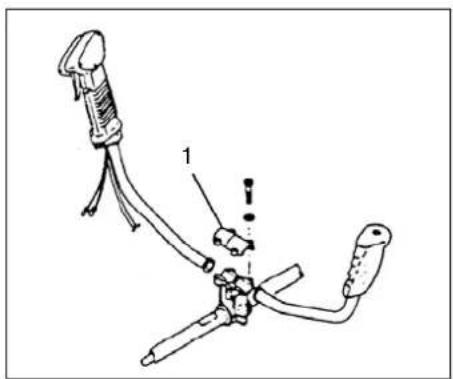

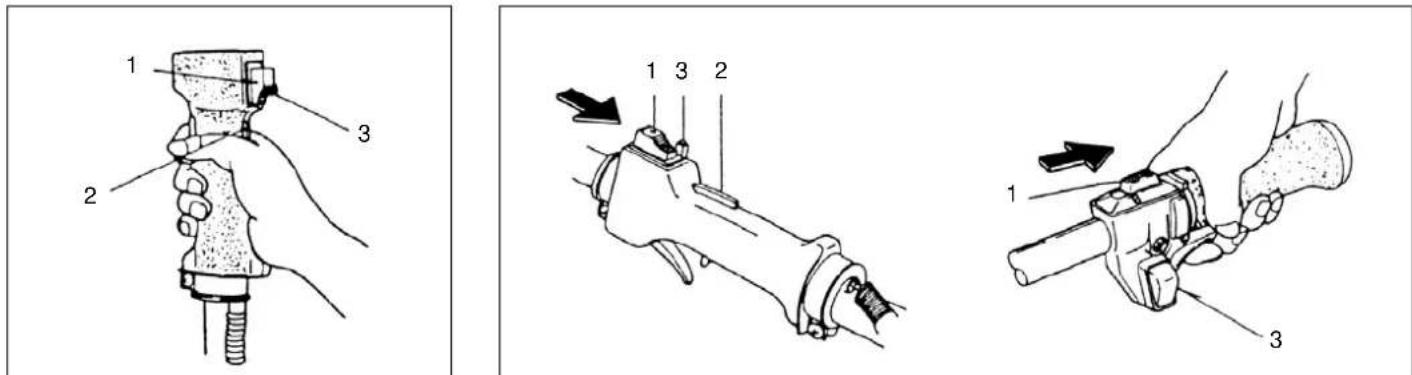

Remove the handle bracket (1) from the assembly. (Fig. 1-3)

Place the handles and attach the handle bracket with four bolts lightly. Adjust to appropriate position. Then fix it firmly with the bolts.

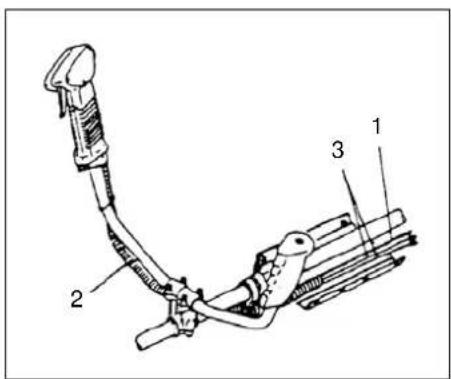

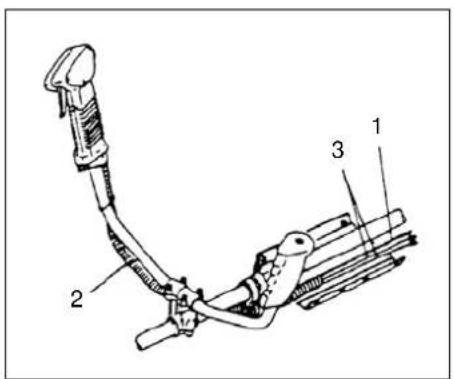

Put stop cords (3) and throttle wire (1) through protective tube (2), then unhook the hip pad. (Fig. 1-3B)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a hand operating a valve with a directional arrow indicating motion (no text or symbols present)

Fig. 1-4 Fig. 1-5 Fig. 1-6

Line drawing of a mechanical device with a spring-loaded handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Fig. 1-7 Fig. 1-8 Fig. 1-8B

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 1-8E

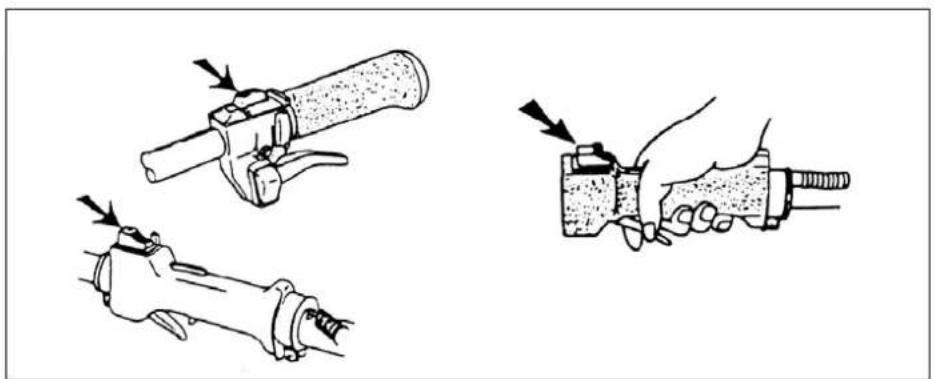

Throttle wire / stop cord

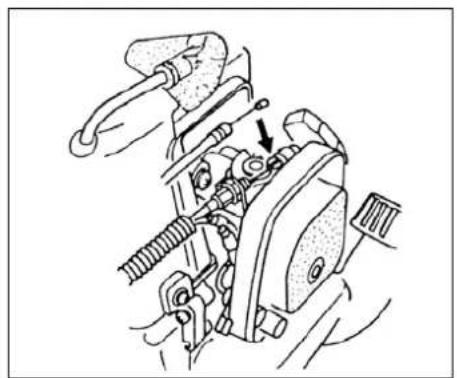

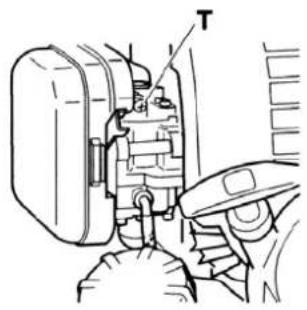

Remove air cleaner cover. (Fig. 1-4)

Connect stop cords. (Fig. 1-5)

Connect throttle wire end to carburetor. (Fig.1-6)

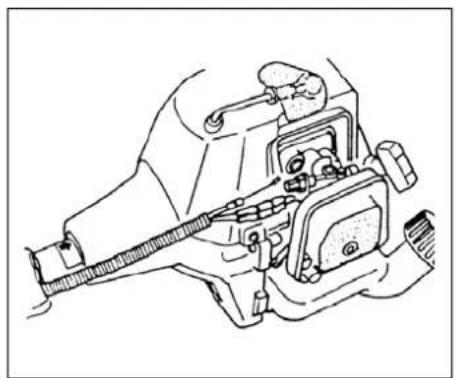

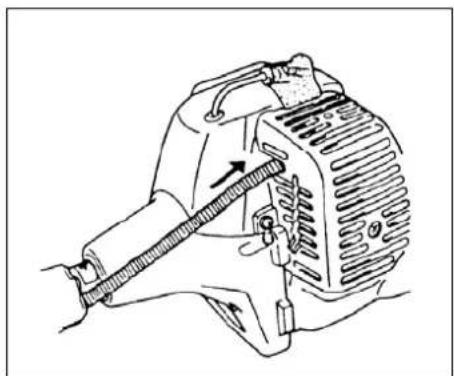

Cover throttle wire and stop cords together with protective tube provided up to air cleaner cover.

(Fig. 1-7)

Installation of blade guard

(Fig. 1-8, 8B)

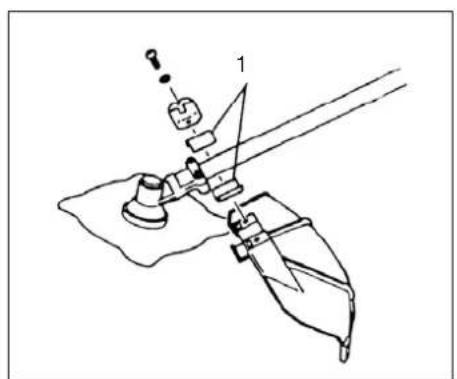

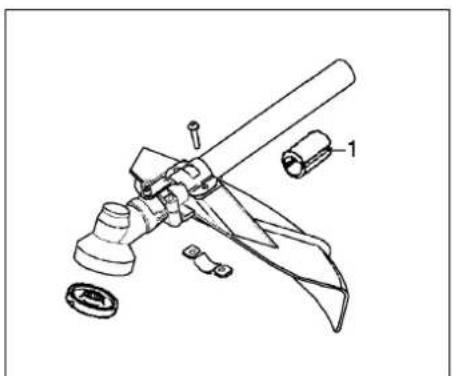

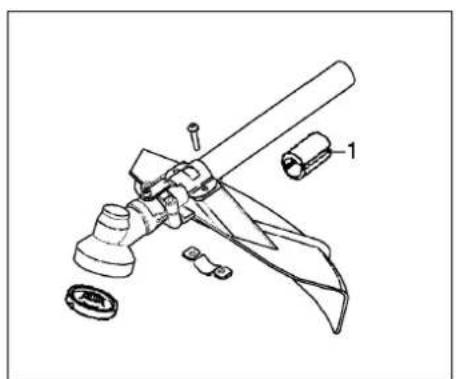

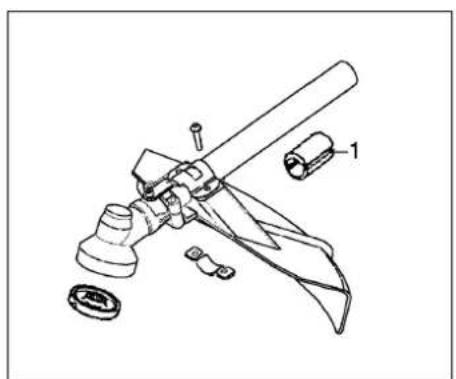

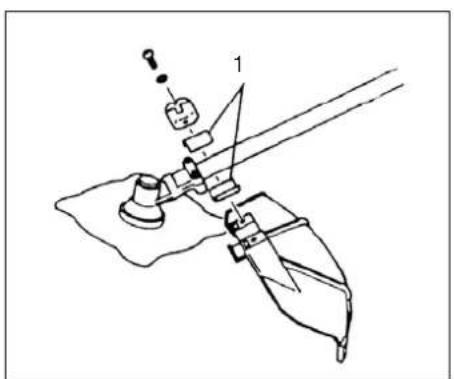

Install the blade guard and the bracket spacers (1) (If so equipped) on drive shaft tube against angle transmission. Tighten the guard bracket firmly so that the blade guard does not swing or move down during operation.

Install the blade guard to the guard bracket, which also secures the guard to the gear case using the two guard mounting screws.

CAUTION!

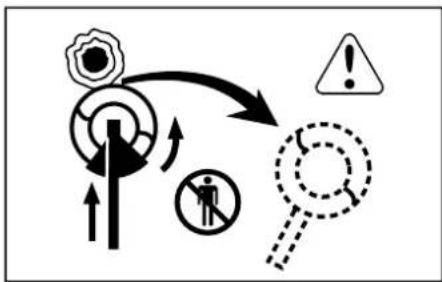

Some blade guards are equipped with sharp line limiters. Be careful with handling it.

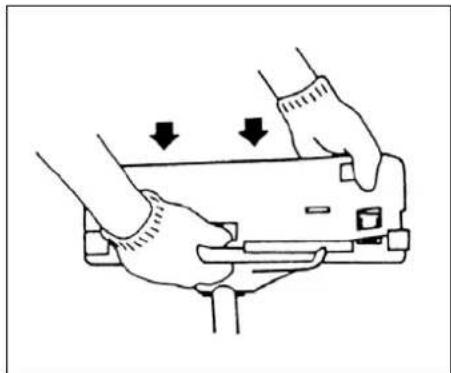

Illustration of two hands holding a device with arrows indicating downward motion (no text or symbols)

Fig. 1-9

Fig. 1-9C

When using a trimmer head (2) with two piece type blade guard, attach the guard extension to the blade guard. (Fig. 1-9)

NOTE!

If your unit has guard location label on drive shaft tube, follow the indication.

NOTE!

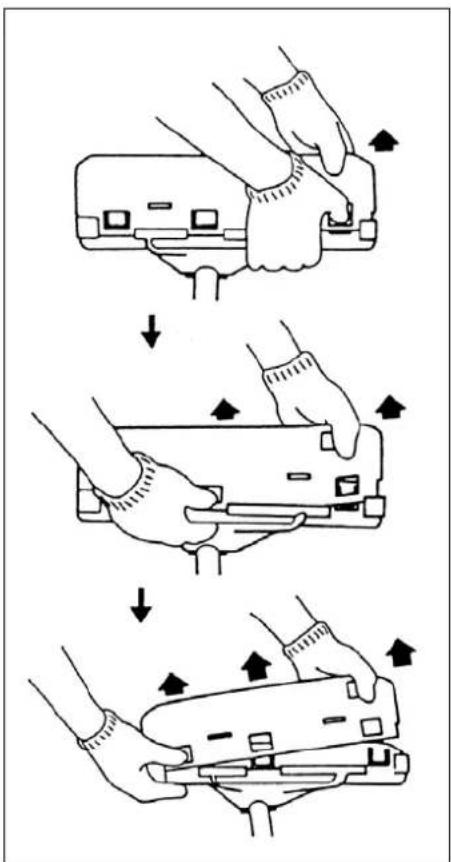

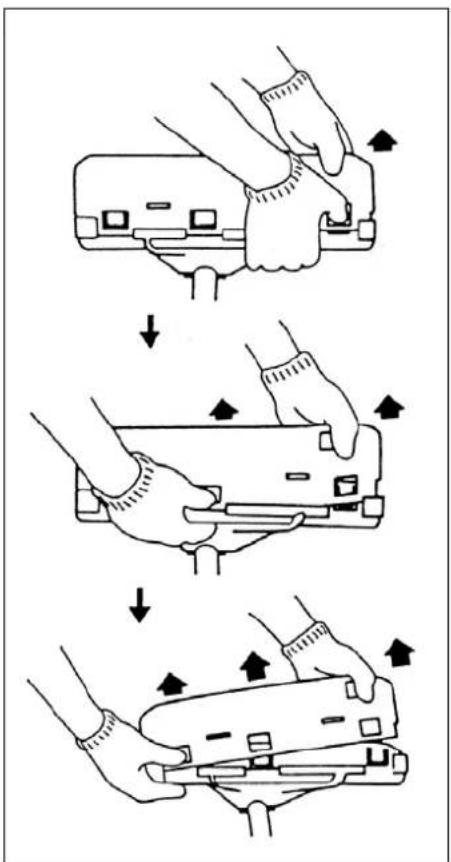

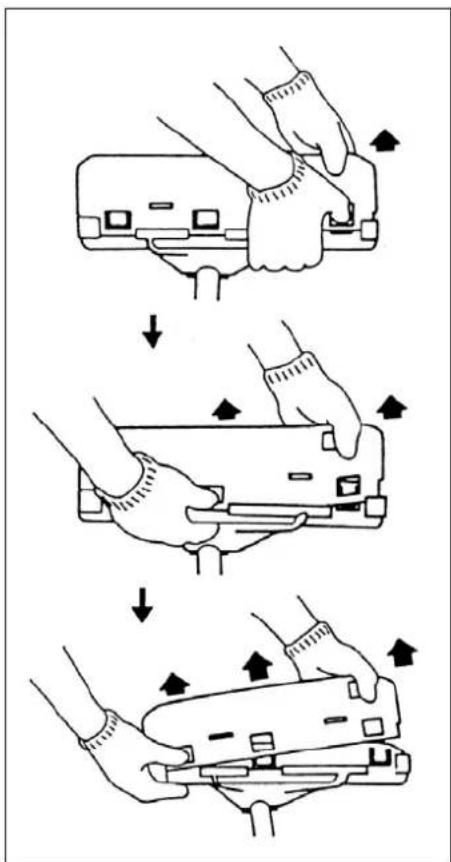

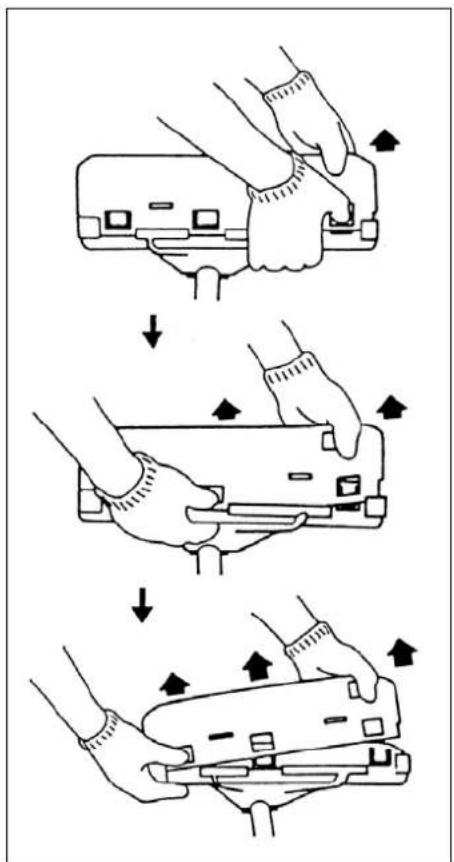

To remove the guard extension, refer to the drawings. Wear gloves as the extension has a sharp line limiter, then push the four square tabs on the guard one by one in order. (Fig. 1-9C)

Fig. 1-10

Fig. 1-10C Fig. 1-1

Fig. 1-11

Fig. 2-1

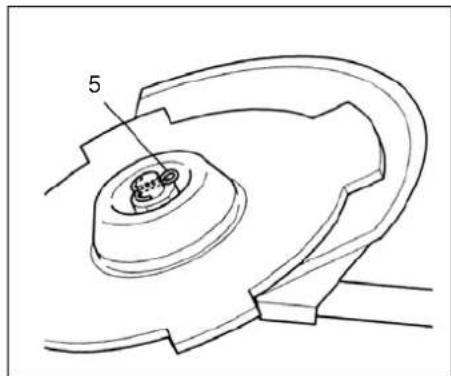

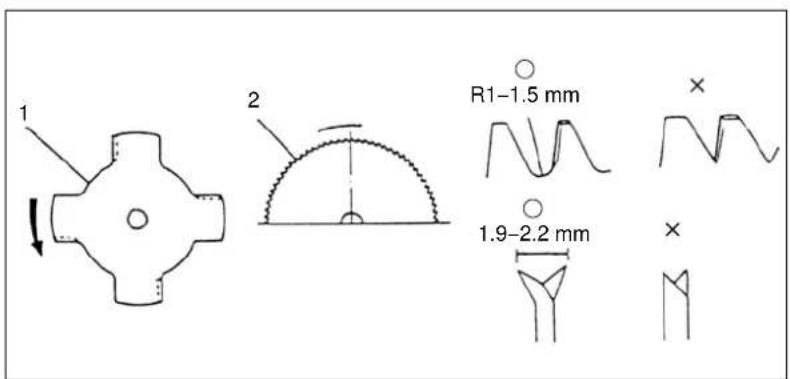

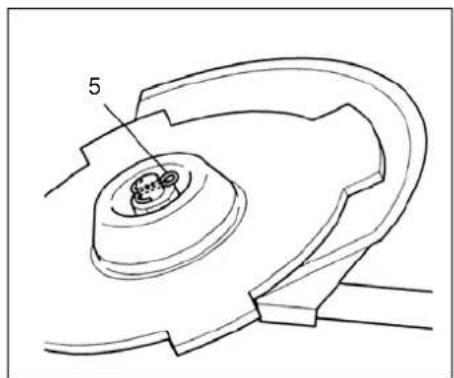

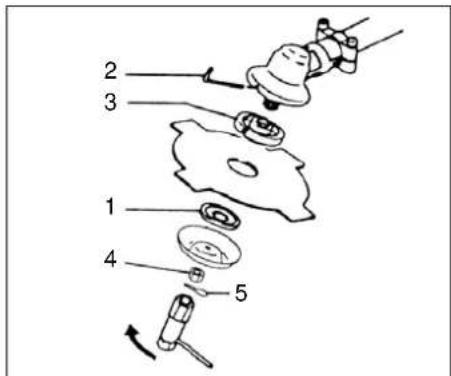

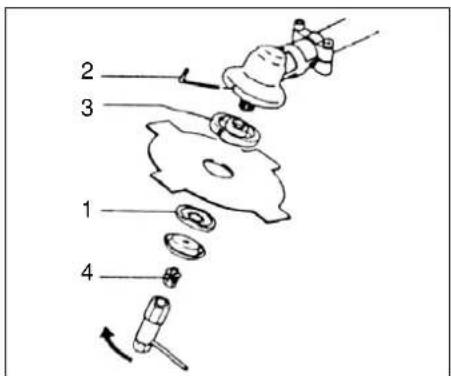

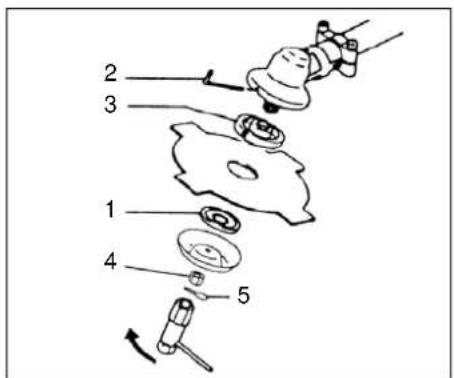

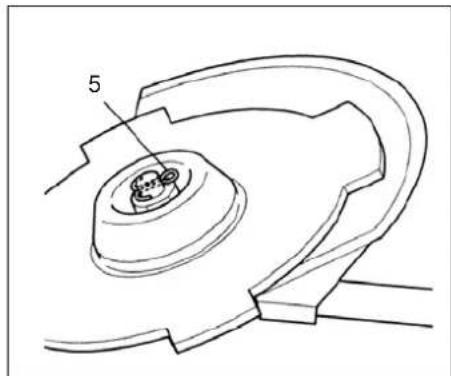

Installation of cutting blade (Fig.1-10,10B)

(If so equipped)

When installing a cutting blade, make sure that there are no cracks or any damage in it and that the cutting edges are facing the correct direction.

NOTE!

When installing cutter holder cap (1), be sure to set concave side upward. Insert the allen wrench (2) into the hole of the angle transmission in order to lock the cutter holder (3). Please note that the cutter fixing bolt or nut (4) has left-handed threads, (clockwise to loosen/counter-clockwise to tighten). Tighten the fixing bolt or nut with the box wrench.

NOTE!

If your unit is of a nut securing type and equipped with a cotter pin, the blade must be retained with a new cotter pin (5) each time installed. (Fig. 1-10C)

CAUTION!

Before operation, make sure the blade has been properly installed.

CAUTION!

If your unit is equipped with protection cover under a cutting blade, check it for wear or cracks before operation. If any damage or wear is found, replace it, as it is an article of consumption.

Installation of the BRAIN® cutting head

NOTE!

For installation see your BRAIN® Owner's manual, provided with the BRAIN® cutting head.

! WARNING!

For HITACHI BRAIN heads or HITACHI alloy head, use only flexible, non-metallic line recommended by the manufacturer. Never use wire or wire ropes. They can break off and become a dangerous projectile.

NOTE!

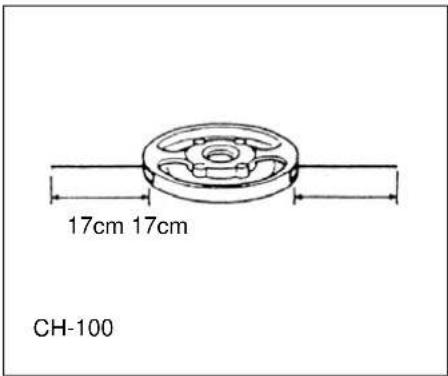

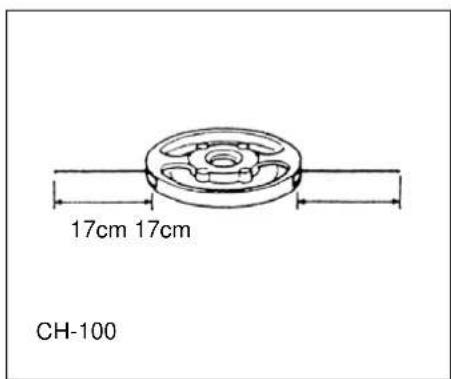

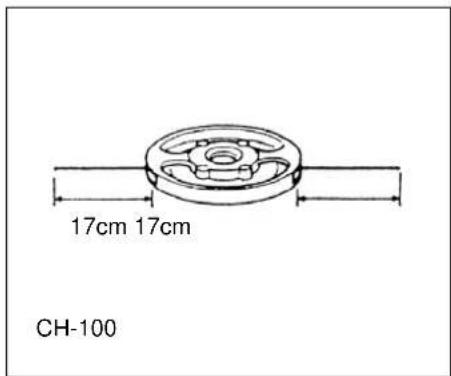

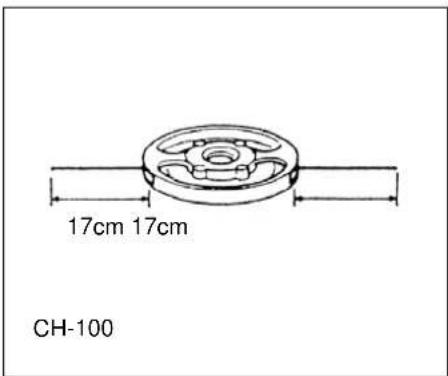

When using HITACHI alloy head (CH-100), initial cutting line length should be about 17cm each. (Fig. 1-11)

4. Operating procedures.

Fuel (Fig. 2-1)

! WARNING!

The trimmer is equipped with a two-stroke engine. Always run the engine on fuel, which is mixed with oil. Provide good ventilation, when fueling or handling fuel.

Fuel

●Always use branded 89 octane unleaded gasoline.

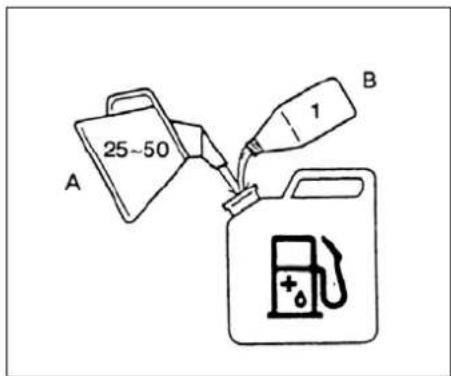

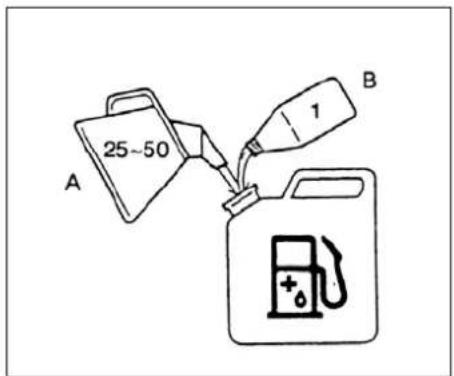

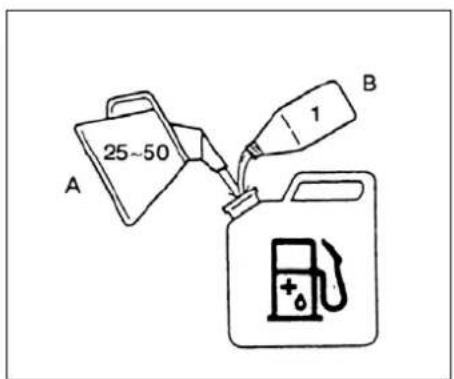

- Use genuine two-cycle oil or use a mix between 25:1 to 50:1, please consult the oil bottle for the ratio or HITACHI dealer.
• Only for the state of California at 50:1
- If genuine oil is not available, use an antioxidant added quality oil expressly labeled for air-cooled 2-cycle engine use(JASO FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW (2-stroke water-cooling type) mixed oil.
- Never use multi-grade oil (10 W/30) or waste oil.
●Always mix fuel and oil in a separate clean container.

Always start by filling half the amount of fuel, which is to be used. Then add the whole amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of fuel. Mix (shake) the fuel-mix thoroughly before filling the fuel tank.

Fueling

! WARNING!

• Always shut off the engine before refueling.
- Slowly open the fuel tank, when filling up with fuel, so that possible over-pressure disappears.
- Tighten the fuel cap carefully, after fueling.
- Always move the trimmer at least 3 m (10 ft.) from the fueling area before starting.

Before fueling, clean the tank cap area carefully, to ensure that no dirt falls into the tank. Make sure that the fuel is well mixed by shaking the container, before fueling.

Fig.2-2 Fig.2-2B

Fig.2-3 Fig.2-2C

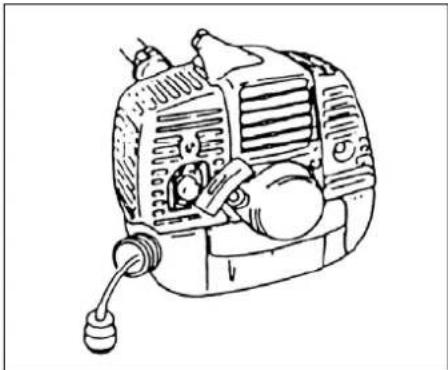

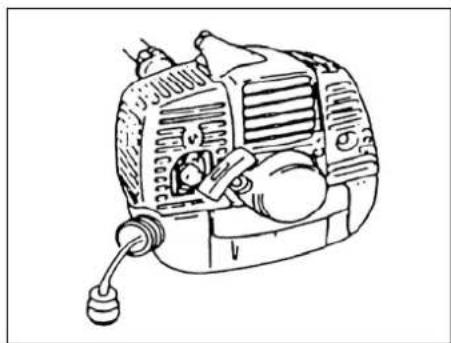

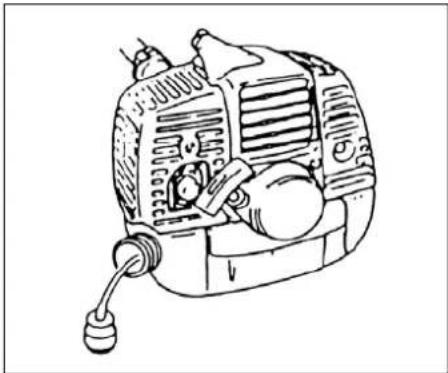

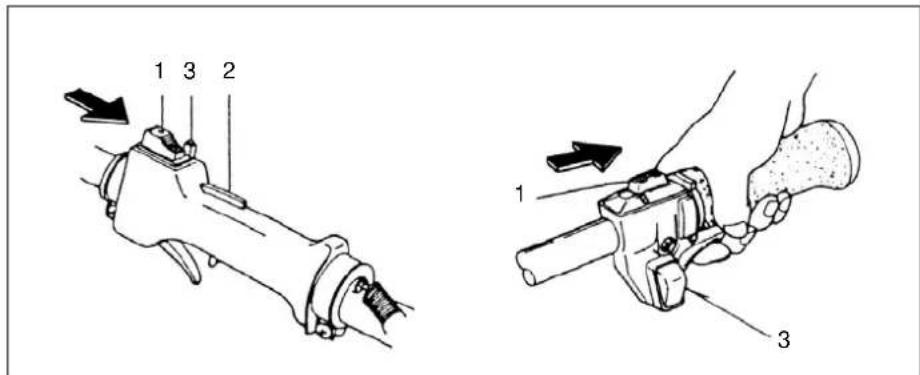

Starting (Fig. 2-2, 2B)

CAUTION!

Before starting, make sure the cutting attachment does not touch anything.

1. Set ignition switch (1) to ON position. (Fig. 2-2, 2B)
   *Push priming bulb (4) several times so that fuel flows through the bulb or return pipe. (If so equipped)(Fig. 2-2C, 3)
2. With the safety trigger (2) pressed (if so equipped), pull throttle trigger and push throttle lock (3), then slowly release the throttle trigger first, then the safety trigger. This will lock the throttle in starting position.

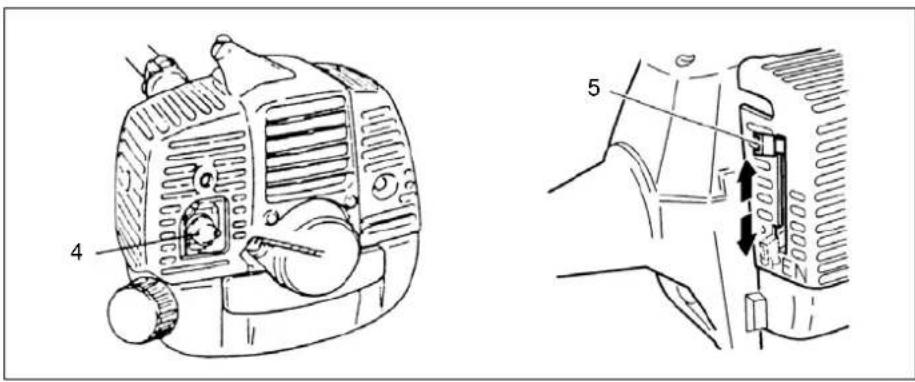

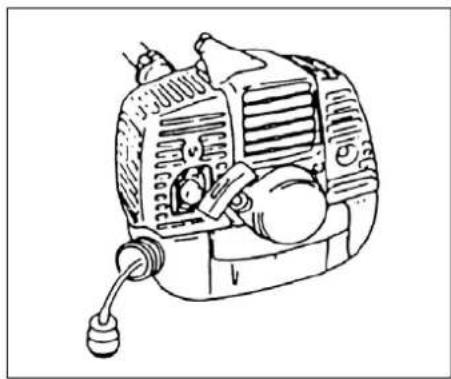

3. Set choke lever to CLOSED position (5). (Fig. 2-2C, 3)
4. Pull recoil starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back.
5. When you hear the engine want to start, return choke lever to RUN position (open). Then pull recoil starter briskly again.

NOTE!

If engine does not start, repeat procedures from 2 to 5.

1. After starting engine, pull throttle trigger to release throttle lock. Then allow the engine about 2-3 minutes to warm up before subjecting it to any load.

Illustration of a worker in hard hat using a tool to move debris with arrows indicating movement (no text or symbols)

Line drawing of a worker in safety gear holding equipment (no text or symbols)

Line drawing of a person wearing safety harness and helmet, holding equipment (no text or symbols)

Fig. 2-4 Fig. 2-4B Fig. 2-4C

Fig. 2-4D

Illustration of three different hand tools: a grip, a tool with a handle, and a grip with a handle (no text or symbols present)

Fig.2-5

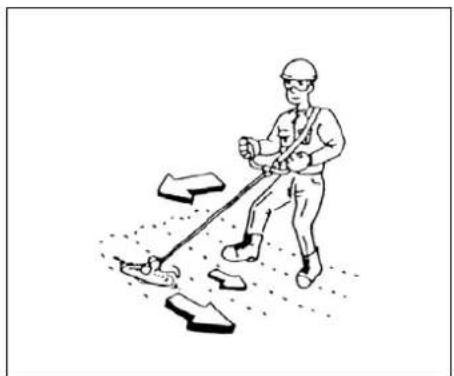

Cutting (Fig. 2-4, 4B, 4C, 4D)

• When cutting, operate engine at over 6500 rpm. Extended time of use at low rpm may wear out the clutch prematurely.
• Cut grass from right to left.
• Blade thrust may occur when the spinning blade contacts a solid object in the critical area. A dangerous reaction may occur causing the entire unit and operator to be thrust violently. This reaction is called BLADE THRUST. As a result, the operator may lose control of the unit which may cause serious or fatal injury. Blade thrust is more likely to occur in areas where it is difficult to see the material to be cut.

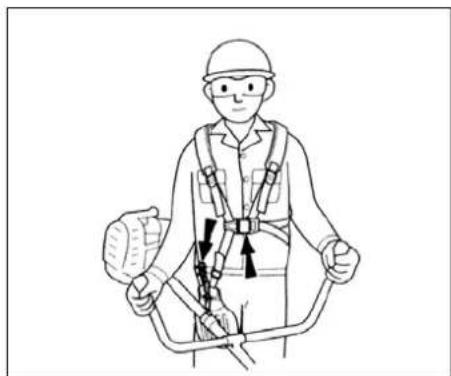

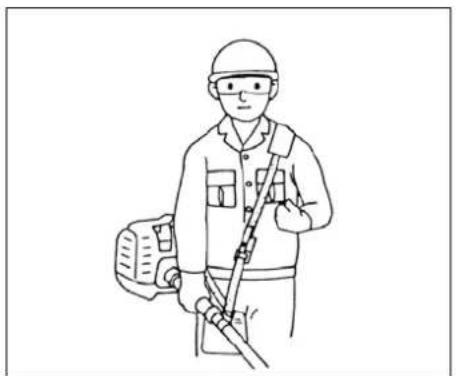

• Wear the harness as shown in the figure (if so equipped). The blade turns counter-clockwise, therefore, be advised to operate the unit from right to left for efficient cutting. Keep onlookers out of working area at least 15 m (50 ft.).

NOTE!

Press the quick release button or pull emergency release flap (If so equipped) in the event of emergency. (Fig. 2-4C)

! WARNING!

If cutting attachment should strike against stones or other debris, stop the engine and make sure that the attachment and related parts are undamaged. When grass or vines wrap around attachment, stop engine and attachment and remove them.

Stopping (Fig. 2-5)

- Decrease engine speed and run at an idle for a few minutes, then turn off ignition switch.

! WARNING!

A cutting attachment can injure while it continues to spin after the engine is stopped or power control is released. When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.

Line drawing of a mechanical device with ports and a labeled component 'T' (no text or symbols beyond label)

Fig.3-1

Fig.3-2

Line drawing of a mechanical device with no visible text or symbols

Fig. 3-2B

Fig. 3-3

stops. You have reached the correct idle speed when the engine runs smoothly in all positions well below the rpm when the cutting attachment starts to rotate.

If the cutting attachment still rotates after idle speed adjustment, contact your service workshop.

NOTE!

Standard Idle rpm is 2500\~3000 rpm.

NOTE!

Some models sold areas with strict exhaust emission regulation do not have high and low speed carburetor adjustments. Such adjustments may allow the engine to be operated outside of their emission compliance limits. For these models, the only carburetor adjustment is idle speed.

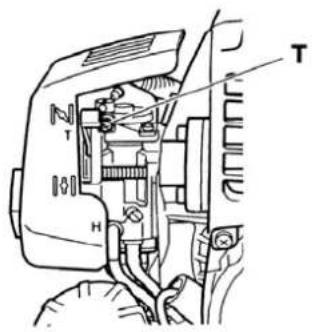

For models that equipped with low and high speed adjustments; carburetors are pre set at the factory Minor adjustments may optimize performance based on climate, altitude, etc. Never turn the adjustment screws in increments greater than 90 degrees, as engine damage can result from incorrect adjustment If you are not familiar with type of adjustment-assistance HITACHI dealer.

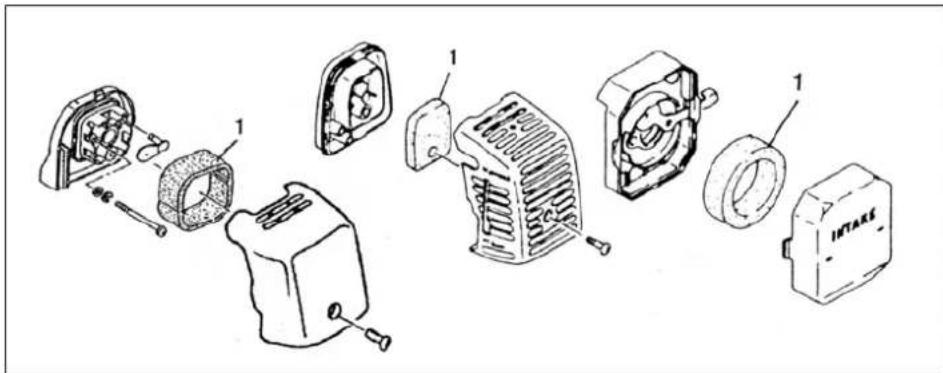

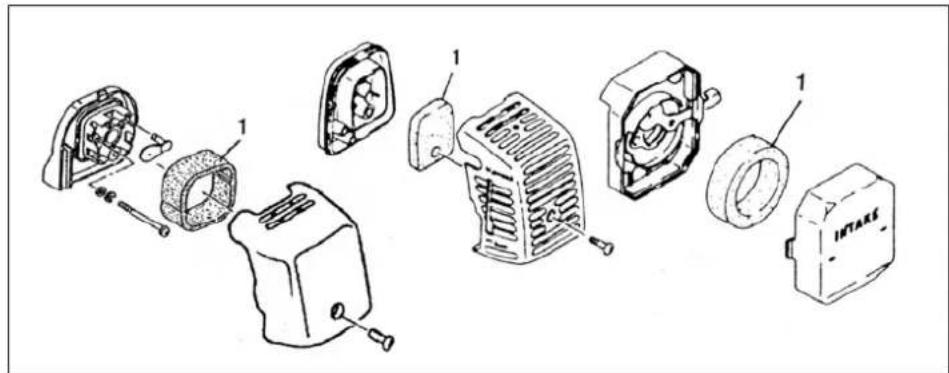

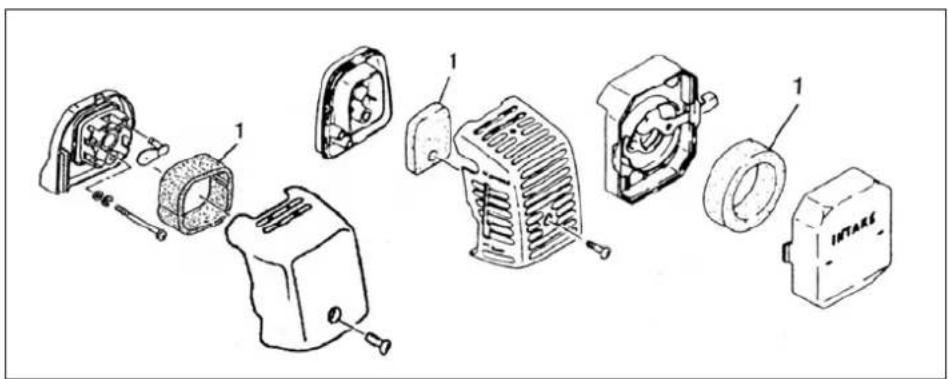

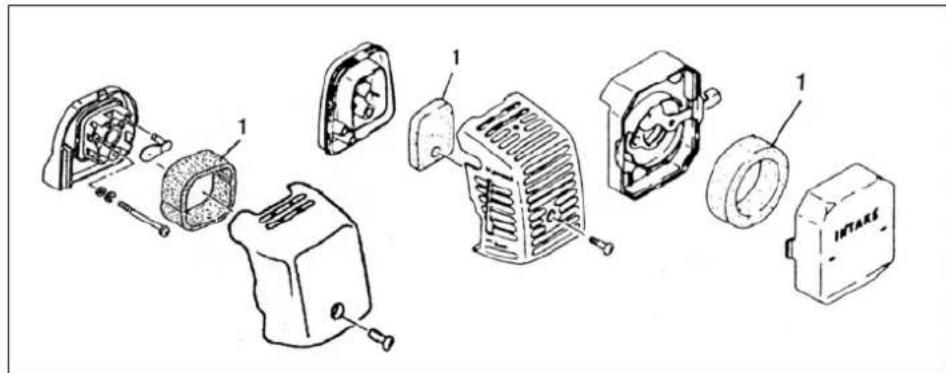

Clean the air filter daily or more often if working in exceptionally dusty areas.

Cleaning the air filter

Remove the air filter cover and the filter (1). Rinse it in warm soap suds. Check that the filter is dry before reassembly. An air filter that has been used for some time cannot be cleaned completely. Therefore, it must regularly be replaced with a new one. A damaged filter must always be replaced.

Fuel filter (Fig. 3-2B)

Drain all fuel from fuel tank and pull fuel filter line from tank. Pull filter element out of holder assembly and rinse element in warm water with detergent.

Rinse thoroughly until all traces of detergent are eliminated. Squeeze, do not wring, away excess water and allow element to air dry.

NOTE!

If element is hard due to excessive dirt buildup, replace it.

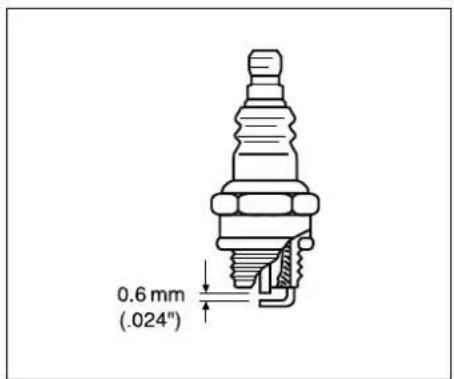

Spark plug (Fig. 3-3)

The spark plug condition is influenced by:
- An incorrect carburetor setting.
- Wrong fuel mixture (too much oil in the gasoline)
- A dirty air filter.
- Hard running conditions (such as cold weather). These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting difficulties. If the engine is low on power, difficult to start or runs poorly at idling speed, always check the spark plug first. If the spark plug is dirty, clean it and check the electrode gap. Re-adjust if necessary. The correct gap is 0.6 mm. The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.

NOTE!

In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this machine was originally equipped with resistor spark plug, use same type of spark plug for replacement.

5. Maintenance

MAINTENANCE, REPLACEMENT, OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NON-ROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

Carburetor adjustment (Fig. 3-1)

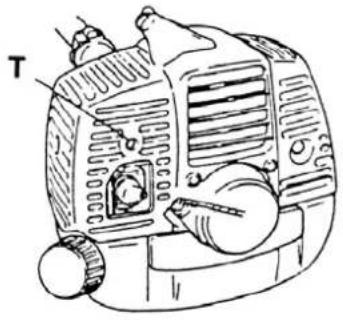

WARNING!

The cutting attachment may be spinning during carburetor adjustments.

WARNING!

Never start the engine without the complete clutch cover and tube assembled! Otherwise the clutch can come loose and cause personal injuries.

In the carburetor, fuel is mixed with air. When the engine is test run at the factory, the carburetor is basically adjusted. A further adjustment may be required, according to climate and altitude. The carburetor has one adjustment possibility:

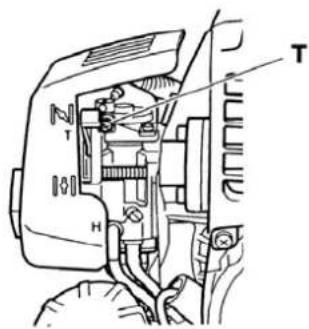

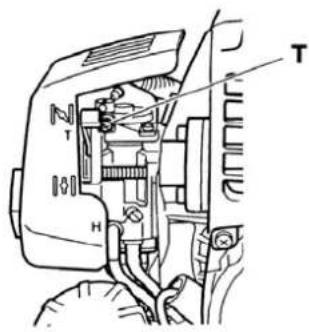

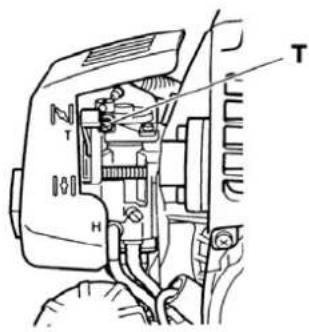

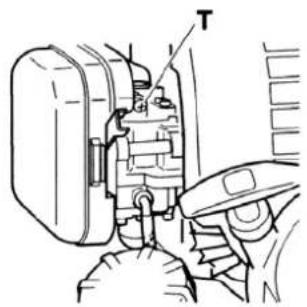

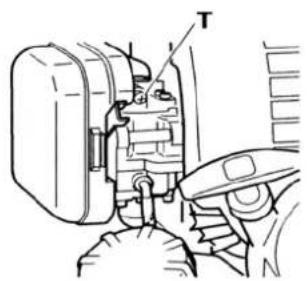

T = Idle speed adjustment screw.

Idle speed adjustment (T)

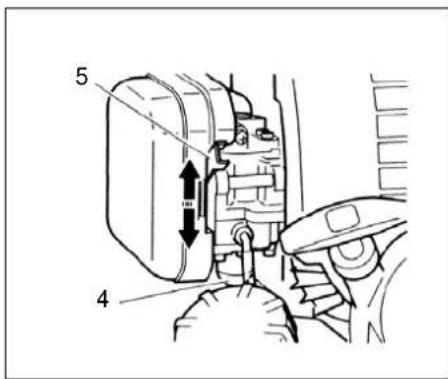

Check that the air filter is clean. When the idle speed is correct, the cutting attachment will not rotate. If adjustment is required, close (clockwise) the T-screw, with the engine running, until the cutting attachment starts to rotate. Open (counterclockwise) the screw until the cutting attachment

Exploded view diagram of a mechanical assembly showing exploded and assembled parts (no text or labels)

Fig.3-4

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig.3-4B

Simple line drawing of a mechanical device with a lever and base mount (no text or symbols)

Fig. 3-5

Fig. 3-6

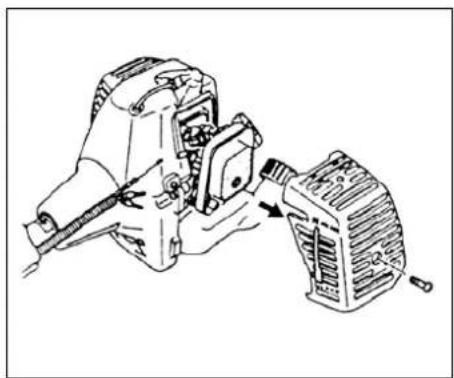

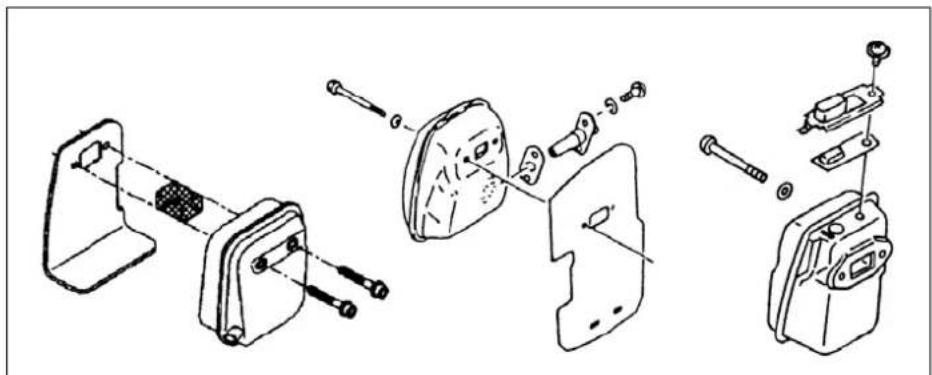

Muffler (Fig. 3-4)

Remove the muffler and clean out any excess carbon from the exhaust port or muffler inlet every 100 hours of operation.

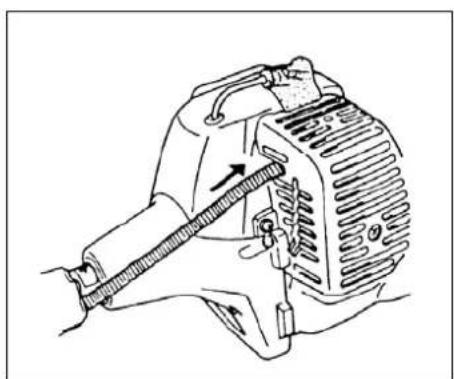

Cylinder (Engine cooling) (Fig. 3-4B)

The engine is air cooled, and air must circulate freely around engine and over cooling fins on cylinder head to prevent overheating.

Every 100 operating hours, or once a year (more often if conditions require), clean fins and external surfaces of engine of dust, dirt and oil deposits which can contribute to improper cooling.

NOTE!

Do not operate engine with engine shroud or muffler guard removed as this will cause overheating and engine damage.

Angle transmission (Fig.3-5)

Check angle transmission or angle gear for grease level about every 50 hours of operation by removing the grease filler plug on the side of angle transmission.

If no grease can be seen on the flanks of the gears, fill the transmission with quality lithium based multipurpose grease up to 3/4.

Do not completely fill the transmission.

Blade (Fig. 3-6)

WARNING!

Wear protective gloves when handling or performing maintenance on the blade.

• Use a sharp blade. A dull blade is more likely to snag and thrust. Replace the fastening nut if it is damaged and hard to tighten.
• When replacing blade, purchase one recommended by HITACHI, with a 25.4mm (one inch) fitting hole.
• When installing saw blade (2), always face the stamped side up. In the case of a 4 tooth blade (1), it can be used on either side.
• Use correct blade for the type of work.
• When replacing blade, use appropriate tools.
• When cutting edges become dull, re-sharpen or file as shown in figure. Incorrect sharpening may cause excessive vibration.
• Discard blades that are bent, warped, cracked, broken or damaged in any way.

NOTE!

When sharpening blade it is important to maintain an original shape of radius at the base of the tooth to avoid cracking.

Maintenance schedule

Below you will find some general maintenance instructions. For further information please contact your service dealer.

Daily maintenance

• Clean the exterior of the unit.
• Check that the harness is undamaged.

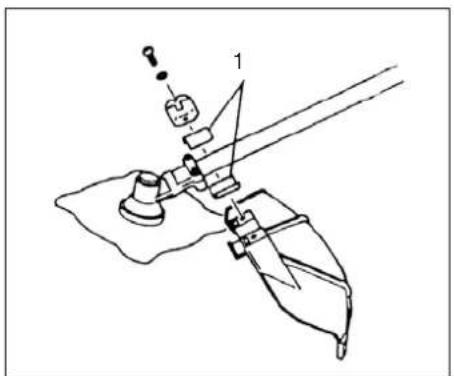

• Check the blade guard for damage or cracks. Change the guard in case of impacts or cracks.
• Check that the cutting attachment is properly centred, sharp, and without cracks. An off-centred cutting attachment induces heavy vibrations that may damage the unit.
• Check that the cutting attachment nut is sufficiently tightened.
• Make sure that the blade transport guard is undamaged and that it can be securely fitted.
• Check that nuts and screws are sufficiently tightened.

Weekly maintenance

• Check the starter, especially cord and return spring.
• Clean the exterior of the spark plug.

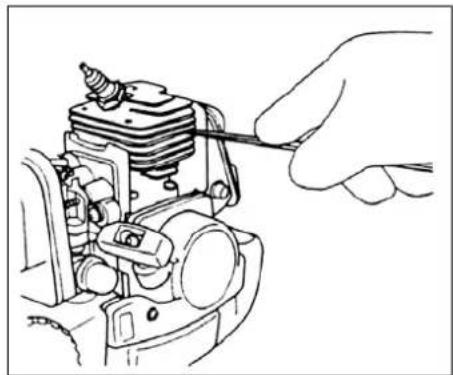

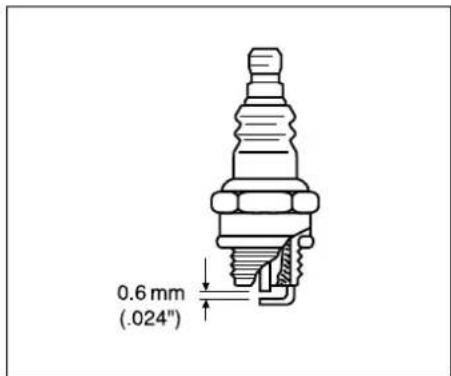

• Remove it and check the electrode gap. Adjust it to 0.6 mm, or change the spark plug.
• Clean the cooling fins on the cylinder and check that the air intake at the starter is not clogged.
• Check that the angle gear is filled with grease up to 3/4.
• Clean the air filter.

Monthly maintenance

• Rinse the fuel tank with gasoline.
• Clean the exterior of the carburetor and the space around it.
• Clean the fan and the space around it.

6. Specifications

MODEL CG25EJ (L)/CG25EJ (SL)

CG25EJ /CG25EJ (S)

CG25EJ (SLD)

CG28EJ (L)/CG28EJ (SL)

CG28EJ

Engine Size (ml) 24 (1.46 cu. in.) 28 (1.71 cu. in.)

Spark Plug .... CHAMPION CJ8 or CHAMPION CJ6Y or

CHAMPION CJ8 or CHAMPION CJ6Y or

NGK BMR6A RCJ6Y

or equivalent or equivalent

Fuel Tank Capacity (1)....0.50 (16.9 fl. oz) 0.70 (23.6 fl. oz)

Dry Weight (kg) CG25EJ (L) 4.4 (9.7 lbs)

CG25EJ (SL)....4.56 (10.1 lbs)

CG25EJ....4.6 (10.1 lbs)

CG25EJ (S).... 4.76 (10.5 lbs)

CG25EJ (SLD)....5.6 (12.3 lbs)

Sound pressure level (dB(A)) .... LpA

(EN27917)

CG25EJ (L)/CG25EJ (SL)..... 96.8

CG25EJ /CG25EJ (S).... 100.6

CG25EJ (SLD).... 96.8

Sound power level (dB(A)) .... LwA

112

Vibration level (m/s²)(ISO 7916)

Front handle....3.0 3.2

Rear handle.... 4.4 4.8

CG25EJ (SDL)

4.4

Left handle....3.3 3.6

Right handle....2.7 3.7

CG28EJ (L)....5.4 (11.9 lbs)

CG28EJ (SL)....5.56 (12.3 lbs)

CG28EJ....5.6 (12.3 lbs)

CG28EJ (L)/CG28EJ (SL)....95.0

CG28EJ....95.5

116

2.6 4.1

3.5 5.6

2.4 2.5

1.9 2.0

NOTE : Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration levels under various working conditions with the following time distribution : 1/2 idle, 1/2 racing.

*All data subject to change without notice.

MODEL
CG33EJ (L)
CG33EJ /CG33EJ (S)
CG27EJ (SL)/CG27EJ (S)
CG27EJ (SLD)

Engine Size (ml) 33 (2.00 cu. in.)

27 (1.65 cu. in.)

Spark Plug .... CHAMPION CJ6Y or

CHAMPION RCJ8Y

RCJ6Y

or equivalent

Fuel Tank Capacity (1)....0.70 (23.6 fl. oz)

0.67 (22.8 fl. oz)

Dry Weight (kg).....CG33EJ (L).....5.5 (12.1 lbs)

CG27EJ (SL).....5.5 (12.12 lbs)

CG33EJ 5.7 (12.5 lbs)

CG27EJ (S)......6.0 (13.22 lbs)

CG33EJ (S)....5.86 (12.9 lbs)

CG27EJ (SLD)....5.7 (12.56 lbs)

Sound pressure level (dB(A)) ....LpA

(EN27917)

CG33EJ (L)....94.5

CG27EJ (SL).....97.5

CG33EJ /CG33EJ (S)....94.5

CG27EJ (S).....98.3

Sound power level (dB(A)) ....LwA

CG27EJ (SLD)....97.5

116

116

Vibration level (m/s²)(ISO 7916)

Front handle....5.4 5.2

Rear handle....3.7 7.1

CG27EJ (SLD)

5.8 2.1 5.7

3.2 4.5 3.1

Left handle....1.8 2.1

Right handle 2.5 2.9

4.6 2.3

3.4 2.0

NOTE : Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration levels under various working conditions with the following time distribution : 1/2 idle, 1/2 racing.

*All data subject to change without notice.

HITACHI

CG25EJ/CG25EJ (L)/CG25EJ (SL)

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Icon of a person reading a book inside a circle (no text or symbols)

Simple icon showing a lowercase 'i' next to an open book, no text or symbols present

Circular icon with a stylized character wearing a helmet and sunglasses, enclosed in a black border (no text or symbols)

Two circular icons with a gear and crossed-out shapes, one containing a stylized fish or shark, the other a stylized eye or button (no text or symbols)

Icon of a person reading a book inside a circle (no text or symbols)

Icon showing an open book and a lowercase 'i' symbol, commonly used to represent information (no text or symbols present)

Circular black-and-white road sign with a stylized white boot symbol (no text or numbers)

Symbol of two gloves inside a circle, no text or numbers present

We, Nikko Tanaka Engineering Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japan

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Fig.1-1 Fig.1-1B

Three mechanical diagrams showing a clamp mechanism with arrows indicating motion (no text or symbols)

Fig.1-2

Fig.1-3

Fig.1-3B

3. Montage

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a hand operating a valve with a directional arrow indicating motion (no text or symbols present)

Fig. 1-4 Fig. 1-5 Fig. 1-6

Line drawing of a mechanical device with a spring-loaded handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Fig. 1-7 Fig. 1-8 Fig. 1-8B

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 1-8E

Illustration of two hands holding a device with arrows indicating motion (no text or symbols)

Fig. 1-9

Fig. 1-9C

Fig. 1-10

Fig. 1-10C Fig. 1-1

Fig. 1-11

Fig. 2-1

Fig.2-2 Fig.2-2B

Fig.2-3 Fig.2-2C

Illustration of a worker in hard hat using a tool to record a large number of objects (no text or symbols present)

Line drawing of a worker holding a tool and equipment (no text or symbols)

Line drawing of a person wearing safety harness and helmet, holding equipment (no text or symbols)

Fig. 2-4 Fig. 2-4B Fig. 2-4C

Fig. 2-4D

Illustration of three different hand tools: a lever, a tool with a handle, and a grip (no text or symbols present)

Fig.2-5

Débroussaillage (Fig. 2-4, 4B, 4C, 4D)

Line drawing of a mechanical device with ports and a labeled component 'T' (no text or symbols beyond label)

Fig.3-1

Fig.3-2

Line drawing of a mechanical device with gears and housing (no text or symbols)

Fig. 3-2B

Fig. 3-3

Exploded view diagram of mechanical components including parts assembled, disassembled, and assembled (no text or labels)

Fig.3-4

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig.3-4B

Simple line drawing of a mechanical device with a lever and base mount (no text or symbols)

Fig. 3-5

Fig. 3-6

Silencieux (Fig. 3-4)

CG28EJ (L)/CG28EJ (SL)

CG28EJ

Taille du moteur (ml) ......24 (1.46 cu. in.) 28 (1.71 cu. in.)

Poids à sec (kg) CG25EJ (L) 4.4 (9.7 lbs)

CG25EJ (SL)......4.56 (10.1 lbs)

CG25EJ 4.6 (10.1 lbs)

CG25EJ (S).... 4.76 (10.5 lbs)

CG25EJ (SLD).... 5.6 (12.3 lbs)

CG28EJ (L)....5.4 (11.9 lbs)

CG28EJ (SL)......5.56 (12.3 lbs)

CG28EJ....5.6 (12.3 lbs)

Niveau de pression sonore...... LpA

(dB(A))(EN27917)CG25EJ (L)/CG25EJ (SL).....96.8

CG25EJ /CG25EJ (S).....100.6

CG25EJ (SLD)....96.8

CG28EJ (L)/CG28EJ (SL)....95.0

CG28EJ....95.5

Niveau de vibrations (m/s²)

(ISO 7916)

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Icon of a person reading a book inside a circle (no text or symbols)

Simple icon showing a lowercase 'i' next to an open book, no text or symbols present

Circular icon with a stylized character wearing a helmet and sunglasses, enclosed in a black border (no text or symbols)

Two circular icons with a gear and crossed-out shapes, one containing a stylized shark face (no text or symbols)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Circular black-and-white road sign with a white abstract shape inside (no text or symbols)

Symbol of two gloves inside a circle, no text or numbers present

Noi, Nikko Tanaka Engineering Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japan

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Unit / machine safety

Fig.1-1 Fig.1-1B

Three mechanical diagrams showing a clamp mechanism with arrows indicating motion (no text or symbols)

Fig.1-2

Fig.1-3

Fig.1-3B

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a hand operating a valve with a directional arrow indicating motion (no text or symbols present)

Fig. 1-4 Fig. 1-5 Fig. 1-6

Line drawing of a mechanical device with a spring-loaded handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Fig. 1-7 Fig. 1-8 Fig. 1-8B

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 1-8E

Illustration of two hands holding a device with arrows indicating downward motion (no text or symbols)

Fig. 1-9

Fig. 1-9C

Fig. 1-10

Fig. 1-10C Fig. 1-1

Fig. 1-11

Fig. 2-1

Fig.2-2 Fig.2-2B

Fig.2-3 Fig.2-2C

Illustration of a worker in hard hat using a tool to record a large number of objects (no text or symbols present)

Line drawing of a person in safety gear holding equipment (no text or symbols)

Line drawing of a person wearing safety harness and helmet, holding equipment (no text or symbols)

Fig. 2-4 Fig. 2-4B Fig. 2-4C

Fig. 2-4D

Illustration of three different hand tools: a grip, a tool with a handle, and a grip with a handle (no text or symbols present)

Fig.2-5

Line drawing of a mechanical device with ports and a labeled component 'T' (no text or symbols beyond label)

Fig.3-1

Fig.3-2

Line drawing of a mechanical component with no visible text or symbols

Fig. 3-2B

Fig. 3-3

5. Manutenzione

LA MANUTENZIONE, SOSTITUZIONE O RIPARAZIONE DEI DISPOSITIVIE SISTEMI DI CONTROLLO DELLE EMISSIONI POS-SONO ESSERE ESEGUITE DA QUALSIASI OFFICINA O TECNICO DI RIPARAZIONE MOTORI NON VEICOLARI.

Exploded view diagram of mechanical components including clamps, parts, and fasteners (no text or labels)

Fig.3-4

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig.3-4B

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Fig. 3-5

Fig. 3-6

Marmitta (Fig. 3-4)

CG28EJ (L)/CG28EJ (SL)

CG28EJ

Cilindrata del motore (ml) 24 (1.46 cu. in.) 28 (1.71 cu. in.)

Peso a secco (kg) CG25EJ (L) 4.4 (9.7 lbs)

CG25EJ (SL) 4.56 (10.1 lbs)

CG25EJ....4.6 (10.1 lbs)

CG25EJ (S)....4.76 (10.5 lbs)

CG25EJ (SLD)....5.6 (12.3 lbs)

(dB(A))(EN27917) CG25EJ (L)/CG25EJ (SL)....96.8

CG25EJ /CG25EJ (S).....100.6

CG25EJ (SLD)....96.8

CG28EJ (L)....5.4 (11.9 lbs)

CG28EJ (SL)....5.56 (12.3 lbs)

CG28EJ....5.6 (12.3 lbs)

CG28EJ (L)/CG28EJ (SL)....95.0

CG28EJ....95.5

116

2.6 4.1

3.5 5.6

2.4 2.5

1.9 2.0

Peso a secco (kg)....CG33EJ (L)....5.5 (12.1 lbs)

CG27EJ (SL).....5.5 (12.12 lbs)

CG33EJ 5.7 (12.5 lbs)

CG27EJ (S)......6.0 (13.22 lbs)

CG33EJ (S)....5.86 (12.9 lbs)

CG27EJ (SLD)....5.7 (12.56 lbs)

(dB(A))(EN27917) CG33EJ (L)....94.5

CG27EJ (SL).....97.5

CG33EJ /CG33EJ (S)....94.5

CG27EJ (S).....98.3

CG27EJ (SLD)....97.5

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Circular icon with a stylized face wearing sunglasses and a helmet, enclosed in a circle (no text or symbols)

Two black circular icons with a gear and crossed-out shapes, no text or symbols present.

Two black-and-white icons: one showing a person reading a book, the other showing an open book with a lowercase 'i' symbol (no text or labels)

Black and white circular sign with a stylized white letter 'K' in the center (no text or symbols beyond the letter)

Symbol of two gloves inside a circle, no text or numbers present

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Fig.1-1 Fig.1-1B

Three mechanical diagrams showing a clamp mechanism with arrows indicating motion (no text or symbols)

Fig.1-2

Fig.1-3

Fig.1-3B

3. Zusammenbau

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or labels)

Fig. 1-4 Fig. 1-5 Fig. 1-6

Line drawing of a mechanical device with a spring-loaded handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

Fig. 1-7 Fig. 1-8 Fig. 1-8B

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 1-8E

Gaszug / Stopkabel

Illustration of two hands holding a device with arrows indicating motion (no text or symbols)

Fig. 1-9

Fig. 1-9C

Fig. 1-10

Fig. 1-10C Fig. 1-1

Fig. 1-11

Fig. 2-1

Fig.2-2 Fig.2-2B

Fig.2-3 Fig.2-2C

Illustration of a worker in hard hat using a tool to move debris with arrows indicating movement (no text or symbols)

Line drawing of a worker in safety gear holding equipment (no text or symbols)

Line drawing of a person wearing safety harness and helmet, holding equipment (no text or symbols)

Fig. 2-4 Fig. 2-4B Fig. 2-4C

Fig. 2-4D

Illustration of three different hand tools: a grip, a tool with a handle, and a grip with a handle (no text or symbols present)

Fig.2-5

Schneiden (Fig. 2-4, 4B, 4C, 4D)

Line drawing of a mechanical device with ports and a labeled component 'T' (no text or symbols beyond label)

Fig.3-1

Fig.3-2

Line drawing of a mechanical device with no visible text or symbols

Fig. 3-2B

Fig. 3-3

Exploded view diagram of a mechanical assembly showing exploded and assembled parts (no text or labels)

Fig.3-4

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig.3-4B

Line drawing of a mechanical device with a lever and base mount (no text or symbols)

Fig. 3-5

Fig. 3-6

CG28EJ (L)/CG28EJ (SL)

CG28EJ

Motorgröße (ml) 24 (1.46 cu. in.) 28 (1.71 cu. in.)

CG25EJ (L).... 4.4 (9.7 lbs)

CG25EJ (SL)....4.56 (10.1 lbs)

CG25EJ 4.6 (10.1 lbs)

CG25EJ (S)....4.76 (10.5 lbs)

CG25EJ (SLD)....5.6 (12.3 lbs)

CG28EJ (L)....5.4 (11.9 lbs)

CG28EJ (SL)....5.56 (12.3 lbs)

CG28EJ....5.6 (12.3 lbs)

(EN27917) CG25EJ (L)/CG25EJ (SL)....96.8

CG25EJ /CG25EJ (S).....100.6

CG25EJ (SLD)....96.8

Geräuschpegel (dB(A)) .... LwA

112

CG28EJ (L)/CG28EJ (SL)....95.0

CG28EJ....95.5

116

Vibrationspegel (m/s²)(ISO 7916)

Griff vorne 3.0 3.2

Trockengewicht (kg)....CG33EJ (L)....5.5 (12.1 lbs) CG33EJ....5.7 (12.5 lbs) CG33EJ (S)....5.86 (12.9 lbs)

CG27EJ (SL).....5.5 (12.12 lbs) CG27EJ (S).....6.0 (13.22 lbs) CG27EJ (SLD).....5.7 (12.56 lbs)

Geräuschpegel (dB(A)) .... LpA (EN27917) CG33EJ (L)....94.5 CG33EJ /CG33EJ (S)....94.5

CG27EJ (SL)....97.5 CG27EJ (S)....98.3 CG27EJ (SLD)....97.5

Geräuschpegel (dB(A)) ....LwA 116

116

Vibrationspegel (m/s²)(ISO 7916) Griff vorne ....5.4 5.2 Griff hinten ....3.7 7.1

Griff links....1.8 2.1 Griff rechts....2.5 2.9

4.6 2.3
3.4 2.0

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Circular icon with a stylized character wearing a helmet and sunglasses, enclosed in a black border (no text or symbols)

Two black circular icons with a gear and crossed-out shapes, no text or symbols present.

Icon of a person reading a book inside a circle (no text or symbols)

Circular black-and-white road sign with a stylized white boot symbol (no text or numbers)

Symbol of two gloves inside a circle, no text or numbers present

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Cargo : Director titular

Indice

¿Qué es qué? 5

Fig.1-1 Fig.1-1B

Three mechanical diagrams showing a clamp mechanism with arrows indicating motion (no text or symbols)

Fig.1-2

Fig.1-3

Fig.1-3B

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or labels)

Fig. 1-4 Fig. 1-5 Fig. 1-6

Line drawing of a mechanical device with a spring-loaded handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Fig. 1-7 Fig. 1-8 Fig. 1-8B

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 1-8E

Illustration of two hands holding a device with arrows indicating downward motion (no text or symbols)

Fig. 1-9

Fig. 1-9C

Fig. 1-10

Fig. 1-10C Fig. 1-1

Fig. 1-11

Fig. 2-1

Fig.2-2 Fig.2-2B

Fig.2-3F

g.2-20

ES

Arranque (Fig. 2-2, 2B)

IMPORTANTE!

Illustration of a worker in hard hat using a tool to record a large number of objects (no text or symbols present)

Line drawing of a person in safety gear holding equipment (no text or symbols)

Line drawing of a person wearing safety harness and helmet, holding equipment (no text or symbols)

Fig. 2-4 Fig. 2-4B Fig. 2-4C

Fig. 2-4D

Illustration of three different hand tools: a grip, a tool with a handle, and a grip with a handle (no text or symbols present)

Fig.2-5

Corte (Fig. 2-4, 4B, 4C, 4D)

Line drawing of a mechanical device with ports and a labeled component 'T' (no text or symbols beyond label)

Fig.3-1

Fig.3-2

Line drawing of a mechanical component with no visible text or symbols

Fig. 3-2B

Fig. 3-3

Exploded view diagram of mechanical components including parts assembled, disassembled, and assembled (no text or labels)

Fig.3-4

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig.3-4B

Simple line drawing of a mechanical device with a lever and base mount (no text or symbols)

Fig. 3-5

Fig. 3-6

CG28EJ (L)/CG28EJ (SL)

CG28EJ

Tamaño del motor (ml) .....24 (1.46 cu. in.) 28 (1.71 cu. in.)

Bujía .... CHAMPION CJ8 o CHAMPION CJ6Y o

NGK BMR6A RCJ6Y

o equivalente o equivalente

CG25EJ (L)....4.4 (9.7 lbs)

CG25EJ (SL)....4.56 (10.1 lbs)

CG25EJ 4.6 (10.1 lbs)

CG25EJ (S)....4.76 (10.5 lbs)

CG25EJ (SLD)....5.6 (12.3 lbs)

CG28EJ (L)....5.4 (11.9 lbs)

CG28EJ (SL)....5.56 (12.3 lbs)

CG28EJ....5.6 (12.3 lbs)

(dB(A))(EN27917) CG25EJ (L)/CG25EJ (SL)...96.8

CG25EJ /CG25EJ (S).....100.6

CG25EJ (SLD)....96.8

CG28EJ (L)/CG28EJ (SL)....95.0

CG28EJ....95.5

CG27EJ (SL).....5.5 (12.12 lbs)

CG33EJ 5.7 (12.5 lbs)

CG27EJ (S)......6.0 (13.22 lbs)

CG33EJ (S)....5.86 (12.9 lbs)

CG27EJ (SLD)....5.7 (12.56 lbs)

CG27EJ (SL).....97.5

CG33EJ /CG33EJ (S)....94.5

CG27EJ (S).....98.3

CG27EJ (SLD)....97.5

(dB(A))

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Circular icon with a stylized face wearing a helmet and sunglasses, enclosed in a black border (no text or symbols)

Two black circular icons with a gear and crossed-out shapes, resembling a simplified warning symbol (no text or numbers present)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Circular black-and-white road sign with a stylized white lightning bolt symbol (no text or numbers)

Symbol of two gloves inside a circle, no text or numbers present

Wij, Nikko Tanaka Engineering Co., Ltd., 3-4-29 Tsudanuma, Narashino, Chiba, Japan

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Fig.1-1 Fig.1-1B

Three mechanical diagrams showing a clamp mechanism with arrows indicating motion (no text or symbols)

Fig.1-2

Fig.1-3

Fig.1-3B

3. Montageprocedure

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or labels)

Fig. 1-4 Fig. 1-5 Fig. 1-6

Line drawing of a mechanical device with a spring-loaded handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Fig. 1-7 Fig. 1-8 Fig. 1-8B

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 1-8E

Gaskabel/stop touw

Illustration of two hands holding a device with arrows indicating downward motion (no text or symbols)

Fig. 1-9

Fig. 1-9C

Fig. 1-10

Fig. 1-10C Fig. 1-1

Fig. 1-11

Fig. 2-1

Fig.2-2 Fig.2-2B

Fig.2-3 Fig.2-2C

Illustration of a worker in hard hat using a tool to move debris with arrows indicating movement (no text or symbols)

Line drawing of a worker in safety gear holding equipment (no text or symbols)

Line drawing of a person wearing safety harness and helmet, holding equipment (no text or symbols)

Fig. 2-4 Fig. 2-4B Fig. 2-4C

Fig. 2-4D

Illustration of three different hand tools: a grip, a tool with a handle, and a grip with a handle (no text or symbols present)

Fig.2-5

Trimmen (fig. 2-4,4B, 4C, 4D)

Line drawing of a mechanical device with ports and a labeled component 'T' (no text or symbols beyond label)

Fig.3-1

Fig.3-2

Line drawing of a mechanical component with no visible text or symbols

Fig. 3-2B

Fig. 3-3

Exploded view diagram of a mechanical assembly showing exploded and assembled parts (no text or labels)

Fig.3-4

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig.3-4B

Simple line drawing of a mechanical device with a lever and base mount (no text or symbols)

Fig. 3-5

Fig. 3-6

Geluidemper (Fig. 3-4)

CG28EJ (L)/CG28EJ (SL)

CG28EJ

Motorinhoud (ml) 24 (1.46 cu. in.) 28 (1.71 cu. in.)

Bougie .... CHAMPION CJ8 of CHAMPION CJ6Y of

CHAMPION CJ8 of CHAMPION CJ6Y of

NGK BMR6A RCJ6Y

CG25EJ (L)....4.4 (9.7 lbs)

CG25EJ (SL)......4.56 (10.1 lbs)

CG25EJ 4.6 (10.1 lbs)

CG25EJ (S)......4.76 (10.5 lbs)

CG25EJ (SLD)....5.6 (12.3 lbs)

Geluidsdrukniveau.... LpA

(dB(A))(EN27917)CG25EJ (L)/CG25EJ (SL)...96.8

CG25EJ /CG25EJ (S).....100.6

CG25EJ (SLD)....96.8

Geluidsvermogen niveau.... LwA

(dB(A)) 112

Vibratie niveau (m/s²)(ISO 7916) CG25EJ (SDL)

Voorste handgreep 3.0 3.2 4.4

Achterste handgreep ....4.4 4.8 5.0

Linker handgreep....3.3 3.6

Rechter handgreep....2.7 3.7

CG28EJ (L)/CG28EJ (SL)....95.0

CG28EJ....95.5

116

2.6 4.1

3.5 5.6

2.4 2.5

1.9 2.0

MODEL

CG33EJ (L)

CG33EJ /CG33EJ (S)

CG27EJ (SL)/CG27EJ (S)

CG27EJ (SLD)

Motorinhoud (ml) 33 (2.00 cu. in.)

27 (1.65 cu. in.)

Bougie .... CHAMPION CJ6Y of

CHAMPION RCJ8Y

of soortgelijk

Capaciteit brandstoftank (I)....0.70 (23.6 fl. oz)

0.67 (22.8 fl. oz)

Droog gewicht (kg)..... CG33EJ (L)..... 5.5 (12.1 lbs)

CG27EJ (SL).....5.5 (12.12 lbs)

CG33EJ 5.7 (12.5 lbs)

CG27EJ (S)......6.0 (13.22 lbs)

CG33EJ (S)....5.86 (12.9 lbs)

CG27EJ (SLD)....5.7 (12.56 lbs)

Geluidsdrukniveau.....LpA

(dB(A))(EN27917)

CG33EJ (L)....94.5

CG27EJ (SL).....97.5

CG33EJ /CG33EJ (S)....94.5

CG27EJ (S).....98.3

Geluidsvermogen niveau.....LwA

CG27EJ (SLD)....97.5

(dB(A))

116

116

Vibratie niveau (m/s²)(ISO 7916)

CG27EJ (SLD)

Voorste handgreep ....5.4 5.2

Achterste handgreep ....3.7 7.1

5.8 2.1 5.7

3.2 4.5 3.1

Linker handgreep....1.8 2.1

4.6 2.3

Rechter handgreep....2.5 2.9

3.4 2.0

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Leia o manual atentamente antes de operar esta máquina.

Circular icon with a stylized character wearing a helmet and sunglasses, enclosed in a black border (no text or symbols)

Two circular icons with a gear and crossed-out shapes, one containing a stylized shark face (no text or symbols)

Icon of a person reading a book inside a circle (no text or symbols)

Circular black-and-white road sign with a stylized white boot symbol (no text or numbers)

Symbol of two gloves inside a circle, no text or numbers present

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Fig.1-1 Fig.1-1B

Three-step mechanical assembly diagram showing a clamp mechanism with arrows indicating motion (no text or symbols)

Fig.1-2

Fig.1-3

Fig.1-3B

3. Montagem

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or labels)

Fig. 1-4 Fig. 1-5 Fig. 1-6

Line drawing of a mechanical device with a spring-loaded handle and lever mechanism (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Fig. 1-7 Fig. 1-8 Fig. 1-8B

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 1-8E

Cabo de travamento/do acelerador

Remova a tampa do filtro de ar. (Fig. 1-4)

Ligue os cabos de travamento. (Fig. 1-5)

Illustration of two hands holding a device with downward arrows indicating motion (no text or symbols)

Fig. 1-9

Fig. 1-9C

Fig. 1-10

Fig. 1-10C Fig. 1-1

Fig. 1-11

Fig. 2-1

Fig.2-2 Fig.2-2B

Fig.2-3 Fig.2-2C

Arrancar o motor (Fig. 2-2, 2B)

CUIDADO!

Illustration of a worker in hard hat using a tool to record a large number of objects (no text or symbols present)

Line drawing of a person in safety gear holding equipment (no text or symbols)

Line drawing of a person wearing safety harness and helmet, holding equipment (no text or symbols)

Fig. 2-4 Fig. 2-4B Fig. 2-4C

Fig. 2-4D

Illustration of three different hand tools: a grip, a tool with a handle, and a grip with a handle (no text or symbols present)

Fig.2-5

Corte (Fig. 2-4, 4B, 4C, 4D)

Line drawing of a mechanical device with labeled component 'T' (no text or symbols beyond label)

Fig.3-1

Fig.3-2

Line drawing of a mechanical device with gears and shaft (no text or symbols)

Fig. 3-2B

Fig. 3-3

5. Manutenção

Exploded view diagram of mechanical components including parts assembled, disassembled, and assembled (no text or labels)

Fig.3-4

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig.3-4B

Simple line drawing of a mechanical device with a lever and base mount (no text or symbols)

Fig. 3-5

Fig. 3-6

CG28EJ (L)/CG28EJ (SL)

CG28EJ

Cilindrada (ml) 24 (1.46 cu. in.) 28 (1.71 cu. in.)

CG25EJ (L).... 4.4 (9.7 lbs)

CG25EJ (SL)...... 4.56 (10.1 lbs)

CG25EJ.... 4.6 (10.1 lbs)

CG25EJ (S)...... 4.76 (10.5 lbs)

CG25EJ (SLD)....5.6 (12.3 lbs)

CG28EJ (L)....5.4 (11.9 lbs)

CG28EJ (SL)....5.56 (12.3 lbs)

CG28EJ....5.6 (12.3 lbs)

(EN27917) CG25EJ (L)/CG25EJ (SL).... 96.8

CG25EJ /CG25EJ (S).....100.6

CG25EJ (SLD)....96.8

CG28EJ (L)/CG28EJ (SL)....95.0

CG28EJ....95.5

CG27EJ (SL).....5.5 (12.12 lbs)

CG33EJ 5.7 (12.5 lbs)

CG27EJ (S)......6.0 (13.22 lbs)

CG33EJ (S)....5.86 (12.9 lbs)

CG27EJ (SLD)....5.7 (12.56 lbs)

CG27EJ (SL).....97.5

CG33EJ /CG33EJ (S)....94.5

CG27EJ (S).....98.3

CG27EJ (SLD)....97.5

116

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Icon of a person reading a book inside a circle (no text or symbols)

Simple icon showing a lowercase 'i' next to an open book, no text or symbols present

Circular icon with a stylized character wearing a helmet and sunglasses, enclosed in a black border (no text or symbols)

Two circular icons with a gear and crossed-out shapes, one containing a stylized shark face (no text or symbols)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon showing an open book and a lowercase 'i' symbol, no text or labels present.

Circular black-and-white road sign with a white abstract shape inside (no text or symbols)

Symbol of two gloves inside a circle, no text or numbers present

CG25EJ (S)/CG25EJ (SDL)

CG27EJ (S)/CG27EJ (SL)/CG27EJ (SLD)

CG28EJ/CG28EJ (L)/CG28EJ (SL)

CG33EJ/CG33EJ (L)/CG33EJ (S)

Eik.1-1 Eik.1-1B

Three mechanical diagrams showing a clamp mechanism with arrows indicating motion (no text or symbols)

Eik.1-2

Eik.1-3

Eik.1-3B

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a directional arrow (no text or labels)

Eik. 1-4 Eik. 1-5 Eik. 1-6

Line drawing of a mechanical device with a spring-loaded handle and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts (no text or symbols present)

Technical line drawing of a mechanical assembly with labeled components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Eik. 1-8E

Illustration of two hands holding a device with arrows indicating downward motion (no text or symbols)

Elk. 1-9

Eik. 1-9C

Eik. 1-10

Eik. 1-10CEik. 1-

Eik. 1-11

Eik. 2-1

Eik. 2-2 Eik. 2-2B

Eik. 2-3Eik. 2-

Illustration of a worker in hard hat using a tool to record a large number of objects (no text or symbols present)

Line drawing of a person in safety gear holding equipment (no text or symbols)

Line drawing of a person wearing safety harness and helmet, holding equipment (no text or symbols)

Eik. 2-4 Eik. 2-4B Eik. 2-4C

Eik. 2-4D

Illustration of three different hand tools: a grip, a tool with a handle, and a grip with a handle (no text or symbols present)

Eik. 2-5

Line drawing of a mechanical device with labeled component 'T' (no text or symbols beyond label)

Eik. 3-1

Elk. 3-2

Line drawing of a mechanical component with no visible text or symbols

Eik. 3-2B

Elk. 3-3

5. Συντήρηση

Exploded view diagram of mechanical components including gears, housing, and motors (no text or labels)

Eik. 3-4

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Eik. 3-4B

Simple line drawing of a mechanical device with a lever and base mount (no text or symbols)

Eik. 3-5

Eik. 3-6

CG28EJ (L)/CG28EJ (SL)

CG28EJ

CG25EJ (L).... 4.4 (9.7 lbs)

CG25EJ (SL)......4.56 (10.1 lbs)

CG25EJ 4.6 (10.1 lbs)

CG25EJ (S)....4.76 (10.5 lbs)

CG25EJ (SLD)....5.6 (12.3 lbs)

CG28EJ (L)....5.4 (11.9 lbs)

CG28EJ (SL)....5.56 (12.3 lbs)

CG28EJ....5.6 (12.3 lbs)

(EN27917) CG25EJ (L)/CG25EJ (SL)....96.8

CG25EJ /CG25EJ (S).....100.6

CG25EJ (SLD)....96.8

CG28EJ (L)/CG28EJ (SL)....95.0

CG28EJ....95.5

116

CG27EJ (SL).....5.5 (12.12 lbs)

CG33EJ 5.7 (12.5 lbs)

CG27EJ (S)......6.0 (13.22 lbs)

CG33EJ (S)....5.86 (12.9 lbs)

CG27EJ (SLD)....5.7 (12.56 lbs)

CG27EJ (SL).....97.5

CG33EJ /CG33EJ (S)....94.5

CG27EJ (S).....98.3

CG27EJ (SLD)....97.5

116

116
