| Product Type | Hedge Trimmer |
| Brand | Hitachi |
| Model | CG 27EAS (S) |
| Engine Displacement | 27 cc |
| Engine Type | 2-stroke (gasoline and oil mixture) |
| Blade Length | 24 inches (610 mm) |
| Blade Pitch | 30 mm |
| Weight | 5.5 kg (12.1 lbs) |
| Overall Length | 1,020 mm (40.2 in) |
| Fuel Tank Capacity | 0.5 L |
| Idle Speed | 3,000 rpm |
| Maximum Power | 1.2 kW (1.6 hp) |
| Anti-Vibration System | Yes |
| Easy Start System | Yes (reduced recoil force) |
| Safety Features | Hand guard, throttle lock, safety stop switch |
| Recommended Fuel Mix Ratio | 50:1 (gasoline to 2-stroke oil) |
| Spark Plug Type | NGK BPMR7A (or equivalent) |
| Maintenance Intervals | Air filter: every 10 hours; spark plug: annually |
| Warranty | 2 years (commercial use: 1 year) |
Frequently Asked Questions - CG 27EAS (S) HITACHI
User questions about CG 27EAS (S) HITACHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge Trimmer in PDF format for free! Find your manual CG 27EAS (S) - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CG 27EAS (S) by HITACHI.
USER MANUAL CG 27EAS (S) HITACHI
Read the manual carefully before operating this machine.
MEANINGS OF SYMBOLS
NOTE: Some units do not carry them.
| SymbolsWARNINGThe following show symbols used for the machine. Be sure that you understand their meaning before use. | |||
 | It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the unit may cause serious or fatal injury. |  | Off /Stop |
 | Emergency stop | ||
 | Read, understand and follow all warnings and instructions in this manual and on the unit. |  | Fuel and oil mixture |
 | Always wear eye, head and ear protectors when using this unit. |  | Idle speed adjustment |
 | Do not use metal/rigid blades when this sign is shown on the unit. |  | Priming pump |
 | Keep all children, bystanders and helpers 15 m away from the unit. If anyone approaches you, stop the engine and cutting attachment immediately. |  | Guaranteed Sound power level |
 | Be careful of thrown objects. |  | Hot Surface - Contact with hot surface can cause serious burns. |
 | Shows maximum shaft speed. Do not use the cutting attachment whose max rpm is below the shaft rpm. |  | The hedge trimmer attachment cannot be used on models with this label. |
 | Gloves should be worn when necessary, e.g., when assembling cutting equipment. |  | Blade thrust may occur when the spinning blade contacts a solid object in the critical area. A dangerous reaction may occur causing the entire unit and operator to be thrust violently. This reaction is called blade thrust. As a result, the operator may lose control of the unit which may cause serious or fatal injury. Blade thrust is more likely to occur in areas where it is difficult to see the material to be cut. |
 | Use anti-slip and sturdy footwear. | ||
 | Choke - Run position (Open) | ||
 | Choke - Start position (Closed) |  | Indicate handle location. Do not attach handle above this point. |
| [###] | On/Start |  | Indicates blade guard location for a trimmer head or semi-auto cutting head. |
| Before using your machineRead the manual carefully.Check that the cutting equipment is correctly assembled and adjusted.Start the unit and check the carburetor adjustment. See “MAINTENANCE”. | |||
Contents
WHAT IS WHAT 7
WARNINGS AND SAFETY INSTRUCTIONS 8
SPECIFICATIONS 9
ASSEMBLY PROCEDURES 10
OPERATING PROCEDURES 12
MAINTENANCE....12
TROUBLESHOOTING....15

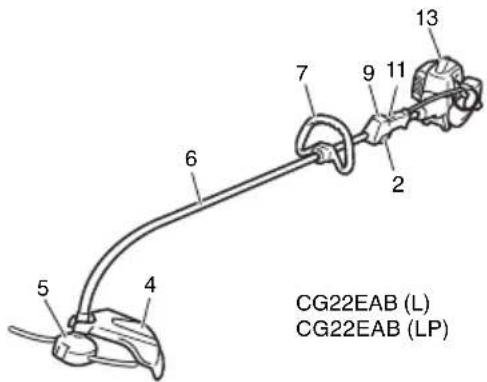

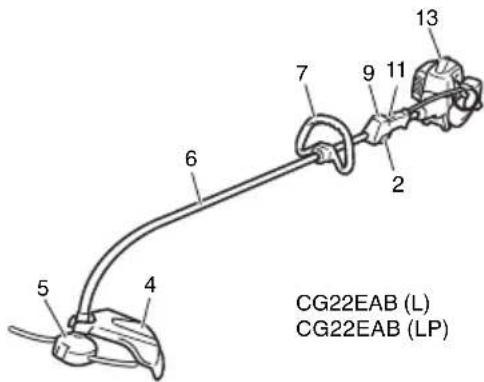

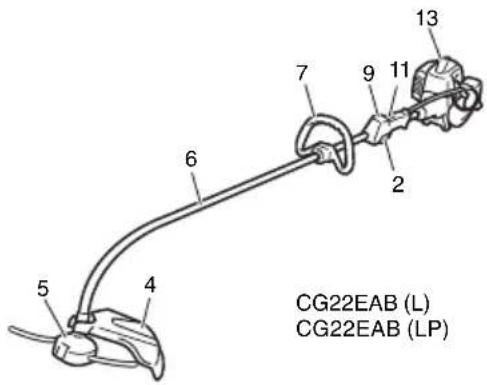

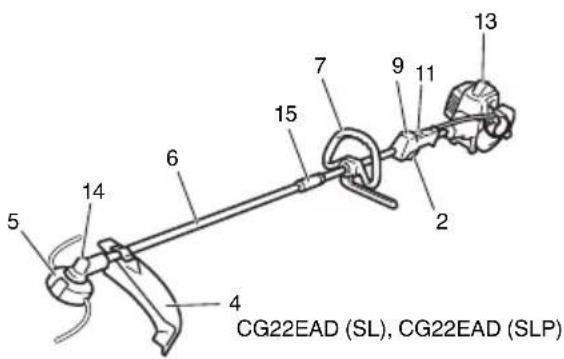

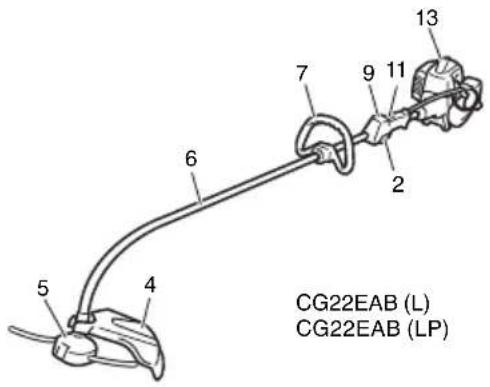

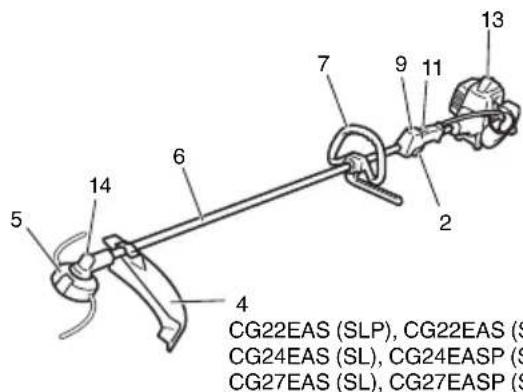

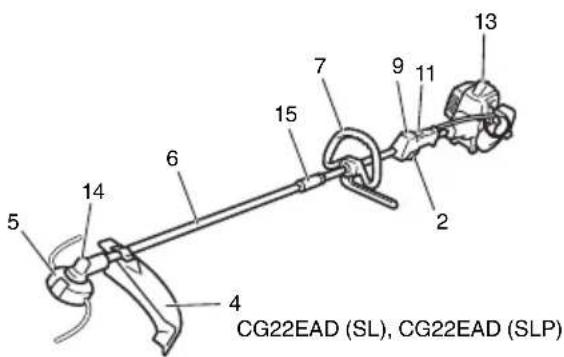

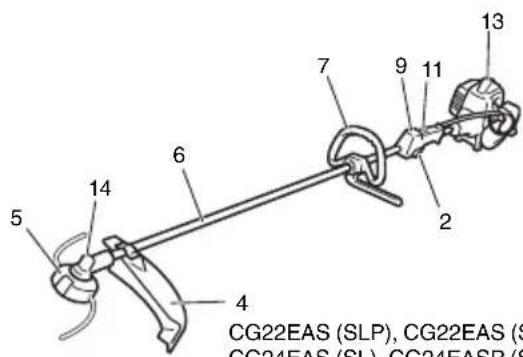

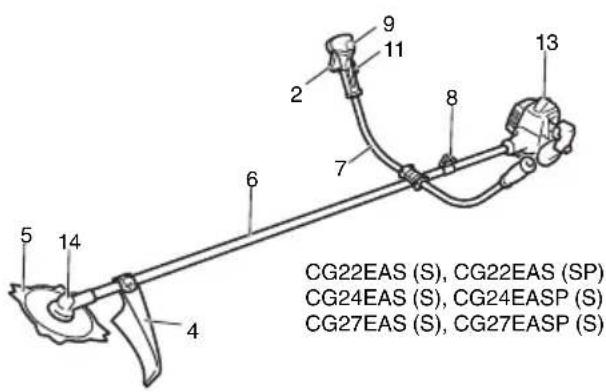

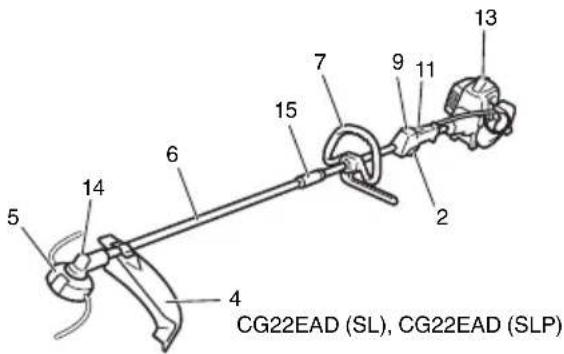

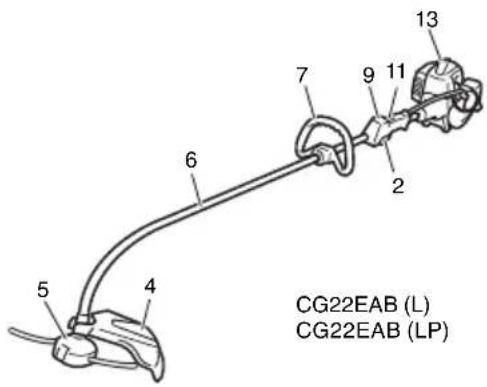

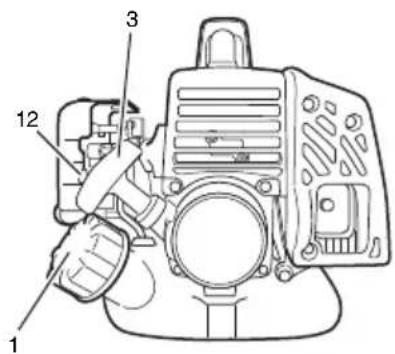

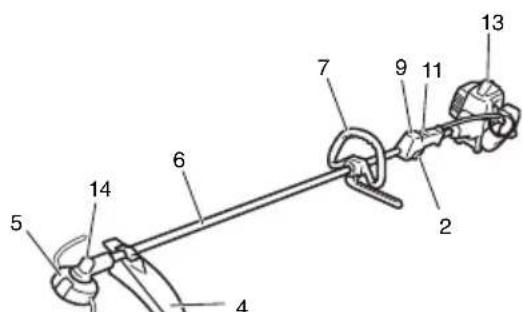

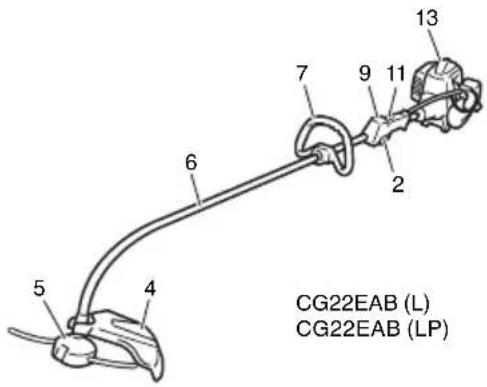

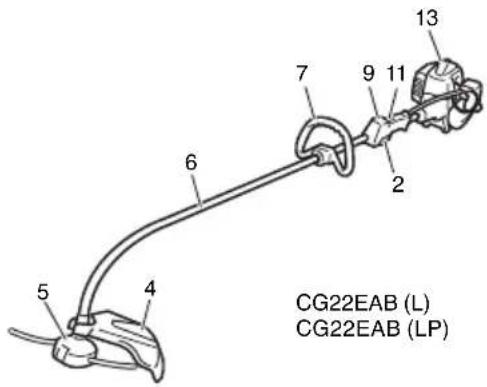

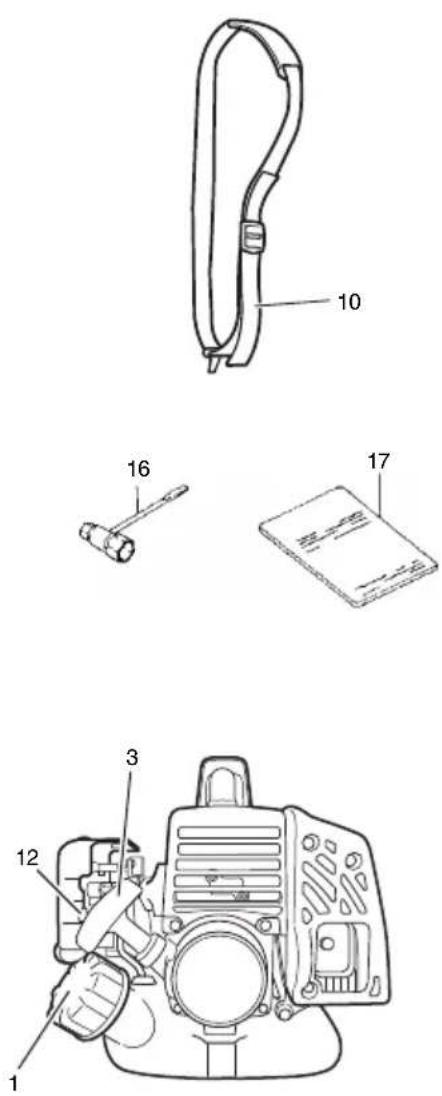

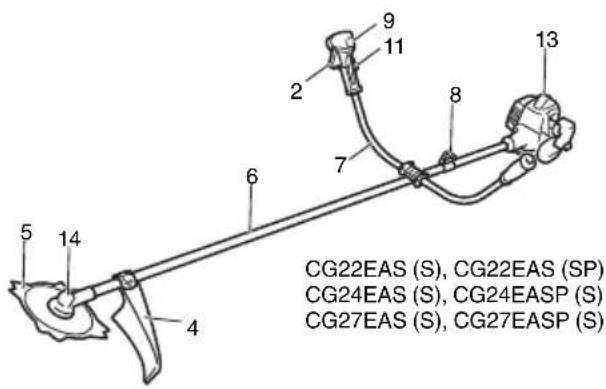

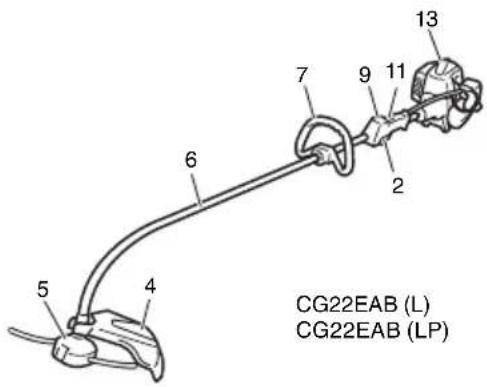

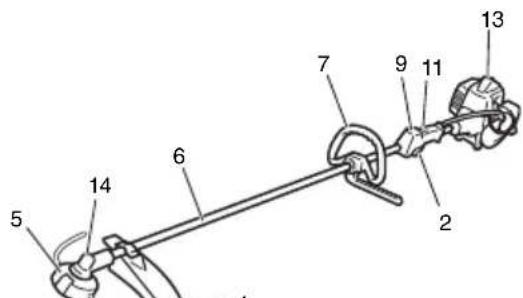

WHAT IS WHAT
Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to your unit.
- Fuel cap
- Throttle trigger
- Starter handle
- Blade guard
- Cutting attachment
- Drive shaft tube
- Han die
- Suspension eyelet
- Ignition switch
- Harness
- Throttle trigger lockout
- Choke lever
- Engine
- Angle transmission
- Joint case
- Combi box spanner
- Handling instructions

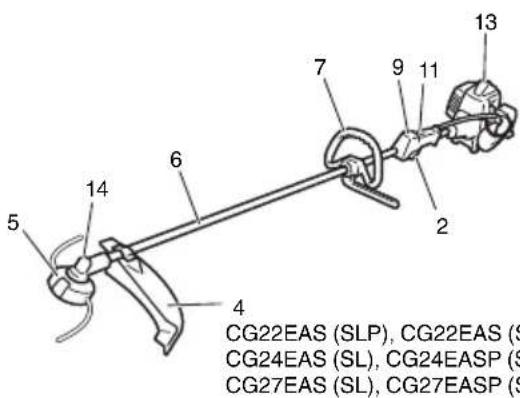

CG22EAS (SLP), CG22EAS (SL)
CG24EAS (SL), CG24EASP (SL)
CG27EAS (SL), CG27EASP (SL)
WARNINGS AND SAFETY INSTRUCTIONS
Operator safety

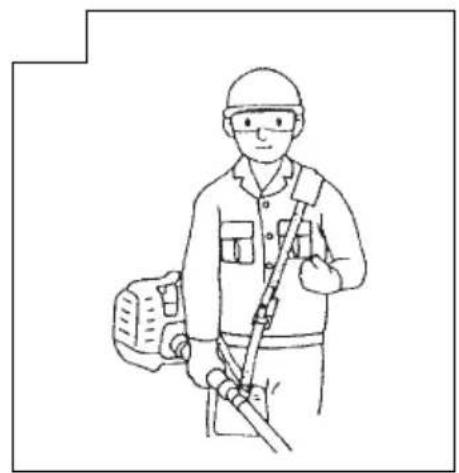

○ Always wear a safety face shield or goggles.
○ Always wear heavy, long pants and non-slip boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair so it is above shoulder length.
○ Do not operate this tool when you are tired, ill or under the influence of alcohol, drugs or medication.
☐ Do not operate the tool at night or under bad weather conditions when visibility is poor. And do not operate the tool when it is raining or right after it has been raining.
Working on slippery ground could lead to an accident, lose your balance.
○ Never let a child or inexperienced person operate the machine.
○ Wear hearing protection. Pay attention to your surroundings. Be aware of any bystanders who may be signaling a problem. Remove safety equipment immediately upon shutting off engine.
○ Wear head protection.
Never start or run the engine inside a closed room or building. Breathing exhaust fumes can kill.
○ Keep handles free of oil and fuel.
○ Keep hands away from cutting equipment.
○ Do not grab or hold the unit by the cutting equipment.
Gloves should be worn when installing or removing the cutting attachment. Failure to do so may result in injury.
When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.
When operation is prolonged, take a break from time to time so that you may avoid possible Hand-Arm Vibration Syndrome (HAVS) which is caused by vibration.
WARNING
○ Antivibration systems do not guarantee that you will not sustain Hand-Arm Vibration Syndrome or carpal tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fingers. If any symptoms of the above appear, seek medical advice immediately.
☐ If you are using any medical electric/electronic devices such as a pacemaker, consult your physician as well as the device manufacturer prior to operating any power equipment.
Unit/machine safety
☐ Inspect the entire unit/machine before each use. Replace damaged parts. Check for fuel leaks and make sure all fasteners are in place and securely tightened.
○ Replace parts that are cracked, chipped or damaged in any way before using the unit/machine. Faulty parts may increase the risk of accidents and may lead to an injury.
○ Make sure the safety guard is properly attached.
○ Keep others away when making carburetor adjustments.
○ Use only accessories as recommended for this unit/machine by the manufacturer.
WARNING
☐ Never modify the unit/machine in any way. Do not use your unit/machine for any job except that for which it is intended.
○ Non-authorized modifications and/or accessories may result in serious personal injury or the death of the operator or others.
Fuel safety
○ Mix and pour fuel outdoors and where there are no sparks or flames.
○ Use a container approved for fuel.
☐ Do not smoke or allow smoking near fuel or the unit/machine or while using the unit/machine.
○ Wipe up all fuel spills before starting engine.
○ Move at least 3 m away from fueling site before starting engine.
○ Stop engine before removing fuel cap.
○ Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
○ Store unit/machine and fuel in area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces. etc.
WARNING
Fuel is easy to ignite or get explosion or inhale fumes, so that pay special attention when handling or filling fuel.
Cutting safety
○ Do not cut any material other than grass and brush.
○ Inspect the area to be cut before each use. Remove objects which can be thrown or become entangled.
☐ For respiratory protection, wear an aerosol protection mask when cutting the grass after insecticide is scattered.

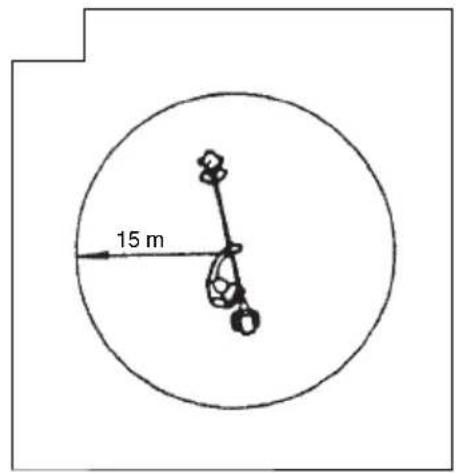

Keep others including children, animals, bystanders and helpers outside the 15 m hazard zone. Stop the engine immediately if you are approached.
○ Always keep the engine on the right side of your body.
○ Hold the unit/machine firmly with both hands.
○ Keep firm footing and balance. Do not over-reach.
Losing your balance during work may lead to an injury.
Keep all parts of your body away from the muffler and cutting attachment when the engine is running.
○ Keep cutting attachment below knee level.
When relocating to a new work area, be sure to shut off the machine and ensure that all cutting attachments are stopped.
○ Never place the machine on the ground when running.
○ Always ensure that the engine is shut off and any cutting attachments have completely stopped before clearing debris or removing grass from the cutting attachment.
Always carry a first-aid kit when operating any power equipment.
Never start or run the engine inside a closed room or building and/or near inflammable liquids. Breathing exhaust fumes can kill.
☐ If the tool is operating poorly and produces strange noise or vibrations, turn off the engine immediately and ask your dealer to have it inspected and repaired.
Continued use under these conditions could lead to injury or tool damage.
○ Use in accordance with local laws and regulations.
Maintenance safety
○ Maintain the unit/machine according to recommended procedures.
○ Disconnect the spark plug before performing maintenance except for carburetor adjustments.
○ Keep others away when making carburetor adjustments.
○ Use only genuine Hitachi replacement parts as recommended by the manufacturer.
Transport and storage
○ Carry the unit/machine by hand with the engine stopped and the muffler away from your body.
○ Allow the engine to cool, empty the fuel tank, and secure the unit/machine before storing or transporting.
Empty the fuel tank before storing the unit/machine. It is recommended that the fuel be emptied after each use. If fuel is left in the tank, store so fuel will not leak.
○ Store unit/machine out of the reach of children.
○ Clean and maintain the unit carefully and store it in a dry place.
○ Make sure engine switch is off when transporting or storing.
○ When transporting and storing, cover blade with blade cover.
If situations occur which are not covered in this manual, take care and use common sense. Contact Hitachi Authorized Service Centers if you need assistance. Pay special attention to statements preceded by the following words:
WARNING
Indicates a strong possibility of severe personal injury or loss of life, if instructions are not followed.
CAUTION
Indicates a possibility of personal injury or equipment damage, if instructions are not followed.
NOTE
Helpful information for correct function and use.
CAUTION
Do not disassemble the recoil starter. You may get a possibility of personal injury with recoil spring.
SPECIFICATIONS
| Model | CG22EAS (SLP)CG22EAS (SL) | CG22EAS (SP)CG22EAS (S) | CG22EAD (SLP)CG22EAD (SL) | CG22EAB (LP)CG22EAB (L) | |
| Engine | |||||
| Displacement ( cm^3 ) | 21.1 | 21.1 | 21.1 | 21.1 | |
| Spark plug | NGK BMR7A | NGK BMR7A | NGK BMR7A | NGK BMR7A | |
| Idling speed ( min^-1 ) | 2800-3200 | 2800-3200 | 2800-3200 | 2800-3200 | |
| Speed of output shaft ( min^-1 ) | 8900 | 8900 | 8900 | 8900 | |
| Max. engine output (kW) | 0.63 | 0.63 | 0.63 | 0.63 | |
| Fuel tank capacity ( cm^3 ) 450 450 450 450 | |||||
| Dry weight (kg) 4.5 4.8 4.8 4.0 | |||||
| Cutting attachment Type / Dia. (mm) Nylon cord Nylon cord | Metalblade /255 | Nylon cord Nylon cord | |||
| Sound pressure level LpA(dB (A)) | (ISO22868)EquivalentUncertainty | 903 | 893 | 913 | 903 |
| Measured sound power level LwA(dB (A)) | (ISO22868)RacingUncertainty | 1073 | 1073 | 1063 | 1073 |
| Measured sound power level LwA (dB (A)) | (2000/14/EC)Racing | 107 | 107 | 106 | 107 |
| Guaranteed sound power level LwA (dB (A)) | (2000/14/EC)Racing | 112 | 112 | 112 | 112 |
| Vibration level ( m/s^2 ) (ISO22867) | |||||
| Equivalent (Front / Left handle) | 6.7 | 4.5 | 4.7 | 7.7 | |
| Equivalent (Rear / Right handle) | 4.1 | 4.8 | 4.3 | 4.7 | |
| Uncertainty | 1.5 | 1.5 | 1.5 | 1.5 | |
| Model | CG24EAS (SL)CG24EASP (SL) | CG24EAS (S)CG24EASP (S) | CG27EAS (SL)CG27EASP (SL) | CG27EAS (S)CG27EASP (S) | ||
| Engine | ||||||
| Displacement ( cm^3 ) | 23.9 | 23.9 | 26.9 | 26.9 | ||
| Spark plug | NGK BMR7A | NGK BMR7A | NGK BMR7A | NGK BMR7A | ||
| Idling speed ( min^-1 ) | 2800-3200 | 2800-3200 | 2800-3200 | 2800-3200 | ||
| Speed of output shaft ( min^-1 ) | 8900 | 8900 | 8900 | 8900 | ||
| Max. engine output (kW) | 0.85 | 0.85 | 0.9 | 0.9 | ||
| Fuel tank capacity ( cm^3 ) | 520 | |||||
| Dry weight (kg) 4.8 5.1 5.3 5.5 | ||||||
| Cutting attachment Type / Dia. (mm) Nylon cord | Nylon cord | Metal blade / 255 | Nylon cord | Nylon cord | Metal blade / 255 | |
| Sound pressure level LpA(dB (A)) | (ISO22868)EquivalentUncertainty | 923 | 923 | 933 | 933 | 953 |
| Measured sound power level LwA(dB (A)) | (ISO22868)RacingUncertainty | 1073 | 1073 | 1073 | 1083 | 1083 |
| Measured sound power level LwA (dB (A)) | (2000/14/EC)Racing | 107 | 107 | 107 | 108 | 108 |
| Guaranteed sound power level LwA (dB (A)) | (2000/14/EC)Racing | 108 | 108 | 108 | 109 | 110 |
| Vibration level ( m/s^2 ) (ISO22867) | ||||||
| Equivalent (Front / Left handle) | 6.2 | 3.7 | 3.7 | 6.2 | 4.8 | 8.6 |
| Equivalent (Rear / Right handle) | 5.8 | 4.7 | 4.7 | 7.4 | 4.0 | 6.1 |
| Uncertainty | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
NOTE
Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration levels under various working conditions with the following time distribution: 1/2 Idle, 1/2 racing.
* All data subject to change without notice.
ASSEMBLY PROCEDURES

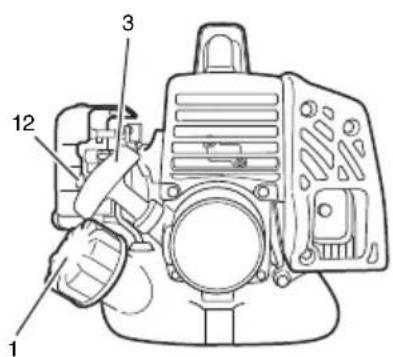

Drive shaft to engine (Fig. 1)
Loosen tube locking bolt (1) about ten turns so that the bolt point will not obstruct drive shaft tube to be inserted. When inserting drive shaft tube, hold the tube locking bolt outward preventing inside fitting from obstructing as well.
Insert the drive shaft into the clutch case of the engine properly until the marked position (2) on the drive shaft tube meets the clutch case.
Some models may come with the drive shaft already installed.
NOTE
When it is hard to insert drive shaft up to the marked position on the drive shaft tube, turn drive shaft by the cutter mounting end clockwise or counter-clockwise. Tighten tube locking bolt lining up the hole in the shaft tube. Then tighten clamp bolt securely.
Installation of attachment
- Join the attachment in place of it.
- Make sure the lock pin (3) fits in the location hole (4) of tube and that the tube will not come off. (Fig. 2)
- Tighten the knob nut (5) securely. (Fig. 2)
Installation of handle
WARNING
When you use steel/rigid blades on straight shaft trimmers or brush cutters, always use a barrier bar (6) and shoulder harness with the loop handle. (Fig. 3)
Attach the handle to the drive shaft tube with the angle towards the engine.
Adjust the location to the most comfortable position before operation.
NOTE
If your unit has handle location label on drive shaft tube, follow the illustration.
Remove the handle bracket (7) from the assembly. (Fig. 4)
Place the handles and attach the handle bracket with four bolts lightly. Adjust to appropriate position. Then attach it firmly with the bolts.
Attach the protection tube to the drive shaft or handle using cord clamps (8). (Fig. 5)
Throttle wire / stop cord

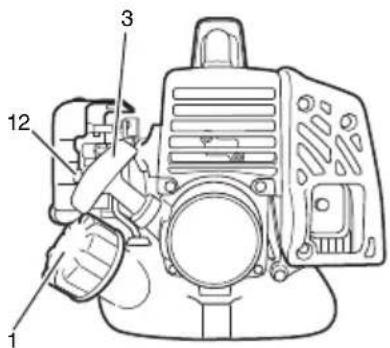

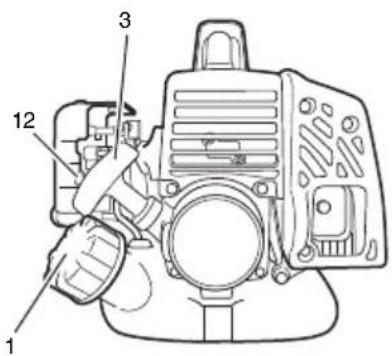

Press the upper tab (9) and open the air cleaner cover. (Fig. 6) Connect stop cords. (Fig. 7)
If the throttle outer end (10) is threaded on your unit, screw it and the earth terminal (11) (if so equipped) into the cable adjuster stay (12) all the way, and then tighten this cable end using the adjuster nut (13) against the cable adjuster stay (12).
Connect throttle wire end (14) to carburetor (15) and install swivel cap (16) (if so equipped) where is included in tool bag, onto swivel (15) (Fig. 8).
Some models may come with the parts installed.
Installation of blade guard (Fig. 9, 10, 10-1, 11)
NOTE
The guard bracket may come already mounted to the gear case on some models.
Install the blade guard on drive shaft tube against angle transmission. Tighten the guard bracket firmly so that the blade guard does not swing or move down during operation.
Install the blade guard to the guard bracket, which also secures the guard to the gear case using the two guard mounting screws.
WARNING
If an incorrect or faulty guard is fitted, this may cause serious personal injury.
CAUTION
Some blade guards are equipped with sharp line limiters. Be careful with handling it.

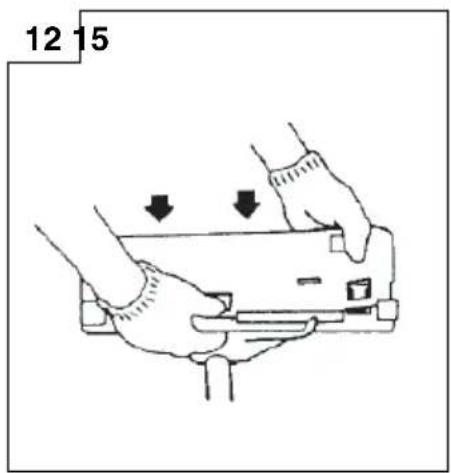

When using a trimmer head with two piece type blade guard, attach the guard extension to the blade guard. (Fig. 12)
NOTE
When attaching the guard extension to the blade guard, the sharp line limiter must be removed from the blade guard, (if so installed).
○ If your unit has guard location label on drive shaft tube, follow the indication.
To remove the guard extension, refer to the drawings. Wear gloves as the extension has a sharp line limiter, then push the four square tabs on the guard one by one in order. (Fig. 13)
Installation of cutting attachment
WARNING
Install the cutting attachment properly and securely as instructed in the handling instructions. If not attached properly or securely, it may come off and cause serious and/or fatal injury.
Installation of semi-auto cutting head
1. Function
Automatically feeds more nylon cutting line when it is tapped at low rpm (not greater than 4500 min ^-1 ).
Specifications
| Code No. | Type of attaching screw | Direction of rotation | Size of attaching screw |
| 6696454 | Female screw Counterclockwise M10×P1.25-LH | ||
| 6696597 | Female screw Clockwise M8×P1.25-RH | ||
Applicable nylon cord
Cord diameter: 3.0 mm Length: 2 m
Cord diameter: 2.4 mm Length: 4 m
2. Precautions
○ The case must be securely attached to the cover.
○ Check the cover, case and other components for cracks or other damage.

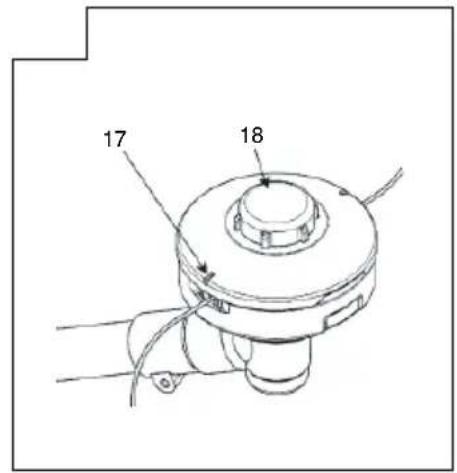

☐ Check the case and button for wear. If the wear limit mark (17) on the case is no longer visible or there is a hole in the bottom (18) of the button, change the new parts immediately. (Fig. 14)
○ The cutting head must be securely mounted to the unit's gear case.
☐ For outstanding performance and reliability, always use Hitachi nylon cutting line. Never use wire or other materials that could become a dangerous projectile.
☐ If the cutting head does not feed cutting line properly, check that the nylon line and all components are properly installed. Contact Hitachi Authorized Service Centers if you need assistance.
3. Installation (Fig. 15)
○ Install cutting head on gear case of grass trimmers/brush cutters. The mounting nut is left-hand-threaded. Turn clockwise to loosen/counterclockwise to tighten.
For curved shaft models, the mounting nut is right-hand-threaded. Turn counterclockwise to loosen/clockwise to tighten.
NOTE
○ Since the cutter holder cap is not used here, keep it for when a metal blade is used, if so equipped.

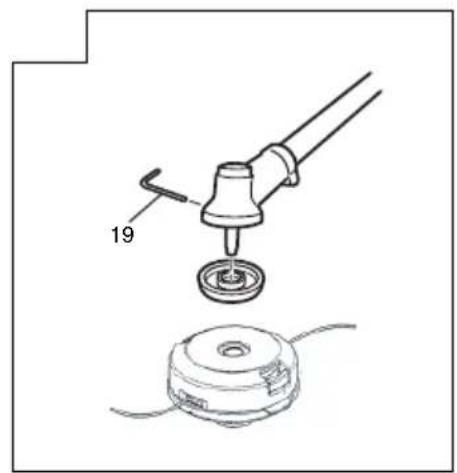

○ Insert Allen wrench (19) into the hole of the gear case in order to lock the cutter holder.

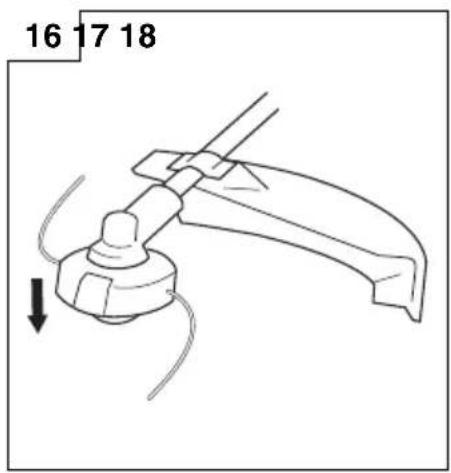

4. Adjusting line length

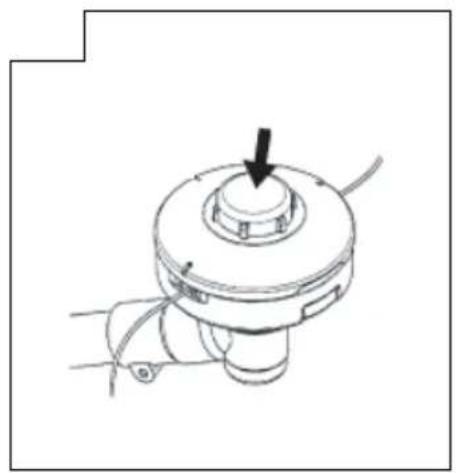

○ Set the engine speed as low as possible and tap the head on the ground. The nylon line will be drawn out about 3 cm with each tap. (Fig. 16)
Also, you can extend the nylon line by hand but the engine must be completely stopped. (Fig. 17)
○ Adjust the nylon line to the proper length of 11–14 cm before each operation.

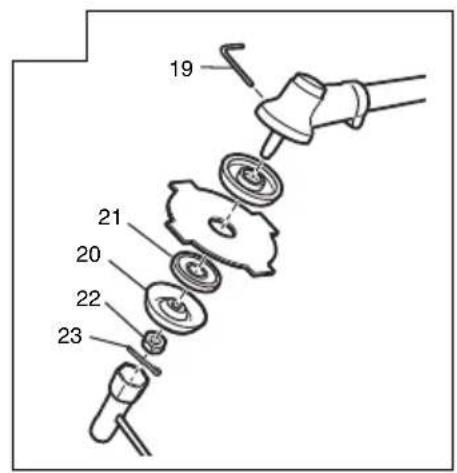

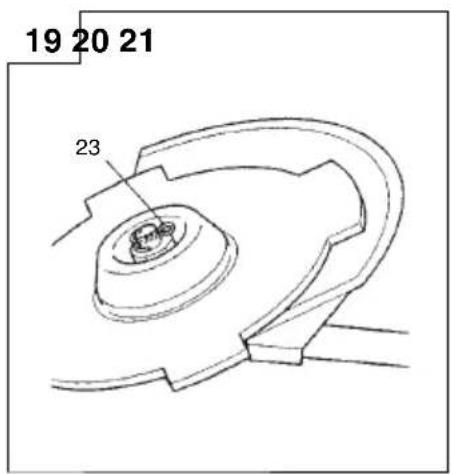

Installation of cutting blade (Fig. 18)
(If so equipped)
When installing a cutting blade, make sure that there are no cracks or any damage in it and that the cutting edges are facing the correct direction.
NOTE
○ When installing cutter holder cap (20), be sure to set concave side upward.
Insert the alien wrench (19) into the hole of the angle transmission in order to lock the cutter holder (21). Please note that the cutter fixing bolt or nut (22) has left-handed threads, (clockwise to loosen/ counter-clockwise to tighten). Tighten the fixing bolt or nut with the box wrench.
☐ If your unit is of a nut securing type and equipped with a cotter pin, the blade must be retained with a new pin (23) each time installed. (Fig. 19)
CAUTION
Before operation, make sure the blade has been properly installed.
☐ If your unit is equipped with protection cover under a cutting blade, check it for wear or cracks before operation. If any damage or wear is found, replace it, as it is an article of consumption.
WARNING
For Hitachi heads, use only flexible, non-metallic line recommended by the manufacturer. Never use wire or wire ropes. They can break off and become a dangerous projectile.
OPERATING PROCEDURES
Fuel (Fig. 20)
WARNING
☐ The trimmer is equipped with a two-stroke engine. Always run the engine on fuel, which is mixed with oil.
Provide good ventilation, when fueling or handling fuel.
☐ Fuel contains highly flammable and it is possible to get the serious personal injury when inhaling or spilling on your body. Always pay attention when handling fuel. Always have good ventilation when handling fuel inside building.
Fuel
○ Always use branded 89 octane unleaded gasoline.

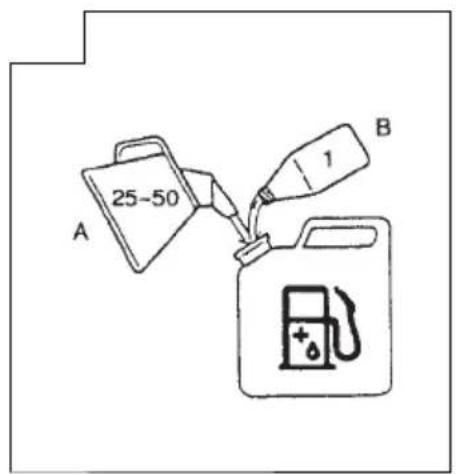

Use genuine two-cycle oil or use a mix between 25:1 to 50:1, please consult the oil bottle for the ratio or Hitachi Authorized Service Centers.
☐ If genuine oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use (JASO FC GRADE OIL or ISO EGC GRADE). Do not use BIA or TCW (2-stroke water-cooling type) mixed oil.
○ Never use multi-grade oil (10 W/30) or waste oil.
○ Always mix fuel and oil in a separate clean container.
Always start by filing half the amount of fuel, which is to be used. Then add the whole amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of fuel.
Mix (shake) the fuel-mix thoroughly before filling the fuel tank.
Fueling
WARNING
○ Always shut off the engine before refueling.
○ Slowly open the fuel tank, when filling up with fuel, so that possible over-pressure disappears.
○ Tighten the fuel cap carefully, after fueling.
○ Always move the trimmer at least 3 m from the fueling area before starting.
○ Always wash any spilled fuel from clothing in soap.
○ Be sure to check for any fuel leakage after refueling.
Before fueling, clean the tank cap area carefully, no dirt falls into the tank. Make sure that the fuel is well mixed by shaking the container, before fueling.
Starting
CAUTION
Before starting, make sure the cutting attachment does not touch anything.

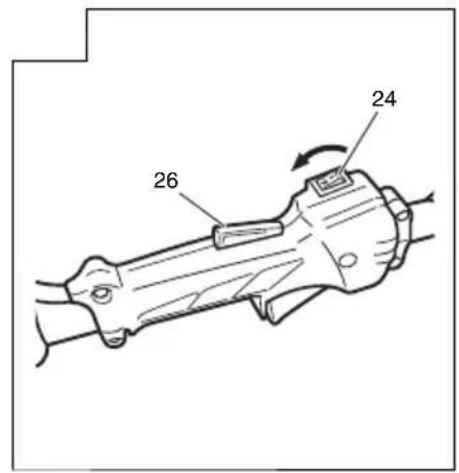

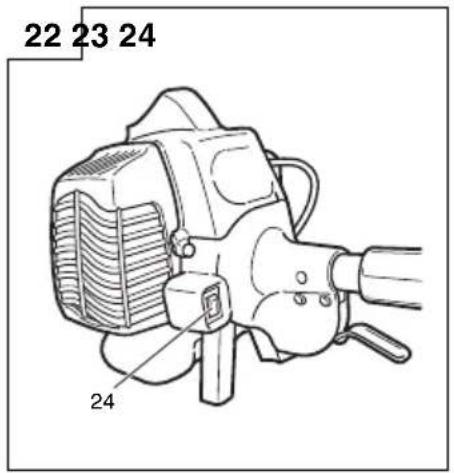

- Set ignition switch (24) to ON position. (Fig. 21, 22)

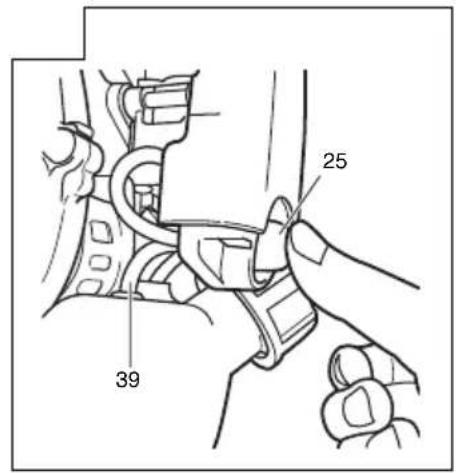

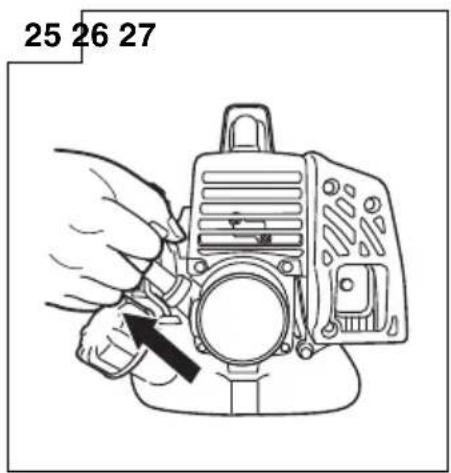

* Push priming bulb (25) several times so that fuel flows through return pipe (39). (Fig. 23) - Set choke lever (27) to CLOSED position (A). (Fig. 24)
- Pull recoil starter briskly, taking care to keep the handle in your grasp and not allowing it to snap back. (Fig. 25)
- When you hear the engine want to start, return choke lever to RUN position (open) (B). Then pull recoil starter briskly again.
NOTE
If engine does not start, repeat procedures from 2 to 5.
- Then allow the engine about 2–3 minutes to warm up before subjecting it to any load.
- Check that the cutting attachment does not rotate when the engine is idling.

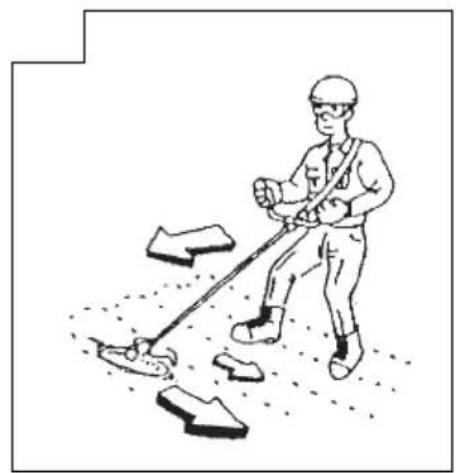

Cutting (Fig. 26, 27, 28)
When cutting, operate engine at over 6500 min ^1 . Extended time of use at low rpm may wear out the clutch prematurely.
○ Cut grass from right to left.
○ Cut grass from left to right (only curve shaft model).
○ Blade thrust may occur when the spinning blade contacts a solid object in the critical area.
A dangerous reaction may occur causing the entire unit and operator to be thrust violently. This reaction is called blade thrust. As a result, the operator may lose control of the unit which may cause serious or fatal injury. Blade thrust is more likely to occur in areas where it is difficult to see the material to be cut.

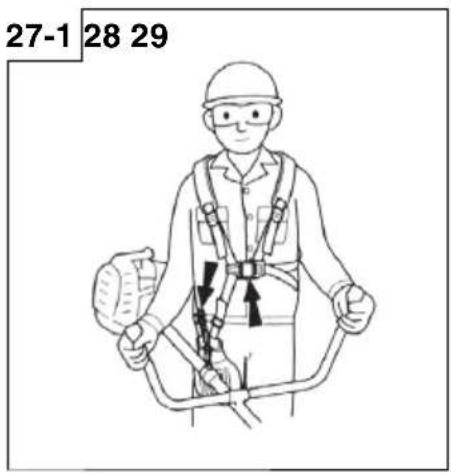

☐ Wear the harness as shown in the figure (if so equipped). The blade turns counter-clockwise, therefore, be advised to operate the unit from right to left for efficient cutting. Keep onlookers out of working area at least 15 m.
○ Use in accordance with local laws and regulations.
NOTE
Press the quick release button or pull emergency release flap (If so equipped) in the event of emergency. (Fig. 27-1)
WARNING
If cutting attachment should strike agains debris, stop the engine and make sure that the attachment and related parts are undamaged. When grass or vines wrap around attachment, stop engine and attachment and remove them.

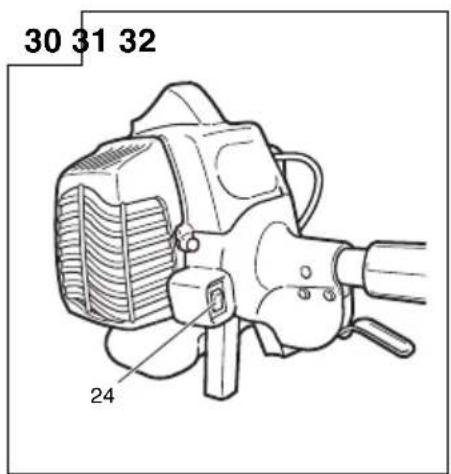

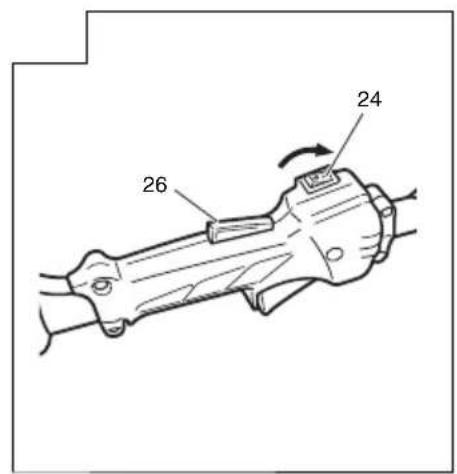

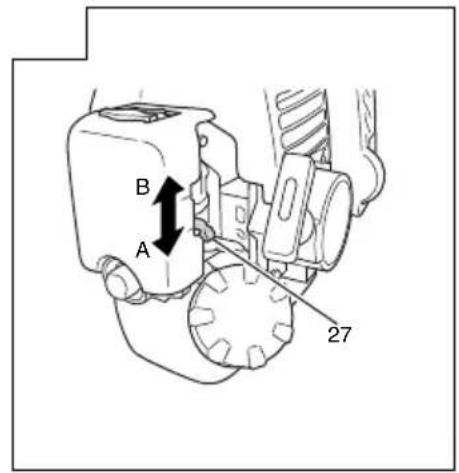

Stopping (Fig. 29, 30)
Decrease engine speed and run at an idle for a few minutes, then turn off ignition switch (24).
For models with an engine ignition switch, keep the ignition switch pressed until the engine comes to a complete stop.
WARNING
A cutting attachment can injure while it continues to spin after the engine is stopped or power control is released. When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.
Semi-auto cutting head
When cutting, operate engine at over 6500 min ^1 . Extended time of use at low rpm may wear out the clutch prematurely.
○ Cut grass from right to left.
○ Cut grass from left to right (only curve shaft model).
WARNING
A cutting attachment can injure while it continues to spin after to ensure that the engine is stopped or power control is released. When the unit is turned off, make sure the cutting attachment has stopped before the unit is set down.
Automatically feeds more nylon cutting line when it is tapped at low rpm (not greater than 4500 min ^-1 ).
MAINTENANCE
MAINTENANCE, REPLACEMENT OR REPAIR OF THE EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NON-ROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL.

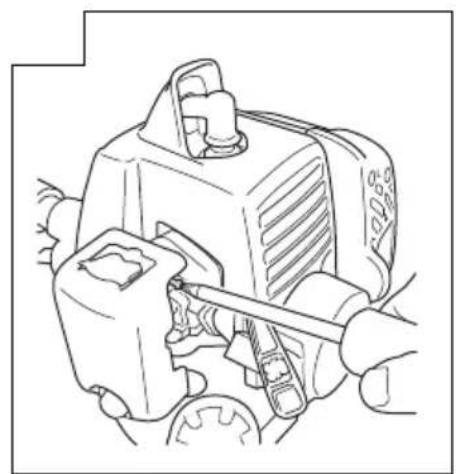

Carburetor adjustment (Fig. 31)
WARNING
○ The cutting attachment may be spinning during carburetor adjustments.
Never start the engine without the complete clutch cover and tube assembled! Otherwise the clutch can come loose and cause personal injuries.
In the carburetor, fuel is mixed with air. When the engine is test run at the factory, the carburetor is basically adjusted. A further adjustment may be required, according to climate and altitude. The carburetor has one adjustment possibility:
T = Idle speed adjustment screw.
Idle speed adjustment (T)
Check that the air filter is clean. When the idle speed is correct, the cutting attachment will not rotate. If adjustment is required, close (clockwise) the T-screw, with the engine running, until the cutting attachment starts to rotate. Open (counter-clockwise) the screw until the cutting attachment stops. You have reached the correct idle speed when the engine runs smoothly in all positions well below the rpm when the cutting attachment starts to rotate.
If the cutting attachment still rotates after idle speed adjustment, contact Hitachi Authorized Service Centers.
NOTE
○ Standard Idle rpm is 2800-3200 min ^-1 .
WARNING
When the engine is idling the cutting attachment must under no circumstances rotate.
Air fi Iter (Fig. 32)
The air filter must be cleaned from dust and dirt in order to avoid:
○ Carburetor malfunctions
○ Starting problems
○ Engine power reduction
○ Unnecessary wear on the engine parts
○ Abnormal fuel consumption
Clean the air filter daily or more often if working in exceptionally dusty areas.

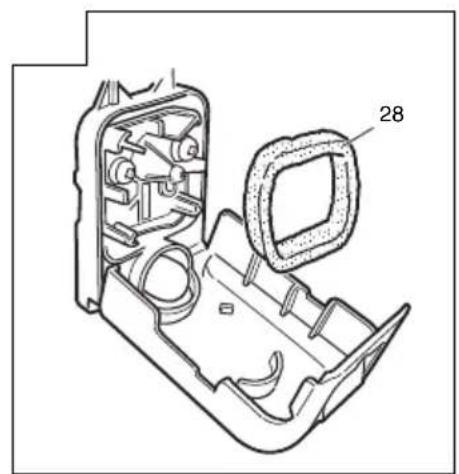

Cleaning the air fi Iter
Open the air filter cover and the filter (28). Rinse it in warm soap suds. Check that the filter is dry before reassembly. An air filter that has been used for some time cannot be cleaned completely. Therefore, it must regularly be replaced with a new one. A damaged filter must always be replaced.

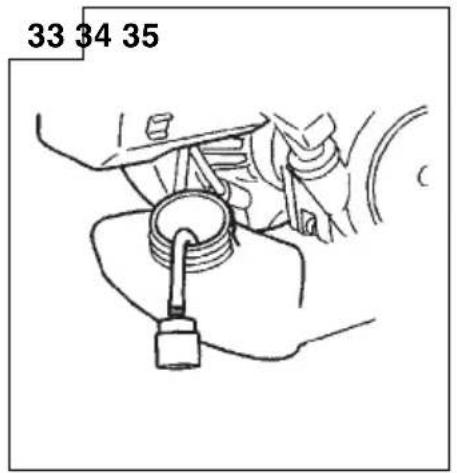

Fuel fi Iter (Fig. 33)
Drain all fuel from fuel tank and pull fuel filter line from tank. Pull filter element out of holder assembly and rinse element in warm water with detergent.
Rinse thoroughly until all traces of detergent are eliminated. Squeeze, do not wring, away excess water and allow element to air dry.
NOTE
If element is hard due to excessive dirt buildup, replace it.

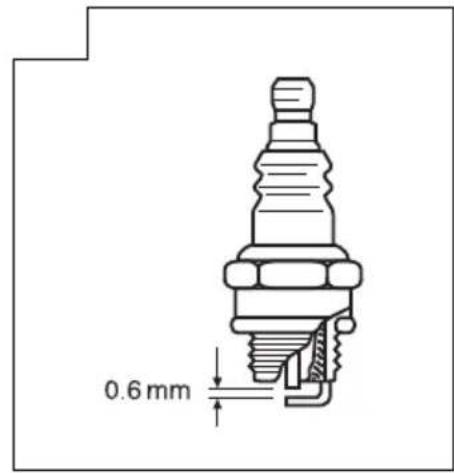

Spark plug (Fig. 34)
The spark plug condition is influenced by:
○ An incorrect carburetor setting
○ Wrong fuel mixture (too much oil in the gasoline)
○ A dirty air fi Iter
○ Hard running conditions (such as cold weather)
These factors cause deposits on the spark plug electrodes, which may result in malfunction and starting difficulties. If the engine is low on power, difficult to start or runs poorly at idling speed, always check the spark plug first. If the spark plug is dirty, clean it and check the electrode gap. Re-adjust if necessary. The correct gap is 0.6 mm. The spark plug should be replaced after about 100 operation hours or earlier if the electrodes are badly eroded.
NOTE
In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this machine was originally equipped with resistor spark plug, use same type of spark plug for replacement.

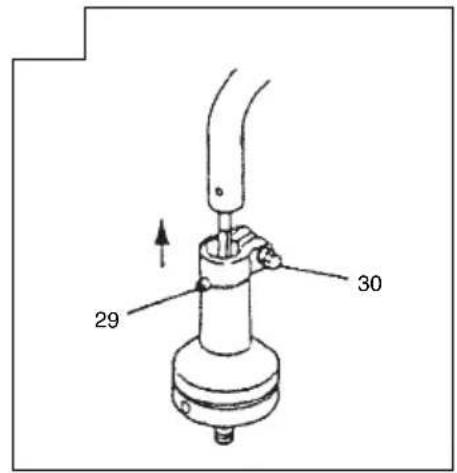

Flexible drive shaft (Fig. 35)
Flexible drive shaft should be removed and lubricated with good quality lithium grease every 20 hours. To remove the flexible shaft, first remove screw (29), loosen bolt (30) and remove the gear case then pull the shaft out of the drive shaft pipe. Clean the shaft off and apply a generous coat of lithium grease to it and insert if back into the drive shaft pipe, turn it unit it drops into place then install the gear case, install & tighten screw (29) and screw (30).

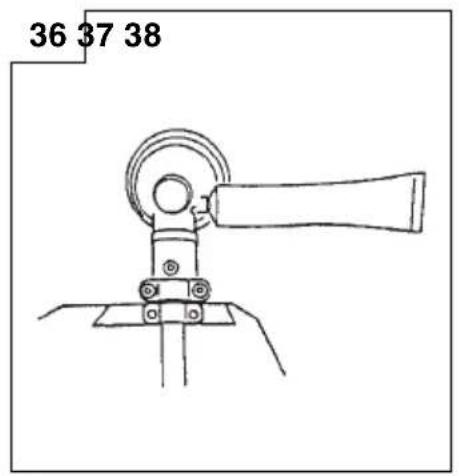

Angle transmission (Fig. 36)
Check angle transmission or angle gear for grease level about every 50 hours of operation by removing the grease filler plug on the side of angle transmission.
If no grease can be seen on the flanks of the gears, fill the transmission with quality lithium based multipurpose grease up to 3/4. Do not completely fill the transmission.
Semi-auto cutting head
Nylon line replacement

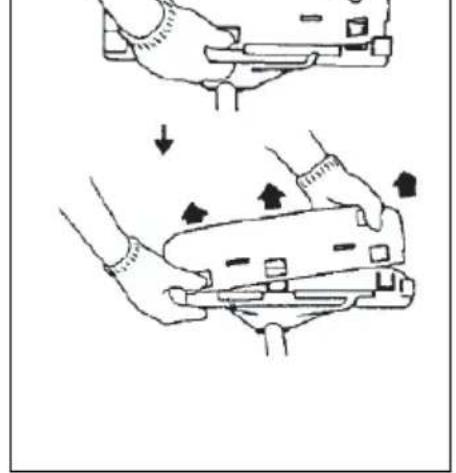

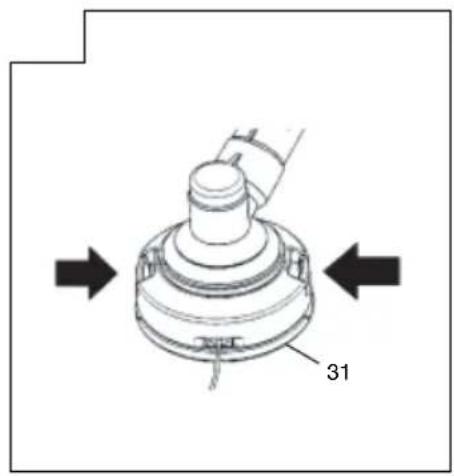

(1) Remove the case (31) by firmly pushing inward the locking tabs with your thumbs as shown in Fig. 37.
(2) After removing the case, take out the reel and discard the remaining line.

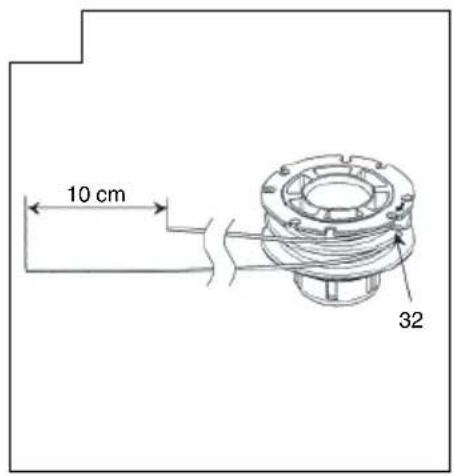

(3) Fold the new nylon line unevenly in half as shown in picture.
Hook the U-shaped end of the nylon line into the groove (32) on the center partition of the reel.
Wind both halves of the line on the reel in the same direction keeping each half of the line on its own side of the partition. (Fig. 38)

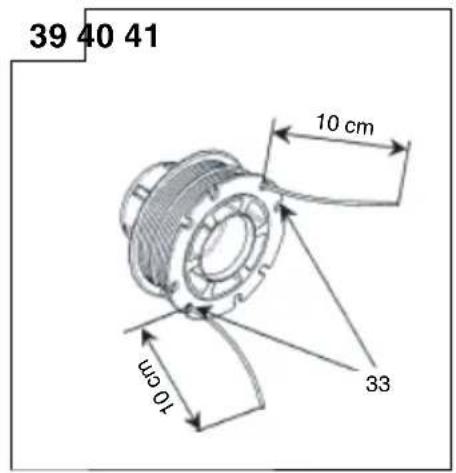

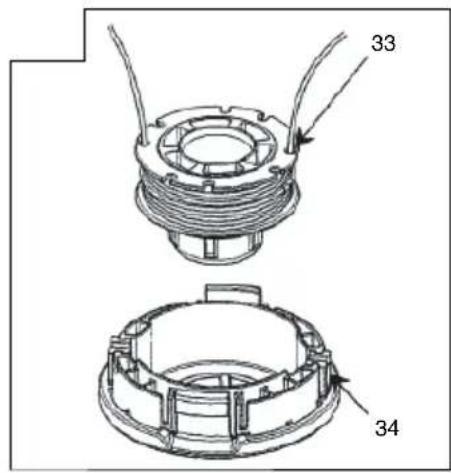

(4) Push each line into the stopper holes (33), leaving the loose ends approx. 10 cm in length. (Fig. 39)
(5) Insert both loose ends of the line through the cord guide (34) when placing the reel in the case. (Fig. 40)
NOTE
When placing a reel in the case, try to line up the stopper holes (33) with the cord guide (34) for easier line release later.

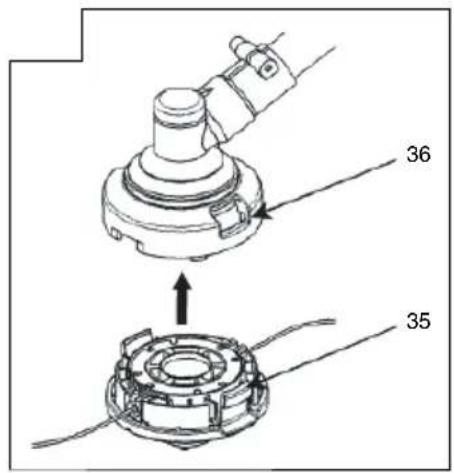

(6) Place the cover over the case so that the cap locking tabs (35) on the case meet the long holes (36) on the cover. Then push the case securely until it clicks into place. (Fig. 41)

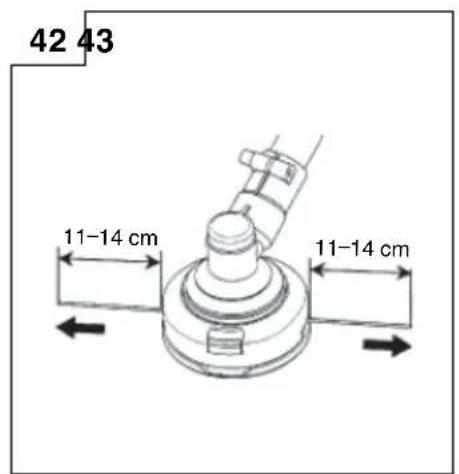

(7) The initial cutting line length should be approx. 11–14 cm and should be equal on both sides. (Fig. 42)
Blade (Fig. 43)
WARNING
Wear protective gloves when handling or performing maintenance on the blade.
○ Use a sharp blade. A dull blade is more likely to snag and thrust. Replace the fastening nut if it is damaged and hard to tighten.
○ When replacing blade, purchase one recommended by Hitachi, with a 25.4 mm (one inch) ft tting hole.

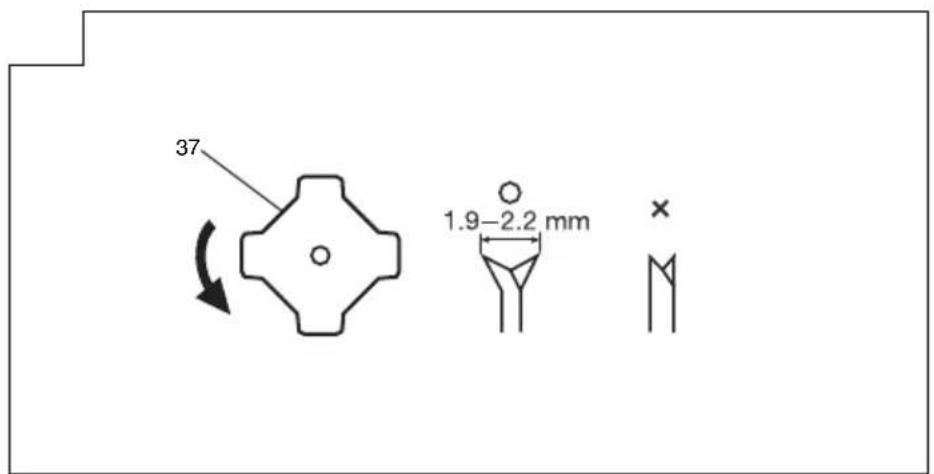

○ In the case of a 3 or 4 tooth blade (37), it can be used on either side.
○ Use the correct blade for the type of work.
○ When replacing blades, use appropriate tools.
When cutting edges become dull, re-sharpen or file as shown in the illustration. Incorrect sharpening may cause excessive vibration.
○ Discard blades that are bent, warped, cracked, broken or damaged in any way.
NOTE
When sharpening blade it is important to maintain an orig shape of radius at the base of the tooth to avoid cracking.
Maintenance schedule
Below you will find some general maintenance instructions. For further information please contact Hitachi Authorized Service Centers.
Daily maintenance
○ Clean the exterior of the unit.
○ Check that the harness is undamaged.
○ Check the blade guard for damage or cracks. Change the guard in case of impacts or cracks.
☐ Check that the cutting attachment is properly centred, sharp, and without cracks. An off-centre cutting attachment induces heavy vibrations that may damage the unit.
○ Check that the cutting attachment nut is sufficiently tightened.
○ Make sure that the blade transport guard is undamaged and that it can be securely fitted.
○ Check that nuts and screws are sufficiently tightened.
○ Check that the unit is undamaged and free of defects.
Weekly maintenance
○ Check the starter, especially the cord and return spring.
○ Clean the exterior of the spark plug.
○ Remove it and check the electrode gap. Adjust it to 0.6 mm, or change the spark plug.
○ Check that the angle gear is filled with grease up to 3/4.
○ Clean the air filter.
Monthly maintenance
○ Rinse the fuel tank with gasoline.
○ Clean the exterior of the carburetor and the space around it.
○ Clean the fan and the space around it.
List of recommended accessories
| Type Name | Specifi cation LOOP HANDLE BIKE HANDLE | MULTI PURPOSE | |||||||||||
| Diameter | Feed System Adapter or No. of Teeth (Blade) | Blade Thickness (mm) or Trimmer line Diameter (mm) | CG22EAB (L)/(LP) | CG22EAS (SL)/(SLP) | CG24EAS (SL), CG24EASP (SL) | CG27EAS (SL), CG27EASP (SL) | CG22EAS (S)/(SP) | CG24EAS (S), CG24EASP (S) | CG27EAS (S), CG27EASP (S) | CG22EAD (SL), CG22EAD (SLP) | |||
| ALUMINUM HEADS | NYLON HEAD CH-100 (W/NYLON LINE) | 4" Pre-Cut Line 2.2 - 3.0 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
| NYLON HEAD CH-100 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
| NYLON HEAD CH-300 (W/CUTTER HOLDER CAP) | 5" | Manual line feed | 2.2 - 2.7 | ● | ● | ||||||||
| NYLON HEAD CH-300 | ● | ● | |||||||||||
| TAP & GO NYLON HEADS | NYLON HEAD BF-4 | 4" | R M8 x 1.25 Nut | 2.2 - 3.0 ● | |||||||||
| NYLON HEAD BF-5 | 5" | L M10 x 1.25 Nut L M8 x 1.25 | 2.2 - 3.0 ● | ● | ● | ● | ● | ● | ● | ||||
| BLADES | BLADE B3/10/2.0 | 10" | 3 | 2.0 | ● | ● | |||||||
| BLADE B3/12/3.0 | 12" | 3 | 3.0 | ● | ● | ||||||||
| BLADE B4/9/1.6 | 9" | 4 | 1.6 | ● | ● | ● | ● | ● | ● | ● | ● | ||
| BLADE B4/10/1.6 | 10" | 4 | 1.6 | ● | ● | ● | ● | ● | ● | ● | |||
TROUBLESHOOTING
Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the Hitachi Authorized Service Center.
| Condition Cause Remedy | |||
| Engine does not start | Fuel system | Fuel tank is empty or fuel level is low | Fill the fuel tank with the correct fuel mix (25:1-50:1) |
| Fuel tank contains old fuel (offensive odor) Replace with new fuel | |||
| Too much fuel is absorbed and spark plug is wet | 1. Disconnect the spark plug and allow to dry2. Pull the starter handle 5 or 6 times to remove the surplus fuel3. Attach the spark plug4. Set the choke lever to RUN position and pull the starter handle | ||
| Fuel filter is clogged with dirt | Clean the fuel filter | ||
| Fuel pipe is bent or disconnected | Ensure that the fuel flows smoothly | ||
| Carburetor malfunction Contact Hitachi Authorized Service Centers | |||
| Electrical system | Stop switch lead has short-circuited Contact Hitachi Authorized Service Centers | ||
| Spark plug is dirty Replace or clean the spark plug | |||
| Electrode gap is too big Adjust the gap to 0.6mm | |||
| Poor connection between high tension cable and spark plug | Reconnect | ||
| Electrical system malfunction Contact Hitachi Authorized Service Centers | |||
| Other Muffler exhaust port is clogged with carbon | Contact Hitachi Authorized Service Centers for repair | ||
| Engine starts but cuts out straightawayEngine is apt to cut out | Fuel system | Fuel tank is empty or fuel level is low | Fill the fuel tank with the correct fuel mix (25:1-50:1) |
| Fuel tank contains old fuel (offensive odor) Replace with new fuel | |||
| Two-cycle oil has not been added Contact Hitachi Authorized Service Centers | |||
| Choke lever is in START position Set the choke lever to RUN position | |||
| Air has got into fuel system | Reconnect the fuel pipe or joint | ||
| Carburetor malfunction Contact Hitachi Authorized Service Centers | |||
| Electrical system | Ignition failure | ||
| Spark plug failure | Replace with new spark plug | ||
| Electrical system failure | Contact Hitachi Authorized Service Centers | ||
| Other | Engine overheating | ||
| Wrong spark plug model | Replace with designated partSee “SPECIFICATIONS” | ||
| Dirty air cleaner | Clean | ||
| Carbon clogging (muffler exhaust port) | Clean | ||
| Insuffi cient compression (piston, piston ring, cylinder) | Contact Hitachi Authorized Service Centers | ||
| Abnormal vibration | Cutting attachment is not properly installed | See “Installation of cutting attachment” | |
| Handle, handle bracket or other fastening part is loose | Check and tighten | ||
| Blade is bent or damaged | Replace with new blade | ||
| Grass is wrapped round gear case | Remove grass | ||
| Engine is running but blade does not moveMovement is poor | Grass is wrapped round gear case | Remove grass and dirt | |
| Engine does not stop Stop switch failure | Set the choke lever to START position to stop the engineCease use immediately and contact Hitachi Authorized Service Centers | ||
| Engine stops when throttle is closed Idle speed is too low Contact Hitachi Authorized Service Centers | |||
| Blade continues rotating when throttle is closed | Idle speed is too highThrottle wire is too taut | Contact Hitachi Authorized Service Centers | |
SYMBOLBEDEUTUNGEN
CG22EAS (SLP), CG22EAS (SL)
CG24EAS (SL), CG24EASP (SL)
CG27EAS (SL), CG27EASP (SL)
CG22EAS (SLP), CG22EAS (SL)
CG24EAS (SL), CG24EASP (SL)
CG27EAS (SL), CG27EASP (SL)
FIGYELMEZTETÉSEK ÉS BIZTONSÁGI ÓVINTÉZKEDÉSEK
CG22EAS (SLP), CG22EAS (SL)
CG24EAS (SL), CG24EASP (SL)
CG27EAS (SL), CG27EASP (SL)
VAROVÁNÍ A BEZPEČNOSTNÍ POKYNY
Bezpečnost obsluhy
CG22EAS (SLP), CG22EAS (SL)
CG24EAS (SL), CG24EASP (SL)
CG27EAS (SL), CG27EASP (SL)
CG22EAS (SLP), CG22EAS (SL)
CG24EAS (SL), CG24EASP (SL)
CG27EAS (SL), CG27EASP (SL)
AVERTISMENTE ŞI INSTRUCTIUNI DE SIGURANTĂ
CG22EAS (SLP), CG22EAS (SL)
CG24EAS (SL), CG24EASP (SL)
CG27EAS (SL), CG27EASP (SL)
OPOZORILA IN VARNOSTNA NAVODILA
Varnost upravljavca
Rezanje (Sl. 26, 27, 28)
TROUBLESHOOTING....120

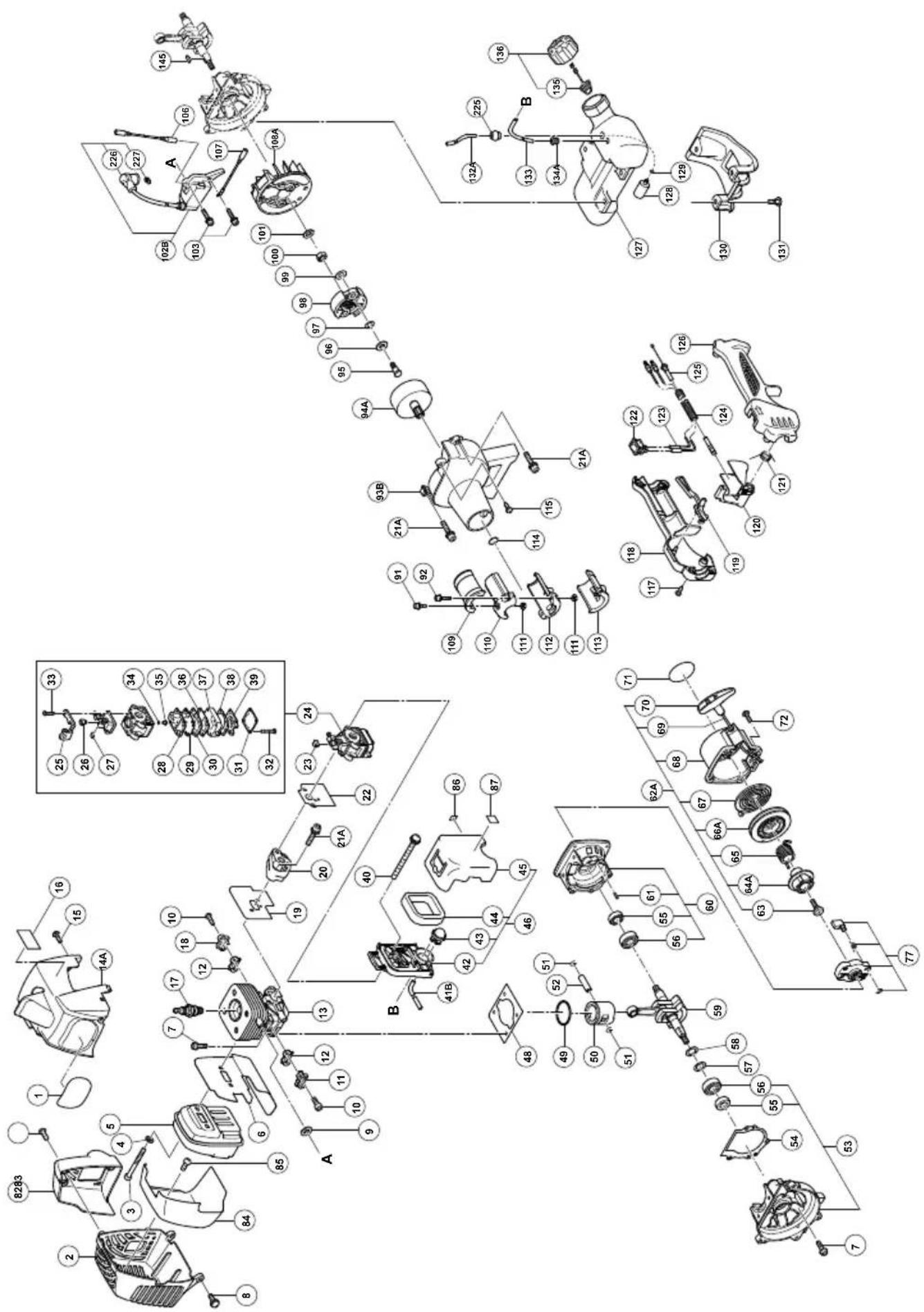

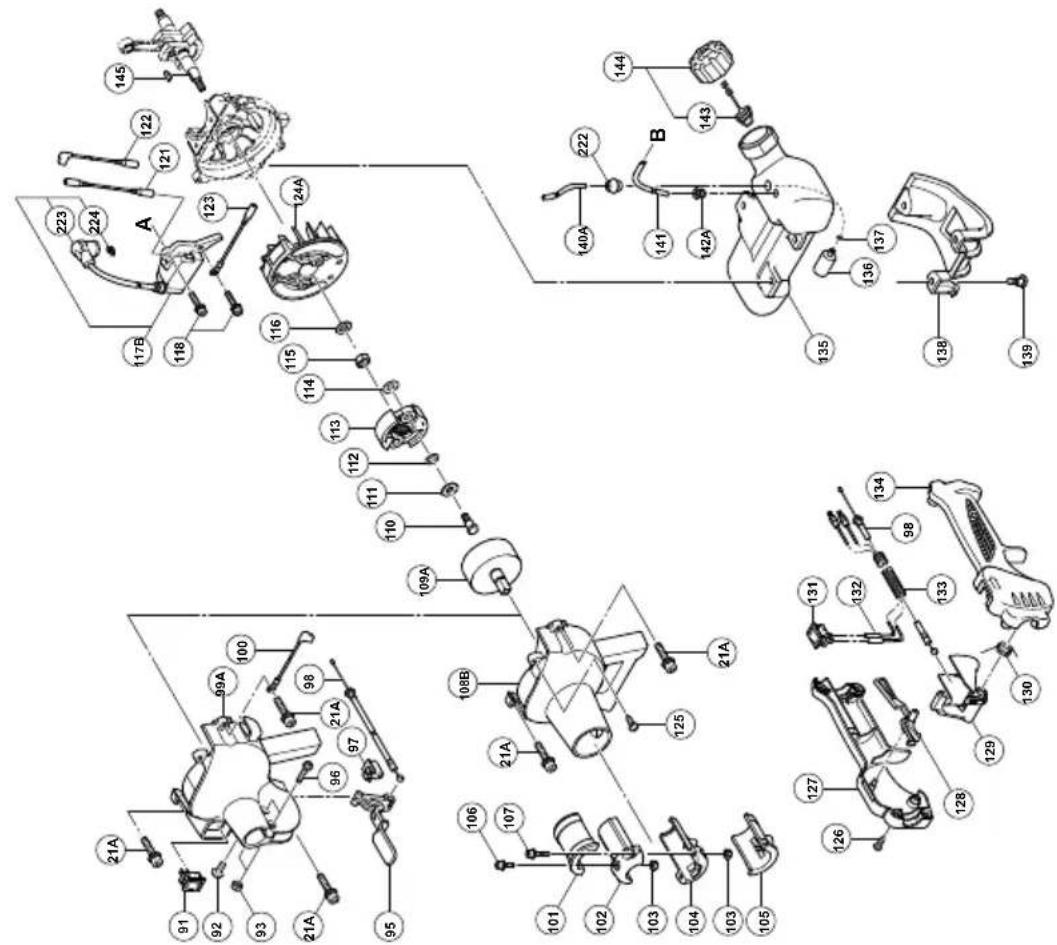

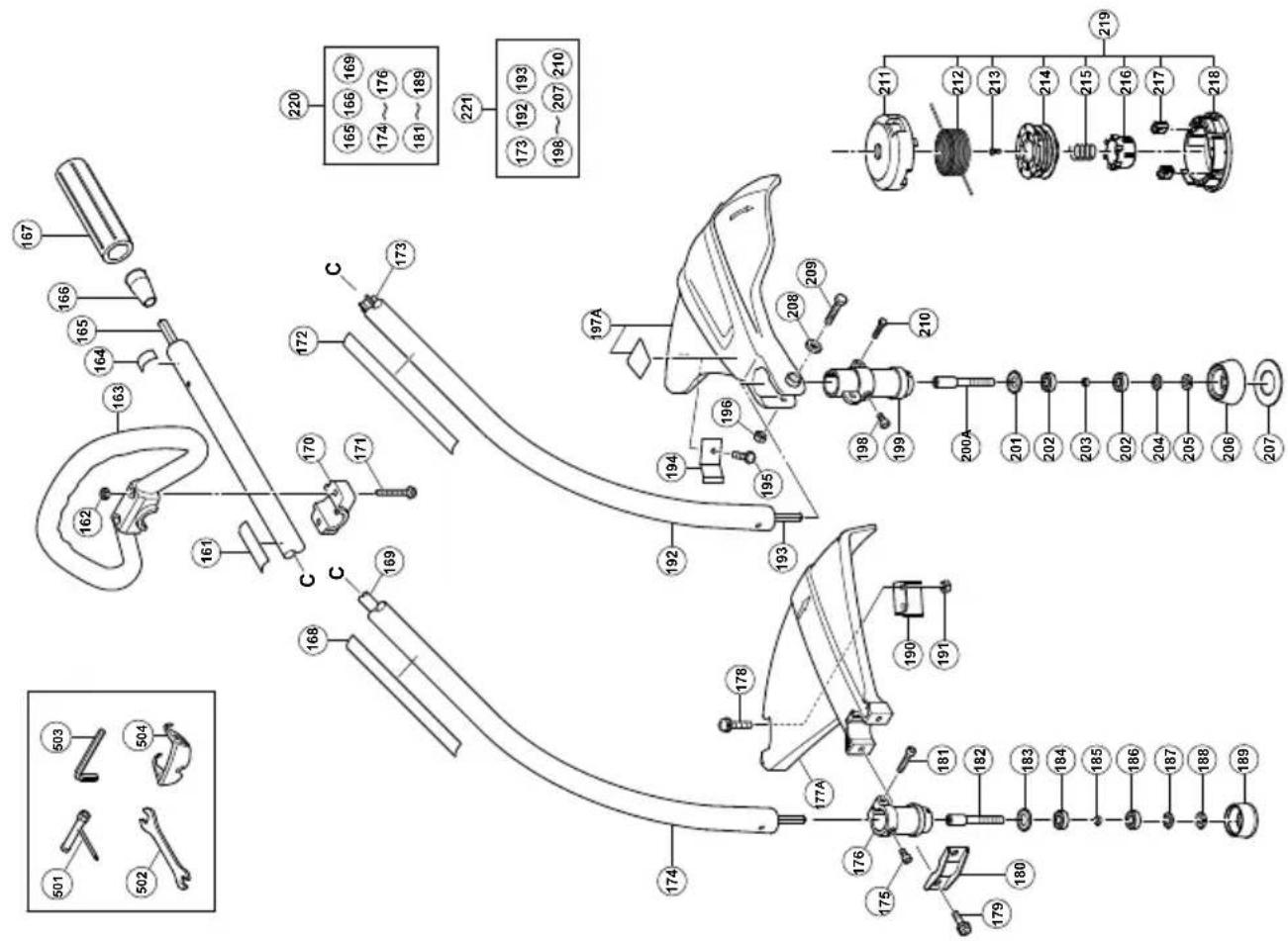

ДЕТАЛИ УСТРОЙСТВА

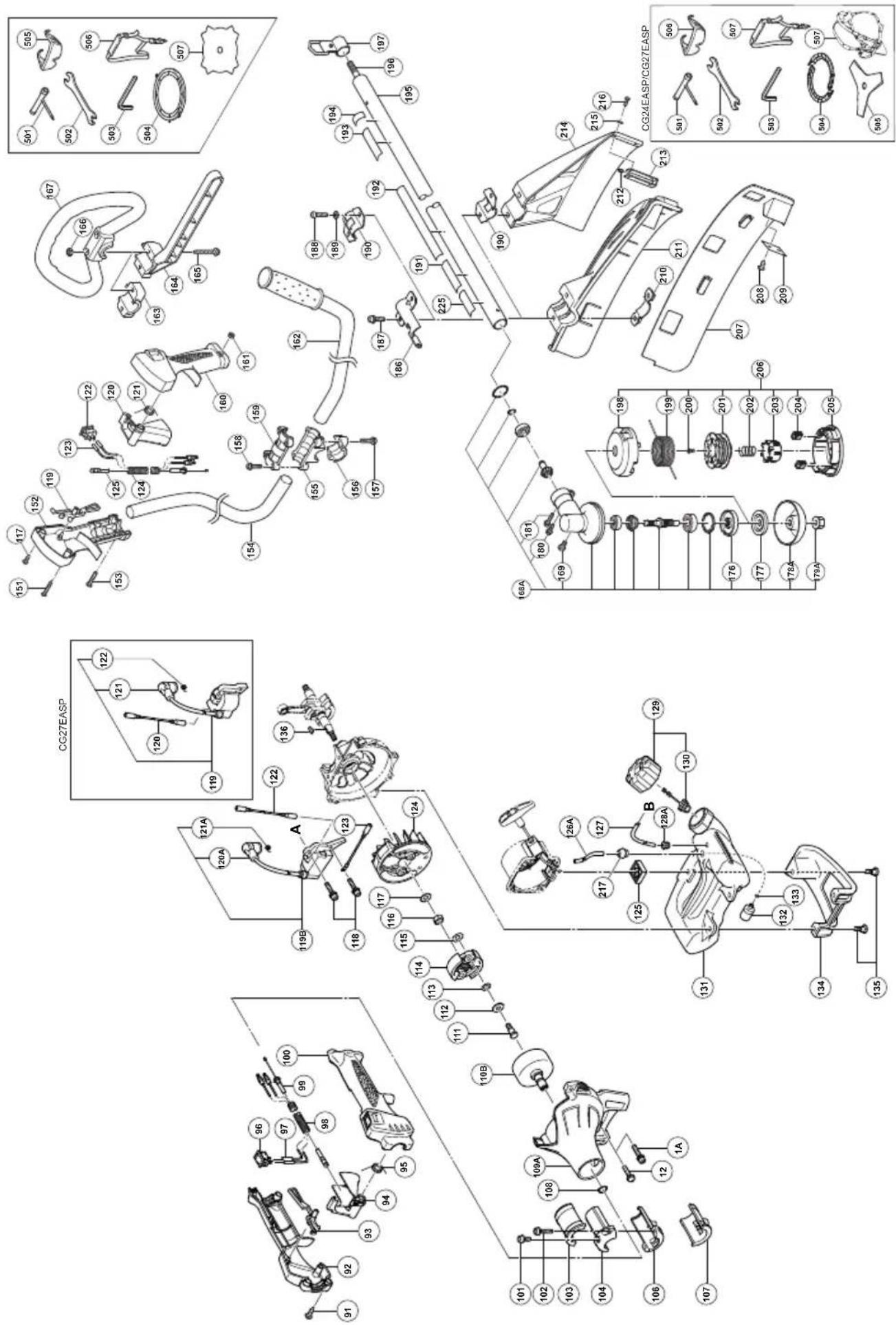

CG24EASP CG27EASP
CG24EASP / CG27EASP CG22EAS / CG24EASP / CG27EASP

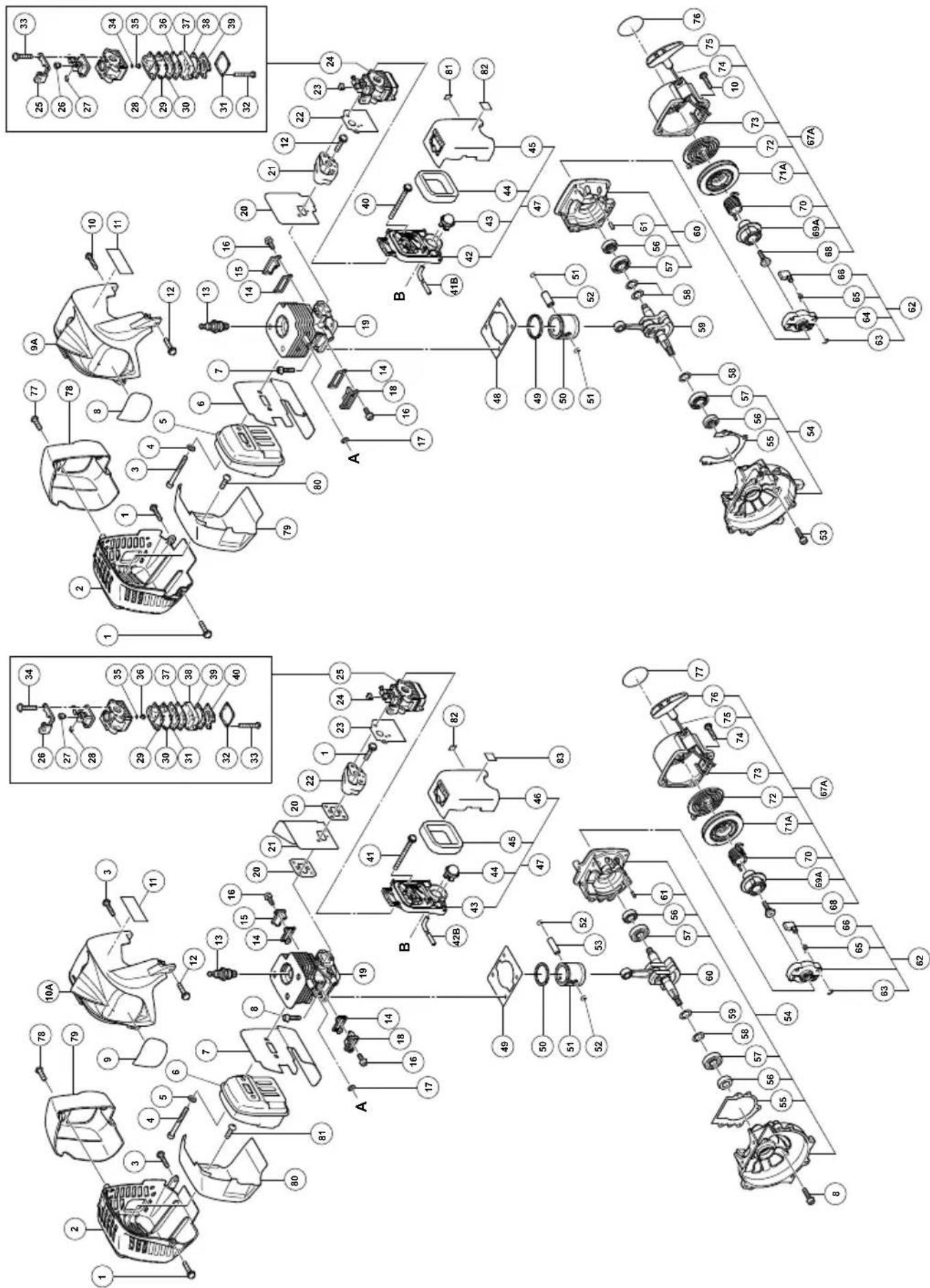

CG22EAD
CG22EAD CG22EAB

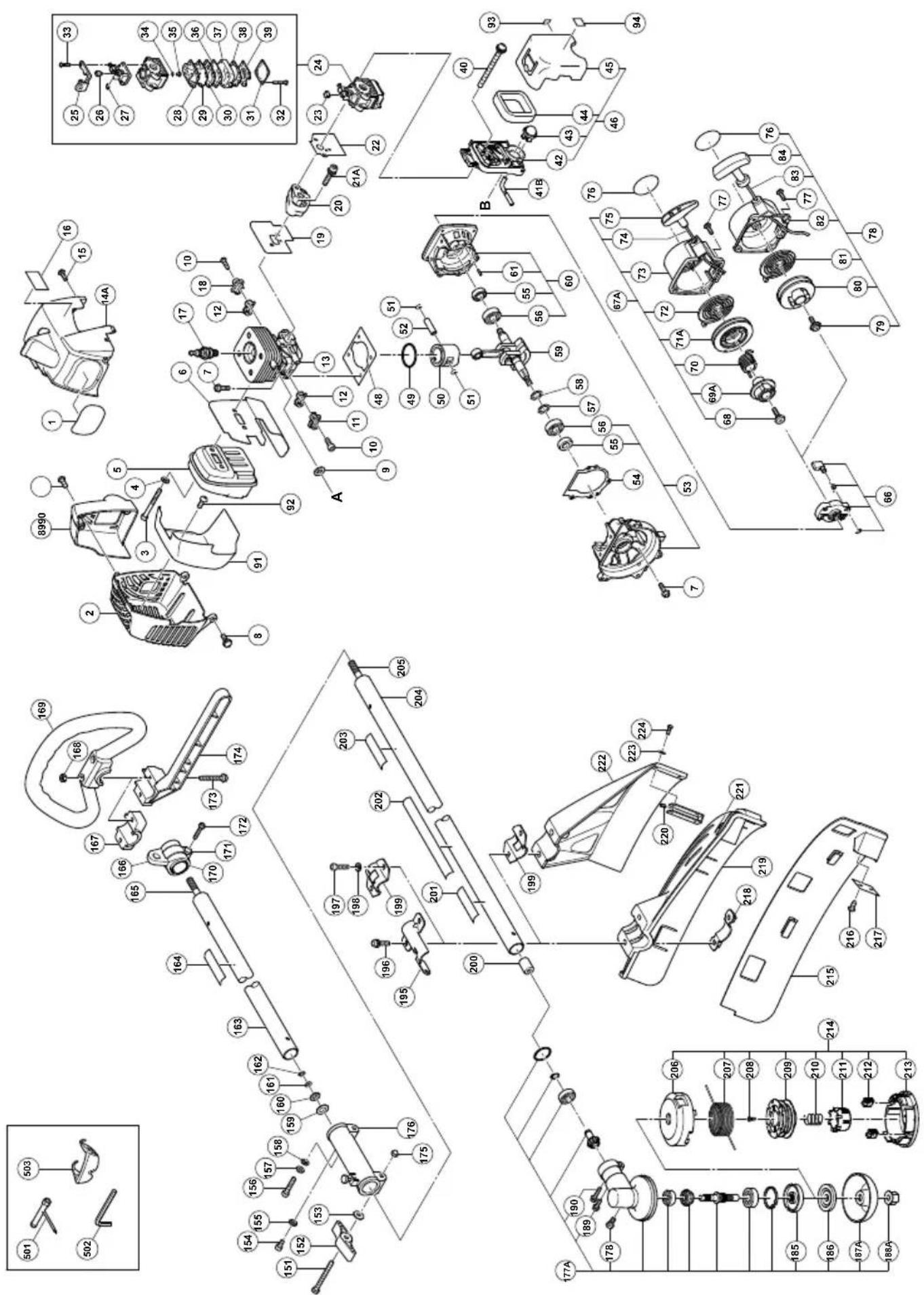

CG22EAB
| English | EC DECLARATION OF CONFORMITY(Applies to Europe only)We declare under our sole responsibility that this product is in conformity with Directive 2006/42/EC, 2004/108/EC and 2000/14/EC.The following standards have been taken into consideration.ISO 7112/7113/7916/7918/8380/11682 (EN ISO 12100-2, EN ISO 11806: 2011)Annex V (2000/14/EC): For information relating to noise emissions, see the chapter specifi cations.The European Standards Manager at Hitachi Koki Europe Ltd. is authorized to compile the technical file.This declaration is applicable to the product affi xed CE marking. | Čeština | PROHLÁŠENÍ O SHODĚ S CE(Platí pouze pro Evropu)Prohlašujeme na svou výhradní zodpovědnost, že tento produkt je v souladu se směrnicemi rady 2006/42/EC, 2004/108/EC a 2000/14/EC.Následující normy byly zohledněny:ISO 7112/7113/7916/7918/8380/11682 (EN ISO 12100-1/2, EN ISO 11806: 2011)Příloha V (2000/14/EC): Ohledně informací o hlukových emisích viz specifikace kapitol.Vedouci pracovník pro Evropské normy v Hitachi Koki Europe Ltd. je oprávněný ke zpracování technického souboru.Toto prohlášení platí pro výrobek označený značkou CE. | |
| Deutsch | ERKLÄRUNG ZUR KONFORMITÄT MIT CE-REGELN(Gilt nur für Europa)Wir erklären unter unserer Alleinverantwortung, dass dieses Produkt konform zu den Richtlinien 2006/42/EG, 2004/108/EG und 2000/14/EG ist.Die nachfolgenden Standards wurden in Betracht gezogen.ISO 7112/7113/7916/7918/8380/11682 (EN ISO 12100-2, EN ISO 11806: 2011)Anhang V (2000/14/EG): Informationen zur Geräuschentwicklung finden Sie im Kapitel Spezifi zierungen.Der Manager für europäische Standards bei der Hitachi Koki Europe Ltd. ist zum Verfassen der technischen Datei befugt.Diese Erklärung gilt für Produkte, die die CE-Markierung tragen. | Türkçe | AB UYGUNLUK BEYANI(Sadece Avrupa ülkeleri için geçerfidir)Sorumluluğu tamamen kendimize ait olmak üzere, bu urünün 2006/42/EC, 2004/108/EC ve 2000/14/EC direktiflerine uygun olduğunu beyan ederiz.Aşagídaki standartlar dikkate alinmıştır.ISO 7112/7113/7916/7918/8380/11682 (EN ISO 12100-1/2, EN ISO 11806: 2011)Ek V (2000/14/EC): Gürültü emisyonları hakkında bilgi için, teknik özellikler bölümüne bakin.Hitachi Koki Europe Ltd. Avrupa Standartlar Mūdürü, teknik dosyayı hazırlama yetkisine sahiptir.Bu beyan, üzerinde CE işareti bulunan ürünler için geçerfidir. | |
| Ελληνικά | ΕΚ ΔΗΛΩΣΗ ΕΝΑΡΜ ΝΙΣΜ Υ(Εφαρμόζεται μόνο για την Ευρώπη)Δηλώνουμε με δική μας ευθύνης ότι το παρόν προϊόν συμφωνεί με τις Οδηγίες 2006/42/EC, 2004/108/EC και 2000/14/EC.Tα παροκάτω πρότυπα έχουν ληφθεί υπόψην.ISO 7112/7113/7916/7918/8380/11682 (EN ISO 12100-2, EN ISO 11806: 2011)Παράρτημα V (2000/14/EC): Για πληροφορίες σχετικά με την εκπομπή θορύβου, βλέπε τις προδιαγραφές του κεφαλαιου.Ο υπεύθυνος για τα ευρωπαϊκά πρότυτα στην Hitachi Koki Europe Ltd. είναι εξουσιοδοτημένος να συντάσσει τον τεχνικό φάκελο.Αυτή η δήλωση ισχύει στο προϊόν με το σημάδι CE. | Română | DECLARATIE DE CONFORMITATE CE(Valabil numai pentru Europa)Declarăm pe propria noastră răspundere că acest produs se conformează prevederilor Directivelor CE/42/2006, CE/108/2004 și CE/14/2000.S-a ținut cont de următoarele standarde.ISO 7112/7113/7916/7918/8380/11682 (EN ISO 12100-1/2, EN ISO 11806: 2011)Anexa V (2000/14/EC): Pentru informații legate de emisiile de zgomote, vedeți specificațiile capitolului.Managerul pentru standarde euopene al Hitachi Koki Europe Ltd. este autorizat să întocmească fișa tehnică.Prezenta declarație se referă la produsul pe care este aplicat semnul CE. | |
| Polski | DEKLARACJA ZGODNOŚCI Z ECO(Týlko dla Europy)Oświadczamy z pełną odpowiedzialnością, że niniejszy produkt spełnia wymogi Dyrektyw 2006/42/EC, 2004/108/EC i 2000/14/EC.Uwzględniono również następujące normy.ISO 7112/7113/7916/7918/8380/11682 (EN ISO 12100-1/2, EN ISO 11806: 2011)Załącznik V (2000/14/EC): Informacje na temat poziomu halasu znajdują się w części Specyfi kacje.Menedżer Standardów Europejskich w firmie Hitachi Koki Europ Ltd. Jest upoważniony do kompilowania pliku technicznego.To oświadczenie odnosi się do załączonego produktu z oznaczeniami CE. | Slovenščina | EC DEKLARACIJA O SKLADNOSTI(Velja le za Evropo)S polno odgovornostjo izjavljamo, da je ta izdelek v skladu z Direktivami 2006/42/EC, 2004/108/EC in 2000/14/EC.Upoštevani so bili naslednji standardi:ISO 7112/7113/7916/7918/8380/11682 (EN ISO 12100-1/2, EN ISO 11806: 2011)Dodatek V (2000/14/EC): Za informacije v zvezi z emisijami hrupa glejte specifikacije poglavja.Direktor za evropske standarde podjetja Hitachi Koki Europe Ltd. je pooblaščen za sestavljanje tehničnih datotek.Deklaracija je označena na izdelku s pritrjeno CE označbo. | |
| Magyar | EU MEGFELELŐSÉGI NYILATKOZAT(Csak Európára vonatkozik)Kizárólagos felelősségünk tudataban kijelentjük, hogy ez a termék megfelel a 2006/42/EC, 2004/108/EC és 2000/14/EC irányelveknek.Az alábbi szabványokat vettük fi gyelembe:ISO 7112/7113/7916/7918/8380/11682 (EN ISO 12100-1/2, EN ISO 11806: 2011)V függelék (2000/14/EC): A zajkibocsátási adatokat illetően tekintse meg a Műszaki adatok c. fejezetet.Az Hitachi Koki Europe Ltd. Európai Szabványkezelője fel van hatalmazva a műszaki fájl elkészítésére.Jelen nyllatkozat a terméken feltüntetett CE jelzésre vonatkozik. | Русский | ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ ЕС(Только для Европы)Заявляем в рамках нашей исключительной ответственности, что данный продукт соответствует Директивам 2006/42/EC, 2004/108/EC и 2000/14/EC.Приняты во внимание следующие стандарты.ISO 7112/7113/7916/7917/7918/8380/11682 (EN ISO 12100-2, EN ISO 11806: 2011)Приложение V (2000/14/EC): Для информации относительно шумоизлучения, смотрите соответствующую главу спецификации.Менеджер отдела европейских стандартов качества компании Hitachi Koki Europe Ltd. имеет право составлять технический файл.Данная декларация относится к изедлиям, на которых имеется маркроика CE. | |
| Representative offi ce in EuropeHitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich 1, F. R. GermanyTechnical fi le at:Hitachi Koki Europe Ltd.Clonshaugh Business & Technology Park, Dublin 17, IrelandHead offi ce in JapanHitachi Koki Co., Ltd.Shinagawa Intercity Tower A, 15-1, Konan 2-chome,Minato-ku, Tokyo, Japan | ||||
Hitachi Koki Co., Ltd.
- MEANINGS OF SYMBOLS
- Contents
- WHAT IS WHAT
- WARNINGS AND SAFETY INSTRUCTIONS
- Operator safety
- WARNING
- Unit/machine safety
- Fuel safety
- Cutting safety
- Maintenance safety
- Transport and storage
- CAUTION
- NOTE
- ASSEMBLY PROCEDURES
- Drive shaft to engine (Fig. 1)
- Installation of attachment
- Installation of handle
- Throttle wire / stop cord
- Installation of blade guard (Fig. 9, 10, 10-1, 11)
- Installation of cutting attachment
- Installation of semi-auto cutting head
- Function
- Precautions
- Installation (Fig. 15)
- Adjusting line length
- Installation of cutting blade (Fig. 18)
- OPERATING PROCEDURES
- Fuel (Fig. 20)
- Fuel
- Fueling
- Starting
- Cutting (Fig. 26, 27, 28)
- Stopping (Fig. 29, 30)
- Semi-auto cutting head
- MAINTENANCE
- Carburetor adjustment (Fig. 31)
- T = Idle speed adjustment screw.
- Idle speed adjustment (T)
- Air fi Iter (Fig. 32)
- Cleaning the air fi Iter
- Fuel fi Iter (Fig. 33)
- Spark plug (Fig. 34)
- Flexible drive shaft (Fig. 35)
- Angle transmission (Fig. 36)
- Nylon line replacement
- Blade (Fig. 43)
- Maintenance schedule
- Daily maintenance
- Weekly maintenance
- Monthly maintenance
- TROUBLESHOOTING
- SYMBOLBEDEUTUNGEN
- FIGYELMEZTETÉSEK ÉS BIZTONSÁGI ÓVINTÉZKEDÉSEK
- VAROVÁNÍ A BEZPEČNOSTNÍ POKYNY
- Bezpečnost obsluhy
- AVERTISMENTE ŞI INSTRUCTIUNI DE SIGURANTĂ
- OPOZORILA IN VARNOSTNA NAVODILA
- Varnost upravljavca
- Rezanje (Sl. 26, 27, 28)
- ДЕТАЛИ УСТРОЙСТВА
- Hitachi Koki Co., Ltd.
Brand : HITACHI
Model : CG 27EAS (S)
Category : Hedge Trimmer
