| Product Type | Hedge Trimmer |
| Brand | Hitachi |
| Model | CG 22EAS (S) |
| Engine Type | 2-stroke gasoline |
| Engine Displacement | 22 cc |
| Power Output | 0.8 kW / 1.1 hp |
| Blade Length | 62 cm (24 in) |
| Cutting Capacity | Up to 25 mm diameter |
| Fuel Tank Capacity | 0.4 L |
| Weight (without fuel) | 4.7 kg |
| Anti-Vibration System | Yes |
| Starting System | Easy Start (EAS) recoil |
| Hand Protection | Front and rear hand guards |
| Air Filter | Washable foam element |

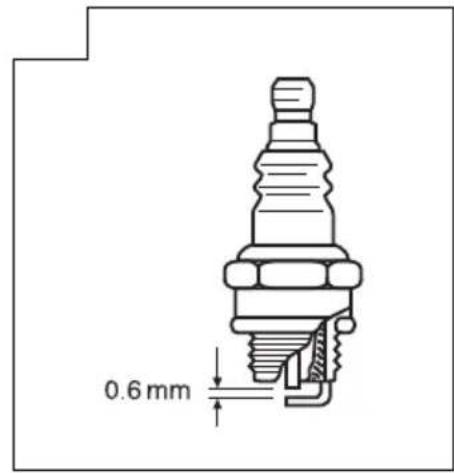

| Spark Plug Type | NGK BPMR7A |
| Blade Speed (no load) | 3000 - 3500 rpm |
| Fuel Mixture Ratio | 50:1 (gasoline: 2-stroke oil) |
| Maintenance | Clean air filter every 10 hours, sharpen blades regularly |
| Safety Features | Throttle lock, stop switch, blade cover |
| Repair & Spare Parts | Contact authorized Hitachi service centers for genuine parts |
Frequently Asked Questions - CG 22EAS (S) HITACHI

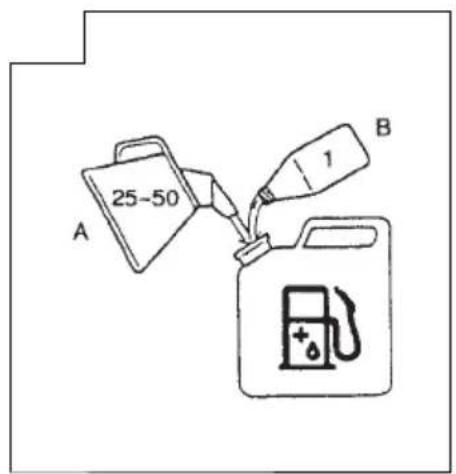

What type of fuel does the Hitachi CG 22EAS (S) use?
It uses a mixture of unleaded gasoline and 2-stroke engine oil at a ratio of 50:1.

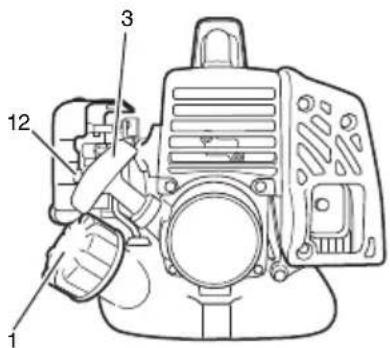

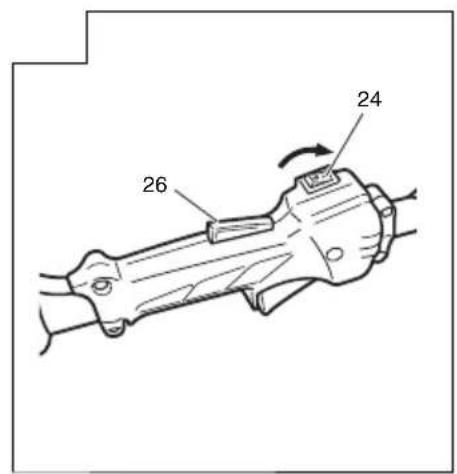

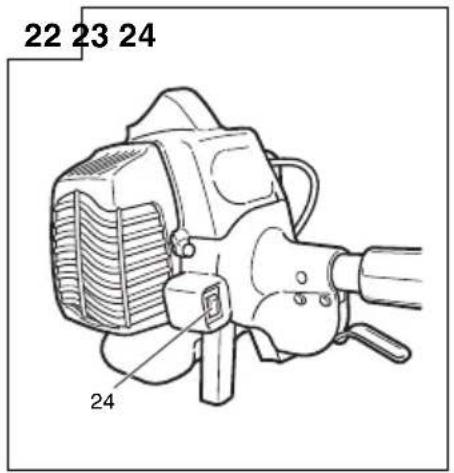

How do I start the hedge trimmer?

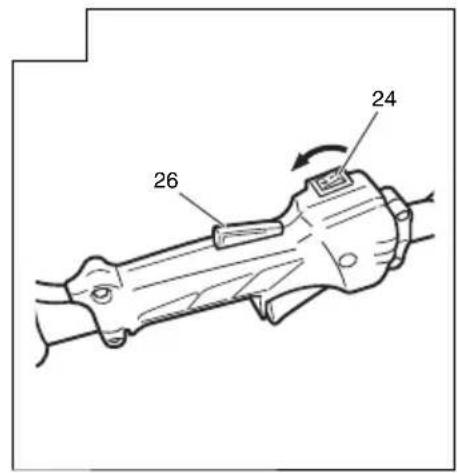

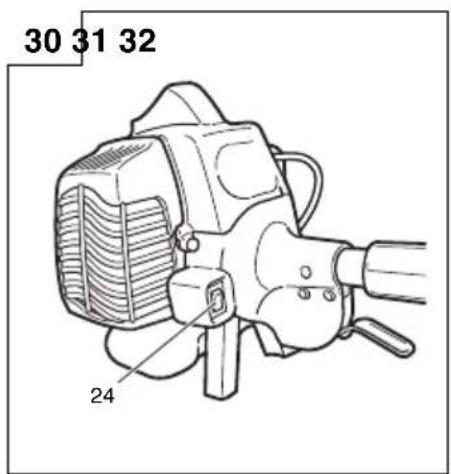

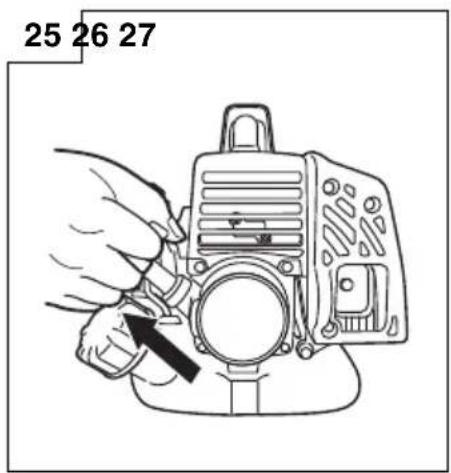

Ensure the stop switch is in the 'I' position, press the primer bulb 5-6 times, set the choke, and pull the starter cord briskly. Once the engine fires, open the choke and continue pulling to start.
What is the blade length?
The blade length is 62 cm (24 inches), ideal for medium to large hedges.

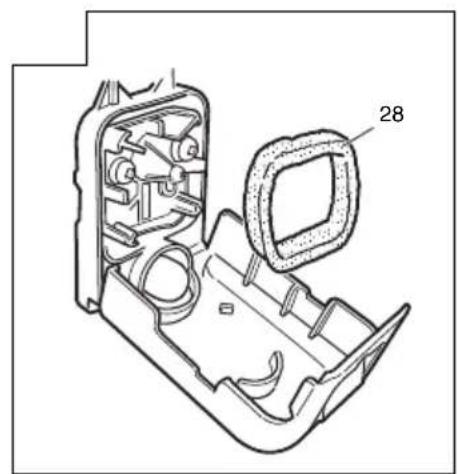

How often should I clean the air filter?
Clean the foam air filter every 10 hours of use, or more frequently in dusty conditions.

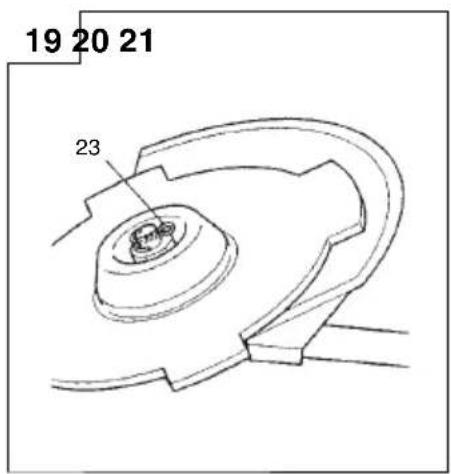

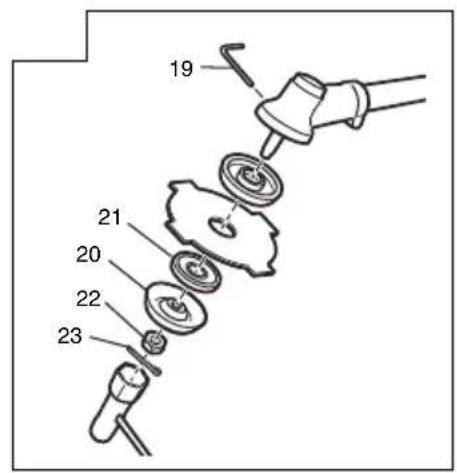

Can I replace the blades myself?
Yes, but follow the manual carefully. Ensure the engine is off and spark plug disconnected. Use only genuine Hitachi replacement blades.
What is the recommended maintenance schedule?
After each use: clean the trimmer, check for loose bolts. Every 10 hours: clean air filter. Every 25 hours: replace spark plug, clean fuel filter. Annually: check carburetor and fuel lines.
Why does the engine start but then stop?
Possible causes: stale fuel, dirty air filter, or incorrect choke operation. Try fresh fuel, clean the air filter, and ensure choke is fully open after cold start.
How do I store the hedge trimmer for winter?
Drain the fuel tank and run the engine until it stops to empty the carburetor. Clean the unit, remove the spark plug, add a teaspoon of oil into the cylinder, pull the cord slowly, then reinstall the plug. Store in a dry place.
What safety gear should I wear?
Always wear safety glasses, hearing protection, gloves, long trousers, and sturdy boots. Use a hard hat if working overhead.

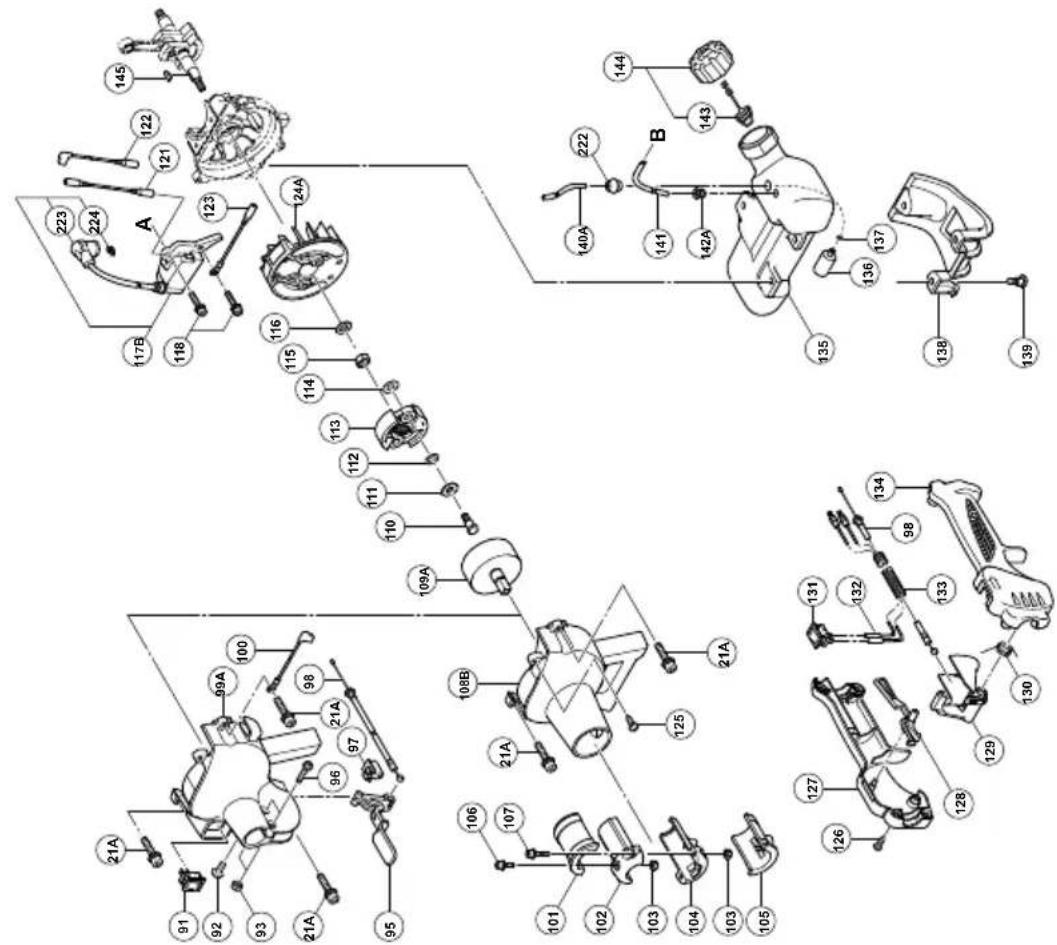

Where can I find spare parts?
Genuine Hitachi spare parts are available at authorized service centers. You can also check online retailers, but ensure parts are compatible with the CG 22EAS (S) model.
