Product type	Cordless drill
Brand	Hitachi
Model	DV 14DVA
Rated voltage	14.4 V
Battery type	Ni-Cd
Battery capacity	1.5 Ah (typical)
No load speed (speed 1)	0 - 600 rpm
No load speed (speed 2)	0 - 1800 rpm
Max torque	30 Nm
Drilling capacity (steel)	10 mm
Drilling capacity (wood)	25 mm
Chuck type	Keyed chuck, 10 mm
Weight (with battery)	1.5 kg
Dimensions (L x W x H)	200 x 65 x 180 mm
Power source	Rechargeable Li-Ion or Ni-Cd battery
Charger included	Yes
Charge time	Approximately 1 hour
Main functions	Drilling, screwdriving, hammer drilling
Maintenance and cleaning	Clean with a dry cloth; lubricate the chuck
Safety	Chuck brake, spindle lock, auxiliary handle
Spare parts and repairability	Available at authorized dealers; repair by professional
Warranty	1 year

Frequently Asked Questions - DV 14DVA HITACHI

How to charge the battery of the Hitachi DV 14DVA?

Place the battery on the supplied charger. Plug the charger into a mains outlet. The red light indicates charging; when it turns green, the battery is full. Then unplug the charger.

What is the battery life?

Battery life depends on usage. With a 1.5 Ah Ni-Cd battery, expect about 20 to 30 minutes of continuous drilling. To extend battery life, avoid complete discharges.

How to adjust the rotation speed?

The trigger allows progressive speed adjustment. To change the range, use the speed selector (1 or 2) located on top of the drill.

How to reverse the rotation direction?

Use the forward/reverse switch located above the trigger. Push it left for forward, right for reverse.

How to change the chuck?

The chuck is keyed. Open the chuck by turning the sleeve. Insert the key into the holes and turn to loosen. Replace the bit, then tighten with the key.

Can I use the drill in hammer mode?

Yes, the DV 14DVA has a hammer mode for drilling into brick or concrete. Activate it by turning the mode selector to the hammer symbol.

How to clean the drill?

Disconnect the battery. Clean the housing with a slightly damp cloth. Never use abrasive products. Lightly lubricate the chuck with oil.

What to do if the drill does not start?

Check that the battery is charged and correctly inserted. Make sure the direction switch is not in neutral position. If the problem persists, contact an authorized service.

Where to find spare parts for the DV 14DVA?

Spare parts are available at authorized Hitachi dealers or online. For repairs, it is recommended to call a professional.

What is the maximum drilling capacity in steel?

The drill can drill up to 10 mm diameter in steel and up to 25 mm in wood. Use appropriate bits and lubricate for hard materials.

USER MANUAL DV 14DVA HITACHI

Line drawing of a handheld electric drill press (no text or symbols)

Read through carefully and understand these instructions before use.

Parts are subject to possible modification without notice due to improvements.

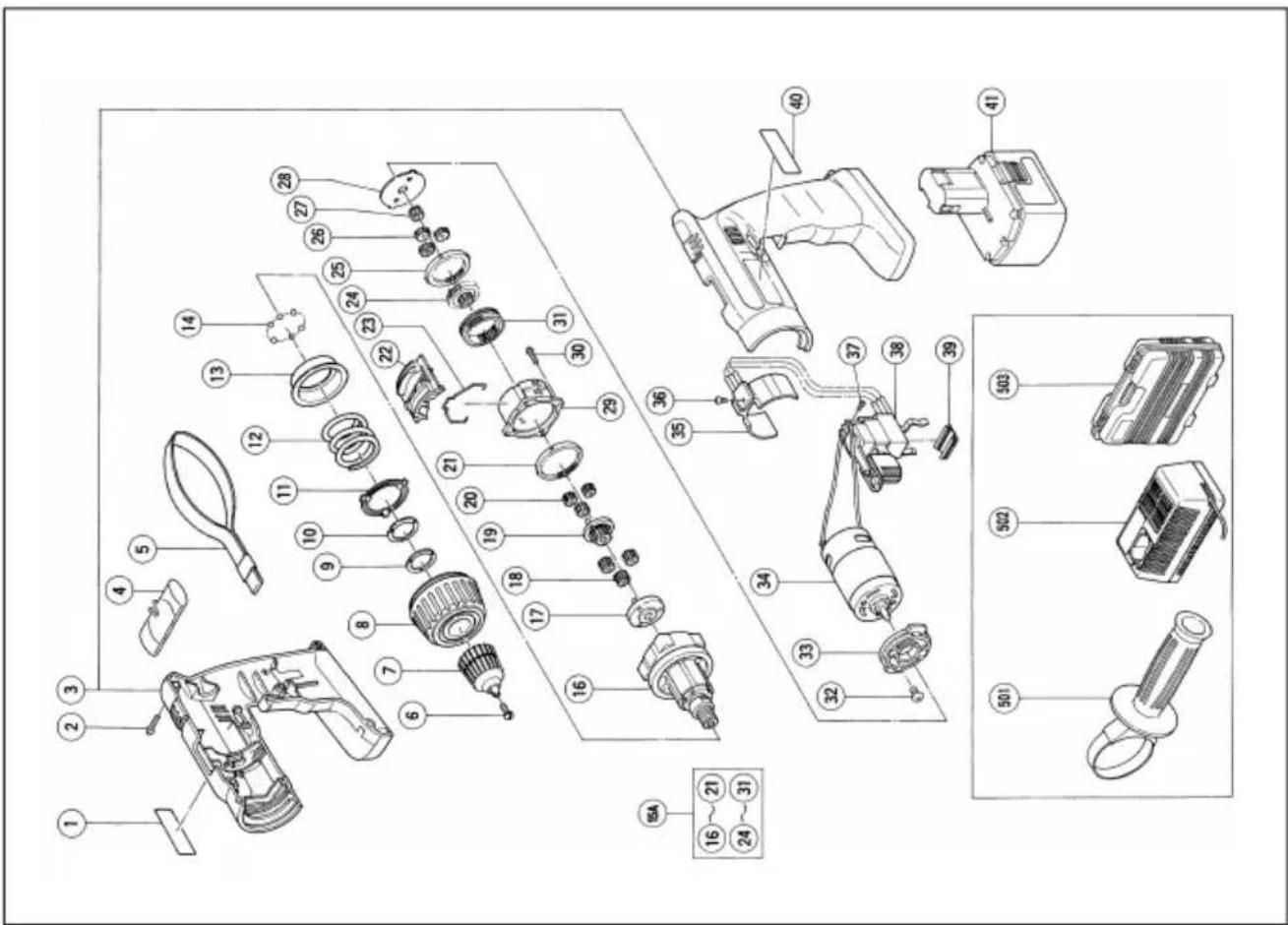

Item No.	Part Name
1	Name Plate
2	Tapping Screw (W/Flange) D3×18
3	Housing Set
4	Push Button
5	Strap
6	Left-Hand Screw M6
7	Keyless Drill Chuck
8	Cap
9	O-Ring
10	O-Ring Plate
11	Clutch Plate
12	Spring
13	Spring Holder
14	Steel Ball
15A	Spindle Gear Ass'y
16	Spindle Set
17	Carrier
18	Planet Gear (C) Set
19	Pinion (C)
20	Planet Gear (B) Set
21	Ring Gear (B)
22	Shift Knob
23	Shift Arm
24	Pinion (B)
25	First Ring Gear
26	Planet Gear (A) Set
27	Pinion
28	Plate
29	Rear Case
30	Tapping Screw M5×15

1

2

3

4

5

6

7

8

9

	English Deutsch Français
1	Rechargeable battery Akkumulator	Batterie rechargeable
2	Latch Verriegelung Taquet
3	Nameplate Typenschild Plaque signalétique
4	Pull out Herausziehen Tirer vers l'extérieur
5	Insert Einsatzen Insérer
6	Handle Handgriff Poignée
7	Push Drücken Pousser
8	Insert Einsetzen Insérer
9	Pilot lamp Kontrollampe	Lampe témoin
10	Hole for connecting the rechargeable battery	Anschlußloch für Akkumulator	Orifice de raccordement de la batterie rechargeable

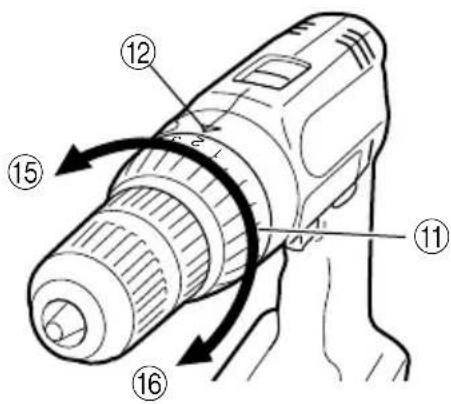

11	Cap	Kappe	Capot
12	Triangle mark	Dreieckmarkierung	Repère triangulaire
13	←→ mark -Markierung	←→ Repère	←→
14	T mark -Markierung	T Repère	T
15	Weak	Schwach	Faible
16	Strong	Stark	Fort

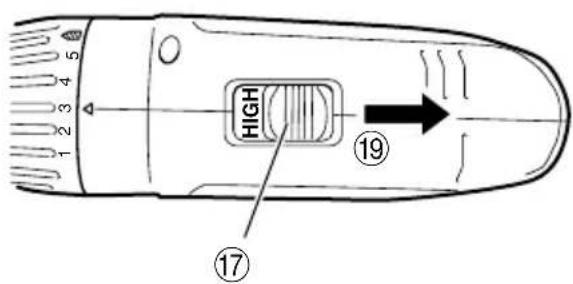

17	Shift knob	Schaltknopf	Bouton de décalage
18	Low speed	Kleine geschwindigkeit	Vitesse ralentie
19	High speed	Große geschwindigkeit	Vitesse élevée
20	Ring	Ring	Anneau
21	Sleeve	Manschette	Manchon
22	Tighten Anziehen	Serrer
23	Loosen	Lösen	Desserrer
24	Selector button	Wahlknopf	Bouton de sélection
25	Trigger switch	Trigger	Déclencheur
26	(R) and (L) marks	(R) und (L) zeichen	Indices (R) et (L)
	Italiano Nederlands Español
1	Batteria ricaricabile Oplaadbare accu Batería recargable
2	Fermo Vergrendeling Cierre
3	Etichetta del nome Naamplaatje Placa de características
4	Estrarre Uittrekken Sacar
5	Inserire Insteken Insertar
6	Impugnatura Handgreep Asidero
7	Spingere Drukken Presionar
8	Inserire Insteken Insertar
9	Spia	Kontrolelampje	Lámpara piloto
10	Foro di collegamento della bat- teria ricaricabili	Aansluiting voor oplaadbare accu	Agujero para conectar la batería la recargable
11	Tappo	Kap	Tapa
12	Segno del triangolo	Driehoek marking	Marca triangular
13	Segno 🔊	marketing	Marca 🔊
14	Segno T	markering Marca	T
15	Debol	Zwak	Débil
16	Forte	Sterk	Fuerte
17	Manopola di comando	Toerenschakelaar	Mando de cambio
18	Bassa velocità Lage toerental	Velocidad alta
19	Alta velocità	Hoog toerental	Velocidad baja
20	Anello Ring	Anillo
21	Collare	Klembus	Manguito
22	Stringere	Aandraaien	Apretar
23	Allentare Losdraaien Aflojar
24	Tasto di selezione	Keuzetoets	Botón selector
25	Interruttore	Trekkerschakelaar	Conmutador de gatillo
26	Segno R, L	R en L merktekens	Marcas R y L

GENERAL OPERATIONAL PRECAUTIONS

1. Keep work area clean. Cluttered areas and benches invite accidents.
2. Avoid dangerous environment. Don't expose power tools and charger to rain. Don't use power tools and charger in damp or wet locations. And keep work area well lit. Never use power tools and charger near flammable or explosive materials. Do not use tool and charger in presence of flammable liquids or gases.
3. Keep children away. All visitors should be kept safe distance from work area.
4. Store idle tools and charger. When not in use, tools and charger should be stored in dry, high or locked-up place-out of reach of children. Store tools and charger in a place where the temperature is less than 40^ C.
5. Don't force tool. It will do the job better and safer at the rate for which it was designed.
6. Use right tool. Don't force small tool or attachment to do the job of a heavy duty tool.
7. Wear proper apparel. Do not wear clothing or jewelry. They can be caught in moving parts. Rubber gloves and footwear are recommended when working outdoor.
8. Use eye protection with most tools. Also use face or dust mask if cutting operation is dusty.
9. Don't abuse cord. Never carry charger by cord or yank it to disconnect from receptacle. Keep cord from heat, oil and sharp edges.
10. Secure work. Use clamps or a vise to hold work. It's safer than using your hand and it frees both hands to operate tool.
11. Don't overreach. Keep proper footing and balance at all times.
12. Maintain tools with care. Keep tools sharp at all times, and clean for best and safest performance. Follow instructions for lubricating and changing accessories.
13. When the charger is not in use, or when being maintained and inspected, disconnect its power cord from the AC outlet.
14. Remove chuck wrenches and wrenches. Form habit of checking to see that wrenches are removed from tool before turning it on.
15. Avoid accidental starting. Don't carry tool with finger on switch.
16. To avoid danger, always use only the specified charger.
17. Use only genuine HITACHI replacement parts.
18. Do not use power tools for applications other than those specified in the Handling Instructions.
19. To avoid personal injury, use only the accessories or attachment recommended in these handling instructions or in the HITACHI catalog.
20. Let only the authorized service facility do the repairing. The Manufacturer will not be responsible for any damages or injuries caused by repair by the unauthorized persons or by mishandling of the tool.
21. To ensure the designed operational integrity of power tools and charger, do not remove installed covers or screws.

22. Always use the charger at the voltage specified on the nameplate.

23. Do not touch movable parts or accessories unless the battery has been removed.

24. Always charge the battery before use.
25. Never use a battery other than that specified. Do not connect a usual dry cell, a rechargeable battery other than that specified or a car battery to the power tool.
26. Do not use any transformer that has a booster.
27. Do not charge the battery from an engine electric generator or DC power supply.
28. Always charge indoors. Because the charger and battery heat slightly during charging, charge the battery in a place not exposed to direct sunlight; where the humidity is low and the ventilation good.
29. When working in a high place, pay attention to the activities below to make sure there are no people below.
30. Use the exploded assembly drawing on this handling instructions only for authorized servicing.

PRECAUTIONS FOR CORDLESS IMPACT DRILL

1. Always charge the battery at a temperature of 0 – 40°C. A temperature of less than 0°C will result in over charging which is dangerous. The battery cannot be charged at a temperature higher than 40°C. The most suitable temperature for charging is that of 20 – 25°C.
2. Do not use the charger continuously.
   When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.
3. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.
4. Never disassemble the rechargeable battery and charger.
5. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.
6. Do not dispose of the battery in fire.
   If the battery is burnt, it may explode.
7. When drilling into wall, floor or ceiling, check for buried electric power cable, gas pipe, etc.
8. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.
9. Using an exhausted battery will damage the charger.
10. Do not insert foreign object into the air ventilation slots of the charger.
    Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.
11. When mounting a bit into the keyless chuck, tighten the sleeve securely. If the sleeve is not tight, the bit may slip or come off, causing injury.

SPECIFICATIONS

POWER TOOL

Model DV14DVA
No-load speed (Low/High)			0 – 350/0 – 1200/min.
No-load impact rate (Low/High)			0 – 6300/0 – 21600/min.
Capacity	Drilling	Brick (Low/High) 14 mm/	10 mm (Depth 30 mm)
		Wood (Low/High) 30 mm/18 mm (Thickness 18 mm)
		Metal (Low/High) 13 mm/	6.5 mm (Thickness 1.6 mm)
	Driving	Machine screw 6 mm
		Wood screw (Low/High)	6.8 mm (diameter) × 63 mm (length)/4.8 mm (diameter) × 40 mm (length)
Rechargeable battery (EB14B) Ni-Cd battery, 14.4 V
Weight 2.3 kg

CHARGER

Model UC14YF / UC14YF2
Charging voltage 7.2 V – 14.4 V
Weight 1.3 kg

STANDARD ACCESSORIES

DV14DVA
	1 Charger (UC14YF or UC14YF2) ...... 12 Plastic case ...... 1

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

1. Battery (EB14S, EB14B, EB14H)

Line drawing of a battery pack with a cylindrical top and side slots (no text or symbols)

1. Side handle

Technical line drawing of a mechanical component with flanged ends and threaded shaft (no text or symbols)

1. Hexagon socket (for nuts and bolts)

Socket No.	Screw size
7	4 mm
8	5 mm
10	6 mm

Socket No.

1. Drill bit for brick

Diameter, 6.5 mm, 8 mm, 9.5 mm, 10 mm

Optional accessories are subject to change without notice.

APPLICATIONS

○Drilling of brick and concrete block, etc.
○Driving and removing of machine screws, wood screws, tapping screws, etc.
○Drilling of various metals.
○Drilling of various woods.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latch to remove the battery (see Figs. 1 and 2).

CAUTION

Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see Fig. 2).

CHARGING

Before using the impact drill, charge the battery as follows.

1. Connect the charger's power cord to a receptacle. When the power cord is connected, the charger's pilot lamp will blink in red. (At 1-second intervals).
2. Insert the battery into the charger.

Position the battery so that the nameplate faces toward the caution plate of the charger and push in the battery until it contacts the bottom plate. (See Figs. 1 and 3.)

CAUTION

○If the batteries are inserted in the reverse direction, not only recharging will become impossible, but it may also cause problems in the charger such as a deformed recharging terminal.

3. Charging

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red.

When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals.) (See Table 1)

(1) Pilot lamp indication

The indications of the pilot lamp are shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the pilot lamp
Before charging	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
While charging	Lights (RED)	Lights continuously
Charging complete	Blinks (RED)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
Charging impossible	Flickers (RED)	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or the charger
Charging impossible	Lights (GREEN)	Lights continuously	The battery temperature is high, making recharging impossible.

(2) Regarding the temperatures of the rechargeable battery.

The temperatures for rechargeable batteries are as shown in the table below, and batteries that have become hot should be cooled for a while before being recharged.

Table 2 Recharging ranges of batteries

Rechargeable batteries which the battery can be recharged
EB14S, EB14B	-5°C - 60°C
EB14H	0°C - 45°C

(3) Regarding recharging time

Depending on the combination of the charger and batteries, the charging time will become as shown in Table 3.

Table 3 Charging time (At 20°C)

Battery\Charger	UC14YF UC14	YF2
EB14S Approx.	45 min. Approx.	45 min.
EB14B Approx.	60 min. Approx.	60 min.
EB14H – Approx.	70 min.

NOTE

The charging time may vary according to temperature and power source voltage.

1. Disconnect the charger's power cord from the receptacle.
2. Hold the charger firmly and pull out the battery.

NOTE

After operation, pull out batteries from the charger first, and then keep the batteries properly.

Regarding electric discharge in case of new batteries, etc.

As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be short when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times.

How to make the batteries perform longer.

(1) Recharge the batteries before they become completely exhausted.

When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

(2) Avoid recharging at high temperatures.

A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has been cooled for a while.

CAUTION

○If the battery has been heated right after operation (or due to sunlight, etc.), the charger's pilot lamp may not light in red. In such a case, first let the battery cool, then start charging.

When the pilot lamp flickers in red quickly (at 0.2-second intervals), check for and take out any foreign objects in the charger's battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

○Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC14YF/UC14YF2 is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

PRIOR TO OPERATION

1. Setting up and checking the work environment

Check if the working environment is suitable by following the precautions.

HOW TO USE

1. Confirm the cap position

The three modes of screwdriver, drill and impact drill can be switched by the position of the cap in this tool.

(1) When the tool is used as a screwdriver, align the number displayed on the cap from "1" to "5" to the triangle mark of the housing.

(2) When the tool is used as a drill, align the drill mark "###" displayed on the cap to the triangle mark of the housing.

(3) When the tool is used as an impact drill, align the hammer mark "T" displayed on the cap to the triangle mark of the housing. (See Figs. 4, 5.)

CAUTION

Align the number and mark on the cap to the triangle mark of the housing. The middle point of the numbers and marks on the cap cannot be secured.

1. Tightening torque adjustment

(1) Tightening torque

Tightening torque should correspond in its intensity to the screw diameter. When too strong power is used, the screw head may be broken or be injured. Be sure to adjust the cap position according to the screw diameter.

(2) Tightening torque indication

Tightening torque should be changed according to the screw type and the materials to be tightened. Guidance of the tightening torque is indicated on the cap of this unit with numerals "1", "2", "3", "4" and "5". The minimum power is from "1" position and bigger numeral is the stronger power (see Figs. 4, 5).

(3) How to adjust the tightening torque

Rotate the cap and set to one of the numerals. Adjust the torque by cap rotation in such a way that when the torque is too strong, set to the next smaller numeral and set to the next larger numeral when too weak.

CAUTIONS

○The motor rotation may be locked to cease while the unit is used as drill. While operating the impact drill, take care not to lock the motor.

○Too long hammering may cause the screw broken due to excessive tightening.

1. Rotation to Impact changeover (See Figs. 4, 5). The "Rotation (Rotation only)" and "Impact (Impact + Rotation)" can be switched by aligning the drill mark "###" or the hammer mark "T" to the triangle mark of the housing.

To make holes in the metal, wood or plastic, switch to "Rotation (Rotation only)".

To make holes in bricks or concrete blocks, switch to "Impact (Impact + Rotation)".

CAUTION

If an operation which is normally performed at the "Rotation" setting is performed at "Impact" setting, the effect of making holes does not only increase but it may also damage the bit or other parts.

1. Change rotation speed

Operate the shift knob to change the rotational speed. Move the shift knob in the direction of the arrow (see Figs. 6 and 7).

When the shift knob is set to "LOW" (low speed), the drill rotates at a low speed. When set to "HIGH" (high speed), the drill rotates at a high speed.

CAUTION

○When changing the rotational speed with the shift knob, confirm that the switch is off. Changing the speed while the motor is rotating will damage the gears.

When setting the shift knob to "HIGH" (high speed) and the position of the cap is "4" or "5", it may happen that the clutch does not engage and that the motor is locked. In such a case, please set the shift knob to "LOW" (low speed).

○If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.

5. The scope and suggestions for uses

The usable scope for various types of work based on the mechanical structure of this unit is shown Table. 4.

Table 4

Work Usable range Suggestions
Drilling	Brick: 14 mm	Use for drilling purposes.
	Wood: 30 mm
	Steel: 13 mm
	Aluminun: 13 mm
Driving Nut:	Machine screw: 6 mm	Use the bit and socket matching the screw diameter.
	6 mm
	Wood screw: 6.8 mm (diameter) × 63 mm (length)	Use after drilling a pilot hole.

6. How to select tightening power and rotational speed

Table 5

Use Cap Position Low Speed High Speed
Driving	Machine screw 1 –	5	For 4 mm or smaller diameter screws.	For 6 mm or smaller diameter screws.
	Wood screw 1 – 5		For 6.8 mm or smaller diameter screws.	For 4.8 mm or smaller diameter screws.
Drilling	Wood	[WWXV]	For 14 mm or smaller diameters.	For 10 mm or smaller diameters.
	Wood	[25v]	For 30 mm or smaller diameters.	For 18 mm or larger diameters.
	Metal	[###]	Drill dia. 13 mm min.	Drill dia. 6.5 mm max.

CAUTION

The selection examples shown in Table 5 should be considered as general standard. As different types of tightening screws and different materials to be tightened are used in actual works proper adjustments are naturally necessary.

7. Mounting and dismounting of the bit.

(1) Mounting the bit

After inserting a driver bit, etc. into the keyless drill chuck, firmly grasp the ring and tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front). (See Fig. 8)

○If the sleeve becomes loose during operation, tighten it further. The tightening force becomes stronger when the sleeve is tightened moreover.

(2) Dismounting the bit

Firmly grasp the ring and loosen the sleeve by turning it toward the left (in the counter-clockwise direction as viewed from the front). (See Fig. 8)

CAUTION:

When it is no longer possible to loosen the sleeve, use a vise or similar device to secure the bit. Set the clutch mode between 1 and 3 and then turn the sleeve to the loose side (left side) while operating the clutch. It should be easy now to loosen the sleeve.

8. Confirm that the battery is mounted correctly.

9. Check the rotational direction

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the selector button. The L-side of the selector button is pushed to turn the bit counterclockwise. (See Fig. 9). (The ^L and ^R marks are engraved on the body.)

CAUTION:

Always use the impact drill with clockwise rotation, when using it as an impact drill.

10. Switch operation

When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops.

☐The rotational speed of the drill can be controlled by varying the amount that the trigger is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.

○When releasing the trigger of the switch, the brake will be applied for immediate stopping.

11. For drilling into brick

Excessive pressing force never increases drilling speed. It will not only damage the drill tip or reduce working efficiency, but could also shorten the service life of drill bit. Operate the impact drill within 10-15 kg pressing force while drilling into brick.

NOTE

The use of the battery EB14H in a cold condition (below 0 degree Centigrade) can sometimes result in the weakened tightening torque and reduced amount of work. This, however, is a temporary phenomenon, and returns to normal when the battery warms up.

MAINTENANCE AND INSPECTION

1. Inspecting the tool

Since use of as dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Cleaning on the outside

When the impact drill is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

4. Storage

Store the impact drill in a place in which the temperature is less than 40^ C and out of reach of children.

NOTE

Due to HITACHI's continuing program of research and development, the specifications herein are subject to change without prior notice.

IMPORTANT

Correct connection of the plug

The wires of the mains lead are coloured in accordance with the following code:

Blue: -Neutral

Brown: -Live

As the colours of the wires in the mains lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red.

Neither core must be connected to the earth terminal. NOTE

This requirement is provided according to BRITISH STANDARD 2769: 1984.

Therefore, the letter code and colour code may not be applicable to other markets except United Kingdom.

Information concerning airborne noise and vibration The measured values were determined according to EN50144.

The typical A-weighted sound pressure level: 91 dB(A) The typical A-weighted sound power level: 104 dB (A) Wear ear protection.

The typical weighted root mean square acceleration value: 6.0m/s^2

(EB14S, EB14B, EB14H)

Line drawing of a battery pack with no text or symbols

1. Handgriff

Technical line drawing of a mechanical component with flanged ends and threaded shaft (no text or symbols)

Line drawing of a mechanical device with a cylindrical component and housing (no text or symbols)

1. Pignée latérale

Technical line drawing of a mechanical component with flanged ends and threaded shaft (no text or symbols)

(EB14S, EB14B, EB14H)

Line drawing of a battery casing with a handle and mounting bracket (no text or symbols)

1. Inpugnatura laterale

Technical line drawing of a mechanical component with flanged ends and threaded shaft (no text or symbols)

Line drawing of a battery pack with no text or symbols

1. Handgreep

Technical line drawing of a mechanical component with flanged ends and threaded shaft (no text or symbols)

Line drawing of a battery casing with label 'EB14H)' (no other text or symbols)

1. Asidero lateral

Technical line drawing of a mechanical component with flanged ends and threaded shaft (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen with inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Simple line drawing of a quill pen in an inkwell (no text or symbols)

English	EC DECLARATION OF CONFORMITYWe declare under our sole responsibility that this product is in conformity with standards or standard-ized documents EN50144, HD400, EN55014, EN60555 and/or EN50082-1 in accordance with Council Directives 73/23/EEC, 89/392/EEC and/or 89/336/EEC.* This declaration is applicable to the product affixed CE marking.	Italiano	DICHIARAZIONE DI CONFORMITÀ CESi dichiara sotto nostra responsabilità che questo prodotto è conforme agli standard o ai documenti standardizzati EN50144, HD400, EN55014, EN60555 e/o EN50082-1 conforme alle direttive 73/23/CEE, 89/392/CEE e/o 89/336/CEE del concilio.* Questa dichiarazione è applicabile ai prodotti cui sono applicati i marchi CE.
Deutsch	ERKLÄRUNG ZUR KONFORMITÄT MIT CE-REGELNWir erklären mit alleiniger Verantwortung, daß dieses Produkt den Standards oder standardisierten Dokumenten EN50144, HD400, EN55014, EN60555 und/oder EN50082-1 in Übereinstimmung mit den Direktiven des Europarats 73/23/EWG, 89/392/EWG und/order 89/336/EWG entspricht.* Diese Erklärung gilt für Produkte, die die CE-Markierung tragen.	Nederlands	EC VERKLARING VAN CONFORMITEITWij verklaren onder eigen verantwoordelijkheid dat dit produkt conform de richtlijnen of gestandardiseerde documenten EN50144, HD400, EN55014, EN60555 en/of EN50082-1 voldoet aan de eisen van EEG Bepalingen 73/23/EEG, 89/392/EEG en/of 89/336/EEG.* Deze verklaring is van toepassing op produkten voorzien van de CE-markeringen.
Français	DECLARATION DE CONFORMITE CENous déclarons sous notre seule et entière responsabilité que ce produit est conforme aux normes ou documents normalisés EN50144, HD400, EN55014, EN60555 et/ou EN50082-1 en accord avec les Directives 73/23/CEE, 89/392/CEE et/ou 89/336/CEE du Conseil.* Cette déclaration s'applique aux produits désignés CE.	Español	DECLARACIÓN DE CONFORMIDAD DE LA CEDeclaramos bajo nuestra única responsabilidad que este producto está de acuerdo con las normas o con los documentos de normalización EN50144, HD400, EN55014, EN60555 y/o EN50082-1, según indican las Directrices del Consejo 73/23/CEE, 89/392/CEE y/o 89/336/CEE.* Esta declaración se aplica a los productos con marcas de la CE.
Hitachi Power Tools Europe GmbHSiemensring 34, 47877 Willich, F. R. GermanyHitachi Koki Co., Ltd.Nippon Building, 6-2, Ohtemachi 2-chome, Chiyoda-ku, Tokyo, Japan		CE 98K. Mitsuishi

Hitachi Koki Co., Ltd.
