Product type	Hot air fryer
Brand	Arendo
Model	303593
Basket capacity	3,5 L
Power consumption	1500 W
Power supply	220-240 V AC, 50/60 Hz
Temperature range	80 to 200 °C (adjustable in 5 °C increments)
Timer	1 to 60 minutes (in 1-minute increments)
Display	LED screen
Preset cooking programs	8 modes (e.g., chicken drumsticks, meat, fish, fries, muffins, etc.)
Functions	On/Off, program selection, temperature and time adjustment
Basket material	Metal with non-stick coating
Cleaning	Frying basket dishwasher-safe; exterior housing cleanable with a damp cloth
Safety	Automatic shut-off at end of cooking, overheating protection, power cable replaceable by a professional
Dimensions (approx.)	35 x 30 x 35 cm
Weight (approx.)	4.5 kg
Included accessories	Frying basket, frying insert, instruction manual
Warranty	Compliant with WEEE directive 2012/19/EU; registration number DE 67896761

Frequently Asked Questions - 303593 Arendo

How to clean the Arendo 303593 air fryer?

The frying basket and insert are dishwasher-safe. For the exterior housing, use a clean damp cloth. Avoid abrasive cleaners and never immerse the appliance in water. Dry all parts thoroughly after cleaning.

Can I use oil in the hot air fryer?

Yes, but in very small amounts: 1 to 2 tablespoons maximum. The hot air fryer is designed for frying with very little or no oil. Oil is optional depending on the recipe.

How long does it take to preheat the fryer?

For first use, it is recommended to heat the appliance empty for 10 to 15 minutes at 200 °C to remove production residues. Afterwards, preheating is generally integrated into the cooking program.

What to do if the fryer does not start?

Check that the appliance is plugged into a correct power outlet. Make sure you pressed the On/Off button after setting the temperature and time. If the problem persists, check the condition of the power cable.

What are the preset cooking programs?

The appliance offers 8 programs suitable for different foods: chicken drumsticks (15 min at 200 °C), meat (12 min at 200 °C), fish (7 min at 200 °C), bake (20 min at 175 °C), fries (20 min at 200 °C), muffins (15 min at 190 °C), crab (20 min at 175 °C), and vegetables (10 min at 190 °C). You can also adjust manually.

Can I put the basket in the dishwasher?

Yes, the frying basket is dishwasher-safe. Remove food residues before placing it in the dishwasher. The frying insert can also be cleaned this way.

What is the maximum capacity of the basket?

The basket capacity is 3.5 liters. Do not exceed the indicated maximum level to avoid uneven cooking and overflow. For best results, do not overfill the basket.

How to turn off the fryer?

Press the On/Off button to stop the program. You can also unplug the appliance from the power outlet. An audible signal sounds at the end of cooking.

Why is smoke coming out of the appliance?

A slight smoke may occur when using excessive oil or if food residues burn. Clean the basket and insert regularly. If smoke is excessive, turn off the appliance and check that the ventilation vents are not obstructed.

Is the fryer suitable for elderly people?

Yes, the appliance can be used by persons over 8 years of age who have received training on its safe use. People with physical or mental limitations must be supervised. It is not recommended for children under 8 to use it without supervision.

USER MANUAL 303593 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Important safety guidelines for this appliance

- If the power cable is damaged, it should be replaced by the manufacturer, his specialist dealer, or an equally qualified person, so as to prevent any risks.

- Children should use or clean the appliance only under supervision or guidance.

- Caution! In the interest of child safety, do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.

- Children should be supervised to ensure that they do not play with the appliance.

- Operate the appliance in accordance with the voltage specified on the appliance label.

• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Keep it on an suitable surface so that it does not tip over.
• Do not use the appliance outdoors and keep it away from sources of heat (e.g., electric stove) and direct sunlight. Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).
• The appliance is meant exclusively for personal use and for its intended purpose. This appliance is not intended for commercial use.
• Never allow the power cord to come into contact with hot surfaces.
• Do not immerse the appliance in water or any other liquid to safeguard yourself against electrical shocks!

a

• Do not use the product with wet hands.
• Do not move the appliance when it is in operation.
• Stay away from escaping steam. There is a risk of burns!
• Fill the fryer only up to the topmost mark.
• Please do not place the appliance within 30 cm of objects which can be damaged by the escaping steam.

• This appliance may be used by children above the age of 8 years and by people with limited knowledge with regard to its use or by those with sense organ impairment, under the condition that they are monitored and trained in the safe use of the appliance, and are aware of the associated risks.

• Cleaning and maintenance should not be carried out by children, unless they are at least 8 years old and are monitored.

• This appliance is intended for domestic use and similar purposes, such as, e.g.:

-Farms, staff kitchens in shops, offices, and otherwork environments - for guests in hotels, motels, B&Bs and other service apartments

• Please do not connect the appliance to wireless outlets or timers. Use only a properly installed power socket.
• Never operate the appliance unsupervised!
• Do not fill the appliance with oil or cooking oil. There is risk of fire!

aendio

• Use the product only if you have completely read and understood this user manual!
• Do not cover the air outlet at the top and rear of the appliance.

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Hot air fryer
• Container for frying
• User manual

2. Technical data

Power supply 220-240 V	AC, 50/60 Hz
Power consumption 1500 W
Capacity approx. 3.5 litres (frying container)
Features • LED display	Timer function (1-60 minutes in 1 minute increments)Adjustable temperature (80-200°C in 5°C increments)Non-slip base

3. Function

As an ideal kitchen aid, the hot air fryer manufactured by Arendo allows you to fry products such as French fries in whatever way you want. The appliance requires hardly any oil (max. 1-2 tablespoons) or sometimes no oil at all, thereby contributing to a healthier diet. Very large quantities can be fried owing to the high capacity of 3.5 litres.

4. Before initial use

Check that the product and the components are intact and that the appliance is working properly when using it for the first time Take the appliance out of the package and remove all the packaging material. Clean the product before the initial use. Heat the fryer for about 10-15 minutes. This process removes any production residues.

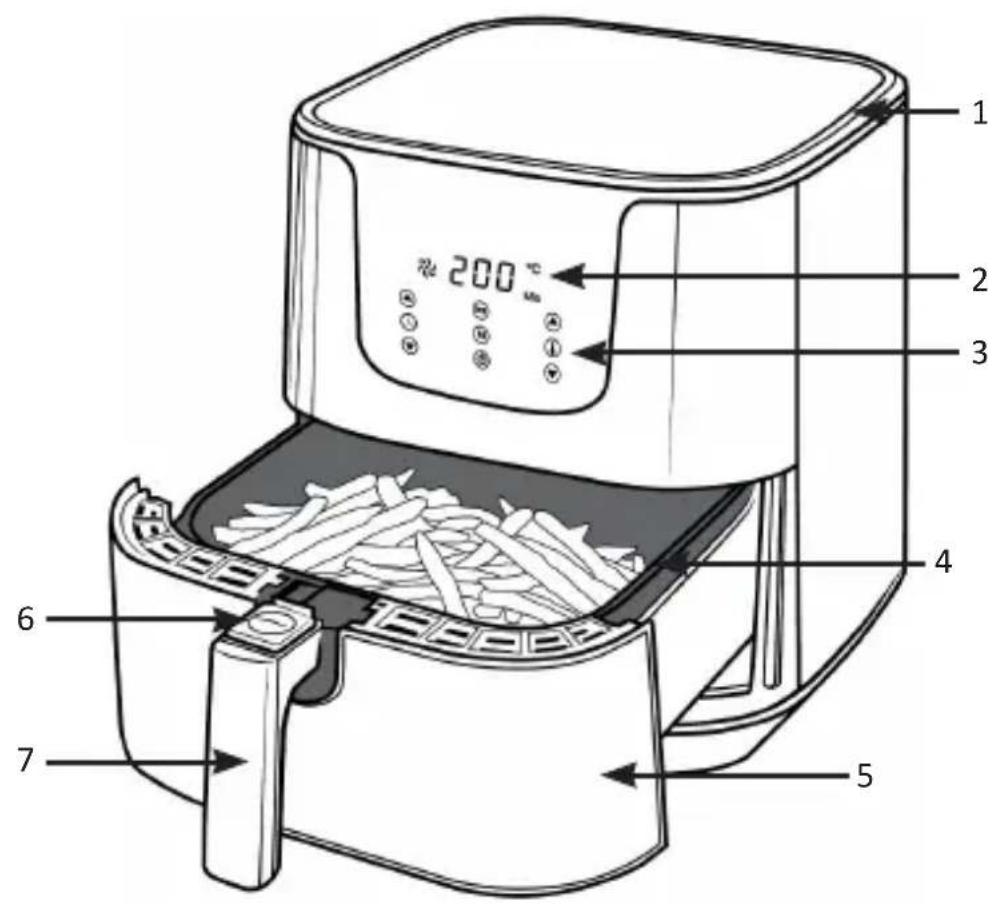

1. Product details


1 Ventilation opening
2 Display
3 Operating controls
4 Container for frying
5 Frying tray
6 Frying container unlocking mechanism
7 Frying container handle
8 Timer +
9 Timer -
10 Start /Stop
11 Programme selection button
12 On/off
13 Temperature +
14 Temperature _

6. Usage

1. Connect the power cable to a properly installed socket.

2. Then remove the frying tray.

3. Place the items in the frying container. Ensure that you do not exceed the maximum mark.

4. Place the frying container + frying tray in the hot air fryer.

5. Press the on/off button on the control panel of the appliance.

6. To start the appliance manually, first select the desired time and temperature using the control elements. Or alternatively select one of the eight modes using the program selection button. The appliance automatically starts the process after 5 seconds, or immediately upon pressing the Start / Stop button (10).

7. The process is completed once you hear 5 beeps in succession. Remove the frying container and place it on a heat-resistant material. Then remove your items.

Note:

-For a better result, we recommend that you stir the container once during the frying process.

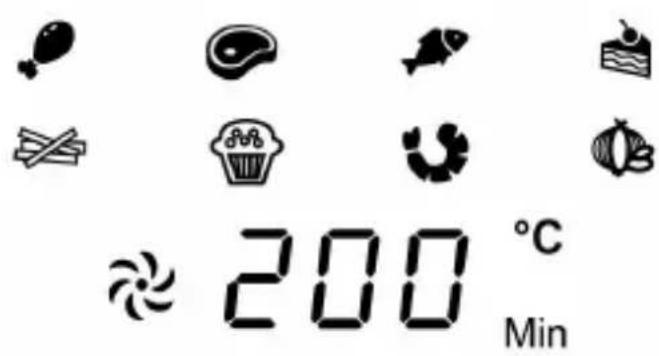

7. Function programs

Please note that these are only sample values which can be adapted as desired.

Food items	Chicken legs Meat Fish Baking
Frying time 15	minutes 12 minutes 7 minutes 20 minutes
Temperature 2	00°C 200°C 200°C 175°C

Food items	French fries	Muffins	Crab	Vegetables
Frying time 20 minutes 15 minutes 20 minutes 10 minutes
Temperature 200°C 190°C 175°C 190°C

8. Cleaning and Care

Caution! The following parts are dishwasher safe :

Frying container (1)

Clean the container using warm soapy water. Do not use any strong or aggressive cleaning agents or scouring agents. Then rinse all the parts thoroughly and allow them to dry adequately. Please wipe the outer body with a clean, damp cloth and then dry it thoroughly.

Caution! Ensure that water does not get into the electronic system. Otherwise, there is a risk of electric shock.

9. Sample recipes

Main dishes:

• Crunchy salmon cubes
• Stewed peppers with quinoa and mushrooms

Accompaniments:

• Homemade French fries / Wedges

Desserts:

- Hazelnut brownies

9.1 Crunchy salmon cubes

• Serves: 2
  • Preparation time: 20 - 30 minutes
• Ingredients:
  • 200g salmon cubes (without skin and bones)
• 100g cornflakes
• 1 - 2 egg(s)
• 75g flour
• Lemon juice
• Salt and pepper
  • 1-2 tablespoons of sunflower oil/rapeseed oil/olive oil

First, cut the salmon fillet into bite-sized pieces of about 3 x 3 cm and season it with lemon juice, salt and pepper. Keep the flour ready in a deep plate. Then break the eggs into a plate. Finally, prepare another plate with crumbled corn flakes. Apply flour to the fillet pieces, then cover them completely with egg and cornflakes. Then, bake the coated salmon pieces in the Arendo hot air fryer oven with a teaspoon of oil at 190°C for about 6 - 8 minutes until it becomes crispy and serve on a plate.

9.2 Stewed peppers with quinoa

• Serves: 2
  • Preparation time: 20 - 30 minutes
• Ingredients:
• 100g Quinoa
• 4 peppers (red)
  • 300ml vegetable stock
• 120g mushrooms
  • 100g grated parmesan
• Curry powder
  • 1 teaspoon fennel (ground)
• 1 shallot
• 1 clove of garlic

• 1-2 tablespoons of sunflower oil/rapeseed oil/olive oil

Please first wash the quinoa thoroughly under cold water to flush out any bitter substances that may be present. Then, heat 300ml of vegetable stock with the fennel and allow the quinoa to cook in it for 10 minutes. Then remove the quinoa from the stove and keep it aside for 10 more minutes. In the meantime, cut the peppers below the stalk into circular pieces and detach them carefully with the core. De-core the peppers completely. Also peel and chop the shallots and garlic. Then slice the mushrooms and sauté them briefly with the curry powder, the shallot and garlic pieces in a pan. Finally, mix the quinoa with the mushrooms and add parmesan and fill the peppers with it. Place the peppers with a little oil for about 12 - 15 minutes at about 160°C in the Arendo hot air fryer.

9.3 Homemade french fries / potato wedges

• Serves: 2
  • Preparation time: 10 - 15 minutes
• Ingredients:
• 6 potatoes (or sweet potatoes)
• Paprika seasoning
• Salt
  • 1-2 tablespoons of sunflower oil/rapeseed oil/olive oil

First, peel the potatoes or wash them thoroughly for wedges. Then cut them into strips of about 1cm thick or into pieces and put them in cold water for 10 minutes to dissolve the starch from the potatoes. Now turn the strips over in the oil and season them with pepper and salt. Finally bake the French fries or wedges in the Arendo hot air fryer at 200°C for about 10 minutes until they become crispy.

1. Troubleshooting

Error Possible cause Troubleshooting
The appliance is not working properly	The appliance is not connected to the socket	Insert the connection cable of the appliance into a properly installed socket
	The ON/OFF button was not pressed after selecting a cooking function	Press the ON/OFF button after selecting the mode to start the appliance
The food item is raw even after the time duration	The tray is too full	Fry the items in several batches instead of over-filling the tray
	The temperature is set too low	Set the correct temperature and fry again
	The cooking time is set too low	Set the correct cooking time and fry again
The food item is not evenly fried	For some food items, you have to shake the container once during cooking time	Remove the tray during cooking time and shake the items once, so that they are stirred
The tray can not be easily inserted into the fryer	The tray is over-filled	The contents of the tray should never exceed the maximum mark
	The tray is not properly inserted	Ensure that the tray is properly inserted into the hot air fryer
Steam is escaping from the appliance	You are frying oily food items	It is not uncommon in such cases for steam to escape
	There is too much oil in the frying tray	Please always clean the trays after use

11. Safety instructions and disclaimer

Do not operate the appliance unattended and check it for damage and proper assembly before using it each time. Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Therefore, please use it only in dry surroundings.

Protect it from high humidity, water and snow. Do not expose the appliance to high outside temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Please follow the local regulations and restrictions.

Do not use the appliance for purposes other than those described in this user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the base plate supplied. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without prior notice.

12. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 303593 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
