USER MANUAL 303152 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Warning symbols: one warning triangle with exclamation mark and another with steam symbol inside triangle

Prohibition sign with red circle and black icon depicting a document or folder, crossed by a diagonal line

Warning symbols: one warning triangle with exclamation mark and another with steam line inside triangle

Important safety guidelines for this appliance

- If the power cable is damaged, it should be replaced by the manufacturer, his specialist dealer or an equally qualified person, so as to prevent any risk.

- Children should use or clean the appliance only under supervision or guidance.

- In the interest of child safety, do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.

- Children should be supervised to ensure that they do not play with the appliance.

- Operate the appliance in accordance with the voltage specified on the appliance label.

• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Keep it on an appropriate surface so that it does not tip over.
• Do not use the appliance outdoors and keep it away from sources of heat (e.g. electric stove) and direct sunlight. Please do not keep the appliance in the immediate vicinity of water sources (e.g. washbasin).
• The appliance is meant exclusively for your personal use and for the intended purpose. This appliance is not intended for commercial use.
• Never allow the power cable to come into contact with hot surfaces.
• Never immerse the appliance in water or any other liquid so as to prevent the risk of electrical shock!

a

• Do not use the product with wet hands.
• Do not move the appliance when it is in operation.
• Stay away from escaping steam. Danger of burning!
• Fill the fryer only up to the topmost mark.
• Please do not place the appliance within 30 cm of objects which can be damaged by the escaping steam.
• This appliance may be used by children above the age of 8 years and by people with limited knowledge with regard to its use or by those with an impairment of the sensory organs, under the condition that they are monitored and trained in the safe use

of the appliance, and are aware of the associated risks.

• Cleaning and maintenance should not be carried out by children, unless they are at least 8 years old and are monitored.
• This appliance is intended for domestic use and similar purposes, such as, e.g.:

- Farms, staff kitchens in shops, offices, and otherwork environments - for guests in hotels, motels, B&Bs and other service apartments

• Never connect the appliance to wireless outlets or timers. Use only a properly installed power socket
• Never operate the appliance unsupervised!
• Do not fill the appliance with oil or

cooking oil. There is a risk of fire!

• Use the appliance only if you have completely read and understood this user manual!
• Do not cover the air outlet at the top and back oft the device.

Prohibition sign with red circle and black document icon, indicating no file or document use

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Hot air fryer
• Pizza tray
• Grill grate
• Frying container
• User manual

2. Technical data

Power supply 220-240V	AC, 50/60Hz
Power consumption 1400W.
Capacity approx. 3.2 litres (frying container)
Features • LED display	Timer function (0-60 minutes in 1 minute increments)Adjustable temperature (80-200 °C in 5 °C increments)Non-slip base

3. Function

As an ideal kitchen aid, the hot air fryer manufactured by Arendo allows you to fry products such as French fries in whatever way you want. The appliance requires hardly any oil (max. 1-2 tablespoons) or sometimes no oil at all, thereby contributing to a healthier diet. Large quantities can be fried owing to the high capacity of 3.2 litres.

4. Before initial use

Take the device out of the package and remove all the packaging material. Clean the appliance before using it for the first time. Heat the fryer for about 10-15 minutes. This removes any production residues.

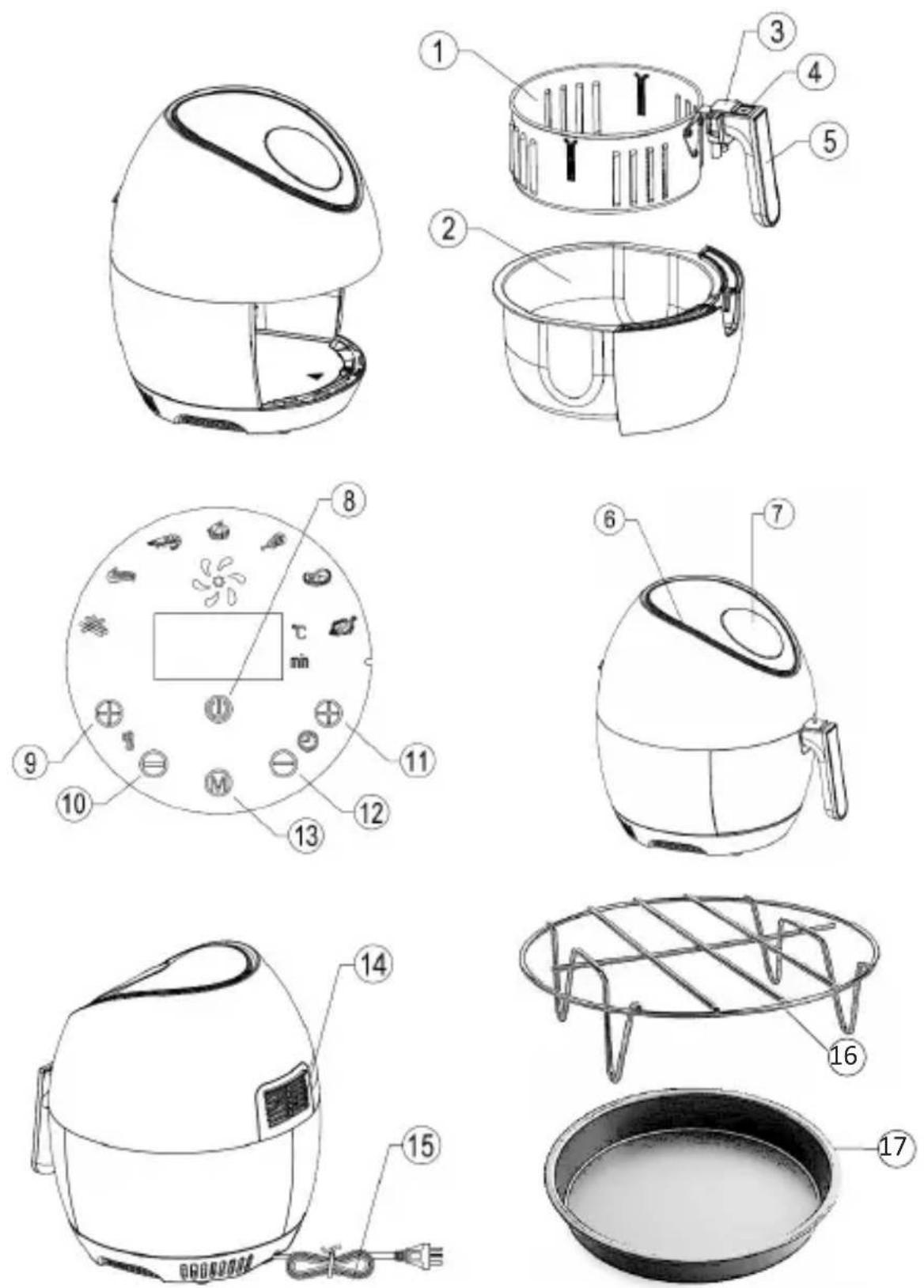

5. Product details

1 Frying container
2 Frying tray
3 Safety screen
4 Unlocking button for trays
5 Handle
6 Air inlet
7 Control panel
8 On/Off button
9 Increase temperature
10 Reduce temperature
11 Increase time
12 Reduce time
13 Programme selection	button
14 Air outlet
15 Power cable with plug
16 Grill grate
17 Pizza tray

6. Usage

- Connect the power cable to a properly installed socket.

- Then remove the frying container

- Place the items in the frying container. Ensure that you do not exceed the maximum mark.

- Place the frying container in the hot air fryer.

- Press the on/off button on the control panel of the appliance.

- To start the desired program, first select the desired time and temperature using the control elements. Alternatively, you can select one of the seven modes using the program selection button. Press the ON/OFF button to start the appliance.

• The process is completed when you hear a beep in succession. Remove the frying container and place it on a heat-resistant material. Then remove your items.
• Follow the same procedure when you use the pizza tray or grill grate.

Note:

-For a better result, we recommend that you stir the container once during the frying process.

- You can use the grill grate, e.g., for meatballs or meat.

7. Function programs

Food items	Standard French fries Ribs Shrimps
	/
Frying time 15 minutes 20 minutes 15 minutes 20 minutes
Temperature 180°C 200°C 180°C 160°C
Food items	Cake Chicken legs	Meat	Fish
Frying time 40 minutes 25 minutes 20 minutes 20 minutes
Temperature 160°C 180°C 160°C 180°C

Please note that these are only sample values which can be adapted as desired. If you want to make cakes or pizza in the fryer, please use the appropriate container for it.

8. Cleaning and care

Caution! The following parts are dishwasher safe:

ay (17), grill grate (16), frying container (1)

Clean the container using warm soapy water. Do not use any strong or aggressive cleaning agents or scouring agents. Then rinse all the parts thoroughly and allow them to dry adequately. Please wipe the outer body with a clean, damp cloth and then dry it thoroughly.

Caution! Ensure that water does not enter the switching mechanism or on the heating plate. Otherwise, there is a risk of electric shock.

9. Recipes

Main courses:

• Crispy salmon cubes
• Braised paprika with quinoa and mushrooms

Inserts:

• Homemade French fries / wedges

Desserts:

- Hazelnut Brownies

9.1 Crispy salmon cubes

• Servings: 2
  • Preparation time: 20 - 30 minutes
• Ingredients: 200g salmon cubes:
  • 200g salmon cubes (without peel and bones)
• 100g Cornflakes
• 1 - 2 egg(s)
• 75g flour
• lemon juice
• salt and pepper

• 1 - 2 tablespoons optional sunflower oil / rapeseed oil / olive oil

At first, cut the salmon fillet into bite-sized pieces about 3 x 3 cm and season with a little lemon juice, salt and pepper. Place the flour on a deep plate. Then beat the eggs in a plate. Finally, prepare another plate with the crumbled cornflakes. Turn the fillet pieces in the flour, cover with egg and then completely with the cornflakes. Then fry the breaded salmon pieces in the Arendo air fryer with a teaspoon of oil at 190 °C about 6 - 8 minutes until it's crispy. Serve it on a plate.

9.2 Stewed Paprika with Quinoa

• Servings: 2
  • Preparation time: 20 - 30 minutes
• Ingredients: 100g quinoa
• 100g Quinoa
• 4 peppers (red)
  • 300ml vegetable broth
• 120g mushrooms
  • 100g grated Parmesan cheese
• curry powder
  • 1 teaspoon fennel (ground)
• 1 shallot
• 1 clove of garlic
  • 1 - 2 tablespoons optional sunflower oil / rapeseed oil / olive oil

At first, wash the quinoa thoroughly under cold water to rinse out any bitter substances it may contain. Then heat 300ml of vegetable stock with the fennel and cook the quinoa for 10 minutes. Remove the quinoa from the heat and leave to swell for another 10 minutes. In the meantime, cut the peppers all around underneath the stalk and carefully remove them together with the stalk. Completely remove the seeds from the paprika. Also peel and chop the shallot and the garlic. Then cut the mushrooms into small pieces and fry briefly in a pan with the curry powder, shallots and garlic pieces. Finally mix the quinoa with the mushrooms, add the parmesan and fill the peppers with it. Place the peppers in the Arendo air fryer with a little oil about 12 - 15 minutes at approx. 160°C.

9.3 Homemade French Fries / Potato Wedges

• Servings: 2
  • Preparation time: 10 - 15 minutes
• Ingredients:
• 6 potatoes (or sweet potatoes)
• paprika spice
• salt
  • 1 - 2 tablespoons optional sunflower oil / rapeseed oil / olive oil

First peel the potatoes:

To begin, peel the potatoes or rinse them thoroughly for wedges. Then cut into strips or pieces about 1 cm thick and place it in cold water for 10 minutes to remove the starch from the potatoes. Now turn the streaks in the oil and season with paprika and salt. Finally, bake the chips or wedges at 200 °C about 10 minutes until it is crispy.

9.4 Hazelnut Brownies

• Servings: 10
  • Preparation time: 40 - 60 minutes
• Ingredients: 70g chocolate (at least 70% cocoa)
• 70g chocolate (at least 70% cocoa)
• 50g sugar
• 45g flour
  • 30g chopped hazelnuts
• 70g butter
• 1 - 2 egg(s)
  • 1 packet vanilla sugar
  • 1 packet baking powder

At the beginning heat the chocolate together with the butter in a frying pan:

Carefully heat the chocolate together with the butter in a steel pan, stirring constantly to prevent the chocolate from burning. Allow to cool briefly.

Next, beat the egg, sugar and vanilla sugar with a pinch of salt in a bowl until creamy. Then add the chocolate mixture with the flour, the nuts and a pinch of baking powder and mix.

Then line the pizza tray insert with baking paper and add the dough mixture and smooth it down. Slide the tray into the air fryer and bake the dough at 180 °C for 18 - 20 minutes. To ensure that the inside of the dough is creamy, insert a wooden stick. As soon as the outside of the dough is crispy, some more dough should stick to the sticks.

Remove the dough from the air fryer and let it cool briefly. Now you can cut the finished dough into bite-sized brownies.

1. Troubleshooting

Problem Possible cause Troubleshooting
The appliance is not working properly	The appliance is not connected to the socket	Insert the connection cable of the appliance into a properly installed socket
	The ON/OFF button was not pressed after selecting a cooking function	Press the ON/OFF button after selecting the mode to start the appliance
The food item is raw even after the time duration	The tray is too full	Fry the items in several batches instead of over-filling the tray
	The temperature is set too low	Set the correct temperature and fry again
	The cooking time is set too low	Set the correct cooking time and fry again
The food item is not evenly fried	For some food items, you need to shake the container once during the cooking time	Remove the tray during the cooking time and shake the items once, so that they are stirred
The tray can not be easily inserted into the fryer	The tray is over-filled	The contents of the tray should never exceed the maximum mark
	The tray is not properly inserted	Ensure that the tray is properly inserted into the hot air fryer
Steam is escaping from the appli-ance	You are frying oily food items	It is not uncommon in such cases for steam to escape
	There is too much oil in the frying tray	Please always clean the trays after use

11. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

12. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303152 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
