Important safety guidelines for this appliance

- If the power cord is damaged, it should be replaced by the manufacturer, his specialist dealer, or an equally qualified person, so as to prevent any risk.

- Children should use or clean the appliance only under supervision or guidance.

- In the interest of child safety, do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.

- Children should be supervised to ensure that they do not play with the appliance.

- Operate the appliance in accordance with the voltage specified on the appliance label.

arengio

• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Keep it on an suitable surface so that it does not tip over.
• Do not use the appliance outdoors and keep it away from sources of heat (e.g., electric stove) and direct sunlight. Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).
• The appliance is meant exclusively for personal use and for its intended purpose. It is not intended for commercial use.
• Never allow the power cord to come into contact with hot surfaces.

• Never immerse the appliance in water or any other liquid so as to prevent the risk of electrical shock!

• Do not use the product with wet hands.

• Do not move the appliance when it is in operation.
• Stay away from escaping steam. Danger of burning!
• Please do not place the product within 30 cm of objects which can be damaged by the escaping steam.

• This appliance may be used by children above the age of 8 years and by people with limited knowledge with regard to its use or by those with sense organ impairment, under the condition that they are monitored and trained in the safe use of the appliance, and are aware of the associated risks.

• Cleaning and maintenance should not be carried out by children, unless they are at least 8 years old and are monitored.

• This appliance is intended for domestic use and similar purposes, such as, e.g.:

- Farms, staff kitchens in shops, offices, and other work environments

- For guests in hotels, motels, B&Bs and other service apartments

• Never connect the appliance to wireless outlets or timers. Use only a properly installed power socket
• Do not operate the product unsupervised!
• Do not fill the appliance with oil or cooking oil. There is risk of fire!

• Use the appliance only if you have completely read and understood this user manual!

• Do not place the appliance next to a wall or other appliances. Allow a clearance of at least 10 to 15 cm in all directions.

• Always wear heat-resistant gloves when you open the appliance and remove the items.
• Do not place any objects on the appliance.
• Do not cover the air outlet of the appliance.

Prohibition sign with a diagonal line crossed over a document icon, indicating no prohibition or exclusion.

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Multi-functional oven
• Rotating cage
• Kebab making set
• Rotating skewer for kebabs / roasting / poultry
• Container for frying
• User manual

2. Technical data

Power supply 220-240 V	AC, 50/60 Hz
Power consumption 1800 W
Capacity 12 l
Features • LED display	Timer function (0-90 minutes in 1-minute increments, 2-24 hours for dehydration)Temperature adjustment (80-200°C in 5°C increments, 30-80°C for dehydration)Non-slip base

3. Function

The multi-functional oven from Arendo is an ideal kitchen appliance that permits you to fry, dehydrate, rotating grill, roast, bake, au gratinate, toast, warm and cook. Large quantities can be prepared owing to the high capacity of 12 litres.

4. Before initial use

Check if the product and the components are intact and if the appliance is working properly when using it for the first time. Take the appliance out of the package and remove all the packaging material. Clean the appliance before using it for the first time. Heat the multi-functional oven for about 10-15 minutes. This removes any production residues.

1. Product details


1 8888 2 3 4

Line drawing of a portable air fryer with control panel and tray (no text or symbols)

Technical diagram showing labeled components of a mechanical assembly with numbered parts 5, 6, and 7.

13 14

Simple diagram of a cylindrical object with a textured top and two small protrusions, labeled with the number 8 (no text or symbols on the object itself)

15 12

Pure geometric shape resembling a T-junction with a labeled dimension (9), no text or symbols present.

Two hand-painted diagrams showing a mechanical or architectural component, with one labeled '11' and the other an arrow (no text or symbols beyond the number)

10 GC

No. 5 + No.10 are identical and only included once in the supply!

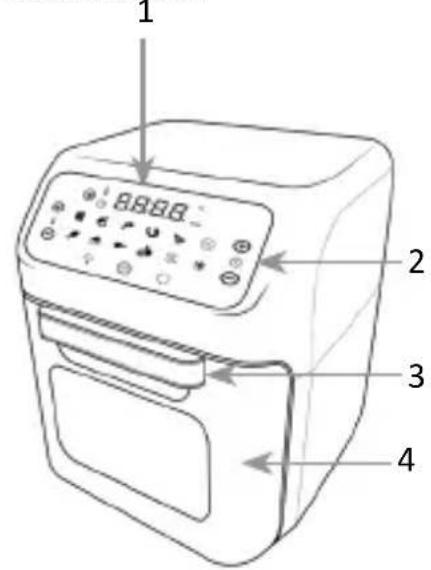

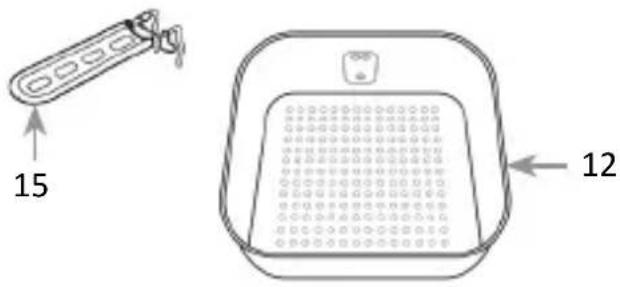

1 Display
2 Operating controls
3 Handle (oven door)
4 Oven door
5/10 Rotating skewer for kebabs / roasting / poultry

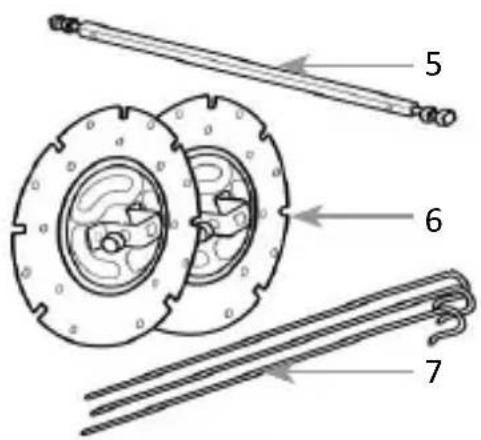

6 Kebab accessories (outer plates)
7 Skewers
8 Rotating cage
9 Rotating cage hook
5/10 Rotating skewer for kebabs / roasting / poultry
11 Rotating skewer forks
12 Frying container

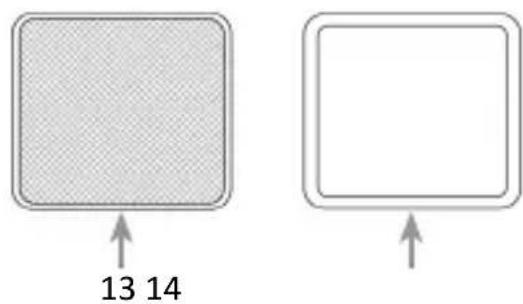

13 Tray for dehydration and multi-level cooking
14 Drip tray
15 Handle

5.1 Operating elements

	Temperature and time setting
	Light On/Off

	"Rotate" On/Off (rotating)
	Appliance On/Off

5.2 Programs

	French fries
	Pizza
	Shrimps
	Steak / Cuttle
	Fish
	Dehydrate and dehydrate
	Chicken
	Bake
	Turning spit
	Keep warm
	Preheat
	Frozen food

6. Trays

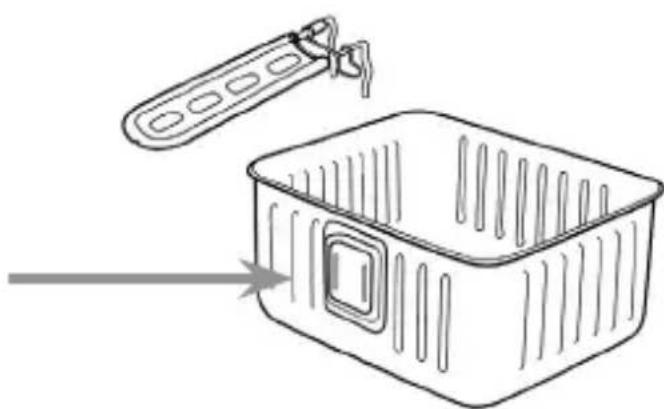

Frying container

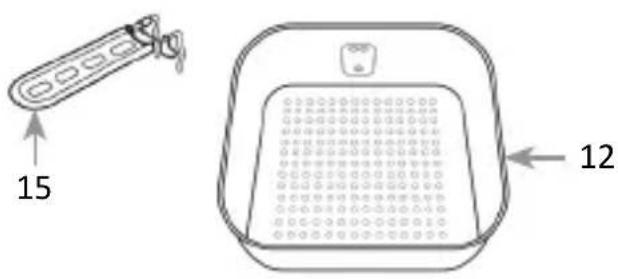

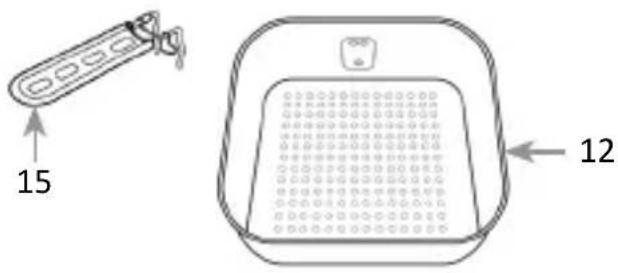

To fix the handle to the basket, open the handle lock, press the removable handle of the frying container and attach it to the basket handle insert. Once the handle is connected to the basket, close the handle lock to secure the basket handle. To release the handle from the basket, open the handle lock, press the handle and lift it up.

Line drawing of a rectangular kitchen appliance with a handle and lid, showing an arrow pointing to it (no text or symbols)

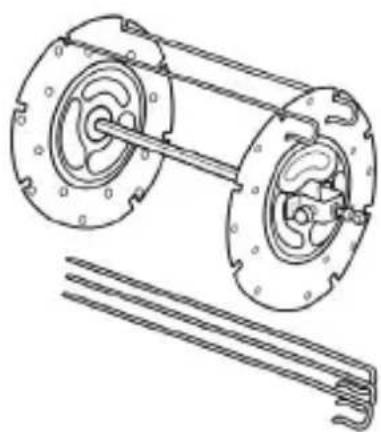

Kebab set (e.g., for doner kebab or shashlik)

Technical line drawing of a two-dot mechanical assembly with wheels and a spring, showing no text or symbols.

First, insert the two outer plates onto the rod and tighten the screws. Then, place the skewers in the outer notches and guide the bent ends into the holes (see figure).

Rotating skewer for Kebab/roasting/poultry (5/10)

Line drawing of a mechanical clamp or lever assembly (no text or symbols)

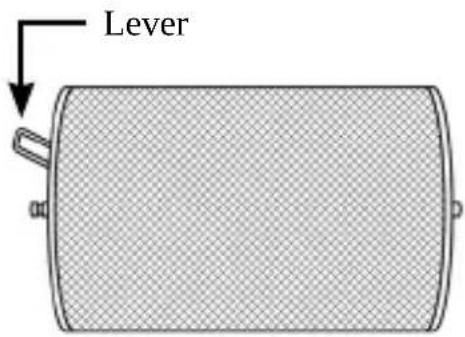

Insert the rod in a longitudinal direc-on through the centre of the poultry or roast. Push the forks of the rota ng skewer through the rod and into the poultry or the roast and lock the forks using the screws. Make sure that the size of the poultry or the roast leaves adequate space in the oven for the skewer to rotate.

Lever

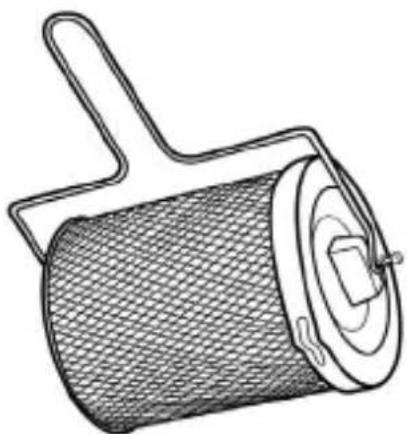

Rotating cage (e.g., for chicken legs or French fries)

You can open the rota ng cage by opening the ap on the side of the cage using the lever. You can then close the ap again. Make sure that the ap is locked and completely closed.

Caution! The accessories are very hot during and after the cooking process! Never touch the hot objects directly. Use oven gloves or something similar. Place the hot accessories only on heat-resistant surfaces.

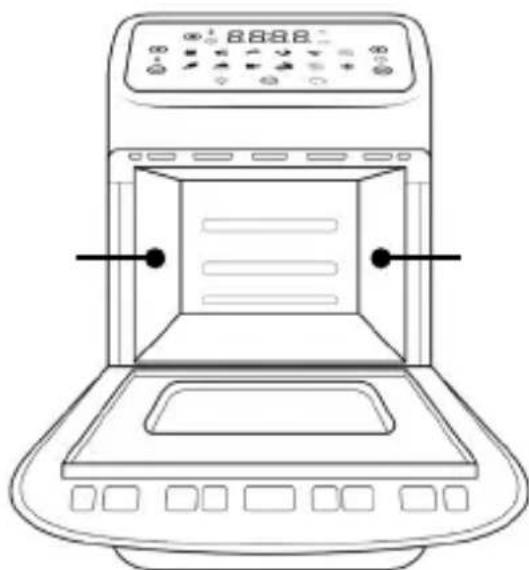

6.1 Inserting the rotating skewer for kebab / roasting / poultry (5/10) or rotating cage (8)

1. Insert the appropriate tray into the multi-functional oven. Make sure that the rod slides into the grooves on both sides of the oven. Ensure that the tray has been inserted correctly.

2. Close the oven door.

3. Press the "Rotate" button to turn on the rotation.
4. To remove the trays after cooking, take the drum basket hook (9) and hook it onto the tray from below.

Line drawing of a portable kitchen appliance with control panel and door (no text or symbols)

Line drawing of a cylindrical device with mesh pattern and handle (no text or symbols)

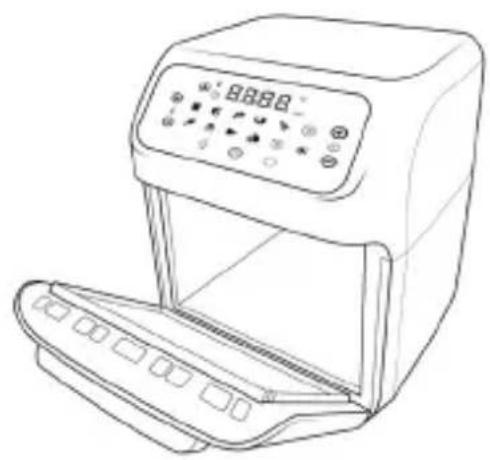

7. Usage

1. Place the appliance on a flat, heat-resistant and level surface.

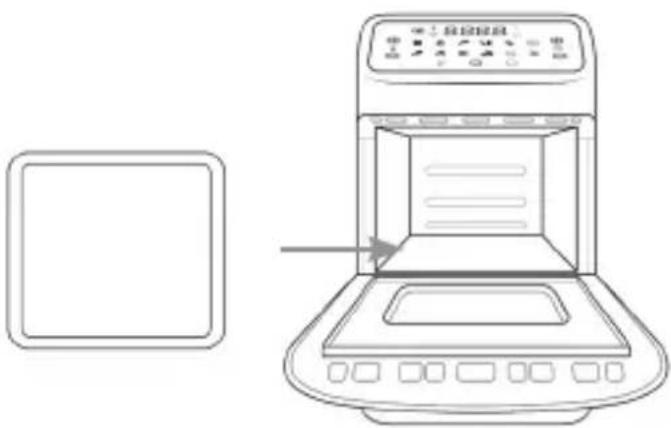

2. Place the drip tray on the base inside the appliance.

Diagram of a microwave oven with control panel and indicator lights, alongside a blank screen area for zoom or display.

1. Prepare the desired tray (kebab accessories, rotating cage, rotating skewer for kebab/ roast / poultry, frying container or dehydration tray) with the desired food first and then place it in the oven and close the oven door.

2. Connect the power cable to a properly installed socket.

3. Press the "ON/OFF" on the control panel to switch on the appliance.

4. Then select the desired program. You can choose between the following programs:

French fries, Pizza, Shrimps, Steak, Fish, Dehydration, Baking chicken and Rotating skewer.

Once you press the appropriate program icon, the time and temperature is shown on the display.

1. To adjust the temperature the time manually or to change it, use the "+" and "-" buttons in the temperature and time setting to adjust the default temperatures and times.

2. Press the "ON/OFF" button to start the cooking process immediately, or wait a few seconds until the appliance starts automatically.

3. Once the set time has elapsed, you will hear an audible beep. Open the oven door and remove the appropriate tray (kebab accessories, rotating cage, rotating skewer for roast/poultry, frying container or dehydration tray). Place it on a heat-resistant surface. Remember that the inner part of the multi-functional oven and the accessories used can still be hot.

4. If the food item still needs to be cooked for some time more, set the time and the temperature individually and restart the cooking process.

5. Press the "ON/OFF" button briefly to stop the current cooking process. Press and hold the "ON/OFF" button to stop the cooking.

6. To switch off the appliance completely, disconnect the mains plug from the socket.

8. Function programs

Please note that these are only sample values which can be adapted as desired. If you want to make cakes or pizza in the oven, please use the appropriate tray for it.

Food items	French fries Pizza		Shrimps		Steak
Duration	15 minutes		15 minutes		12 minutes	25 minutes
Temperature 20	0°C	180°C	160°C	175°C

Food items	Fish Dehydrate Chicken Baking
Duration	15 minutes 2-24 hours 40 minutes 30 minutes
Temperature 165°C 30°C-80°C 185°C 160°C

Food items	Rotary spit	Keep warm	Preheating	Frozen food
Duration	30 Minuten	12 Minutes	5 Minutes	20 Minutes
Temperature 190°C		115°C	80°C 200°C

9. Cleaning and Care

Caution! Following parts are dishwasher safe:

Kebab accessories (6 + 7), rotating cage (8), rotating skewer for kebab/ roasting / poultry (5/10 + 11), frying container (12) and trays (13 + 14)

Disconnect the power cable from the mains socket and make sure that the appliance is not carrying current. Clean the container using warm soapy water. Do not use any strong or aggressive cleaning agents or scouring agents. Then rinse all the parts thoroughly and allow them to dry adequately. Please wipe the outer body with a clean, damp cloth and then dry it thoroughly.

Pull the grille out of the guides towards the door and wipe it with a slightly damp cloth. Remember to insert the grille again before using the appliance.

Caution! Ensure that water does not get into the switching mechanism or into the appliance. Otherwise, there is a risk of electric shock. Never immerse the oven in water!

10. Troubleshooting

Error Possible cause	Troubleshooting
The appliance is not working properly	The appliance is not connected to the socket	Insert the connection cable of the appliance into a properly installed socket
	The ON/OFF button was not pressed after selecting a cooking function	Press the ON/OFF button after selecting the mode to start the appliance
The food item is raw even after the time duration	The tray is too full	Fry the items in several batches instead of over-filling the tray
	The temperature is set too low	Set the correct temperature and fry again
	The cooking time is set too low	Set the correct cooking time and fry again
The food item is not evenly fried	For some food items, you have to shake the container once during cooking time	Remove the tray during cooking time and shake the items once, so that they are stirred
The tray can not be easily inserted into the multi-functional oven	The tray is over-filled	The contents of the tray should never exceed the maximum mark
	The tray is not properly inserted	Ensure that the tray is properly inserted into the multi-functional oven
Steam is escaping from the appli-ance	You are frying oily food items	It is not uncommon in such cases for steam to escape
	There is too much oil in the frying tray	Please clean the trays after use
Display shows "E1"	Thermal sensor circuit interrupted	Contact our customer service department
Display shows "E2"	Short-circuit of the thermal sensor	Contact our customer service department

11. Safety instructions and disclaimer

Do not operate the appliance unattended and check it for damage and proper assembly before using it each time. Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Therefore, please use it only in dry surroundings.

Protect it from high humidity, water and snow. Do not expose the appliance to high outside temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Please follow the local regulations and restrictions.

Do not use the appliance for purposes other than those described in this user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the supplied base plate. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

12. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 305400 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
