USER MANUAL 305035 Arendo

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Warning symbols: one warning triangle with exclamation mark and another with steam line inside triangle

Technical diagram of a three-tiered cooking grater with labeled parts 1, 2, and 3

Warning symbols: one warning triangle with exclamation mark and another with steam line inside triangle

Important safety guidelines for this appliance

• When using electrical appliances, basic safety precautions should always be followed, including those below:
• Read all the instructions before using the product.
• Do not touch any hot surfaces. Use handles or knobs if necessary.
• Remove all the plastic packaging and other materials from the appliance before using it.
• Wash all the removable accessories before using them for the first time.
• Please do not immerse the cable, plug or the appliance in water or other liquids to protect against electric shock.
• Close supervision is required if the

appliance is used by children or near children.

• Disconnect the plug from the socket if you are not using the appliance and before cleaning it. Allow the appliance to cool down before assembling or removing parts.
• Do not use any appliance with a damaged cable or plug.
• Do not use the appliance if it is faulty or is damaged in any way. Get it checked, repaired or adjusted by a specialist.
• Using accessories that are not recommended by the manufacturer of the appliance may result in injuries.
• Do not use the appliance outdoors.
• Do not allow the cable to protrude over the edge of the table or the

counter or touch any hot surfaces.

• Do not place the appliance on or near hot gas or electric burner or in a heated oven.
• Always insert the plug first into the appliance and then the mains cable into the socket. To disconnect, turn the knob to OFF and remove the plug from the wall socket.
• Oversized foods or metal utensils should not be placed in the appliance as they may cause electric shock or cause a fire.
• A fire can be caused if the appliance is covered or comes into contact with

flammable materials such as curtains, drapes, walls etc. during operation.

• Do not clean the appliance with metal scrubbing pads. Pieces can break off and touch electric parts, resulting in a risk of electric shock.
• Be extremely careful when using containers made of materials other than metal or glass.
• Do not store materials other than the accessories recommended by the manufacturer in this appliance when it is not being used.
• Do not keep any of the following materials in the appliance: Paper, cardboard, plastic and / or similar non-food materials.
• This fryer is only suitable for use with oil or liquid fat and not suitable for use with solid fat. If solid fat is used,

water can get trapped inside and the hot fat may spurt out with considerable force.

• Never switch on the fryer without oil or liquid fat, as this could damage the machine. Do not add other liquids such as water or other substances into the pan.
• Place the fryer on a dry and stable surface. Since the fryer becomes hot during use, make sure it is not placed too close to other objects.
• Caution! The appliance becomes very hot. Make sure that you allow it to cool down before touching it!
• The appliance is for household only.
• The unit is not intended to be operated with an external timer or a separate remote control.

- This appliance may be used by children over 8 years of age and persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, provided they have been supervised or instructed in a safe manner and understand the risks involved. Children must not play with the appliance. Cleaning and maintenance of the user must not be carried out by children without supervision.

Thank you for choosing an Arendo product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Fryer
• Container for frying + handle
• Oil pan + External wall
• User manual

2. Technical data

Power supply 220-240 V	AC, 50/60 Hz
Power consumption 2000 W
Capacity maximum 3.5 L	(Oil pan)
Temperature adjustment	150-190°C
Features • LED status light	Timer function (0-60 minutes)Adjustable temperature

3. Function

As an ideal kitchen aid, the fryer manufactured by Arendo allows you to fry products like French fries, according to your desire. Large quantities can be fried owing to the high capacity of max. 3.5 Oil/Fat litres.

4. Before initial use

Check that the product and the components are intact and that the appliance is working properly when using it for the first time. Take the appliance out of the package and remove all the packaging material. Remove all printed documents and other packaging materials. Take out all the removable parts and wash them carefully with hot water. Please do not wash the heater (1) itself, only wipe it with a damp cloth.

Do not immerse the power cord and control box module and the heating element of the fryer in liquids.

Dry all the parts thoroughly before assembly. Do not operate the fryer without enough oil in the oil tank.

The fryer should always be placed on a flat, stable surface where the power cord is out of reach of children and can not accidentally get entangled.

Tips:

• If you fry several different types of food items, always fry the food that requires the lowest temperature setting first.
• Do not mix different types of oil for frying.
• Frying pre-cooked food items can take less time than completely uncooked food items.
• Replace the oil after using it 10-15 times; or earlier if the oil becomes brown and viscous.

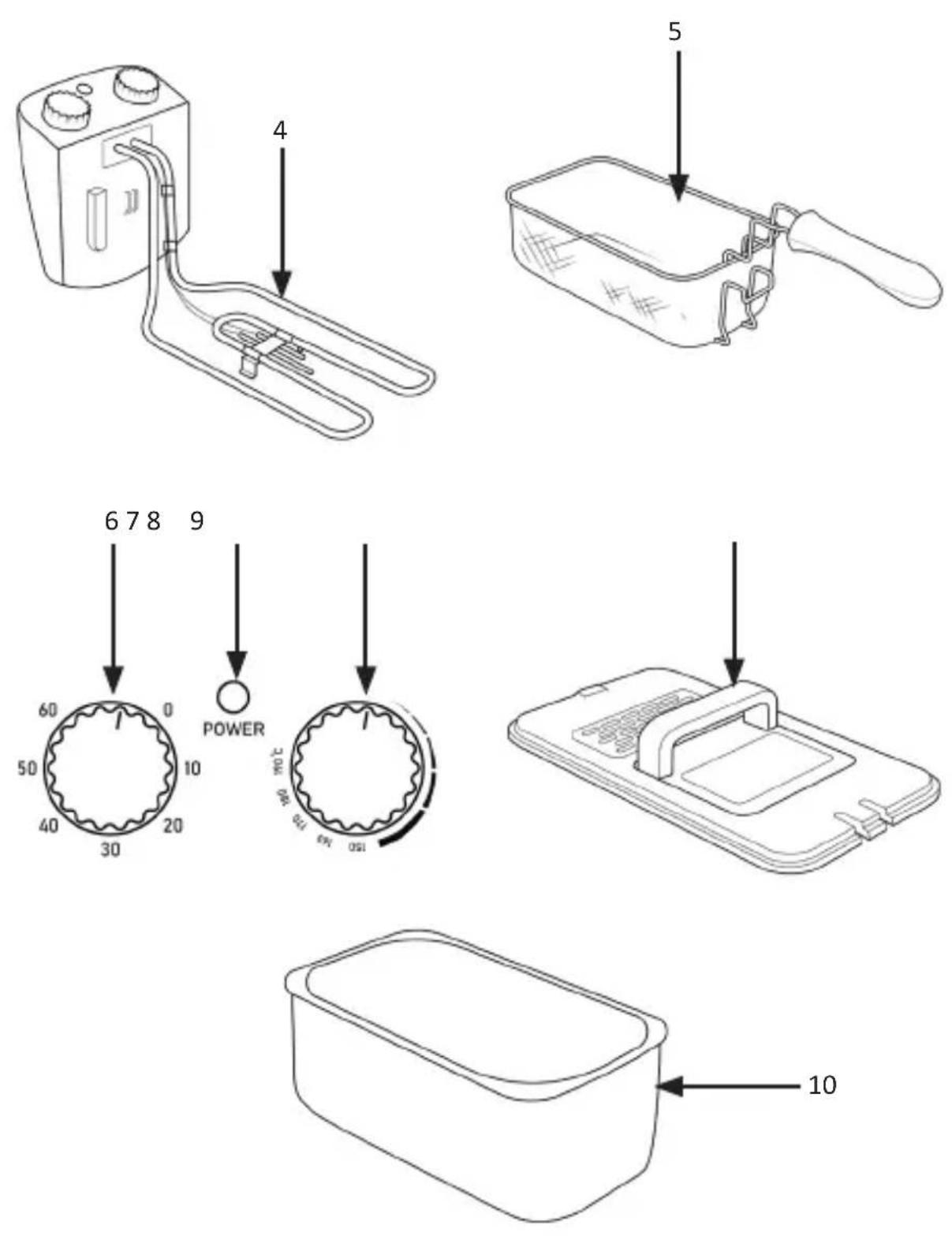

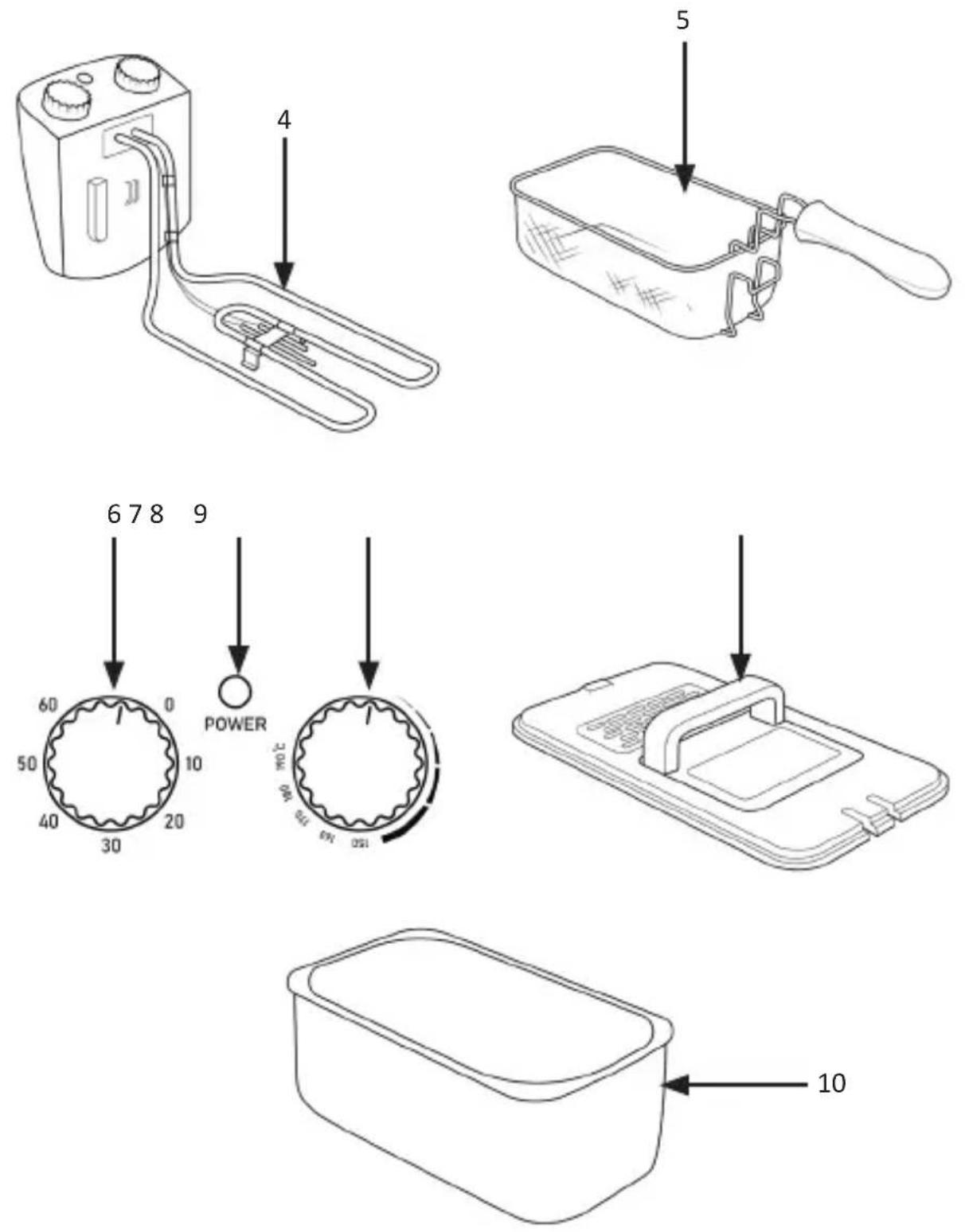

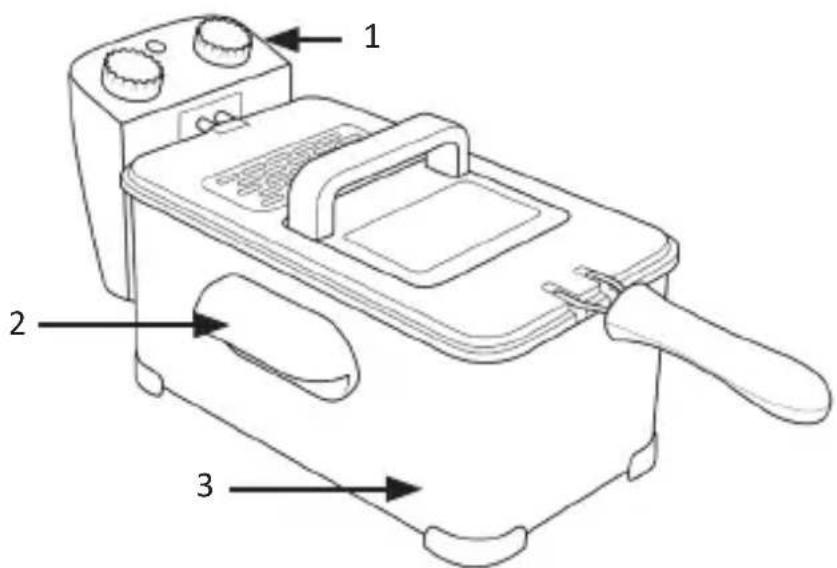

5. Product details

1 2 3

1 Operating controls
2 Handle
3 External wall
4 Heating elements
5 Container for frying
6 Timer knob
7 Status LED
8 Temperature knob
9 Lid
10 Oil pan

6. Additional instructions

1. Always place the fryer on a stable surface and keep all flammable materials away from the appliance during use.
2. Make sure that the fryer is not near or on a stove or a cooking surface that is switched on.
3. Before using the fryer, it has to be filled with the necessary quantity of oil or fat.

Never use the fryer without oil or fat, as this may damage the appliance.

1. Never move the fryer during use. The oil becomes very hot. Wait until the appliance and the oil have cooled down completely before moving the fryer.
2. This fryer is protected by a thermal fuse that automatically switches off the appliance if it overheats.
3. Never immerse the appliance in water.
4. Do not leave the fryer unattended if it is switched on.
5. Always ensure the safety of children when they are near the fryer.

6. If the fryer and / or the cable is damaged, they have to be repaired by a professional service department. Do not try to repair the appliance or to replace the damaged cable on your own. Special tools are necessary for this.

7. Take care not to damage the heating element. (Do not bend or dent).

8. The appliance is fitted with a safety switch which ensures that the heating element can only work if the element is correctly placed on the fryer.

Disconnect the appliance from the socket before resetting it!

7. Usage

1. Ensure that the mains plug of the fryer is disconnected from the socket.
2. Assemble the oil pan in the outer wall (3) and the heating elements (4) in the oil pan (10). Make sure that the controls (1) are properly attached.
3. Remove the frying basket.
4. Use only high quality frying oil or fat. If you use fat, melt some of it in a pot to cover the heating elements.
5. Fill oil into the oil container approximately between the MIN mark and the MAX mark. Make sure that you do not fill more than the MAX mark or less than the MIN mark.
6. Make sure that the temperature control knob is in OFF position or the timer is in 0 position.
7. Connect the mains cable to a properly installed socket.
8. Move the thermostat knob to the desired temperature setting as per the recipe you are using. Start the timer and the indicator light starts glowing.
9. While the oil is preheating, prepare the food item that you want to fry.
10. Once the oil reaches the set temperature, the green status LED goes off.

NOTE: The ready indicator switches on and off with the thermostat to maintain the set temperature. The red ready indicator is on throughout the usage duration.

When you put the food item in the basket, ensure that it is as dry as possible. Do not add water, ice or wet food items, as this can cause the hot oil to splash.

If you want to fry frozen food items, remove all the ice particles and thaw the food item thoroughly.

Do not overfill the basket.

1. Lower the basket into the hot oil and cover the fryer with the lid.

Caution!: Do not touch the knobs during the frying process! Hot steam may escape and cause injuries.

1. Remove the lid if the food is ready to be fried. Lift the basket slowly out of the hot oil and place the basket on the drain supports at the back of the basket.
2. Once the excess oil is drained, place the food on a baking tray lined with a paper towel so that the remaining oil can drain off.
3. If you are frying more than one batch, make sure that the oil is re-heated to the required temperature.

* French fries that are fried a second time, will be lighter and crispier.
8. Approximate frying times

Food item Temperature approximate time
Shrimps 150°C 3-5 minutes
Onions 150°C 3-4 minutes
Mushrooms 150°C 6-8 minutes
Fish fillet 150°C 5-6 minutes
Fish fillet in dough 150°C 6-8 minutes
Fish patties 150°C 6-8 minutes
Sliced meat 170°C 7-10 minutes
Steak 170°C 7-10 minutes
Chicken strips 180°C 7-10 minutes
French fries (1st time) 190°C 6-10 minutes
French fries (2nd time) 190°C 3-5 minutes

9. After use

1. Make sure that the temperature regulator is in the OFF position and disconnect the fryer plug from the socket.
2. Once the food is fried, remove the lid, hang the basket using the hook and allow the excess oil to drip into the oil pan.

Caution!: Hot steam will escape if you remove the lid. Be very careful when handling. Keep your face and exposed skin away from the escaping steam.

1. Take the basket out and place the food item on paper towels to absorb the excess oil. Do not touch the basket as long as it is still hot. Always use the handle.
2. After draining the excess oil, place the food item on a baking tray lined with paper towels so that the remaining oil can drain off.
3. Place the basket in the fryer.
4. Do not move the fryer till it cools down completely.
5. Please dry all the parts thoroughly.

Note: Do not use scrubbing brushes or chemical cleaning agents to clean the appliance.

10. Cleaning and Care

1. Remove the lid and the frying basket.

Caution!: Before cleaning the fryer, make sure that it is disconnected from the socket, and the appliance as well as the oil have cooled down completely. The oil remains hot for a long period after use. Do not try to carry or move the fryer while the oil is still hot.

1. Wait for the fryer to cool down and remove the operating elements and the heating element.
2. Remove the oil pan and pour the oil out. It is advisable to filter the oil after each use, if you want to reuse the oil.
3. After removing the oil pan, the fryer can be divided into several separate assemblies for cleaning.
4. The oil pan, the outer wall, as well as the frying basket and the handle can be put in the dishwasher for cleaning
5. The control box and the heating element should be wiped using absorbent paper towels. Then use a damp cloth and a mild soap for cleaning.

Caution!: Do not immerse the control box and the heating element in water for cleaning.

Error Possible cause Troubleshooting
Bad smell	Fat / oil used upUnsuitable fat / oilFilter used up	Replace the oil / fat or filter
Oil is not heating up	Thermal fuse is faulty because the fryer may have been used without oil / fat	Contact our customer service team
Oil is overflowing	The oil is too oldOil level exceeds the maximum markThe frying basket was lowered too quickly	Use fresh oil / fatCheck oil level and adjust if necessaryLower the frying basket slowly

11. Troubleshooting

12. Safety instructions and disclaimer

Do not operate the appliance unattended and check it for damage and proper assembly before using it each time. Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Therefore, please use it only in dry surroundings.

Protect it from high humidity, water and snow. Do not expose the appliance to high outside temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check

the appliance for any damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Please follow the local regulations and restrictions.

Do not use the appliance for purposes other than those described in this user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the supplied base plate. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

13. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 305035 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
