HMTF-D3BK - Household Fan Heinner - Free user manual and instructions

Product Type	Digital Tower Fan
Model	HMTF-D3BK
Brand	Heinner
Power	45W
Voltage	220-240V ~50Hz
Color	Black
Remote Control	Yes, included (requires AAA battery, not included)
Speed Settings	Multiple (controlled by SPEED button)
Modes	Normal, Natural, Sleep (via MODE button)
Timer	Yes, up to 7.5 hours (via TIMER button)
Oscillation	Yes, 80° (via OSCILLATION button)
Assembly Required	Yes, base and plastic nut attachment
Cleaning Method	Wipe with soft damp cloth and mild detergent; do not disassemble
Safety Features	Indoor use only; keep away from water; unplug before cleaning; stable base to prevent tipping
Indoor/Outdoor Use	Indoor only
Warranty	Standard warranty (as per warranty card)
Weight	Approx. 3.5 kg
Dimensions (HxWxD)	Approx. 90 x 30 x 30 cm

Frequently Asked Questions - HMTF-D3BK Heinner

How do I assemble the Heinner HMTF-D3BK fan?

Unpack the fan body and base parts. Join the front and rear base sections together. Unlock the plastic nut from the fan body, pass the power cord through the flute, insert the fan body into the base, and tighten the plastic nut to secure it. Refer to the manual's assembly diagrams.

What type of battery does the remote control use?

The remote control requires one AAA alkaline or manganese battery (not included). Do not use rechargeable batteries.

How do I clean the fan?

Unplug the fan first. Wipe the exterior parts with a soft cloth moistened with a mild detergent solution. Do not use abrasive cleaners or solvents. Do not allow water or liquid into the motor housing. The rotor blade guard should not be removed for cleaning.

Can I use the fan outdoors?

No, this fan is designed for indoor and household use only. Do not use in windows or expose to rain to avoid electrical hazards.

How do I set the timer?

Press the TIMER button on the fan body or remote control. Each press typically increases the timer in 0.5-hour increments up to 7.5 hours. The display will show the selected time.

How do I activate the oscillation?

Press the OSCILLATION button on the fan body or remote control to start or stop the left-right oscillation. The fan will oscillate up to 80 degrees.

What are the different speed settings?

Press the SPEED button to cycle through multiple speed levels (usually low, medium, high). The indicator lights on the panel show the current speed.

Is the fan safe for children?

Children aged 8 and above can use the fan under supervision. Do not let children play with the fan. Cleaning and maintenance should not be performed by children without supervision.

What should I do if the fan does not turn on?

Check that the fan is plugged into a working outlet. Ensure the rear and front bases are properly assembled and the plastic nut is tight. If it still does not work, contact qualified service personnel.

How do I dispose of the fan at the end of its life?

Do not dispose of the fan with household waste. Follow local regulations for electronic waste recycling. Return it to a designated collection point or consult your retailer for take-back options.

USER MANUAL HMTF-D3BK Heinner

Black vertical electric fan tower with ventilation grilles and a flat top (no visible text or symbols)

• Ventilator tip turn, cu control digital
- Putere: 45W
- Culoare: negru

Technical illustration of a mechanical component with coiled spring and flanged ends (no text or symbols)

Circular diagram with radial grid pattern and central cross (no text or symbols)

VII. UTILIZARE

1. Descrierea butoanelor telecomenzii

Observații:

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

Fig. 5

Black vertical electric fan with ventilation grille and base (no visible text or symbols)

• Digital Tower Fan
• Power: 45W
• Color: black

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

Fan
User manual
Warranty card
Remote control

III. SAFETY PRECAUTIONS

Read all instructions carefully and keep this manual for future reference.

1. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
2. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4. When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
5. Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.
6. Indoor and household use only.
7. Correct Disposal of this product

This marking indicates that this product should not be disposed with other household

wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.

1. When the fan was assembled, the rotor blade guard shall not be taken off anymore.

2. Prior cleaning unplug the fan.

3. The rotor guard shall not be dissembled/opened to clean the rotor blades.
4. Wipe the fan enclosure and rotor blade guard with a slightly damp cloth.

1. Never insert fingers, pencils, or any other object through the grille when fan is running.
2. Disconnect fan when moving from one location to another.
3. Be sure fan is on a stable surface when operating to avoid overturning.
4. DO NOT use fan in window, rain may create electrical hazard.
5. Indoor use only.

V. PRODUCT DESCRIPTION

Notice: All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

NO.	Description
1	Body
2	Rear base
3	Front base
4	Plastic nut
5	Power cord

VI. HOW TO ASSEMBLE THE FAN

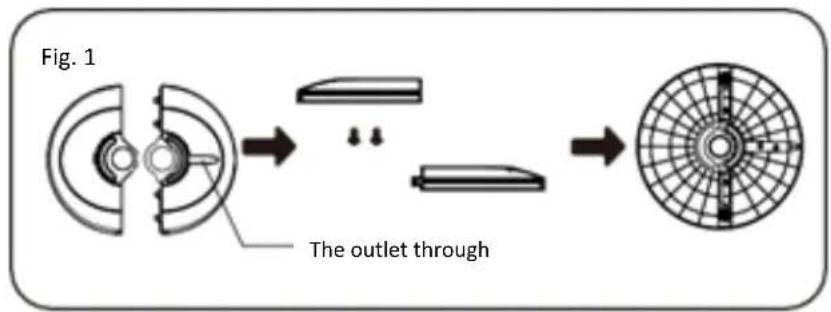

1. Take out the fan body and the spare parts from the box. Put the front base onto rear base and join them together. (See Fig. 1)

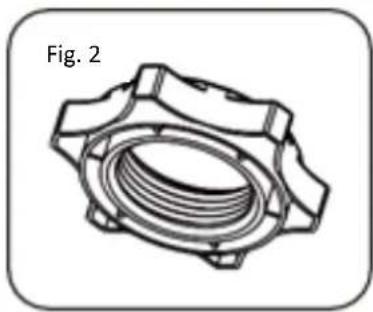

2. Unlock the plastic nut from the fan body. (See Fig. 2)
3. Pass the power cord through the flute, then insert the fan body into the base.

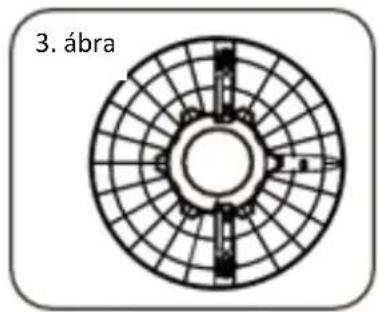

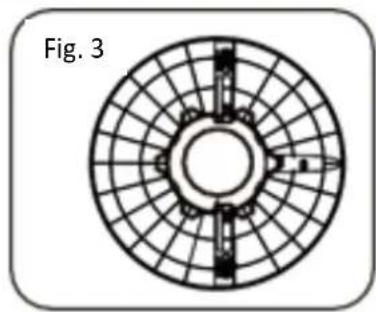

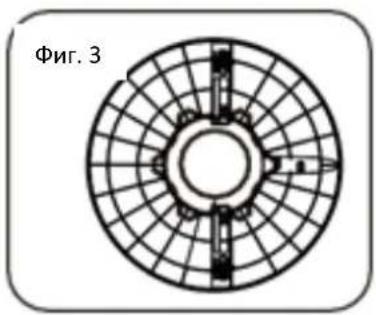

4. Fix the fan body on the base with the plastic nut. (See Fig. 3)

Technical illustration of a mechanical component with coiled spring and flanged ends (no text or symbols)

Circular diagram with radial grid pattern and central cross, labeled 'Fig. 3' (no text or symbols within the diagram itself)

VII. HOW TO OPERATE

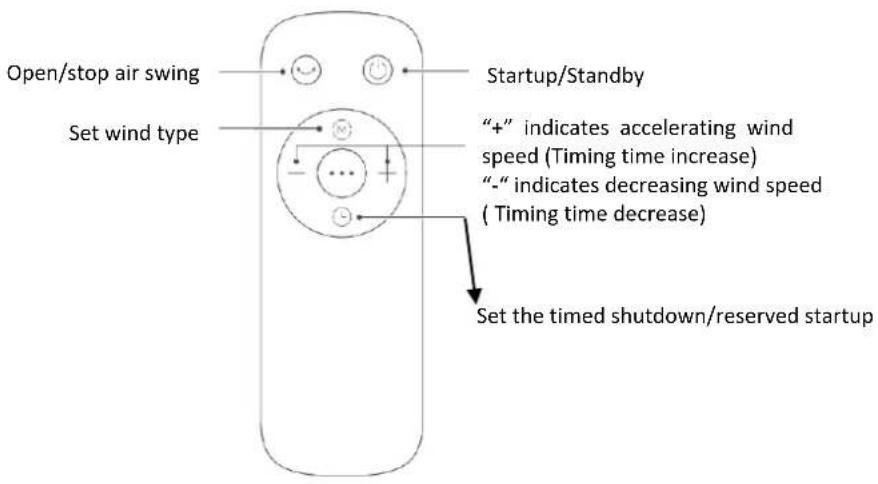

1. Remote control button description (Fig. 4)

Notes:

The remote control should be normally used within 5 meters of the front of the product and 30 degrees of the deviation angle.

The battery contains many heavy metals, acids and bases, etc., which may threaten human's health; Waste batteries should be recycled separately.

Fig. 4

Notes: Use manganese or alkaline batteries of type "AAA". Do not use rechargeable batteries.

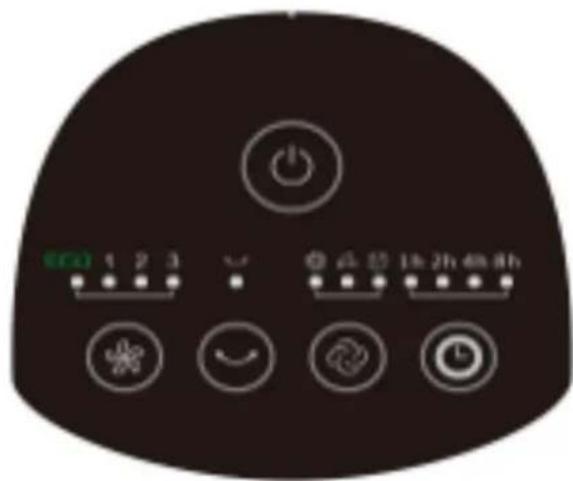

2. Buttons on fan body/ Panel indication (Fig. 5)

The buttons on the body such as ON/OFF, SPEED, MODE, TIMER, OSCILLATION have the same functions as those of the corresponding keys on the remote controller.

Close-up of a black electronic device front panel with control buttons and indicator lights (no readable text or symbols)

Fig. 5

VIII. MAINTENANCE AND CLEANING

The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface. Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid into the motor housing or interior parts.

Cleaning

1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap. Thoroughly remove soap film with dry cloth.

IX. TECHNICAL FICHE

Power	45W
Voltage	220-240V, 50Hz
Color	Black

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

Black vertical electronic tower with ventilation grilles and a flat base (no visible text or symbols)

Technical drawing of a mechanical component with threaded spring and flanged housing (no text or symbols)

Circular mechanical component diagram with radial grid pattern and central hub (no text or symbols)

VII. УПОТРЕБА

Black vertical electronic tower with ventilation grilles and a flat top (no visible text or symbols)

Technical illustration of a mechanical component with coiled spring (no text or symbols)

VII. HASZNÁLAT

Close-up of a black appliance front panel with control buttons and indicator lights (no readable text or symbols)

1. ábra
