Product Type	Stand Fan
Brand	Heinner
Model	HMSF-3WH
Power	48W
Voltage	220-240V, 50Hz
Fan Diameter	41 cm
Color	White
Number of Blades	5
Speed Settings	3 (via remote or body control)
Oscillation	Yes (controlled by remote or body button)
Timer	Yes (via remote, long press speed key)
Remote Control	Included, operates within 5 meters, 30° angle
Remote Battery	1x AAA 1.5V (manganese or alkaline)
Tilt Adjustment	Manual
Height Adjustment	Manual (turn counterclockwise to adjust)
Blade Guard	Removable for cleaning, but should not be removed during operation
Safety Features	Indoor use only; do not immerse in water; stable surface required; no objects through grille
Cleaning	Unplug before cleaning; use soft cloth with mild detergent; avoid abrasives and solvents
Warranty	Warranty card included
Disposal	Environment friendly disposal: hand to appropriate waste center

Frequently Asked Questions - HMSF-3WH Heinner

How do I assemble the Heinner HMSF-3WH fan?

First, remove the lock nuts from the fuselage. Install the base by rotating the column. Then attach the rear grill, blade, lock nut of blade (turn anticlockwise), front grill, and finally screw the lock nut of grill clockwise. Refer to the manual for detailed diagrams.

How do I use the remote control?

The remote has four keys: ON/OFF, SPEED (short press to adjust wind speed, long press 2s to set timer), OSC (oscillation), and TIMER. Operate within 5 meters and within 30° angle of the fan. Use a AAA 1.5V battery (manganese or alkaline, not rechargeable).

How do I clean the fan?

Unplug the fan before cleaning. Wipe exterior parts with a soft cloth moistened with mild detergent. Do not use abrasive cleaners, gasoline, or thinner. Avoid getting water into the motor housing.

What are the power specifications?

The fan operates at 220-240V, 50Hz, and consumes 48W. The fan diameter is 41 cm, and it is white in color.

How do I adjust the fan height?

To adjust height, turn the pole counterclockwise and then move it to the desired height. Tighten clockwise to secure.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. Using it in a window or outdoors may expose it to rain, creating an electrical hazard.

What should I do if the remote control stops working?

First, check the battery and replace if dead. Ensure you are within 5 meters and within 30° angle. If still not working, try replacing the battery with a fresh AAA alkaline battery. If the issue persists, contact customer service.

Is there a timer function?

Yes, you can set a timer by long pressing the SPEED key on the remote for 2 seconds. Refer to the manual for specific timer settings.

How do I dispose of the fan when it's no longer working?

Do not throw it in household waste. Please hand it over to an appropriate waste disposal center in accordance with local regulations to help protect the environment.

What safety precautions should I take?

Do not immerse the fan, cord, or plug in water. Keep children supervised; do not insert objects through the grille. Unplug when not in use or before moving. Place on a stable surface to avoid tipping. Never use the fan with a damaged cord.

USER MANUAL HMSF-3WH Heinner

White outdoor fan with six blades mounted on a stand (no text or symbols visible)

• Ventilator
• Putere: 48W
• Culoare: alb

White outdoor fan with five blades mounted on a stand (no text or symbols visible)

• Fan
• Power: 48W
• Color: white

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

Fan
User manual
Warranty card
Remote control

III. SAFETY PRECAUTIONS

Read all instructions carefully and keep this manual for future reference.

1. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
2. Indoor use only.
3. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
4. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
5. When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
6. When the fan was assembled, the rotor blade guard shall not be taken off anymore.
7. Correct Disposal of this product.

1. Never insert fingers, pencils, or any other object through the grille when fan is running.
2. Disconnect fan when moving from one location to another.
3. Be sure fan is on a stable surface when operating to avoid overturning.
4. DO NOT use fan in window, rain may create electrical hazard.
5. Household use only.

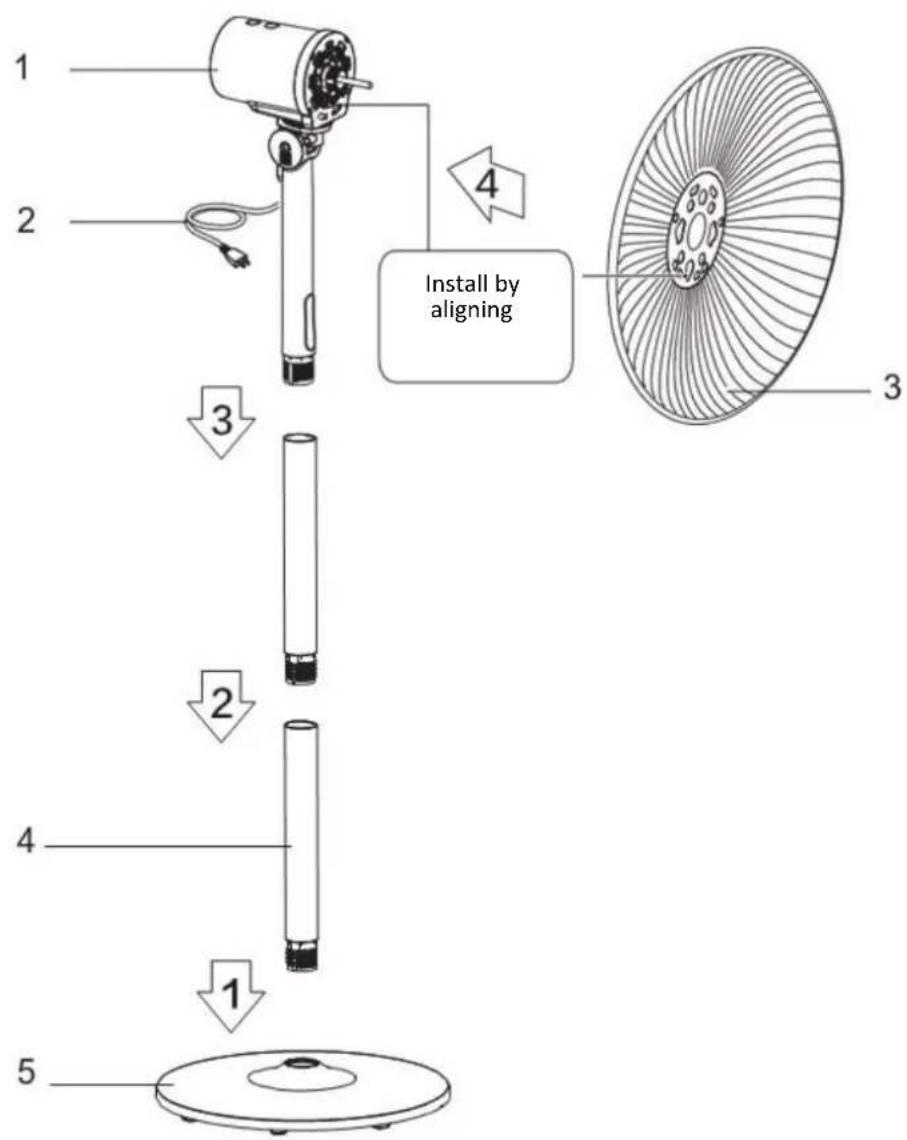

V. PRODUCT DESCRIPTION

NO.	Description
1	Motor
2	Cable
3	Rear grill
4	Pole
5	Base

Considerate Hint:

Before installation, please remove the fan leaf locknut and the mesh hood locknut from the fuselage.

Chassis installation: Install the chassis by rotating the column.

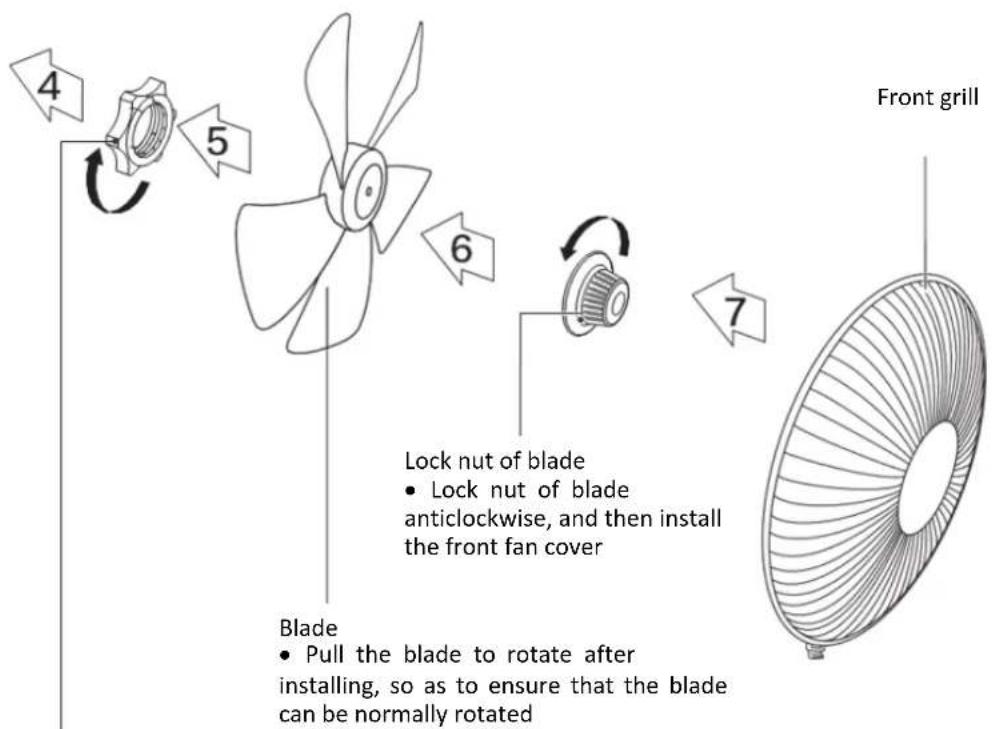

VI. HOW TO ASSEMBLE THE FAN

Align Catch of the Front Guard with the illustrated position of the Rear Guard.	Press guards sequentially with both hands.	Self-Catch Installation.

Lock nut of grill

- Screw the lock nut of grill clockwise, and in the meantime, fix the rear grill

VII. HOW TO OPERATE

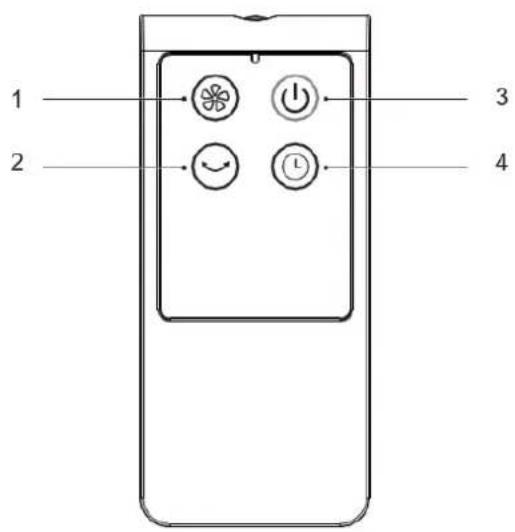

Instructions for remote controller

No.	Description
1	“SPEED” key
2	“OSC” key
3	“ON/OFF” key
4	“TIMER” key

Considerate Hint:

The remote control should be used within 5 meters in front of the product, and the deviation angle should be within 30°.

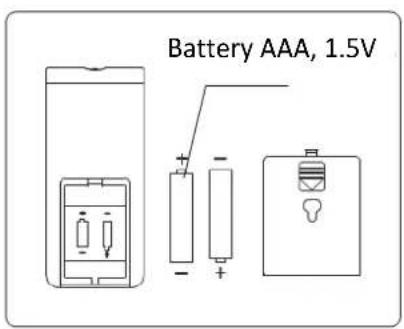

Use manganese or alkaline batteries of type "AAA". Do not use rechargeable batteries.

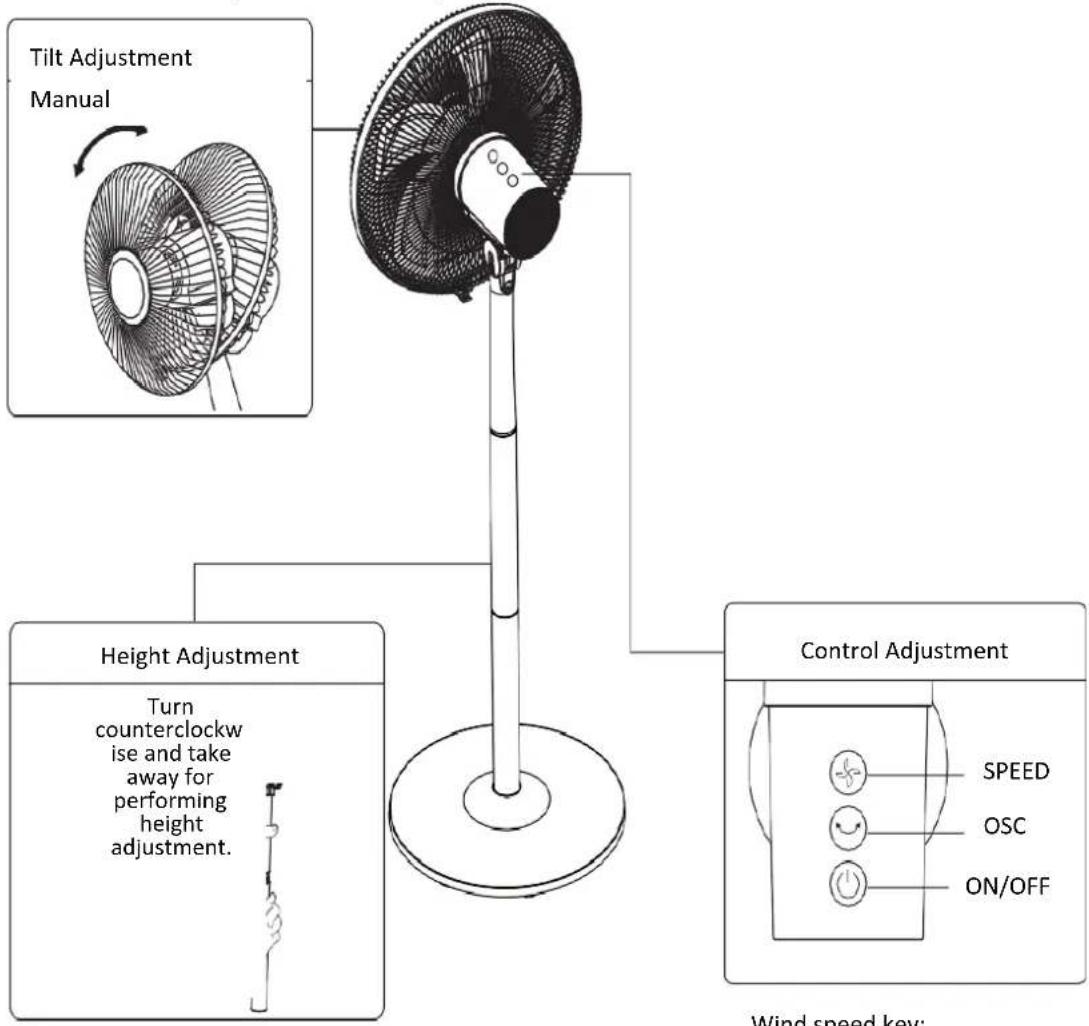

Instructions for operation of body

Wind speed key:
Short press the key to adjust the wind speed, long press the key for 2 seconds to set the timer.

VIII. CLEANING AND MAINTENANCE

The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface. Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid into the motor housing or interior parts.

CLEANING

1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap. Thoroughly remove soap film with dry cloth.

IX. TECHNICAL FICHE

Power	48W
Voltage	220-240V, 50Hz
Diameter	41 cm
Color	White

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
