CKSTRCMS65 - Coffee maker OSTER - Free user manual and instructions

Product Type	Coffee Maker
Brand	Oster
Model	CKSTRCMS65
Capacity	12 cups (60 oz)
Power Consumption	900 W
Voltage	120 V / 60 Hz
Dimensions (W x D x H)	10 x 8.5 x 12 inches
Weight	3.2 lbs
Programmable Timer	Yes, 24-hour
Auto Shut-Off	Yes, after 2 hours
Pause & Serve	Yes
Brew Strength Selector	Yes (Regular/Strong)
Water Level Indicator	Yes, external
Carafe Material	Glass
Filter Type	#4 cone paper filters or permanent mesh filter
Removable Filter Basket	Yes
Warming Plate	Yes, keeps coffee hot
Cleaning	Descaling with vinegar or descaler recommended monthly
Safety Features	Auto shut-off, cool-touch handle, non-slip feet
Replacement Parts Available	Carafe, filter basket, water reservoir lid
Warranty	Limited 1-year warranty

Frequently Asked Questions - CKSTRCMS65 OSTER

How do I set the programmable timer on my Oster CKSTRCMS65 coffee maker?

Press the Program button, then use the Hour and Min buttons to set the desired brew time. Press Program again to confirm. Ensure the clock is set correctly.

Why is my coffee tasting weak or bitter?

Weak coffee may be due to too few grounds or a coarse grind. Bitter coffee can result from over-extraction or old grounds. Use the Brew Strength selector for stronger coffee.

How do I clean and descale my coffee maker?

Fill the reservoir with equal parts water and white vinegar, run a brew cycle, then run two cycles with fresh water. Descale monthly to remove mineral deposits.

What type of filter does the CKSTRCMS65 use?

It uses #4 cone paper filters or the included permanent mesh filter. Do not use flat-bottom filters.

Can I brew less than a full carafe?

Yes, for best results brew at least 4 cups. Use the Pause & Serve feature to pour a cup mid-brew.

How do I stop the coffee maker from turning off automatically?

The Auto Shut-Off is not adjustable; it turns off after 2 hours. To keep coffee hot, pour into a thermal carafe.

What does the 'Clean' indicator mean?

The Clean light flashes when it's time to descale. Follow the descaling procedure to clear the light.

My coffee maker is leaking water. What should I do?

Check if the filter basket is properly inserted and the carafe is correctly placed on the warming plate. Ensure the water reservoir lid is closed. If leaking persists, inspect the carafe for cracks.

Can I use a permanent gold-tone filter instead of paper?

Yes, the included permanent mesh filter can be used. For finer sediment, paper filters are recommended.

How do I replace the charcoal water filter (if applicable)?

This model does not have a charcoal water filter. It uses standard tap water; for better taste, use filtered water.

USER MANUAL CKSTRCMS65 OSTER

For product questions contact:

Jarden Customer Service

USA:1,800.334.0759

Canada: 1.800.667.8623

www.oster.com

©2012 Sunbeam Products, Inc. doing business as

Jarden Consumer Solutions. All rights reserved.

Distributed by Sunbeam Products, Inc. doing Business as

Jarden Consumer Solutions, Boca Raton, Florida 33451

Jarden Customer Service

Model/Model CKSTRCMS65

Black and silver Oyster rice cooker with lid and side handles (no visible text or symbols)

Safety

Seguridad

How to use

Como usar

Cleaning

Cuidado y Limpieza

Warranty

Garantia

www.oster.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not touch hot surfaces. Use pot holders when removing cover or handling hot containers. Use handles or knobs.
3. To protect against electrical shock, do not immerse cord, plug or heating unit in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to Jarden Customer Service (see warranty) for examination, repair or adjustment.
7. The use of accessory attachments is not recommended and may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over the edge of the table or counter, or touch heated surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving any appliance containing hot liquids.
12. To disconnect, remove plug from wall outlet.
13. Do not use this appliance for anything other than intended use.
14. To reduce the risk of electrical shock, cook only in removable pot.
15. Do not pour liquid into Heating Unit.

THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY

This appliance is for HOUSEHOLD USE ONLY. No user-serviceable parts inside. Power Unit never needs lubrication. Do not attempt to service this product. A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.

EXTENSION CORD USE

A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used the marked electrical rating of the extension cord should be at least as great as the electrical rating of the Rice Cooker. The cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over unintentionally. Do not immerse base in water or other liquids.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

SAVE THESE INSTRUCTIONS

NO LIABILITY CAN BE ACCEPTED FOR ANY DAMAGE CAUSED BY NON-COMPLIANCE WITH THESE INSTRUCTIONS OR ANY OTHER IMPROPER USE OR MISHANDLING.

www.oster.com

www.oster.com

ADDITIONAL IMPORTANT SAFEGUARDS

• CAUTION: this appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent risk of burns, fires or other damage to persons or property.
• All users of this appliance must read and understand this owner's manual before operating or cleaning this appliance.
• The cord of this appliance should be plugged into a 120 volt AC electrical outlet only.
• When using this appliance, provide adequate air space above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
• Do not leave appliance unattended during use.
• This appliance generates steam. Do not operate uncovered.
• If this appliance begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair the malfunctioning appliance. Do not use the inner pot or lid if cracked or chipped.
• This appliance is for household use only.
• Unplug the rice cooker when not in use.
• Use the rice cooker on a hard, flat surface. Do not place near heat, an open flame or on a soft surface (such as carpeting). Avoid placing it where it may tip over during use. Dropping the rice cooker may cause it to malfunction.
• Avoid electrical shock by unplugging appliance before washing or adding water.
• To avoid burns, stay clear of the steam vent during cooking. Also, allow the rice cooker to cool completely before touching or cleaning the lid, inner pot or heating unit.
• Never use the inner pot on a gas or electric cooktop or an open flame.
• Do not leave the rice ladle or measuring cup in the inner pot while unit is on and in use.
• Please use measuring cup that was provided in the rice cooker. A standard measuring cup should not be used.

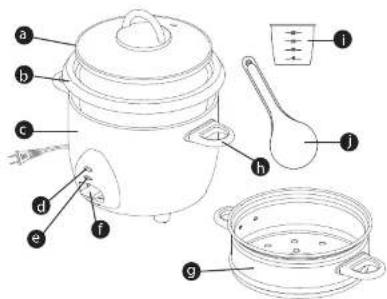

LEARNING ABOUT YOUR RICE COOKER

Glass Lid
b Inner Pot
© Heating Unit
d Keep Warm Light
e Cook Light
f Cook Switch

9 Steaming Tray (Select Models only)
h Handles
Oster™ Measuring Cup (5.33 oz.)
j Rice Ladle

www.oster.com

www.oster.com

HOW TO:

BEFORE THE FIRST USE

1 Remove all packaging materials before using.

2 Wash LID, INNER POT, RICE LADLE and MEASURING CUP in warm, soapy water. Rinse and dry thoroughly. See Care and Cleaning.

DO NOT IMMERSE THE HEATING UNIT OF YOUR RICE COOKER IN WATER OR OTHER LIQUID.

USING YOUR RICE COOKER

NOTE: MEASURING your rice is of extreme importance. Please do not discard the Oste™ MEASURING CUP included with this unit. This is a "rice cooker" MEASURING CUP, not a standard U.S. MEASURING CUP. One rice cup of the Oste™ MEASURING CUP included with this unit is equal to 5.33 ounces of uncooked rice. The rice cooker is capable of cooking up to 3 full "rice cooker" Oste™ measuring cups of uncooked rice, or 6 (5.33oz) Oste™ cups of cooked rice. Do not use instant rice with this unit.

1 Measure the amount of rice you would like to cook.
2 Wash the measured rice in a separate bowl until water is clear.
3 Place rice in the INNER POT and add the corresponding amount of water. For example, if you are making 3 Ostěrcups of uncooked rice, add water after adding rice to the "3" mark on the INNER BOWL. NOTE: Brown rice will take longer to cook than white rice.
4 Set the INNER POT into the rice cooker. Make sure that the INNER POT is in direct contact with the HEATING UNIT by turning it slightly from left to right until it properly fits onto the HEATING UNIT. NOTE: Make sure the outside of the INNER POT is completely dry before placing into the heating unit.
5 Cover with the LID. WARNING: Do not operate this appliance uncovered—steam is generated during use that could cause burns or other serious injury.
6 Plug the cord into a 120-volt AC electrical outlet. Switch the rice cooker ON by pushing the button down. Make sure the COOK indicator light is illuminated. Steaming will begin shortly.
7 The switch will pop up and the KEEP WARM indicator light will come on when all the water in the RICE COOKER has evaporated. NOTE: You

www.oster.com

CKSTRCMS85 12ESM1.indl 6-71/SH2 2:06 PM

may need to add more water and set the rice cooker to COOK more than once depending on your own personal tastes.

8 After cooking, the KEEP WARM indicator light will illuminate. It is important to let the rice stand for 10-15 minutes of steaming without removing the LID. Carefully open the LID, taking care to avoid escaping steam. Use the RICE LADLE, or other long handled utensil, to mix the rice well to allow steam to escape.
Do Not Use Metal Utensils. CAUTION: Steam will escape. Do not touch the INNER POT or heating unit until they have cooled.
9 Allow the appliance to cool completely and unplug before cleaning. 10 Disconnect the plug from the wall outlet when not in use.

COOKING HINTS

• Rinse rice - Bran gives an unpleasant smell to cooked rice. Be sure to rinse rice thoroughly. Rinsing with water effectively removes bran quickly and thoroughly.
  NOTE: Some rice suppliers suggest not rinsing rice because vitamins may be lost.
  • After use, wash the INNER POT and LID in warm, soapy water.
• Rinse thoroughly and dry.
• Do not keep the rice cooker in operation:
• When there is only a small amount of rice left in the POT.
• When rice ladle is inside the rice cooker.
• To warm up cold rice.
  ^9 DO NOT let water in the INNER POT boil dry.

How To Use Your Steaming Basket (included with select models only)

1 Clean and prepare your food or vegetables.
2 Place the INNER POT in the HEATING UNIT. The length of steaming time is subject to your own personal tastes: depending if you prefer al denté (crunchy) or more well done steamed vegetables.
3 Measure appropriate amount of water and add to INNER POT. NOTE: You are able to steam rice and vegetables/food at the same time with the STEAMING BASKET resting on the INNER POT.
4 Place the STEAMING BASKET on the rim of the INNER POT.
5 Add vegetables or food and put the LID onto the appliance. Switch to COOK position for the appropriate time as shown in the chart on page 8.
6 Disconnect the plug from the wall outlet.

www.oster.com

VEGETABLE COOKING TIME

ASPARAGUS 8 - 10 MIN
BEAN SPROUTS 3 - 4 MI
BEANS: GREEN, WAX, FRENCH CUT 8 - 10 MIN
BROCCOLI 11 - 13 MIN
BRUSSELS SPROUTS 11 - 13 MIN
CABBAGE. SHREDDED 6 - 8 MIN
CABBAGE, WEDGES 14 - 16 MIN
CARROTS 8 - 10 MIN
CAULIFLOWER	11 - 13 MIN
CELERY	8 - 12 MIN
COLLARD GREENS, SPINACH	6 - 11 MIN
MUSHROOMS (FRESH, SLICED)	3 - 4 MIN
PEA PODS	4 - 6 MIN
SQUASH (ACORN, BUT TERNUT)	13 - 16 MIN
ZUCCHINI	10 - 12 MIN

* Altitude affects the temperature at which water boils and thus the cooking time. It's especially true at high altitudes where longer cooking times are necessary. We have outlined a general guide to follow. Test for desired consistency when cooking times indicated have been reached. As you cook with this appliance, adapt times and measurements to your own personal tastes.

How To Use Your Steaming Basket While Cooking Rice

1 Follow steps 1-4 under the HOW TO USE YOUR RICE COOKER.
2 Place the STEAMING BASKET on the rim of the INNER POT.
3 Add food to the STEAMING BASKET and put the LID on the appliance. Switch to COOK position for the appropriate time as shown in the chart. NOTE: Use the STEAMING TIME Guide to determine when to add food to the STEAMING BASKET. Cooking 6 Oster ^™ MEASURING CUPS of finished rice takes approximately 30 minutes. Most vegetables can be added about 10 minutes before rice has finished cooking. Rice cooking times can vary depending on the type of rice being cooked and preferred rice texture. Adjust steaming time as desired.
4 Disconnect the plug from the wall outlet.

www.oster.com

CKSTRCMS85 12ESM1.indd 8-9

& CLEANING

This appliance should be cleaned after every use.

1 Unplug the rice cooker when not in use and before cleaning. Never immerse HEATING UNIT, cord or plug in water or any other liquids. Allow the RICE COOKER to cool completely before cleaning.
NOTE: Use the RICE LADLE or wooden utensil to stir and remove food from the INNER POT. DO NOT use metal utensils.
2 To clean the HEATING UNIT, lightly wipe the exterior with a damp cloth or sponge. Dry thoroughly with a soft cloth.
3 The INNER POT is coated with a non-stick coating to make clean up easier. To clean, remove the INNER POT from the rice cooker and fill with hot water from the tap. Let it sit for a while and then wash with hot soapy water. Rinse thoroughly and dry.
4 The INNER POT, LID, RICE LADLE and MEASURING CUP are dishwasher safe.
5 Make sure that the grains of rice do not stick to the HEATING PLATE in the bottom of the HEATING UNIT. If this occurs, remove immediately. If grains of rice are stuck onto the heating plate, a non-abrasive pad can be used to remove it. Polish the area for good contact between the HEATING PLATE and the bottom of the INNER POT.
NOTE: Do not use abrasive cleaners, scouring pads or steel wool to clean the RICE COOKER.
6 Do not use bleach, vinegar or other harsh chemicals to clean the RICE COOKER.

Questions or comments? Please visit us at www.oster.com or call 800-334-0759.

www.oster.com

1/5/12 2:08 PM

ear Limited Warranty

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively "JCS") warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tomatoes.

What are the limits on JCS Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.

JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.

JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service

In the U.S.A.

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-334-0759 and a convenient service center address will be provided to you.

In Canada

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write our Customer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

10

www.oster.com

www.oster.com

11

CKSTRCMS85_12ESM1.indd 10-11 1/5/12 2:06 PM
