BVSTDCSC4403 - Coffee maker OSTER - Free user manual and instructions

Product Type	Coffee Maker
Brand	Oster
Model	BVSTDCSC4403
Capacity	12 cups (model BVSTDC4403)
Carafe Type	Glass Carafe
Power Consumption	900W
Voltage	127V or 220V (model dependent)
Frequency	50/60 Hz
Dimensions (approx.)	12 x 9 x 14 inches
Weight (approx.)	5.5 lbs
Control Type	Digital display with clock, timer, strength selection
Brewing Options	Regular and Bold (Intense)
Programmable	Yes, 24-hour programmable Brew Later
Auto Pause	Grab-a-Cup Auto Pause
Warming Plate	Yes, keeps coffee warm for 2 hours; auto shut-off after 2 hours
Water Reservoir	Visible water window with cup markings
Filter Type	Reusable nylon filter included
Safety Features	Automatic shut-off, cool-touch handles, non-slip base
Cleaning	Daily cleaning of removable parts; decalcify every 30 days with vinegar
Warranty	One year limited warranty
Accessories	Measuring scoop, reusable filter

Frequently Asked Questions - BVSTDCSC4403 OSTER

How do I set the clock on my Oster coffee maker?

Plug in the coffee maker. The LED will display '12:00AM' with flickering digits. Use the Hour (H) and Minute (M) buttons to set the current time. After 3 seconds of inactivity, the clock is set.

How do I use the Brew Later feature?

First, ensure the clock is set. Press the Brew Later button once; the display will flash the previously set time. Use the Hour and Minute buttons to set the desired brew time. After 3 seconds, the white indicator will appear, confirming the function is active. The coffee maker will start brewing at the set time.

What is the Intense coffee option and how do I use it?

The Intense option brews a bolder cup of coffee. Press the Strength button to activate it; a red coffee bean indicator will light up. Press again to disable. You can also cancel brewing by pressing the button during the cycle.

How much coffee and water should I use?

Refer to the suggested chart: for 12 cups use 1.776L water and 3 scoops (9 tbs) of ground coffee. One scoop equals 3 tablespoons. Adjust for desired strength. For best results, brew at least 4 cups.

Can I use paper filters with this coffee maker?

Yes, you can use a standard 12-cup basket-style paper filter instead of the reusable filter. Paper filters produce a smoother, less bitter coffee by trapping sediments. Reusable filters give a fuller flavor.

How do I clean my Oster coffee maker daily?

Unplug and let cool. Remove the brew basket, reusable filter, carafe, and carafe lid. Wash them in hot soapy water or on the top rack of the dishwasher. Wipe the exterior and heating plate with a damp cloth. Do not use abrasive cleaners.

How do I decalcify my coffee maker?

Remove the water filter. Pour 4 cups (20 fl oz) of undiluted white vinegar into the water reservoir. Place an empty filter in the basket and the carafe on the warming plate. Brew the vinegar solution, then turn off and let stand for 30 minutes. Discard the vinegar, rinse the carafe, and run two full cycles with clean water. Decalcify every 30 days.

Why is my coffee maker not brewing?

Check that the unit is plugged in and the power is on. Ensure the water reservoir is filled above the minimum level, the filter basket is correctly inserted, and the carafe is properly placed on the warming plate. If the problem persists, wait for power restoration or contact service.

What should I do if the filter basket overflows?

Possible causes: filter basket not inserted correctly, carafe not positioned fully, or too many coffee grounds. Remove the filter and grounds, rinse the basket, and restart. If carafe was removed for more than 30 seconds, turn off and clean up spills.

Is the carafe dishwasher safe?

Yes, the glass carafe, carafe lid, and brew basket are top-rack dishwasher safe. The reusable filter should be rinsed thoroughly. Hand washing is also recommended to prolong life.

USER MANUAL BVSTDCSC4403 OSTER

Two Oster coffee kios machines displayed side by side, each with digital display and control buttons (no visible text or symbols on the devices themselves)

MODELOS

MODELS

BVSTDC4403

BVSTDC4404

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

Close-up of a modern glass water heater with black handle and clear glass body (no text or symbols visible)

Figura 1

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid. Avoid spilling water on the connector.
4. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.
5. Cleaning and user maintenance shall not be made by children without supervision.
6. Unplug from outlet when either the appliance or display clock (if provided) is not in use, and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to an Authorized Service Center for examination, repair or adjustment. Do not attempt to replace or splice a damaged cord.
8. The use of an accessory not recommended by the appliance manufacturer for use with this appliance may result in fire, electric shock or injury to persons.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Always attach plug to appliance first, then plug cord into the wall outlet (for appliances with detachable cords). To disconnect, turn any control to the off position, then remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. All lids should be closed during use.
15. Scalding may occur if the lid is removed or brew basket door is opened during or immediately after the brewing cycles. Contents may be hot. Allow to cool before opening the lid.
16. The heating base and heating element is subject to residual heat following a brewing cycle. Do not touch heating base or heating element immediately after a brewing cycle. Allow to cool before handling.
17. Do not place the appliance in a cabinet when in use.

For models capable of using sealed capsules

1. WARNING: To avoid the risk of injury, never open or disengage the brew chamber during the brew cycle.

2. The sharp needles on the top lid and bottom of capsule holder used to puncture the capsules may cause injury. Keep hands away from the sharp needles and use caution while using, cleaning, or handling the capsule holder.

3. Only use capsules intended for this appliance. If the capsule does not fit, do not force the capsule into the appliance.

ENGLISH-1

For appliances with glass containers:

1. The container is designed for use with this appliance. It must never be used on a range top.
2. Do not set a hot container on a wet or cold surface.
3. Avoid sudden temperature changes, such as rinsing, washing, filling, or immersing a hot container with cold liquids.
4. Do not use a cracked or chipped container or a container having a loose or weakened handle.
5. Do not clean container with cleansers, steel wool pads, or other abrasive material.

SAVE THESE INSTRUCTIONS

This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
– By clients in hotels, motels and other residential type environments;
– Bed and breakfast type environments

PRODUCT NOTICES

1. Place the appliance on a hard, flat, level surface to avoid interruption of airflow underneath the coffeemaker.
2. Glass decanters only: Discard the decanter immediately if it is ever boiled dry.
3. Glass decanters only: Protect the decanter from sharp blows, scratches or rough handling.
4. Do not operate the appliance with an empty water tank.
5. Keep the area above the appliance clear during use, as hot steam will escape the appliance.

ENGLISH-2

1. Coffee Filter
2. 8 cup thermal carafe (model BVSTDC4404)
3. 12 cup glass carafe (models BVSTDC4403)
4. Filter Basket
5. Lid
6. Control Panel
7. Grab-a-cup Auto Pause
8. Warming Plate
9. Measuring Scoop
10. Water Reservoir
11. Water Window

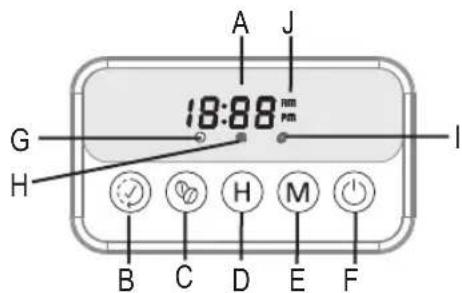

CONTROL PANEL

A. Clock Display
B. Brew Later Button
C. Strength Button
D. Hour Button
E. Minute Button
F. Brew Now Button

G. Brew Later Indicator
H. Brew Now Indicator
I. Intense Coffee Indicator
J. AM/PM Indicator

ENGLISH-3

GETTING STARTED

1. Unpack your coffeemaker and remove plastic bags, cartons and any tape on the unit. WARNING: Keep plastic bags away from children.

CLEAN COFFEEMAKER BEFORE USE

Just follow these simple steps:

1. Wash the carafe and the brew basket in a mixture of mild detergent and water. Rinse each thoroughly.
2. Replace all the parts and close the lid. Then, run a brew cycle by adding only water to the coffeemaker. After adding water, press ⏻
3. When brewing is complete, turn your coffeemaker off. Turn your coffeemaker off by pressing the button again.
4. Discard the water in the carafe and rinse the carafe, carafe lid, and brew basket. NOTE: Carafe and brew basket are top rack dishwasher safe.

SETTING THE CLOCK

1. Plug the power cord plug into the outlet. The LED will display "12:00AM" together with the "12:00" flickers.
2. Set current time using the Hour (H) and Minute (M) buttons. 3 seconds of inactivity will set clock at time selected.

ENGLISH-4

HOW TO MAKE YOUR FIRST POT OF COFFEE

MEASURING THE RIGHT AMOUNT OF GROUNDS AND WATER

Determine how much coffee you would like to make and match the carafe, scoop and water window. The quantity markings quickly indicate how much water and coffee grounds should be added for consistent taste.

SUGGESTED COFFEE MEASUREMENT CHART:

For best results, brew 4 or more cups of coffee.

Water To Brew Ground Coffee
12 cups = 1.776L 3	scoops = 9 tbs.
10 cups = 1.48L 2.5	scoops = 7.5 tbs.
8 cups = 1.184L 2	scoops = 6 tbs.
6 cups = 0.888L 1.5	scoops = 4.5 tbs.
4 cups = 0.592L 1	scoops = 3 tbs.

*Using fine coffee or decaf may cause overflow.

Bonus: For a BOLDER coffee, use heaping TBS

NOTE: The measuring scoop is equivalent to 3 tablespoons in total.

White and black digital kitchen blender with handle (no visible text or symbols)

Figure 1

1. Fill the carafe with fresh cold water to the desired level. (Figure 1) 1 "cup" is equivalent to 5 fluid ounces. Pour into Water Reservoir.

NOTE: Some water will be absorbed into the coffee grounds and water filter during the brewing process.

1. Insert the reusable filter into the filter holder making sure that it is positioned correctly, since otherwise the lid will not close.
2. Referencing the chart above, scoop the equivalent amount of coffee grounds into the filter using the measuring scoop.
3. Put the carafe on the heating plate/platform horizontally.
4. Press the button to start Brewing.
5. Remove the carafe from the warming plate when done brewing (about a minute after the coffee stops dripping).

NOTE: The coffee you get will be less than the water you have added, as some of the water is absorbed by the ground coffee.

1. When the process is finished, if you do not want to serve immediately, keep the coffee maker connected to the outlet, the coffee in the carafe can be kept warm on the heating plate, and the appliance will turn off automatically after 2 hours if it has not been manually disconnected at the end of the preparation. For optimal coffee flavor, serve right after brewing.

NOTE: For model BVSTDCSC4404 the coffeemaker will automatically turn off once it is done brewing.

1. Always turn off the coffee maker when not in use. NOTE: Pay attention when pouring the coffee, you may get hurt as the temperature of the freshly brewed coffee is high.

ENGLISH-5

BOLDER COFFEE BREW LATER

IMPORTANT: You must set the clock before using this feature.

1. Press the intensity option and the Red Coffee Bean indicator will turn on by activating the icon on the screen. To disable the INTENSE coffee option simply press the button again. The Red Coffee Bean indicator will disappear.2. The coffee-making process can be stopped by pressing the button at any time, and the red indicator will turn off. The appliance will continue brewing once the button is pressed again.

1. Press the button once, the display will flash the previously set brew later time.2. Press the Hour and Min button to set the brew later time (Example: 1:10 pm)NOTE: The time cycle is 12 hours.3. After 3 seconds of inactivity the brew later time will be set for the selected time.4. A White indicator will show up on the display to indicate the BREW LATER function has been activated.NOTE: You can cancel the BREW LATER function by pressing the Brew later button again, the white indicator will turn off. If you want to change the brew later time, just follow the steps above from 1 to 3 again.5. When the time comes, the white indicator will turn off and the red indicator will light up, then the unit begins to brew the coffee.NOTE: As a reminder, if you want to continue using the brew later feature, you will need to press whenever you want. The coffee maker will not automatically start again the next day.

HOW TO BREW THE PERFECT CUP

PAPER FILTERS VS. REUSABLE FILTERS

PAPER FILTERS: To achieve a smoother, less bitter cup of coffee, use a paper filter. It will be most effective in trapping bitter sediments.

REUSABLE FILTERS: For a more robust and full taste, use a reusable filter. It will allow the coffee's full flavor to fill your cup. Reusable filters have tiny holes that allow rich coffee oils to brew through.

WATER

While it may not seem like an important ingredient, coffee is 98 percent water. The type of water that you brew with greatly affects the final taste. Always use clean, fresh water that is filtered and free of impurities – avoid hard water or well water.

CLEANLINESS

A clean coffeemaker is essential to brewing great tasting coffee each and every time.

ENGLISH-6

ROUTINE CLEANING

DAILY CLEANING

- CAUTION: Make sure your coffeemaker is unplugged and has cooled completely before cleaning.

1. Remove the brew basket, nylon filter, carafe, carafe lid, and wash them in a solution of hot water and mild liquid soap, and dry thoroughly. You can also place in the dishwasher; top-rack only.
2. Wipe the outer surface of the product with a soft, damp cloth to remove stains.
3. Water droplets may accumulate in the area at the base of the filter holder. To control dripping, wipe the area with a clean, dry cloth after each use of the product.
4. Use a damp cloth to gently wipe the heating plate. Never use abrasive cleaner to clean it.

DECALCIFYING YOUR OSTER® COFFEEMAKER

Minerals (calcium/limestone) found in water will leave deposits in your coffeemaker and affect its performance. It's recommended that you regularly remove these deposits using vinegar.

1. IMPORTANT: Remove the water filtration system from the coffeemaker.
2. Prepare 4 cups or 20 fl. oz. / 592ml of undiluted, white household vinegar. Pour the vinegar into the water reservoir.
3. Place an empty 12 cup basket-style paper filter or Oste® reusable filter into the brew basket and close the coffeemaker's lid.
4. Place the empty carafe back in the unit, centered on the warming plate or platform (depending on the coffeemaker model).
5. Brew prepared cleaning solution through the coffeemaker.
6. Turn the coffeemaker off and let stand for 30 minutes.
7. Discard the cleaning solution and rinse the carafe thoroughly with clean water.
8. Fill the water reservoir with 12 cups/8 cups (depending on the coffeemaker model) of clean, fresh water.
9. Place the empty carafe back on the coffeemaker, centered on the warming plate or platform (depending on the coffeemaker model).
10. Remove and discard the paper filter used during the cleaning cycle. If an Oster reusable filter was used during cleaning, remove it and rinse it thoroughly before replacing it in the brew basket.
11. Press 🚙 and allow the full brew cycle to complete, rinsing the coffeemaker with hot water.
12. Discard the water and rinse the carafe thoroughly with clean water.
13. Repeat steps 8 through 12 one more time, to ensure it is fully rinsed.

Your coffeemaker is now clean and ready to brew the next pot of delicious, hot coffee!

NOTE: It is recommended that you decalcify your coffeemaker every 30 days.

ENGLISH-7

CLEANING FREQUENCY

TYPE OF WATER CLEANING FREQUENCY

Soft Water Every 80 Brew Cycles

Hard Water Every 40 Brew Cycles

CARAFE USE AND CARE

Follow the instructions below to reduce or eliminate the chance of breaking the glass carafe:

• Discard the carafe immediately if it is ever cracked.
• Protect the carafe from sharp blows, scratches or rough handling. Do not use harsh abrasive cleaners that may scratch the carafe. Scratches may cause the carafe to break.

ENGLISH-8

TROUBLESHOOTING YOUR COFFEE MAKER

Your coffee maker has been carefully designed to give you many years of trouble-free service. In the unlikely event that your new coffee maker does not operate satisfactorily, please review the following potential problems and try the steps recommended BEFORE you call or take it to an Authorized Oster® Service Center.

PROBLEM POSSIBLE CAUSE SOLUTION
The brew now white indicator does not light up	· The appliance is unplugged.· There's a power outage.	· Plug unit in.· Wait for power to be restored.
The coffee is not brewing · The	appliance is unplugged.· There's a power outage.· Not enough water in water reservoir.· The filter basket is not properly inserted.· The glass decanter/ thermal carafe is not placed all the way on the warming plate/ platform.	· Plug unit in.· Wait for power to be restored.· Fill water reservoir above minimum level marking.· Insert filter basket correctly.· Place glass decanter/ thermal carafe correctly on warming plate/ platform.
The coffee maker only brews water	· There are no coffee grounds in the filter basket.	· Add the desired amount of coffee to the filter.
The coffee maker brews slowly	· The coffee maker needs cleaning.	· Clean coffee maker as described in “cleaning and maintaining” section.
The filter basket overflows · The	filter basket is not properly inserted.· The glass decanter/ thermal carafe is not placed all the way on the warming plate/ platform.· Too many coffee grounds were place in the filter.· The glass decanter/ thermal carafe was removed from the warming plate/ platform for more than 30 seconds.	· Insert filter basket correctly.· Place glass decanter/ thermal carafe correctly on warming plate/ platform.· Remove filter and discard ground. If using paper filter, replace it. If using permanent filter, rinse it. Begin brewing process again.· Turn off and unplug the unit. Allow it to cool. Wipe up spill
The coffee is not hot · There is	a power outage. · Wait for power to be restored.
The coffee tastes bad · Coffee	grounds other than for an automatic drip coffee maker was used.· The ground coffee-to-water ratio was unbalanced.· The coffee maker needs cleaning.	· Use coffee grounds recommended for automatic drip coffee makers.· Use correct ground coffee-to-water ratio.· Clean coffee maker as described in “Maintaining your coffee maker” section.
The grounds are in the coffee ·	The filter is not properly seated in the basket.· The filter collapsed.	· Seat filter properly described within the filter basket.· Remove filter and replace.

ENGLISH-9

Oster®

Modelo/Model Voltaje/Voltage Frecuencia/Frequency Potencia/Power
BVSTDC4403-013 127V	60 Hz	900W
BVSTDC4403-053 220V	60 Hz	900W
BVSTDC4403-054 220V	50 Hz	900W
BVSTDC4404-013 127V	60 Hz	900W
BVSTDC4404-054 220V	50 Hz	900W

The following information is intended for Mexico only.

© 2023 Sunbeam Products, Inc. All rights reserved. One year limited warranty – please see insert for details.

www.oster.com

ImpresoenChina Printed in China

OSTERLATINO

YouTube

P.N. NWL0001512147 Rev A

BVSTDC4403_BVSTDC4404_23SEM2(LA)_GCDS-JC
