Product Type	Split system air conditioner (indoor and outdoor units)
Cooling Capacity	18,000 BTU/h
Heating Capacity	Approximately 18,000 BTU/h (heat pump)
Power Supply	230 V, 50 Hz, single phase
Indoor Unit Dimensions (W × H × D)	Approximately 1000 × 300 × 250 mm
Outdoor Unit Dimensions (W × H × D)	Approximately 900 × 700 × 350 mm
Indoor Unit Weight	Approximately 14 kg
Outdoor Unit Weight	Approximately 45 kg
Remote Control Range	Up to 8 m
Temperature Setting Range	16 °C to 30 °C
Cooling Operation Outdoor Temperature Limit	16 °C to 43 °C (DBT)
Heating Operation Outdoor Temperature Limit	−5 °C to 24 °C (DBT)
Operation Modes	Auto, Cool, Heat, Dry, Fan
Timer	12-hour delay ON/OFF timer
Airflow Direction Control	Horizontal louver (manual), vertical auto swing
Special Features	Powerful mode, Quiet mode, Auto restart after power failure
Air Filter	Washable, clean every 2 weeks
Safety Protection	Earth Leakage Circuit Breaker (ELCB) recommended, auto restart, compressor delay
Refrigerant Type	R32 (presumed based on modern models)

Frequently Asked Questions - CS-YE18MKX PANASONIC

Why is the air conditioner not cooling or heating effectively?

Check the temperature setting, close doors and windows, clean or replace the air filters, and ensure there are no obstructions at the air inlet and outlet vents. If the problem persists, the outdoor temperature may be outside the operating range (cooling: 16–43°C, heating: −5–24°C).

How do I clean the air filters?

Switch off the power supply. Open the front panel, remove the filters, wash them gently with water (do not use hot water above 40°C or chemicals), dry them thoroughly in the shade, and reinstall. Clean the filters every two weeks for optimal performance.

What does the blinking timer indicator mean?

The blinking timer indicator usually indicates an error. Use the remote control to retrieve the error code: press and hold the timer button for 5 seconds until a beep is heard, then note the displayed code. Contact an authorized dealer for service.

Why does the indoor unit emit mist or water?

Mist is normal during cooling due to condensation. Water may appear if the drainage pipe is blocked or improperly connected. Ensure the drainage outlet is clear and not immersed in water.

How do I set the timer?

Press the SELECT button to choose between OFF timer, ON timer, or both. Then press TIMER repeatedly to set the desired delay (1–12 hours). Press the confirm button to activate. The timer indicator on the indoor unit will light up.

Can I use rechargeable batteries in the remote control?

No, do not use rechargeable (Ni-Cd) batteries. They may damage the remote control. Use only standard AAA or R03 alkaline batteries.

What should I do if the remote control stops working?

Check if the batteries are inserted correctly or need replacement. Ensure the receiver on the indoor unit is not obstructed. Certain fluorescent lights may interfere; move closer. If still not working, use the manual AUTO OFF/ON button on the indoor unit.

What is the difference between Powerful and Quiet modes?

Powerful mode runs the unit at maximum capacity to reach the desired temperature quickly. Quiet mode reduces fan noise for a quieter environment. These two modes cannot be activated simultaneously.

How do I prepare the air conditioner for long-term non-use?

Run the unit in Heat mode for 2–3 hours to dry internal moisture and prevent mold. Then turn off the power supply and remove the batteries from the remote control.

Why does the fan stop occasionally during heating or when set to auto fan speed?

During heating, the fan may stop to prevent cold drafts while the unit preheats. In auto fan speed mode, the fan may stop to remove surrounding odors. This is normal and not a malfunction.

USER MANUAL CS-YE18MKX PANASONIC

Illustration of a blue leafy plant in a snowy landscape with a white air conditioner unit above (no text or symbols)

Panasonic

Operating Instructions Air Conditioner

Indoor Unit Outdoor Unit

CS-YE9MKX CU-YE9MKX

CS-YE12MKX CU-YE12MKX

CS-YE18MKX CU-YE18MKX

ENGLISH

Before operating the unit, read these operating instructions thoroughly and keep them for 1,000 reference.

ESPAÑOL

ENGLISH Thank you for purchasing Panasonic Air Conditioner

TABLE OF CONTENTS

SAFETY PRECAUTIONS 8\~9

REMOTE CONTROL 10\~11

INDOOR UNIT 12

TROUBLESHOOTING 13

INFORMATION 50\~55

PRODUCT SPECIFICATION 56

QUICK GUIDE....BACK COVER

NOTE: The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected to change without notice for future improvement.

OPERATION CONDITION
Use this air conditioner under the following temperature range

Temperature (°C)		Indoor Outdoor
		*DBT *WBT *DBT *WBT
COOLING	Maximum 32 23 43 26Minimum 16 11 16 11
HEATING	Maximum 30 - 24 18Minimum 16 - 5 - 6

* DBT: Dry bulb temperature

• WBT: Wet bulb temperature

NOTICE: • This model is not suitable for 24 hours non-stopping operation in heating mode below -5°C.

When the outdoor temperature is below -5°C and you use this model out of above conditions, the

outdoor unit might be frozen up and stop operation for protection control.

To prevent personal injury, injury to others, or property damage, please comply the following.

Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classified as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED

These symbols denote an action that is COMPULSORY.

WARNING

INDOOR UNIT AND OUTDOOR UNIT

This appliance is not blended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Please consult authorized dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.

Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down accidentally.

REMOTE CONTROL

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

POWER SUPPLY

Do not use modified cord, joint cord, extension cord or unspecified cord to prevent overneal and fire.

To prevent overheating, fire or electric shock: • Do not share the same power outlet with other equipment.
- Do not operate with wet hands
- Do not over bend the power supply cord. - Do not operate or stop the unit by inserting or

WARNING
POWER SUPPLY
	If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCE) or Residual Current Device (RCD) to prevent electric shock or fire.To prevent overhealing, fire or electric shock:• Insert the power plug properly.• Dust on the power plug should be periodically wiped with a dry cloth.
	Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker.(Risk of smoke/fire/electric shock)Examples of abnormality/failure• The ELCB trips frequently• Burning smell is observed• Abnormal noise or vibration of the unit is observed.Water leaks from the indoor unit.Power cord or plug becomes abnormally hot.Fan speed cannot be controlled• The unit stops running immediately even if it is switched on for operation.The fan does not stop even if the operation is stopped.Contact immediately your local dealer for maintenance/repair.
	Replacement or installation of power plugs shall be performed by authorized/qualified personnel only. The wires in this man's lead are coloured in accordance with the following code:Terminal 2018, 2019, 2020 (EC Standard)L 50000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
	Writing colour may vary depending on a country wiring code's standard.
	This equipment must be earthed to prevent electric shock or fire.
	Prevent electric shock by switching off the power supply and uprug when:- Before cleaning or servicing.Expressed one time.

CAUTION
INDOOR UNIT AND OUTDOOR UNIT
	Do not wash the indoor unit with water, benzene, thinner or scouring powder to avoid damage or corrosion at the unit.
	Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc.
	Do not use any combustible equipment in front of the airflow outlet to avoid fire propagates.
	Do not expose plants or pet directly to airflow to avoid injury, etc.
	Do not touch the sharp aluminium fin, sharp parts may cause injury.
	Do not switch ON the indoor unit when waving the floor. After waving, aerate the room properly before operating the unit.
	Do not install the unit in oily and smoky areas to prevent damage to the unit.
	Do not dismantle the unit for cleaning purpose to avoid injury.
	Do not step onto unstable bench when cleaning the unit to avoid injury.
	Do not place vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock
	Do not left the window open during CoolDry mode operation to prevent water leakage.
	Ensure drainage pipe is connected properly and keep drainage outlet clear of gutters, containers or does not immersed in water to prevent water leakage.
	After long period of use or use with any combustible equipment, aerate the room regularly.
	After long period of use, make sure the installation rack is not deteriorate to prevent the unit from falling down.
REMOTE CONTROL
	Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.
	To prevent malfunction or damage of the remote control:• Remove the batteries if the unit is not going to be used for a long period of time.

ENGLISH

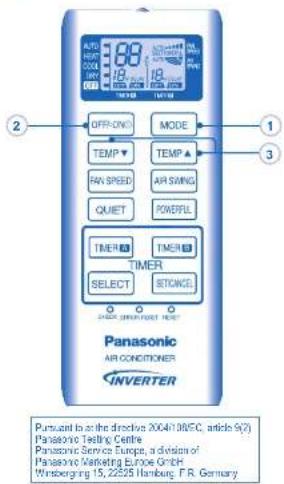

REMOTE CONTROL

Press the remote control's button

- Please be aware of the OFF indication on the remote control display to prevent the unit from starting/stopping impropriety.

2 TO SET TEMPERATURE

- Selection range: 16°C - 30°C. - Operating the unit within the recommended temperature could induce energy saving. HEAT mode: 20°C - 24°C. COOL mode: 26°C - 28°C. DRY mode: 1°C - 2°C lower than room temperature.

- During operation mode selection the power indicator binds

- Unit selects the operation mode according to the indoor intake temperature and remote control temperature.

HEAT mode · To enjoy warm air

- In heat mode, it may take a while for the unit to warm up. The POWER indicator blinks during prehealing.

COOL mode - To enjoy cool air

- Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

DRY mode - To dehumidify the environment

- Unit operates at low fan speed to give a gentle cooling operation.

5 TO ADJUST AIRFLOW DIRECTION (5 OPTIONS)

AIR SWING

- Keeps the room ventilated

• In COOL mode, if AUTO is set, the lower swing up/down automatically.

- In HEAT mode, if AUTO is set, the horizontal louver fix at predetermined position.

6 TO ACHIEVE TEMPERATURE QUICKLY

- This setting enables the desired set temperature to be reached quickly.

7 TO ENJOY QUIET ENVIRONMENT

- This setting provides a quiet environment by reducing the airflow noise.

• POWERFUL AND QUIET operations can not be activated at the same time.

6 PRESS TO RESTORE THE REMOTE CONTROL'S DEFAULT SETTING

9 NOT USED IN NORMAL OPERATIONS

TO SET THE TIMER

(12-HOUR TIMER SETTING)

- When you want the air conditioner to turn ON or OFF automatically.

DELAY OFF-TIMER

For example, to stop the air conditioner 5 hours later. 1 To select the Delay OFF-TIMER press the SELECT button once.

2 Press the TIMER button to select the delay hour. - The OFF-TIMER can only be set while the air-conditioner is in operation.

DELAY ON-TIMER

For example, to start the air conditioner 2 hours later,

1 To select the Delay ON-TIMER, press the SELECT button once.

2 Press the button to select the delay hour.

- The ON-TIMER can only be set while the air-conditioner is not in operation.

DELAY OFF AND O

For example, to stop the air conditioner 3 hours later and start 4 hours later.

1 To select the Delay OFF and ON Timer, press the SELECT button twice repeatedly.

2 Press the TIMER button to select the delay hour for OFF Timer.

3 Press the 📞 button to select the delay hour for ON Timer.

- This mode of timer can only be set while the air-conditioner is in operation.

DELAY ON AND OFF TIMER

For example, to start the air conditioner 7 hours later and stop 10 hours later.

1 To select the Delay ON and OFF Timer, press the SELECT button twice repeatedly.

2 Press the 📋 button to select the delay hour for ON Timer.

3 Press the TREAD button to select delay hour for OFF Timer.

- This mode of timer can only be set while the air-conditioner is not in operation.

TO CONFIRM THE TIMER SETTING

Press the button once to activate the timer operation which will start when the set time is reached. TO CANCEL THE TIMER SETTING

Press the LETANG button again to cancel the timer operation.

- The timer indicator of the indoor unit will light up during the timer operation.

- When ON Timer is set, the unit may start earlier before the actual set time in order to achieve the desired temperature on time.

- If you press operation (OFFONE) button during the timer setting operation, timer setting will be cancelled.

- If timer is cancelled manually or due to power failure, you can restore the timer again by repeating steps above (once power is resumed).

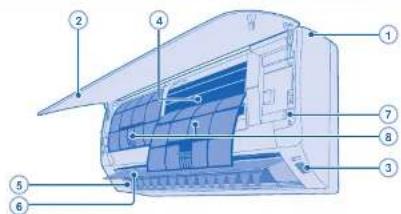

INDOOR UNIT

CAUTION

- Switch off the power supply before cleaning.

- Do not touch the aluminium fin, sharp parts may cause injury.

WASHING INSTRUCTIONS HINT

• Do not use benzene, thinner or scouring powder
• Use only soap (pH7) or neutral household detergent.
- Do not use water hotter than 40°C.

• To ensure optimal performance of the unit, clearing maintenance have to be carried out at regular intervals. NOTE
- If chemical cloth is used to wipe the unit, instruction for
the cloth should be followed.

1 INDOOR UNIT

- Wipe the unit gently with a soft, dry cloth.

2 FRONT PANEL

Remove Front Panel
- Raise and pull to remove the front panel.
- Wash gently end dry
Close Front Panel

- Press down both ends of the front panel to close it securely

3 RECEIVER

4 ALUMINIUM FIN

5 HORIZONTAL AIRFLOW DIRECTION LOUVER

- Manually adjustable

7 AUTO OFFION BUTTON

- Use when remote control is misplaced or malfunction.

Action Mode
Press once. Auto
Press and hold until 1 beep is heard, then release	Cooling
Press and hold until you hear double beep sound, then release.	Heating
Press the button to turn off.

8 AIR FILTERS

• Clean the filters regularly.
• Washvinse the filters gently with water to avoid damage
  to the titer surface.
• Dry the filters thoroughly under the shade, away from five or direct sunlight.
• Replace any damage filter.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM CAUSE

Misl emerges from indoor unit ▶ + Condensation effect due to cooling process.

Water flowing sound during operation. ▶ • Refrigerant flow inside the unit

The room has a peculiar odour. ▶ + This may due to damp small emitted by the wall, carpet.

furniture or clothing.

Indoor fan stops occasionally during automatic fan speed ▶ This helps to remove the surrounding colours.

selling.

Operation is delayed a few minutes after restart. ▶ • The delay is a protection to the unit's compressor.

Outdoor unit emits water/steam. ▶ • Condensation or evaporation occurs on pipes

The unit operates automatically when power is resumed after a power failure.

It is the Auto Restart function of the unit. Operation will be restarted automatically under the previous operation mode and air flow direction when power is resumed as the operation is not stopped by remote control.

indoor fan stops occasionally during heating operation

• To avoid unintended cooling effect

Power indicator binds before the unit is switched on. ▶ This is a preliminary step in preparation for the operation

When the ON timer has been set.

Cracking sound during operation. ▶ Changes of temperature cause the expansion

- Contraction of the unit.

Check the following before calling for servicing.

SYMPTOM CHECK

Healing/Cooling operation is not working efficiently.

- Sat the temperature correctly.

- Close at doors and windows.

• Clean or replace the filters.

- Clear any obstruction at the air inlet and air outlet vents.

Noisy during operation.

- Check if the unit has been installed at an incline.

- Close the front panel property

Remote control does not work.

- Insert the batteries correctly.

(Display is dm or transmission signal is weak.)

- Replace weak batteries

The unit does not work.

▶ Check if the circuit breaker is tripped.

The unit does not receive the signal from the remote

- Check it timers have been set

control

• Make sure the receiver not obstructed.

• Certain fluorescent lights may interfere with signal

transmitter. Please consult authorized dealer.

The unit stops and the timer indicator blinks.

Use remote control to retrieve error code.

Press until you hear beep sound, then jot down the error code.

Note:

- For certain error, you may restart the unit with limited operation with 4 beeps during operation starts.

4

Press for 5

seconds.

Press for 5 seconds

Other sales Surge and Other Sales

Fate demanders aldeinen demanders plaus de 1

PRECAUCIÓN

UNIDAD INTERIOR

Dilutive, and United

UNITÀ INTERNA E UNITÀ ESTERNA

UNITÀ INTERNA E UNITÀ ESTERNA

1 UNITÀ INTERNA

1 UNIDADE INTERIOR

Retire o painel frontal

• Levante e puxe para retirar o paine frontal,

Fecha o painel frontal

1 ВЪТРЕШНА ЧАСТ

1 UNUTARNJA JEDINICA

• Jedinicu pažljivo obršite mekom, suhom krpom

2 PREDNJA PLOČA

Uklonite predniu ploču
- Podignile i povučte prednju ploču kako biste je ukonili.
- Pažljivo operite I osušite
Zatvorite prednju ploču

- Prilisnilo prema dolje oba kraja prednje ploče kako biste je pravilno zatvorili.

3 PRIJEMNIK

4 ALUMINIJSKA REŠETKA

5 REBRA ZA VODORAVNO PODEŠAVANJE SMJERA ISPUHIVANJA

1 IÇ ÜNİTE

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national regulation and the Directive 2012/95C and 2016/85C. By the European Union, the data and barriers correctly, you will help to save valuable resources and prevent any potential positive effects on human health and the environment which could otherwise arise from inappropriate waste funding. For more information about collection and recycling of old products and batteries, please contact your local municipality your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of the waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

- Checking of remote control batteries.

- No obstruction at air inlet and air outlet vents.

- Use Auto OFF/ON button to select Cooling/Heating operation, after 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents. Cooling: ≥8°C Heating: ≥14°C

FOR EXTENDED NON-USE

- Activate Heat mode for 2–3 hours to remove moisture left in the internal paris thoroughly to prevent mould growth.

• Turn off the power supply.

- Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.

- Waterforeign particles have entered the remote control.

• Water leaks from Indoor unit

+ Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

- Switches or buttons are not functioning properly.

• The timer indicator blinks and the unit can not

be operated.

Country	People	Ouest	Italy	Netherlands	Portuguese	Spanish	Dulgaran	Kuwait	Austria	Italy	Norwayan
Kurkshogranthus	Gerdrian and al.	Sahyapal, Natala	Paysi, Paysi, Paysi	Lancia, Narmata	Lamili, Paysi, Paysi	Lambati, Paysi, Paysi	Candadara, Paysi	Hsbc, Bursa	Sao, Bursa	Spekha's primaola	Pakala, Gualmaz
Mehel, Narmat, Kaspal	Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Mehel, Noh	Mavita, Dargar, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavita, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavite, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavits, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitt, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Maviv, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavv, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavvit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, MavV, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavi, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Maviti, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavir, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavut, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavat, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavt, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavtit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitic, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitim, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitin, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavin, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitis, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitus, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitas, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavites, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitan, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavot, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavet, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitet, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Maviter, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavlit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavlt, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavit, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, MavITU, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavuit, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavitu, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut, Mavut

MEMO

MEMO

QUICK GUIDE/GUÍA RÁPIDA/GUIDA RAPIDA/GUIA RÁPIDO/ БЪРЗ СПРАВОЧНИК/BRZE UPUTE/HIZLI REHBER

Remote Control Preparation • Preparación Del Mando A Distancia • Telecomando: Operazioni Preliminari • Preparação Do Controlo Remoto • Podготовне На Дистанционното Управление • Priprema daljinskog upravljača • Uzaktan Kumanda Hazirlanmasi

Remove the battery cover • Relate la lava ce les pilas • Rimuovere i superchio batteries • Remova a lampa de batteries • Cserente kanaka za baterpiaite • Uklante painov bonnja • Pi kapagini qikartn.
2 Insert AAA or R03 batteries (can be used - 1 year)
Inserte pilas AAA o R03 guvede ser usado - 1 año)
Inserte ballerite AAA o R03 (puo essere utilizzato per circa 1 anni)
Inclusa pithas AAA ou R03 (pooe ser utilizzato - 1 año)
Pittuaene AAA and R03 ge terap (vota da ce variarasta i paia wartesi no eurea rougna)
Unmanto AAA lii R03 balanja (mogu se konstiti - 1 godma)
AAA vya R03 bil Italiani (> 1 y kalantaditi)
3 Close the cover • Cierre la tapa • Chudere il coperchio • Ferdre a tampa • Zanapere kanava • Zavonte polkov • Kacegi kapston.

MODE

AUTOHEAT DRYCOOL

Select the desired mode. Seleccione el modo descendó. Selezionar la modalita desideras. Seleccione o modo de funcionamiento pretendido. Избо на желания ремinas на работа. Odancela lejeri nach. Istenlan modu según.

OFF/ON

Start/stop the operation. Incoideisenga a funnanianio Awtare/entestare 'apperechio. Ligue/Desligue a uridade. Ekonheana/ciparone. Pokrenzezuk slavte rad. Çaigneayi besalimidardurun.

TEMP

Select the desired temperature. Selazione a temperature desada. Selezionare la temperatura desiderats.

Pursuant to act the directive 20041108EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany
