380-026 - Log splitter Meec Tools - Free user manual and instructions

Product Type	Log Splitter
Brand	Meec Tools
Model	380-026
Power Source	Electric (230V)
Motor Power	1500 W
Splitting Force	6 tons
Max Log Length	520 mm
Max Log Diameter	250 mm
Cycle Time	11 seconds
Weight	40 kg
Dimensions (L x W x H)	930 x 280 x 780 mm
Operation Position	Horizontal
Hydraulic Oil Capacity	3.5 L
Safety Features	Two-hand operation, emergency stop, safety guard
Maintenance	Check hydraulic oil level, lubricate ram, inspect hoses
Spare Parts Availability	Replaceable wedge, seals, and motor brushes
Manual Included	Yes (PDF, 37 pages)
Warranty	2 years

Frequently Asked Questions - 380-026 Meec Tools

What type of oil does the log splitter use?

The hydraulic system uses ISO VG 32 or equivalent hydraulic oil. Check the manual for exact specifications.

How do I change the hydraulic oil?

Drain the old oil via the drain plug, refill with fresh oil to the proper level, and bleed the system by cycling the ram without load.

Why is the ram not moving?

Check if the motor is running, the hydraulic oil level is correct, and the emergency stop is released. A stuck control valve may also cause this.

Can I split logs longer than 520 mm?

No, longer logs may damage the machine or cause instability. Always adhere to the maximum log length specified.

How do I maintain the splitting wedge?

Keep the wedge clean and sharp. Apply lubricant periodically to reduce friction and prevent rust.

Is the log splitter safe to use?

Yes, when used with both hands on the controls, safety guard in place, and all safety instructions followed. Never bypass safety features.

What voltage does the unit require?

It requires a 230V AC power outlet. Use a suitable extension cord rated for outdoor use.

Why is the motor overheating?

Overheating can be due to continuous use, low oil level, or clogged air vents. Let it cool down and check the oil level.

How often should I replace the hydraulic filter?

Replace the hydraulic filter every 200 hours of operation or annually, whichever comes first.

Can I use the splitter in vertical position?

This model operates only in horizontal position. Do not attempt to tilt or modify the splitter.

USER MANUAL 380-026 Meec Tools

Mechanical device with tripod base and mechanical components (no visible text or symbols)

SVENSKA 3

SÄKERHETSFÖRESKRIFTER 3

TEKNISKA DATA 4

BESKRIVNING 4

Symboler på maskinen 5

HANDHAVANDE 5

Technical line drawing of a mechanical device with gears and wheels, showing motion arrows (no text or symbols)

OBS!

Line drawing of a mechanical device with a diagonal line crossing through it, no text or symbols present.

SVENSKA

Byte av hydraulolja

Technical line drawing of a mechanical device with two views (top and side), showing internal components and directional arrows indicating movement or assembly (no text or symbols present)

SVENSKA

MONTERINGSANVISNING FÖR STATIV TILL VEDKLYV

Close-up of mechanical components with labeled parts (G and H), no readable text or symbols beyond labels

Fäst handtaget.

Mechanical device with mounting flanges and a central component (no visible text or symbols)

NORSK

SIKKERHETSANVISNINGER

Technical line drawing of a mechanical device with rollers and a base, showing motion arrows (no text or symbols)

OBS!

Diagram of a mechanical device with a diagonal line crossing through it, no text or symbols present.

NORSK

Technical line drawing of two mechanical device assemblies with arrows indicating assembly or movement (no text or symbols present)

Kontroller regelmessig at oljenivået er mellom de to strekene på peilepinnen. Fyll på med ny olje ved behov.

NORSK

MONTERINGSANVISNING FOR STATIV TIL VEDKL∅YVER

Plasser firkantrøret (A) i hullet (B) på akselen (C).

NORSK

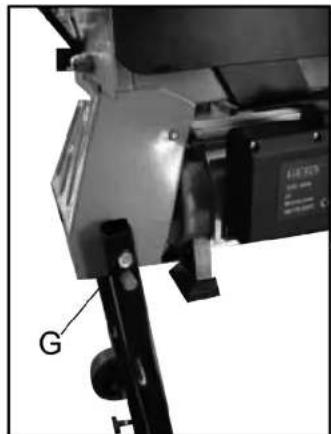

Fest de to skruene (G).

Close-up of a mechanical device with labeled component 'G' and no visible text or symbols on the main subject.

Close-up of a mechanical component with no visible text or symbols

NORSK

POLSKI

PRZEPISY BEZPIECZEŃSTWA

Technical line drawing of a mechanical device with rollers and a base, showing directional arrows (no text or symbols)

UWAGA!

Simple line drawing of a machine with a diagonal line crossing through it, no text or symbols present.

POLSKI

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Close-up of mechanical components with labeled parts (G and H), no readable text or symbols beyond labels

Przymocuj uchwyt.

Mechanical device with mounting flanges and a central component (no visible text or symbols)

POLSKI

ENGLISH

SAFETY INSTRUCTIONS

Read the Operating Instructions carefully before use!

• Save these Operating Instructions for future reference.
• The appliance is not intended for use by people (including children) with various disabilities, or by people who have no knowledge of how the appliance is used, unless they are monitored or receive instructions concerning use of the appliance by a person who is responsible for their safety.
  • Children must be monitored to ensure that they do not play with the appliance.
• Avoid contact with moving parts.
• Incorrect use of extension cords can impair performance and cause overheating. The extension cord must not be longer than 10 metres. The conductors' cross section must be at least 2.5mm^2 . Check that the extension cord is dimensioned for the motor's output current. Couplings and connections must be insulated and intended for outdoor use.
• Check that the mains voltage corresponds with the motor's nominal output, mains voltage and mains frequency. Use a residual current device.
• Connect the log splitter to an earthed mains supply. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, cookers and refrigerators. Never open the power switch on the motor. Contact a qualified electrician should this become necessary. Ensure that your fingers do not come into contact with the plug's metal pins when you connect or disconnect the machine.
• The log splitter is intended to be used by only one person. Keep children, onlookers and other unauthorised persons at a safe distance from the work area. Never allow anyone else to help you release logs that have become caught in the machine.
• Inspect the wood and remove any nails or other foreign objects. The wood must be sawn straight across and branches must be sawn off along the trunk.
• Do not overreach, and make sure that the surface is not slippery. Maintain a proper balance at all times.
• Never stand on the machine. If the machine tips over or if you come into contact with the moving parts, this can lead to serious injuries. Do not store items above or near the machine where someone might need to stand on the machine to reach them.
• Avoid injuries caused by unexpected incidents. Always pay attention to the machine's movements. Do not add or remove logs until the machine has come to a complete standstill. Keep your hands away from all moving parts.
• Protect your hands. Keep your hands away from the splits and cracks that open up in the wood. These can suddenly close, crushing or amputating your hands. Do not use your hands to remove logs that have become caught.

ENGLISH

TECHNICAL DATA

Model	HLS6T-52
Mains voltage 230 V/50 Hz
Output power 2100 W
Splitting capacity
Diameter	30-250	mm
Length	520	mm
Splitting force 6 tonnes
Hydraulic oil volume 2.4 l
Protection rating IP54
Sound power level, LwA 89 dB(A)
Sound power level, LwA 78 dB (A), K=3 dB
Dimensions 1200 x 260 x 485 mm
Weight	56

Always use hearing protection!

The logs' diameter range presented in the table is indicative. A narrow log may be difficult to split due to knots or a particularly hard type of wood. On the other hand, wood with regular fibres may be split even if the diameter exceeds that specified in the table.

DESCRIPTION

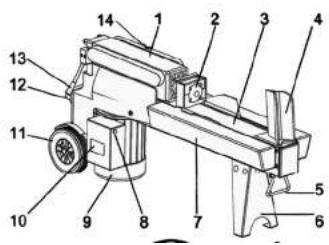

1. Oil container
2. Log feeder
3. Worktable
4. Wedge
5. Lifting handle
6. Supporting legs
7. Log support plates
8. Press-switch
9. Motor
10. Switch box
11. Wheels (intended only for moving short distances)
    40 18:25

ENGLISH

Symbols on the machine

	Read the Operating Instructions		Hands can be amputated or crushed
	Check the log splitter before use		Protect your hands
	Wear protective clothing		Disconnect the power prior to maintenance
	Wear eye protection	[AAGS]	Look after the environment. Dispose of used oil according to applicable environmental requirements and regulations
[w85A]	Maintain a safe distance

OPERATION

Before using the machine, open the bleed screw a few turns to allow air to flow freely into and out of the oil tank. It must be possible to observe the air flow through the bleed screw when the machine is in use.

ENGLISH

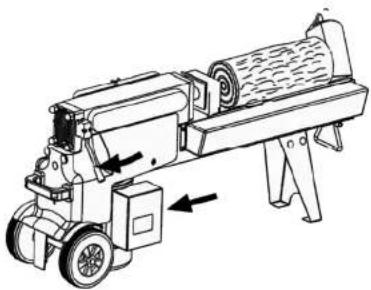

The log splitter has a safety operation feature that requires the use of both hands to operate the machine. The left hand regulates the hydraulic lever, while the right hand operates the press-switch. The machine stops if either hand is not in place. When both hands have released the hydraulic lever and the switch respectively, the log feeder returns to the starting position.

In order to avoid accidental activation of the hydraulic lever, the lever is fitted with a latch that has to be pulled back with the index finger before the lever can be moved forwards.

Technical line drawing of a mechanical device with rollers and a base, showing directional arrows (no text or symbols)

NOTE!

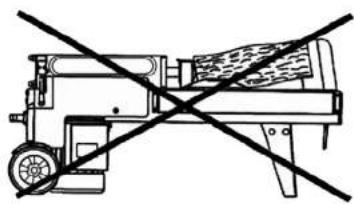

Do not keep the machine activated for more than five seconds when splitting logs of very hard wood. After five seconds, the oil overheats and the machine can be damaged. Rotate such logs 90^st to try to find an easier splitting angle. If the log cannot be split, this means that the hardness of the wood exceeds the machine's capacity. Put such logs aside in order not to damage the machine.

Ensure that the log is flat and stable on the worktable. Ensure that it cannot turn, slide or move in any other way during splitting. Do not overload the splitting wedge by trying to split the log against the upper section of the wedge. This could break off the wedge or damage the machine in other ways.

Split the log in the direction of the fibres. Do not lay the log crossways to try to cut it. This is dangerous and can seriously damage the machine. Neither should you attempt to split two logs simultaneously. They can be thrown out and injure you.

Simple line drawing of a mechanical device with a diagonal line crossing through it (no text or symbols)

ENGLISH

Replacing hydraulic oil

Replace the hydraulic oil after every 150 hours of operation according to the following instructions:

- Switch off the machine and disconnect it from the power outlet. Make sure all moving parts have stopped.

- Unscrew the oil drainage plug.

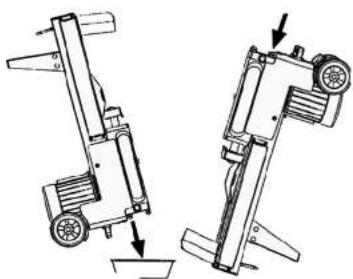

- Lift up the motor end of the machine (see figure) and empty the hydraulic oil into a 4 litre container.

- Lift up the machine's stand end (see figure).

- Fill with the volume of hydraulic oil specified for the machine model under "Technical data".

- Clean the dipstick and insert it into the oil tank while the machine is being held vertically.

- Check that the oil level is between the two lines on the dipstick.

- Clean the oil plug and the dipstick again before screwing the plug into place. Tighten the plug properly to avoid leaks when the machine is once again placed horizontally.

Technical line drawing of a mechanical device with two views (top and side), showing internal components and directional arrows indicating movement or assembly (no text or symbols present)

Check regularly that the oil level is between the two lines on the dipstick. Top up with new oil if necessary.

The following hydraulic oils or equivalent are recommended for the log splitter's hydraulic system:

SHELL Tellus 22

MOBIL DTE 11

ARAL Vitam GF 22

BP Energol HLP-HM 22

MAINTENANCE

ENGLISH

TROUBLESHOOTING

Problem	Possible cause	Action
The log cannot be split.	The log is incorrectly positioned.	See the section "Operation" for correct placement of logs.
	The size or hardness of the logs exceeds the machine's capacity.	Do not exceed the machine's splitting capacity.
	The edge of the splitting wedge is blunt.	See the section "Sharpening the splitting wedge" in order to sharpen the edge of the wedge.
	Oil is leaking.	Locate the leak(s) and contact the dealer.
	The adjustment screw for the machine's maximum pressure has been changed. The maximum pressure has been reduced.	Contact the dealer.
The wood feeder moves jerkily, is making a noise and vibrating abnormally.	Too little oil and too much air in the hydraulic system.	Check the oil level and top up if necessary. Contact the dealer.
Oil is leaking from the cylinder or other parts.	Air has become trapped in the hydraulic system.	Undo the bleed screw 3-4 turns before using the machine.
	The bleed screw was not tightened before the machine was moved.	Tighten the screw before moving the machine.
	The oil drainage plug is not tight. Tighten the oil drainage plug.
	The hydraulic system's control valves and/or seals are worn.	Contact the dealer.

EXPLODED DIAGRAM

ENGLISH

ASSEMBLY INSTRUCTIONS FOR LOG SPLITTER STAND

Place the square tube (A) in the hole (B) on shaft (C).

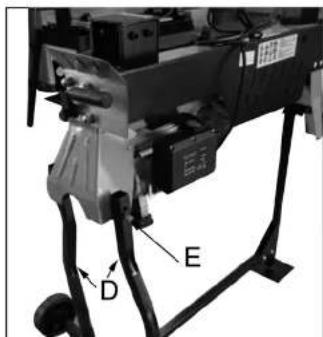

Place the log splitter on the front part of the stand. Fit the legs (D) on the log splitter. Ensure that the rod (E) goes into the lower holes. Place the legs in the mounts (F) on the shaft. Tighten the locking screws.

ENGLISH

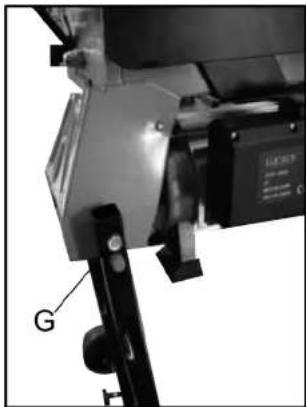

Secure the two screws (G).

Close-up of a mechanical device with labeled component 'G' (no readable text or symbols beyond label)

Secure the handle.

Mechanical device with mounting flanges and central component (no visible text or symbols)

EC DECLARATION OF CONFORMITY EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE EF SAMSVARSERKLÆRING DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

certify that the design and manufacturing of this product intygar alt konstruktion och tillverkning av denna produkt bekrefter at konstruksjon og produksjon av dette produktet oświadcza, że budowa i sposób produkcji niniejszego produktu

Logg Splitter / Vedklyv Vedkløyver / Luparka do drewna

HLS6T-52 2100W

Item number / Artikelnummer / Artikkelnummer / Numer artykułu

380-026

conforms to the following directives and standards / överensstämmer med följande direktiv och standarder: er i samsvar med fölgende direktiver og standarder / są zgodne z następującymi dyrektywami i normami:

Machinery Directive 2006/42/EC Low Voltage Directive 2006/95/EC Electromagnetic Compatibility 2004/108/EC

EN 609-1/A2:2009; EN 60204-1/A1:2009
