008-121 - Log splitter Meec Tools - Free user manual and instructions

Type	Log Splitter
Brand	Meec Tools
Model	008-121
Dimensions (W x H x D)	48 x 70.5 x 110 cm
Weight	54 kg
Rated Voltage	230 V ~ 50 Hz
Power Output	1500 W
Splitting Force	39 kN
Hydraulic Pressure	16 MPa
Hydraulic Oil Volume	2.4 L
Max Log Length	37 cm
Log Diameter Range	5 - 25 cm
Protection Rating	IP54
Maximum Log Split Diameter (Guide)	25 cm
Intended Use	Household use only
Operating Temperature Range	5°C to 40°C
Safety Two-Hand Operation	Yes (both lever and power switch required)
Vent Screw Required for Operation	Yes
Includes Oil Drain Plug with Dipstick	Yes
Warranty	See manufacturer

Frequently Asked Questions - 008-121 Meec Tools

How do I safely operate the log splitter?

Always read the manual. Use both hands: one on the hydraulic control lever and one on the power switch. The piston stops if either is released. Ensure the vent screw is loosened before use. Wear safety glasses, gloves, and non-slip shoes. Place the log splitter on a stable, horizontal workbench 60-75 cm high.

How do I change the hydraulic oil?

Switch off and unplug. Wait for moving parts to stop. Unscrew and remove the oil drain plug with dipstick. Tip the splitter on its support legs and let oil drain into a container (min 4L). Refill with hydraulic oil (2.4 L). Clean dipstick, replace plug, and check oil level between marks.

What type of hydraulic oil should I use?

The manual does not specify the exact type. Use a standard hydraulic oil suitable for log splitters, typically ISO VG 32 or similar. Check the dipstick marks; volume is 2.4 L.

How do I release a jammed log?

Release both controls. Wait for piston to fully retract. Place a wooden wedge under the jammed log. Operate the piston to press the wedge in. Use thicker wedges until the log comes loose. Never use hands or knock the log.

What are the safety symbols on the product?

Symbols include: approved according to directives, wear safety glasses/ear protection/helmet, wear safety gloves, wear safety shoes, risk of electric shock, unplug before maintenance, keep safe distance, warning moving parts, keep hands away from cracks, recycle oil, check before use, recycle product.

Can I use an extension cord?

Yes, but max length 10 m with wire cross-section at least 2.5 mm². Ensure connections are suitable for outdoor use and that the cord is properly grounded.

What should I do if the motor won't start?

Check if overload protection has tripped. Have the switchbox opened by qualified personnel to reset. Also ensure power supply matches voltage.

How do I assemble the log splitter?

Screw support legs onto the splitter. Place on a workbench 60-75 cm high. Attach left and right reinforcements to log supports using M8 screws and flat washers. Fit left and right covers. Install the hook on the outfeed table. Insert nylon plugs. Refer to manual diagrams.

How do I maintain the log splitter?

Keep clean and dry. Check oil level regularly. Tighten vent screw when moving. Sharpen splitting wedge if blunt. Inspect for oil leaks. Recycle used oil properly. Unplug before any maintenance.

What is the maximum log size I can split?

Max log length 37 cm, diameter 5-25 cm. The specified diameter is a guide; thinner logs with knots may be harder, thicker smooth-grained logs easier. Never split logs larger than specified.

USER MANUAL 008-121 Meec Tools

Red and black industrial machine with wheels and a perforated frame (no visible text or symbols)

EN OPERATING INSTRUCTIONS

1,5 kW/ 4 t LOG SPLITTER 1,5 kW/ 4 t VEDKL∅YVER

▲ Important. Read the user instructions carefully before use. Save them for future references. (Translation of the original instructions).

NO BRUKSANVISNING

▲Victig! Les bruksanvisningen dety le bruk. Ta vare på den for fremtidig bruk. (Oversettelse av original bruksanvisning)

KONNATURUM

IN METHUKO I ANDUJE

värna om milon!

Rat en hill and organ for her fllres.

Deo of the following

Care for the environment!

Must not be discarded with household waste. This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our customer service www.jula.com

Tilverkare/Procusenti/Produzendi/Manufacturer

Jula AB, Box 163, 512-24 SKARA

Distr bualor, distribal yr/Dyslybaler, distribalor

Jula Pelane Sp. 2010, u

Walborska 41, 08-28: Warsawa, Polska

Jula Marge 45, So hermsen 30.

1473108-R9K16

2019-09-18

6183

EU DECLARATION OF CONFORMITY

EU FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EU SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI UE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

This declaration of conformity is issued under the sole responsibility of the manufacturer

Machinery Directive 2006/42/EC

EN 609-1:2017, EN 60204-1:2006+A1

Electromagnetic Compatibility Directive 2014/30/EU

EN 55014:2017, EN 55014-2:2015

EN 61000-3-2:2014, EN 61000-3-11:2000

RoHS Directive 2011/65/EU and (EU) 2015/863

EN 50581:2012

This product was CE marked in year -19

Name and address of the person subscribed Jonas Backstad

to compile the technical file: Box 363, SE-532 24 Sierra, Sweden

Technical line drawing of a mechanical device with wheels and a handle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with rollers and structural components (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component (no text or symbols)

Line drawing of a mechanical device with wheels and a rack (no text or symbols)

Simple line drawing of a wheeled cart with a diagonal black cross mark (no text or symbols)

Mechanical device diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

SÄKERHETSANVISNINGAR

SKIFTE HYDRAULIKKOLJE

deler har stanset helt.

1. Skru lós og fjern ojelappepluqgen med peilepinne.
2. Tipp vedkøyveren opp på støttebena og la oljen renne ut i et oppsamlingskar som kommer minst 4 liter.

BILDE 10

• Read the instructions and stickers on the product. Understand the functions and limitations of the product, including potential risks and dangers during both use and storage.
• Never use the product if you are tired or under the influence of drugs, alcohol or medication.
• Place the product on a flat, stable, horizontal 60 to 75 cm high bench, with plenty of space for the user to handle the logs. Screw the product to the surface if it slides.
• Keep the work area clean and well it. Cluttered work areas increase the risk of accidents and injuries.
• Do not use the product in clamp or wet areas. Do not expose the product to rain
• Do not use the product in an explosive environment, e.g. near flammable liquids, gas or dust.
• Always carefully check the product before use. The safety devices must be fitted correctly and work properly. Always check that Allan keys/spanners etc. have been removed from the product before starting it. Replace any damaged, missing or broken parts prior to use.
• Do not wear loose-fitting clothing, jewellery or watches that can get caught in moving parts.
• It is recommended to wear safely gloves that are not electrically conductive and non-slip shoes. Wear a hair net if you have long hair.

• The product can eject objects that can cause permanent eye injuries. Wear safety glasses. Normal glasses only have shock-resistant lenses. They are not safety glasses.

• Unsuitable extension cords can risk causing a fire and/or electric shock. An extension cord must not be longer than 10 metres, with a cross sectional area of the wires of at least 2.5mm^2 to supply power to the motor. Do not use insufficiently insulated connections. Connections must be appropriate for outdoor use.

- Check that the mains voltage corresponds to the rated voltage on the type plate and that the circuit is correctly fuse protected. Check that the power cord, plug and power point are earthed and that the power point has a residual current device. Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators.

- Never open the push-button box on the motor. The box must only be opened by authorised electricians.

- Do not touch metal parts of the plug when connecting or disconnecting it.

- The product must only be used by one person at once. Keep children and onlookers at a safe distance when using the product. Never allow anyone to help you release logs that have got stuck.

- Check that there are no nails or other foreign objects in the logs. The ends of the logs must be cut at right angles. Branches must be cut off flush with the log.

• The surface must not be slippery.

• Always maintain a firm footing and good balance.

- Never stand on the product. There is a risk of serious personal injury if the product tips over or the user touches sharp parts. Do not store anything above or near the product, where someone could be tempted to stand on it to reach up.

- Two instructions for the recommendation of the

• Keep your hands away from moving parts.
• Keep your hands at a safe distance from cracks that open up in the wood. Such cracks may close suddenly and crush or amputate your hands.
• Do not attempt to release a log that has got stuck with your hands.
• it does the job better and more safely when used at the rate for which it was designed. Do not attempt to split logs larger than as specified in the technical data. This could result in a risk of serious personal injury and/or material damage,
• Only use the product for its intended purpose.
• Do not leave the product until it has come to a complete standstill.
• Pull out the plug when the product is not in use. Always pull out the plug before adjusting, replacing parts, cleaning or maintenance.
  • Used oil must be disposed of in accordance with local regulations.
• Keep the product clean for better and safer work.
• Keep the place where the product is stored locked. Switch off main power switch. Store the product out of the reach of children and unauthorised persons.
• The product must be connected to 230 V +10%, 50 Hz +1 Hz with undervoltage and over voltage protection, overcurrent protection and a residual current device with a tripping current of 0.03 A

SYMBOLS

Approved in accordance with the relevant directives.

Use safety equipment, such as safety glasses, ear protection and a safety helmet.

Wear safety gloves.

Wear safety shoes.

DANGER: Risk of electric shock.

Unplug the product from the mains before adjusting, replacing parts, cleaning and maintenance.

Keep at a safe distance,

WARNING: Moving parts.

Keep your hands at a safe distance from cracks that open up in the wood.

WARNING: Moving parts. Never allow any part of your body to come between the wood and piston when the piston is moving.

Always recycle used oil. Do

	Make sure to carry out the requisite service before using the product.
	Check the product before use.
	Recycle discarded product in accordance with local regulations.

TECHNICAL DATA

Rates voltage 230 V	~50 Kg
Output	1500 W
Protection rating IP54
Splitting force: 39 kV
Hydraulic pressure 16 MPa
Hydraulic oil volume: 2.4 l
Log size: Length: Max 37 cm
Diameter* 5-25 cm
Size: 110 x 48 x 70.5 cm
Weight: 54 kg
* The specified diameter is only a guide. 4 thinner soap can be more difficult to split, if it was roots or rough grain. On the other hand, thicker soap can be easier to finish if they have a smooth grain.

DESCRIPTION

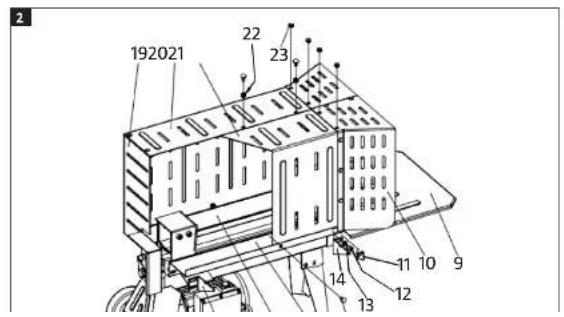

1. Hood
2. Support leg
3. Power switch
4. Motor

5. Wheel

6. Front cover

7. Screw M5 with finger grip 1 pcs.
8. Carriage screw M8 x 15 5 pcs
9. Hot washer 8 mm 5 pcs
10. left reinforcement
11. Corroge screw M8
    pos
12. Left log support
13. Right log support
14. Right reinforcement
15. End cover
    20 Right cover
16. left cover
17. locknutM8 /pcs.
    23 Retaining plugs, nylon 1/ pcs.

FIG. 2

ASSEMBLY

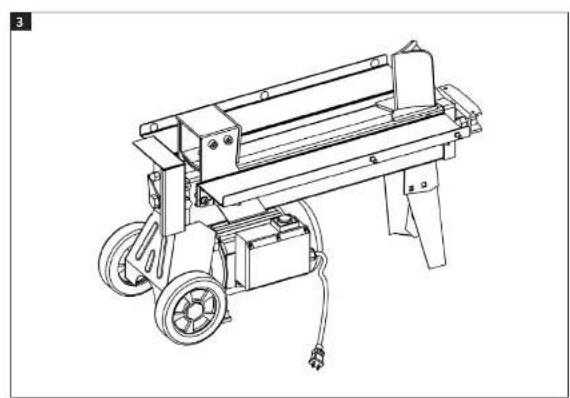

1. Screw the support legs on the log splitter FIG. 3

2. Lift the log splitter with both handles and put it on a stable, horizontal worktop with a height of 60 to 75 cm.

3. Fit the left reinforcement (15) in the left log support (17) with 1 carriage screw M8 x 15 (13) and flat washer (14), and screw tight with a socket or ring spanner. Fit the right reinforcement ('18) in the right log support (6) with 1 carriage screw M8 x 15 (11) and flat washer (12), and screw tight with a socket or ring spanner.

4. Hit the left cover (22) in the left log support (17) with 2 carriage screws M8 and lock nuts, and screw tight with a

EN

1. Fit the left cover (22) in the right cover (21) together with 2 carriage screws M8 and lock nuts, and screw tight with a socket or ring spanner.

FIG. 4

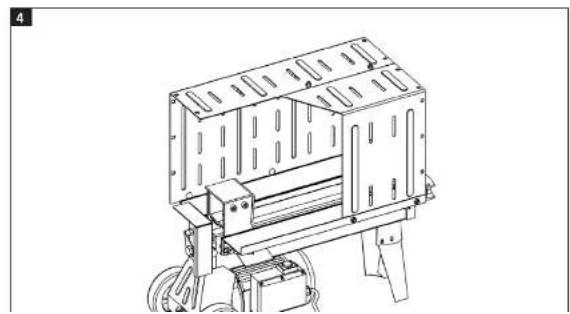

1. Fit the hook in the front edge of the cutfeed table in the cylindrical part of the worktop and fit the other edge in the cylinder head.

FIG. 5

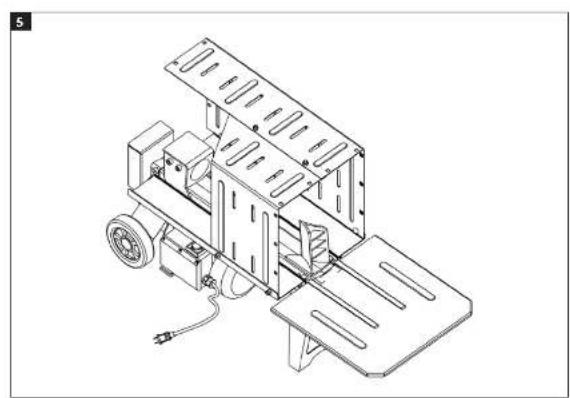

1. Screw in the two MG screws with finger grips in the corresponding holes in the left and right log supports (the MG screws must be undone to dismantle the outfeed table).

2. Tap the 17 retaining nylon plugs (24) in place in the front hood (11) and the end cover (20) with a mallet. Carefully tap the retaining plugs in place in the holes in the left cover (22) and right cover (21).

FIG. 6

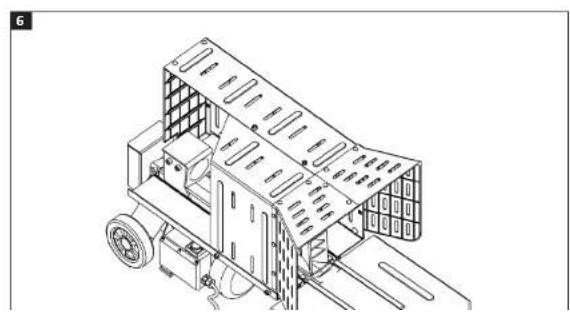

1. If the log splitter does not have extra legs or a stand, put it on a stable workbench with a height of 850 mm.

USE

INTENDED USE

The log splitter is only intended for household use. It is intended to be used in ambient temperatures from 5 to 40°C and up to 1000 m above sea level. The relative humidity should be less than 50% at 40°C. The log splitter can be stored and transported at ambient temperatures from 25 to 55°C.

VENTING

• The flow of air through the vent hole should be noticeable when the log splitter is in use.
• Before moving the log splitter, check that the vent screw is properly tightened to avoid oil leaking out.

NOTE:

Compressed air will remain in the hydraulic system if the vent screw is not unscrewed. This will destroy the seals and permanently damage the log splitter.

WARNING!

Do NOT adjust the adjusting screw for maximum pressure. The permissible maximum pressure is set at the factory and the adjusting screw is sealed to ensure that the splitting force never exceeds 49 kN (5000 kgf). If this adjustment is changed there is a risk of serious personal injury and/or material damage, or that the hydraulic pump does not provide sufficient pressure.

HOW TO USE

To ensure the log spifter is safe to use the control system needs both hands to be used at the same time - one hand on the hydraulic control lever and the other on the power switch. The piston stops moving if either the lever or the switch is released. When both the lever and the switch are released the piston starts moving back to the home position. The hydraulic control lever also has a trigger lock, which prevents it from being pressed accidentally. Pull the trigger lock back with your forefinger before pressing the hydraulic control lever forward.

NOTE:

Do not near the lower down for more than 5

EN

try again. If the log still does not split, discard it.

logs should be split along the length of the grain. Never attempt to split a log across the grain with the products: risk of personal injury and/or serious material damage. Never attempt to split two or more logs at the same time. One of them could be thrown out and cause personal injury and/or material damage.

NOTE:

Always place logs firms on the workbench with the log support. Position the log so that it cannot twist, wobble or slide away during the splitting. Do not put the log on the top part of the blade. This can damage the blade and/or the log splitter.

RELEASING JAMMED LOG

1. Release both controls.

2. When the piston has gone back and stopped in the home position, place a wooden wedge under jammed log.

FIG. 8

1. Run the piston so that the wedge is pressed in under the jammed log.

2. Repeat with thicker wedges until the log comes loose.

NOTE:

Never attempt to knock or tap a jammed log loose. This can damage the log splitter, or cause the log to suddenly come loose and cause personal injury.

FIG. 9

Follow the instructions below:

1. Switch off the engine and wait until all moving parts have completely stopped.

2. Unscrew and remove the oil drain plug with dipstick.

3. Tip up the log splitter on the support legs and let the oil run out into a container that holds at least 4 litres.

FIG. 10

1. Tip up the log splitter on the support legs.

2. Fill up with new hydraulic oil. The volume is specified in Technical data.

FIG. 11

1. Stand the log splitter up. Clean the dipstick and the plug and replace them in the tank.

2. Take out the dipstick and check that the oil level is between the marks on the dipstick.

3. Check that no oil is leaking out.

IMPORTANT:

Check at regular intervals that the oil level is between the two markings on the dipstick. Top up the hydraulic oil if the level is too low.

MAINTENANCE

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE ACTION
The motor will not start. Overload protection has tripped.		Have the switchbox opened by qualified personnel to reset the overload protection.
Will not split. Log is not properly in place. Place the log as instructed.
			Log is too big, or too hard to split. Do not exceed the specified size, or try to split very hard or hard grained wood.
			The edge of the splitting wedge is blunt. Sharpen as per these instructions.
			Oil leak. Localise the leak and contact an authorised service centre.
			Unauthorised modification of set maximum pressure (sealed adjusting screw). Lower maximum pressure has been set. Contact an authorised service centre.
The piston does not move smoothly, the log splitter makes abnormal noise, or vibrates.	Too little hydraulic oil and too much air in the hydraulic system.	Check the oil level, and top up if necessary.
Oil leak round the piston, or other place.	Air in the hydraulic system during use.	Unscrew the vent screw a few turns before use.
	Vent screw not tightened when moving the log splitter.	Tighten the vent screw before moving the log splitter.
	Drain plug and dipstick not tightened.	lighten the drain plug and dipstick.
	Warm seals/valves. Contact an all	Thorised service centre.
