920-537 - Action Camera Marquant - Free user manual and instructions

Product Type	Action Camera
Model	920-537 Marquant
Lens	120° wide angle
Display	2.0" TFT LCD
Still Image Resolution	5M (2592x1944), 3M (2048x1536), 1M (1280x960), VGA (640x480)
Video Resolution	HD 1280x720, VGA 640x480
Video Format	AVI
Still Image Format	JPG
Storage Media	Micro SD (SDHC) up to 32 GB
Battery	Removable 3.7V rechargeable lithium 500 mAh
Battery Life	Approx. 1.5 hours
Charging Time	3–5 hours via USB
Underwater Depth	Up to 30 m (with housing)
Dimensions	59 x 41 x 21 mm
Languages	English, Chinese, Italian, French, Spanish
System Requirements	Windows XP/Vista/7/8, Dual-Core CPU, 1GB RAM, 2GB HDD, USB 2.0/3.0
Modes	Stills, Video Recording, Car Mode, Playback
Accessories Included	Watertight housing, helmet mount, handlebar mount, frame, USB cable
Plug & Play	Yes (recognized as external hard drive)
Webcam Mode	Yes (PC-CAM, no drivers needed for Windows XP SP3+)

Frequently Asked Questions - 920-537 Marquant

What memory card does the Marquant 920-537 action camera use?

It uses a Micro SD card (SDHC) up to 32 GB. The camera does not have built-in memory, so a card is required.

How do I charge the camera?

Connect the camera to a computer via the USB cable. The charging indicator lights red during charging and goes off when fully charged. Charging takes 3–5 hours.

Is the camera waterproof?

The camera itself is not waterproof, but it comes with a watertight housing that allows underwater filming up to 30 meters depth.

How do I switch between modes?

Press the MODE button (power switch) repeatedly to cycle through stills, video recording, car mode, and playback modes.

How do I transfer videos to my computer?

Connect the camera to your computer via USB while it is on. It will be recognized as an external hard drive. Files are located in the folder H:\DCIM\RECORDER,100MEDIA (drive letter may vary). Do not disconnect during transfer.

Can I use the camera as a webcam?

Yes. In U-disk mode, press the shutter button to switch to webcam mode (PC-CAM). The display shows PCCAM. No drivers needed for Windows XP SP3 or later.

What does the car mode do?

Car mode records video continuously in 3-minute segments. When the memory card is full, the oldest segment is deleted to make room for new recordings.

How do I clean the camera?

Store in a clean, dry place. Clean the lens by blowing off dust and wiping gently with a cloth for optical equipment. Use only camera detergent, no solvents.

What is the battery life?

The battery lasts approximately 1.5 hours per charge. The battery is removable and rechargeable (3.7V, 500 mAh).

Why does the camera turn off by itself?

The camera switches off when the battery is fully charged or discharged. It also has an auto power save function that shuts off the display after a set time to save battery.

USER MANUAL 920-537 Marquant

SE Bruksanvisning för actionkamera
NO Bruksanvisning for actionkamera
PL Instrukcja obsługi kamery sportowej
EN Operating instructions for action camera

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SVENSKA....5

SÄKERHETSANVISNINGAR....5

TEKNISKA DATA 6

BESKRIVNING 7

HANDHAVANDE 9

UNDERHÅLL 13

NORSK 14

SIKKERHETSANVISNINGER 14

TEKNISKE DATA 15

BESKRIVELSE....16

BRUK....18

VEDLIKEHOLD .22

POLSKI 23

ZASADY BEZPIECZEŃSTWA 23

DANE TECHNICZNE 24

OPIS 25

OBSŁUGA 27

KONSERWACJA 31

ENGLISH 32

SAFETY INSTRUCTIONS....32

TECHNICAL DATA 33

DESCRIPTION 34

USE....36

MAINTENANCE 40

SÄKERHETSANVISNINGAR

START/AVSTÄNGNING

OBS!

Bruke minnekort

PÅ/AV

OBS!

Meny for stillbildemodus

Meny for videoinnspillingsmodus

Meny for innstillingsmodus

Meny for avspillingsmodus

KOBLE TIL DATAMASKIN

Overføre filer

1. Det vises et ikon for ekstern harddisk på stasjon H: i vinduet Min datamaskin, og du finner bildene og videoene dine i mappen H:\DCIM\RECORDER,100MEDIA.

Webkameramodus

OBS! Du trenger ingen drivere for å bruke webkameramodus (PC-CAM-modus) i Windows XP (SP3) eller nyere.

1. I U-disk-modus (MSDC-modus) trykker du på utløseren for å gå til webkameramodus (PC-CAM).
2. PCCAM vises på displayet. Webkameraet kan startes fra programvaren.
3. Trykk på utløseren for å gå tilbake til U-disk-modus (MSDC-modus).

VEDLIKEHOLD

WŁĄCZANIE/WYŁĄCZANIE

UWAGA!

Menu trybu ustawień

Read the operating instructions carefully before use.

Save them for future reference.

- Never modify the product in any way. The manufacturer cannot accept liability for any damage caused by unauthorised modifications.

- Do not expose the memory card to stress in the form of bending, pressure or shock.

- Do not expose the memory card to powerful electromagnetic or magnetic fields, such as near speakers or television receivers.

- Do not expose the memory card to intense heat or cold.

- Keep memory cards clean and do not expose them to water or any other liquid. A memory card that has become wet can be dried with a soft cloth.

- Do not use a memory card from another camera without formatting it first.

- Do not use a memory card that has been formatted in another camera or card reader.

- Data on the memory card can be damaged if the memory card is used incorrectly, or if the power supply is disconnected, or the memory card is removed during recording, deletion, formatting or reading.

- Back up important data on another medium, i.e. hard disk or CD.

- Check before use that the camera is not damaged.

• Repairs must only be carried out by qualified service personnel.

- Protect the lens and display from dust, sand and chemicals..

- Do not touch the lens with your fingers.

- Protect the camera from knocks and blows.

- Protect the camera from direct sunlight.

TECHNICAL DATA

Functions video recording, car camera, stills and playback

Lens 120° wide angle lens

LCD display 2.0" TFT LCD

Size/resolution still

5 M (2592 x 1944)

3 M (2048 x 1536)

1 M (1280 x 960)

VGA (640 x 480)

Resolution video

HD: 1280 x 720

VGA: 640 x 480.

Storage media Memory card Micro SD (SDHC) max 32 GB

File format

Video: AVI

stills: JPG

Battery Removable 3.7 V rechargeable lithium battery 500 mAh.

Language English, simple Chinese, traditional Chinese, Italian, French, Spanish

Dimensions 59 x 41 x 21 mm

Battery life min 1.5 h

Max depth for underwater filming 30 m

System requirements

Operating system	Windows XP/Vista/7/8
Processor	Intel/AMD Dual-Core CPU or above
Internal memory	min 1 GB
Hard disk	min 2 GB
Other	port for USB 2.0/3.0

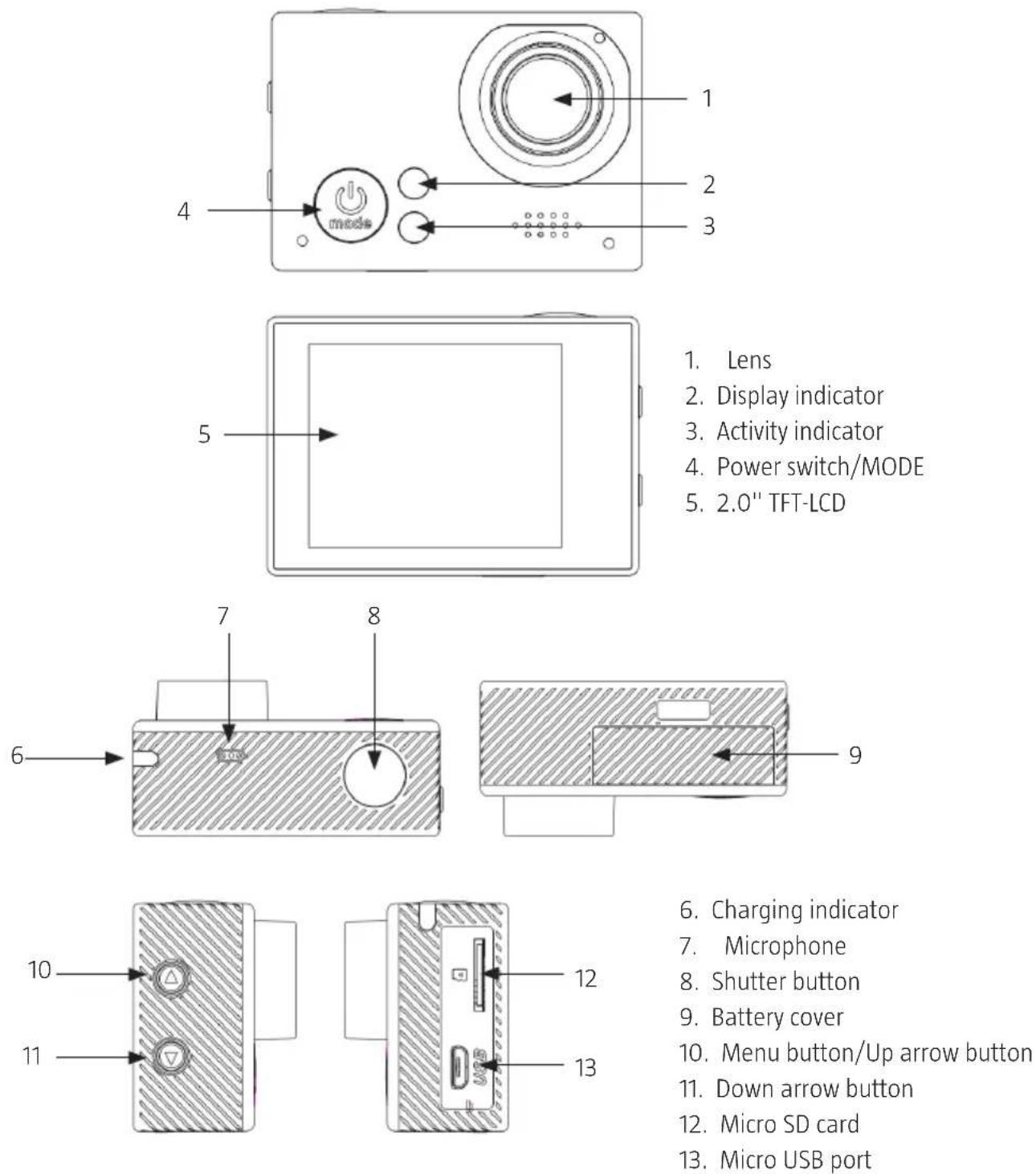

DESCRIPTION

1. Lens
2. Display indicator
3. Activity indicator
4. Power switch/MODE

5. 2.0" TFT-LCD

6. Charging indicator

7. Microphone
8. Shutter button
9. Battery cover
10. Menu button/Up arrow button
11. Down arrow button
12. Micro SD card
13. Micro USB port

ACCESSORIES

1. Watertight camera housing
2. Fastener for mounting on helmet
3. Strap for mounting on helmet
4. Fastener for mounting on handlebars or saddle post
5. Frame
6. USB cable

USE

BEFORE USING FOR THE FIRST TIME

Charging the battery via USB cable

1. Connect the camera to a computer to charge the battery.
2. The charge indicator goes red during the charging and goes off when the battery is fully charged. It normally takes 3–5 hours to fully charge the battery.

Using the memory card

NOTE: The camera does not have a built-in memory. Always insert a memory card before use.

1. Insert the memory card in the card slot according to the instructions on the camera.
2. Remove the memory card by carefully pushing it in so that it springs out.

SWITCHING ON/OFF

NOTE:

• To save the battery the display switches off automatically when the camera goes into standby mode.
- The camera switches off when the battery is fully charged. When the battery is discharged the icon is shown on the display to indicate that the battery needs to be charged.

Switching on

1. Press the power switch for 1 second. The camera switches on and the display lights up.

Switching off

1. Press the power switch for 3 seconds when the camera is in standby mode.

FUNCTIONS

NOTE: The camera stops filming/taking pictures when the memory card is full and/or the battery is discharged.

There are 4 different modes on the camera: stills, video recording, car, and playback. Use MODE to switch between modes.

Stills

1. Switch on the camera.
2. Flick MODE several times to go to stills mode.
3. Press the shutter button in preview mode to take a photo.

1. Stills mode
2. Image size
3. Number of photos taken
4. Shows that the memory card is inserted
5. Battery status

Video recording

1. Switch on the camera.
2. Flick MODE several times to go to video recording mode.
3. Press the shutter button in preview mode to record a video.
4. Press the shutter button again to stop recording.

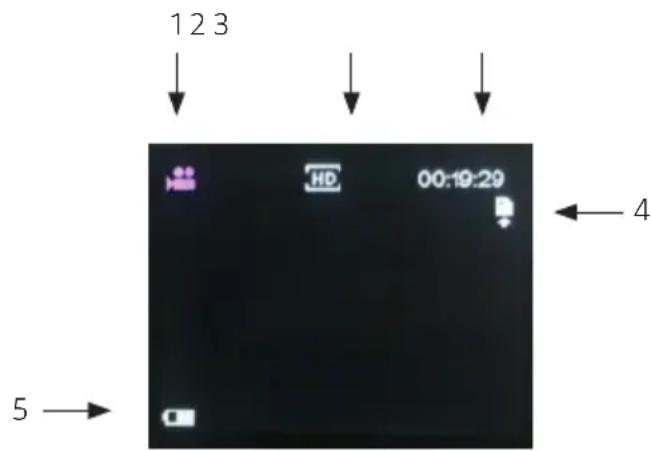

1. Video recording mode
2. Video format
3. Total recording time
4. Shows that the memory card is inserted
5. Battery status

Car mode

1. Switch on the camera.
2. Flick MODE several times to go to video car mode.
3. Press the shutter button in preview mode to record a video.

– The recording is saved every 3 minutes, after which the next recording sequence starts.
- When the memory card is full the oldest video sequence is deleted to make room for the next.

1. Press the shutter button again to stop recording.

1. Car mode
2. Video format
3. Total recording time
4. Battery status
5. Shows that the memory card is inserted

Playback

1. Switch on the camera.

2. Flick MODE several times to go to playback mode.

3. Pause the playback by pressing the shutter button.

4. Stop the playback by pressing the power switch.

STATUS LAMPS

• Activity indicator (red): Flashes when the camera is busy filming or photographing, etc.
• Display indicator (red): The indicator goes on when the display is switched off and goes off when the display is activated.
• Charging indicator (red): Goes on when the battery is charging, goes off when battery is fully charged.

SETTINGS

1. Press the menu button The menu for the enabled mode is shown in the display.
2. Press MODE to move the cursor to the left or right to select the required menu.
3. Press the down arrow to move the cursor up or down to select the required menu option.
4. Press the shutter button to confirm.
5. Press the menu button to exit menu mode.

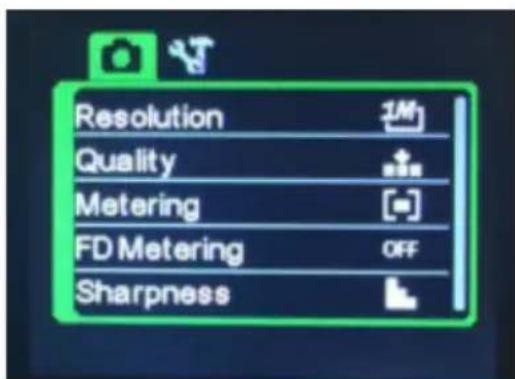

Menu for stills mode

Menu for video recording mode

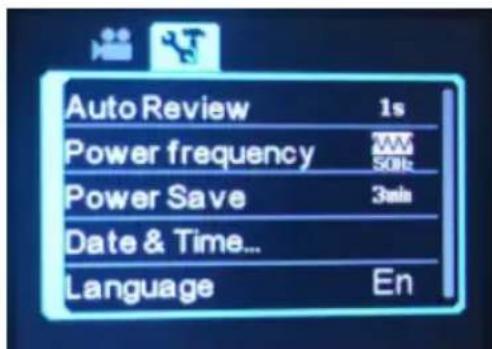

Menu for settings mode

Menu for playback mode

CONNECTING TO A COMPUTER

Transfer files

NOTE: Do not disconnect the USB cable when a transfer is in progress and do not remove the memory card when the USB cable is connected – risk of loss of data.

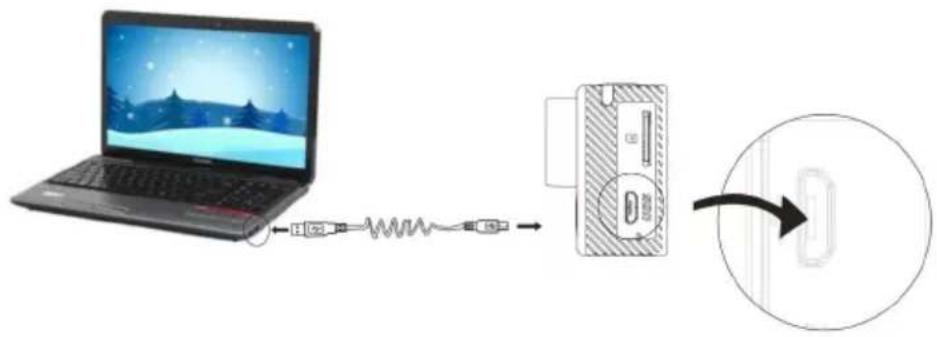

1. The camera has Plug and Play functionality. Start the device and connect it to a computer with the USB cable to use it as a separate hard disk.

1. A hard disk icon H: is shown in the window My computer, with your photos and films in the folder H:\DCIM\RECORDER,100MEDIA.

Webcam mode

NOTE: No drive routine is needed for webcam mode (PC-CAM mode) in Windows XP (SP3) and higher.

1. In U disk mode (MSDC mode), press the shutter button to switch to webcam mode (PC-CAM).
2. The display shows PCCAM. The webcam can be started from the software.
3. Press the shutter button to return to U disk mode (MSDC mode).

MAINTENANCE

• Store the product in a clean and dry place.
- Clean the lens by blowing off dust and carefully wiping the lens with a cleaning cloth for optical equipment. Only use detergent intended for cameras. Do not use solvents.
