Product Type	Decorative Range Hood
Brand	Heinner
Model	DCH-650TIX
Color	Stainless Steel (Inox)
Width	65 cm (approx., from model number)
Min. Distance Above Hob (Gas)	75 cm
Min. Distance Above Hob (Electric)	65 cm
Suction Power (Max)	595.8 m³/h
Airflow at Min/Max Speed	363.5 / 595.8 m³/h
Noise Level (Min/Max)	59 / 58 dB(A)
Energy Efficiency Class	A+
Annual Energy Consumption	17 kWh/year
Lighting Efficiency Class	A
Lighting Power	LED 1.5W, DC 12V
Number of Speeds	3 (Low, Mid, High) + Intensive
Control Type	Touch Control with LED Display
Timer Function	Yes (9 min auto-off)
Grease Filter Type	Aluminum mesh, washable
Carbon Filter	Optional (purchased separately)
Exhaust Duct Diameter	150 mm
Package Content	Cooker hood, User manual, Warranty card
Safety Features	Overheat protection, auto shut-off? Not specified; but includes child safety lock? No, but manual states children 8+ with supervision.
Weight	Not specified; estimated ~15 kg

Frequently Asked Questions - DCH-650TIX Heinner

What is the minimum installation height above a gas hob?

For gas hobs, the minimum distance between the hob surface and the lowest part of the hood is 75 cm (65 cm for electric).

How do I clean the grease filters?

Soak the aluminum mesh filters in warm water with a grease-loosening detergent for about 3 minutes, then gently brush with a soft brush. Let them dry naturally away from direct sunlight.

How often should the carbon filter be replaced?

The activated carbon filter should be replaced every 3 to 6 months depending on your cooking habits. It is sold separately.

How do I replace the LED bulb?

Switch off and unplug the hood. Wait for the bulb to cool. Remove the grease filter and unscrew the frame. Replace with a 1.5W max LED bulb (DC 12V) of the same type. Use a cloth to avoid touching the bulb directly.

What does the timer function do?

Press the Timer button while the hood is running. It will automatically turn off after 9 minutes. The display counts down from 9 to 0.

Can the hood be used in recirculation mode?

Yes, if you install an optional activated carbon filter. The hood can be used without external ducting. The carbon filter traps odors.

Why is the hood not working?

Check if the power cord is properly plugged in and the house fuses are not blown. Also ensure the fan switch is turned on. If still not working, contact service.

How do I adjust the speed?

Press the Speed button repeatedly to cycle through low (1), medium (2), high (3). The LED display shows the current speed.

What is the maximum suction power?

The maximum suction power is 595.8 m³/h at high speed.

How do I install the hood?

Follow the installation manual: mark the mounting height (65-75 cm above hob), install the hook, attach the chimney brackets, connect the exhaust duct (150mm), and fix the hood securely. Ensure all screws are tight.

USER MANUAL DCH-650TIX Heinner

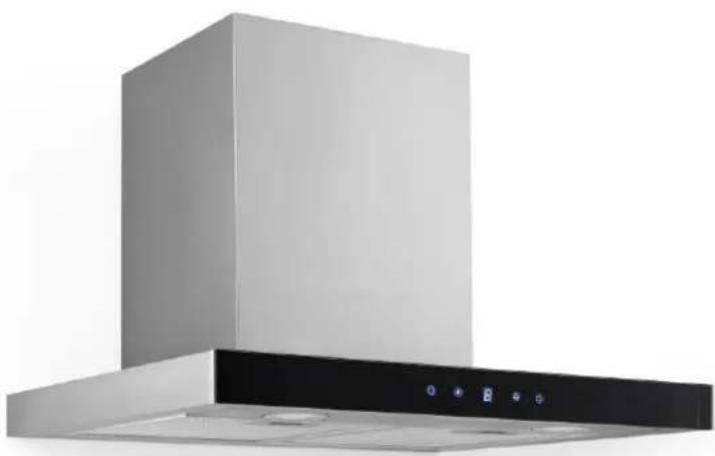

Modern stainless steel kitchen range hood with black trim and ventilation slots (no text or symbols visible)

• Decorative cooker hood
• Suction power: 595.8 m³/h
- Color: inox

Thank you for purchasing this product!

I. INTRODUCTION

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

II. PACKAGE CONTENT

➢ Decorative cooker hood
User manual
Warranty card

III. SAFETY PRECAUTION

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

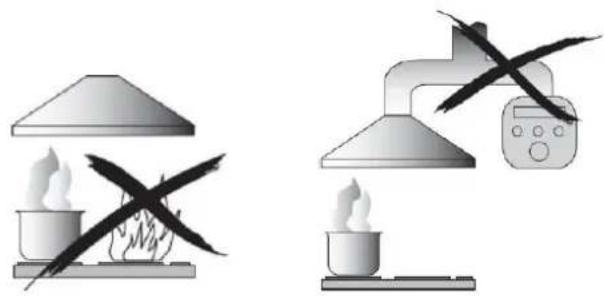

NEVER TO DO:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high-level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
• Never leave naked flames under the cooker hood.
  • If the cooker hood is damaged, do not attempt to use.
• Do not flambé under the cooker hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Two experimental setups showing heating methods: one with a lamp and flame, the other with a lamp and control panel (no text or symbols)

ALWAYS TO DO:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
• The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
• All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
• Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.

- When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be:

Gas cookers: 75 cm

Electric cookers: 65 cm

Coal or oil cookers: 75 cm

- Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.

- Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Always put lids on pots and pans when cooking on a gas cooker.

- When in extraction mode, air in the room is being removed by the cooker hood.

- Please make sure that proper ventilation measures are being observed. The cooker hood removes odors from room but not steam.

• Cooker hood is for domestic use only.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.

- There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.

There is a fire risk if cleaning is not carried out in accordance with the instructions

• Regulations concerning the discharge of air have to be fulfilled.

- Clean your appliance periodically by following the method given in the chapter MAINTENANCE.

- For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.

- Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.

- Cleaning and user maintenance shall not be made by children without supervision. When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

IV. INSTALLATION INSTRUCTIONS (VENT OUTSIDE)

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extractions duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm).

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

2. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

Pic 1

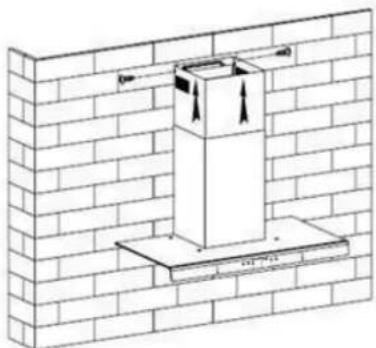

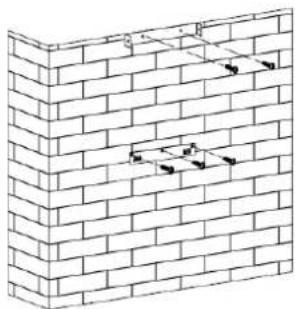

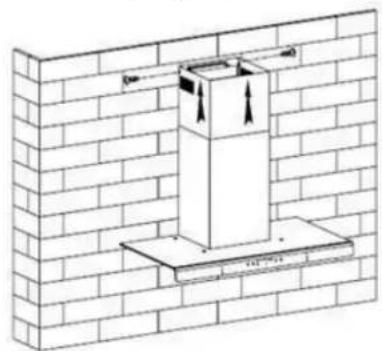

1. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.

Diagram of a brick wall with directional arrows indicating construction or movement (no text or symbols)

Pic 2

1. Install the expansion pipe and chimney on the cooker hood. Afterwards, fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely as well as fixing the expansion pipe. See Pic 3/Pic4.

Pic 3

Pic 4

1. Put the cooker hood on the hook. See Pic 5.

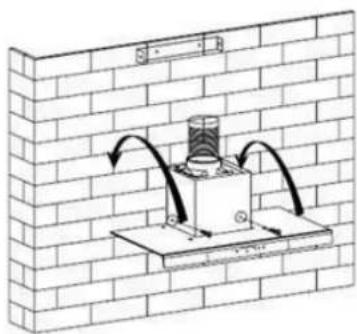

Diagram of a brick wall with a mechanical component and curved arrows indicating motion (no text or symbols)

Pic 5

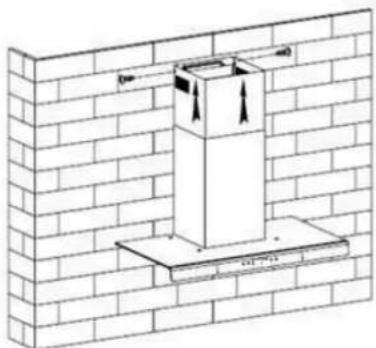

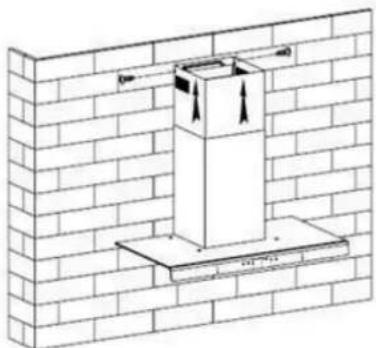

Technical line drawing of a brick wall with a vertical support structure and directional arrows (no text or symbols)

Pic 6

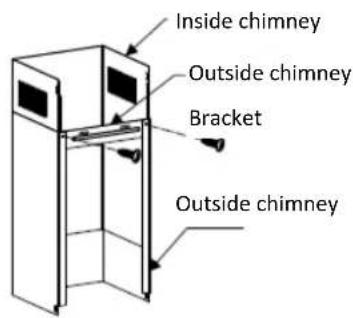

1. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, after adjusting the position, fix the body with safety screw.

Note: The two safety vents are positioned on the back housing, with diameter of 6mm. Lay the expansion pipe to the wall outlet. Fix the expansion pipe with the cable tie on the wall-outlet.

V. MOUNTING OF THE V-FLAP

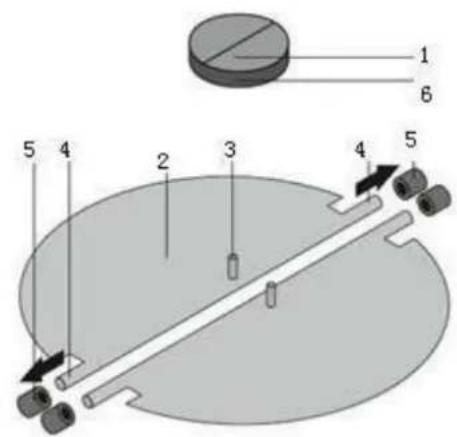

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to the its body.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part.

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent person.
• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

• After the installation, make sure that the cooker hood is level to avoid grease collection at on end.
- Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

Simple geometric diagram with a vertical line crossing a horizontal base (no text or symbols)

Right

Simple line drawing of a tilted rectangular block with a vertical centerline (no text or symbols)

Wrong

WARNING:

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
➢ Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

VI. USING THE APPLIANCE

TOUCH CONTROL WITH LED DISPLAY

Timer

Lamp

Speed

Power

1. Press the "Power" button, the button controls the "on" & "off" of the hood.

2. Keep pressing the button "Speed", the motor runs as low / mid / high / low / mid..., the speed runs circularly; and the LED display will indicate as 1-2-3-1-2... circularly.

3. Press "Light" button, the light is on, press this button again, the light is off, keep pressing this button, the lights are on/off circularly.

4. When the hood is working, if press the "Timer" button, the hood will go into the status of acquiescent working (acquiescent time is 9mins), and then, the LED display will indicate as "9-8-7...-1-0", when indicate "0", the hood will be off automatically. If you keep pressing "Timer" button, the hood will go in or go out "Timer" function.

VII. TROUBLESHOOTING

FAULT	POSSIBLE CAUSE	SOLUTION
Light on, but motor does not work	Fan switched turned off	Select a fan switch position
	Fan switch failed	Contact service center
	Motor failed	Contact service center
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses
	Power cord loose or disconnected	Refit cord to power outlet. Switch power outlet on.
Oil leakage	One-way valve and the air ventilation entrance are not tightly sealed	Take down the one-way valve and seal with sealant.
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal

NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

VIII. CLEANING AND MAINTENANCE

CAUTION

Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless-steel cleaning fluid may be used.

NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

IMPORTANT

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand.

Soak them for about 3 minutes in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid damaging it. (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
• Angle the filter into slots at the back of the hood.
• Push the button on handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

CARBON FILTER – buy separately

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

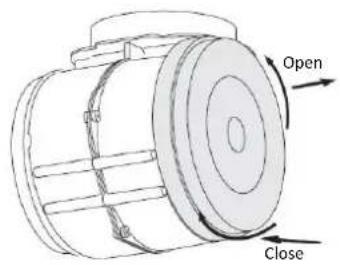

Illustration of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating rotation (no text or symbols)

In order to install the activated carbon filter, the aluminium filter should be detached first. Firstly, open carefully the stainless-steel cover, then press the lock of aluminium filter and remove it.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangers.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

• The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
• Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
• When handling globes hold with a cloth or gloves to ensure perspiration does not meet the globe as this can reduce the life of the globe.

CHANGING A LAMP BULB FOR HIGH PRESSURE LED

1. Switch the unit off and pull out the plug first.
2. Wait until the light bulb is cooled down before replacement.
3. Take out the baffle filter and use the screwdriver to take out the frame as the below pic shows.
4. Replace with same type of bulb (LED 1.5W Max)
   Note: Light replacement should have been carried out by qualified service personnel only.

• ILCOS D code for this lamp is: DSR-1.5/65-S-64
- LED modules -round lamp
- Max wattage: 1.5 W
– Voltage range: DC 12V
– Dimensions:

IMPORTANT

When handling globes hold with a cloth or gloves to ensure perspiration does not meet the globe as this can reduce the life of the globe.

IX. TECHNICAL FICHE

Product fiche according to Commission Delegated Regulation (EU) No. 65/2014
Trademark	Heinner
Model	DCH-650TIX
Annual energy consumption (kWh/year)	17
Energy efficiency class	A+
Fluid dynamic efficiency	25.2
Fluid dynamic efficiency class	A
Lighting efficiency (lux/W)	32.9
Lighting efficiency class	A
Grease filtering efficiency (%)	77.8
Grease filtering efficiency class	C
Airflow at minimum and maximum speed under normal conditions of use (m3/h)	363.5/595.8
Airborne acoustical A-weighted sound power emissions at minimum and maximum speed under normal conditions of use (dB(A))	59/58
Time increase factor	1.1
Energy efficiency index	62.3
Measured airflow rate at best efficiency point (m3/h)	329.1
Measured airflow pressure at best efficiency point (Pa)	371
Measured electric power at best efficiency point (W)	134.4
Nominal power of the lighting system (W)	4.2
Average illumination of the lighting system on the cooking surface (lux)	138
Power consumption in standby mode (W)	0.46
Power consumption in off mode (W)	0

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

HOTĂ DECORATIVĂ

Modele: DCH-650TIX

Exterior view of a stainless steel kitchen range hood with ventilation slots (no text or symbols visible)

Two laboratory setups: one with a test tube and a cross mark, the other with a thermometer and a control panel (no text or symbols)

AVERTISMENTE:

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of brick wall construction with arrows indicating direction (no text or symbols)

Fig. 2

Fig. 4

Diagram of a brick wall with a mechanical component and curved arrows indicating motion (no text or symbols)

Fig. 5

Technical line drawing of a brick wall structure with a vertical support and horizontal base (no text or symbols)

Fig. 6

Simple geometric diagram with a vertical line crossing a horizontal base (no text or symbols)

Corect

Simple line drawing of a tilted rectangular block with a vertical centerline (no text or symbols)

Incorrect

AVERTISMENT:

Illustration of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Modern stainless steel kitchen range hood with black trim and ventilation slots (no text or symbols visible)

Two experimental setups showing heating and cooling methods: one with a lamp, the other with a device and a flame (no text or symbols)

FIGYELMEZTETÉSEK:

Diagram of airflow around a wall-mounted structure with directional arrows indicating movement (no text or symbols)

Diagram of a brick wall with embedded rebar and arrows indicating construction direction (no text or symbols)

Diagram of a brick wall with a mounted component and curved arrows indicating motion or force (no text or symbols)

1. ábra

Technical line drawing of a brick wall structure with a vertical support and horizontal base (no text or symbols)

Simple geometric diagram with a vertical line crossing a horizontal base (no text or symbols)

Helyes

Simple line drawing of a tilted rectangular block with a vertical axis, no text or symbols present

Helytelen

FIGYELMEZTETÉS:

Illustration of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface (no text or symbols)

Modern stainless steel kitchen range hood with ventilation grille and control buttons (no text or symbols visible)

Two experimental setups showing heating and cooling methods with no visible text or symbols

ПРЕДУПРЕЖДЕНИЯ:

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols)

Diagram of brick wall with arrows indicating direction of movement or force (no text or symbols)

Фиг. 2

Diagram of a wall-mounted electrical component mounted on a base, with arrows indicating direction (no text or symbols present)

Фиг. 5

Technical line drawing of a brick wall-mounted structure with a vertical support and directional arrows (no text or symbols)

Фиг. 6

Simple geometric diagram with a vertical line crossing a horizontal base (no text or symbols)

Правилно

Simple line drawing of a tilted rectangular block with a vertical centerline (no text or symbols)

Неправил

ПРЕДУПРЕЖДЕНИЕ:

Simple line drawing of a hand holding a card over a flat surface, with no text or symbols present.

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating rotation (no text or symbols)
