WiFi Dual Switch - Home Automation Evolveo - Free user manual and instructions

Product Type	Smart Switch (Dual)
Brand	Evolveo
Model	WiFi Dual Switch
Dimensions	86 × 86 × 35 mm
Weight	126 g
Input Voltage	AC 100-240V, 50/60Hz
Maximum Load per Switch	500 W (resistive)
Maximum Current	10 A @ 250 V
Connection Type	Wi-Fi 2.4GHz + Bluetooth
Material	Flame retardant V0, PC
LED Indicator	Green/Red (pairing/status)
Protection Class	Class II (double insulation)
App Support	Smart Life (Tuya platform)
Voice Assistant Compatibility	Amazon Alexa, Google Assistant (via Smart Life)
Installation Requirements	Neutral wire required, 2.4GHz WiFi network
Wireless Range	Up to 25 m (may vary with obstacles)
Reset Method	Press and hold power button for 5 seconds
Package Contents	Switch, mounting screws, user manual
Safety Certifications	CE, WEEE compliant
Operating Temperature	0°C to 40°C (est.)

Frequently Asked Questions - WiFi Dual Switch Evolveo

What is the range of the WiFi Dual Switch?

The switch works within 25 meters of the Wi-Fi router or gateway, but this distance may be affected by walls and obstacles.

Can the switch work without an internet connection?

Local control remains functional, but remote control, voice commands, and schedules require an active network connection.

Why is my switch not turning on?

Ensure the switch is connected to the neutral wire; this model requires a neutral line to operate. Also check the circuit breaker.

How do I connect the switch to the app?

Download the Smart Life app, register, connect your phone to a 2.4GHz Wi-Fi network, and follow the pairing instructions. The switch must be in pairing mode (flashing red).

How do I reset the switch?

Press and hold the power button for 5 seconds to reset the switch to factory defaults.

What should I do if the switch doesn't connect to the app?

Make sure your phone and switch are on the same 2.4GHz Wi-Fi network. Also verify the switch is powered and in pairing mode. If needed, reset the switch.

Does the switch require a neutral wire?

Yes, the WiFi Dual Switch must be connected to a neutral wire for proper operation.

Is the switch compatible with voice assistants?

Yes, it works with Amazon Alexa and Google Assistant through the Smart Life app.

What is the maximum load per switch?

Each switch can handle up to 500 W resistive load, with a maximum current of 10 A at 250 V.

How do I dispose of the switch?

Do not dispose of in unsorted municipal waste. Follow local regulations for electronic waste (WEEE) or return to a collection point.

USER MANUAL WiFi Dual Switch Evolveo

White rectangular electronic device with three black buttons and a green indicator light (no text or symbols visible)

White rectangular electronic device with two green indicator lights on the side (no visible text or symbols)

CZ

SK

EN

HU

RO

DE

IT

SI

BEZPEČNOSTNÍ UPOZORNĚNÍ A POKYNY

Obecná upozornění:

VAROVÁNÍ: NEBEZPEČÍ ÚRAZU ELEKTRICKÝM PROUDEM

3) Odstraňte panel

Line drawing of a device with a hand inserting a cable into a housing (no text or symbols)

4) Montáž vypínače

5) Připevněte panel

Line drawing of two hands holding a tablet device (no text or symbols)

6) Zapněte jistič

Smart Life

Tuya

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

BEZPEČNOSTNÉ UPOZORNENIA A POKYNY

Všeobecné upozornenia:

VAROVANIE: RIZIKO ÚRAZU ELEKTRICKÝM PRÚDOM

3) Odstraňte panel

Odstráňte kryt spínacieho panela.

Line drawing of a device with a hand inserting a cable into a box (no text or symbols)

5) Pripevnite panel

Line drawing of two hands holding a tablet device (no text or symbols)

6) Zapnite istič

Zapnite istič a otestujte funkčnost' spínača.

STIAHNITE SI APLIKÁCIU A SPÁRUJTE JU

Smart Life

Tuya

1. Otvorte aplikáciu Smart Life a zaregistrujte sa (ak ste sa ešte nezaregistrovali).
2. Pripojte mobilný telefón k sieti WiFi 2,4 GHz.

3. Po pripojení k napájaniu bude prepínač blikat' červenou farbou, čo znamená, že je v režime párovania.

4. Ak uplynie interval párovania, stlačte tlačidlo na vypínači na 5 sekúnd.

5. Otvorte aplikáciu Smart Life a t'uknite na modré "+" v pravom hornom rohu a vyhl'adajte inteligentný vypínač "Single Switch" alebo "Dual Switch" výberom položky "Pridat' zariadenie" v časti "Elektrické" → "Vypínač (Wi-Fi)" alebo použite funkciu automatického vyhl'adávania zariadení.
6. Potom postupujte podl'a pokynov v aplikácii

RESET

Stlačte a podržte tlačidlo napájania na 5 sekúnd.

RIEŠENIE PROBLÉMOV

The smart switch is used to control the lights in the house at any time and from anywhere using a mobile app. It has options such as remote control of lights, integration with voice assistants, or time scheduling. The Smart Switch is a modern and safe solution for the smart home.

THE MOST UP-TO-DATE VERSION OF THE USER MANUAL

Due to the ongoing innovation of EVOLVEO products

and changes in legislation, you can always find the most up-to-date version of this user manual on the website

www.evolveo.com, or by simply scanning the QR code shown below with your mobile phone:

SAFETY WARNINGS AND INSTRUCTIONS

General warnings:

- It must not be used in areas where 6 A circuit breakers are present.

PACKAGING CONTENT

• Switch
• Bolts
• User manual

SPECIFICATIONS

• Voltage range: AC 100 - 240 V \~ 50/60Hz
  • Maximum switching load: 500 W/switch
  • Maximum current: 10 A / 250 V
  • Power line: live/neutral (500 W/switch)
• Material: Flame retardant V0, class PC
• Connection: Wi-Fi 2.4GHz + BT
  • Size: 86 × 86 × 35 mm
• Weight: 126 g
  • LED indicator: green/red

DEGREE OF PROTECTION AGAINST ELECTRIC SHOCK:

Class II - Protection against electric shock is provided by double or reinforced insulation.

INSTALLATION

WARNING: RISK OF ELECTRIC SHOCK

This appliance must only be installed by a qualified person. Improper installation may result in injury or damage to the appliance.

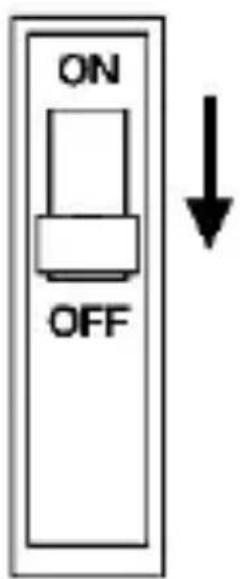

1) Turn off the circuit breaker

Turn off the circuit breaker and use an electrical tester to test that the power is off.

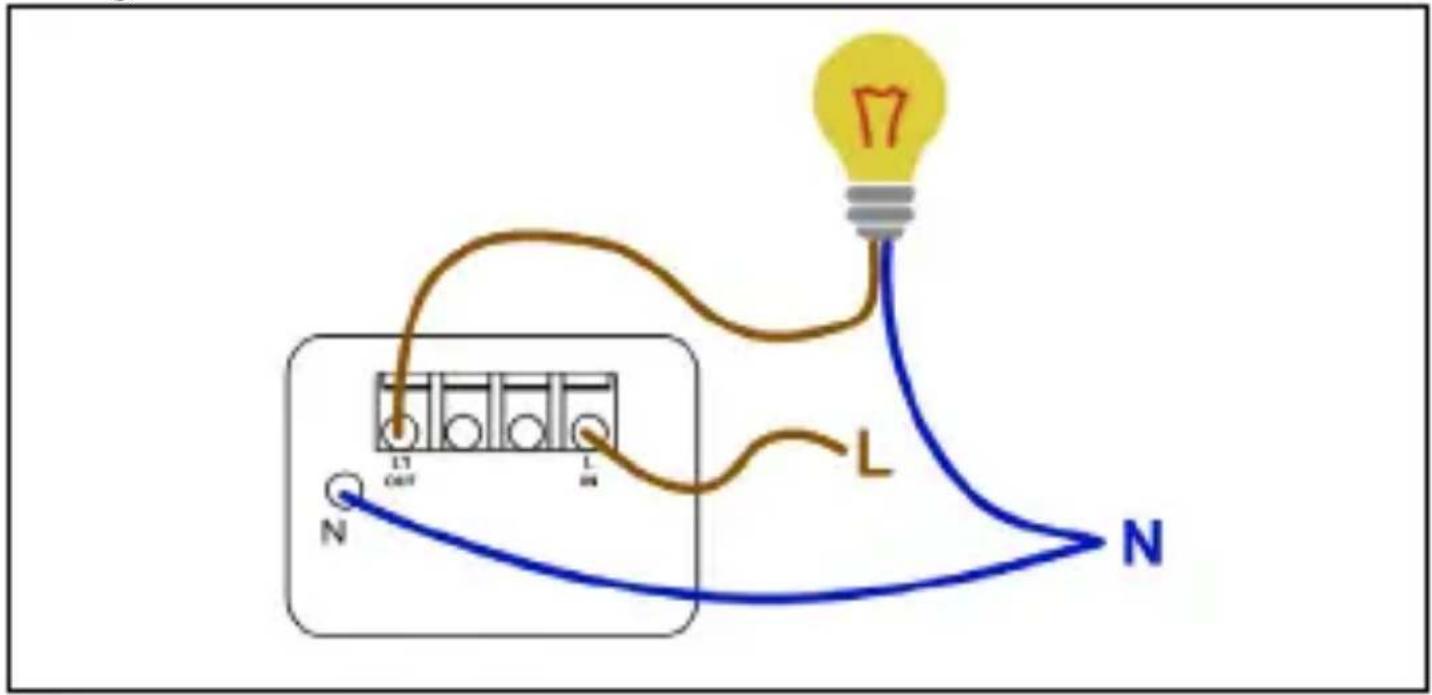

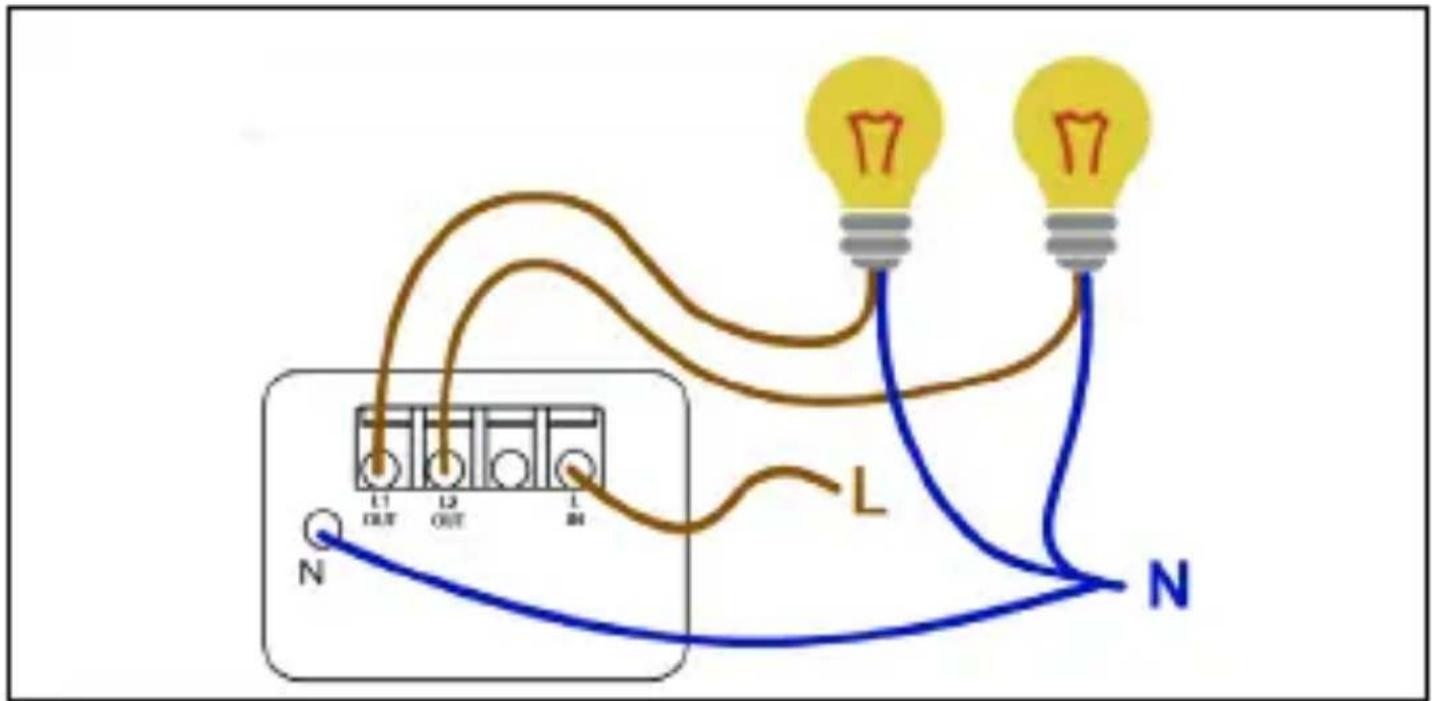

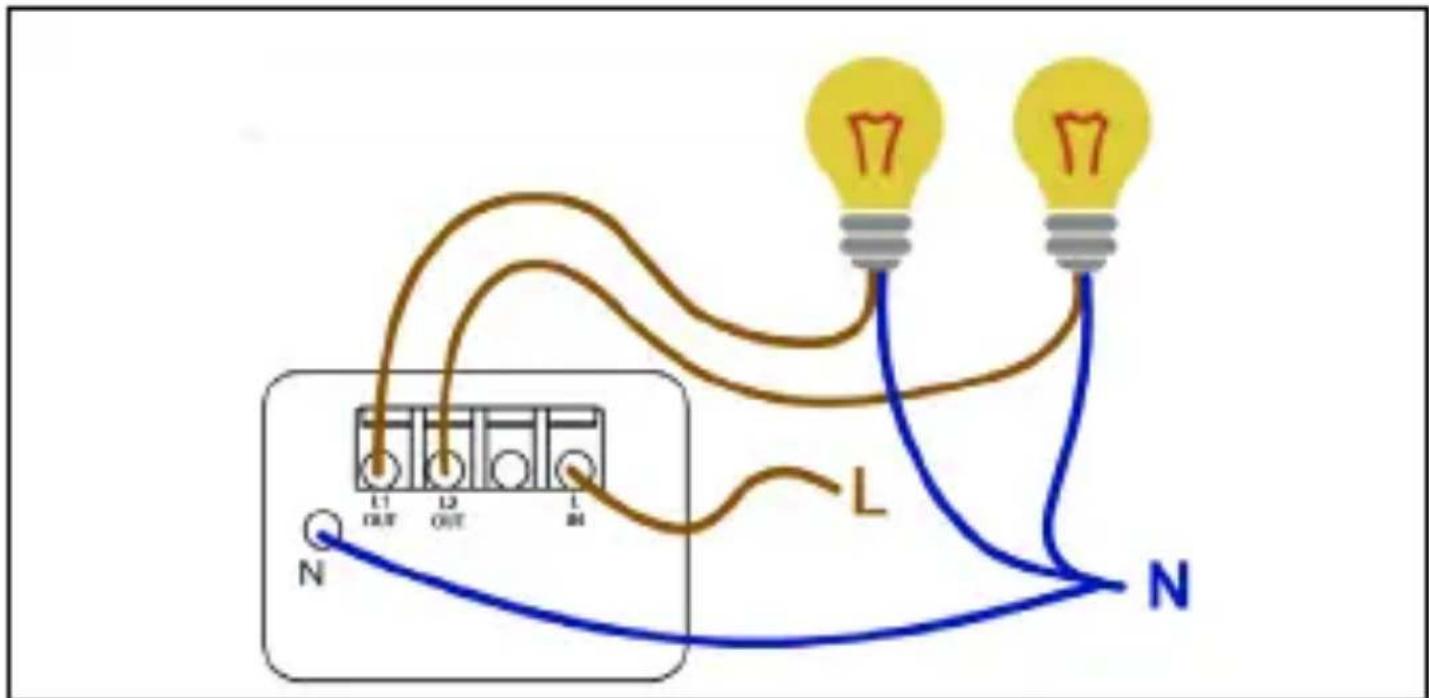

2) Wiring diagram

Single Switch

Dual Switch

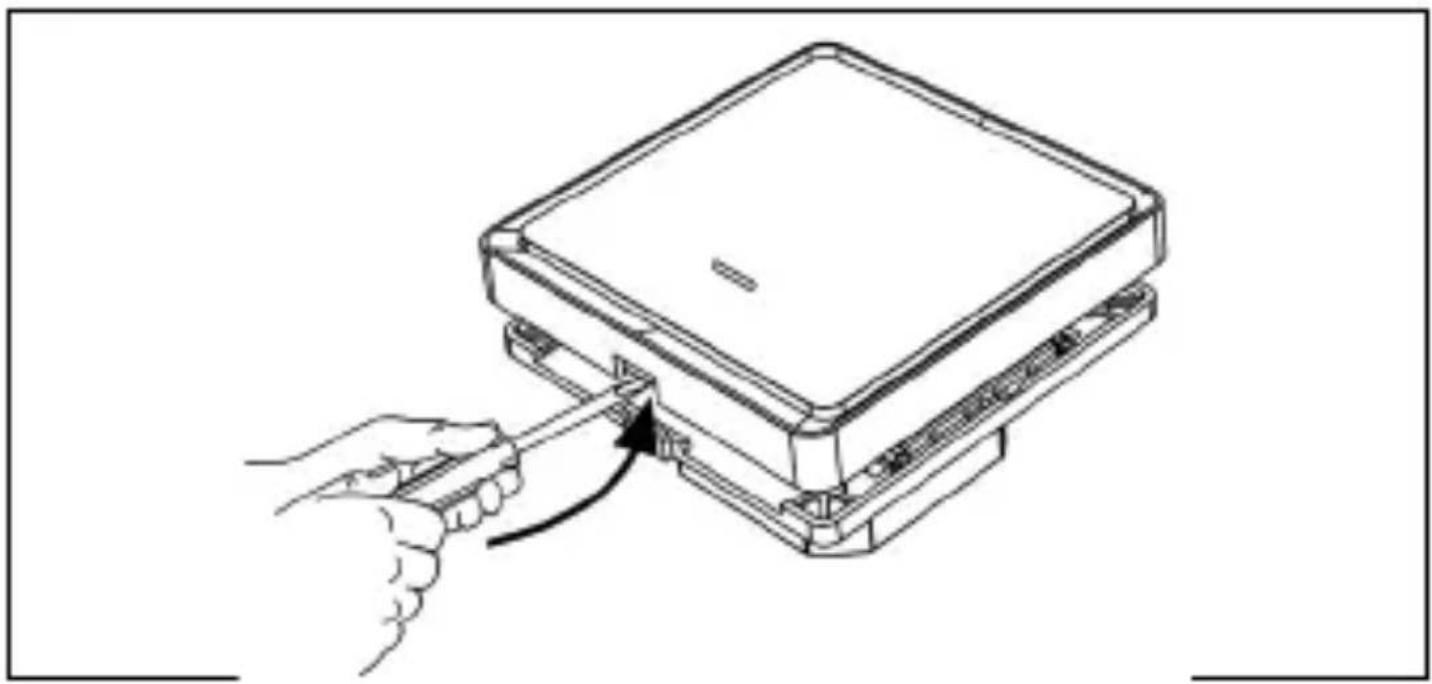

3) Remove the panel

Remove the switch panel cover.

Line drawing of a device with a hand inserting a cable into a box (no text or symbols)

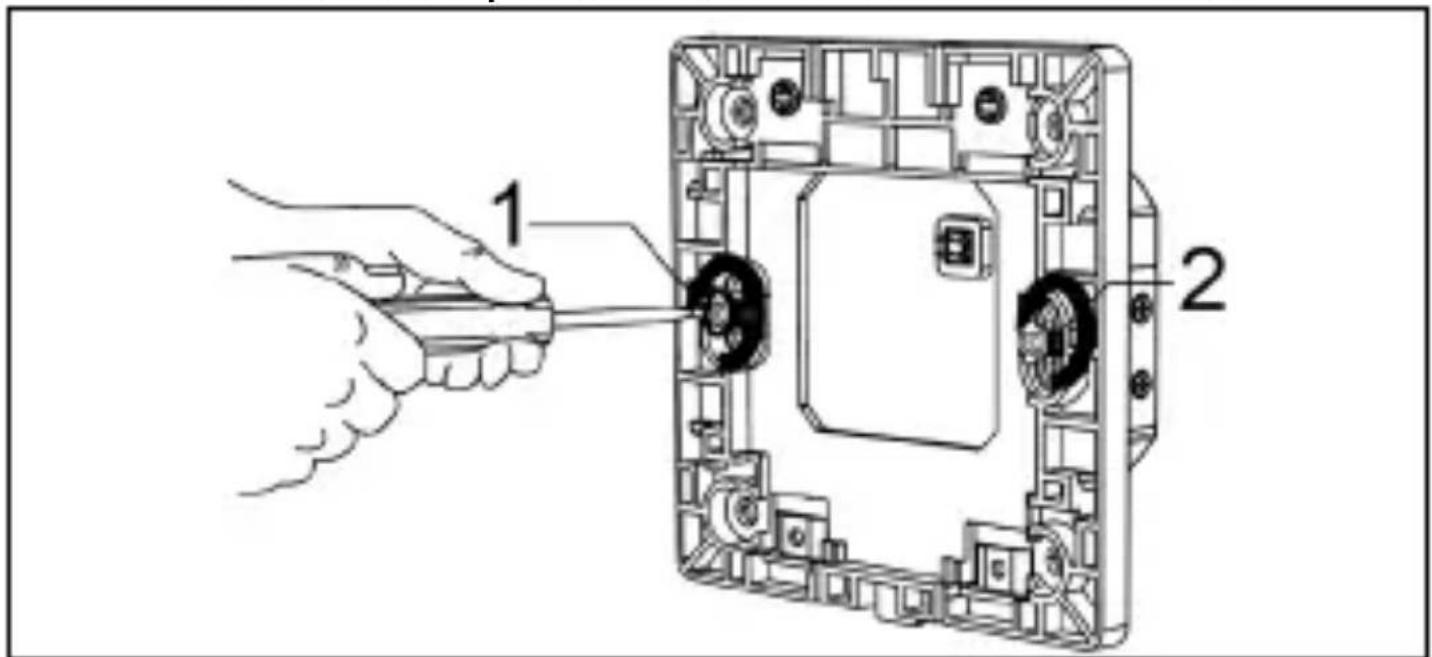

4) Switch installation

Use the screws provided to secure the switch.

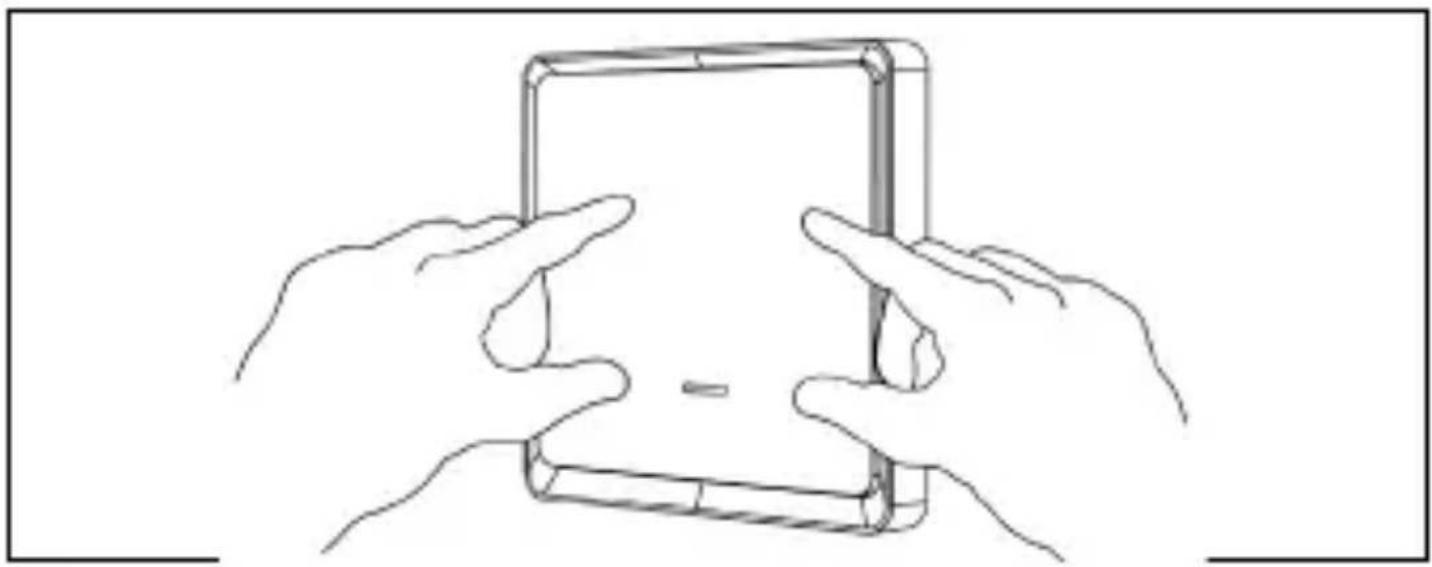

5) Attach the panel

Attach the panel cover to the switch by snapping it on.

Line drawing of two hands holding a tablet device (no text or symbols)

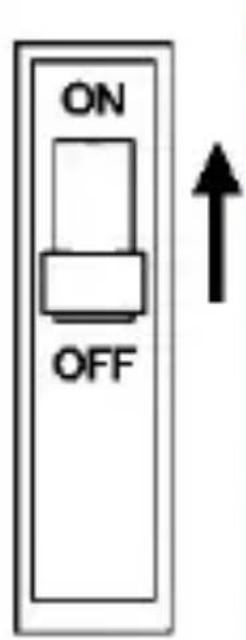

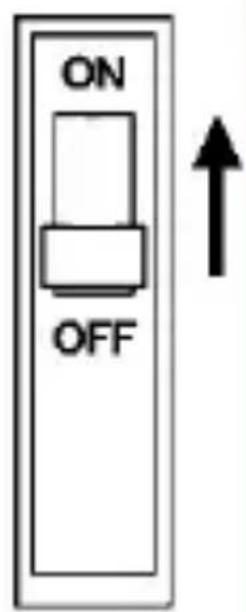

6) Turn on the circuit breaker

Turn on the circuit breaker and test the functionality of the switch.

DOWNLOAD THE APP AND PAIR IT

1. The smart switch must first be successfully installed and connected to the power supply.
2. Scan the QR code below with your mobile phone and download the Smart Life app. You can also search for the app manually in the App Store (Apple) or Google Play (Android) under the name "Smart Life".

Smart Life

Tuya

1. Open the Smart Life app and register (if you haven't registered yet).
2. Connect your mobile phone to a 2.4 GHz WiFi network.

3. The switch will flash red when connected to power, indicating that it is in pairing mode.

4. If the pairing interval has elapsed, press the button on the switch for 5 seconds.

5. Open the Smart Life app and tap the blue "+" at the top right to search for the Smart Switch "Single Switch" or "Dual Switch" by selecting "Add Device" under "Electrical" → "Switch (Wi-Fi)", or use the automatic device search function.
6. Then follow the instructions in the app

RESET

Press and hold the power button for 5 seconds.

PROBLEM SOLVING

What is the control range? The distance between the product and the Wi-Fi router or gateway does not exceed 25 meters. If dividing walls are present, consider their material and thickness as they may affect communication. Users may need to adjust router or gateway placement or increase the number of routers for optimal product communication.

Will the switch work without a network connection? In the event of a disconnection from the network, the switch will be without the ability to use all application controls, smart links and other network functions during this time. Local control will remain unaffected.

If the switch does not turn on, check that it is connected to the neutral wire as this switch requires this connection to operate. A missing neutral line at the designated location will prevent the switch from functioning.

Can't connect to the app? Make sure your mobile phone and the device are on the same Wi-Fi network. Make sure the device is powered and in pairing mode with a strong signal for effective communication.

Disposal: The crossed-out container symbol on the product, in the accompanying documentation or on the packaging means that in EU countries, all electrical and electronic equipment, batteries and accumulators must be disposed of separately at the

end of their useful life as separated waste. Do not dispose of these products in unsorted municipal waste.

CE DECLARATION OF CONFORMITY

Abacus Electric, s.r.o. hereby declares that the EVOLVEO WiFi Single Switch and WiFi Dual Switch phone meets the requirements of the standards and regulations that are relevant for the type of device.

The full text of the Declaration of Conformity can be found at http://ftp.evolveo.com/ce/

Importer / Manufacturer

Abacus Electric, s.r.o.

Planá 2, 370 01, Czech Republic

Producer / Producer / Manufacturer / Gyártó

Made in P.R.C.

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

All rights reserved. The appearance and technical specifications of the product are subject to change without notice.
