Product Type	Stand Fan
Model	WT-1023
Brand	Ravanson
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	25 W
Max Air Flow	12.3 m³/min
Fan Power Input	17.6 W
Service Value	0.70 (m³/min)/W
Sound Power Level	49.04 dB(A)
Max Air Velocity	2.29 m/s
Climate Class	T
Speed Settings	2 speeds (1 - slow, 2 - fast) + OFF
Oscillation	Yes, with push-button control
Tilt Adjustment	Yes, manual tilt on horizontal axis
Protection Grid	Removable front grid
Assembly Required	Yes, includes blade cover and fixing screws
Cleaning Method	Unplug, wipe with damp cloth and mild detergent
Safety Features	Overload protection, no external timer/remote
Standby Power Consumption	0 W (no standby mode)
Measurement Standard	IEC 60879

Frequently Asked Questions - WT-1023 Ravanson

How do I assemble the Ravanson WT-1023 fan?

Assemble the fan as shown in Figure 2 of the manual. First, screw the blade cover (item 10) to the front grid (item 6) using the provided screws (item 7). Then attach the back grid, blade, and front grid to the drive unit following the diagram. Ensure all parts are securely fastened before use.

What should I do if the fan does not start?

Check if the power cord is properly plugged into a working outlet. Ensure the power switch is not in the '0' position. If the fan still does not start, inspect the cord for damage. If damaged, do not use and contact a qualified service center. Repairs must be done by authorized personnel.

How do I clean the fan?

Always unplug the fan before cleaning. Use a soft, damp cloth with a neutral detergent. Avoid using petrol, solvents, or abrasive cleaners. Do not allow water to enter the motor housing. Dry thoroughly before reuse.

Can I use the fan with an external timer or remote control?

No, the fan is not designed to work with external timers or separate remote control systems. Only use the built-in controls provided.

How do I adjust the oscillation (rotation) of the fan?

To enable automatic rotation, press the oscillation button on the drive unit housing. To stop rotation, pull the button out. The fan will oscillate around its vertical axis.

Can I tilt the fan head?

Yes, the fan head can be tilted manually on the horizontal axis by gently deflecting the drive unit. Adjust to your desired angle.

What are the safety precautions for using this fan?

Keep the fan away from water, do not use outdoors, and ensure children under 8 do not operate it unsupervised. Never insert objects into the protection grid. Do not use with a damaged cord. Always unplug before moving or cleaning.

What is the maximum air flow of the WT-1023?

The maximum fan flow rate is 12.3 m³/min, with a service value of 0.70 (m³/min)/W. The sound power level is 49.04 dB(A).

How should I store the fan when not in use?

Allow the fan to cool down completely. Store it in its original packaging or a dry place protected from humidity and mechanical damage.

What is the power consumption of the fan?

The rated power is 25 W, and the fan power input is 17.6 W. Standby power consumption is 0 W as there is no standby mode.

USER MANUAL WT-1023 Ravanson

EN User's manual Fan

Front view of a standard office air conditioner fan with mesh grille and visible brand logo (no text or symbols on fan body)

WT-1023

Ravanson®

Producent/Manufacturer/ Hersteller/ Производитель/ Výrobce/ Výrobca/ Proizvajalec/ Gamintojas/ Tootja/ Ražotājs

Rys. 1

Rys. 2

OBSŁUGA

UWAGA!

Two diagrams showing a device with a grid-patterned panel and directional arrows, no text or symbols present.

CZYSZCZENIE I KONSERWACJA

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries

Keep safety instructions and warnings at hand for future reference

GENERAL SAFETY GUIDELINESS

This appliance is not intended for use by children under the age of 8 or other persons, without assistance or supervision, if their physical, sensory or mental capabilities prevent them from using it safely or by persons without experience and knowledge on the use thereof. People using this product must understand the risks related to the use of the appliance. Do not allow children to use the appliance as a toy. Cleaning and maintenance by children without supervision is not allowed.

Children are not aware of dangers that may arise during the use of electric devices. Keep the appliance and corresponding cord out of the reach of children under the age of 8.

Children should be supervised to ensure that they do not play with the appliance.

Do not operate the appliance with a damaged cord. Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

The plug must fit the socket.

The plug must not be modified in any way.

Do not allow the power cord to touch sharp edges or hot surfaces.

Damaged cord poses a risk of electric shock.

Do not place the appliance on hot surfaces.

Do not use outside. Do not expose to rain. Protect against humidity. Do not operate with wet hands.

During operation keep clothing, long hair away from the moving parts of the appliance.

Do not plug the device in unless it is fully assembled.

Do not use the device with a broken or damaged blades.

Do not remove any parts of the housing.

Do not use the device in the immediate vicinity of a bathtub, shower or swimming pool.

Prevent the cord and plug from any contact with water or moisture. Do not spray any liquid on the device.

Unplug the device holding the plug; do not pull the cord.

Unplug the device if it is to be moved or is not going to be used for a longer time.

Do not use the device with the protection grid removed.

Transport in an original package protecting from mechanical damages.

The appliance must be repaired by a qualified person using only original spare parts.

Despite operating the unit in accordance with its intended use and in accordance with all safety guidelines, it is impossible to eliminate all residual risk factors.

The appliance is intended for home use only.

The appliance should only be used for private use, as intended for the appliance. This appliance is not intended for commercial use.

Before assembly and disassembly of the sieve, always make sure that the juicer is disconnected from its power source.

Do not cover the fan protection grid.

Do not put anything into the protection grid when the fan is on.

NOTE! The device is not designed to work with external timers or a separate remote control system.

It is recommended to connect the device to the power supply network equipped with a residual current device (RCD) with a switch-off current of 30mA or less.

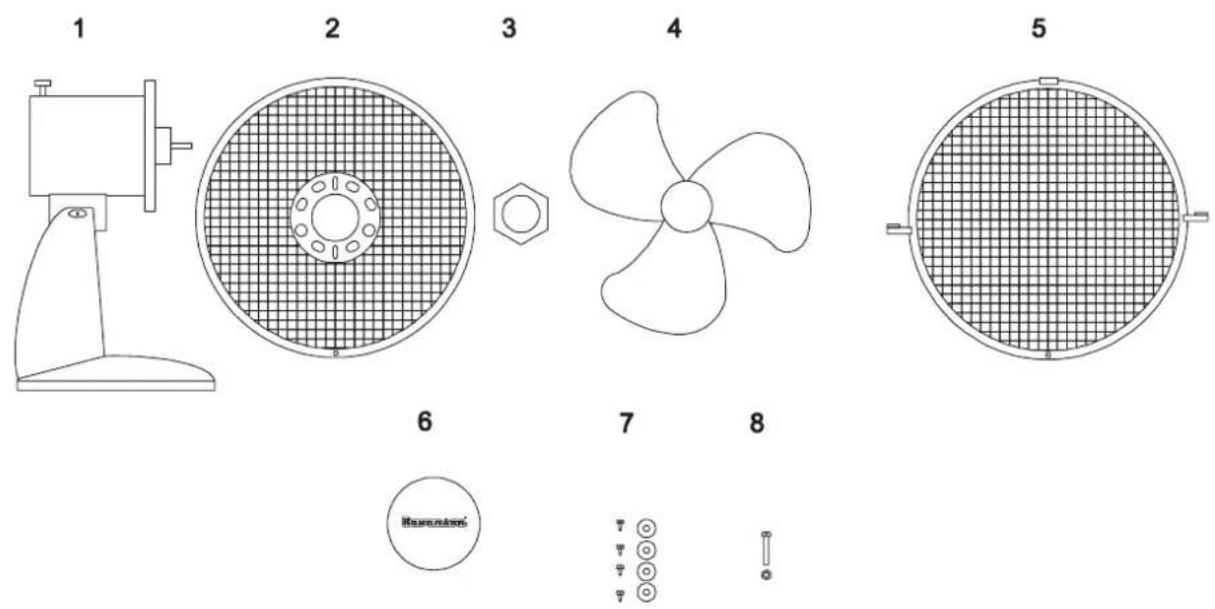

Parts

Please check the fan is complete after you open the packaging. Check if the components are not damaged.

1 Drive unit 2 Back grid

3 Nut 4 Blade

5 Front grid 6 Blade cover

7 Screws fixing blade cover 8 Basket fixing bolt

Assembly

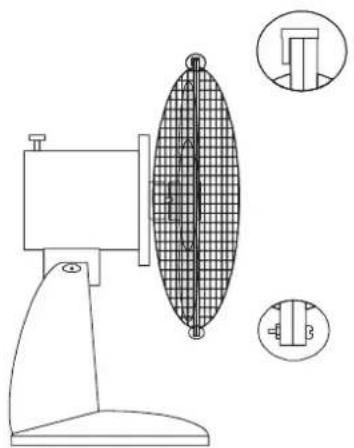

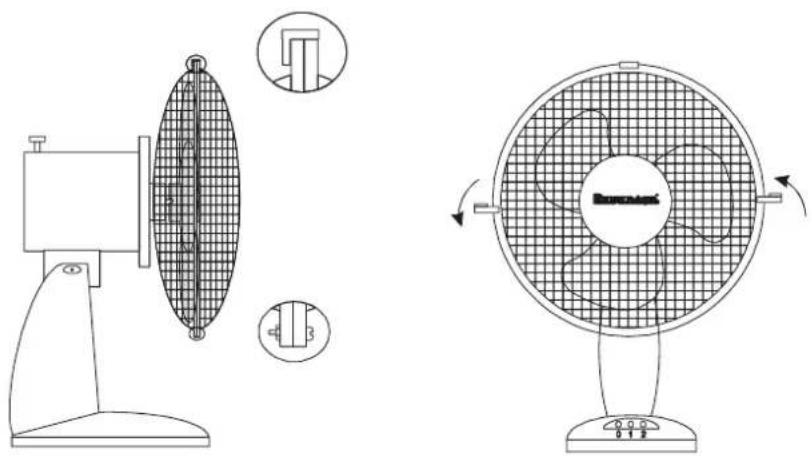

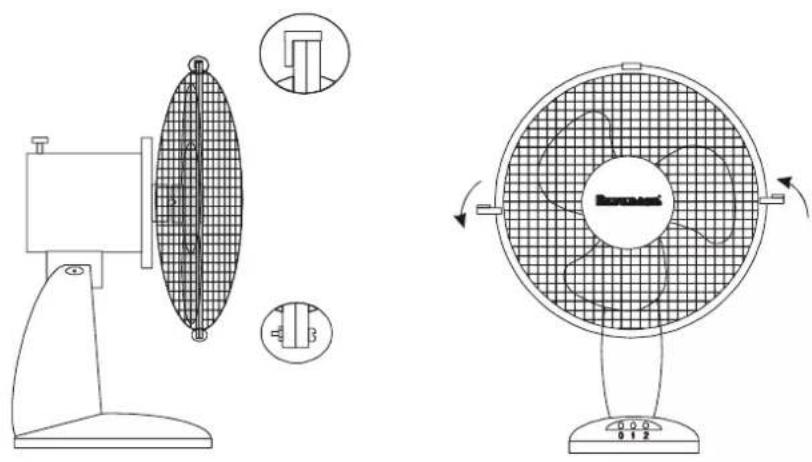

1. Screw the blade cover 10 to the front grid 6 (see Figure 1)

Fig 1

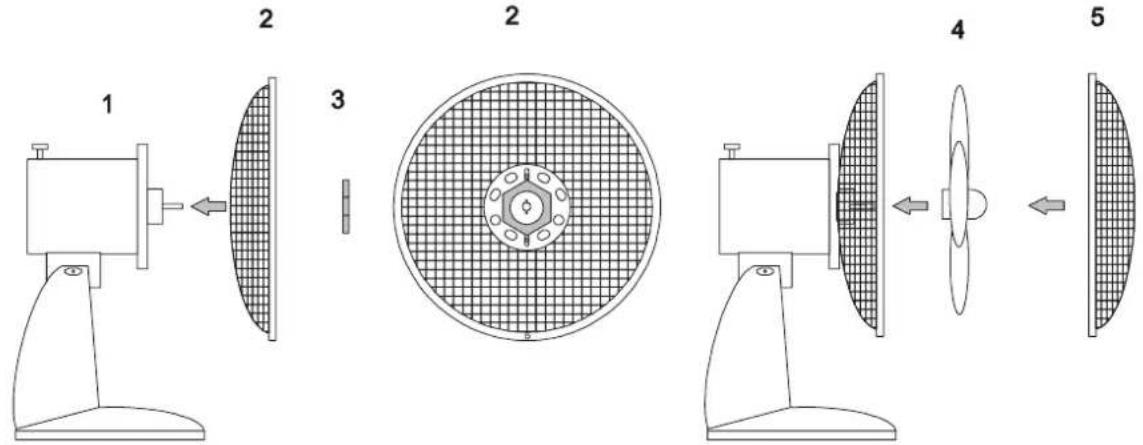

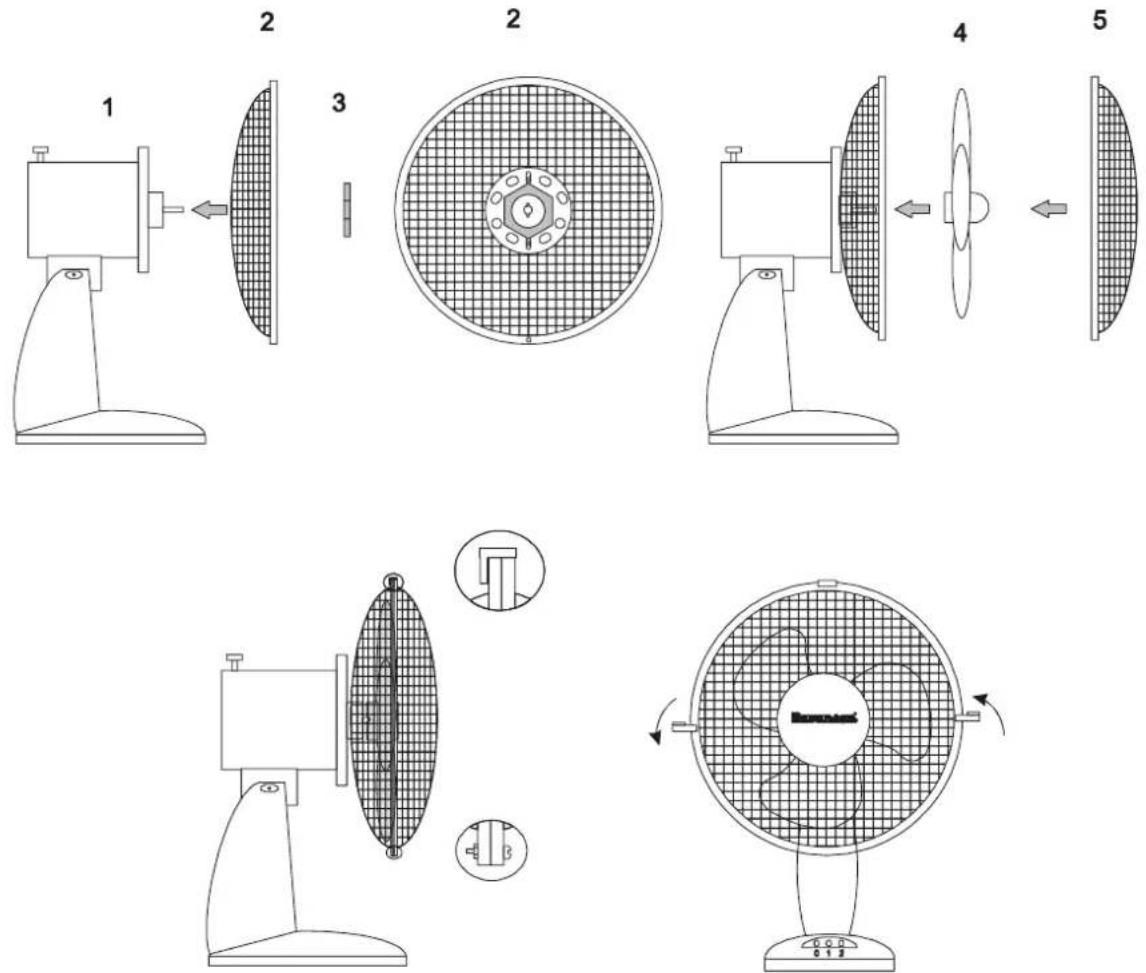

1. Assembly the fan as shown in Figure 2

   Fig 2

Attention! Make sure that the power source to which the appliance is to be connected is accordant with the parameters specified on the rating plate.

Attention! Before every use, inspect the device for any signs of mechanical damage. Inspect the power cord.

If the power cord is damaged, do not plug the device in.

Fan speed can be set from 1 (slowest) to 2 (fastest). "0" position – switching the fan off.

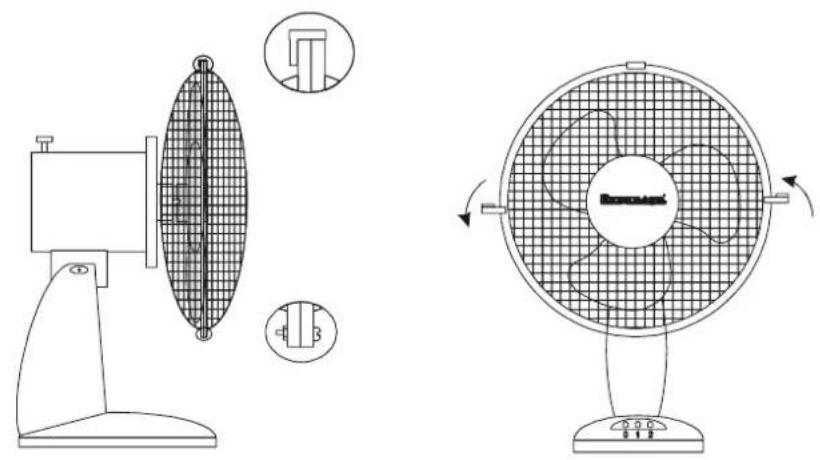

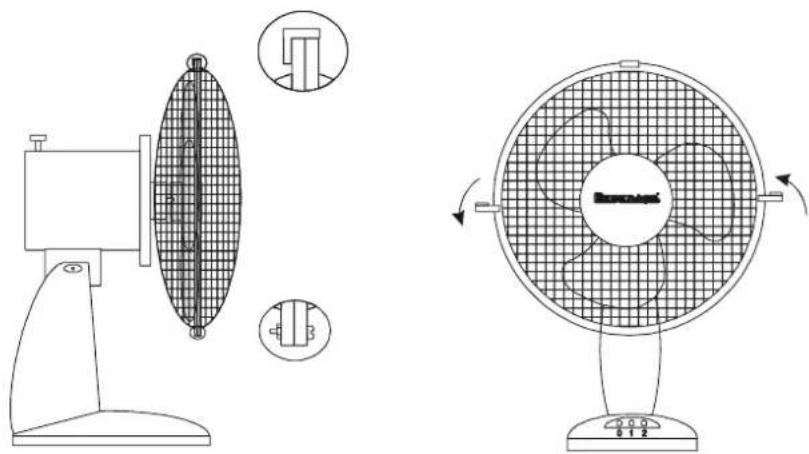

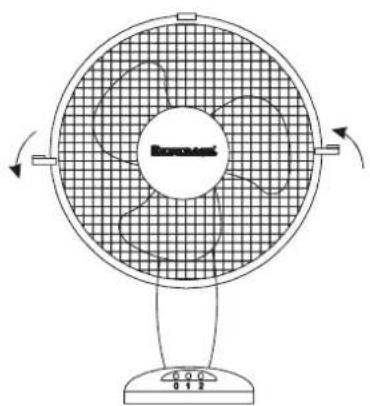

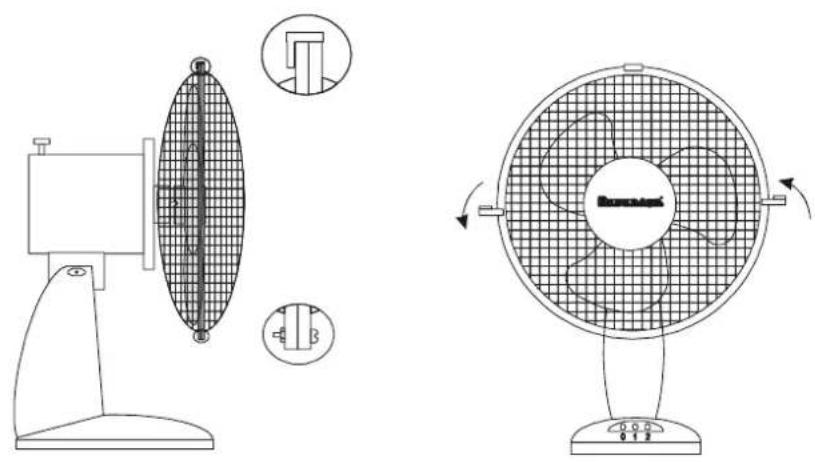

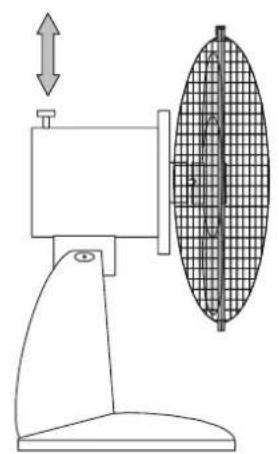

The fan is equipped with a rotational mechanism. Automatic rotation of the fan round its vertical axis is switched on by the button on the drive unit housing (1).

This function is switched on by pressing the button. To disable device rotation, pull the button out.

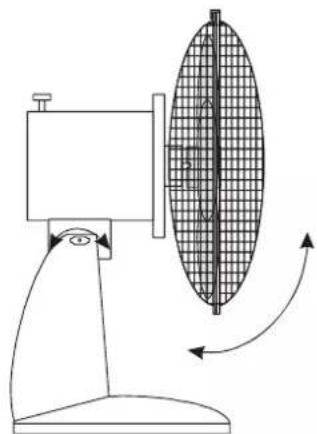

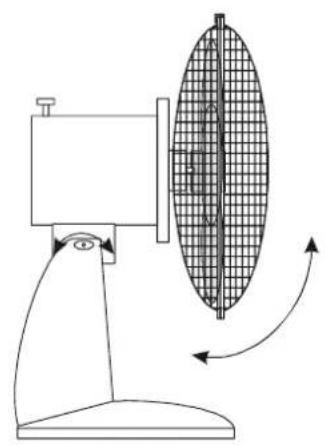

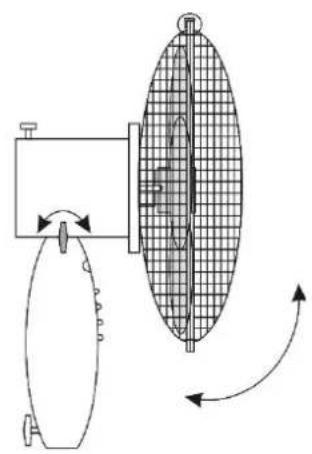

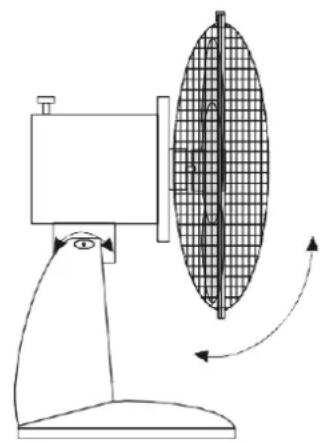

The fan head can be tilted in a horizontal axis by aslight inflection/deflection of the drive unit.

Technical line drawing of a mechanical device with a grid-patterned side panel and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with a grid-patterned oval component and directional arrows indicating motion (no text or symbols)

Cleaning and care

Before starting the maintenance, ensure the fan is unplugged.

Clean the fan with moist (never wet) cloth with a neutral detergent. Do not use petrol or other solvents.

Transportation and storage

Before putting the device away, wait until it cools down. Keep and store in a package protecting from humidity and mechanical damages.

Troubleshooting

If the fan does not start, check the power supply in the mains. Repairs must be carried out solely by the authorised personnel.

Technical parameters

WT-1023

Voltage 220–240 V

Frequency 50/60 Hz

Rated power 25 W

Climate class T

The manufacturer reserves the right to introduce technical modifications!

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative consequences for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have been limited in this device.

Description	Symbol	Value	Unit
Maximum fan flow rate	[F]	12,3	m^3/min
Fan Power input	[P]	17,6	W
Sernice value	[SV]	0,70	(m^3/min)/W
Standy power consumption	[P_SB]	---	W
Fan sound Power level	[L_WA]	49,04	dB(A)
Maximum air velocity	[c]	2,29	m/s
Measurement standard for service value	IEC 60879
Contact details obtaining more information	RAVANSON Ltd., Sp. z o.o.ul. Mazowiecka 6, 09-100 Płońsk, Poland

DE

Abb. 1

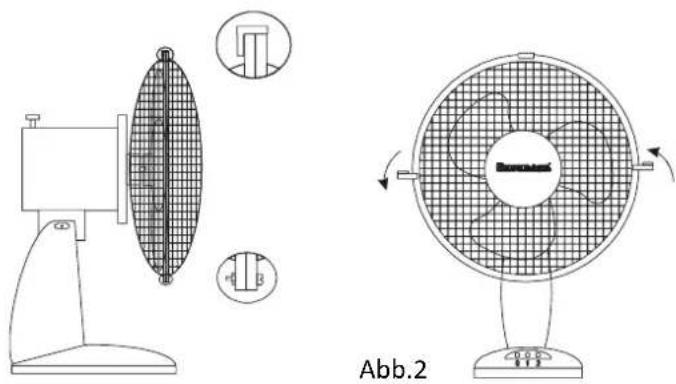

Two identical diagrams of a mechanical device with grid-patterned blades and directional arrows, no text or symbols present.

Instandhaltung

Мал1

Мал. 2

ОБСЛУГОВУВАННЯ

УВАГА!

Technical line drawing of a mechanical device with a grid-patterned side panel and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with a grid-patterned component and directional arrows indicating motion (no text or symbols)

Obr. 1

Technical line drawing of a mechanical device with cross-sectional views and mounting holes (no text or symbols)

Line drawing of a standard electric fan with visible blades and grid pattern (no text or symbols)

Obr. 2

Technical line drawing of a mechanical device with an oval panel and directional arrows (no text or symbols)

Diagram of a mechanical device with a grid-patterned blade and directional arrows indicating motion (no text or symbols)

Údržba:

Obr. 1

Diagram of two identical mechanical devices with grid-patterned blades and directional arrows, no text or symbols present.

Údržba:

Sl.1

1. Zmontirati ventilator skladno s Sl. 2

Sl. 2

Pozor! Preverite, ali vir napajanja, na katerega želite priključiti napravo, ustreza parametrom, navedenim na podatkovni ploščici.

Two diagrams showing a device with grid-patterned blades and directional arrows, no text or symbols present.

Vzdrževanje

pav. 1

Technical line drawings of a fan and its internal structure, showing front and side views (no text or symbols)

pav. 2.

Two identical diagrams of a mechanical device with grid-patterned blades and directional arrows, no text or symbols present.

Priežiūra:

joonis 1

Technical line drawings of a fan and its internal components, showing front and side views (no text or symbols)

joonis 2

Two diagrams showing a device with grid-patterned panel and directional arrows, no text or symbols present.

Hooldus:

Zim. 1

Technical line drawings of a desktop fan and its internal structure, showing front and side views with no text or symbols.

Zim. 2

Two identical diagrams of a speaker with grid-patterned head and directional arrows, no text or symbols present.

TİRİŞANA UN KONSERVÄCIJA

(1. ábra)

Technical line drawings of a fan and its internal structure, showing front and side views (no text or symbols)

(2. ábra)

HASZNÁLAT

FIGYELEM!

Diagram of a mechanical device with a grid-patterned oval component and directional arrows (no text or symbols)

Diagram of a mechanical device with a grid-patterned component and directional arrows indicating motion (no text or symbols)
