MICRO - Baby stroller JANE - Free user manual and instructions

Product type	Foldable bassinet for baby stroller
Brand	JANE
Model	MICRO
Recommended age	Child unable to sit alone (newborn)
Main material	Fabric and plastic
Canopy	Removable, foldable and unfoldable
Leg cover apron	Removable with zipper
Attachment system	ProFix with adapters and locking click
Compatibility	JANE stroller chassis
Care	Hand wash at max 30°C, air dry in shade
Safety	Regularly check for wear; do not add mattress >40 mm; do not leave unattended
Warranty	Manufacturer warranty with care instructions
Manual	72 pages, available in multiple languages
Use	Bassinet for strolling, easy unfolding and folding
Accessories	Use only accessories approved by JANÉ

Frequently Asked Questions - MICRO JANE

How to unfold the JANE MICRO bassinet?

Place the bassinet on a flat surface. Rotate the ProFix adapter outward, then open the fixing strap to deploy the side edges. Ensure the edges are fully unfolded.

How to fold the JANE MICRO bassinet?

First fold the canopy and close the apron. Pull the fixing straps and attach them to the designated points on the base. Fold the ProFix adapter inward.

How to attach the bassinet to a JANE stroller?

Install the bassinet so that the child's head is on the walking side. Insert the ProFix adapters into the slots of the chassis armrests until you hear a locking click. Check that all locks are engaged before use.

How to remove the bassinet from the stroller?

Pull upward the release buttons located on the ProFix adapters, then separate the bassinet from the stroller by lifting it.

How to wash the JANE MICRO bassinet?

Wash the plastic parts with warm water and soap. The textile parts should be hand washed at a maximum temperature of 30°C. Air dry in the shade. Avoid prolonged sun exposure to preserve color.

Can I add an extra mattress to the bassinet?

No, it is not recommended to add a mattress thicker than 40 mm. Use only the original mattress to ensure the child's safety.

At what age can my child use this bassinet?

This item is suitable for a child who cannot sit alone, i.e., generally from birth to about 6 months or until the child can sit without assistance.

How to disassemble the bassinet canopy?

Open the back zipper, then move the canopy adapter outward to detach it from the bassinet. To reassemble, perform the reverse operation by closing the zipper.

Where can I download the manual for the JANE MICRO stroller?

The manual is available free of charge in PDF format on the notice-facile.com website. You can download it directly or request a translation in your language by providing your email address.

Can I use accessories not approved by JANÉ?

No, never use accessories that have not been approved by JANÉ. This could compromise the child's safety and damage the bassinet.

USER MANUAL MICRO JANE

Product photo of a baby car cab with a blue canopy cover and black seat, labeled 'M' in the corner (no text or symbols on the car itself)

MICRO

INSTRUCCIONES

español 8
english 11
français 15
deutsch 19
italiano 23
português 27
nederlands 31
norsk 35
svenska 39
русский 43
dansk 47
polski 51
slovenščina 55
slovensko 59
český 63
magyar 67

Illustration of a car seat assembly with mounting bracket and seat cover (no text or symbols)

1A

Close-up of a mechanical component with a red arrow indicating rotation (no text or symbols)

Close-up of a mechanical switch mechanism inside a circular frame, showing no text or symbols

2A

Two circular diagrams showing a device's left and right views, with red arrows indicating rotation or movement (no text or symbols present)

3

Illustration of a baby bussel with open lid and red rotation arrows indicating motion (no text or symbols)

Illustration of a hand holding a thin red dotted line over a gray circular background (no text or symbols)

Close-up of a mechanical component with a red arrow indicating direction (no text or symbols)

4

Illustration of a gray athletic bag with red directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a mechanical component, enclosed in a red circle (no text or symbols)

4A

Illustration of a baby car with open lid and red arrows indicating motion or movement (no text or symbols)

5

Illustration of a baby stroller with red arrows indicating movement or change (no text or symbols)

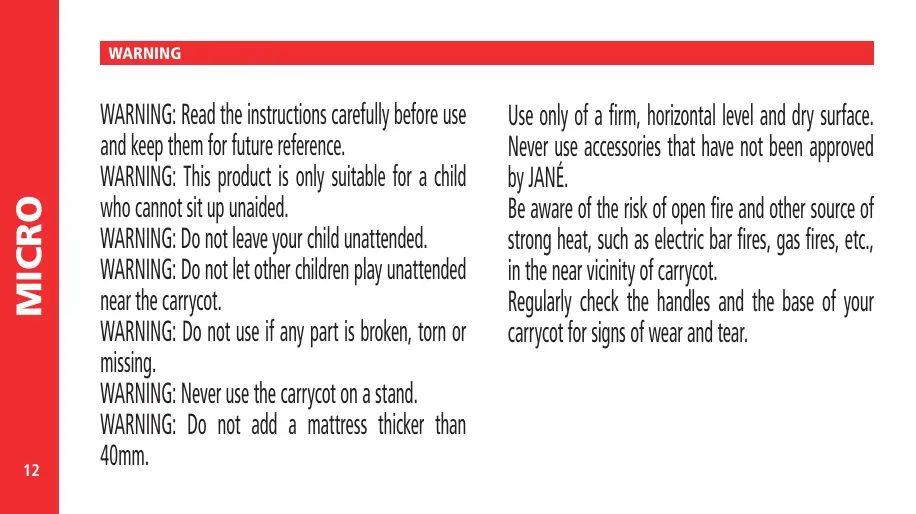

ADVERTENCIAS

WARNING: Read the instructions carefully before use and keep them for future reference.

WARNING: This product is only suitable for a child who cannot sit up unaided.

WARNING: Do not leave your child unattended.

WARNING: Do not let other children play unattended near the carrycot.

WARNING: Do not use if any part is broken, torn or missing.

WARNING: Never use the carrycot on a stand.

WARNING: Do not add a mattress thicker than 40mm.

Use only of a firm, horizontal level and dry surface. Never use accessories that have not been approved by JANÉ.

Be aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc., in the near vicinity of carrycot.

Regularly check the handles and the base of your carrycot for signs of wear and tear.

1.-UNFOLDING

Place the JANE MICRO folding carrycot on a flat surface. Turn the ProFix system connector outwards (A). Open the fastening strap so that the side walls completely unfold (B). Make sure that the walls are properly unfolded!

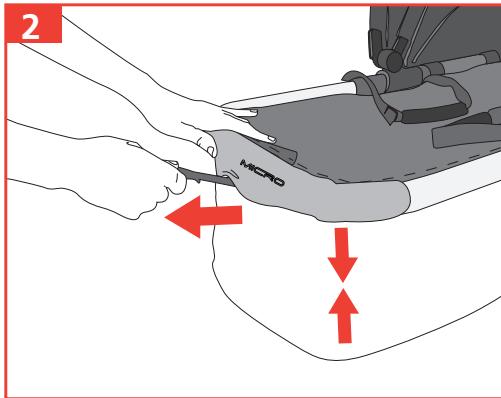

2.- FOLDING

Fold the hood of the JANE MICRO folding carrycot. Close the foot cover. Pull the fastening straps and secure them in the points on the base of the carrycot (A). Fold the ProFix system connector inwards (B).

3.- USING THE HOOD

The hood of the JANÉ MICRO folding carrycot can be folded, unfolded and taken off. To take the hood off, undo the rear zip and then move the hood connector outwards to separate it from the carrycot (A).

To fit the hood onto the JANÉ MICRO carrycot insert the hood connector into the frame and fasten the rear zip.

4.- OPENING THE FOOT COVER

To open the foot cover of the JANÉ MICRO folding carrycot, undo the zip to the required position and fold the upper part back (4) after undoing the clasps. To completely remove the foot cover undo the two zips (4A).

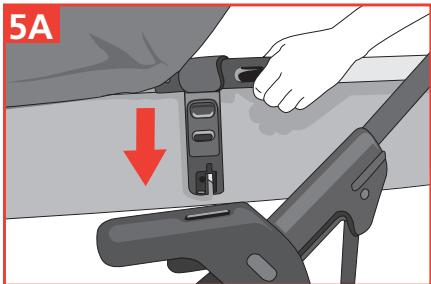

5.- FITTING ONTO A JANE PUSHCHAIR

To fasten the JANE MICRO carrycot onto a Jane chassis, position the carrycot so that the child's head is facing forwards and insert the Profix connectors into the slots on the armrests of the chassis, that are designed for this; listen for the click indicating it is fastened.

TAKE CARE! Before using it, make sure that all the locking catches are closed.

To release the carrycot, pull the unlocking buttons on the connectors upwards and separate the JANE MICRO folding carrycot from the pushchair by pulling it upwards.

6.- MAINTENANCE

Clean the plastic parts with soap and warm water, then carefully dry all the components.

Hand wash at temperature no higher than 30^ C. Leave to dry naturally in a shaded place.

If the upholstery is exposed to sunlight for prolonged periods of time it may affect the colour of the fabric.

Your CAPAZO MICRO baby carrier has a guarantee with precise specifications for correct maintenance, it is important to keep these for perfect validity.

1- DÉPLIAGE DE LA NACELLE MICRO
2- PLIAGE DE LA NACELLE MICRO
3- CAPOTE
4- TABLIER
5- SYSTÈME PROFIX

AVERTISSEMENTS

Blank white image with a vertical red stripe on the right edge (no text or symbols)

JANÉ, S.A. Pol. Industrial Riera de Caldes
