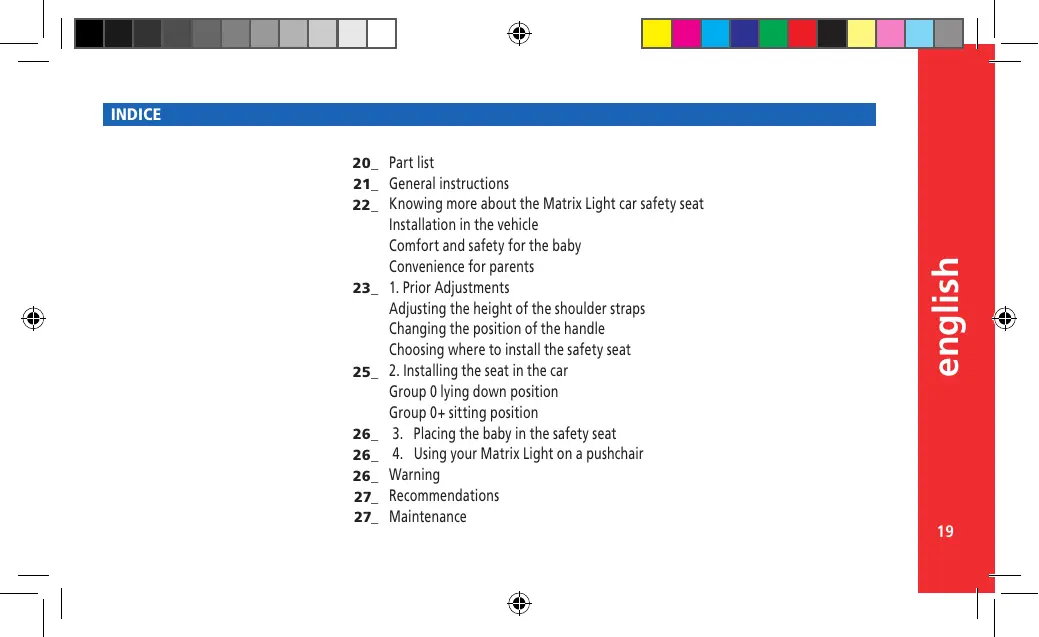

USER MANUAL MATRIX LIGHT JANE
20 Part list
21_ General instructions
22_ Knowing more about the Matrix Light car safety seat Installation in the vehicle Comfort and safety for the baby Convenience for parents
23.1.Prior Adjustments Adjusting the height of the shoulder straps Changing the position of the handle Choosing where to install the safety seat
25. 2. Installing the seat in the car Group 0 lying down position Group 0+ sitting position
26_ 3. Placing the baby in the safety seat
26_ 4. Using your Matrix Light on a pushchair
26_Warning
27. Recommendations
27. Maintenance

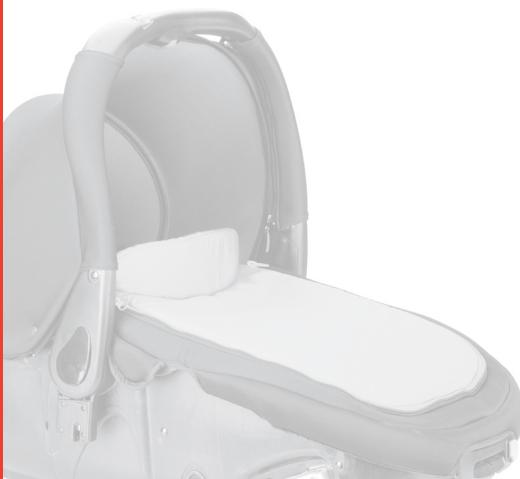

MATRIX LIGHT
PART LIST
- CARRYING HANDLE
- HANDLE POSITION LEVER WITH DOUBLE SAFETY CATCH
3.PRO-FIXRELEASEBUTTON
- LEVER TO RECLINE THE BACKREST
- INTEGRAL 5-POINT HARNESS
- HARNESS TIGHTENER
- HARNESS TIGHTENER LOCK
- SHOULDER PADDING
- GROUP 0+ FRONT GUIDE
- GROUP 0+ SHOULD STRAP GUIDE WITH LOCK
- VENTILATION CHANNELS
- INSTRUCTIONS
13.PRO-FIX CONNECTORS
- UPHOLSTERY
- SHOULDER STRAPS AUTOMATIC ADJUSTMENT SYSTEM
-
GROUP 0 AUTOMATIC CARABINEER
-
Your new MATRIX LIGHT by JANE is a safety seat designed to protect your baby in the car from the day they are born to approximately 1 years of age (up to 13Kg in weight).
- MATRIX LIGHT has passed the demanding safety tests of European Regulation ECE 44/04 for groups 0 and 0+ .
- MATRIX LIGHT is compatible with most car seats. However, when the car manufacturer states that the seats are suitable for the installation of "Universal" type seats, this means that there is total compatibility.
- You can also use your MATRIX LIGHT with any of the JANÉ chassis that has the PRO-FIX system.
- It is very important to read these instructions carefully before using the MATRIX LIGHT seat for the first time. Make sure that everyone who is ever going to use the seat is also familiar with its correct installation and use. It has been discovered that a significant number of people who use safety seats do not install the seat correctly, understanding the instruction manuals and applying the instructions correctly is just as important for safety as the actual seat.
- Keep the instructions in the compartment under the seat, consult them if you have any doubts. You can also find them on our web page: www.jane.es
GENERAL INSTRUCTIONS
In order to protect your baby adequately and to ensure their comfort and stability in the car, the following instructions must be strictly followed:
- Your MATRIX LIGHT safety seat can be installed in both the front seat, if it does not have an airbag, and in the back seat of your car. Either way, we advise you to install it in the back seat. If you position it in the front seat of the car, this must NOT have an AIRBAG, or the airbag must be disconnected.
- It is only suitable for cars fitted with three anchoring point automatic belts, approved according to Regulation ECE-16 or other equivalent rules. DO NOT use with a two anchoring point belt.
- Not all safety systems are exactly the same, so we advise that you check your MATRIX LIGHT in the car in which it is going to be fitted.
It is very important not to use second-hand products, as JANÉ can only guarantee complete safety with items used by their first buyer.
JANE recommends that you replace your MATRIX LIGHT safety seat with a new one if it has been subjected to violent stresses in an accident.
- Check that all the straps are in the correct position and duly adjusted to your MATRIX LIGHT. Make sure that none of the straps are twisted. The child must understand that he must not play with the straps or fasteners under any circumstances.
For your baby's proper development, we advise you not to overuse the safety seat in the seated position on long journeys. Let the baby rest frequently in a Moses basket or bed in the reclining position.
Getting to know the MATRIX LIGHT safety seat
Your MATRIX LIGHT safety seat has been designed taking into account the latest advances in terms of safety and it has been tested under the toughest conditions. It has the following features:
Installing in the vehicle:
- Belt slots underneath the shell to permit installation in cars where the belts are shorter. It also leaves the area around the baby's feet free.
- Car seat belt lock that tightens the seat for more stability in the sitting position.
- New anchorages for the reclining position to help with installation.
Comfort and safety for the baby:
- Integrated 5-point straps, with a greater fastening area, so distributing loads on the baby better in the event of an accident.
- Aeration in the shell to permit transpiration.Impact-absorbent material over the entire surface in contact with the baby.

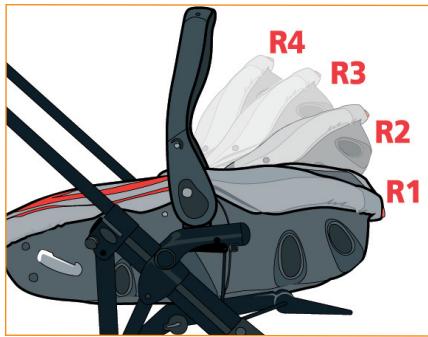

4-position reclining backrest:
- RT - Group 0 position, so that the baby can travel fully reclining. Highly recommendable option for the first months.
R2/R3-Intermediate position. (Not suitable for in the car.)
R4 - Group 0+ position, so that the baby can travel seated.
Comfort for the parents:
- Pro-Fix fasteners compatible with the JANE chasses.
- Carrying handle with 3 positions.
- Height adjustment for the straps simply by pressing a button. Avoids the inconvenience of having to fasten and unfasten straps when you need to change the height of the straps.
Removable upholstery.
1 Prior adjustments
Adjusting the height of the shoulder straps
For maximum protection the shoulder straps of the MATRIX LIGHT safety seat should be adjusted to just above the baby's shoulders. Check this height with the baby in the sitting or lying down position in the safety seat.
The straps can be adjusted using a tightener so that the seat adjusts to your baby during the whole stage of growth.
The MATRIX LIGHT safety seat has a quick shoulder strap height adjustment system, you just have to press a button and slide the adjustment mechanism along the backrest
1a MATRIX LIGHT has 6 different heights for the shoulder straps.
There are two possible ways of changing the position:
1a.1 To change the position when lying down, pull the plastic flap and slide the adjustment mechanism.
1a.2 To change the position when sitting down, press the button on the backrest and slide it to the required position.
Release the button or flap and move the adjustment mechanism to the nearest locking position, it should click into place. Check that it is locked by pulling the adjustment mechanism.
Changing the position of the handle
The carrying handle has 3 positions (figure 1b), each one of them has a specific function:
Position 1: Hood folded. Does not have a lock.
Position 2: Carrying position. Position for installing the seat and taking it off a JANE chassis and for carrying.
Position 3: AUTO position. For travelling in the car.
To change the position, press the double safety catch and then the lever on the handle and turn the handle to the required position.
CAUTION Check and adjust the height and length of the shoulder straps as the baby grows.
Choosing where to install the safety seat
Correctly choosing where to position the safety seat in the car can reduce the risk of injury to the baby in the event of an accident.

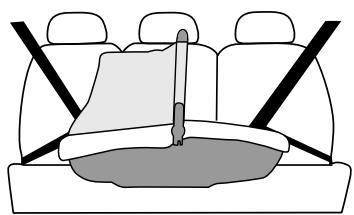

Reclining position, Group 0. The safety seat must be installed cross-wise in the back seats. MATRIX LIGHT occupies two seats: you can choose between a side and a middle seat, so an adult can travel alongside, or completely in the middle. If you decide on middle and side seats, place the MATRIX LIGHT so that the head is as far as possible from the door.
Seated position, Group 0+. Whenever possible, install the safety seat in the back seats. It is highly advisable that someone travels alongside the baby to take care of them. Of the three back seats, the middle one is the safest.
If you are travelling alone with your baby, it is a good idea to keep them in sight without being distracted while driving. You can position them in the passenger seat, providing it does NOT have an airbag or the airbag IS DISCONNECTED. Do not be distracted for any reason while driving: to take care of the baby, stop the car completely in a safe place.
2 Installing the seat in the car
Reclining position, GROUP 0
In the reclining position, MATRIX LIGHT must be fitted cross-wise on the back seats. Decide on which seats after reading the section on "Choosing where to install the safety seat".
2a Fasten the two straps you have chosen, the fasteners are on the abdominal part of the belt, this area is marked in light blue in the diagrams.
2b Open the fastener of the belt by turning the lock
2c- Insert the abdominal part of the belt into the fastener and close the fastener again.
2d-Lastly,tightenbothbelts.
2e To take the TRANSPORTER seat out of the vehicle, open the fastener of the belt by turning the lock and take the seat belt off.
The MATRIX LIGHT safety seat must be installed FACING AWAY FROM THE DIRECTION OF TRAVELLING. Decide on which seat after reading the section on "Choosing where to install the safety seat".
2f Fasten the 3-point belt.
2g Position the safety seat on the seat of the vehicle. Put the handle in the AUTO position, the position furthest forward.
2h Pass the abdominal part of the car seat belt through the two front guides situated on the sides of the frame.
21- The shoulder belt of the car should be passed behind the safety seat.
2j- Tighten this part of the belt and fasten the locking clip. Make sure that the seat is firmly fastened by pulling it.
If you observe that the car seat belts are not long enough, you can adjust the following parameters to improve this:
3 Placing the baby in the safety seat
3a- Unfasten the buckle.
3b Loosen the harness by pulling the shoulder straps while pressing the tightening button.
3c - Place the baby in the safety seat, ensuring that they are sitting well back and that their back is straight. Join the top ends of the buckles.
3d - Insert them in the central lock and press until you hear a click.
3e - Tighten the shoulder straps and pull on the tightening strap.
4 Using your MATRIX LIGHT in a pushchair
MATRIX LIGHT can be anchored on any JANE chassis that has the PROFIX system.
4a To fit the safety seat on a chassis, insert the connections in the cavity of the chassis and press until you hear a click.
4b To release your MATRIX LIGHT from the chassis, press the button on the handle and pull the seat upwards.
WARNING
Never leave the baby on their own.
Always remember to carry your baby with the safety harnesses correctly buckled.
For your baby's proper development, we advise you not to over-use the carry cot in the seated position on long journeys, letting the baby rest in the reclining position (for babies up to 10Kg
Any alteration or addition to the device without proper authorisation from JANE may seriously alter the safety of the retaining system.
- Failure to follow the instructions carefully for the correct use of the retaining system may be dangerous for the safety of the baby.
This safety device cannot be used without its cover, or be replaced by another cover that is not the original, as this is an integral part of the safety features of the system.
- Check that the seat has been positioned correctly.
- Ensure that the belt has not been caught between the folding seats or doors.
It is only suitable for cars fitted with three anchoring point automatic belts, approved according to Regulation ECE-16 or other equivalent rules.
DO NOT use with a two anchoring point belt.
Not all safety systems are exactly the same, so we advise that you check your MATRIX LIGHT in the car in which it is going to be fit
ted.
It is very important not to use second-hand products, as JANE can only guarantee complete safety with items used by their first buyer.
RECOMMENDATIONS
- Keep this instruction book for future reference. Always store it in the compartment on the base.
- Ensure that inside the car, both luggage and any other object liable to cause injury in the event of an accident are properly fastened or stored.
The MATRIX LIGHT safety seat should be properly fixed with the safety belts, even when not in use, as in the event of an accident it may be thrown about, causing injury to the occupants of the vehicle.
- Remember not to use the MATRIX LIGHT safety seat in cars fitted with a front airbag, unless it is disconnected or disabled, for which you should consult the car manufacturer or retailer.
MAINTENANCE
- Do not expose the cover to sunlight for long periods. When the seat is not in use, cover it or store it in the boot.
-
Wash the plastic parts with warm water and soap, carefully drying all the components afterwards.
The upholstery can be removed for washing. Follow the instructions below:
-
Unfasten the safety harness clip and pass it through the slot in the upholstery.
- Take off the rubber bands that go underneath the car seat belt fasteners.
- And take off those that are on the base next to the handle.
- Take the upholstery off the MATRIX LIGHT safety seat.
-
Undo the Velcro strips that are in the area of the seat belts and pull the upholstery.
-
Wash by hand at a temperature never higher than 30^ .
To refit the cover, follow the same steps in reverse order.
You can access the link: www.jane.es/seguretat/animatic/ for further information on fitting your new MATRIX LIGHT.
