Product type	Cordless Straight Grinder
Brand	Bosch
Model	GGS 18V-23 LC Professional
Power supply	18 V lithium-ion battery
Battery type	GBA 18V... / ProCORE18V...
Recommended charger	GAL 18... / GAX 18... / GAL 36...
No-load speed	4,500 – 9,000 rpm
Max. disc diameter	125 mm
Weight (according to EPTA)	2.3 – 3.3 kg (depending on battery)
Kickback control	Yes
Restart protection	Yes
Brake	Yes
Speed preselection	Yes (GWX 18V-10 SC)
Bluetooth® Low Energy	Yes (integrated or optional module)
Operating temperature	−20 °C to +50 °C
Charging temperature	0 °C to +35 °C
Sound level	79 dB(A) (sound pressure)
Vibrations (rough grinding)	6.0 m/s² (uncertainty K=1.5 m/s²)
Main applications	Grinding, cutting, brushing, sanding (dry)
Materials	Metal, stone, minerals
X-LOCK accessories	Yes (without flange)
Auxiliary handle	Yes (included, antivibration optional)
Maintenance	Clean ventilation slots, keep clean
Protection class	Not specified (estimate: IP20)

Frequently Asked Questions - GGS 18V-23 LC Professional BOSCH

Which battery can I use with the GGS 18V-23 LC?

You can use Bosch GBA 18V... and ProCORE18V... batteries (recommended). Charge with GAL 18..., GAX 18... or GAL 36... chargers.

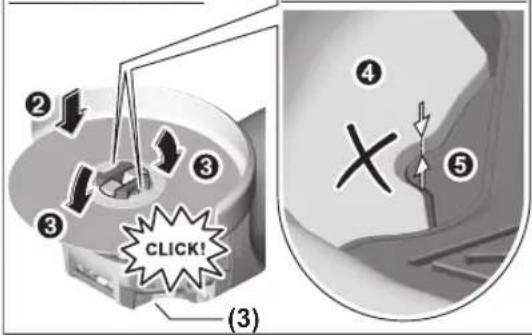

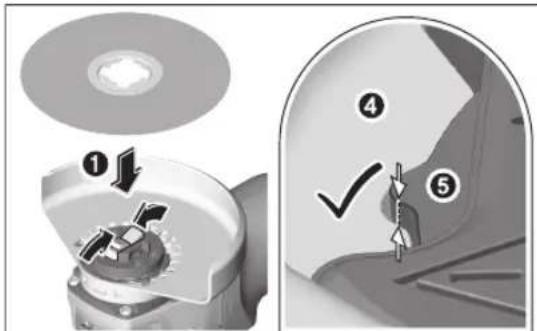

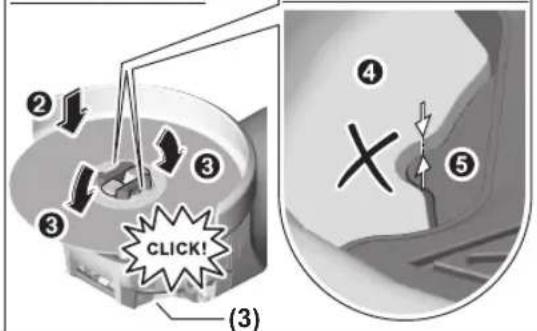

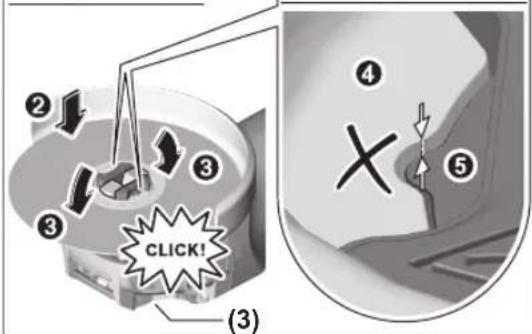

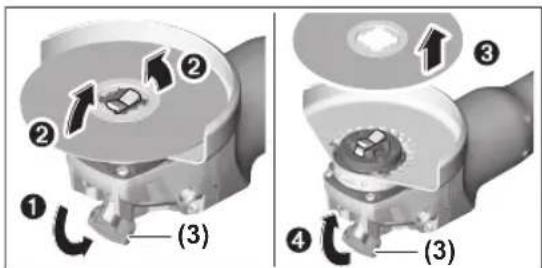

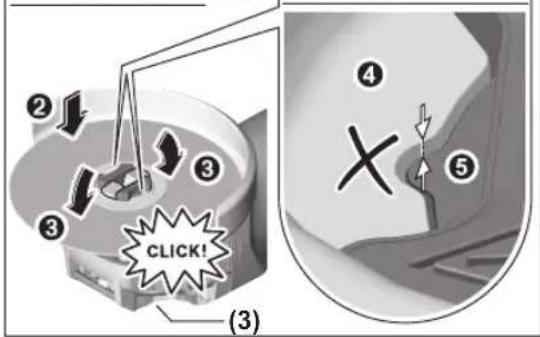

How do I change the grinding disc?

First remove the battery. Open the X-LOCK lever (3), remove the old disc and place the new one centering it on the tool holder. Press until you hear an audible click. Check that the disc is securely fastened.

Is this grinder suitable for cutting metal?

Yes, use a suitable cutting disc and the special cutting guard (ref. 13). Work with moderate feed and without forcing.

What should I do if the tool suddenly stops?

This may be due to a rebound, overheating, or restart protection. Set the switch to off, wait a few seconds, then restart. If the problem persists, let the tool cool down.

Can I use non-X-LOCK accessories?

No, only original X-LOCK accessories are recommended. They ensure secure fastening and compliance with the maximum clamping thickness of 1.6 mm.

How do I clean the tool?

Remove the battery. Use a soft, dry brush to clean the ventilation slots. Avoid water and solvents. Clean the ventilation openings regularly.

Does the brake always work?

Yes, the tool is equipped with a brake that stops the accessory quickly after switching off. This improves safety.

What is the battery runtime?

It depends on the battery capacity and application. For example, with a ProCORE18V 8.0 Ah, runtime can be about 30 minutes in moderate use. The LED on the battery indicates the charge level.

Can I use this grinder for concrete sanding?

No, the tool is not designed for concrete sanding. It is intended for grinding, cutting, and brushing metal and stone, as well as sanding with abrasive discs (except concrete).

How do I activate Bluetooth mode?

The Bluetooth® Low Energy module (integrated on GWX 18V-10 SC, optional on C) allows connection to a smartphone. Follow the module instructions for pairing and use the Bosch Toolbox app.

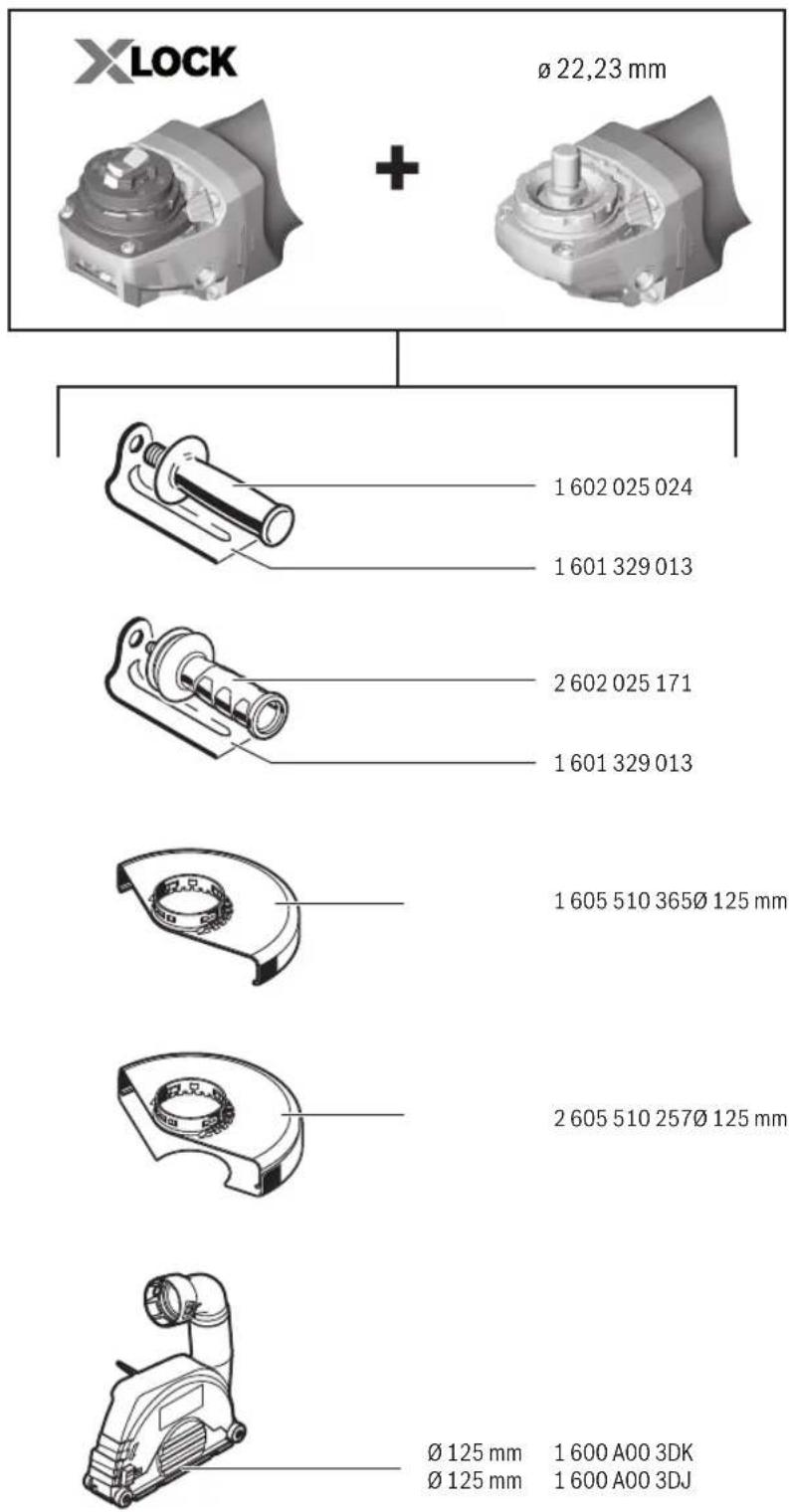

USER MANUAL GGS 18V-23 LC Professional BOSCH

Two industrial cutting machines with visible blade and central hub (no text or symbols)

3D rendered image of a BOSCH plastic electronic component (no text or symbols visible)

L-BOXX 136
1 600 A01 2G0

Isometric technical drawing of a mechanical housing or casing with internal components (no text or symbols)

6 082 850 5UM

1 600 A01 6NH

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating motion (no text or symbols)

Close-up of a mechanical component with circular arrows indicating rotation or assembly (no text or symbols visible)

Illustration of a human leg and foot with a circular motion arrow indicating movement (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and rotating component (no text or symbols)

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.

▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock..

If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc-

curs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety information for the angle grinder

Safety Warnings common for Grinding, Sanding, Wire Brushing or Abrasive Cutting Off operations

This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
▶ Operations such as polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
▶ Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no load speed for one minute. Damaged accessories will normally break apart during this test time.
▶ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye

20 | English

protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

▶ Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
▶ Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
▶ Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
▶ Do not operate the power tool near flammable materials. Sparks could ignite these materials.
▶ Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

▶ Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.

▶ Never place your hand near the rotating accessory. Accessory may kickback over your hand.
Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
▶ Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
▶ Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings specific for Grinding and Abrasive Cutting-Off operations

▶ Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.

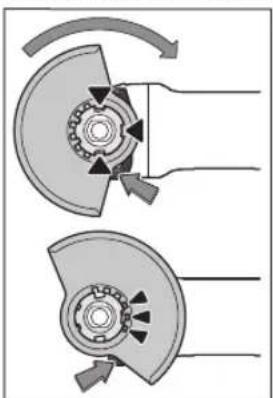

The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
▶ Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
▶ Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
▶ Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety Warnings specific for Abrasive Cutting Off operations

Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
▶ Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.

When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
▶ Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
▶ Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
▶ Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Safety Warnings specific for Sanding operations

▶ Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc, or kickback.

Safety Warnings specific for Wire Brushing operations

▶ Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush The wire bristles can easily penetrate light clothing and/or skin.
If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional safety information

Wear safety goggles.

▶ Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.
▶ Release the On/Off switch and set it to the Off position when the power supply is interrupted, e.g. when the battery pack is removed. This prevents uncontrolled restarting.

▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Do not open the battery. There is a risk of short-circuiting.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
Caution! When using the power tool with Bluetooth, a fault may occur in other devices and systems, aeroplanes and medical devices (e.g. pacemakers, hearing aids). Also, damage to people and animals in the immediate vicinity cannot be completely excluded. Do not use the power tool with Bluetooth ^® in the vicinity of medical devices, petrol stations, chemical plants, areas with a potentially explosive atmosphere or in blasting areas. Do not use the power tool with Bluetooth ^® in aircraft. Avoid using the product near your body for extended periods.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Robert Bosch Power Tools GmbH is under license.

Product Description and Specifications

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended use

The power tool is intended for cutting, roughing and brushing metal and stone materials, as well as making holes in stone materials using diamond core cutters, without the use of water.

A special protective guard for cutting must be used when cutting bonded abrasives.

Sufficient dust extraction must be provided when cutting stone.

22 | English

With approved abrasive tools, the power tool can be used for sanding with sanding discs.

The power tool must not be used to grind concrete.

With the Bluetooth ^® Low Energy Module inserted, power tool data and settings can be transferred between the power tool and a mobile device by means of Bluetooth ^® wireless technology.

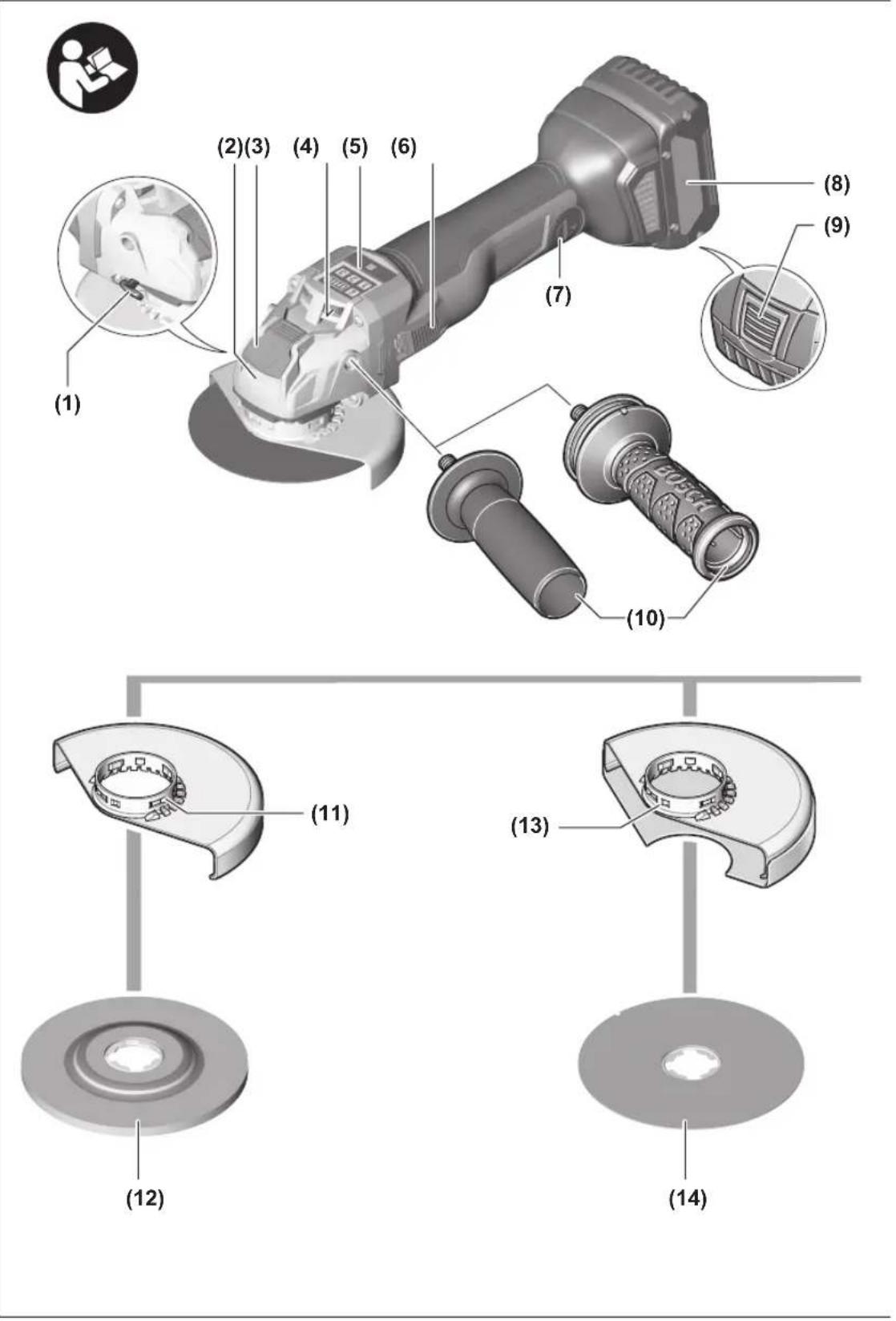

Product features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Unlocking lever for protective guard
(2) Direction of rotation arrow on housing
(3) Lever
(4) LED work light (GWX 18V-10 SC)
(5) User interface (GWX 18V-10 SC)
(6) On/off switch
(7) Cover for Bluetooth ^* Low Energy Module (GWX 18V-10 C / GWX 18V-10 SC)
(8) Battery ^A)
(9) Battery release button ^A)
(10) Auxiliary handle (insulated gripping surface)
(11) Protective guard for grinding

(12) X-LOCK grinding disc/flap disc ^A)
(13) Protective guard for cutting ^A
(14) X-LOCK cutting disc ^A)
(15) Handle (insulated gripping surface)
(16) X-LOCK holder
(17) Hand guard ^A
(18) X-LOCK backing pad for fibre discs ^4
(19) X-LOCK fibre disc ^A)
(20) X-LOCK clip for fibre discs ^A)
(21) X-LOCK cup brush/disc brush ^A
(22) X-LOCK diamond core cutter ^A)
(23) Extraction guard for cutting with cutting guides ^A)
(24) X-LOCK diamond cutting disc ^A)
(25) Battery charge indicator (user interface)
(26) Speed preselection level indicator (user interface)
(27) Speed preselection button (user interface)
(28) Power tool status indicator (user interface)
(29) Overload protection indicator (user interface)
A) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical data

Angle grinder GWX 18V-10 GWX 18V-10 C GWX 18V-10 SC
Article number		3 601 GB0 1..	3 601 GB0 2..	3 601 GB0 4..
Rated voltage V= 18 18 18
Rated speed ^A)	min ^-1	9000	9000	9000
No-load speed ^A)	min ^-1	--	4500–9000
Max. grinding disc diameter mm 125 125 125
Kickback stop ● ● ●
Restart protection ● ● ●
Run-out brake ● ● ●
Speed preselection -- ●
Weight according to EPTA-Procedure 01:2014 ^B)
- with low-vibration auxiliary handle	kg	2.3–3.3	2.3–3.3	2.3–3.3
- with standard auxiliary handle	kg	2.2–3.2	2.2–3.2	2.2–3.2
Recommended ambient temperature during charging	°C	0 to +35	0 to +35	0 to +35
Permitted ambient temperature during operation ^C) and during storage	°C	-20 to +50	-20 to +50	-20 to +50
Recommended batteries		GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...
Recommended chargers		GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...

Data transmission

Angle grinder GWX 18V-10 GWX 18V-10 C GWX 18V-10 SC

Bluetooth® – Bluetooth® 4.2		(Low Energy)D)	Bluetooth® 4.2 (Low Energy)D)
Signal interval s – 8 8
Max. signal rangeE)	m – 30 30

A) measured at 20 - 25 °C with battery ProCORE18V 8.0 Ah.
B) Depends on battery in use
C) Limited performance at temperatures <0 °C
D) The mobile terminal devices must be compatible with Bluetooth ^* Low Energy devices (version 4.2) and support the Generic Access Profile (GAP).
E) The signal range may vary greatly depending on external conditions, including the receiving device used. The Bluetooth ^® range may be significantly weaker inside closed rooms and through metallic barriers (e.g. walls, shelving units, cases, etc.).

Noise/Vibration Information

Noise emission values determined according to EN 60745-2-3.

Typically, the A-weighted sound pressure level of the power tool is 79 dB(A). Uncertainty K = 3 dB. The noise level when working can exceed the volume stated. Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-3:

Surface grinding (roughing):

a_n=6.0 m/s^2,K=1.5 m/s^2,

Disc sanding:

a_n=3.5 m/s^2,K=1.5 m/s^2.

The vibration level given in these instructions has been measured in accordance with a standardised measuring procedure and may be used to compare power tools. It can also be used for a preliminary estimation of exposure to vibration.

The stated vibration level applies to the main applications of the power tool. However, if the power tool is used for different applications, with different application tools or poorly maintained, the vibration level may differ. This can significantly increase the exposure to vibration over the total working period.

To estimate the exposure to vibration accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This can significantly reduce the exposure to vibration over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping the hands warm, and organising workflows correctly.

Fitting

Using the Bluetooth ^® Low Energy Module

Note: The Bluetooth ^® Low Energy Module is available as an accessory with GWX 18V-10 C power tools; it is included in the scope of delivery for GWX 18V-10 SC power tools.

Read the corresponding operating instructions for information about the Bluetooth ^® Low Energy Module.

Charging the battery

▶ Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool.

Note: The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.

The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)". When the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool no longer rotates.

▶ Do not continue to press the On/Off switch after the power tool has automatically switched off. The battery can be damaged.

Follow the instructions on correct disposal.

Removing the Battery

The battery (8) is equipped with two locking levels to prevent the battery from falling out if the battery release button (9) is pressed unintentionally. As long as the battery is inserted in the power tool, it is held in position by means of a spring.

To remove the battery (8), press the release button (9) and pull the battery out of the power tool. Do not use force to do this.

Battery charge indicator

The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation.

Press the button for the battery charge indicator or to show the state of charge. This is also possible when the battery is removed.

If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced.

Note: The state of charge of the battery is also displayed on the user interface (5) (see "Status indicators", page 27).

24 | English

Battery model GBA 18V...

LEDs Capacity

3× continuous green light 60-100%
2× continuous green light 30–60 %
1× continuous green light 5–30%
1× flashing green light 0–5 %

Battery model ProCORE18V...

LEDs Capacity

5× continuous green light 80-100%
4× continuous green light 60–80%
3× continuous green light 40–60 %
2× continuous green light 20-40%
1× continuous green light 5–20%
1× flashing green light 0–5 %

Fitting protective equipment

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

Note: If the grinding disc breaks during operation or the holding fixtures on the protective guard/power tool become damaged, the power tool must be sent to the after-sales service immediately; see the "After-Sales Service and Application Service" section for addresses.

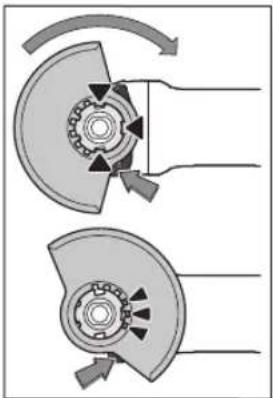

Protective guard for grinding

Mechanical diagram showing two views of a gear and rotor assembly (no text or labels)

Place the protective guard (11) onto the holder on the power tool until the coding cams of the protective guard are aligned with the holder. When doing so, press and hold the unlocking lever (1).

Press the protective guard (11) onto the spindle collar until the shoulder of the protective guard is sitting on the flange of the power tool and rotate the protective guard until it audibly

clicks into place.

Adjust the position of the protective guard (11) to meet the requirements of the operation. To do this, push the unlock-

ing lever (1) upward and rotate the protective guard (11) into the required position.

▶ Always position the protective guard (11) such that all three red cams on the unlocking lever (1) engage in the corresponding openings on the protective guard (11).
▶ Adjust the protective guard (11) such that sparking in the direction of the operator is prevented.
The protective guard (11) must only be adjustable while the unlocking lever (1) is actuated. Otherwise, the power tool must not be used any more under any circumstances and must be sent to the after-sales service.

Note: The coding cams on the protective guard (11) ensure that only a protective guard that is suitable for the power tool can be fitted.

Protective guard for cutting

▶ Always use the protective guard for cutting (13) when cutting bonded abrasives.
▶ Provide sufficient dust extraction when cutting stone.

The protective guard for cutting (13) is fitted in the same way as the protective guard for grinding (11).

Extraction guard for cutting with a guide block

The extraction guard for cutting with a guide block (23) is fitted in the same way as the protective guard for grinding (11).

Side handle

▶ Do not operate your power tool without the side handle (10).

Screw the side handle (10) on the left or right of the machine head depending on how your are working.

Low-vibration auxiliary handle

The low-vibration auxiliary handle reduces vibration, enabling the tool to be used safely and more comfort-

ably.

▶ Do not make any alterations of any kind to the auxiliary handle.

Do not continue to use a damaged auxiliary handle.

Hand guard

▶ Always fit the hand guard (17) when working with the cup brush/disc brush (21) or diamond core cutter (22). Attach the hand guard (17) to the auxiliary handle (10).

Fitting and removing abrasive tools

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.
▶ Only use original X-LOCK application tools that carry the X-LOCK logo. A maintained clamping gauge of max. 1.6 mm can only be guaranteed with original X-LOCK application tools. A higher clamping gauge can lead to insecure clamping, potentially causing the clamp tool to come loose.
▶ X-LOCK application tools do not need additional clamping flanges or support flanges.
▶ Make sure that the application tool and the holder are not deformed and are free from dirt and particles.

Pay attention to the dimensions of the abrasive tools.

Make sure that both X-LOCK catches are open (see figure below) before fitting the X-LOCK application tool.

If necessary, clean the area between the two X-LOCK catches.

Fitting the abrasive tool

Place the grinding/cutting/flap disc in a central position on the X-LOCK holder, parallel to the bearing surface and with the right side facing up.
② Push the disc into the holder.
③ The disc audibly clicks into place. Do not actuate the lever (3) when doing so.

▶ After fitting, check that the edge of the abrasive tool (④) is fitted correctly, i.e. is no higher than the reference surface (⑤). If the edge is higher than the reference surface, either the holder must be cleaned or the abrasive tool must not be used.

Before removing the grinding/cutting/flap disc: Make sure that the power tool has come to a complete stop.

Removing the abrasive tool

① Open the lever (3).
② The grinding/cutting/flap disc will be released.
③ The grinding/cutting/flap disc can be removed.

Cup brushes/disc brushes and fibre discs

▶ Always fit the hand guard (17) when working with the cup brush/disc brush or fibre disc.

See the graphics page for fitting instructions.

To remove an application tool, open the lever (3) and remove the application tool.

Approved abrasive tools

You can use all the abrasive tools mentioned in these operating instructions.

The permissible speed [min^-1] or the circumferential speed [m/s] of the abrasive tools used must at least match the values given in the table.

It is therefore important to observe the permissible rotational/circumferential speed on the label of the abrasive tool.

Rotating the machine head

GWX 18V-10 / GWX 18V-10 C

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

26 | English

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

The machine head can be rotated in 90° increments. In this way, the on/off switch can be brought into a more favourable handling position for particular applications, e.g. for left-handed tool users. Completely unscrew the four screws. Rotate the ma-

chine head carefully, without removing it from the housing, into the new position. Screw in and retighten the four screws.

Dust/Chip Extraction

The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity.

Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials containing asbestos may only be machined by specialists.

• Use a dust extraction system that is suitable for the material wherever possible.
• Provide good ventilation at the workplace.
• It is advisable to wear a P2 filter class breathing mask.
  The regulations on the material being machined that apply in the country of use must be observed.
• Avoid dust accumulation at the workplace. Dust can easily ignite.

Operation

Start-up

Inserting the battery

Push the charged battery (8) into the base of the power tool from the front until the battery is securely locked.

Switching on/off

To start the power tool, push the on/off switch (6) forward. To lock the on/off switch (6) in position, push the on/off switch (6) forward and down until it clicks into place.

To switch off the power tool, release the on/off switch (6); or, if the switch is locked, briefly push the on/off switch (6) backward and down and then release it.

▶ Always check abrasive tools before using them. The abrasive tool must be fitted properly and be able to move freely. Carry out a test run for at least one minute with no load. Do not use abrasive tools that are damaged, run untrue or vibrate during use. Damaged abrasive tools can burst apart and cause injuries.

Kickback stop

If there is a sudden kickback in the power tool, e.g. jamming in a separating cut, the power supply to the motor will be interrupted electronically. The LED work light (4) then flashes white and the status indicator (28) flashes

red.

To restart the tool, set the on/off switch (6) to the off position and then switch the power tool on again.

Restart protection

The restart protection feature prevents the power tool from uncontrolled starting after the power supply to it has been interrupted.

When restart protection is activated, the status indicator (28) flashes red.

To restart the tool, set the on/off switch (6) to the off position and then switch the power tool on again.

Impact shutdown

The integrated impact shutdown switches the power tool off as soon as it hits the floor. The status indicator (28) then flashes red. To restart the tool, set the on/off switch (6) to the off position and then switch the power tool on again.

User interface (see figure B)

The user interface (5) is used to preselect the speed and to indicate the status of the power tool.

Speed preselection

GWX 18V-10 SC

You can use the button for speed preselection (27) to preselect the required speed, even during operation. The information in the table below describes the recommended values.

Material Application Tool Speed preselection	level	GWX 18V-10 SC(125 mm)[ min^-1 ]
Metal Brushing, removing rust Cup brush 1 4500
Stainless steel Grinding Fibre disc 2 6000
Metal Rough grinding Grinding disc 3 9000
Metal Cutting Cutting disc 3 9000

English | 27

Material Application Tool Speed preselection		level	GWX 18V-10 SC(125 mm)[min ^-1 ]
Stone Cutting Diamond cutting disc and	cutting guide (cutting stone is permitted only with a cutting guide)	39000

The values specified for speed levels are guide values.

The rated speed of the accessory must be at least equal to the maximum speed marked on the power

tool. Accessories running faster than their rated speed can break and fly apart.

Status indications

Battery charge indicator (user interface) (25)	Meaning/cause Solution
Green Battery charged –
Yellow Battery almost empty Replace or charge battery soon
Red Battery empty Replace or charge battery

Overload protection indicator (29)	Meaning/cause Solution
Yellow Critical temperature has been reached (motor, electronics, battery)		Run the power tool at no load and allow it to cool down
Red Power tool is overheated and will switch off Leave the power tool to cool down

Power tool status indicator (28)	Meaning/cause Solution
Green Status OK –
Yellow Critical temperature has been reached or battery is almost empty		Run the power tool at no load and allow it to cool down, or replace or charge the battery soon
Illuminated red	Power tool is overheated or battery is empty	Allow the power tool to cool down, or replace or charge the battery
Flashing red	Kickback shutdown, restart protection or impact shutdown has been triggered	Turn the power tool off and on again
Flashing blue	Power tool is connected to a mobile device or settings are being transferred	-

Connectivity functions

In conjunction with the Bluetooth® Low Energy Module, the following connectivity functions are available for the power tool:

• Registration and personalisation
• Status check, output of warning messages
• General information and settings
• Management

Read the corresponding operating instructions for information about the Bluetooth ^® Low Energy Module.

Practical advice

The power tool with inserted Bluetooth Low Energy Module is equipped with a radio interface. Local oper-

ating restrictions, e.g. in aircraft or hospitals, must be observed.

▶ Exercise caution when cutting slots in structural walls; see the "Information on structural design" section.
▶ Clamp the workpiece if it is not secure under its own weight.
▶ Do not load the power tool so heavily that it comes to a stop.
▶ If the power tool has been subjected to a heavy load, continue to run it at no-load for several minutes to cool down the accessory.
▶ Do not use the power tool with a cut-off stand.
If the power tool becomes electrostatically charged, the built-in electronics will switch the power tool off. To start

28 | English

the power tool, push the unlocking lever forwards and then push the on/off switch (6) up.

▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.

Rough grinding

▶ Never use cutting discs for rough grinding.

The best rough grinding results are achieved with a set angle of 30^ to 40^ . Move the power tool back and forth with moderate pressure. This will ensure that the workpiece does not become too hot or discolour and that grooves are not formed.

Flap disc

The flap disc (accessory) enables you to machine curved surfaces and profiles.

Flap discs have a considerably longer service life, lower noise levels and lower sanding temperatures than conventional grinding discs.

Cutting metal

▶ Always use the protective guard for cutting (13) when cutting bonded abrasives.

When carrying out abrasive cutting, use a moderate feed that is suited to the material being machined. Do not exert pressure on the cutting disc and do not tilt or swing the power tool.

Do not attempt to reduce the speed of a cutting disc coming to a stop by applying pressure from the side.

Illustration of a robotic arm with a rotating wheel and mechanical components (no text or symbols)

The power tool must always work in an up-grinding motion. Otherwise there is a risk that it will be pushed uncontrolled out of the cut.

For best results when cutting profiles and rectangular tubing, start at the smallest cross section.

Cutting stone (see figure

A)

▶ Provide sufficient dust extraction when cutting stone.
▶ Wear a dust mask.
▶ The power tool may be used only for dry cutting/grinding.

For best results when cutting stone, use a diamond cutting disc.

When using the extraction guard for cutting with a cutting guide (23), the vacuum cleaner must be approved for vacuuming stone dust. Suitable vacuum cleaners are available from Bosch.

Mechanical diagram showing a valve mechanism with rotating components and directional arrows (no text or symbols)

Switch on the power tool and position it with the front part of the cutting guide on the workpiece.

Move the power tool with a moderate feed motion that is suited to the material being machined.

When cutting especially hard materials such as con-

crete with a high pebble content, the diamond cutting disc can overheat and become damaged as a result. This is clearly indicated by circular sparking, rotating with the diamond cutting disc.

If this happens, stop cutting and allow the diamond cutting disc to cool down by running the power tool for a short time at maximum speed with no load.

If work is noticeably slower and with circular sparking, this indicates that the diamond cutting disc that has become dull. You can resharpen the disc by briefly cutting into abrasive material (e.g. lime-sand brick).

Information on structural design

Slots in load-bearing walls are subject to DIN 1053 part 1 or country-specific regulations. These regulations must be observed under all circumstances. Seek advice from the responsible structural engineer, architect or construction supervisor before starting work.

Recommendations for optimal handling of the battery

Protect the battery against moisture and water.

Only store the battery only within a temperature range of -20 to 50 °C. Do not leave the battery in your car in the summer, for example.

Occasionally clean the ventilation slots on the battery using a soft brush that is clean and dry.

A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced.

Follow the instructions on correct disposal.

Maintenance and Service

Maintenance and cleaning

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

Store and handle the accessories carefully.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch-pt.com.au

www.bosch-pt.co.nz

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Armenia, Azerbaijan, Georgia

Robert Bosch Ltd

David Agmashenebeli ave. 61

0102 Tbilisi, Georgia

Tel. [phone]

www.bosch.com

Kyrgyzstan, Mongolia, Tajikistan, Turkmenistan, Uzbekistan

TOO "Robert Bosch" Power Tools, After Sales Service Muratbaev Ave., 180

050012, Almaty, Kazakhstan

Service Email: [e-mail]

Official Website: www.bosch.com, www.bosch-pt.com

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further restrictions.

When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU, power tools that are no longer usable, and according to the Directive 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

30 | Français

Battery packs/batteries:

Li-ion:

Please observe the notes in the section on transport (see "Transport", page 29).

Français

Mechanical diagram showing two views of a gear and rotor assembly (no text or labels)

Close-up of a mechanical component with circular arrows indicating rotation or assembly (no text or symbols visible)

Affichage de surcharge (29) Signification / cause Solution

Illustration of a robotic arm interacting with a circular component, showing motion direction (no text or symbols)

Mechanical diagram showing a tool interacting with a mechanical component, no text or symbols present

Robert Bosch (France) S.A.S.

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or labels)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm performing a circular motion on a platform (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Robert Bosch Argentina Industrial S.A.

Calle Blanco Encalada 250 - San Isidro

B1642AMQ

Calle Robert Bosch No. 405

Mechanical diagram showing two cross-sectional views of a gear assembly with directional arrows indicating motion (no text or labels)

D b d [r.p.m.] [m/s]

125 7 22,2 9000 80

125--900080

75 30 - 9000 45

82--900080

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a lever mechanism with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two views of a gear assembly with rotating components (no text or labels)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with a rotating base and force arrows, no text or symbols present

Mechanical diagram showing a tool interacting with a pipe and valve (no text or symbols visible)

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or labels)

Mechanical component with rotating arrows indicating rotation and assembly (no text or symbols)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

a_n = 6,0m / s^2,K = 1,5m / s^2,

Mechanical diagram showing two views of a gear assembly with rotating components (no text or labels)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with a rotating wheel and mechanical components (no text or symbols)

Mechanical diagram showing a tool interacting with a rotating device (no text or symbols visible)

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Transport

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or labels)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm performing a circular motion on a platform (no text or symbols)

Mechanical diagram showing a pipe clamp and rotating valve mechanism (no text or symbols)

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Transport

Overflatesliping (skrubbing):

$$ a _ {n} = 6, 0 \mathrm{m} / \mathrm{s} ^ {2}, K = 1, 5 \mathrm{m} / \mathrm{s} ^ {2}, $$

Sliping med slipeskive:

$$ a _ {n} = 3, 5 \mathrm{m} / \mathrm{s} ^ {2}, K = 1, 5 \mathrm{m} / \mathrm{s} ^ {2}. $$

Vernedeksel for slipping

Mechanical diagram showing two views of a gear and rotor assembly (no text or labels)

Kopp-/skivebørster og fiberskiver

▶ Monter alltid håndbeskyttelsen (17) när du skal arbeide med kopp-/skivebørsten eller fiberskiven.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm interacting with a ball on a platform, showing motion direction (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and rotating component (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear assembly with rotational arrows (no text or labels)

Close-up of a mechanical component with circular arrows indicating rotation or assembly (no text or symbols visible)

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a pipe joint with rotating components and directional arrows (no text or symbols)

Mechanical assembly diagram showing two cross-sectional views of a gear or bearing mechanism with directional arrows (no text or labels)

Mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a robotic arm with joints and a rotating base, no text or symbols present

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Taşlama makinesi GWX 18V-10 GWX 18V-10 C GWX 18V-10 SC

Tavsiye edilen aküler GBA 18V...		ProCORE18V...	GBA 18V...	GBA 18V...
			ProCORE18V...	ProCORE18V...
Tavsiye edilen şarj cihazları GAL 18...			GAL 18...	GAL 18...
		GAX 18...	GAX 18...	GAX 18...
		GAL 36...	GAL 36...	GAL 36...
Veri aktarımı
Bluetooth® – Bluetooth® 4.2			(Low Energy)D)	Bluetooth® 4.2 (Low Energy)D)
Sinyal mesafesi sn – 8 8
Maksimum sinyal erişim mesafesiE)	m – 30 30

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or labels)

Mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a robotic arm with a curved tool and directional arrow (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear assembly with rotational arrows (no text or labels)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm interacting with a ball on a platform, showing motion direction (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Robert Bosch Sp. z o.o.

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating motion (no text or symbols)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm performing a press or maneuver motion (no text or symbols visible)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Mechanical diagram showing two views of a gear assembly with rotational arrows (no text or labels)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with a rotating head and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear assembly with rotating components (no text or labels)

Mechanical component with rotating arrows indicating motion (no text or symbols)

Illustration of a robotic arm interacting with a ball on a platform, showing motion direction (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

$$ a _ {n} = 6, 0 \mathrm{M} / \mathrm{c} ^ {2}, K = 1, 5 \mathrm{M} / \mathrm{c} ^ {2}, $$

Mechanical diagram showing two views of a gear assembly with rotational arrows (no text or labels)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Diagram of robotic arm positioning on a platform with motion arrows (no text or symbols)

Mechanical diagram showing a lever mechanism with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or symbols)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a tool interacting with a pipe fitting and rotating motion (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating motion (no text or symbols)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with a rotating head and directional arrows indicating motion (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and rotating component (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear assembly with directional arrows indicating motion (no text or labels)

125 7 22,2 9000 80

125--900080

75 30 - 9000 45

82--900080

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with joints and motion arrows (no text or symbols)

Mechanical diagram showing a pipe clamp and rotating valve mechanism (no text or symbols)

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti

Mechanical diagram showing two views of a gear and rotor assembly (no text or labels)

Close-up of a mechanical component with rotating arrows indicating rotation (no text or symbols)

Illustration of a robotic arm with a curved tool and directional arrows indicating motion (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and rotating motion (no text or symbols)

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

Транспортиране

Mechanical diagram showing two views of a gear assembly with rotational arrows (no text or labels)

Лончести/плочести четки и влакнести дискови

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with a curved arm and motion arrow (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Tehnički podaci
Ugaona brusilica GWX 18V-10 GWX 18V-10 C GWX 18V-10 SC

Broj artikla		3 601 GB0 1.. 3 601 GB0 2.. 3 601 GB0 4..
Nominalni napon V= 18 18 18
Nominalni broj obrtaja ^A)	min ^-1	9000 9000 9000
Broj obrtaja u praznom hodu ^A)	min ^-1	-- 4500-9000
Maks. prečnik brusnog diska mm 125 125 125
Povratno isključivanje ● ● ●
Zaštita od ponovnog pokretanja ● ● ●
Inerciona kočnica ● ● ●
Izbor broja obrtaja -- ●
Težina u skladu sa EPTA-Procedure 01: 2014 ^B)
- Sa dodatnom ručkom za amortizovanje vibracija	kg	2,3-3,3	2,3-3,3	2,3-3,3
- Sa standardnom dodatnom ručkom	kg	2,2-3,2	2,2-3,2	2,2-3,2
Preporučena temperatura okruženja prilikom punjenja	°C	0...+35	0...+35	0...+35
Dozvoljena temperatura okruženja prilikom rada ^C) i prilikom skladištenja	°C	-20...+50	-20...+50	-20...+50
Preporučeni akumulatori		GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...	GBA 18V...ProCORE18V...
Preporučeni punjači		GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...	GAL 18...GAX 18...GAL 36...

Prenos podataka

Bluetooth®		-	Bluetooth® 4.2 (Low Energy)D)	Bluetooth® 4.2 (Low Energy)D)
Interval signala	s - 88
Maksimalni domet signalaF)	m - 30 30

A) mereno na 20–25 °C sa akumulatorom ProCORE18V 8.0 Ah.

Mechanical diagram showing two cross-sectional views of a gear and rotor assembly (no text or labels)

Postavite zaštitnu haubu (11) na prihvatnik na električnom alatu, sve dok se grebeni za kodiranje zaštitne haube ne poklope sa prihvatnim delom. Pri tom pritisnite i držite tako ručicu za deblokiranje (1). Pritiskajte zaštitnu haubu (11) na vrat vretena sve dok traka zaštitne haube ne nalegne na prirubnicu električnog alata i okrećite zaštitnu haubu dok čujno ne ulegne u ležište.

Prilagodite poziciju zaštitne haube (11) zahtevima radnog koraka. Pritisnite ručicu za deblokiranje (1) nagore i okrenite zaštitnu haubu (11) u željeni položaj.

▶ Podesite zaštitnu haubu (11) tako da sva 3 grebena poluge za deblokadu(1) upadnu u odgovarajuće otvore zaštitne haube(11).
▶ Podesite zaštitnu haubu (11) tako, da se sprečava letenje varnica u pravcu radnika.
▶ Zaštitna hauba (11) sme se okretati samo uz aktiviranje poluge za deblokadu(1) ! U suprotnom, električni alat ne sme nikako da se dalje koristi i mora se predati servisu.

Napomena: Kodni ispust na zaštitnoj haubi (11) osiguravaju da se može montirati samo zaštitna hauba koja odgovara električnom alatu.

Zaštitna hauba za presecanje

Prilikom presecanja sa povezanim sredstvom za brušenje uvek upotrebljavajte zaštitnu haubu za presecanje (13).
Prilikom presecanja u kamenu morate se pobrinuti za dovoljno usisavanja prašine.

Nakon montaže proverite da li je ivica brusnog alata (④) viša od referentne površine (⑤) i da li je pravilno montiran. Ako je ivica viša, prihvat mora da se očisti ili brusni alat ne sme da se koristi.

Pre demontaže brusnog diska/ diska za sečenje/ lepezaste brusne ploče: Uverite se da je električni alat isključen.

Demontiranje brusnog alata

① Otvorite polugu (3).
② Brusni disk/ disk za sečenje/lepezasta brusna ploča se otpušta.
③ Brusni disk/ disk za sečenje/lepezasta brusna ploča može da se izvadi.

Lončaste/pločaste četke i vlaknasti brusni diskovi

Montirajte za radove sa lončastom ili pločastom četkom ili vlaknastim brusnim diskom uvek zaštitu za ruke (17).

Redosled montaže je vidljiv na grafičkoj strani.

Za demontažu otvorite polugu (3) i izvadite umetni alat.

Dozvoljeni brusni alati

Možete da upotrebljavate sav brusni alat koji je pomenut u ovom uputstvu za rad.

Close-up of a mechanical component with rotating arrows indicating rotation (no text or symbols visible)

Možete okretati glavu prenosnika u koracima od 90°. Na taj način možete prekidač za uključivanje-isključivanje za posebne slučajeve u radu dovesti u povoljniju poziciju za držanje ruke, na primer za levoruke.

Odvrnite potpuno 4

Illustration of a robotic arm performing a circular motion maneuver with magnetic poles (no text or symbols)

Električni alat morate stalno da vodite u suprotnom smeru. Inače postoji opasnost da se nekontrolisano potisne iz reza.

Prilikom razdvajanja profila i četvorougaone cevi najbolje je da postavite najmanji poprečni presek.

Rezanje kamena (pogledajte sliku A)

Prilikom presecanja u kamenu morate se pobrinuti za dovoljno usisavanja prašine.
▶ Nosite zaštitnu masku za prašinu.
▶ Električni alat smete da upotrebljavate samo za suvi rez/suvo brušenje.

Za presecanje kamena najbolje je da upotrebljavate dijamantsku ploču za presecanje.

Prilikom primene usisne haube za presecanje sa vodećim šinama (23) mora da bude dozvoljen usisivač za usisavanje kamene prašine. Bosch nudi adekvatne usisivače.

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Uključite električni alat i prednjim delom vodećih šina ga stavite na radni komad. Električni alat pomičite ravnomerno, prilagođeno materijalu koji se obrađuje.

Prilikom rezanja tvrdih materijala, npr. betona sa visokim sadržajem oblutka,

dijamantski disk za sečenje može da se pregreje i na taj način da se ošteti. Na to jasno ukazuje cirkularni venac varnica oko dijamantskog diska za sečenje.

U ovom slučaju prekinite rezanje i pustite dijamantski disk za sečenje da se u praznom hodu vrti kratko vreme na najviše obrtaja da bi se ohladio.

Napredak u radu koji primetno zaostaje i cirkularni venac varnica su znakovi da je dijamantski disk za sečenje postao tup. Isti možete da naoštrite kratkim rezovima u abrazivnom materijalu (npr. peščani kamen).

Napomene za statiku

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating motion (no text or symbols)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Mechanical diagram showing a robotic arm pressing a button on a rail track (no text or symbols visible)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

a_n = 6,0m / s^2,K = 1,5m / s^2,

Brušenje brusnim listom:

a_n=3,5 m/s^2,K=1,5 m/s^2.

Mechanical diagram showing two cross-sectional views of a gear and rotor assembly (no text or labels)

Stavite štitnik (11) na prihvat na električnom alatu tako da se kodirni izdanci na štitniku podudaraju s prihvatom. Pritisnite i pritom držite polugu za deblokiranje (1). Pritišćite štitnik (11) na grlo vretena sve dok naslon štitnika ne sjedne na prirubnicu električnog alata i okreće štitnik sve dok se čujno ne uglavi. Prilagodite položaj štitnika (11) zahtjevima faze rada.

U tu svrhu pritisnite polugu za deblokiranje (1) prema gore i okrenite štitnik (11) u željeni položaj.

Nakon montaže provjerite da rub brusnog alata (1) nije viši od referentne površine (6) i da je ispravno montiran. Ako je rub viši, treba očistiti prihvat ili se brusni alat ne smije koristiti.

Lončaste/pločaste četke i brusne ploče od fibera

- Za radove s lončastom četkom/pločastom četkom ili brusnom pločom od fibera uvijek montirajte štitnik za ruku (17).

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of robotic arm positioning with motion arrows (no text or symbols)

Električni alat mora se uvijek voditi protuhodno. U suprotnom postoji opasnost da se nekontrolirano istisne iz reza.

Kod rezanja profila i četverokutnih cijevi najbolje je da stavite na najmanji presjek.

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or labels)

Close-up of a mechanical component with rotating arrows indicating rotation (no text or symbols visible)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear assembly with rotational arrows (no text or labels)

Kausveida vai diskveida sukas un škiedrmateriāla diski

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm interacting with a ball on a platform, showing motion direction (no text or symbols)

Mechanical diagram showing a pipe connection with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a gear and rotor assembly (no text or labels)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with a curved tool and rotating base (no text or symbols)

Mechanical diagram showing a pipe clamp and rotating valve mechanism (no text or symbols)

(7) 블루투스® Low Energy Module 커버 (GWX 18V-10 C / GWX 18V-10 SC)

(8) 배터리 A)

(9)배터리 해제 버튼 A)

Mechanical diagram showing two views of a gear and rotor assembly (no text or labels)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with a rotating base and movement arrows (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a mechanical component with gear and shafts, no text or symbols present.

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm performing a circular motion maneuver on a platform (no text or symbols)

عرضي.

Mechanical diagram showing a lever mechanism with rotating components and directional arrows (no text or symbols)

Sahba Technology Group

شارع مطار المثنى

بقداد

Robert Bosch Morocco SARL

(GWX 18V-10 C / GWX 18V-10 SC)

(8) باتری قابل شارز

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows indicating rotation (no text or symbols)

Mechanical component with rotating arrows indicating rotational motion (no text or symbols)

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

شروع کنید.

Mechanical diagram showing a pipe clamp and valve mechanism with rotational arrows (no text or symbols)

Mechanical component labeled 'XLOCK' (no other text or symbols visible)

3D rendered image of a mechanical disc with internal blades and a separate circular component (no text or symbols)

	Soft ≥ P60	ø 125 mm 2	608 601 714
	Medium P36 to P80	ø 125 mm 2	608 601 715
	Hard ≤ P50 2 608 601	7ø 625 mm

402

CE
1

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:*
	Winkelschleifer	Sachnummer
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:*
	Angle grinder	Article number
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
	Meuleuse angulaire	N° d'article
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
	Amoladora angular	N° de artículo
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
	Rebarbadora	N.° do produto
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso:*
	Smerigliatrice an-golare	Codice prodotto
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij:*
	Haakse slijpmachine	Productnummer
da	EU-overensstemmelseserklæring		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:*
	Vinkelsliber	Typenummer
sv	EU-konformitetsförklaring		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningar nas och att de stämmer överens med följande normer.Teknisk dokumentation:*
	Vinkelslip	Produktnummer
no	EU-samsvarserklæring		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:*
	Vinkelsliper	Produktnummer
fi	EU-vaatimustenmukaisuusvakuutus		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:*
	Kulmahiomakone	Tuotenumero
el	Δήλωση πιστότητας ΕΕ		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Tεχνικά έγγραφα στη:*
	Γωνιακός λειαντήρας	Αριθμός ευρετηρίου
tr	AB Uygunluk beyani		Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:*
	Taşlama makinesi	Ürün kodu

||

CE

pl	Deklaracja zgodności UE		Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:*
	Szlifierka kątowa	Numer katalogowy
cs	EU prohlăšení oshodě		Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení níže uvedených směrnic anařízení aje vsouladu snásledujícími normami:Technické podklady u:*
	Úhlová bruska	Objednaci číslo
sk	EÚ vyhlásenie ozhode		Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúlade snasledujúcimi normami:Technické podklady má spoločnosť:*
	Uhlová brúska	Vecné číslo
hu	EU konformitási nyilatkozat		Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:*
	Sarokcsiszoló	Cikkszám
ru	Заявление о соответствии EC		Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится y:*
	Угловая шлифовальная машина	Товарный No
uk	Заява про відповідність ЄС		Мизаявляємо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається y:*
	Кутова шліфмашина	Товарний номер
kk	EO сәйкестік маглумдамасы		Өз жауапкершілікпен біз аталған өнімдер теменде жзылған директикалар мен жарлықтардың тиісті қағилаларына сәйкестігін және темендері нормаларға сай екенін білдіреміз.Техникалық құжаттар:*
	Бұрыштық ажарлау машинасы	Өнім нөмірі
ro	Declarație de conformitate UE		Declarăm pe proprie răspundere că produsele mentionate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentаție tehnică la:*
	Polizor unghiular	Număr de identificare
bg	ЕС декларация за съответствие		С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:*
	Ъглошлайф	Каталожен номер
mk	EU-Изјава за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кај:*
	Аголна брусилка	Број на дел/артик
sr	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:*
	Ugaona brusilica	Broj predmeta
sl	Izjava o skladnosti EU		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vse-mi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom. Tehnična dokumentacija pri:*
	Kotni brusilnik	Številka artikla
hr	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:*
	Kutna brusilica	Kataloški br.
et	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste kõikidele asjaomastele nõuetele ja on kooskõlas
	Nurklihvmasin	Tootenumber

CE

III

			järgmiste normidega.Tehnilised dokumendid saadaval: *
Iv	Deklarācija par atbilstībuES standartiem		Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktīvās un rīkojumos ietvertajām saistošajām nostādnēm,kā arī sekojošiem standartiem.Tehniskā dokumentācija no: *
	Lenka slīpmašina	Izstrādājuma numurs
It	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: *
	Kampinio šlifavimo mašina	Gaminio numeris
	GWX 18V-10	3 601 GB0 1..	2006/42/EC	EN 60745-1:2009+A11:2010
	GWX 18V-10 C	3 601 GB0 2..	2014/30/EU	EN 60745-2-3:2011+A2:2013+A11:2014+A12:2014+A13:2015
	GWX 18V-10 SC	3 601 GB0 4..	2011/65/EU	EN 55014-1:2017EN 55014-2:2015EN 50581:2012
				*BOSCH* Robert Bosch Power Tools GmbH(PT/ECS)70538 StuttgartGERMANY
			Henk BeckerChairman of Executive ManagementRobert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANYStuttgart, 20.11.2019	Helmut HeinzelmannHead of Product Certification
