Product type	Angle grinder
Brand	Bosch
Model	GWS 12-125 CIP Professional
Rated power	1200 W
Disc diameter	125 mm
No-load speed	11 000 rpm
Spindle thread	M14
Weight (without cable)	2.2 kg
Dimensions (L x W x H)	348 x 73 x 100 mm
Power supply	220-240 V ~ 50/60 Hz
Main functions	Grinding, cutting, deburring
Integrated technologies	Constant Electronic (maintains speed under load), KickBack Control (stops in case of jamming), restart protection
Safety features	Restart protection, tool-free adjustable protective guard, anti-vibration handle
Maintenance and cleaning	Clean ventilation slots, replace worn carbon brushes, grease transmission
Spare parts and repairability	Disc, guard, handle, carbon brushes, switch
General information	User manual available in PDF, 2-year warranty (subject to conditions)

Frequently Asked Questions - GWS 12-125 CIP Professional BOSCH

How to change the disc on the Bosch GWS 12-125 CIP angle grinder?

Unplug the tool, press the spindle lock, unscrew the clamping flange with the supplied wrench, remove the old disc, place the new disc (printed side outward), screw the flange back on and tighten firmly.

What does the KickBack Control function mean?

The KickBack Control detects a sudden disc jam and immediately cuts the motor to prevent violent kickback. This improves safety during grinding.

How to adjust the protective guard?

Disengage the adjustment wheel, turn the guard to the desired position (without exceeding the protection angle), then close the wheel. Make sure the guard is securely fastened.

What is the power of the GWS 12-125 CIP?

It has a rated power of 1200 watts, ideal for intensive grinding and cutting work.

Can I use 150 mm discs on this grinder?

No, the maximum allowed diameter is 125 mm. Using larger discs is dangerous and damages the tool.

How to clean the ventilation slots?

Use a dry brush or a vacuum cleaner with a brush attachment to remove dust. Never blow compressed air into the slots to avoid pushing dust inside.

What to do if the grinder does not start?

Check the power cord, plug, and fuse. Make sure the restart protection is not activated. If the problem persists, contact customer service.

How to replace the carbon brushes?

Unplug the tool, remove the carbon brush caps, extract the worn brushes, insert new ones (same type), and screw the caps back on. Run the brushes in for a few minutes at no load.

At what speed does this grinder rotate?

The no-load speed is 11,000 rpm. The Constant Electronic function maintains speed under load for consistent work.

Where to download the user manual?

The full manual is available for free in PDF format on the site notice-facile.com. Search for 'Bosch GWS 12-125 CIP Professional' and download it.

USER MANUAL GWS 12-125 CIP Professional BOSCH

3D rendering of a mechanical power tool with a spoke and central hub (no text or symbols visible)

Technical illustration of a car's seat assembly with screws and fasteners (no text or symbols)

4

Deutsch

Sicherheitshinweise

Winkelschleifer GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Mechanical diagram showing two cross-sectional views of a mechanical component with rotating parts and directional arrows (no text or labels)

Diagram of a hand pressing down on a mechanical component with a rotating arrow (no text or symbols)

Illustration of robotic arm positioning on a platform with motion arrows (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and rotating component (no text or symbols)

www.bosch-pt.com/serviceaddresses

Entsorgung

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock..
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

18 | English

▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Angle Grinder

Safety Warnings common for Grinding, Sanding, Wire Brushing or Abrasive Cutting Off operations

This power tool is intended to function as a grinder, sander, wire brush or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all

instructions listed below may result in electric shock, fire and/or serious injury.

▶ Operations such as polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
▶ Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no load speed for one minute. Damaged accessories will normally break apart during this test time.
▶ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
▶ Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
▶ Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

▶ Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
▶ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
▶ Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
▶ Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
▶ Do not operate the power tool near flammable materials. Sparks could ignite these materials.
▶ Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
▶ Never place your hand near the rotating accessory. Accessory may kickback over your hand.
Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
▶ Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

▶ Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings specific for Grinding and Abrasive Cutting-Off operations

▶ Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
▶ Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
▶ Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
▶ Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety Warnings specific for Abrasive Cutting Off operations

Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
▶ Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kick-back may propel the spinning wheel and the power tool directly at you.
When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
▶ Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.

20 | English

▶ Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
▶ Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Safety Warnings specific for Sanding operations

▶ Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc, or kickback.

Safety Warnings specific for Wire Brushing operations

- Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush The wire bristles can easily penetrate light clothing and/or skin. - If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces.

Additional safety information

Wear safety goggles.

▶ Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.
▶ Release the On/Off switch and set it to the off position when the power supply is interrupted, e. g., in case of a power failure or when the mains plug is pulled. This prevents uncontrolled restarting.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.

Products sold in GB only:

Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all the safety and general instructions.

Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended use

The power tool is intended for cutting, roughing and brushing metal and stone materials, as well as making holes in stone materials using diamond core cutters, without the use of water.

A separate protective guard for cutting must be used when cutting with bonded abrasives.

Sufficient dust extraction must be provided when cutting stone.

With approved abrasive tools, the power tool can be used for sanding with sanding discs.

The power tool must not be used to grind concrete.

Product Features

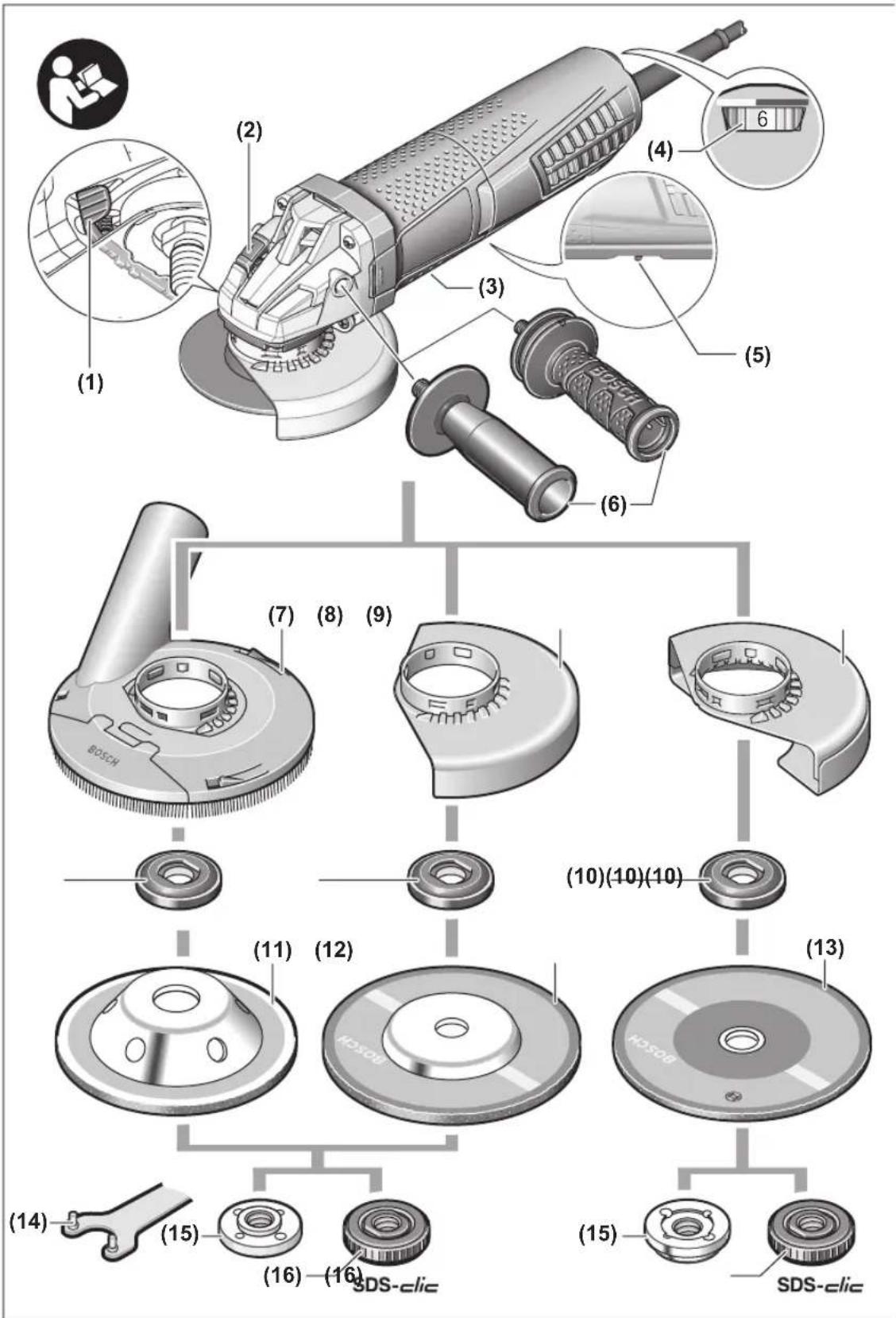

The numbering of the product features refers to the diagram of the power tool on the graphics page.

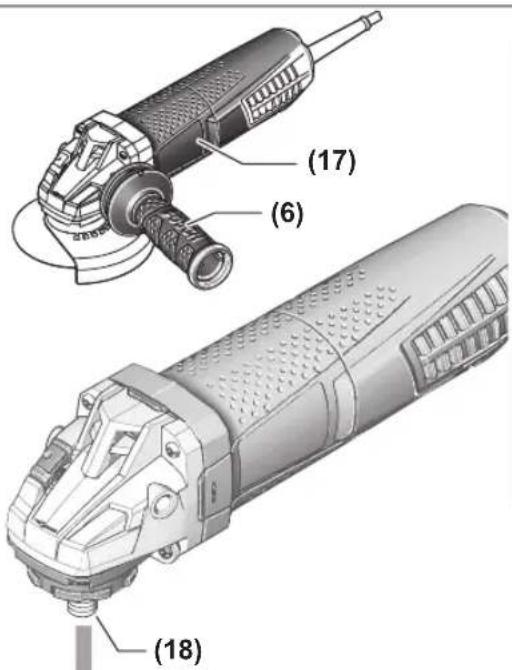

(1) Unlocking lever for protective guard
(2) Spindle lock button
(3) On/off switch
(4) Speed preselection thumbwheel
(5) Unlocking lever for on/off switch
(6) Auxiliary handle (insulated gripping surface)
(7) Extraction guard for grinding ^4
(8) Protective guard for grinding
(9) Protective guard for cutting ^a)
(10) Mounting flange with O-ring
(11) Carbide grinding head ^a)
(12) Grinding disc ^a)
(13) Cutting disc ^a)
(14) Two-pin spanner for clamping nut ^a)
(15) Clamping nut
(16) Quick-clamping nutSDS-clic ^a)
(17) Handle (insulated gripping surface)
(18) Grinding spindle

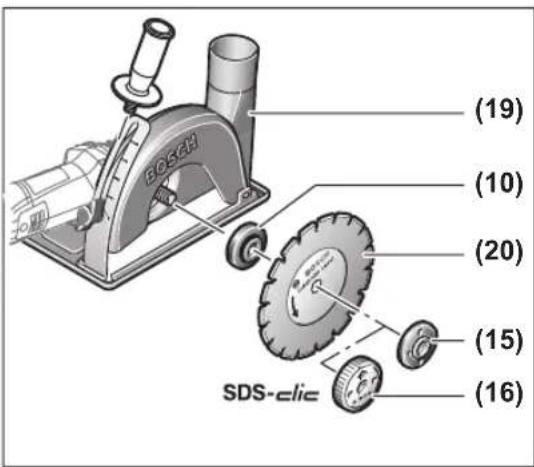

(19) Extraction guard for cutting with cutting guides ^a)
(20) Diamond cutting disc ^a)

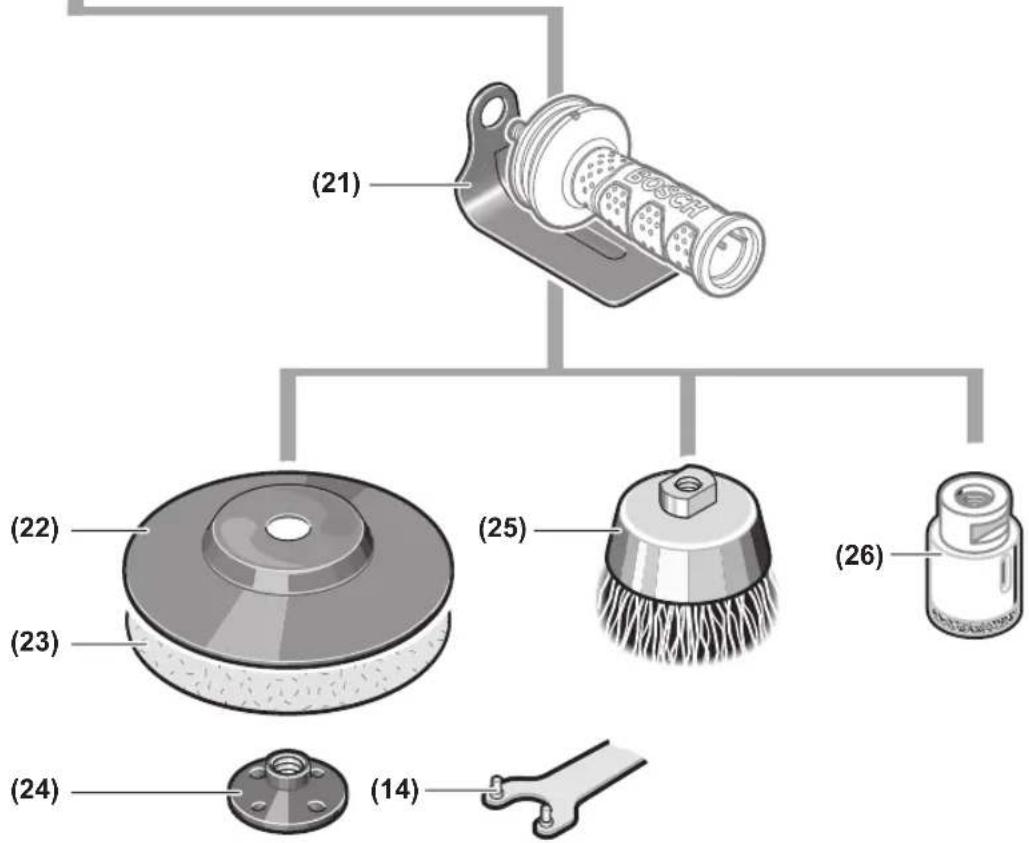

(21) Hand guard ^a)

(22) Rubber sanding pad ^a)
(23) Sanding sheet ^4
(24) Round nut ^a)
(25) Cup brush ^a)

(26) Diamond annular cutter ^a)

a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Article number		3 601 G90 2.. 3 601 G91 2.. 3 601 G92 2.. 3 601 G92 26. 3 601 G93 2..
Rated power input W 900 900 1100 1060 1200
Power output W 530 530 740 640 640
Rated speed	min^-1	11,500	11,500	11,500	11,500	11,500
Speed adjustment range	min^-1	--	-	-	-	-
Max. grinding disc diameter	mm	115 125 125 125 125
Internal diameter of disc	mm	22.2	22.2	22.2	22.2	22.2
Grinding spindle thread		M 14	M 14	M 14	M 14	M 14
Max. thread length of grinding spindle	mm	22 22	22	22	22
Speed preselection		-	-	-	-	-
Constant electronic control --		-	-	●
Kickback stop		-	-	-	-	●
Restart protection		-	-	-	-	●
Starting current limitation		-	-	-	-	●
Weight according to EPTA-Procedure 01:2014
- with low-vibration auxiliary handle	kg	2.2	2.2	2.5	2.5	2.2
- with standard auxiliary handle	kg	2.1	2.1	2.3	2.3	2.1
Protection class		☐/II	☐/II	☐/II	☐/II / II	☐

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Angle grinder		GWS 12-125 CIEP	GWS 15-125 CIP	GWS 15-125 CIEP	GWS 15-150 CIP
Article number		3 601 G94 2.. 3 601 G95 2.. 3 601 G96 2.. 3 601 G98 2..
Rated power input	W 1200 1500 1500 1500
Power output	W 640 820 820 820
Rated speed	min^-1	11,500	11,500	11,500	9300
Speed adjustment range	min^-1	2800–11,500	-	2800–11,500	-
Max. grinding disc diameter	mm	125 125 125 150
Internal diameter of disc	mm	22.2	22.2	22.2	22.2
Grinding spindle thread		M 14	M 14	M 14	M 14
Max. thread length of grinding spindle	mm	22	22	22	22
Speed preselection		●	-	●	-
Constant electronic control		●	●	●	●
Kickback stop		●	●	●	●
Restart protection		●	●	●	●
Starting current limitation		●	●	●	●

22 | English

Angle grinder GWS 12-125		GWS 15-125		GWS 15-125	GWS 15-150
	CIEP	CIP	CIEP	CIP
Weight according to EPTA-Procedure01:2014
– with low-vibration auxiliary handle kg 2.2 2.5 2.5 2.5
– with standard auxiliary handle kg 2.1 2.3 2.3 2.4
Protection class	☐/II /II /II /II ☐		☐	☐

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Noise/Vibration Information

		GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP
		3 601 G90 2.. 3 601 G91 2.. 3 601 G92 2.. 3 601 G92 26. 3 601 G93 2..
Noise emission values determined according to EN 60745-2-3.
Typically, the A-weighted noise level of the power tool is
Sound pressure level	dB(A)	89	89	91	91	90
Sound power level	dB(A)	100	100	102	102	101
Uncertainty K	dB	3	3	3	3	3
Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-3:

Surface grinding:

a_h	m/s2	5	5	6	6	6
K	m/s2	1.5	1.5	1.5	1.5	1.5
Disc sanding:
a_h	m/s2	2	2	3	3	3
K	m/s2	1.5	1.5	1.5	1.5	1.5

	GWS 12-125CIEP	GWS 15-125CIP	GWS 15-125CIEP	GWS 15-150CIP
	3 601 G94 2..	3 601 G95 2..	3 601 G96 2..	3 601 G98 2..

Noise emission values determined according to EN 60745-2-3.

Typically, the A-weighted noise level of the power tool is

Sound pressure level	dB(A)	90	91	91	91
Sound power level	dB(A)	101	102	102	102
Uncertainty K	dB	3	3	3	3
Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-3:

Surface grinding:

a_h	m/s2	6	5	5	5
K	m/s2	1.5	1.5	1.5	1.5
Disc sanding:
a_h	m/s2	3	3	3	3
K	m/s2	1.5	1.5	1.5	1.5

The vibration level given in these instructions has been measured in accordance with a standardised measuring procedure and may be used to compare power tools. It can also

be used for a preliminary estimation of exposure to vibration.

The stated vibration level applies to the main applications of the power tool. However, if the power tool is used for different applications, with different application tools or poorly maintained, the vibration level may differ. This can significantly increase the exposure to vibration over the total working period.

To estimate the exposure to vibration accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This can significantly reduce the exposure to vibration over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping the hands warm, and organising workflows correctly.

Fitting

Fitting Protective Equipment

▶ Pull the plug out of the socket before carrying out any work on the power tool.

Note: If the grinding disc breaks during operation or the holding fixtures on the protective guard/power tool become damaged, the power tool must be sent to the after-sales service immediately; see the "After-Sales Service and Application Service" section for addresses.

Protective guard for grinding

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion (no text or symbols)

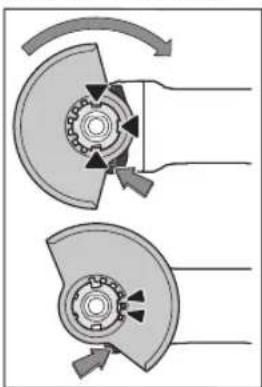

Place the protective guard (8) onto the holder on the power tool until the coding cams of the protective guard are aligned with the holder. When doing so, press and hold the unlocking lever (1). Press the protective guard (8) onto the spindle collar until the shoulder of the protective guard is sitting on the flange of the power tool and rotate the protective guard until it audibly clicks into place.

Adjust the position of the protective guard (8) to meet the requirements of the operation. To do this, push the unlocking lever (1) upward and rotate the protective guard (8) into the required position.

▶ Always position the protective guard (8) such that the two cams on the unlocking lever (1) engage in the corresponding openings on the protective guard (8).
▶ Adjust the protective guard (8) such that sparking in the direction of the operator is prevented.

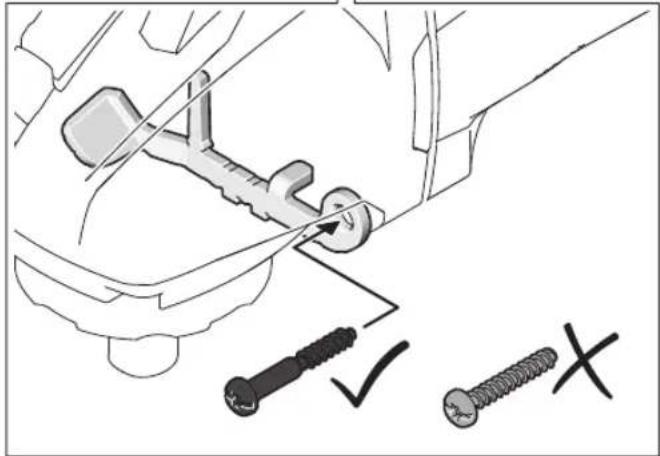

The protective guard (8) must only be adjustable while the unlocking lever (1) is actuated. Otherwise, the power tool must not be used any more under any circumstances and must be sent to the after-sales service.

Note: The coding cams on the protective guard (8) ensure that only a protective guard that is suitable for the power tool can be fitted.

Extraction guard for sanding

The extraction guard (7) can be used to minimise dust when sanding paint, varnish and plastics in conjunction with the carbide grinding head (11). The extraction guard (7) is not suitable for working metals.

A suitable Bosch vacuum cleaner can be connected to the extraction guard (7).

The extraction guard (7) is mounted in the same manner as the protective guard (8). The brush collar can be replaced.

Protective guard for cutting

▶ Always use the protective guard for cutting (9) when cutting with bonded abrasives.
▶ Provide sufficient dust extraction when cutting stone.

The protective guard for cutting (9) is fitted in the same way as the protective guard for grinding (8).

Extraction guard for cutting with a guide block

The extraction guard for cutting with a guide block (19) is fitted in the same way as the protective guard for grinding.

Hand guard

▶ Always fit the hand guard (21) when working with the rubber sanding plate (22) or with the cup brush/disc brush/flap disc.

Attach the hand guard (21) to the side handle (6).

Side handle

▶ Do not operate your power tool without the side handle (6).

Screw the side handle (6) on the left or right of the machine head depending on how your are working.

Low-vibration auxiliary handle

The low-vibration auxiliary handle reduces vibration, enabling the tool to be used safely and more comfort-

ably.

▶ Do not make any alterations of any kind to the auxiliary handle.

Do not continue to use a damaged auxiliary handle.

Fitting the Abrasive Tools

▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.

Clean the grinding spindle (18) and all the parts to be fitted. Lock the grinding spindle with the spindle lock button (2) before clamping and releasing the abrasive tools.

24 | English

▶ Do not press the spindle lock button while the grinding spindle is moving. The power tool may become damaged if you do this.

Grinding/cutting disc

Pay attention to the dimensions of the abrasive tools. The diameter of the hole must match that of the mounting flange. Do not use an adapter or reducer.

When using diamond cutting discs, ensure that the arrow indicating the direction of rotation on the diamond cutting disc matches the direction of rotation of the power tool (see the direction of rotation arrow on the machine head).

See the graphics page for assembly instructions.

To fasten the grinding/cutting disc, screw on the clamping nut (15) and tighten with the two-hole spanner. (see "Quick-clamping nut" page 2.1c

▶ After fitting the abrasive tool, check that the abrasive tool is fitted correctly and can turn freely before switching on the power tool. Make sure that the abrasive tool does not brush against the protective guard or other parts.

A plastic part (O-ring) is fitted around the cent-ring collar in the mounting flange (10). If the O-ring is missing or damaged, the mounting flange (10) must be replaced before operation can resume.

Flap disc

▶ Always fit the hand guard (21) when working with the flap disc.

Rubber sanding pad

▶ Always fit the hand guard (21) when working with the rubber sanding pad (22).

See the graphics page for fitting instructions.

Screw on the round nut (24) and tighten with the two-pin spanner.

Cup brush/disc brush

▶ Always fit the hand guard (21) when working with the cup brush or disc brush.

See the graphics page for fitting instructions.

The cup brush/disc brush must be screwed onto the grinding spindle until it rests firmly against the grinding spindle flange at the end of the grinding spindle thread. Tighten the cup brush/disc brush with an open-ended spanner.

Quick-clamping nut SDS-clic

To change the abrasive tool easily without having to use any additional tools, you can use the quick-clamping nut (16) instead of the clamping nut (15).

▶ The quick-clamping nut (16) may be used only for grinding or cutting discs.

Only use quick-clamping nuts (16) that are in good working order and not damaged.

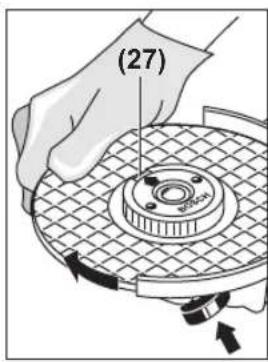

When screwing on, make sure that the printed side of the quick-clamping nut (16) is not facing the grinding disc; the arrow must be pointing towards the index mark (27).

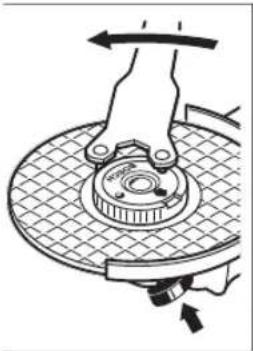

Press the spindle lock button (2) to lock the grinding spindle. To tighten the quick-clamping nut, turn the grinding disc firmly clockwise.

Diagram of a hand operating a mechanical component with a rotating arrow (no text or symbols)

If the quick-clamping nut has been attached correctly and is not damaged, you can loosen it by hand by turning the knurled ring anticlockwise. If the quick-clamping nut is stuck, do not attempt to loosen it with pliers – always use the two-pin spanner. Position the two-pin spanner as shown in the figure.

Approved abrasive tools

You can use all the abrasive tools mentioned in these operating instructions.

The permissible speed [min^-1] or the circumferential speed [m/s] of the abrasive tools used must at least match the values given in the table.

It is therefore important to observe the permissible rotational/circumferential speed on the label of the abrasive tool.

Max. [mm] [mm]
	D b d [min]			^-1 [m/s]
	115	7	22.2	11,500	80
	125	7	22.2	11,500	80
	115	-	-	11,500	80
	125	-	-	11,500	80

75 30 M 14 11,500 45

82-M1411,50080

Rotating the Machine Head (see figure A)

▶ Pull the plug out of the socket before carrying out any work on the power tool.

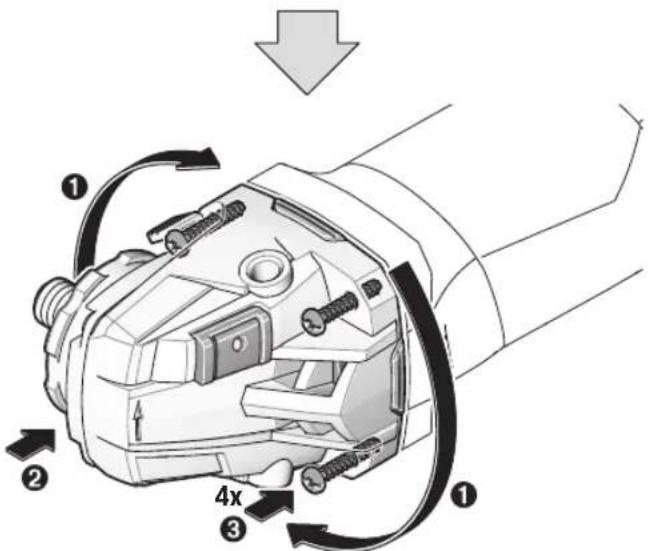

The machine head can be rotated in 90° increments. In this way, the on/off switch can be brought into a more favourable handling position for particular applications, e.g. for left-handed tool users.

Completely unscrew the four screws. Rotate the machine head carefully, without removing it from the housing, into the new position. Screw in and retighten the four screws.

Dust/Chip Extraction

The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity.

Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials containing asbestos may only be machined by specialists.

• Use a dust extraction system that is suitable for the material wherever possible.
• Provide good ventilation at the workplace.
• It is advisable to wear a P2 filter class breathing mask.
  The regulations on the material being machined that apply in the country of use must be observed.
• Avoid dust accumulation at the workplace. Dust can easily ignite.

Operation

Start-Up

▶ Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the power tool. Power tools marked with 230 V can also be operated with 220 V.
▶ Products that are only sold in AUS and NZ: Use a residual current device (RCD) with a nominal residual current of 30 mA or less.

When operating the power tool using a mobile generator that does not have sufficient reserve capacity or an adequate voltage control system with inrush current boost converter, loss of performance or atypical behaviour may occur upon switch-on.

Please check the suitability of the power generator you are using, particularly with regard to the mains voltage and frequency.

▶ Hold the tool by the insulated gripping surfaces and auxiliary handle only. The application tool could come into contact with hidden wiring or its own cord. Contact with live wires may make metal parts of the tool live, posing a risk of electric shock.

Switching On/Off

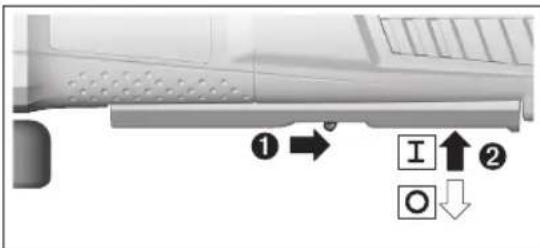

To start the power tool, push the unlocking lever (5) to the rear and then push the on/off switch (3) upwards.

To switch off the power tool, release the on/off switch (3).

▶ Always check abrasive tools before using them. The abrasive tool must be fitted properly and be able to move freely. Carry out a test run for at least one minute with no load. Do not use abrasive tools that are damaged, run untrue or vibrate during use. Damaged abrasive tools can burst apart and cause injuries.

Kickback stop

(GWS 12-125 CIP / GWS 12-125 CIEP / GWS 15-125 CIP / GWS 15-125 CIEP / GWS 15-150 CIP)

If there is a sudden kickback in the power tool, e.g. jamming in a separating cut, the power supply to the motor will be interrupted electronically.

To restart the tool, set the On/Off switch (3) to the "off" position and then switch the power tool on again.

Restart protection

(GWS 12-125 CIP / GWS 12-125 CIEP / GWS 15-125 CIP / GWS 15-125 CIEP / GWS 15-150 CIP)

The restart protection feature prevents the power tool from uncontrolled starting after the power supply to it has been interrupted.

To restart the tool, set the on/off switch (3) to the "off" position and then switch the power tool on again.

Starting current limitation

(GWS 12-125 CIP / GWS 12-125 CIEP / GWS 15-125 CIP / GWS 15-125 CIEP / GWS 15-150 CIP)

The electronic starting current limitation feature restricts the power of the power tool when it is switched on and enables operation using a 16 A fuse.

Note: If the power tool runs at full speed immediately after being switched on, this means that the starting current limitation and restarting protection mechanisms have failed. The power tool must be sent to the after-sales service immediately; see the "After-Sales Service and Application Service" section for addresses.

Constant Electronic control

(GWS 12-125 CIP / GWS 12-125 CIEP / GWS 15-125 CIP / GWS 15-125 CIEP / GWS 15-150 CIP)

The Constant Electronic keeps the speed at no load and under load virtually consistent, guaranteeing uniform performance.

26 | English

Speed preselection

(GWS 12-125 CIEP / GWS 15-125 CIEP)

You can preselect the required speed using the speed preselection thumbwheel (4), even during operation. The information in the table below describes the recommended values.

Material Application Application tool Thumbwheel position

Metal Removing paint Abrasive disc 2 - 3
Wood, metal Brushing, removing rust Cup brush, abrasive disc 3
Metal, stone Grinding Grinding disc 4 - 6
Metal Rough grinding Grinding disc 6
Metal Cutting Cutting disc 6
Stone Cutting Diamond cutting disc and cutting guide (cutting of stone is permitted only with a cutting guide)	6

The values specified for speed levels are guide values.

The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

Working Advice

▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ Exercise caution when cutting slots in structural walls; see the "Information on structural design" section.
▶ Clamp the workpiece if it is not secure under its own weight.
▶ Do not load the power tool so heavily that it comes to a stop.
▶ If the power tool has been subjected to a heavy load, continue to run it at no-load for several minutes to cool down the accessory.
▶ Do not use the power tool with a cut-off stand.
▶ Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while working.

Rough grinding

▶ Never use cutting discs for rough grinding.

The best rough grinding results are achieved with a set angle of 30^ to 40^ . Move the power tool back and forth with moderate pressure. This will ensure that the workpiece does not become too hot or discolour and that grooves are not formed.

Flap Disc

With the flap disc (accessory), curved surfaces and profiles can be worked. Flap discs have a considerably higher service life, lower noise levels and lower sanding temperatures than conventional sanding sheets.

Cutting Metal

▶ Always use the protective guard for cutting (9) when cutting with bonded abrasives.

When carrying out abrasive cutting, use a moderate feed that is suited to the material being machined. Do not exert pressure on the cutting disc and do not tilt or swing the power tool.

Do not attempt to reduce the speed of a cutting disc coming to a stop by applying pressure from the side.

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

The power tool must always work in an up-grinding motion. Otherwise, there is a risk that it will be pushed uncontrolled out of the cut. For best results when cutting profiles and rectangular tubing, start at the smallest cross section.

Cutting stone

▶ Provide sufficient dust extraction when cutting stone.
▶ Wear a dust mask.
The power tool may be used only for dry cutting/grinding.

For best results when cutting stone, use a diamond cutting disc.

When using the extraction guard for cutting with a guide block (19), the vacuum cleaner must be approved for vacuuming stone dust. Suitable vacuum cleaners are available from Bosch.

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Switch on the power tool and position it with the front part of the guide block on the workpiece. Move the power tool with a moderate feed motion that is suited to the material being machined.

When cutting especially hard materials such as con-

crete with a high pebble content, the diamond cutting disc

can overheat and become damaged as a result. This is clearly indicated by circular sparking, rotating with the diamond cutting disc.

If this happens, stop cutting and allow the diamond cutting disc to cool down by running the power tool for a short time at maximum speed with no load.

Working noticeably slower and with circular sparking indicate that the diamond cutting disc that has become dull. You can resharpen the disc by briefly cutting into abrasive material (e.g. lime-sand brick).

Information on structural design

Slots in load-bearing walls are subject to DIN 1053 part 1 or country-specific regulations. These regulations must be observed under all circumstances. Seek advice from the responsible structural engineer, architect or construction supervisor before starting work.

Maintenance and Service

Maintenance and Cleaning

▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.
In extreme conditions, always use a dust extractor if possible. Blow out ventilation slots frequently and install a residual current device (RCD) upstream. When machining metals, conductive dust can settle inside the power tool, which can affect its protective insulation.

Store and handle the accessories carefully.

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

The power tool, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of power tools along with household waste.

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Only for United Kingdom

According to Waste Electrical and Electronic Equipment Regulations 2013 (2013/3113), power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows (no text or labels)

Diagram of a hand pressing a circular mechanical component with a rotating arrow (no text or symbols)

Illustration of a robotic arm with a rotating base and mechanical components (no text or symbols)

Mechanical diagram showing a tool interacting with a mechanical component, no text or symbols present

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

Amoladora angular GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Mechanical diagram showing two cross-sectional views of a mechanical component with rotating arrows (no text or symbols)

Diagram of a hand pressing a circular component on a textured circular base, with an arrow indicating motion direction (no text or symbols present)

Illustration of a robotic arm with a rotating base and foot, showing motion direction (no text or symbols)

Mechanical diagram showing a tool interacting with a pipe and valve (no text or symbols visible)

www.bosch-pt.com/serviceaddresses

Eliminación

Rebarbadora GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Rebarbadora GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating rotation (no text or symbols)

Montar as ferramentas de lixar

Diagram of a hand operating a mechanical component with a rotating arrow (no text or symbols)

Illustration of a robotic arm with a curved motion arrow indicating rotational movement (no text or symbols present)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating rotation (no text or symbols)

Diagram of a hand pressing a circular mechanical component with directional arrows (no text or symbols)

Illustration of a human foot stepping on a mechanical device with motion arrows (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

Smaltimento

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating rotation (no text or symbols)

Snelspanmoer SDS-clic

Diagram of a hand pressing down on a mechanical component with a rotating arrow (no text or symbols)

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a lever mechanism with rotating components and directional arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

Afvalverwijdering

Vinkelsliber GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion direction (no text or symbols)

Diagram of a hand operating a mechanical disc with a rotating knob (no text or symbols)

Illustration of a robotic arm interacting with a ball on a platform, showing motion direction (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Bortskaffelse

GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Mechanical component diagram showing two views of a gear assembly with rotating arrows (no text or symbols)

Diagram of a hand operating a mechanical disc with a rotating knob (no text or symbols)

Illustration of a robotic arm interacting with a ball on a platform, showing motion direction (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Avfallshantering

Vinkelsliper GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Maks. gjengelengde påslipespindelen	mm 22 22 22 22 22
Turtallsinnstilling - - - - -
Konstantelektronikk - - - - - ●
Tilbakeslagsutkobling		- - - - - ●
Gjenstartbeskyttelse		- - - - - ●
Startstrømbegrensing		- - - - - ●
Vekt i henhold til EPTA-Procedure 01:2014
- Medvibrasjonsdempendeekstrahåndtak	kg	2,2	2,2	2,5	2,5	2,2
- Med standardekstrahåndtak	kg	2,1	2,1	2,3	2,3	2,1
Kapslingsgrad		☐/II	☐/II	☐/II	☐/II	☐/II

GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Vernedeksel for slipping

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a hand operating a mechanical disc with a rotating knob (no text or symbols)

Illustration of a robotic arm with a rotating base and mechanical components (no text or symbols)

Diagram of a mechanical device with rotating components and curved tubing (no text or symbols)

www.bosch-pt.com/serviceaddresses

Deponering

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion direction (no text or symbols)

Diagram of a hand operating a mechanical disc with a rotating wheel and base mount (no text or symbols)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

Hävitys

Mechanical component diagram showing two views of a gear assembly with rotating arrows (no text or symbols)

Diagram of a hand pressing a circular mechanical component with directional arrows (no text or symbols)

Illustration of a robotic arm with a rotating base and motion arrow (no text or symbols)

Mechanical diagram showing a pipe clamp and valve mechanism with directional arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

Απόσυροη

Taşlama makinesi GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

K m/sn	2	1,5	1,5	1,5	1,5	1,5
Disk ile zimparalama:
a_h	m/ sn^2	2	2	3	3	3
K	m/ sn^2	1,5	1,5	1,5	1,5	1,5

GWS 12-125 GWS 15-125 GWS 15-125 GWS 15-150

CIEP CIP CIEP CIP

3 601 G94 2.. 3 601 G95 2.. 3 601 G96 2.. 3 601 G98 2..

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion direction (no text or symbols)

Diagram of a hand pressing down on a mechanical component with a rotating arrow (no text or symbols)

Illustration of a robotic arm interacting with a circular component, showing motion direction (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and fan (no text or symbols)

www.bosch-pt.com/serviceaddresses

150 | Polski

Tasfiye

Mechanical diagram showing two cross-sectional views of a mechanical component with rotating arrows (no text or symbols)

Diagram of a hand operating a mechanical disc with a rotating wheel and base mount (no text or symbols)

System Constant Electronic

(GWS 12-125 CIP / GWS 12-125 CIEP / GWS 15-125 CIP / GWS 15-125 CIEP / GWS 15-150 CIP)

Illustration of a robotic arm interacting with a ball on a platform, showing motion arrows (no text or symbols)

szego przekroju.

Mechanical diagram showing a tool interacting with a curved pipe and rotating wheel (no text or symbols)

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Utylizacja odpadów

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating rotation (no text or symbols)

Diagram of a hand operating a mechanical component with a rotating arrow (no text or symbols)

Illustration of a robotic arm with a curved arm and motion arrow (no text or symbols)

Mechanical diagram showing a tool interacting with a curved pipe and rotating component (no text or symbols)

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Likvidace

Uhlová brúska GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Uhlová brúska GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Trieda ochrany

/ / / /

Diagram of two mechanical components with rotating parts and directional arrows, no text or symbols present

Diagram of a hand pressing a circular component on a textured circular base, with an arrow indicating rotation (no text or symbols present)

Illustration of a robotic arm performing a circular motion maneuver on a platform (no text or symbols)

Mechanical diagram showing a pipe clamp and rotating valve mechanism (no text or symbols)

www.bosch-pt.com/serviceaddresses

Likvidácia

GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion direction (no text or symbols)

Diagram of a hand operating a mechanical disc with a rotating wheel (no text or symbols)

Illustration of a robotic arm with a rotating base and foot, showing motion direction (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

Eltávolítás

Mechanical diagram showing two cross-sectional views of a mechanical component with rotating arrows (no text or symbols)

Diagram of a hand operating a mechanical component with a rotating arrow, no text or symbols present

Illustration of a robotic arm with a rotating base and force arrows, no text or symbols present

Mechanical diagram showing a tool interacting with a curved pipe and fan (no text or symbols)

www.bosch-pt.com/serviceaddresses

GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Mechanical diagram showing two cross-sectional views of a gear or cam mechanism with directional arrows (no text or labels)

Diagram of a hand operating a mechanical disc with a rotating wheel (no text or symbols)

Illustration of a robotic arm with a rotating wheel and mechanical components (no text or symbols)

Mechanical diagram showing a lever mechanism with rotating components and directional arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

Утилізація

Mechanical component diagram showing two views of a gear or cam mechanism with directional arrows (no text or symbols)

Diagram of a hand pressing a circular component on a workpiece, with no visible text or symbols

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Diagram of a mechanical device with curved pipes and rotating components, no text or symbols present

www.bosch-pt.com/serviceaddresses

Mechanical diagram showing two cross-sectional views of a mechanical component with rotating arrows (no text or symbols)

Diagram of a hand operating a mechanical disc with a rotating wheel and base plate (no text or symbols)

Sistem electronic constant

(GWS 12-125 CIP / GWS 12-125 CIEP / GWS 15-125 CIP / GWS 15-125 CIEP / GWS 15-150 CIP)

Illustration of a robotic arm with a rotating base and force arrows, no text or symbols present

Mechanical diagram showing a tool interacting with a pipe and fan (no text or symbols)

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Eliminare

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion direction (no text or symbols)

Diagram of a hand pressing a mechanical component on a circular workpiece (no text or symbols visible)

Illustration of a robotic arm interacting with a circular mechanical component (no text or symbols visible)

Mechanical diagram showing a tool interacting with a curved pipe and fan (no text or symbols)

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Бракуване

GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

3 601 G90 2.. 3 601 G91 2.. 3 601 G92 2.. 3 601 G92 26. 3 601 G93 2..

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a hand pressing down on a circular mechanical component with a rotating arrow (no text or symbols)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a pipe joint with rotating components and directional arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

Отстранување

Mechanical diagram showing two views of a mechanical component with rotating parts and directional arrows (no text or symbols)

Postavite zaštitnu haubu (8) na prihvatnik na električnom alatu, sve dok se grebeni za kodiranje zaštitne haube ne poklope sa prihvatnim delom. Pri tom pritisnite i držite tako ručicu za deblokiranje (1). Pritiskajte zaštitnu haubu (8) na vrat vretena sve dok traka zaštitne haube ne nalegne na prirubnicu električnog alata i okrećite zaštitnu haubu dok čujno ne ulegne u ležište. Prilagodite poziciju zaštitne haube (8) zahtevima radnog koraka. Pritisnite ručicu za deblokiranje (1) nagore i okrenite zaštitnu haubu (8) u željeni položaj.

▶ Podesite zaštitnu haubu (8) tako da sva grebena poluge za deblokadu (1) upadnu u odgovarajuće otvore zaštitne haube (8).
▶ Podesite zaštitnu haubu (8) tako, da se sprečava letenje varnica u pravcu radnika.
▶ Zaštitna hauba (8) sme se okretati samo uz aktiviranje poluge za deblokadu(1) ! U suprotnom, električni alat ne sme nikako da se dalje koristi i mora se predati servisu.

Napomena: Kodni ispust na zaštitnoj haubi (8) osiguravaju da se može montirati samo zaštitna hauba koja odgovara električnom alatu.

Usisna hauba za brušenje

Za brušenje boja, lakova i plastike sa što manje prašine, zajedno sa lončastim diskom od tvrdog metala (11) možete da koristite zaštitnu haubu (7). Usisna hauba (7) nije prikladna za obradu metala.

Na usisnu haubu (7) možete da priključite kompatibilan usisivač kompanije Bosch.

Usisna hauba (7) se montira isto kao i zaštitna hauba (8). Venac sa četkicama se može promeniti.

Zaštitna hauba za presecanje

Prilikom presecanja sa povezanim sredstvom za brušenje uvek upotrebljavajte zaštitnu haubu za presecanje (9).
Prilikom presecanja u kamenu morate se pobrinuti za dovoljno usisavanja prašine.

Diagram of a hand operating a mechanical component with a rotating arrow, no text or symbols present

Za puštanje u rad električnog alata, gurnite polugu za deblokiranje (5) pozadi i pritisnite zatim prekidač za uključivanje/isključivanje (3) nagore.

Da biste električni alat isključili, pustite prekidač za uključivanje/isključivanje (3).

▶ Pre upotrebe proverite brusne alate. Brusni alat mora da bude adekvatno montiran da može slobodno da se obrće. Izvršite probni rad bez opterećenja najmanje 1 minut. Nemojte da upotrebljavate oštećene, nezaobljene ili vibrirajuće brusne alate. Oštećeni brusni alati mogu da se rasprsnu i da prouzrokuju povrede.

Illustration of a robotic arm interacting with a ball on a platform, showing motion direction (no text or symbols)

Električni alat morate stalno da vodite u suprotnom smeru. Inače postoji opasnost da se nekontrolisano potisne iz reza. Prilikom razdvajanja profila i četvorougaone cevi najbolje je da postavite najmanji poprečni presek.

Rezanje kamena

Prilikom presecanja u kamenu morate se pobrinuti za dovoljno usisavanja prašine.
▶ Nosite zaštitnu masku za prašinu.
▶ Električni alat smete da upotrebljavate samo za suvi rez/suvo brušenje.

Za presecanje kamena najbolje je da upotrebljavate dijamantsku ploču za presecanje.

Prilikom primene usisne haube za presecanje sa vodećim šinama (19) mora da bude dozvoljen usisivač za usisavanje kamene prašine. Bosch nudi adekvatne usisivače.

Mechanical diagram showing a tool interacting with a pipe and rotating component (no text or symbols)

Uključite električni alat i prednjim delom vodećih šina ga stavite na radni komad. Električni alat pomičite ravnomerno, prilagođeno materijalu koji se obrađuje. Prilikom rezanja tvrdih materijala, npr. betona sa visokim sadržajem oblutka,

dijamantski disk za sečenje može da se pregreje i na taj način da se ošteti. Na to jasno ukazuje cirkularni venac varnica oko dijamantskog diska za sečenje.

U ovom slučaju prekinite rezanje i pustite dijamantski disk za sečenje da se u praznom hodu vrti kratko vreme na najviše obrtaja da bi se ohladio.

Napredak u radu koji primetno zaostaje i cirkularni venac varnica su znakovi da je dijamantski disk za sečenje postao tup. Isti možete da naoštrite kratkim rezovima u abrazivnom materijalu (npr. peščani kamen).

Napomene za statiku

www.bosch-pt.com/serviceaddresses

Uklanjanje dubreta

Kotni brusilnik GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Skupne vrednosti tresljajev a _h (vektorska vsota treh smeri) in negotovost K so določene v skladu s standardom EN 60745-2-3:

Brušenje površine:

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a hand operating a mechanical disc with a rotating wheel (no text or symbols)

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

Odlaganje

Električno orodje, pribor in embalažo je treba dostaviti v okolju prijazno ponovno predelavo.

Kutna brusilica GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Kataloški broj		3 601 G90 2.. 3 601 G91 2.. 3 601 G92 2.. 3 601 G92 26. 3 601 G93 2..
Nazivna primljena snaga W 900 900 1100 1060 1200
Predana snaga W 530 530 740 640 640
Nazivni broj okretaja	min^-1	11500	11500	11500	11500	11500
Područje namještanja brojaokretaja	min^-1	--	-	-	-	-
Maks. promjer brusne ploče	mm	115 125 125 125 125
Unutarnji promjer ploče	mm	22,2	22,2	22,2	22,2	22,2
Navoj brusnog vretena		M 14	M 14	M 14	M 14	M 14
Maks. dužina navojabrusnog vretena	mm	22 22	22	22	22
Predbiranje broja okretaja		-	-	-	-	-
Konstantna elektronika		-	-	-	-	●
Isključivanje kod povratnogudarca		--	-	-	-	●
Zaštita od ponovnogpokretanja		--	-	-	-	●
Ograničenje struje zaleta		-	-	-	-	●
Težina prema EPTA-Procedure 01:2014
– s dodatnom ručkom samortizacijom vibracija	kg	2,2	2,2	2,5	2,5	2,2
– sa standardnomdodatnom ručkom	kg	2,1	2,1	2,3	2,3	2,1
Klasa zaštite		☐/II	☐/II	☐/II	☐/II	☐/II

Podaci vrijede za nazivni napon [U] od 230 V. U slučaju odstupanja napona i u izvedbama specifičnim za dotičnu zemlju, ovi podaci mogu varirati.

Hrvatski|295

Kutna brusilica GWS 12-125		GWS 15-125		GWS 15-125	GWS 15-150
		CIEP	CIP	CIEP	CIP
Kataloški broj		3 601 G94 2..	3 601 G95 2..	3 601 G96 2..	3 601 G98 2..
Nazivna primljena snaga W 1200 1500 1500 1500
Predana snaga W 640 820 820 820
Nazivni broj okretaja min	-1	11500	11500	11500 9300
Područje namještanja broja okretaja min	-1	2800–11500 –	2800–11500 –
Maks. promjer brusne ploče mm 125 125 125 150
Unutarnji promjer ploče mm 22,2 22,2 22,2 22,2
Navoj brusnog vretena M 14 M 14 M 14 M 14
Maks. dužina navoja brusnog vretena	mm	22	22	22	22
Predbiranje broja okretaja		● –	● –
Konstantna elektronika		●	●	●	●
Isključivanje kod povratnog udarca		●	●	●	●
Zaštita od ponovnog pokretanja		●	●	●	●
Ograničenje struje zaleta		●	●	●	●
Težina prema EPTA-Procedure 01:2014
– s dodatnom ručkom s amortizacijom vibracija	kg	2,2	2,5	2,5	2,5
– sa standardnom dodatnom ručkom	kg	2,1	2,3	2,3	2,4
Klasa zaštite		☐ / II	☐ / II	☐ / II	☐ / II

Podaci vrijede za nazivni napon [U] od 230 V. U slučaju odstupanja napona i u izvedbama specifičnim za dotičnu zemlju, ovi podaci mogu varirati.

Informacije o buci i vibracijama

	GWS 9-115 P	GWS 9-125 P	GWS 11-125 P	GWS 11-125 P	GWS 12-125 CIP
	3 601 G90 2..	3 601 G91 2..	3 601 G92 2..	3 601 G92 26.	3 601 G93 2..

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion direction (no text or symbols)

Stavite štitnik (8) na prihvat na električnom alatu tako da se kodirni izdanci na štitniku podudaraju s prihvatom. Pritisnite i pritom držite polugu za deblokiranje (1). Pritišćite štitnik (8) na grlo vretena sve dok naslon štitnika ne sjedne na prirubnicu električnog alata i okrećite štitnik sve dok se čujno ne uglavi. Prilagodite položaj štitnika (8) zahtjevima faze rada. U tu svrhu pritisnite polugu za

deblokiranje (1) prema gore i okrenite štitnik (8) u željeni položaj.

Diagram of a hand operating a mechanical disc with a rotating knob (no text or symbols)

Za puštanje električnog alata u rad pomaknite polugu za deblokiranje (5) prema natrag i zatim pritisnite prekidač za uključivanje/isključivanje (3) prema gore.

Illustration of a robotic arm performing a circular motion on a platform (no text or symbols)

Električni alat mora se uvijek voditi protuhodno. U suprotnom postoji opasnost da se nekontrolirano istisne iz reza. Kod rezanja profila i četverokutnih cijevi najbolje je da stavite na najmanji presjek.

Rezanje kamena

Kod rezanja kamena treba osigurati dovoljno usisavanje prašine.
▶ Nosite zaštitnu masku protiv prašine.
▶ Električni alat smije se koristiti samo za suho rezanje/suho brušenje.

Za rezanje kamena najbolje je koristiti dijamantnu reznu ploču.

Pri uporabi usisnog poklopca za rezanje s kliznom vodilicom (19) mora se koristiti odobreni usisavač za usisavanje kamene prašine. Bosch ima u ponudi prikladne usisavače prašine.

Mechanical diagram showing a tool interacting with a mounted device, no text or symbols present

www.bosch-pt.com/serviceaddresses

Zbrinjavanje

Nurklihvmasin GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Tootenumber		3 601 G90 2.. 3 601 G91 2.. 3 601 G92 2.. 3 601 G92 26. 3 601 G93 2..
Nimisisendvõimsus W 900 900 1100 1060 1200
Väljundvõimsus W 530 530 740 640		640
Nimipöörlemiskiirus	min^-1	11500	11500	11500	11500 11500

Nurklihvmasin GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating motion direction (no text or symbols)

Diagram of a hand operating a mechanical disc with a rotating wheel (no text or symbols)

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

Mechanical diagram showing a pipe joint with rotating components and directional arrows (no text or symbols)

www.bosch-pt.com/serviceaddresses

Lenka slipmašina GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Izstrādājuma numurs	3 601 G90 2.. 3 601 G91 2.. 3 601 G92 2.. 3 601 G92 26. 3 601 G93 2..
Nominālā ieejas jauda W 900 900 1100 1060 1200
Izejas jauda W 530 530 740 640 640

316 | Latviešu

Lenka slipmašina GWS 9-115 P GWS 9-125 P GWS 11-125 P GWS 11-125 P GWS 12-125 CIP

Mechanical diagram showing two cross-sectional views of a mechanical component with arrows indicating rotation (no text or symbols)

Novietojiet aizsargpârsegu (8) uz elektroinstrumenta stiprinâjuma tâ, lai pârsega kodēšanas izcilni sakristu ar stiprinâjuma gropēm. Nospiediet un turiet nospiestu atblokēšanas sviru (1).

Diagram of a hand operating a circular mechanical component with a rotating arrow (no text or symbols)

Mechanical diagram showing a robotic arm interacting with a spherical component, with no visible text or symbols.

Mechanical diagram showing a tool interacting with a curved pipe and fan (no text or symbols)

www.bosch-pt.com/serviceaddresses

Mechanical component diagram showing two views of a gear assembly with rotating arrows (no text or symbols)

Diagram of a hand pressing a circular component on a textured circular base, with an arrow indicating motion direction (no text or symbols present)

Illustration of robotic arm positioning with motion arrows (no text or symbols)

Diagram of a mechanical device with rotating components and curved tubing (no text or symbols)

www.bosch-pt.com/serviceaddresses

Šalinimas

23( Frps廷ليغ) (a SDS-elic

Mechanical diagram showing two views of a mechanical component with rotating parts and directional arrows (no text or symbols)

Diagram of a hand pressing down on a circular mechanical component with a rotating arrow (no text or symbols)

مقبض إضافي

بة فقط مع المبيض

6(الإضافي

.°. physics that is a 90-100mV in the world of history.

DJIN 1053 African Agricultural Association (Agricultural)

Robert Bosch Morocco SARL

www.bosch-pt.com/serviceaddresses

قرص تجليغ بريش

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

GWS 9-115 PGWS 9-125 PGWS 11-125 PGWS

Mechanical diagram showing two cross-sectional views of a mechanical component with rotating arrows (no text or symbols)

Diagram of a hand pressing a mechanical component on a circular base, showing motion direction (no text or symbols)

ابزارهای ساب مجاز

Illustration of a robotic arm with joints and motion arrows indicating movement (no text or symbols)

برش سنگ

Technical line drawing of a mechanical assembly with no visible text or symbols

∅ 115/125 mm 2 605 510 224

2605510226

Technical line drawing of a mechanical device with a handle and base plate (no text or symbols)

1600793007

∅ 115/125 mm 2 605 510 264

1 600 A00 3DK

∅ 150 mm 2 605 510 265

CE
|

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen. Technische Unterlagen bei:*
	Winkelschleifer	Sachnummer
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:*
	Angle grinder	Article number
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
	Meuleuse angulaire	N° d'article
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
	Amoladora angular	N° de artículo
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
	Rebarbadora	N.° do produto
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso:*
	Smerigliatrice angolare	Codice prodotto
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij:*
	Haakse slijpmachine	Productnummer
da	EU-overensstemmelseserklæring		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:*
	Vinkelsliber	Typenummer
sv	EU-konformitetsförklaring		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:*
	Vinkelslip	Produktnummer
no	EU-samsvarserklæring		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:*
	Vinkelsliper	Produktnummer
fi	EU-vaatimustenmukaisuusvakuutus		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:*
	Kulmahiomakone	Tuotenumero
el	Δήλωση πιστότητας EE		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Tεχνικά έγγραφα στη:*
	Γωνιακός λειαντήρας	Αριθμός ευρετηρίου
tr	AB Uygunluk beyani		Tek sorumlu olarak, tanimlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:*
	Taşlama makinesi	Ürün kodu

||

CE

pl	Deklaracja zgodności UE		Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:*
	Szlifierka kątowa	Numer katalogowy
cs	EU prohlásení oshodě		Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic anařízení aje vsouladu snásledujícími normami:Technické podklady u:*
	Úhlová bruska	Objednací číslo
sk	EÚ vyhlásenie ozhode		Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúlade snasledujúcimi normami:Technické podklady má spoločnosť:*
	Uhlová brúska	Vecné číslo
hu	EU konformitási nyilatkozat		Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:*
	Sarokcsiszoló	Cikkszám
ru	Заявление о соответствии EC		Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится y:*
	Угловая шлифовальная машина	Tоварный No
uk	Заява про відповідність ЄС		Мизаявляємо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається y:*
	Кутова шліфмашина	Tоварний номер
kk	EO сәйкестік мағлумдамасы		Өз жауапкершілікпен біз аталған өнімдер төменде жзылған директикалар мен жарлықтардың тиісті қағидаларына сәйкестігін және төменdegі нормаларға сай екенін білдіреміз.Техникалық кужаттар:*
	Бұрыштық ажарлау машинасы	Өнім нөмірі
ro	Declaratie de conformitate UE		Declarăm pe proprie răspundere că produsele mentionate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentаție tehnică la:*
	Polizor unghiular	Număr de identificare
bg	ЕС декларация за съответствие		С пълна отговорност ние декларираме, че посочените продукти otговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:*
	Ъглошлайф	Каталожен номер
mk	EU-Изјава за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj:*
	Аголна брусилка	Број на дел/артик
sr	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:*
	Ugaona brusilica	Broj predmeta
sl	Izjava o skladnosti EU		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri:*
	Kotni brusilnik	Številka artikla
hr	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:*
	Kutna brusilica	Kataloški br.

CE
III

et	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumentid saadaval: *
	Nurklihvmasin	Tootenumber
Iv	Deklaräcija par atbilstībuES standartiem		Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktivās un rikojumos ietvertajām saistošajām nostādnēm,kā arī sekojošiem standartiem.Tehniskā dokumentācija no: *
	Leņka slīpmašina	Izstrādājuma numurs
It	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomusžemiau nurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: *
	Kampiniošlifavimo mašina	Gaminio numeris
	GWS 9-115 P	3 601 G90 2..	2006/42/EC	EN 60745-1:2009+A11:2010
	GWS 9-125 P	3 601 G91 2..	2014/30/EU	EN 60745-2-3:2011+A2:2013+A11:2014+A12:2014+A13:2015
	GWS 11-125 P	3 601 G92 2..	2011/65/EU	EN 55014-1:2017+A11:2020
	GWS 11-125 P	3 601 G92 26.		EN 55014-2:2015
	GWS 12-125 CIP	3 601 G93 2..		EN IEC 61000-3-2:2019
	GWS 12-125CIEP	3 601 G94 2..		EN 61000-3-3:2013+A1:2019
	GWS 15-125 CIP	3 601 G95 2..		EN IEC 63000:2018
	GWS 15-125CIEP	3 601 G96 2..
	GWS 15-150 CIP	3 601 G98 2..	BOSCH	* Robert Bosch Power Tools GmbH(PT/ECS)70538 StuttgartGERMANY
			Henk BeckerChairman of Executive Management	Helmut HeinzelmannHead of Product Certification
			j.v.kw	i.v.kw
			Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANYStuttgart, 06.07.2020

IV

CE

i

Declaration of Conformity

Angle grinder Article number
GWS 9-115 P	3 601 G90 260
GWS 9-115 P	3 601 G90 270
GWS 11-125 P	3 601 G92 260
GWS 11-125 P	3 601 G92 270

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations listed below and are in conformity with the following standards.

Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

The Supply of Machinery (Safety) Regulations 2008

The Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

EN 60745-1:2009+A11:2010

EN 60745-2-3:2011+A2:2013+

A11:2014+A12:2014+A13:2015

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN IEC 63000:2018

BOSCH

Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by

Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

Vonjy Rajakoba

Managing Director - Bosch UK

Martin Sibley

Head of Sales Operations and Aftersales

Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany

Place of issue: Uxbridge Date of issue: 06/05/2021
