USER MANUAL IAN 286996 Livarno Lux

White flexible medical tube with a black clip, isolated on white background (no text or symbols)

White flexible medical tube with a circular head and coiled cord, isolated on white background (no text or symbols)

Modern desk lamp with curved arm and base (no text or symbols visible)

Monochrome illustration of a quill pen flowing downward from a circular base (no text or symbols)

LED TABLE LAMP / LED BATTERY CLIP LIGHT

GB IE NI

LED TABLE LAMP / LED BATTERY CLIP LIGHT

Operation and Safety Notes

DE AT CH

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE/NI Operation and Safety Notes Page 5

722005LI

Line drawing of a device with labeled component '7' (no text or symbols beyond label)

Line drawing of a USB cable with two connectors and a terminal labeled '6' (no text or symbols on the cable itself)

List of pictograms used....Page 6

Introduction......Page 6

Intended Use Page 6

Scope of delivery....Page 7

Description of Parts Page 7

Technical Data Page 7

Safety Notes......Page 7

Initial Use......Page 9

Examining the lamp and the scope of delivery....Page 9

Use Page 9

Installing the lamp....Page 9

Switching the lamp on/off and dimming....Page 9

Switching the colour change on/off....Page 9

Charging the rechargeable battery....Page 10

Cleaning Page 10

Storage Page 10

Disposal Page 10

Warranty and Service Page 11

Warranty Page 11

Service address......Page 11

List of pictograms used
	Please read the operating instructions!		For your safety
	The lamp is only intended for use as lighting in dry, indoor rooms.		Protection class II
	Volt (AC) Safety class III
	Hertz (frequency)		Short-circuit proof safety transformer
	Watt (effective power) Separate contr
	Observe the warnings and safety notes!		This product meets the requirements stated in Section 21 of the German Product Safety Act
	Warning! Danger of electric shock!		Dispose of the packaging and the product in an environmentally friendly manner!
	Danger to life and risk of accidents for infants and children!

LED Table Lamp / LED Battery Clip Light

- Introduction

Familiarise yourself with the product before using it for the first time. In addition, please carefully read the

operating instructions and the safety instructions below. The product must only be used as described and for the specified fields of application. Keep these instructions in a safe place. When passing this product on to others, please also include all the documents.

IntendedUse

The lamp is only intended for use as lighting in dry, indoor rooms. This product is only intended for

private, non-commercial use.

Only use the lamp as described in these operating instructions. Any other use is considered improper use and could lead to property damage or personal injuries. The lamp is not a toy. Neither the manufacturer nor the distributor assumes any liability for damages which arise due to improper or incorrect use.

- Scope of delivery

1 LED table lamp/ cordless LED clip lamp with rechargeable battery
1 USB cable (722005LI / 720031LI)
1 Mains adapter (model 720007LI / 720008LI / 722005LI)
1 Set of operating instructions

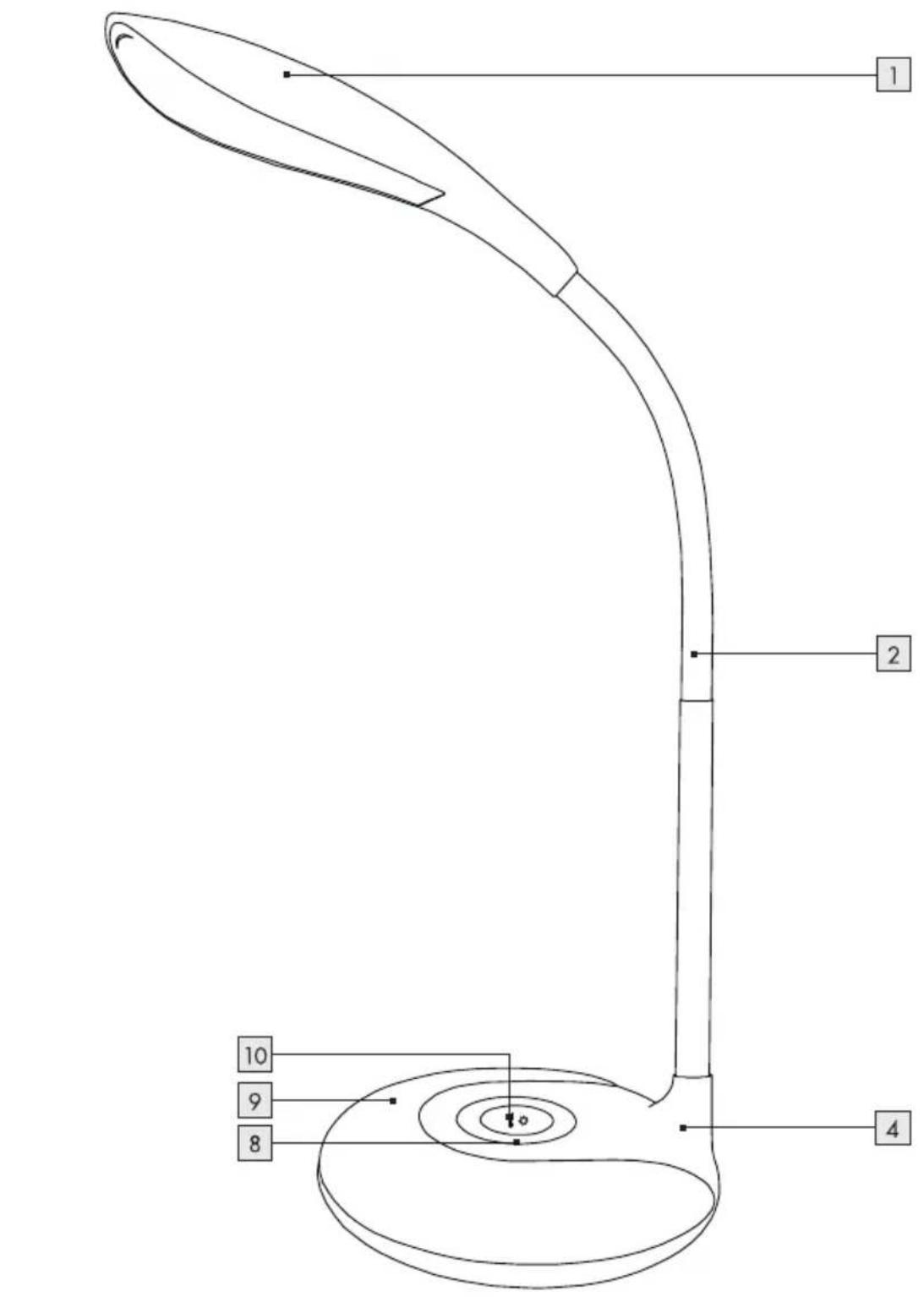

• Description of Parts

1 Lamp head
2 Lamp arm
3 Toggle switch (720007LI/720008LI)
4 Lamp base
5 Indicator light (720031LI)

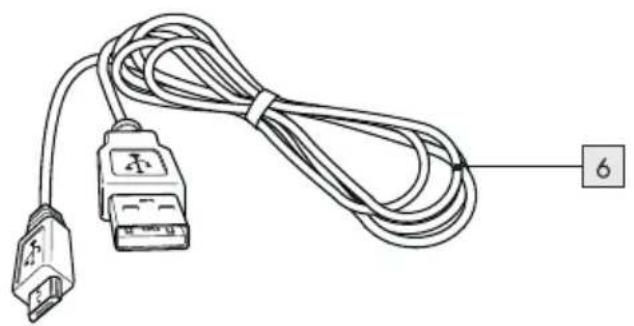

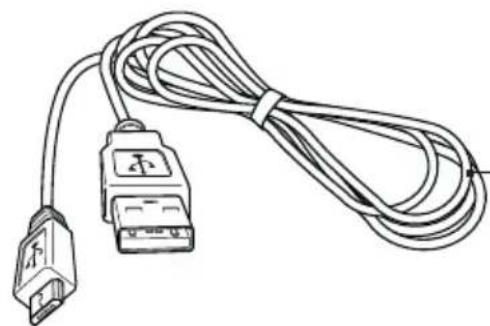

6 USB cable (722005LI/720031LI)

Connection cable (720007LI/720008LI)

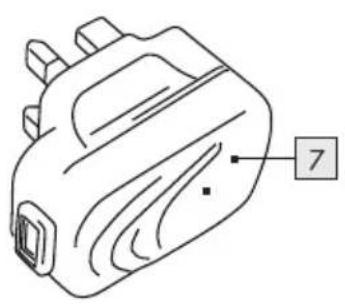

7 Mains adapter (model 722005LI / 720007LI / 720008LI)
8 Colour changing ring (model 722005LI)
9 RGB lamp (model 722005LI)
10 ON/OFF SWITCH (model 722005LI)

Technical Data

Item number: 720007/08LI

Model: LED table lamp white/green

Supply voltage: 100 - 240V\~, 50 / 60Hz

Output: 7W

Luminous flux: approx. 420 lm

Colour temperature: 3000K

dimmable: no

Material: metal/plastic

Dimensions (H x ø): 31 x 15 cm

Item number: 722005LI

Model: LED table lamp with RGB

Supply voltage: 100-240V\~, 50/60Hz

Output: 4 W

Luminous flux: approx. 270 lm

Colour temperature: 4000K

dimmable: yes (in stages)

Material: metal/plastic

Dimensions

Lamp arm (H): 41 cm

Lamp base (L x W): 12 x 14 cm

Item number: 720031LI

Model: Cordless LED clip

lamp with

rechargeable battery

Output: 2.2 W

Luminous flux: approx. 200 lm

Colour temperature: 4000K

dimmable: yes (in stages)

Material: metal/plastic

Dimensions

Lamp arm (H): 47 cm

Lamp base (L x W): 12.5 x 6.5 cm

Safety Notes

WARNING! DANGER OF ELECTRIC

SHOCK! A faulty electrical installation or a supply voltage which is too high could lead to an electrical shock.

• Only connect the lamp if the mains voltage of the socket matches the specifications in the type plate.
  ■ Always connect the lamp to an easy to reach socket so the lamp can quickly be disconnected from the power in the event of a fault.
• Do not use the lamp if it is visibly damaged or the mains cable or mains adapter is defective.
  If the mains cable for the lamp is damaged it must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid hazards.
  Do not open the housing, repairs must be performed by a specialist. Contact a specialist workshop for this purpose. Unauthorised repairs, incorrect connection or incorrect use will void all warranty and liability claims.

■ Always use spare parts which meet the original specifications. This lamp contains electrical and mechanical parts which are vital to prevent safety hazards.

- Do not operate the lamp with an external timer switch or a separate remote control system.

- Do not connect the lamp to an external dimmer.

- Do not immerse the lamp or the mains cable/mains adapter in water or other liquids.

■ Never touch the mains adapter with wet hands.

■ Never pull on the mains cable to unplug the mains adapter from the socket. Always take hold of the mains adapter to do so.

■ Never use the mains cable as a handle.

- Keep the lamp, the mains adapter and the mains cable away from open fire and hot surfaces.

■ Make sure the mains cable does not become a tripping hazard.

- Do not kink the mains cable or run it over sharp edges.

■ Only use the lamp indoors. Never operate the lamp in wet rooms or in rain.

■ Never store the lamp where it can fall into a tub or sink.

■ Never reach for an electrical appliance which has fallen into water. Instead, immediately unplug the mains adapter from the socket.

■ Always switch off the lamp and unplug from the socket if the lamp is not being used, to clean or if it malfunctions.

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS

AND CHILDREN!

This product may be used by children 8 years and up as well as persons with physical, sensory or mental impairments or those lacking experience and knowledge, if they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow

children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

■ Children are not allowed to play with the lamp.
■ Never allow children to clean or perform maintenance work on this product unsupervised.
- Do not allow children to play with the packaging film. Children can get entangled in the packaging while playing and suffocate.
- Keep children under 8 years away from the lamp and the connection cable.
- Do not leave the lamp unattended if it has been switched on.

NOTE: RISK OF DAMAGE!

The lamp could be damaged if used improperly.

Place the lamp on an easy to access, level, dry, heat-resistant and sufficiently stable work surface. Do not place the lamp at the edge of the work surface.
- Do not place the lamp right against a wall or under wall cabinets, etc. to prevent heat build-up.
■ Never place the lamp on or near hot surfaces (hobs, etc.).
- Do not allow the mains cable to come into contact with hot parts.
■ Never expose the lamp to high temperatures (heating, etc.) or the weather (rain, etc.).
- Never immerse the lamp in water to clean it or use a steam cleaner. The lamp could otherwise be damaged.
■ Never put the lamp in the dishwasher. This will break the lamp.
- Discontinue using the lamp if the plastic parts on the lamp are cracked or deformed. Always replace damaged parts with genuine spare parts.

- Initial Use

- Examining the lamp and the scope of delivery

Be carefully when opening the packaging:

1. Remove the lamp from the packaging.
2. Check that all items included in the scope of delivery are present (see illustrations).
3. Check to see if the lamp or the individual parts are visibly damaged. If this is the case, do not use the lamp. Contact the manufacturer using the service address stated.

Use

- Installing the lamp

Model 720007LI / 720008LI:

1. Place the lamp on a level, sturdy surface.
2. Turn the lamp head 1 to the desired position.
3. Plug the connection cable 6 into the mains adapter 7 and plug the mains adapter into a properly installed socket, or plug the connection cable 6 into a device with a USB port.

Model 722005LI:

1. Place the lamp on a level, sturdy surface.
2. Bend the lamp arm 2 into the desired shape.
3. Plug the USB cable 6 into the mains adapter 7 and plug the mains adapter into a properly installed socket, or plug the USB cable into a device with a USB port.

Model 720031LI:

1. Charge the rechargeable battery. To do so, proceed as described in the chapter "charging the rechargeable battery."

2. Clip the lamp to an object. Ensure when doing so that its surface is not scratched.

3. Bend the lamp arm 2 into the desired shape.

- Switching the lamp on/off and dimming

Model 720007LI / 720008LI:

☐ Press the toggle switch 3 to switch the lamp on.
☐ Press the toggle switch again to switch the lamp off.

Model 722005LI:

☐ Tap the on /off switch 10 on the lamp to switch it on or off.
☐ Touch the on / off switch 10 on the lamp a bit longer to dim the light to any of the 3 settings (not dimmed, medium dimmed, dimmed low).

Model 720031LI:

Tap the touch symbol on the lamp base 4 to switch the lamp on or off or to dim it:

• Touch 1 x: lamp on, not dimmed
• Touch 2 x: lamp on, medium dimmed
• Touch 3 x: lamp on, dimmed low
• Touch 4 x: lamp off

- Switching the colour change on/off

Only model 722005LI:

You can switch the RGB lamp 9 on and off separate from the lamp.

☐ Touch the symbol to switch the RGB lamp on and off.
☐ Swipe your finger along the colour change ring 8 to choose a colour.

- Charging the rechargeable battery

Only model 720031LI:

The charging time varies by power source.

The operating time of a fully charged rechargeable battery varies by light intensity:

• not dimmed: approx. 3 hours of operation
• medium dimmed: approx. 6 hours of operation
- dimmed low: approx. 12 hours of operation

1. Plug the mini-USB connector of the USB cable 6 into the lamp base 4.

2. Plug the USB cable into the mains adapter (not included in the scope of delivery) and plug the mains adapter into a properly installed socket, or plug the USB cable into a device with a USB port.

3. When the indicator light 5 goes out the rechargeable battery is fully charged and you can unplug the USB cable.

- Cleaning

WARNING! RISK OF SHORT

CIRCUIT! Water or other liquids inside the housing may cause a short circuit.

• Do not allow water or other liquids to enter the housing.
  ■ Never immerse the lamp in water or other liquids.

NOTE: RISK OF DAMAGE! The lamp could be damaged if used improperly.

- Do not use aggressive cleaners, brushes with metal or nylon bristles or sharp or metal cleaning objects such as metal sponges, etc. These can damage the surface.

■ Never put the lamp in the dishwasher. This will break the lamp.

1. Unplug the mains adapter 7 from the socket before cleaning.
2. Allow the lamp to cool down completely.
3. Wipe the lamp clean with a damp cloth. Then allow all parts to dry completely.

Storage

All parts must be completely dry prior to storage.

□ Always store the lamp in a dry location.
☐ Protect the lamp from direct sunlight.
Store the lamp out of the reach of children, locked away securely, at a storage temperature between +5 °C and +20 °C (room temperature).
Place the lamp in the original packaging or a box of the same size.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the rechargeable batteries!

Rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used rechargeable batteries at a local collection point.

● Warranty and Service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will

repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Serviceaddress

ESTO Lighting GmbH

Jessenigstraße 2

A-9220 Velden

AUSTRIA

Tel.: [phone]

Email: [e-mail]

IAN 286996

Please have your receipt and item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about the product.

CE

Line drawing of a USB cable with two connectors (no text or symbols)

6

ESTO Lighting GmbH

Jessenigstraße 2

A-9220 Velden

AUSTRIA
