IAN 288412 - Light Livarno Lux - Free user manual and instructions

Product Type	LED Mood Light
Model	IAN 288412
Total Power Input	2.5 W
Supply Voltage	230 V~50 Hz
Light Source	18 x RGB LED (non-replaceable)
Protection Class	II
Remote Control Battery	1 x 3 V CR2025 button cell
Remote Control Range	Approx. 5 m
Suitable For	Indoor use in dry enclosed spaces
Intended Use	Decorative mood lighting; not for room lighting or night light
Functions	Color selection, brightness adjust, FLASH, STROBE, FADE, SMOOTH, ON/OFF
Cleaning	Unplug, wipe with dry lint-free cloth; glass ball removable for cleaning
Battery Replacement	When remote range declines; replace with same type, observe polarity
Warranty	36 months from date of purchase
Item Number	14118006L

Frequently Asked Questions - IAN 288412 Livarno Lux

How do I turn on the LED mood light?

Press the ON button (6) on the remote control to turn the light on. If it was previously turned off with the OFF button, it will resume the last color or mode. If unplugged, it defaults to white.

How do I change the light color?

Press one of the color buttons (12) on the remote to choose red, green, blue, etc., or press the W button (7) for white. Use the brightness buttons (3 and 4) to adjust brightness.

What are the color change modes?

The remote offers four modes: FLASH (rapid color change), STROBE (slow color change), FADE (flowing color change), and SMOOTH (slow, flowing color change).

How do I replace the remote control battery?

Pull out the battery drawer from the remote, remove the old CR2025 button cell, insert a new one with correct polarity (+/-), and slide the drawer back in.

Can I use this light outdoors?

No, this light is only suitable for indoor use in dry, enclosed spaces. Do not expose it to moisture or outdoor conditions.

Is the LED bulb replaceable?

No, the LEDs are not replaceable. If the light source fails, the entire light must be replaced.

How do I clean the glass ball?

Unplug the light, remove the glass ball by turning it counterclockwise, clean with a dry lint-free cloth, then reattach by turning clockwise.

What safety precautions should I take with batteries?

Keep batteries away from children, never recharge non-rechargeable batteries, do not short-circuit or open them, and remove if the product is unused for long periods.

Why does my light not respond to the remote?

Ensure the insulating strip is removed from the remote battery, the remote has a fresh battery, and there are no obstacles between the remote and the light (infrared). Also check the distance (max 5 m).

What is the warranty on this product?

The product comes with a 36-month warranty from the date of purchase, covering material and manufacturing defects. Exclusions include wear parts like bulbs and damage from improper use.

USER MANUAL IAN 288412 Livarno Lux

Operation and Safety Notes

DE AT CH

LED-STIMMUNGSLICHT

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE/NI Operation and Safety Notes

Page 5

List of pictograms used....Page 6

Introduction......Page 6

Intended Use Page 6

Parts Description......Page 7

Technical Data Page 7

Scope of delivery Page 7

General safety instructions......Page 7

Safety instructions for batteries / rechargeable batteries ......Page 8

Start-up Page 9

Operation Page 9

Selecting a light colour....Page 9

Selecting the colour change......Page 9

Switching off the light....Page 9

Changing the battery....Page 9

Cleaning and care....Page 9

Disposal Page 10

Warranty and Service......Page 10

Warranty Page 10

Service address......Page 10

Declaration of conformity....Page 11

Manufacturer......Page 11

List of Pictograms Used
	Read the instructions!		Observe the warnings and safety notices!
	This light is only suitable for indoor use in dry and enclosed spaces.		Danger to life and risk of accidents for infants and children!
	This product is an illuminated decoration.Do not use this light for room lighting or as a night light.This is a specialist product, as the colour value amounts are beyond the ranges listed in the brackets.Colour value amounts: (x<0.270 or x>0.530); (y<-2.172 x2 or y>-2.3172 x2 + 2.3653 x -0.1595).		Electric shock warning!Danger to life!
	Volt (AC)		Caution!Danger of explosion!
	Hertz (frequency) Wear safety gloves!
	Watt (effective power)		Dispose of the packaging and device in an environmentally friendly manner!
	Protection class II		Operating life
	Direct current		Switching cycles

LED mood light

Introduction

Congratulations on the purchase of your new product. You have selected a high quality product. These instructions are

part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep

these instructions in a safe place and pass them on third parties as applicable.

Intended Use

This light is suited for use in dry indoor spaces and must not be used outside. Alternating calming and reviving colours create an overall feeling of well-being. This product is not intended for commercial use.

This product is an illuminated deco- ration. Do not use this light for room lighting or as a night light.

This is a specialist product, as the colour value amounts are beyond the ranges listed in the brackets. Colour value amounts: (x<0.270 or x>0.530) ; (y<-2.172 x^2 or y>-2.3172 x^2+2.3653 x-0.1595) .

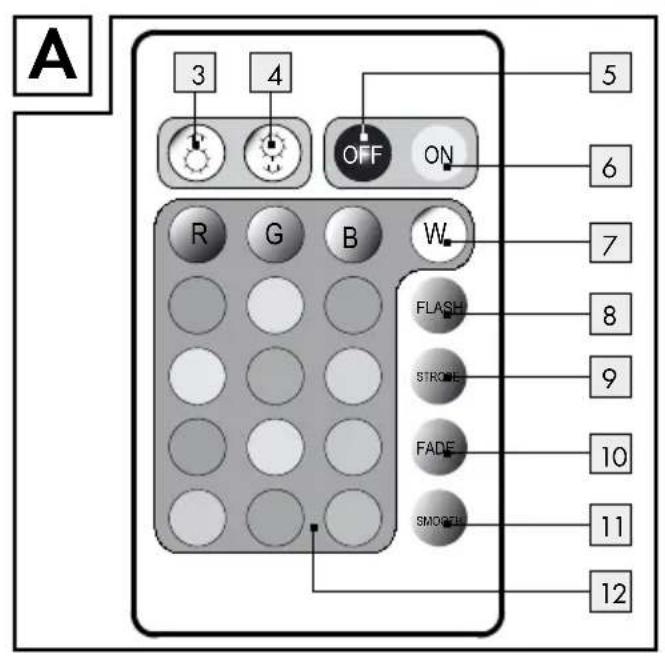

Parts Description

1 LED mood light
2 Remote control
3 button
4 button
5 OFF button
6 ON button
7 W button
8 FLASH button
9 STROBE button
10 FADE button
11 SMOOTH button
12 Colour buttons
13 Battery compartment
14 Infrared diode
15 Battery drawer
16 Battery
17 Insulating strip
18 Glass ball
19 Lamp base
20 Mains plug

Technical Data

Colour changing LED mood light + power supply

Total power input: 2.5 W

Colour changing LED mood light

Item number: 14118006L

Supply voltage: 230 V\~50 Hz

Light bulb: 18 x RGB LED

(not replaceable)

Protection class: II/

Remote Control

Voltage: 1 x 3 V

= CR2025 button

cell

Range: approx. 5 m

- Scope of delivery

1 LED mood light
1 Infrared remote control
1 CR2025 button cell (inserted)
1 Set of instructions for use

General safety instructions

Before using the product, please familiarise yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

■ Exposure to certain strobe lights or lighting effects can cause epileptic seizures or unconsciousness in some people. If you experience symptoms of an epileptic seizure, seek immediate medical attention.

Do not look directly into the light source (light bulb, LED etc.).

- Do not use optical instruments to look at the light.

Avoid the danger of death from electric shock!

• Verify the available mains voltage matches the required operating voltage of the product before use (see „Technical Data“).

- Do not use the product if you detect any kind of damage.

This product has delicate electronic components.
Radio transmitting equipment in the immediate vicinity may therefore cause interference. If you experience faults, remove such equipment from the vicinity of the light.
■ Never allow the product to come into contact with water or other liquids.
The LEDs are not replaceable.
The lamp's light source is not replaceable, the entire light needs to be replaced if the light source reaches the end of its service life.
■ Always unplug the mains plug from the socket before installation, removal or cleaning.
This product does not contain any parts that can be serviced by the user.
■ Only operate the product with the built-in LED controller.
Please note that when the LED mood light is plugged in it still uses a small amount of power even if it is off. Unplug from the socket to switch the device off completely.
The external flexible cord on this light is not replaceable; if the cord is damaged the light must be disposed of.

Safety instructions for batteries/rechargeable batteries

WARNING! KEEP BATTERIES OUT OF THE REACH OF CHILDREN!

Swallowing batteries can cause chemical burns, perforation of soft tissue, and death. Severe burns may occur within 2 hours of swallowing batteries. Seek immediate medical attention.

■ DANGER TO LIFE!

Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries.

Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
- Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.

- Start-up

Colour changing LED mood light

Place the LED mood light on a level and solid surface.
Connect the mains pl20 to a socket. Verify the available mains voltage matches the required operating voltage of the product before use (see „Technical Data”).

The LED mood light is now ready for use.

Remote Control (Fig. C)

Remove the insulating strip between the battery 16 and the battery compartment 13 on the remote control 2 before use.

Note: Please note, the remote control uses infrared light. The signal cannot be transmitted "around the corner" as radio waves do. Light-tight objects may not be located between the infrared diode 14 and the light.

Operation

Use the remote control 2 to select a light colour or different colour change programs (Fig. A):

- Selecting a light colour

Press one of the colour button 12 or the W button 7 to select a colour corresponding with the button colour.
Press the button 3 to gradually increase the brightness.
Press the button 4 to gradually dim the light.

- Selecting the colour change

⑧: brighter

⑨: dim

5 x R: selects the desired colour
5 x G: selects the desired colour
5 x B: selects the desired colour

1 x W: selects the desired colour

FLASH button: rapid colour change

STROBE button: slow colour change

FADE button: flowing colour change

SMOOTH button: slow, flowing colour change

- Switching off the light

If the LED mood light is switched off with the OFF button 5 on the remote control 2, the last colour or colour change selected will be used when switching the light on again with the ON button 6.
However, if the LED mood light is disconnected from the mains supply by unplugging it from the socket, the LED mood light will always light up white when switched on again.

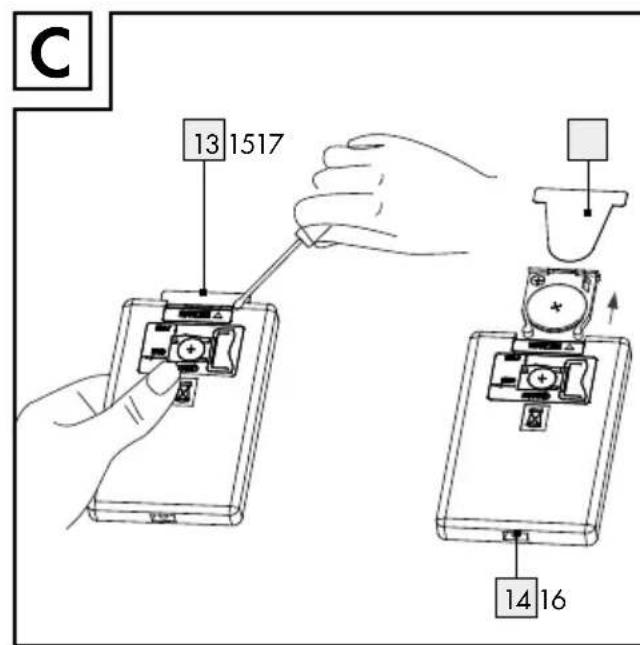

● Changing the battery (Fig. C)

Change the battery 16 when the range of the remote control 2 noticeably declines or the LED mood light 1 no longer responds to the remote control.
☐ Pull the battery compartment out of the remote control 2.
Remove the battery 16.
☐ Insert the new battery 16.
Only use the type of battery specified in the chapter „Technical Data“ and note the polarity when inserting the battery. This is shown on the back of the remote control 2.
Slide the battery compartment back into the remote control 2.

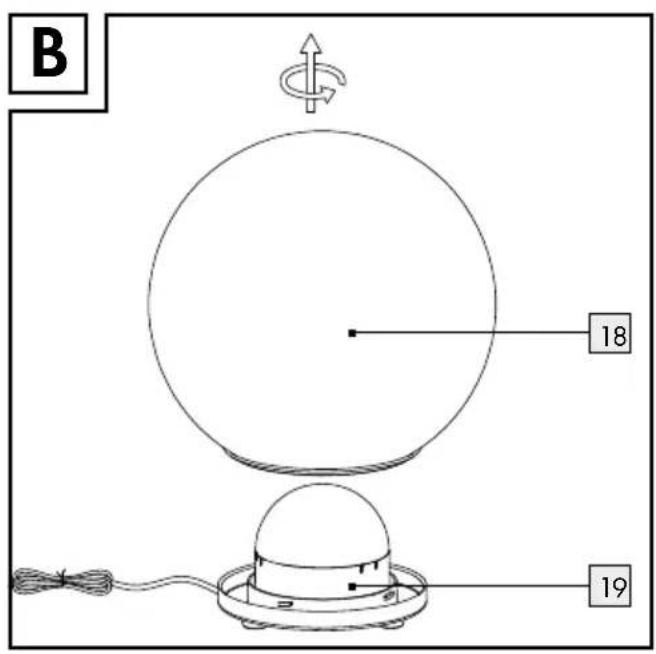

● Cleaning and care (Fig. B)

□ Switch the LED mood light 1 off.
☐ Remove the mains plug 20 from the socket before you clean the light.
□ Clean the LED mood light and the remote control 2 with a dry, lint-free cloth.
Remove the glass ball 18 from the lamp base 19 by holding on to the lamp base 19 and

carefully turning the glass ball 18 counterclockwise.

Carefully lift the glass ball off the lamp base 19.
After cleaning, carefully install the glass bar onto the lamp base 19.
☐ Secure the glass ball 18 by holding on to the lamp base 19 and carefully turning the glass ball 18 clockwise.
Connect the mains pl20 to the socket.

Your light is now ready to use.

Improper disposal of batteries can harm the environment!

Per Directive 2006 / 66 / EC and its amendments, defective or used batteries must be recycled. Return batteries and / or the product to the provided recycling facilities. Never dispose of batteries in your household bin. They may contain toxic heavy metals and are subject to hazardous waste regulations.

The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Warranty and Service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14118006L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Please have your receipt and the article number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

- Declaration of conformity C€

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer
