TL-SG1024DE - Network switch TP-LINK - Free user manual and instructions

Product type	Network switch
Brand	TP-Link
Model	TL-SG1024DE
Number of ports	24 Gigabit Ethernet ports (10/100/1000 Mbps)
Port type	RJ45
Dimensions	17.5 x 10.5 x 3.8 cm
Weight	1.4 kg (approx.)
Power supply	DC 12V 1A power adapter
Power consumption	9.8 W (max)
Main features	Simplified management (VLAN, QoS, IGMP Snooping), loop detection, 802.3x flow control
Maintenance and cleaning	Disconnect the device, clean with a soft dry cloth
Operating environment	Indoor, temperature 0°C to 40°C, humidity 10% to 90% non-condensing
Safety	Install in a ventilated place, do not expose to moisture or heat sources
Spare parts and repairability	Power adapter available as spare part; repair by a professional recommended
General information	2-year warranty, IEEE 802.3, 802.3u, 802.3ab, 802.3x standards

Frequently Asked Questions - TL-SG1024DE TP-LINK

How to configure the TP-Link TL-SG1024DE switch?

Configuration is done via the web interface. By default, the IP address is 192.168.0.1 (or 192.168.0.100 depending on the batch). Connect via a browser using an Ethernet cable, then use the default username and password admin/admin.

Does the switch support VLAN?

Yes, the TL-SG1024DE supports 802.1Q VLANs with up to 32 simultaneous VLAN groups. You can configure port-based or tag-based VLANs in the management interface.

How to reset the switch to factory settings?

Press and hold the Reset button on the front panel for about 6 seconds until all LEDs flash. Release, the switch restarts with default settings.

What is the default IP address of the switch?

The default IP address is usually 192.168.0.1. If it doesn't work, try 192.168.0.100. The subnet mask is 255.255.255.0.

How to update the switch firmware?

Download the latest firmware from the TP-Link website. Log into the web interface, go to Maintenance > Firmware Upgrade, select the .bin file and click Upgrade. Do not power off during the update.

Can the switch be used with Cat5e or Cat6 cables?

Yes, the switch is compatible with Cat5e and Cat6 cables. For optimal Gigabit performance, use Category 5e or higher cables.

Does the switch support PoE (Power over Ethernet)?

No, the TL-SG1024DE model is not equipped with PoE ports. It is a standard switch requiring a power supply for each device.

How to configure Quality of Service (QoS)?

In the web interface, go to QoS > Priority Settings. You can set priorities by port, by 802.1p tag, or by traffic type. Assign high priority for voice or video.

What to do if the power LED does not light up?

Check that the power adapter is properly connected and the outlet works. Try another compatible 12V 1A adapter. If the problem persists, contact TP-Link support.

How to access the management interface if I forgot the password?

Perform a factory reset (Reset button) to restore the default password (admin). Note that this will erase any custom configuration.

USER MANUAL TL-SG1024DE TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch....01

English....06

Español....11

Ελληνικά....16

Français....21

Italiano....26

Português....31

Suomi....36

Nederlands....41

Svenska....46

Norsk....51

Dansk....56

Türkçe....61

Installation

- Tischmontage

- SFP-Port

- Einschalten

Konfiguration

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

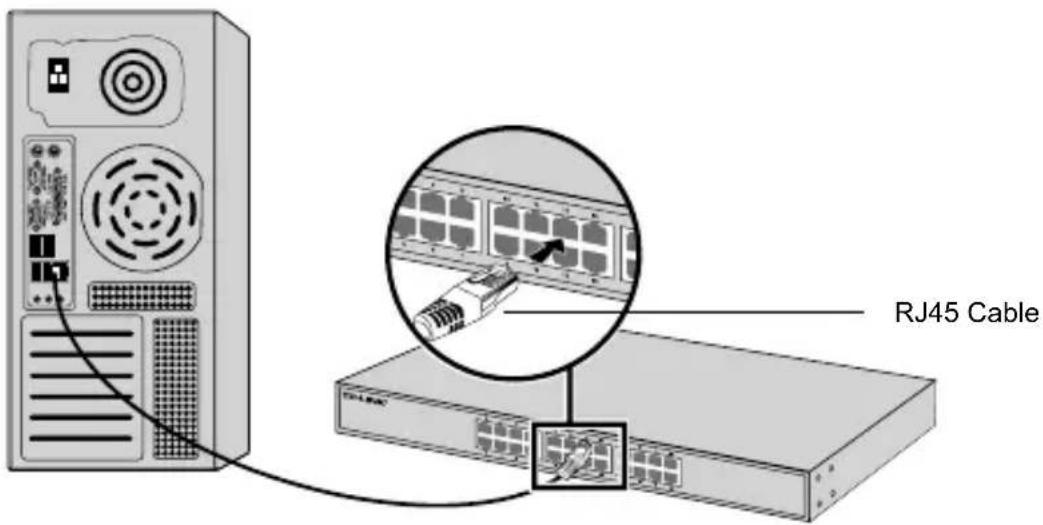

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- SFP Port

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

- Console Port

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Puerto SFP

- Encender

Configuración

- Θúpa Console

- Ενεργοποιήστε

Ρύθμιση

Configuration

- Configurer le switch via son interface graphique

- Accensione

Configurazione

- Configure lo Switch usando la GUI

- Ligar

Configuração

- Configurar o Switch via Interface gráfica

- Virta päällä

Konfigurointi

- Konfiguroi kytkin GUI:lla

- Inschakelen

Configuratie

- Desktop-installation

- Ström på

Konfiguration

- For å slå på

Konfigurasjon

- Tændt

Konfiguration

- Cihazı Çalıştırma

Yapılandırma

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
