Product Type	Powerline Network Adapter
Brand	TP-Link
Model	TL-PA6010KIT
Maximum Data Rate	Up to 600 Mbps
Network Interface	1 Gigabit Ethernet port (10/100/1000 Mbps)
Powerline Standard	HomePlug AV2
Function Button	Pair button to secure the network
Pass-through Socket	Yes, integrated (female socket)
Dimensions (L x W x H)	95 x 55 x 35 mm
Weight	Approximately 150 g
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	≤ 3 W standby, ≤ 6 W operation
LED Indicators	Power, Powerline, Ethernet
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% RH (non-condensing)
Kit Contents	2 Powerline adapters, 2 RJ45 Ethernet cables, quick installation guide
Care and Cleaning	Clean with a soft, dry cloth. Do not use liquids or aerosols.
Safety	Do not expose to water, fire, or excessive heat. Do not open or repair yourself.
Spare Parts and Repairability	Not user-serviceable. No spare parts supplied. Contact after-sales service.
Warranty	TP-Link 3-year limited warranty
General Information	Plug and Play. Secured via Pair button. tpPLC utility available for advanced configuration.

Frequently Asked Questions - TL-PA6010KIT TP-LINK

How do I reset my TP-Link Powerline adapter?

Press and hold the Pair button for about 10 seconds until the power LED briefly turns off. You can also use the tpPLC utility to perform a reset.

What should I do if I have no Internet access through the Powerline network?

Check that all adapters are plugged into the same electrical circuit. Ensure the Powerline LEDs are lit; otherwise, re-pair the adapters. Check Ethernet connections and that your computer is on the same subnet as the router.

Why don't my paired Powerline adapters reconnect after being moved?

Try plugging them into other outlets on the same circuit. If the problem persists, re-pair the adapters. Keep them away from electrical devices that generate interference (dryer, air conditioner, etc.).

How do I secure my Powerline network using the Pair button?

Press the Pair button on one adapter for 1 second, then within 2 minutes press the Pair button on the second adapter for 1 second. The Powerline LEDs will blink and then remain on to indicate the network is secured.

How do I add a new adapter to an existing Powerline network?

Press the Pair button on an adapter already in the network for 1 second, then within 2 minutes press the Pair button on the new adapter for 1 second. Repeat for each adapter to add.

Can I use multiple Powerline adapters on the same electrical network?

Yes, you can add up to 16 Powerline adapters or extenders on the same circuit. Make sure to pair them to form a secure network.

What should I do if Powerline speeds are slow?

Check that adapters are plugged directly into wall outlets, not power strips. Avoid interference from electrical devices. Use the tpPLC utility to check signal quality.

How do I install the tpPLC utility?

Download the utility from the TP-Link website (www.tp-link.com). Install it on your computer to manage advanced settings such as QoS, firmware updates, or diagnostics.

Are Powerline adapters compatible with power strips?

It is not recommended to plug Powerline adapters into power strips. Prefer a direct wall outlet. If the adapter has a pass-through socket, plug the power strip into that socket, but do not connect another Powerline adapter to it.

What to do in case of failure or malfunction?

Consult the complete user manual. If the problem persists, contact TP-Link technical support. Do not attempt to open or repair the adapter yourself; this would void the warranty.

USER MANUAL TL-PA6010KIT TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904 REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

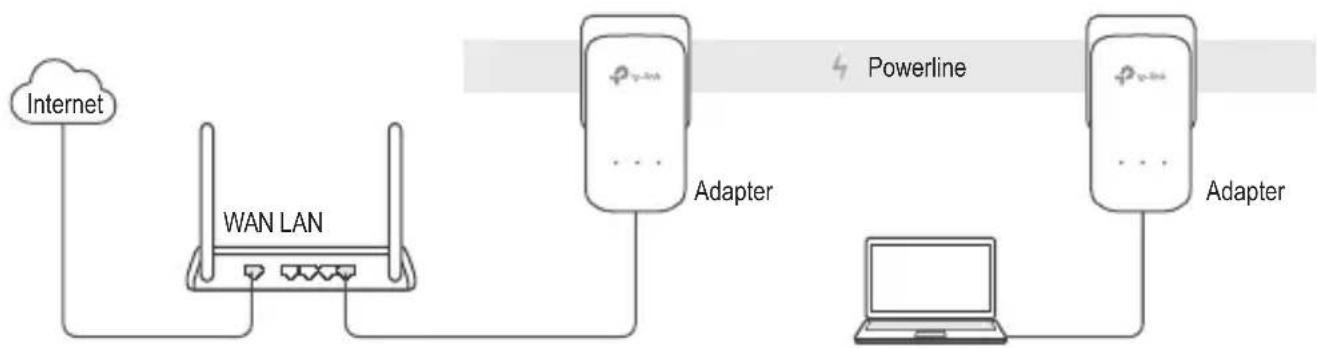

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED 📁 on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

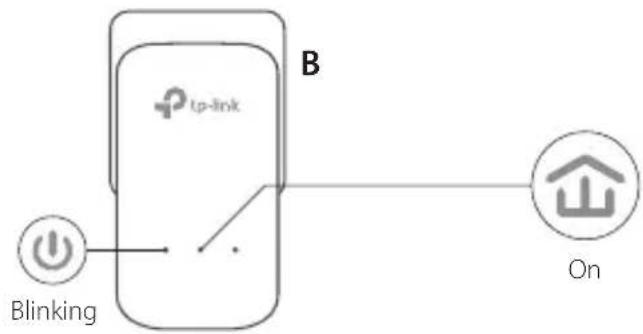

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

3 Done.

English

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED ⏻ goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.

A2. Try to pair it again, and make sure the Powerline LED is on.

A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

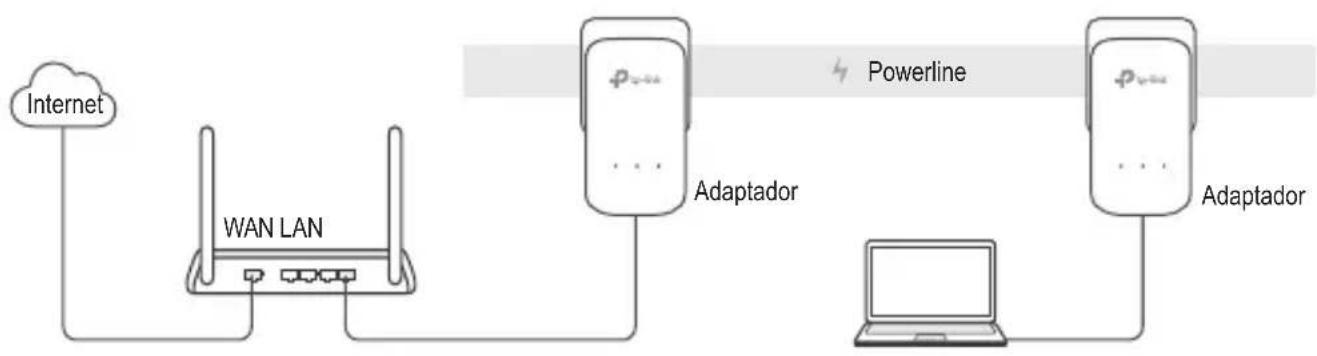

Plug and Play

FAQ (Perguntas Frequentes)

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.
