Product type	Air purifier
Brand	HoMedics
Model	AR-NC02
Height	39,1 cm
Weight	3 kg
Input voltage	220-240 V
Frequency	50-60 Hz
Power	24 W
Noise level	<60 dB
Main filter	Washable Nano-Coil filter
Pre-filter	Captures large particles and fibers
Optional filter	VOC/odour filter
Fan speeds	Quiet, Low, Medium, Turbo (Turbo 30 min)
Timer	1, 4, 8, 12 hours
Remote control	Yes, with CR2032 battery
Clean filter indicator	Yes (every 732 h)
Use	Indoor, domestic use
Max ambient temperature	40 °C (tropical climates)
Filter maintenance	Vacuum cleaning every 30 days
Nano-Coil filter replacement	Approximately every 18 months (ref. AR-NCFL1-EU)
Recommended distance	16 cm from walls, 1 m from heat sources
Repairability	No user-serviceable parts

Frequently Asked Questions - AR-NC02 HOMEDICS

How to install the optional VOC filter?

Open the rear grille by pressing the release tabs. Remove the grille. Take the VOC filter out of its plastic bag. Place it against the pre-filter and secure it with the 4 clips. Replace the grille by engaging the bottom first, then push the top.

How to clean the Nano-Coil filter?

Turn off and unplug the appliance. Open the rear grille and remove the Nano-Coil filter. Use the brush attachment of your vacuum cleaner to gently clean both sides. Never use water or detergent. Replace by aligning the handle with the central hub.

What to do when the 'Clean Filter' indicator lights up?

The indicator means it's time to clean the Nano-Coil filter (approximately every 732 hours). After cleaning, press and hold the CLEAN FILTER button until you hear a beep to reset the indicator.

How to use the remote control?

Remove the plastic tab from the battery compartment before first use. The remote uses a CR2032 battery. Use the buttons to turn on/off, adjust speed (Quiet, Turbo), and set the timer. Standard range.

What is the difference between Quiet and Turbo modes?

Quiet mode is very silent, ideal for night. Turbo mode provides maximum cleaning power but only runs for 30 minutes before automatically switching back to low speed.

Can I use the air purifier in a bathroom?

No, the appliance is not designed for humid rooms. It must be kept dry and used in a dry indoor environment, away from water.

How often should I replace the filter?

The Nano-Coil filter is cleaned every 30 days and replaced approximately every 18 months. The VOC filter, if used, should be replaced at the same time as the Nano-Coil.

Does the air purifier turn off automatically?

The appliance does not have an auto-off, but you can use the timer (1, 4, 8, or 12 hours) for automatic shutoff after the selected time.

How to reset the clean filter indicator after cleaning?

After cleaning the Nano-Coil filter, press and hold the CLEAN FILTER button on the control panel until a beep confirms the reset.

Can I leave the appliance on all night?

Yes, by using Quiet mode which is very silent. You can also set the timer for automatic shutoff after 1, 4, 8, or 12 hours as preferred.

USER MANUAL AR-NC02 HOMEDICS

with Nano Coil air technology

Exterior view of a modern office air conditioner unit (no signage or text visible on the fan itself)

Instruction Manual

AR-NC02-GB

AR-NC02-EU

3 year guarantee

READ ALL INSTRUCTIONS BEFORE USE.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

IMPORTANT SAFEGUARDS:

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

• ALWAYS unplug the appliance from the electrical outlet immediately after using and before cleaning. To disconnect, turn all controls to the 'OFF' position, then remove plug from outlet.
• NEVER leave an appliance unattended when plugged in. Unplug from the mains outlet when not in use and before putting on or taking off parts or attachments.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• DO NOT reach for an appliance that has fallen in water or other liquids. Switch off at the mains and unplug it immediately. Keep dry – DO NOT operate in wet or moist conditions.
• NEVER insert pins or other metallic fasteners into the appliance.
• Use this appliance for the intended use as described in this booklet. DO NOT use attachments not recommended by HoMedics.
• NEVER operate the appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to the HoMedics Service Centre for examination and repair.
• Keep cord away from heated surfaces.
• Excessive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
• NEVER drop or insert any object into any opening.
  • DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
• DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electrocution or injury to persons.
• DO NOT carry this appliance by the cord or use cord as a handle.
  • DO NOT use outdoors.
• DO NOT crush.
  • This product requires a 220-240 V AC power supply.
• DO NOT attempt to repair the appliance. There are no user serviceable parts. For service, send to a HoMedics Service Centre. All servicing of this appliance must be performed by authorised HoMedics service personnel only.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch. Keep air openings free of lint, hair etc.
• Do not place or store appliance where it can fall or be pulled into a bath or sink. Do not place in or drop into water or other liquid.
• Failure to follow the above may result in the risk of fire or injury.
• Burns can result from improper use.

SAFETY CAUTIONS :

PLEASE READ THIS SECTION CAREFULLY BEFORE USING THE APPLIANCE.

• Always place the air cleaner on a firm, level surface.
- Always place the air cleaner at least 150mm away from walls and 900mm from heat sources such as stoves, radiators, or heaters.
• DO NOT use while bathing or in the shower.
- Keep dry - DO NOT operate in a wet or moist condition.
• This appliance is designed for personal, non-professional use only.
- Extreme caution is necessary when any air cleaner is used by or near children or invalids and whenever the air cleaner is left operating and unattended.
• Always unplug the air cleaner when not in use.
- Do not operate the air cleaner with a damaged cord or plug, or after the air cleaner malfunctions, has been dropped or damaged in any manner. Discard the air cleaner or return to HoMedics Consumer Relations for examination, electrical or mechanical adjustment, or repair.
- This air cleaner is not intended for use in bathroom, laundry areas and similar moist indoor locations. Never locate air cleaner where it may fall into a bathtub or other water container.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas where it can be tripped over.
• To disconnect the air cleaner, first turn controls to the OFF position, then remove plug from outlet.
- Do not tilt or move the air cleaner while it is in operation. Shut off and remove plug from outlet before moving.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air cleaner.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surface, like a bed, where openings may become blocked.
- Use this air cleaner only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug the air cleaner directly into a wall outlet/receptacle. Never use with an extension cord.

SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE Technical Specifications

Input voltage 220-240 V
Rated Frequency 50-60 Hz
Power 24 Watts
Weight 3kg
Noise Level <60 dB
Unit Height 39.1cm

T This appliance is classified as suitable for use in tropical climates with an ambient temperature up to 40^ C.

Plug (MODEL AR-NC02-GB ONLY)

If the plug on this appliance is damaged, it can be replaced with a BS 1363 plug, fitted with a 3A BS 1362 fuse. Only use a 3 amp fuse with this appliance. Care must be taken when changing the plug. If in doubt, contact a qualified electrician.

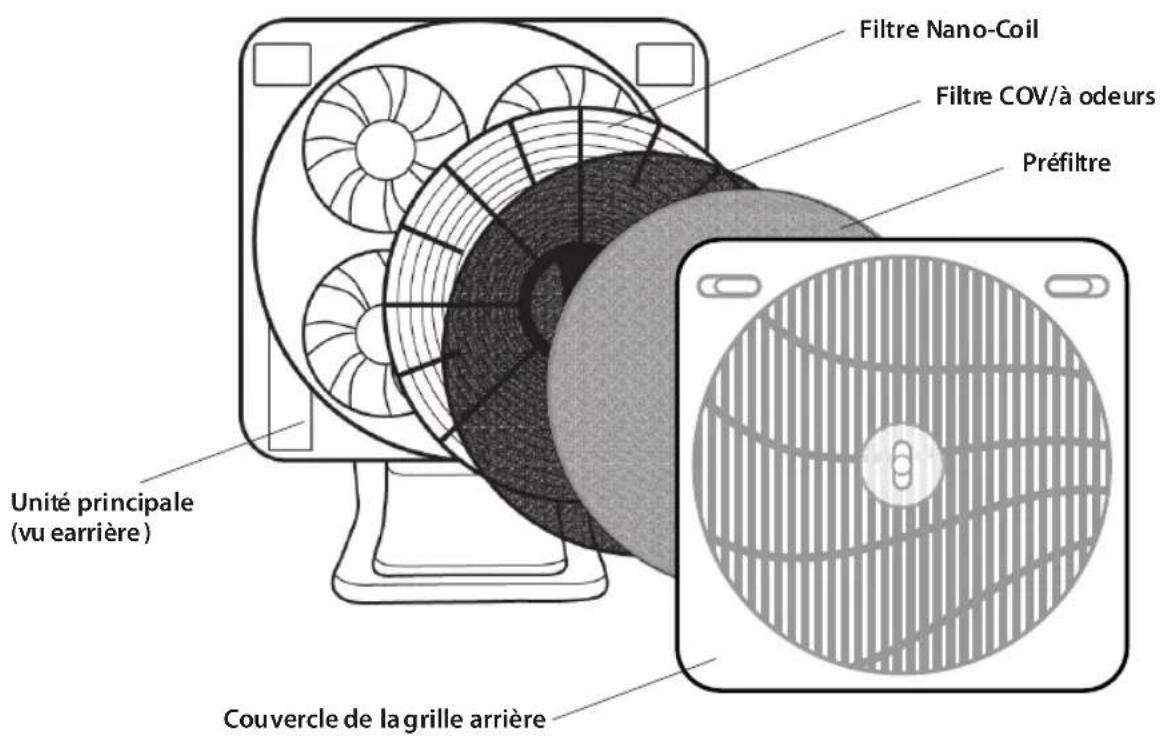

PRODUCT FEATURES:

Pre-Filter: Captures large particles and fibres
Nano-Coil Filter: Cleanable spiral filter that captures charged air contaminants
VOC/Odour Filter: (optional) Removes VOC (Volatile Organic Compounds)

Battery Directive

This symbol indicates that batteries must not be disposed of in the domestic waste as they contain substances which can be damaging to the environment and health. Please dispose of batteries in designated collection points.

WEEE explanation

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where duct was purchased. They can take this product for environmental safe recycling.

OPERATING INSTRUCTIONS

Illustration of two hands holding a circular object with internal grid pattern (no text or symbols)

Fig. 1

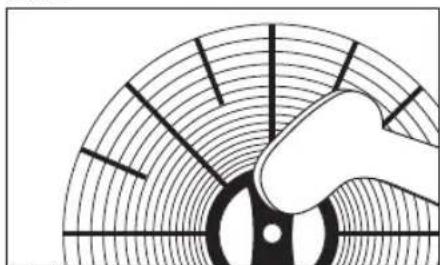

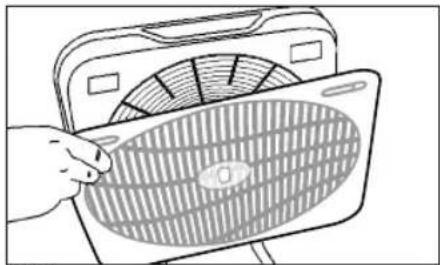

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 2

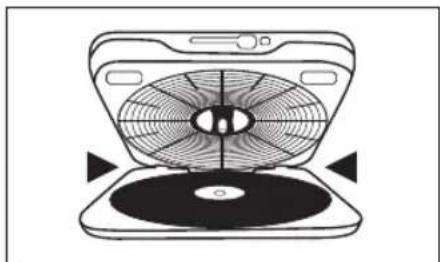

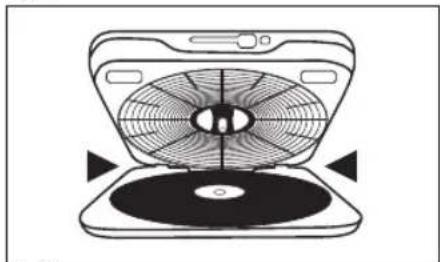

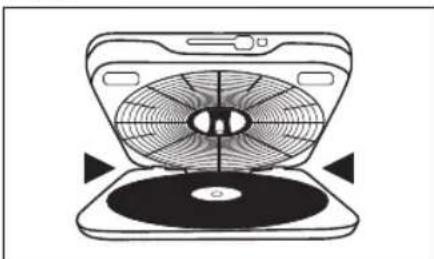

Diagram of a CD inside a fan with an open lid, showing internal blades and ventilation (no text or symbols)

Fig. 3

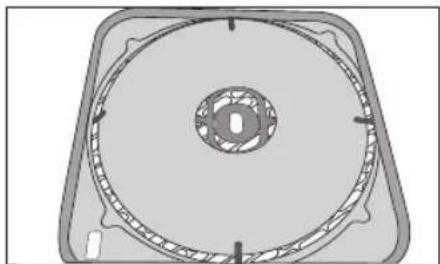

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Fig. 4

Fig. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 6

Getting Started

• Take the air purifier out of the box and remove the clear protective plastic bag.
- Place the air purifier on a firm level surface.
- Before turning ON THE AIR PURIFIER, if you choose to use the optional VOC filter, you will need to install it and confirm that all the filters are firmly in place.

Installing the optional VOC filter

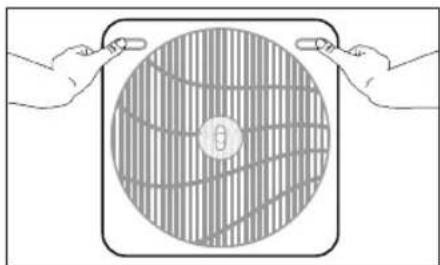

1. Open the rear grill by gently pushing the release tabs toward the outside of the unit. See Fig. 1.

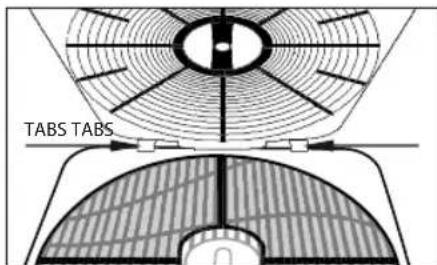

2. Pull the grill away from the body until the tabs at the bottom of the grill plate easily slide away from the unit. See Fig. 2 & 3.

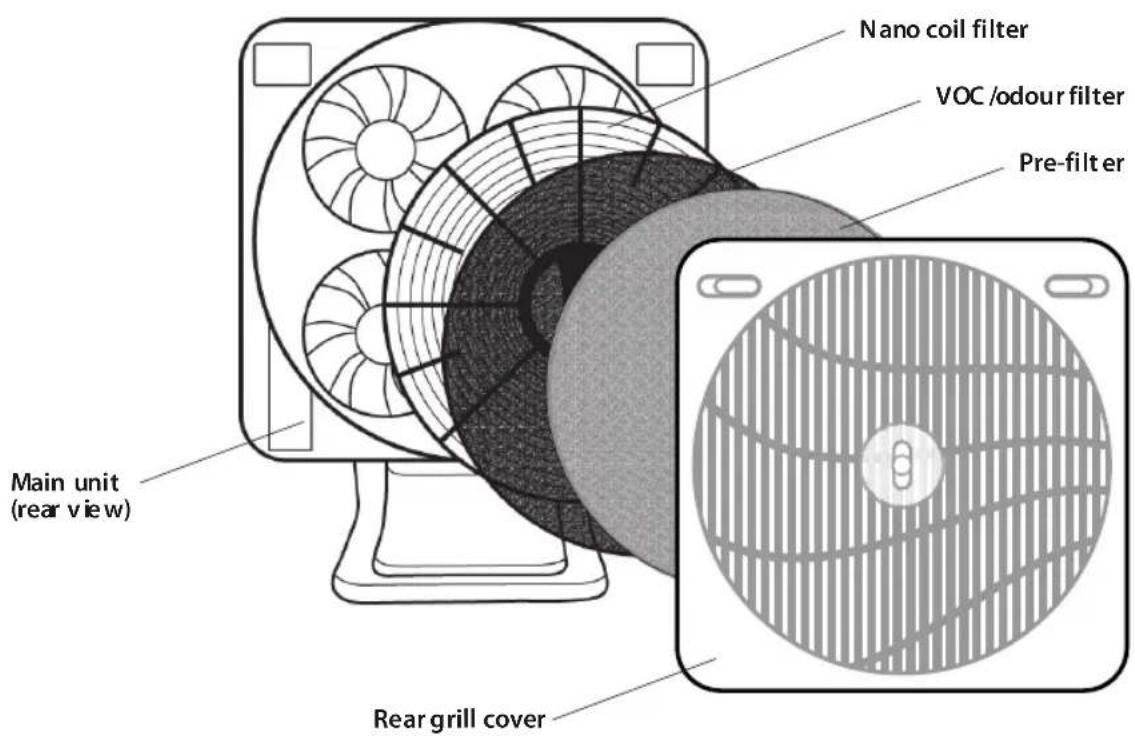

3. The pre-filter and Nano-Coil filter will be installed already. Confirm that Nano-Coil filter is fully engaged on centre hub. To install the VOC/Odour filter (optional), remove the VOC/Odour filter from the plastic bag. Place the VOC filter into the unit flush against the pre-filter, secured by four clips. See Fig. 4.

4. Place the tabs at the bottom of the grill plate into the base of the unit. See Fig. 5.

5. Hold engaged bottom of the grill plate in place and push the top of the grill plate back toward the unit. The release tabs at the top of the grill will click back into place. See Fig. 6.

NOTE: Unit will not operate unless Nano-Coil, pre-filter and grill are properly installed.

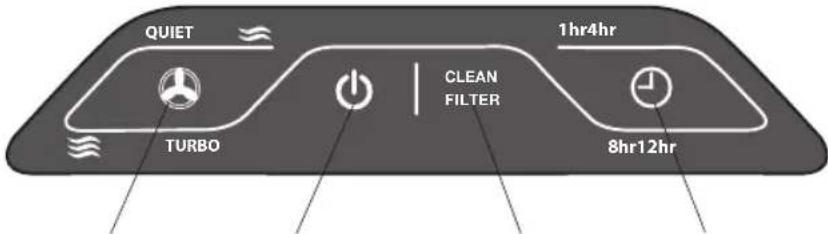

CONTROL PANEL

Operating Instructions

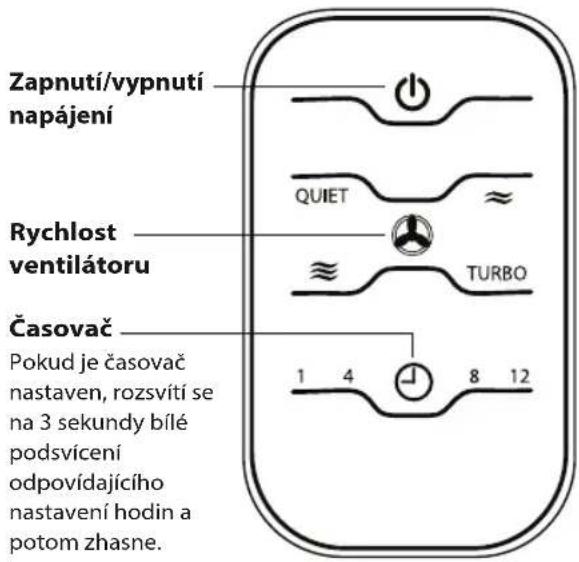

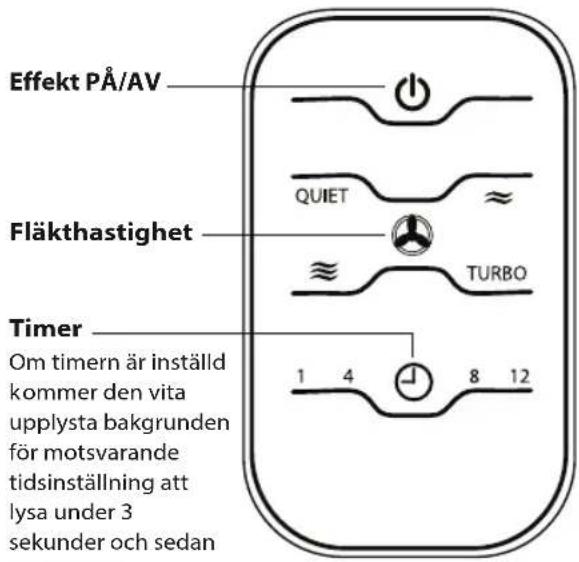

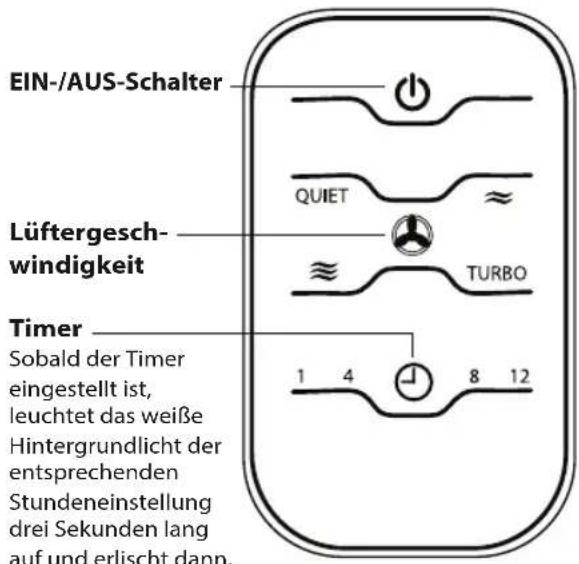

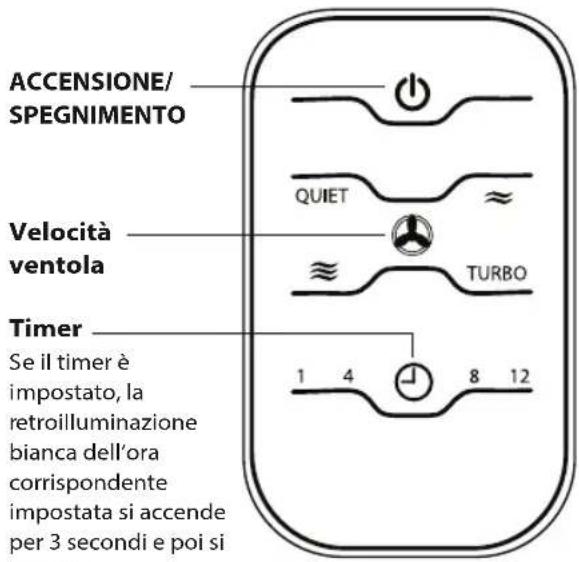

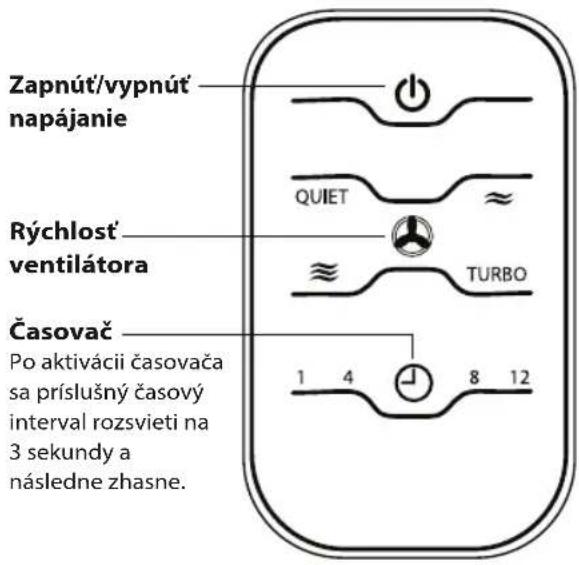

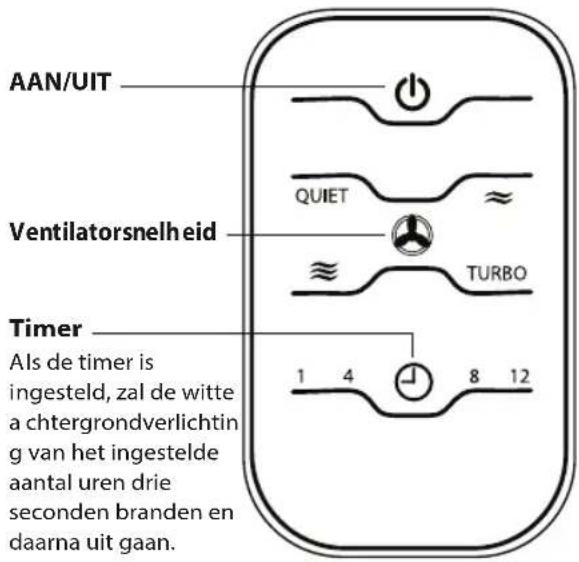

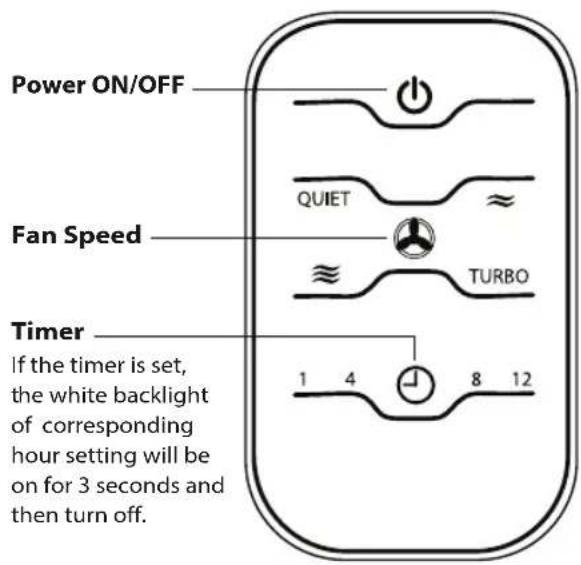

Fan speed On/Off Clean Filter Timer Key

1. On/Off and Speed Settings

1. To turn the air purifier on, press the ON/OFF button. When the air purifier is on, the LED light will be lit and the air purifier will start to operate on LOW speed.
2. There are four speed settings: Quiet → ≈ (low) → ≈ (medium) → TURBO. Quiet mode is whisper quiet – below normal room noise – and is recommended particularly for night use and uninterrupted sleep. TURBO mode gives a cleaning power boost. When the fan is set at TURBO, it will run for 30 minutes and then return to (low) speed.
3. To turn the air purifier OFF, simply press the ON/OFF again.

2. Timer Settings

There are four possible timer settings: 1 (one) hour, 4 (four) hours, 8 (eight) hours, and 12 (twelve) hours. To activate the timer, press the on the control panel. Each time it is pressed, it will advance to the next timer setting. The timer LED will be illuminated while the timer function is on. Cycle through 1, 4, 8, 12, then off to operate the unit without the timer feature.

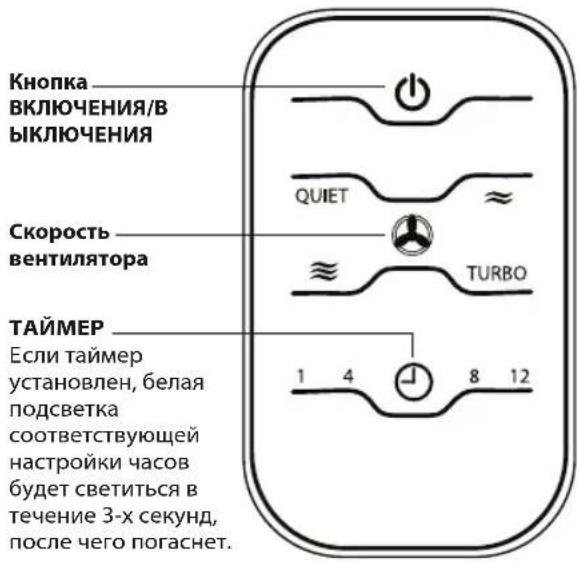

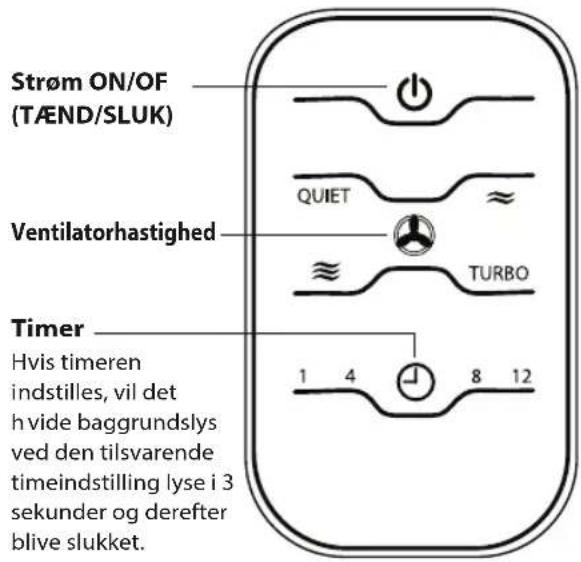

Using the Remote Control

BEFORE FIRST USE, REMOVE PLASTIC PULL TAB FROM BATTERY COMPARTMENT.

Battery Installation

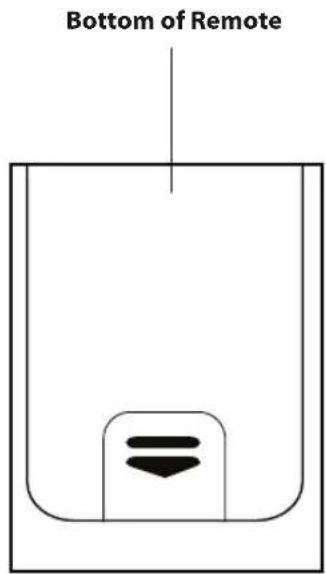

One CR2032 3V battery is included with the remote control. To change the battery, remove the battery door at the back of the remote by applying pressure to the tab and pulling the door away from the remote. Please insert the battery into the remote with the positive symbol facing upwards by pushing it firmly into place. NOTE: Always keep the battery and remote control out of the reach of children.

BATTERY NOTE

• If the unit is not going to be used for a long period of time, remove the battery from the remote control to prevent damage due to possible battery leakage.
• Clean the battery contacts and also those of the device prior to battery installation.
• Remove used batteries promptly by gently using a screwdriver to lever the battery from the compartment.
• Dispose of properly in accordance with the WEEE directive (see page 5).
• Do not dispose of batteries in fire. Batteries may explode or leak.
• Use only the size and type of batteries specified.
• When installing batteries, observe proper polarity +/-. Improper installation of batteries may cause damage

Filter Cleaning and Maintenance

Make sure the air purifier is turned off and unplugged from the outlet before cleaning.

Check the filters every 30 days to see if they need cleaning. If you use your air purifier daily, we recommend checking the filters more frequently.

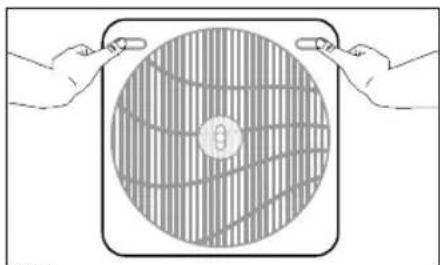

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square (no text or symbols)

Fig. 7

Nano-Coil Filter

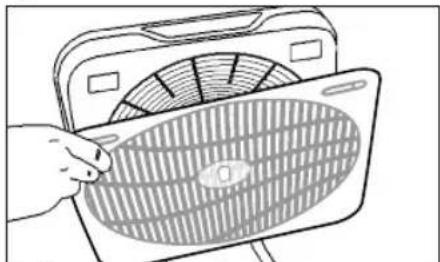

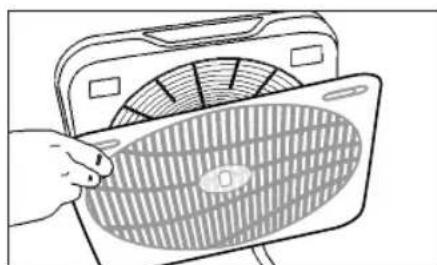

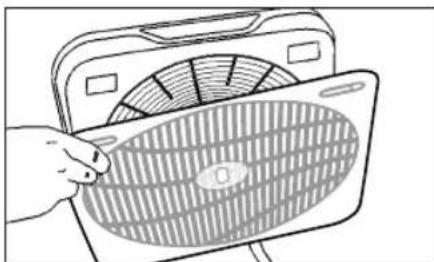

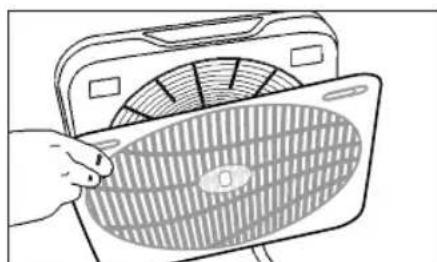

1. Open the rear grill by gently pushing the release tabs toward the outside of the unit. See Fig. 7.

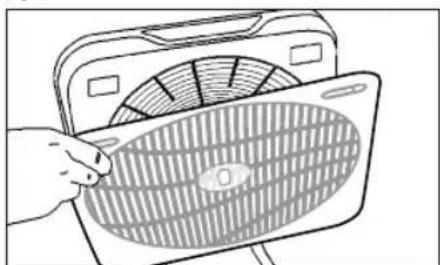

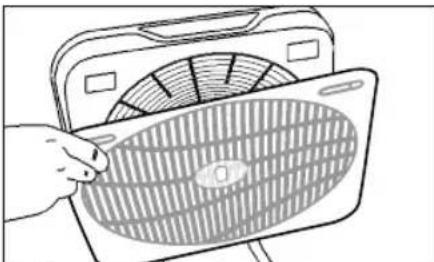

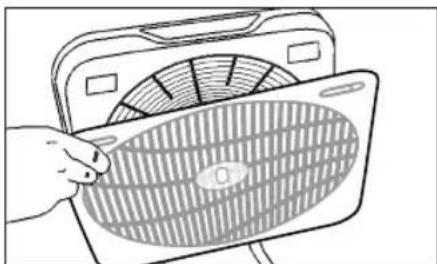

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Fig. 8

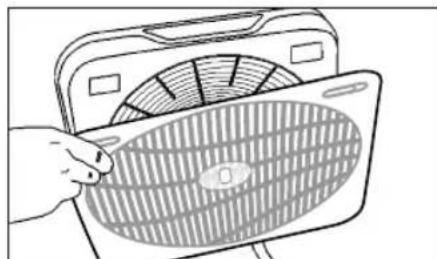

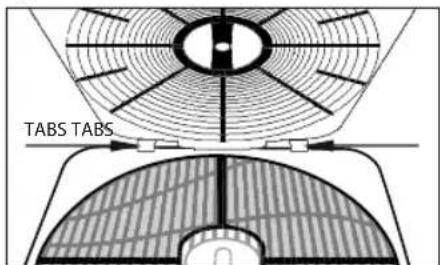

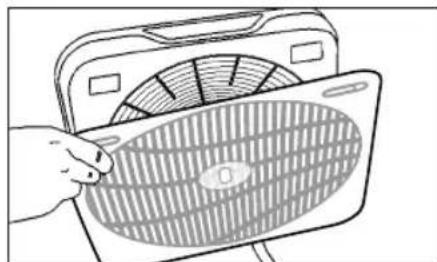

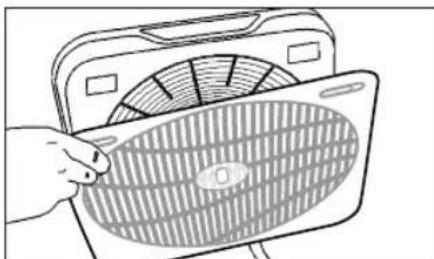

1. Pull the grill away from the body until the tabs at the bottom of the grill plate easily slide away from the unit. See Fig. 8 & 9.

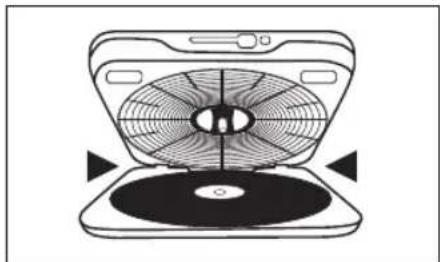

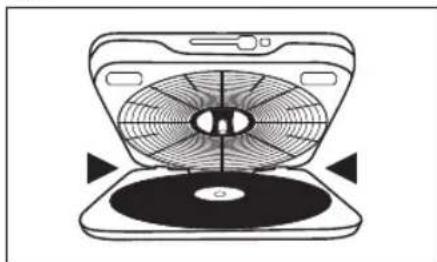

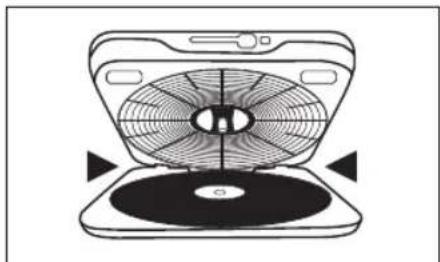

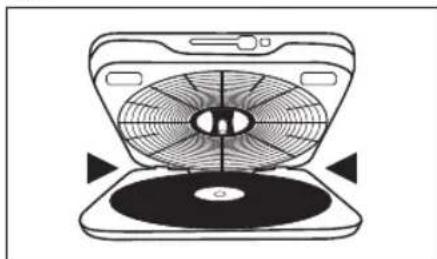

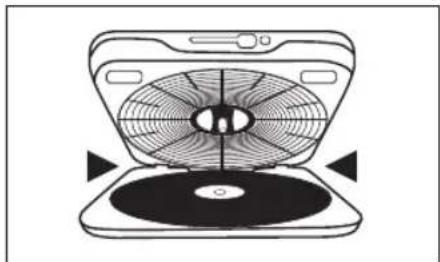

Diagram of a CD inside an open fan with visible blades and central hub (no text or symbols)

Fig. 9

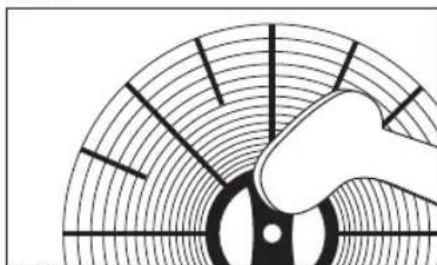

Line drawing of a hand holding a fan blade with internal blades (no text or symbols)

Fig. 10

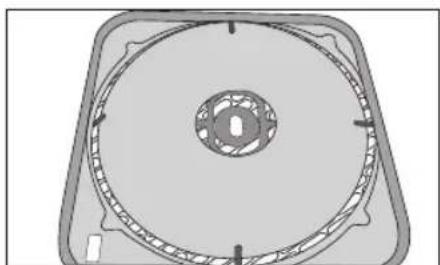

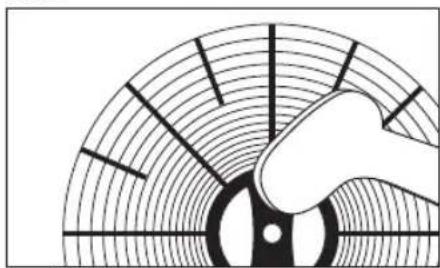

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Fig. 11

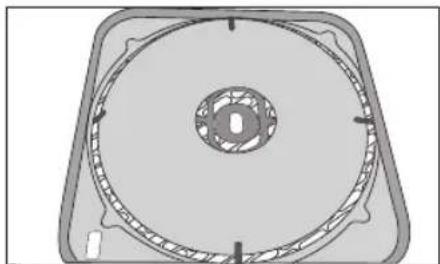

Fig. 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 13

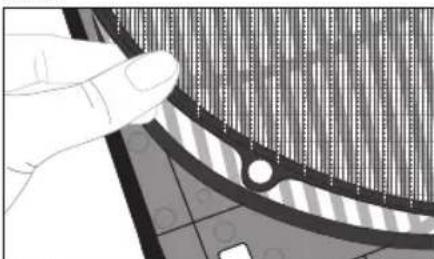

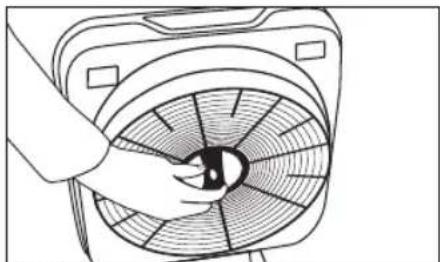

1. Remove the Nano-Coil filter from the unit by grasping the centre handle and pulling out from the centre hub. See Fig. 10.

2. Use the brush attachment with your vacuum cleaner. Run the attachment along both sides of the Nano-Coil filter, taking care not to dislodge the combs. See Fig. 11.

3. Replace the Nano-Coil filter. Make sure to align the centre of the filter handle with the centre hub. Filter handle should be vertical. Be sure the post on the centre hub comes through the hole on the filter's handle. See Fig. 10.

4. Place the tabs at the bottom of the grill plate into the base of the unit. See Fig. 12.

5. Hold engaged bottom of the grill plate in place and push the top of the grill plate back toward the unit until the release tabs at the top of the grill click back into place. See Fig. 13.

DO NOT USE WATER OR ANY HOUSEHOLD CLEANERS OR DETERGENTS TO CLEAN THE NANO-COIL FILTER OR PRE-FILTER

Pre-Filter

Make sure the air purifier is turned off and unplugged from the outlet before cleaning. Check the filters every 30 days to see if they need cleaning. If you use your air purifier daily, we recommend checking the filters more frequently.

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Fig. 14

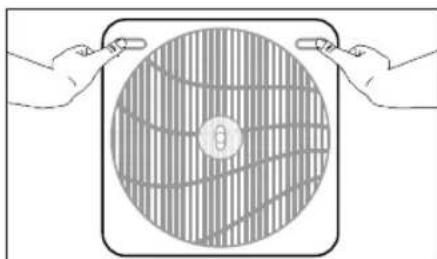

1. Open the rear grill by gently pushing the release tabs toward the outside of the unit. See Fig. 14.

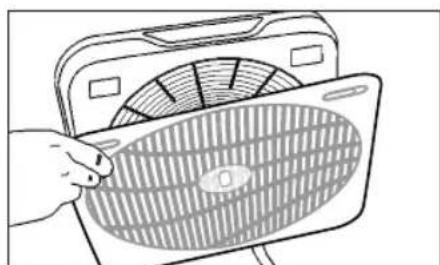

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Fig. 15

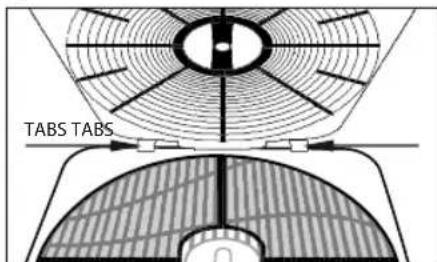

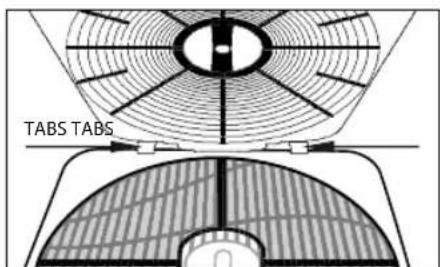

1. Pull the grill away from the body until the tabs at the bottom of the grill plate easily slide away from the unit. See Fig. 15 & 16.

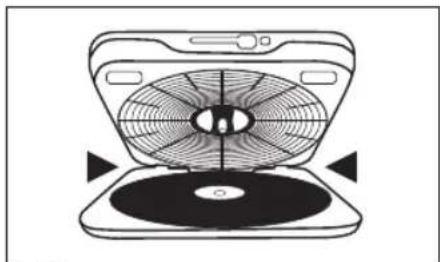

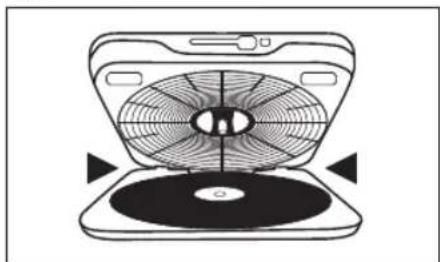

Diagram of a device with a fan and CD inside, showing airflow direction (no text or symbols)

Fig. 16

1. If you are using the VOC filter, remove it by sliding out of the 4 clips. See Fig. 17.

Illustration of a hand holding a small object near a curved surface with striped pattern (no text or symbols)

Fig. 17

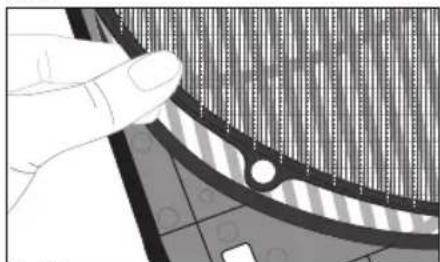

1. Remove the pre-filter by gently pulling it off and away from the 4 posts. See Fig. 18.

Close-up of a hand holding a curved mechanical component with striped pattern (no visible text or symbols)

Fig. 18

1. Use the brush attachment with your vacuum cleaner. Run the attachment along both sides of the pre-filter. See Fig. 11.

2. Replace the pre-filter by pushing the 4 loops of the filter onto the 4 posts of the grill. See Fig. 18.

3. If you are using the VOC filter, put it back in and secure with 4 clips. See Fig. 17.

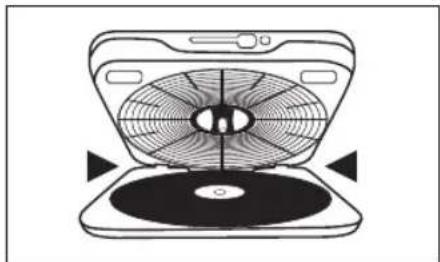

Diagram of a CD inside a fan with an open lid, showing internal blades and a central disc (no text or symbols)

Fig. 19

1. Place the tabs at the bottom of the grill plate into the base of the unit. See Fig. 19.

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Fig. 20

1. Hold engaged bottom of the grill plate in place and push the top of the grill plate back toward the unit until the release tabs at the top of the grill click back into place. See Fig. 20.

Clean Filter Indicator

This air purifier is equipped with a CLEAN FILTER indicator to let you know when it is time to clean the Nano-Coil filter, about every 732 hours of use. When the Nano-Coil filter is ready to be cleaned, the CLEAN FILTER indicator will light up on the control panel.

Once the Nano-Coil filter has been cleaned, press and hold the CLEAN FILTER button until it beeps to reset the filter indicator.

We recommend replacing your VOC filter, if you choose to use it, when you replace your Nano-Coil filter (about every 18 months, with regular maintenance).

To purchase a Nano-Coil replacement filter, model # AR-NCFL1-EU, go back to the retailer (where you purchased your air purifier) or visit www.homedics.co.uk. Replacement VOC filter, model # PP-AR-NC02VOC-EU, can also be purchased at www.homedics.co.uk.

Cleaning and Maintenance

We recommend that the air purifier be cleaned at least once a month and before storage.

1. Turn the air purifier OFF and unplug it from the outlet.
2. Use a dry cloth to clean the external surfaces of the air purifier.
3. The grill plate may be cleaned with a damp cloth or the brush attachment of your vacuum cleaner.

DO NOT USE WATER, WAX, POLISH, OR ANY CHEMICAL SOLUTION

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The unit won't turn on • The	the unit is not plugged in • Plug the unit in
	• Nano-Coil filter is incorrectly installed or out of place	• Properly install the Nano-Coil filter
	• Rear cover is not completely attached	• Make sure rear grill is completely engaged
No air flow or noticeable cleaning effect	• The front or rear grill is blocked by foreign objects	• Remove any obstacles or check the pre-filter and clean if needed
	• The plastic bag is still on the VOC/Odour filter	• Remove the plastic bag
	• The filters are dirty • Clean or replace the Nano-Coil filter and/ or clean the pre-filter
	• The unit has been running for over 2,000 hours	• Replace the Nano-Coil filter

LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION. LES CONSERVER POUR POUVOIR LES CONSULTER ULTÉRIEUREMENT.

FONCTIONS DU PRODUIT :

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Fig. 1

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 2

Diagram of a CD inside an open fan with ventilation grille (no text or symbols)

Fig. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Fig. 4

Fig. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 6

Mise en route

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a square frame (no text or symbols)

Fig. 7

Filtre Nano-Coil

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 8

Diagram of a CD inside an open fan with arrows indicating airflow or ventilation direction (no text or symbols)

Fig. 9

Line drawing of a hand holding a fan blade with internal blades (no text or symbols)

Fig. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Fig. 11

Fig. 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 13

Illustration of two hands holding a circular fan with radial lines, no text or symbols present

Fig. 14

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 15

Diagram of a fan with internal blades and a CD inside a tray, showing no text or symbols.

Fig. 16

Illustration of a hand holding a tool near a curved surface with striped pattern (no text or symbols)

Fig. 17

Close-up of a hand holding a curved object with patterned background (no visible text or symbols)

Fig. 18

Diagram of a fan assembly with a central fan and base, showing airflow direction (no text or symbols)

Fig. 19

Illustration of a hand opening a fan into a device (no text or symbols visible)

Fig. 20

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Abb. 1

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Abb. 2

Diagram of a CD inside an open fan with directional arrows indicating airflow or movement (no text or symbols)

Abb. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Abb. 4

Abb. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Abb. 6

Erste Schritte

Simple line drawing of a container with a central slot and a downward arrow inside (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a square frame (no text or symbols)

Abb. 7

Nano-Coil-Filter

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Abb. 8

Diagram of a CD inside an open fan with arrows indicating airflow or ventilation (no text or symbols)

Abb. 9

Line drawing of a hand holding a fan blade with internal blades (no text or symbols)

Abb. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Abb. 11

Abb. 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Abb. 13

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Abb. 14

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Abb. 15

Diagram of a flat-screen TV fan with a CD inside, showing internal blades and ventilation (no text or symbols)

Abb. 16

Illustration of a hand holding a tool near a curved surface with striped pattern (no text or symbols)

Abb. 17

Close-up of a hand holding a curved mechanical component with a grid pattern (no visible text or symbols)

Abb. 18

Diagram of a CD inside a fan with an open lid, showing airflow direction (no text or symbols)

Abb. 19

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Abb. 20

Illustration of two hands holding a circular fan with radial lines, no text or symbols present

Fig. 1

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 2

Diagram of a device with a fan and screen, showing internal components (no text or symbols)

Fig. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central hub (no text or symbols)

Fig. 4

Fig. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 6

Inicio

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square (no text or symbols)

Fig. 7

Filtro de Nano-Coil:

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 8

Diagram of a CD inside an open fan with visible blades and central hub (no text or symbols)

Fig. 9

Line drawing of a hand holding a fan blade with a circular head (no text or symbols)

Fig. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Fig. 11

Fig. 12

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Fig. 13

Illustration of two hands holding a circular fan with radial lines and a central logo (no text or symbols)

Fig. 14

Illustration of a hand opening a fan with a mesh grille (no text or symbols)

Fig. 15

Diagram of a CD inside an open fan with ventilation grilles (no text or symbols)

Fig. 16

Illustration of a hand holding a tool, with a striped pattern on the surface (no text or symbols)

Fig. 17

Close-up of a hand holding a curved object with patterned background (no visible text or symbols)

Fig. 18

Diagram of a device with a fan and CD inside, showing airflow direction (no text or symbols)

Fig. 19

Illustration of a hand opening a fan with a grid-patterned grille (no text or symbols)

Fig. 20

Illustration of two hands holding a circular object with internal grid pattern (no text or symbols)

Fig. 1

Istruzioni d'uso

Illustration of a hand holding a fan blade inside a device (no text or symbols visible)

Fig. 2

Diagram of a CD inside a fan with an open lid, showing internal blades and ventilation (no text or symbols)

Fig. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Fig. 4

Fig. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 6

Simple line drawing of a container with a side outlet and a vertical line above it (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Fig. 7

Filtro Nano-Coil

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 8

Diagram of a CD inside an open fan with arrows indicating airflow or ventilation (no text or symbols)

Fig. 9

Line drawing of a hand holding a fan blade with a circular blade, showing internal blades and a central hole (no text or symbols)

Fig. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Fig. 11

Fig. 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 13

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Fig. 14

Illustration of a hand opening a fan with a mesh grille (no text or symbols)

Fig. 15

Diagram of a CD inside an open fan with directional arrows indicating airflow or movement (no text or symbols)

Fig. 16

Illustration of a hand holding a small object, with a striped pattern on the surface (no text or symbols)

Fig. 17

Close-up of a hand holding a curved mechanical component with striped pattern (no visible text or symbols)

Fig. 18

Diagram of a device with a fan and CD inside, showing airflow direction (no text or symbols)

Fig. 19

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

Fig. 20

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Fig. 1

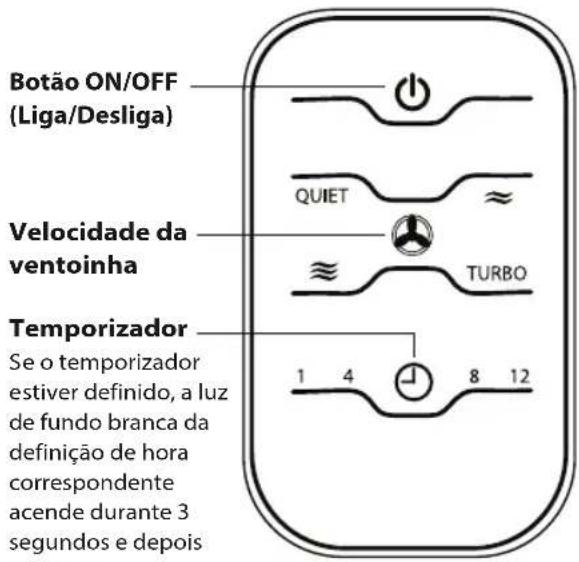

Começar

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 2

Diagram of a CD inside an open fan with ventilation grille (no text or symbols)

Fig. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Fig. 4

Fig. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 6

Simple line drawing of a container with a side outlet and a vertical line above it (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square (no text or symbols)

Fig. 7

Filtro Nano-Coil

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 8

Diagram of a CD inside an open fan with visible blades and central hub (no text or symbols)

Fig. 9

Line drawing of a hand holding a fan blade with internal blades (no text or symbols)

Fig. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Fig. 11

Fig. 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 13

Illustration of two hands holding a circular fan with radial lines and a central circle, enclosed in a rounded square frame (no text or symbols)

Fig. 14

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 15

Diagram of a fan with internal blades and a CD inside, showing no text or symbols

Fig. 16

Illustration of a hand holding a tool near a curved surface with striped pattern (no text or symbols)

Fig. 17

Close-up of a hand holding a curved object with patterned background (no visible text or symbols)

Fig. 18

Diagram of a fan with a CD inside, showing internal blades and ventilation (no text or symbols)

Fig. 19

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 20

Illustration of two hands holding a circular object with internal grid pattern (no text or symbols)

afb.1

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

ab.2

Diagram of a CD inside a fan with an open lid, showing airflow direction (no text or symbols)

afb.3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

afb.4

afb.5

Illustration of a hand holding a fan blade with a grid pattern inside, next to an open fan (no text or symbols)

afb.6

Beginnen

Simple line drawing of a container with a side outlet and a vertical line above it (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

afb.7

Nano Coil-filter

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

afb.8

Diagram of a CD inside a fan with an open lid, showing airflow direction (no text or symbols)

afb.9

Z

Line drawing of a hand holding a fan blade with a circular blade, showing internal blades and a central hole (no text or symbols)

afb.10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

afb.11

afb.12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

afb.13

Illustration of two hands holding a circular object with radial lines, enclosed in a square frame (no text or symbols)

afb.14

Illustration of a hand opening a fan-shaped device with a mesh grille (no text or symbols)

afb.15

Diagram of a flat-screen TV fan with a central screen and base, showing airflow direction (no text or symbols)

afb.16

Illustration of a hand holding a small object near a curved surface with striped pattern (no text or symbols)

afb.17

Close-up of a hand holding a curved mechanical component with grid lines and a circular hole (no visible text or symbols)

afb.18

Diagram of a CD inside a fan with an open lid, showing airflow direction (no text or symbols)

afb.19

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

afb.20

Z

Indicator Clean Filter (Filter reinigen)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a square frame (no text or symbols)

Şek. 1

Başlarken

Illustration of a hand opening a fan with a mesh grille (no text or symbols)

Şek. 2

Diagram of a device with a fan and CD inside, showing airflow direction (no text or symbols)

Şek. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Şek, 4

Şek. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Şek. 6

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square (no text or symbols)

Şek. 7

Nano-Coil Filtre

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Şek. 8

Diagram of a CD or DVD fan with an open lid and fan blade, showing internal blades and ventilation (no text or symbols)

Şek. 9

Line drawing of a hand holding a fan blade with a circular head, showing internal blades and mesh pattern (no text or symbols)

Şek. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Şek. 11

Şek. 12

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Şek. 13

Illustration of two hands holding a circular fan with radial lines, no text or symbols present

Şek. 14

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Şek. 15

Diagram of a CD inside an open fan with ventilation grille (no text or symbols)

Şek, 16

Illustration of a hand holding a small object near a curved surface with striped pattern (no text or symbols)

Şek. 17

Close-up of a hand holding a curved object with patterned background (no visible text or symbols)

Şek. 18

Diagram of a device with a fan and CD inside, showing airflow direction (no text or symbols)

Şek. 19

Illustration of a hand holding a fan blade with a grid pattern (no text or symbols)

Şek. 20

Illustration of two hands holding a circular object with internal grid pattern (no text or symbols)

ox.1

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

ox.2

Diagram of a CD inside an open fan with directional arrows indicating airflow or movement (no text or symbols)

σχ.3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

ox.4

σχ.5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

σχ.6

Πρώτα βήματα

Simple line drawing of a container with a side outlet and a downward arrow inside (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

σχ.7

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

σχ.8

Diagram of a device with a fan and disc, showing airflow direction (no text or symbols)

σχ.9

Φίλτρο Nano-Coil

Line drawing of a hand holding a fan blade with a circular blade, showing internal blades and a central hole (no text or symbols)

σχ. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

ox.11

σχ.12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

σχ.13

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Fig. 14

Illustration of a hand opening a fan-shaped device with a mesh grille (no text or symbols)

σχ. 15

Diagram of a flat-screen TV fan with a central screen and base, showing airflow direction (no text or symbols)

σχ.16

Illustration of a hand holding a small object near a curved surface with striped pattern (no text or symbols)

σχ. 17

Close-up of a hand holding a curved mechanical component with grid lines and a circular hole (no text or symbols visible)

σχ.18

Diagram of a CD inside a fan with an open lid, showing airflow direction (no text or symbols)

σχ. 19

Illustration of a hand opening a fan with a grid-patterned cover (no text or symbols)

σχ.20

d

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

рис. 1.

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

рис. 2

Diagram of a CD inside an open fan with ventilation grille (no text or symbols)

рис. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

рис.4

рис. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

рис. 6

Начало работы

Simple line drawing of a container with a side outlet and a vertical line above it (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square (no text or symbols)

рис. 7

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

рис.8

Diagram of a CD inside an open fan with visible blades and central hub (no text or symbols)

рис. 9

Фильтр Nano-Coil

Line drawing of a hand holding a fan blade with a circular head (no text or symbols)

рис. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

рис. 11

рис. 12

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

рис. 13

Illustration of two hands holding a circular object with radial lines, enclosed in a square frame (no text or symbols)

рис. 14

Illustration of a hand opening a fan with a mesh grille (no text or symbols)

рис. 15

Diagram of a CD inside an open fan with ventilation grilles (no text or symbols)

рис. 16

Illustration of a hand holding a tool near a curved surface with striped pattern (no text or symbols)

рис. 17

Close-up of a hand holding a curved object with patterned background (no visible text or symbols)

рис. 18

Diagram of a device with a fan and CD inside, showing airflow direction (no text or symbols)

рис. 19

Illustration of a hand holding a fan blade with a grid pattern (no text or symbols)

рис. 20

Illustration of two hands holding a circular object with internal grid pattern (no text or symbols)

rys.1

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

rys.2

Diagram of a CD inside a fan with an open lid, showing internal blades and ventilation (no text or symbols)

rys. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

rys.4

rys. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

rys. 6

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square (no text or symbols)

rys.7

Filtr Nano-Coil

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

rys. 8

Diagram of a CD inside an open fan with directional arrows indicating airflow or movement (no text or symbols)

rys. 9

PL

Line drawing of a hand holding a fan blade with a circular blade, showing internal blades and a central hole (no text or symbols)

rys. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

rys. 11

rys. 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

rys. 13

Illustration of two hands holding a circular fan with radial stripes and a central circle, enclosed in a rounded square frame (no text or symbols)

rys. 14

Illustration of a hand opening a fan-shaped device with a mesh grille (no text or symbols)

rys. 15

Diagram of a flat-screen TV fan with a central screen and base, showing airflow direction (no text or symbols)

rys. 16

Illustration of a hand holding a small object near a curved surface with striped pattern (no text or symbols)

rys. 17

Close-up of a hand holding a curved mechanical component with grid lines and a circular hole (no visible text or symbols)

rys. 18

Diagram of a device with a fan and CD inside, showing airflow direction (no text or symbols)

rys. 19

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

rys. 20

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Fig. 1

Komma igång

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 2

Diagram of a CD inside an open fan with ventilation grille (no text or symbols)

Fig. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Fig. 4

Fig. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 6

Simple line drawing of a container with a side outlet and a vertical line above it (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a square frame (no text or symbols)

Fig. 7

Nano-Coil-filter

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 8

Diagram of a CD inside an open fan with ventilation grille (no text or symbols)

Fig. 9

Line drawing of a hand holding a fan blade with internal blades (no text or symbols)

Fig. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Fig. 11

Fig. 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 13

Illustration of two hands holding a circular fan with radial lines, no text or symbols present

Fig. 14

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Fig. 15

Diagram of a CD inside a fan with an open lid, showing internal blades and mounting points (no text or symbols)

Fig. 16

Illustration of a hand holding a tool near a curved surface with striped pattern (no text or symbols)

Fig. 17

Close-up of a hand holding a curved object with patterned background (no visible text or symbols)

Fig. 18

Illustration of a hand opening a fan with a grid-patterned grille (no text or symbols)

Fig. 20

Illustration of two hands holding a circular object with internal grid pattern (no text or symbols)

Fig. 1

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

Fig. 2

Diagram of a CD inside a fan with an open lid, showing internal blades and ventilation (no text or symbols)

Fig. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Fig. 4

Fig. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 6

Simple line drawing of a container with a side outlet and a vertical line above it (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square (no text or symbols)

Fig. 7

Nano-Coil Filter

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 8

Diagram of a CD inside an open fan, showing internal blades and base (no text or symbols)

Fig. 9

Line drawing of a hand holding a fan blade with internal blades (no text or symbols)

Fig. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Fig. 11

Fig. 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 13

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Fig. 14

Illustration of a hand holding a fan blade with a mesh pattern inside, no text or symbols present

Fig. 15

Diagram of a CD inside an open fan, showing internal blades and a base plate (no text or symbols)

Fig. 16

Illustration of a hand holding a small object near a curved surface with striped pattern (no text or symbols)

Fig. 17

Close-up of a hand holding a curved mechanical component with striped pattern (no visible text or symbols)

Fig. 18

Diagram of a CD inside a fan with an open lid, showing internal blades and a central disc (no text or symbols)

Fig. 19

Illustration of a hand opening a fan with a grid pattern (no text or symbols)

Fig. 20

CLEAN FILTER Indikatorknappen

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

Fig. 1

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 2

Diagram of a CD inside an open fan with ventilation grille (no text or symbols)

Fig. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Fig. 4

Fig. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 6

Komme i gang

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square (no text or symbols)

Fig. 7

Nano-Coil filter

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 8

Diagram of a CD inside an open fan with directional arrows indicating airflow or movement (no text or symbols)

Fig. 9

Line drawing of a hand holding a fan blade with a circular head (no text or symbols)

Fig. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Fig. 11

Fig. 12

1. Sett ørene som er nederst på grillplaten inn i sokkelen på enheten. Se fig. 12.

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 13

Illustration of two hands holding a circular object with radial lines, enclosed in a square frame (no text or symbols)

Fig. 14

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Fig. 15

Diagram of a CD inside a fan with an open lid, showing internal blades and mounting base (no text or symbols)

Fig. 16

Illustration of a hand holding a tool, with a striped pattern on the surface (no text or symbols)

Fig. 17

Close-up of a hand holding a curved object with patterned background (no visible text or symbols)

Fig. 18

1. Førfilteret fjernes ved å trekke det forsiktig av og bort fra de 4 tappene. Se fig. 18.

2. Bruk en støvsuger med kost. Bruk støvsugerkosten langs begge sidene på førfilteret. Se fig. 11.

3. Førfilteret skiftes ved å skyve de 4 sløyfene på filteret inn på de 4 tappene på grillen. Se fig. 18.

4. Hvis du bruker VOC-filteret, monter det tilbake og sikre det med de 4 klipsene. Se fig. 17.

5. Sett ørene som er nederst på grillplaten inn i sokkelen på enheten. Se fig. 19.

Diagram of a CD inside a fan with an open lid, showing airflow direction (no text or symbols)

Fig. 19

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Fig. 20

Indikator for å rengjøre filter

Illustration of two hands holding a circular fan with radial lines and a central circular element (no text or symbols)

kuvaa 1

Aloitus

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

kuvaa 2

Diagram of a device with a fan and base, showing airflow direction (no text or symbols)

kuvaa 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

kuvaa 4

kuvaa 5

Illustration of a hand holding a fan blade with a grid pattern, next to an open fan (no text or symbols)

kuvaa 6

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a rounded square frame (no text or symbols)

kuvaa 7

Nano Coil -suodatin

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

kuvaa 8

Diagram of a CD inside an open fan with ventilation grille (no text or symbols)

kuvaa 9

Line drawing of a hand holding a fan blade with a circular head (no text or symbols)

kuvaa 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

kuvaa 11

kuvaa 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

kuvaa 13

Illustration of two hands holding a circular object with horizontal stripes, enclosed in a square frame (no text or symbols)

kuvaa 14

Illustration of a hand opening a fan-shaped device with a mesh grille (no text or symbols)

kuvaa 15

Diagram of a CD inside an open fan with directional arrows indicating airflow or movement (no text or symbols)

kuvaa 16

Illustration of a hand holding a small object near a curved surface with striped pattern (no text or symbols)

kuvaa 17

Close-up of a hand holding a curved mechanical component with striped pattern (no visible text or symbols)

kuvaa 18

Diagram of a CD inside a fan with an open lid, showing internal blades and ventilation (no text or symbols)

kuvaa 19

Illustration of a hand opening a fan into a device (no text or symbols visible)

kuvaa 20

Illustration of two hands holding a circular fan with radial lines and a central circle (no text or symbols)

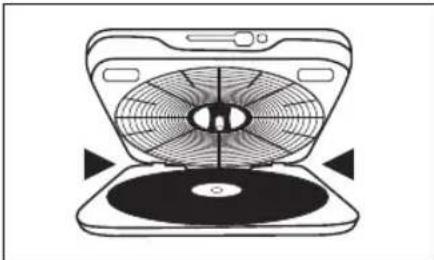

obr. 1

Jak začit

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

obr.2

Diagram of a fan with a CD inside, showing airflow direction (no text or symbols)

obr. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central hub (no text or symbols)

obr.4

obr. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

obr. 6

Simple line drawing of a container with a side outlet and a vertical line above it (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a square frame (no text or symbols)

obr. 7

Filtr Nano-Coil

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

obr. 8

Diagram of a device with a fan and CD inside, showing airflow direction (no text or symbols)

obr. 9

Line drawing of a hand holding a fan blade with internal blades (no text or symbols)

obr. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

obr. 11

obr. 12

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

obr. 13

Illustration of two hands holding a circular fan with radial lines, no text or symbols present

obr. 14

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

obr. 15

Diagram of a refrigerator with an open fan and CD inside, showing airflow direction (no text or symbols)

obr. 16

Close-up of a hand holding a small object, partially covered by a striped band (no text or symbols visible)

obr. 17

Close-up of a hand holding a curved object with patterned background (no visible text or symbols)

obr. 18

Diagram of a device with a fan and base, showing airflow or ventilation (no text or symbols)

obr. 19

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

obr. 20

Illustration of two hands holding a circular object with internal grid pattern (no text or symbols)

ábrát 1

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

abrat 2

Diagram of a CD inside a fan with an open lid, showing internal blades and ventilation (no text or symbols)

ábrát 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

abrat 4

ábrát 5

Illustration of a hand holding a fan blade with a grid pattern inside, next to an open fan (no text or symbols)

ábrát 6

Üzembe helyezés

Illustration of two hands holding a circular fan with radial lines, no text or symbols present

ábrát 7

Nano-Coil szűrő

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

ábrát 8

Diagram of a CD inside an open fan, showing internal blades and a base (no text or symbols)

ábrát 9

Line drawing of a hand holding a fan blade with internal blades (no text or symbols)

ábrát 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

ábrát 11

ábrát 12

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

ábrát 13

Illustration of two hands holding a circular object with horizontal stripes, enclosed in a square frame (no text or symbols)

ábrát 14

Illustration of a hand opening a fan with a mesh grille (no text or symbols)

ábrát 15

Diagram of a CD inside an open fan with visible blades and central hub (no text or symbols)

ábrát 16

Illustration of a hand holding a small object near a curved surface with striped pattern (no text or symbols)

ábrát 17

Close-up of a hand holding a curved mechanical component with striped pattern (no visible text or symbols)

ábrát 18

Diagram of a device with a fan and CD inside, showing airflow direction (no text or symbols)

ábrát 19

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

ábrát 20

Illustration of two hands holding a circular object with internal grid pattern (no text or symbols)

Obr. 1

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

Obr. 2

Diagram of a CD inside an open fan with a base, showing internal blades and ventilation (no text or symbols)

Obr. 3

Cross-sectional diagram of a mechanical component with concentric circular features and central bore (no text or symbols)

Obr. 4

Obr. 5

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Obr. 6

Začiname

Simple line drawing of a container with a side outlet and a vertical line above it (no text or symbols)

Illustration of two hands holding a circular object with internal grid pattern, enclosed in a square frame (no text or symbols)

Obr. 7

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Obr. 8

Diagram of a CD inside an open fan with ventilation grilles (no text or symbols)

Obr. 9

Filter Nano-Coil

Line drawing of a hand holding a fan blade with a circular head (no text or symbols)

Obr. 10

Close-up of a hand holding a circular object with radial lines, no visible text or symbols

Obr. 11

Obr. 12

Illustration of a hand holding a fan blade with a grid pattern, no text or symbols present

Obr. 13

Illustration of two hands holding a circular object with radial lines, enclosed in a square frame (no text or symbols)

Obr. 14

Illustration of a hand holding a fan blade with a grid pattern inside, no text or symbols present

Obr. 15

Diagram of a fan with internal blades and a CD inside a tray, showing airflow direction (no text or symbols)

Obr. 16

Close-up of a hand holding a small object, partially covered by a striped band (no text or symbols visible)

Obr. 17

Close-up of a hand holding a curved mechanical component with striped pattern (no visible text or symbols)

Obr. 18

Diagram of a device with a fan and base, showing airflow or ventilation (no text or symbols)

Obr. 19

Illustration of a hand holding a fan blade with a mesh grille (no text or symbols)

Obr. 20
