Product type	Hand blender
Brand	SilverCrest
Model	SSSH 600 A1
Dimensions (with blender head)	approx. 40.0 x 6.4 cm (H x Ø)
Dimensions (with whisk)	approx. 45.0 x 6.2 cm (H x Ø)
Weight (motor unit only)	approx. 570 g
Weight (with blender head)	approx. 680 g
Weight (with whisk)	approx. 680 g
Power supply	220-240 V~, 50-60 Hz, 600 W
Power cord length	approx. 150 cm
Protection class	II
Measuring cup capacity	700 ml, max processing 300 ml
Speed setting	5 levels + TURBO button
Short operating time (blender head)	1 minute
Short operating time (whisk)	2 minutes
Required cooling time	at least 2 minutes
Materials	Plastic motor unit, blender head and whisk in stainless steel, measuring cup in glass
Care and cleaning	Motor unit: damp cloth; head, whisk and cup: dishwasher
Safety	Automatic shut-off in case of overheating, very sharp blades
Warranty	3 years
Spare parts	Available via after-sales service (blender head, whisk, adapter, measuring cup)
Intended use	Household: chopping, pureeing, whisking, mixing boneless food

Frequently Asked Questions - SSSH 600 A1 SILVERCREST

How to assemble the blender head or whisk?

Place the motor unit on the blender head or whisk, aligning the arrow (▼) with the open lock symbol, then turn towards the closed lock until you hear a click.

Can I blend hot food?

Yes, but be careful not to exceed the maximum capacity of 300 ml in the measuring cup and avoid splashes. Preferably use a tall container.

How to clean the motor unit?

Never immerse the motor unit in water. Clean it with a slightly damp cloth and dry it thoroughly.

Can I put the blender head and whisk in the dishwasher?

Yes, the blender head, whisk (without the adapter) and measuring cup are dishwasher safe.

Why is my blender not working?

Check that the plug is properly inserted and the socket works. Ensure the blender head or whisk is correctly attached and that the mixture does not contain any overly hard pieces.

Which foods cannot be blended?

Do not blend very hard foods such as frozen products, coffee beans, cereals, spices, or chocolate. Also avoid bones.

How to use the TURBO button?

The TURBO button (3) immediately activates maximum speed. Hold it down during use. It is not recommended with the whisk to avoid splashing.

What is the maximum continuous usage time?

With the blender head: 1 minute; with the whisk: 2 minutes. After that, let it cool for at least 2 minutes to avoid overheating.

Can I use the hand blender to make milkshakes?

Yes, it is perfect for blending fruits with milk or ice. Use the measuring cup (max 300 ml) or another tall container.

What to do if the blade does not turn or has difficulties?

Unplug the appliance, check that the blender head is properly attached and remove any possible obstruction. If the problem persists, contact after-sales service.

USER MANUAL SSSH 600 A1 SILVERCREST

Metallic cylindrical container with directional arrows and a small mark on the side (no text or symbols)

Diagram of a cylindrical container with internal flow arrows and a lock symbol, labeled 'C' (no text or labels beyond the diagram)

Deutsch......2

English....20

Français....37

Nederlands 58

Polski 76

Česky 94

Slovenčina....111

Español.... 129

Dansk....147

Italiano....164

Magyar 182

Slovenščina 200

Inhaltsverzeichnis

Diagram showing a hand pouring liquid into a container with a tool, no text or symbols present

3.2 Cooling time....22

1. Safety instructions 23
2. Copyright.... 28
3. Before initial use....28

6.1 Attaching the immersion blender (5) or whisk (6) 29
6.2 Removing the immersion blender (5) or whisk (6)....29
6.3 Setting the speed....29
6.4 The measuring cup....29

1. Initial use 29

7.1 Operating with the immersion blender (5)....30
7.2 Operating with the whisk (6)....31

1. Cleaning 31
2. Storing the device when not in use 32
3. Troubleshooting.... 32
4. Environmental and waste disposal information....33
5. Marks of conformity 34
6. Warranty information .... 35

Congratulations!

By purchasing the SilverCrest hand-held blender SSSH 600 A1, hereinafter referred to as hand-held blender, you have opted for a high-quality product.

Familiarise yourself with the hand-held blender before using it for the first time and read these operating instructions carefully. Observe the safety instructions and only use the hand-held blender in the manner described in these operating instructions and for the indicated fields of application.

Keep these operating instructions in a safe place. Hand over all documents in the event that you pass on the hand-held blender to a third party.

1. Intended use

This hand-held blender is a household device and is only intended for chopping and blending boneless foodstuffs. The whisk provided allows liquid or semi-liquid ingredients and mixtures to be beaten until frothy or finely mixed. The hand-held blender must not be used outside of closed rooms or in regions with a tropical climate. The hand-held blender is not intended for business or commercial use. Use the hand-held blender solely for private purposes in living areas; any other use is deemed improper. This hand-held blender meets the requirements of all relevant standards related to CE conformity. Compliance with these standards is no longer guaranteed if a change is made to the hand-held blender without the authorization of the manufacturer. The manufacturer shall not be liable for any damages or faults arising as a result.

Please observe the national regulations and/or laws of the country in which the device is used.

2. Package contents

Unpack the hand-held blender and all of the accessories. Remove all packaging materials and check all of the components for completeness and signs of damage. If any parts are missing or damaged, please contact the manufacturer.

• Motor block with power cable and plug
- Immersion blender
- Whisk
- Adapter (for whisk)
- Measuring cup
• These operating instructions

This operating manual also has a cover that can be unfolded. The inside of the cover provides a schematic of the SilverCrest hand-held blender SSSH 600 A1 and all controls with a number legend. This cover page

can remain unfolded while you read other sections of the operating instructions. This provides you with a reference to the controls at all times. The numbers identify the following parts/functions:

1	Speed controller
2	Switch (normal speed)
3	TURBO switch (fast speed)
4	Motor block
5	Immersion blender
6	Whisk (with adapter)

3. Technical data

Manufacturer TARGA GmbH
Designation SilverCrest SSSH 600 A1
Power supply	220-240 V ~ (AC voltage), 50-60 Hz
Power consumption 600	W
CO time 1 minute with immersion blender (5)	2 minutes with whisk (6)
Length of power cable Approx. 150 cm
Protection class	II
Dimensions (H x ∅) Approx. 40.0 x 6.4 with im	mersion blender (5)Approx. 45.0 x 6.2 with whisk (6)
Motor block (4) weight approx. 570 g
Motor block (4) weight incl. immersionblender (5)	Approx. 680 g
Motor block (4) weight incl. whisk (6) Approx.	680 g
Measuring cup capacity 700 ml of liquid
Measuring cup processed amount Max. 300 ml	of liquid

The specifications and design are subject to change without notice.

3.1 CO time

The CO time (continuous operation time) specifies how long the hand-held mixer can be operated before the motor overheats and causes damage. The continuous operation time for the hand-held blender is 1 minute when using the immersion blender (5) and 2 minutes when using the whisk (6).

Do not use the immersion blender (5) on very firm or very tough foods (e.g. meat) continuously for more than 30 seconds.

3.2 Cooling time

Following the maximum period of use of up to 1 minute with the immersion blender (5) or up to 2 minutes with the whisk (6), let the hand-held blender cool down for at least 2 minutes and only then continue with the process previously started.

4. Safety instructions

Before using the device for the first time, please read the following instructions carefully and observe all warnings, even if you are familiar with using electronic and household devices. Keep this operating manual in a safe place for future reference. If you give the device away or sell it, please ensure that you also pass on this operating manual. It is part of the device.

Key to symbols

DANGER! This symbol, together with the word 'Danger', indicates an impending dangerous situation that, if not prevented, can lead to serious injuries or even death.

WARNING! This icon indicates important information for the safe operation of the hand-held blender and user safety.

DANGER! This icon indicates hazards to health and/or property posed by an electric shock, potentially including risk of death.

Risk of fire! This icon warns us that fires may occur if instructions are not followed.

This icon indicates that under no circumstances may the motor block (4) be immersed in water.

This icon indicates products that have been tested in relation to their physical and chemical composition and that in accordance with EC 1935/2004 have been regarded as harmless to health in terms of contact with foodstuffs.

This symbol gives you further information on the topic.

This symbol on the measuring cup indicates the maximum amount of liquid that can be processed in the measuring cup without the contents overflowing.

Foreseeable misuse

• Use the hand-held blender as intended. Misuse of the device may result in injury.
• The hand-held blender may not be used to chop very hard foods. These include frozen foods, coffee beans, grains and spices. It is also not possible to process chocolate.

- No other materials than foodstuffs may be processed.

Otherwise, the hand-held blender may be damaged.

Personal safety

- This device must not be used by children. The hand-held blender and its connecting cable are to be kept away from children. Ensure that children are supervised and do not play with this device. In particular, keep the immersion blender (5) away from children in order to prevent any injuries caused by it.

DANGER! The packaging material is not a toy. Children must not play with plastic bags. There is a risk of suffocation. Store the device out of reach of children.

- This device can be used by people with reduced physical, sensory or mental abilities or who lack experience and knowledge, providing they are supervised or have been instructed in the safe use of the device and understand the resulting dangers.

• Children must not play with the device.

DANGER! Risk of injury

- Prior to replacing accessories or additional parts that move during operation, the device must be switched off and disconnected from the mains.

- Disconnect the hand-held blender from the mains network if you wish to assemble, disassemble or clean it. The same applies for periods of non-use and during thunder and lightning. There is a risk of injury!

- Do not remove the motor block (4) until the whisk (6) has stopped. There is a risk of injury!

- Do not remove the motor block (4) until the immersion blender (5) has stopped. Under no circumstances should you put your hand in the bowl when the blade is turning. There is a risk of injury!

- Take care when cleaning the hand-held blender! The blade in the immersion blender (5) is very sharp! There is a risk of injury!

- After switching off the device, wait until the whisk (6) has stopped before removing the hand-held blender from the food. There is a risk of injury!

- After switching off the device, wait until the blade has stopped before removing the hand-held blender from the foodstuff. There is a risk of injury!

- Under no circumstances should you put your hand in the bowl when the whisk (6) is turning. Do not place any objects in the whisk (6) and keep baggy clothing and long hair away. There is a risk of injury!

- Under no circumstances should you put your hand in the bowl when the blade of the immersion blender (5) is turning. Do not place any objects in the blade and keep baggy clothing and long hair away from the rotating blade. There is a risk of injury!

DANGER of electric shock

• Only connect the hand-held blender to the mains network once the motor block (4) and immersion blender (5) or whisk (6) are assembled. There is a risk of electric shock!
• Only plug the hand-held blender into a power socket that is accordingly installed and easily accessible and whose mains voltage corresponds with the rating plate specifications. The user does not have to do anything to switch the product between 50 and 60Hz . The product is suitable for both 50 and 60Hz supplies. Once the device is plugged in, the power socket must be kept easily accessible so that the plug can be pulled out quickly in an emergency.
• Never operate the hand-held blender in the vicinity of the bath, shower or a filled sink.
• The power cord and plug must not be damaged.
• If the device's power cord is damaged, it must be replaced by the manufacturer, their service department or by a similarly qualified person in order to prevent any hazards.
• Never open the housing of the motor block (4), as this contains parts to be maintained. If the housing is open, there is a risk of electric shock.
• If you notice any smoke, unusual noises or smells, remove the plug from the power socket immediately. In such cases you must stop

using the hand-held blender until it has been checked by a technician. If the device catches fire, do not inhale any resulting smoke. If you do inhale any smoke, seek medical attention. Inhaling smoke can be harmful to your health. There is a risk of injury!

• Ensure that the power cord cannot be damaged by sharp edges or hot surfaces. The power cord must not get jammed or squashed. Always remove the power cord from the power socket by the plug; never pull on the cable itself. Always lay the power cord in such a way that nobody can stand or trip on it. There is a risk of injury!
• The device must always be disconnected from the mains network if left unattended, in the event of malfunctions, prior to assembly and disassembly or cleaning. There is a risk of electric shock!

Under no circumstances may the motor block (4) be immersed in water and no liquids must ingress into the housing of the motor block (4).

- Should liquids ingress into the housing of the motor block (4), immediately remove the plug from the power socket and contact the service department (see “Warranty information” section). There is a risk of electric shock!

- Never touch the motor block (4), the power cord and the plug with wet hands. There is a risk of electric shock!

- Disconnect the hand-held blender from the mains network as soon as it has been used. The device is only de-energised once the plug has been removed. There is a risk of electric shock!

DANGER of fire

Following the maximum period of use of up to 1 minute with the immersion blender (5) or 2 minutes with the whisk (6), let the hand-held blender cool down for at least 2 minutes and only then continue with the process previously started. There is a risk of fire.

5. Copyright

All contents of this operating manual are subject to copyright law and are provided to the user solely as a source of information. Any form of copying or reproduction of data and information without the express written permission of the author is prohibited. This also concerns commercial use of the content and data. The text and illustrations correspond to the technical standards at the time of printing. Subject to alterations.

6. Before initial use

Remove the SSSH 600 A1 hand-hand blender and all accessories from the packaging and check the completeness of the delivery. Remove the protective film. Keep the packaging material away from children and dispose of it in an environmentally-friendly manner.

Prior to using it for the first time, the hand-held blender must be cleaned as described in the "Cleaning" section.

Assemble the hand-held blender once the cleaned parts have fully dried:

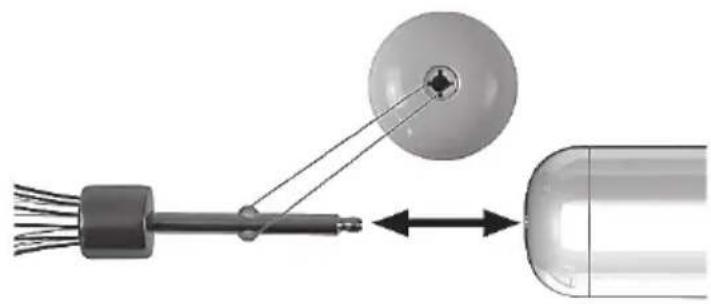

To use the whisk (6), this must initially be placed in the adapter provided. Proceed as follows:Guide the shaft of the whisk (6) into the adapter holder until the shaft audibly snaps into place. Ensure that the two catches on the shaft of the whisk (6) engage with the corresponding recesses on the adapter.

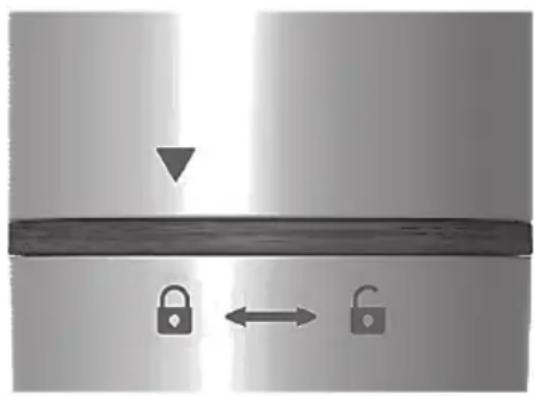

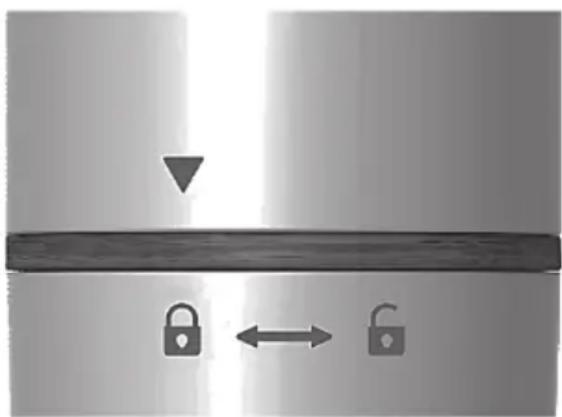

An arrow marking (▼) is attached to motor block (4). On the immersion blender (5) and whisk (6), the following markings are attached: [IMAGE].These markings provide support when attaching and removing the immersion blender (5) or whisk (6).

6.1 Attaching the immersion blender (5) or whisk (6)

• Attach the motor block (4) onto the immersion blender (5) or whisk (6) so that the arrow marking (▼) points towards the opened padlock ▶ on the immersion blender (5) or whisk (6). See figure B.
• Now rotate the motor block (4) so far in the direction of the closed padlock symbol so that the arrow marking (▼) points towards the closed padlock 🔒 on the immersion blender (5) or whisk (6). Ensure that the immersion blender (5) or whisk (6) audibly snaps into place.

6.2 Removing the immersion blender (5) or whisk (6)

• Rotate the motor block (4) so far in the direction of the open padlock symbol so that the arrow marking (▼) points towards the open padlock ⬆ on the immersion blender (5) or whisk (6). See figure C.
• Now remove the motor block (4) from the immersion blender (5) or whisk (6).

6.3 Setting the speed

The speed controller (1) on the motor block (4) is used to adjust the speed of the hand-held blender in 5 levels. As such, you can set the optimum speed for each food to be processed.

• Slide the speed controller (1) in the "5" direction to increase the speed.
• Slide the speed controller (1) in the "1" direction to decrease the speed.

The speed setting is only possible if the hand-held blender is operated with switch (2) for normal speed. When operating with the TURBO switch (3), the maximum processing speed is made immediately available.

6.4 The measuring cup

• Liquids of up to 700 ml can be measured with the measuring cup provided.
- You can also use the measuring cup when using the immersion blender (5) or whisk (6) to process your foods.

If you use the measuring cup for processing, only a maximum quantity of 300 ml (💧) may be filled. Otherwise, liquid may overflow or spray out from the measuring cup.

When using the whisk (6), operate the switch (2) at speed level '5' (and not higher) and never press the TURBO switch (3).

7. Initial use

The hand-held blender is suitable for the following uses:

➢ Chopping and blending fruit and vegetables in soups, sauces and dips
▶ Mixing drinks
Making milkshakes
▶ Beating cream, egg whites, etc.
➢ Making mayonnaise or stirring desserts

It is recommended to adjust the speed of the hand-held blender to the food to be processed.

When using the immersion blender (5), select a lower speed for soft foods and a higher or TURBO speed for harder foods.

When using the whisk (6), adjust the speed according to the desired processing result.

7.1 Operating with the immersion blender (5)

Place food to be chopped in a container as narrow and high-sided as possible with a flat base. This is the ideal requirement for consistent blending. Nevertheless, it is also possible to use the appliance in a standard saucepan.

To prevent injuries caused by the rotating blade, only switch the hand-held blender on once the immersion blender (5) is immersed in the mixture.

Proceed as follows:

• Pour the food to be processed into a suitable container or pan.
  • Vertically guide the immersion blender (5) into the mixture.
• Depending on requirements, start the hand-held blender with the switch (2) and select a suitable speed with the speed controller (1). If you wish to use the maximum speed straight away, you can start the hand-held mixer with the TURBO switch (3). Press and hold the desired button during the mixing or blending process. If the immersion blender (5) sticks to the base of the container, briefly release the button and then continue with the mixing process.
• To achieve consistent processing of the mixture, gently move the hand-held blender up and down during blending.
• Once the mixing result meets your requirements, release the switch (2) or TURBO switch (3) as long as the immersion blender (5) is still in the mixture.
• Wait until the blade has stopped before you remove the immersion blender (5) out of the blended food.

If you notice any unusual noises during operation, such as squeaking or similar noises, apply a little flavourless cooking oil to the drive shaft of the immersion blender (5). Please refer to the illustration opposite when doing so.

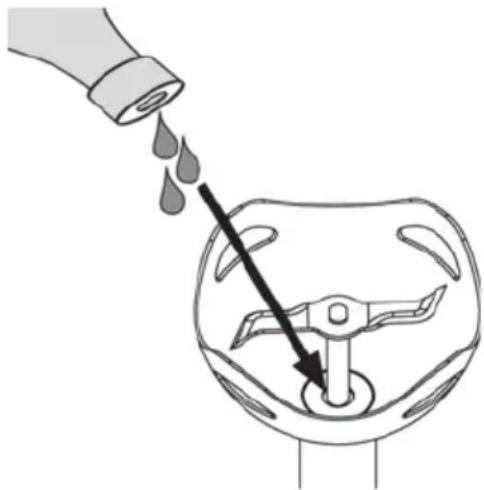

Diagram showing a hand pouring liquid into a container with a tool, no text or symbols present

For easier cleaning, hold the immersion blender (5) in a container of clear water immediately after using and then briefly press the switch (2) several times.

7.2 Operating with the whisk (6)

To prevent liquids from spraying during mixing, use the whisk (6) at max. speed level '5' and never press the TURBO switch (3).

Place the liquid to be processed in the measuring cup provided (fill with a maximum of 300 ml) or another narrow, high-sided container with a flat base. This is the ideal requirement for great processing.

To prevent injuries caused by the rotating whisk (6), only switch the hand-held blender on once the whisk (6) is immersed in the mixture.

Proceed as follows:

• Pour the food to be processed into a suitable container.
• Vertically guide the whisk (6) into the mixture.
• Start the hand-held blender with the switch (2) and select a suitable speed with the speed controller (1). Press and hold the switch (2) during operation. Reduce the speed if too much spray is produced.
• To achieve consistent processing of the mixture, gently move the hand-held blender up and down.
• Once the mixing result meets your requirements, release the switch (2) as long as the whisk (6) is still in the mixture.
• Wait until the whisk (6) has stopped before you remove it out of the processed food.

8. Cleaning

Risk of injury! Take care when cleaning the hand-held blender! The blade in the immersion blender (5) is very sharp!

Warning of damage to property! Do not use any scratching or abrasive cleaning agents or abrasive objects (such as a metal scourer) for cleaning purposes. Failure to do so may cause the hand-held blender to become damaged.

It is recommended to clean the immersion blender (5) or whisk (6) directly after use in order to prevent the processed foods from drying. In particular, after processing very salty foods the immersion blender (5) or whisk (6) should be immediately rinsed with clean water.

• Remove the plug from the socket.
• Remove the immersion blender (5) or whisk (6) from the motor block (4).
• Disconnect the whisk (6) from the adapter by removing the shaft of the whisk (6) from the adapter holder.
• Clean the motor block (4) and the adapter with a soft damp cloth and then dry it well. Cleaning in the rinsing bath would result in irreparable damage!
• You can clean the immersion blender (5), whisk (6) and measuring cup in a basin. After cleaning, rinse with plenty of clean water to remove any detergent residue. Then thoroughly dry the immersion blender (5), whisk (6) and measuring cup.
  • Alternatively, you can clean the immersion blender (5), whisk (6) and measuring cup in the dishwasher.

9. Storing the device when not in use

If the hand-held blender is not going to be used for a long period of time, clean it as described in the previous section. Store this in a clean, dry location out of reach of children.

10. Troubleshooting

If your hand-held blender does not work as usual, use the following instructions to try and solve the problem. If working through the following tips does not eliminate the fault, please contact our hotline (see the 'Warranty information' section).

The hand-held blender is not working

• The plug is not inserted. Insert the plug into the power socket.
• The power socket is faulty. Try the device in another power socket that definitely works.

The blade does not rotate / rotates with difficulty

• The motor block (4) and immersion blender (5) or whisk (6) are not correctly assembled. Disconnect the device from the mains and check the assembly.
  • Is there an object in the mixing container? If so, remove this.
  • The mixed foods are too hard or too tough.

You can find this and many more manuals, product videos and installation software available for download at www.lidl-service.com.

This QR code takes you directly to the LIDL service page (www.lidl-service.com). There, you can enter the item number (IAN) 385519_2107 to access your operating manual.

11. Environmental and waste disposal information

	Devices marked with this symbol are subject to the European Union Directive 2012/19/EU. Electrical and electronic devices may not be put in the household waste, but must be disposed of via designated public disposal centres. By properly disposing of the old device, you can avoid environmental damage and hazards to health. Further information regarding proper disposal of the old device can be obtained from your local authority or the shop where you purchased the device.
	Think about environmental protection. Used batteries do not belong in normal domestic waste. You must dispose of them at a collection point for old batteries. Please note that you should only dispose of batteries in collection containers for old batteries when they are fully discharged. If the batteries are not completely dead, you need to take precautionary measures before disposal to prevent short circuits.
	Make sure that the packaging is disposed of in an environmentally friendly manner. Cardboard packaging can be put out for waste-paper collection or taken to public collection points for recycling. The plastic packaging used for your device will be collected by your local waste management company and disposed of in an environmentally friendly manner.
ES/PT
	Relevant for France only:The product can be recycled, is subject to an extended producer responsibility and is collected separately.
	Please pay attention to the labels on packaging materials when you separate waste; these are marked with abbreviations (a) and numbers (b) that mean the following:1-7: Plastics/20-22: Paper and cardboard/80-98: Composite materials.
a
Symbol Material This product contains the following packaging components
	Polyethylene terephthalate	-
	High-density polyethylene	-
	Polyvinyl chloride -
	Low-density polyethylene	-
	Polypropylene	-
	Polystyrene	-
	Other plastics -
	Corrugated cardboard Sales packaging, cardboard insert
	Other cardboard -
	Paper Tissue paper within sales packaging
	Paper/Cardboard/Plastics	-
	Paper/Cardboard/Plastics/Aluminium	-

12. Marks of conformity

This product fulfils the requirements specified in the applicable European and national policies. This product's conformity has been verified. The declarations and documents are stored with the manufacturer.

This product fulfils the requirements specified in the applicable national policies for the Republic of Serbia.

This product meets the requirements specified in the applicable national policies for the United Kingdom.

You can download the full EU declaration of conformity at the following link:

https://www.targa.gmbh/downloads/conformity/385519_2107.pdf

13. Warranty information

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.

- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.

- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 385519_2107

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

59494 Soest

GERMANY

Table des matières

Diagram of a mechanical or electrical component with wires and a spherical component, showing bidirectional movement (no text or symbols)

Simple diagram showing a horizontal bar with two lock icons and an upward arrow, no text or symbols present.

Diagram showing a hand pouring liquid into a container with a tool, no text or symbols present

https://www.targa.gmbh/downloads/conformity/385519_2107.pdf

13. Informations concernant la garantie

Garantie de TARGA GmbH

Cher client, chère cliente,

Cher client, chère cliente,

Diagram showing a hand pouring liquid into a water-filled container with a tool inside (no text or symbols)

https://www.targa.gmbh/downloads/conformity/385519_2107.pdf

13. Garantiebepalingen

Diagram showing a hand pouring liquid into a container with an arrow indicating flow direction (no text or symbols)

Diagram showing a hand pouring liquid into a container with a tool, no text or symbols present

https://www.targa.gmbh/downloads/conformity/385519_2107.pdf

Diagram showing a hand pouring liquid into a container with a tool, no text or symbols present

https://www.targa.gmbh/downloads/conformity/385519_2107.pdf

13. Záručné pokyny

Záruka spoločnosti TARGA GmbH

Diagram showing a hand pouring liquid into a container with a valve, illustrating fluid flow (no text or symbols)

Diagram showing a hand pouring liquid into a container with a tool, no text or symbols present

Diagram showing a hand pouring liquid into a container with a tool, no text or symbols present

https://www.targa.gmbh/downloads/conformity/385519_2107.pdf

Diagram showing a hand pouring liquid into a container with a tool, no text or symbols present

https://www.targa.gmbh/downloads/conformity/385519_2107.pdf

Diagram of a mechanical or electrical component with wires and a spherical component connected by rods, showing bidirectional movement (no text or symbols)

Pure diagram of a mechanical or electrical component with two lock symbols and directional arrows, no text or labels present.

Diagram showing a hand pouring liquid into a container with a tool, no text or symbols present

https://www.targa.gmbh/downloads/conformity/385519_2107.pdf
