Product Type	Charcoal Barbecue with Active Ventilation
Model	FLORABEST FLG 34 A1
Manufacturer	TARGA GmbH
Dimensions (Diameter x Height)	348 mm x 238 mm
Grate Diameter	343 mm (Stainless Steel)
Weight	Approx. 3.54 kg
Power Supply	6 V DC (4 x 1.5 V AA batteries)
Fan Control	Continuous control dial with off position and indicator light
Fuel	Charcoal (approx. 0.2 kg per use)
Ignition Aid	Fire gel (ring applied to tray)
Safety Features	Stable base, cool-touch housing, battery compartment with lock
Included Accessories	Carrying bag, 4 AA batteries, user manual
Intended Use	Outdoor grilling (meat, fish, vegetables, etc.)
Maintenance	Clean after each use with mild detergent; store in dry place
Warranty	3 years from date of purchase
Standards Compliance	CE, EMC Directive 2004/108/EC, RoHS 2011/65/EU

Frequently Asked Questions - FLG 34 A1 FLORABEST

How do I light the charcoal barbecue?

First, fill the charcoal container with about 0.2 kg of charcoal. Apply a 10 mm ring of fire gel on the center of the fire gel tray. Turn the control dial to MAX to power on the fan. Then hold a burning match to the fire gel until it ignites. Insert the charcoal container and place the grate. The fan must be on before lighting to avoid smothering the flame.

Can I use the barbecue indoors?

No, this barbecue is for outdoor use only. Using it indoors can cause carbon monoxide poisoning. Always place it on a stable, non-flammable surface away from flammable materials.

How do I replace the batteries?

Turn the barbecue upside down. Open the battery compartment cover on the underside. Insert 4 AA batteries with correct polarity (see diagram inside). Close the cover until it clicks. Remove batteries if not used for long periods.

Why won't the charcoal light?

Ensure the fan is on by turning the control dial to MAX. If the fan does not work, check battery polarity or replace batteries. Also make sure the fire gel ring is within the stamped circle on the tray.

How do I clean the barbecue?

Wait until the barbecue is completely cool. Remove the grate, charcoal container, and grease tray. Wash the grate and grease tray with warm water and dish detergent. Clean the charcoal container with a brush or dry cloth. Wipe the housing with a damp cloth. Do not use abrasive cleaners.

What should I do if the barbecue gets too hot?

Reduce the fan speed by turning the control dial counterclockwise. This decreases airflow and lowers the temperature. If flames flare up, reduce air supply.

Can I use lighter fluid or petrol?

No, never use spirit or petrol. Only use firelighters complying with EN 1860-3. Fire gel is recommended for safe ignition.

Is the barbecue safe to use on a wooden table?

Do not place on textile surfaces. Ensure the surface is fireproof and stable. Maintain a 100 cm clearance from flammable materials. The housing stays cool but the grate and interior become very hot.

How do I store the barbecue?

After cleaning and cooling, store it in the included carrying bag. Remove batteries if storing for a long time. Keep in a dry, dust-free place.

What is the warranty period?

The product comes with a 3-year warranty from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear or misuse.

USER MANUAL FLG 34 A1 FLORABEST

Black-and-white photo of a portable grill with vegetables and a 'Florbest' branding, no visible text or symbols on the main subject.

VENTILATED CHARCOAL BARBECUE FLG 34 A1

TARGA GMBH

Coesterweg 43

GERMANY

Last Information Update: Ostovia okvollzocja

User manual and service information

(2)

Safety instructions 5

Before you start 8

Getting started 8

Inserting the batteries 8

Getting started....8

Maintenance/cleaning.... 10

Storing the charcoal barbecue....10

Troubleshooting 11

Environmental regulations and disposal information 12

Conformity 12

Guarantee information.... 13

Introduction

Thank you for buying a FLORABEST product.

The charcoal barbecue with active ventilation FLORABEST FLG 34 A1, in the following referred to as charcoal barbecue, can be used for grilling (e.g. meat, fish, vegetable, sausages, chicken, etc.). It can be set up next to the dining table.

Intended use

This charcoal barbecue is not intended for commercial use. This charcoal barbecue is intended for outdoor use. Always make sure the charcoal barbecue is on a stable surface.

The device fulfils all relevant norms and standards relating to CE conformity. Any modifications to the device other than recommended changes by the manufacturer may result in these standards no longer being met.

WARNING!

Risk of carbon monoxide poisoning. Do not use barbecue indoors, but outdoors only!

WARNING!

This barbecue will become very hot, do not move during operation!

WARNING!

Do not use spirit or petrol for lighting or relighting! Use only firelighters complying with EN 1860-3!

WARNING!

Keep children and pets away!

Do not use indoors!

Predictable misuse

Do not use the charcoal barbecue in closed rooms.

Do not use the charcoal barbecue as heater.

Risk of burns!

Do not place other items (e.g. cutlery, utensils, pan lids, etc.) on the charcoal barbecue. These could get very hot and you could burn yourself.

Package contents

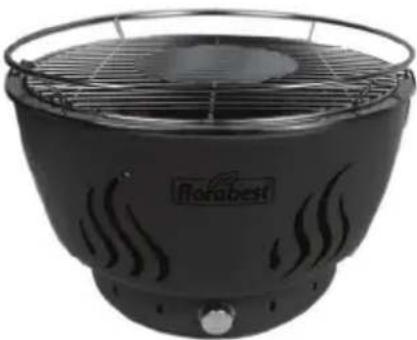

Black portable air fryer with visible steam and grille (no text or symbols)

Charcoal barbecue with active ventilation FLORABEST FLG 34 A1

Black cylindrical object with a lid and zipper, resembling a drum or container (no visible text or symbols)

Carrying bag

4 AA batteries, 1.5 V These operating instructions

(not shown)

Controls and displays

These operating instructions have a fold-out cover. On the inside of the cover, the charcoal barbecue is shown with figures indicated. The meanings of the numbers are as follows:

1 Stainless steel grate
2 Bracket for securing the stainless steel grate
3 Cover for charcoal container
4 Charcoal container
5 Tray for fire gel
6 Grease collection tray/reflector
7 Latch
8 Housing
9 Control dial with fan indicator (lights up, while fan is powered on)
10 Battery compartment (on the underside of the housing)

4 - English

Technical specifications

Manufacturer:

TARGA

GmbH

Model name: FLORABEST FLG 34 A1

Operating voltage: 6 V DC voltage (4 x 1.5 V AA batteries)

Operation: Continuous control dial for fan speed, engages in the "Off" position

Operation lamp if fan is powered on

Dimensions: Diameter 348 mm, height 238 mm

Diameter, stainless steel grate 343 mm

Weight: approx. 3.54 kg

TÜV SÜD: Tested safety

Safety instructions

Before you use this device for the first time, please read the following notes in this manual and heed all warnings, even if you are familiar with handling electronic devices and charcoal barbecues. Keep these operating instructions in a safe place for future reference. If you sell the device or give it away, pass on the user manual at the same time. It forms parts of the product.

Explanation of symbols

In this user manual, warnings are used as follows.

Risk of burns!

This symbol warns of hot surfaces.

WARNING!

This symbol denotes important information for the safe operation of the product and user safety. It warns against risks which could, if left unheeded, cause danger to life and limb, injuries or material damage.

Risk of fire!

This symbol warns that fires could start if the warning is left unheeded.

This symbol denotes further information on the topic.

Children and persons with disabilities

This device may be used by children older than 8 years as well as by persons with reduced physical, sensory or mental capacities or those persons who have lack of knowledge or experience, as long as they are supervised or they have received instructions regarding the proper use of the appliance and they understand the associated risks. Do not allow children to play with the appliance. Any cleaning or maintenance of the product must not be performed by children unless they are supervised.

Children under the age of 8 must be kept away from the device.

WARNING of suffocation!

Packaging material is not a toy. Do not allow children to play with plastic bags. There is a risk of suffocation.

Batteries and small parts represent potential choking hazards. Keep the batteries in a safe place. If a battery is swallowed, seek medical help immediately.

Keep the device out of the reach of children.

General safety instructions

Risk of burns!

• Do not place other items (e.g. cutlery, utensils, pan lids, etc.) on the stainless steel grate (1). These could get very hot and you could burn yourself.
• Do not touch the stainless steel grate (1), the grease collection tray/reflector (6) or the charcoal container (4) during operation. Hold and carry the device only from the outside or the bottom on the housing (8).
• Transport or move the device only after it completely cooled down. Hold and carry the device only from the outside or the bottom on the housing (8).
• Clean the device only after it completely cooled down.
  • Always wear barbecue gloves during grilling.
• You should always wear barbecue gloves when preparing meals, adding charcoal or handling the stainless steel grate (1). Use barbecue cutlery with long, heat-resistant handles.

Risk of fire!

• Only use the charcoal barbecue outdoors. Do not ever use it in closed rooms.
• Do not use the charcoal barbecue as heater.
- Do not place the charcoal barbecue on textile surfaces such as a tablecloth.
- Never place the charcoal barbecue under or directly next to flammable items such as curtains or drapes.

• Maintain a clearance of at least 100 cm around the device to flammable and combustible materials.
• Do not use the charcoal barbecue in potentially explosive atmospheres or at locations with flammable materials. These include fuel storage areas such as below deck on a boat, fuel line or tank areas, environments where the air contains inflammable substances (e.g. cereals dust or metal powder) and any areas where you should normally switch off your car engine.

Warning about property damage

• Never place any objects on the stainless steel grate (1).
- Place the charcoal barbecue on an even, sturdy and fireproof surface protected against spray water.
- Do not expose the charcoal barbecue to extremely high or low temperatures.

Batteries

• Insert the batteries with the correct polarity. Refer to the diagram inside the battery compartment. Do not attempt to recharge the batteries and do not dispose of the batteries in a fire. Do not mix battery types (old and new or carbon and alkaline, etc.). Remove the batteries when the device is not to be used for an extended period. Improper use could cause explosions or leaks.
• Batteries must never be opened or deformed, as this could result in chemicals leaking out which could cause injuries. If the battery fluid becomes in contact with the skin or eyes, rinse immediately with plenty of water and seek medical aid.
• Remove the batteries when the charcoal barbecue is not to be used for an extended period.

Before you start

Unpack the device. First check whether all the parts are complete and undamaged (see "Package contents" on page 4). If any items are missing or damaged, please phone our hotline (see "Guarantee information" on page 13). Keep the packaging material away from children and dispose of appropriately.

Getting started

You can place the charcoal barbecue directly onto the dining table and prepare food right there.

Risk of fire!

• Do not place the charcoal barbecue on textile surfaces such as a tablecloth.
• Never place the charcoal barbecue under or directly next to flammable items such as curtains or drapes.
• Maintain a clearance of at least 100 cm around the device to flammable and combustible materials.

Inserting the batteries

The battery compartment (10) is located on the underside of the housing (8).

1. Turn the charcoal barbecue upside down and carefully place it on a sturdy and even surface.
2. Open the battery compartment cover (10). Using a finger or fingernail, reach from the outer edge under the latch of the battery compartment and pull it slightly in the direction of the arrow (◀).
3. Insert four AA batteries into the battery compartment (10). Always pay attention to the polarity.
4. Close the battery compartment cover (10). Make sure that the latch engages again so that the over cannot open and the batteries fall out accidentally.
5. Place the charcoal barbecue upright again. The charcoal barbecue is operational.

Getting started

When powering the barbecue on for the first time, have the barbecue glow for 30 minutes, before using it to prepare food.

Minor smoke development can occur when the device is heated first. For this reason, the device should be heated for 10 to 15 minutes prior to preparing grilled food for the first time.

1. Clean the stainless steel grate (1) using warm water and detergent. This removes dust and any packaging residue.
2. Place the device on an even, non-slip and dry surface.

8 - English

1. Loosen both latches (7) and remove the stainless steel grate (1).
2. Remove the charcoal container (4) and its cover (3) and fill the charcoal container (4) with approx. 0.2 kg charcoal up to the upper edge of the container.

Warning

Do not use any other fuel than charcoal.

1. Apply a 10 mm thick ring of fire gel around the centre of the fire gel tray (5). The fire gel should be within the circle stamped on the fire gel tray (5). Otherwise, the flame will be smothered. Should the fire gel tray (5) move out of place, insert it again into the centre of the grease collection tray/reflector (6).
2. Turn the control dial (9) to the MAX position (clockwise until it stops) to power on the fan.

You must power on the fan prior to igniting the flame. Otherwise, the flame will be smothered.

1. Hold a burning match to the fire gel, until it burns.

Risk of burns!

Do not reach into the naked flame!

1. Turn the control dial (9) to the MAX position (clockwise until it stops) to power on the fan.

You must power on the fan prior to inserting the charcoal container (4). Otherwise, the flame will be smothered.

1. Insert the charcoal container (4) again with its cover (3).

Risk of burns!

Make sure not to burn yourself, when inserting the charcoal container (4)!

1. Place down the stainless steel grate (1) again. Turn the grate such that the two brackets (2) are aligned with the latches (7). Lock the stainless steel grate (1).

• Place the grilled food onto the stainless steel grate (1), as soon as the charcoal is covered with a layer of ash.
• If undesired flame formation occurs during charcoal glowing, reduce the air supply using the control dial (9). To do this, turn it in a counter-clockwise direction.

Next, you can prepare grilled dishes using your charcoal barbecue. With a little practice, you can regulate the fan speed and thus the heat using the control dial (9). This way, you can either grill your dishes crispier or cook them gently.

• You can prepare meat, fish, sausages, chicken and vegetables in a low-fat and health-conscious way.
  • Do not puncture meat to prevent moisture loss. Otherwise, it can become dry.

• Season the grilled food and turn it from time to time. We recommend using barbecue tongs. Brush fish additionally with butter.

• Once you are done grilling, switch the charcoal barbecue off. Turn the control dial (9) counterclockwise to the OFF position, until it engages.

• Remove the prepared dishes from the stainless steel grate (1).

Risk of burns!

After the fan is switched off, the coal can still be glowing for some time and the stainless steel grate (1) can be very hot. Be careful not to burn yourself.

Maintenance/cleaning

In order to avoid burning food residues, clean the charcoal barbecue after every use.

Risk of burns!

Wait until the charcoal barbecue is completely cool before cleaning it. Otherwise you could get burnt.

Warning about property damage

Do not use abrasive or astringent detergents or tools which could scratch the surface (e.g. metal sponges). These could damage the charcoal barbecue.

1. Loosen both latches (7) and remove the stainless steel grate (1).
2. Remove the charcoal container (4) with its cover (3).
3. Remove the grease collection tray/reflector (6).
4. Clean the stainless steel grate and the grease collection tray/reflector (6) in the sink using dish detergent. You can carefully tap the charcoal container (4) with its cover (3) and clean it using a brush or dry cloth as needed. Clean the housing (8) with a slightly moistened cloth.

Storing the charcoal barbecue

Store the charcoal barbecue in assembled condition in the carrying bag to protect it.

Store the charcoal barbecue in a dry and dust-free place.

Remove the batteries when the charcoal barbecue is not to be used for an extended period

Troubleshooting

If your charcoal barbecue does not work as normal, follow the instructions below to try to solve the problem. If working through the tips below does not fix the fault, please contact our hotline (see "Guarantee information" on page 13).

Problem	Possible causes	yRemed
Charcoal does not light.	Fan is not powered on. Turn the control dial (9) to the maximum position (clockwise until it stops) to power on the fan.
	Control dial adjusted to too low position.	Turn the control dial (9) to the maximum position (clockwise until it stops).
Fan cannot be powered on.	Battery inserted incorrectly or empty.	Insert the batteries with the correct polarity (+ and -). Replace the batteries with new ones as needed.
Barbecue becomes too hot or undesired flame formation.	Control dial adjusted to too high position.	Reduce the air supply using the control dial (9). To do this, turn it in a counter-clockwise direction.
Barbecue does not become hot enough.	Control dial adjusted to too low position.	Increase the air supply using the control dial (9). To do this, turn it in a clockwise direction.

Environmental regulations and disposal information

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

A symbol depicting a crossed-out rubbish bin on a product means it is subject to European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres.

Do not dispose of the device in household waste or bulky waste collections. Information on collection points and pick-up times can be obtained from your local council or waste disposal company.

Old batteries must not be disposed of with domestic waste. They must be handed in at a collection point for waste batteries. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits.

Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.

Conformity

This device complies with the basic and other relevant requirements of EMC Directive 2004/108/EC and the RoHS Directive 2011/65/EU. The corresponding Declaration of Conformity can be found at the end of this User Manual.

Guarantee information

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

• Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
• Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
• If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: 0207 - 36 50 744

E-Mail: [e-mail]

Phone: 01 - 242 15 83

E-Mail: [e-mail]

Phone: 800 - 62 175

E-Mail: [e-mail]

Phone: 800 - 92 496

E-Mail: [e-mail]

IAN: 104084

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA GmbH

Coesterweg 45

59494 SOEST

GERMANY

Spis treści

Wprowadzenie 16

Przeznaczenie 16

Black portable stove burner with visible flame and grille (no text or symbols)

Black cylindrical object with a small logo on top, resembling a container or bag (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Black portable air conditioner fan with visible grille and flame-like heat exchanger (no text or symbols)

Gril na drevené uhlie s aktivnym vetraním FLORABEST FLG 34 A1

Black cylindrical object with a small logo on top, resembling a container or bag (no visible text or symbols)

Prepravná taška

Symbol of a trash bin crossed with no text or numbers, accompanied by a horizontal line and a solid rectangle below (no text or symbols present)

Black portable air conditioner fan with visible grille and ventilation slots (no text or symbols)

Black cylindrical object with a lid and zipper, resembling a container or bag (no visible text or symbols)

Symbol of a trash bin crossed with no text or numbers, accompanied by a blank rectangular bar (no text or symbols present)

Black portable stove burner with visible steam and flame patterns (no text or symbols)

Black cylindrical object with a small label on the top, resembling a food item or container (no visible text or symbols)

Tragetasche

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

EU Declaration of Conformity

Address:

Targa GmbH

Coesterweg 45

59494 Stoest, Germany

Product:

Charcoal barbecue

Model:

Florabest FLG 34 A1

Identification number:

IAN 104084

The product complies with the requirements of the following European directives:

2004/108/EC

Electromagnetic Compatibility

2011/65/EU

Restriction of the use of certain hazardous

substances in electrical and electronic equipment

Compliance was proved by the application of the following standards:

EMC:

EN 61000-6-3: 2007 +A1: 2011 (partly)

EN 61000-6-1: 2007 (partly)

Rohs:

EN 50581: 2012

Year of CE marking:

2015

Soest, 2 ^nd of February, 2015

Abstract sketch of a stylized bird or wing (no text or symbols)

Matthia s Klauke, Managing Director
