Product Type	Lavastone Gas Grill
Model	FGG 5.5 A1 / IAN 56406
Dimensions (W x D x H)	Approx. 106.5 x 49 x 101 cm
Weight (without stones)	14.5 kg
Gas Type	Liquefied gas (butane 28-30 mbar / propane 37 mbar)
Gas Consumption	400 g/h
Total Heat Output	Approx. 5.5 kW max (2 x 2.75 kW)
Burners	Two, adjustable
Ignition	Piezo lighter
Grilling Area	51.5 x 30 cm
Gas Container	5 kg or 11 kg propane/butane container
Nozzle Size	0.84 mm
Connection Pressure	GB: 37 mbar / IE: 30 mbar
Device Category	I₃+ (28-30/37)
Safety Features	Gas leak detection (soap test), automatic shut-off, stable base
Material	Steel, wood support boards, lavastones
Warranty	36 months (excluding wearable parts)
Included Accessories	Textile cover, gas hose, pressure regulator, oil cup, warming grate
Usage	Outdoor only
Cleaning	Warm soapy water, avoid abrasives

Frequently Asked Questions - IAN 56406 FLORABEST

What should I do if I smell gas near the grill?

Immediately close the gas container valve. Do not use the grill. Check all connections with soapy water; bubbles indicate a leak. Tighten connections or replace the hose if damaged. If the leak persists, contact customer service.

How do I light the grill?

Open the lid and the gas container valve. Press and hold the left temperature control, turn it to the large flame icon, and press the Piezo lighter multiple times. The right burner will light automatically. If not, wait 3 minutes and retry or use a long fireplace match.

Can I use this grill indoors?

No, this grill is for outdoor use only. Using it indoors can cause carbon monoxide poisoning, which is odorless and lethal.

How do I check for gas leaks?

Turn both controls to Off, open the container valve, and apply soapy water to all connections. If bubbles form, there is a leak. Tighten or replace parts as needed. Never use an open flame to check.

What type of gas container should I use?

Use a standard 5 kg or 11 kg propane or butane liquefied gas container with the appropriate pressure regulator (GB: 37 mbar, IE: 30 mbar). Ensure the container valve gasket is in good condition.

How do I clean the grill?

After grilling, burn off residues at high heat for 10-15 minutes, then let it cool. Use warm soapy water and a soft sponge to clean all surfaces. Do not use abrasive cleaners. Clean burner vents and tubes carefully with a flexible brush.

Why won't the burner light?

Check if the gas container is empty or if the container valve is closed. Ensure the gas hose is not kinked. If the Piezo igniter sparks but the burner doesn't light, try lighting manually with a match. If it still fails, check for insect blockages in the burner.

How should I store the grill?

Disconnect the gas container and store it upright in a well-ventilated area above ground. Store the grill dry and dust-free, covered with the provided textile cover. Tighten all screws before next use.

What is the warranty period?

TEPRO GARTEN GmbH offers a 36-month warranty covering defects and manufacturing errors for normal private use. Wearable parts like grill racks and burners are excluded.

How do I assemble the grill?

Follow the step-by-step instructions in the manual. You'll need pliers, cross-slotted screwdriver, wrenches (size 10, 14, 17), and a rubber mallet. Ensure all screws are tightened securely, especially after initial use.

USER MANUAL IAN 56406 FLORABEST

Please unfold

Tsila auki

Var god sle upp

Klsp verigels op

Bitts aufkappen

Diagram of a cart with wheels and a 4x multiplier label (no text or symbols beyond the label)

Illustration of a gas stove with a gas cylinder beside it, no text or symbols present

GB IE

Contents

Page

Before you use the unit....6

Product contents/control elements 6

Proper use 6

For your safety 6

Signal symbols 6

Safety notes....6

Assembly 8

Preparation 8

Required tools 8

Assembling the grill 8

Mounting the gas hose....9

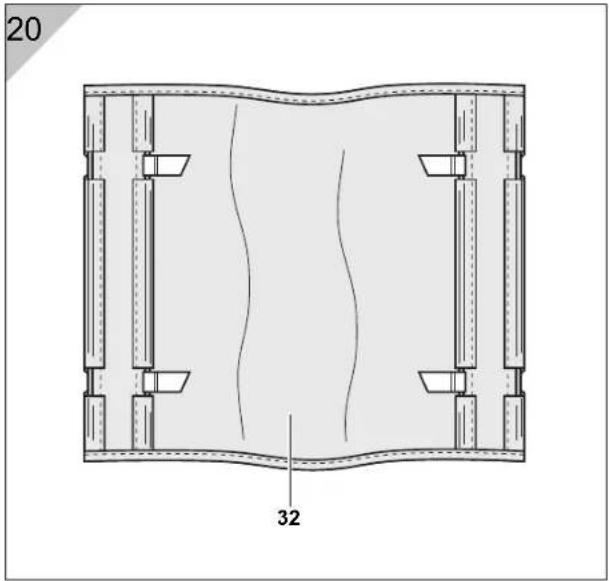

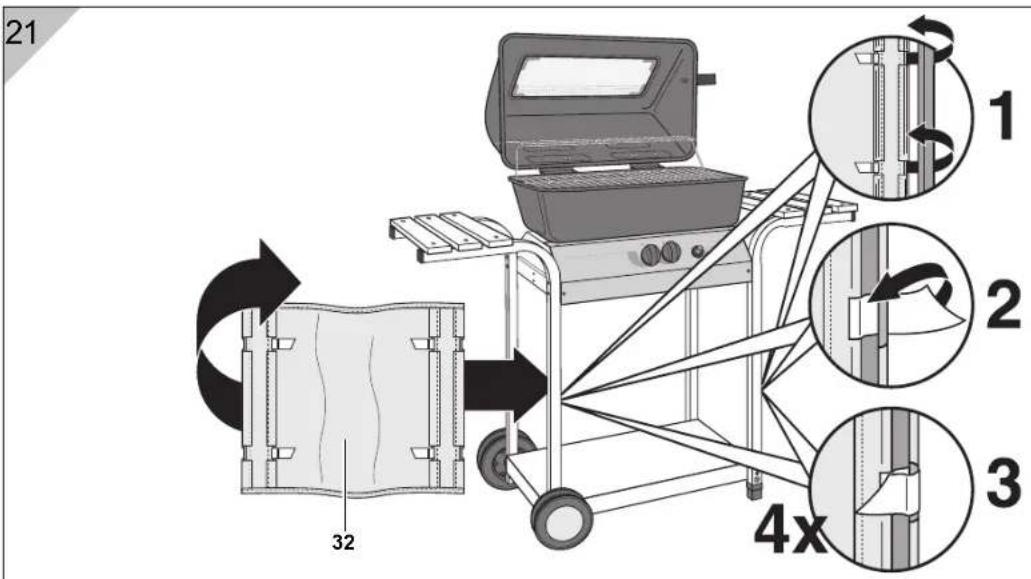

Attaching the textile cover....9

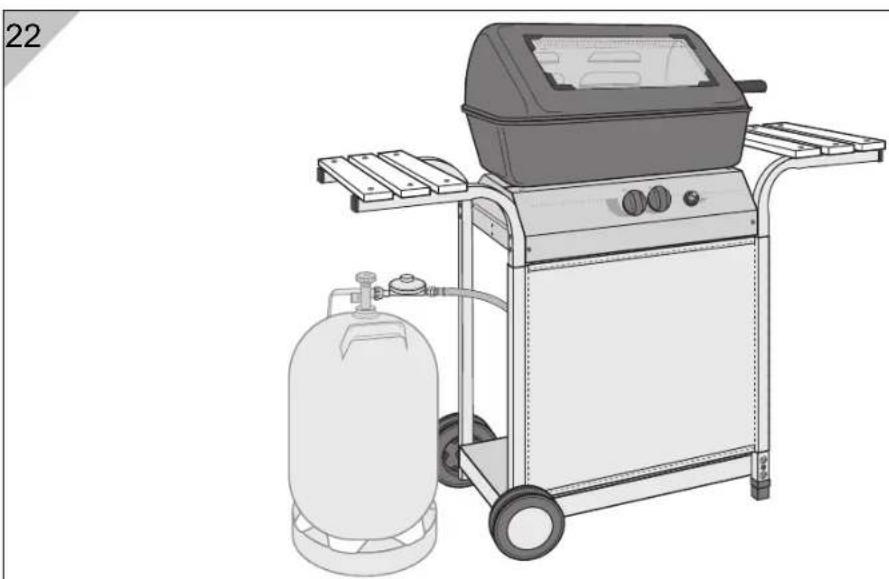

Setting up the grill 9

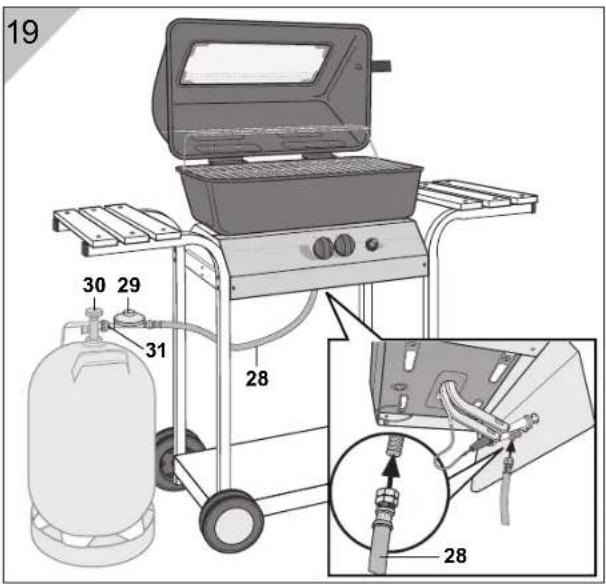

Connecting the gas container....9

Checking for gas leaks 9

Turning on/lighting 10

Ignition system – Igniting with a Piezo lighter 10

Conventional lighting with matches.... 10

Preheating/regulating the flame 10

Turning the grill off.... 10

Maintenance and cleaning.... 10

Storage.... 11

Troubleshooting.... 11

Disposal 11

Note on the declaration of conformity 11

Technical data 11

Warranty 11

Service 11

Distributor.... 11

GB IE

Before you use the unit

After unpacking the product and before each use, check whether the product exhibits any sign of damage.

If this is the case, do not use the product, but instead please inform your vendor.

The operating instructions are based on the standards and rules in force in the European Union. If you are abroad, please also observe the country-specific guidelines and laws!

Before using the product, first carefully read through the safety notes and operating instructions. Only this way, can all functions be used in a safe and reliable

manner.

Keep the operating instructions safe and pass them on to any one who may own the unit after you.

ognised after assembly has been started or is complete.

Proper use

This lavastone gas grill is designed for heating, cooking and barbecuing meals.

It is only suitable for outdoor use and is only intended for private application.

Only use the product as described in this operating instructions. Any other use is deemed improper and may result in damage to property or even injury to persons.

The manufacturer assumes no liabilities for damages, which are incurred due to improper use.

Product contents/control elements

No.	Quantity Name
14	S	u	p	p	o	r	t	l e
22	Plastic feet
31	Base plate
41	A	x	l	e
52	W	h	e	e	l	s
62	W	h	e	e	l	c	a	p s
74	E	n	d	c	a	p	s
86	Wood support boards
92	S	u	p	p	o	r	t	s
101	Front panel
111	F	i	t	t	i	n	g
121	Piezo lighter
132	Temperature control
144	Spacer sleeves
151	Grill pan
161	L	i	d
172	L	i	d	h	i	n	g	e s
181	L	i	d	h	a	n	d	l e
191	H	e	a	t	-	r	e	s i
201	Viewing window
214	Window holders

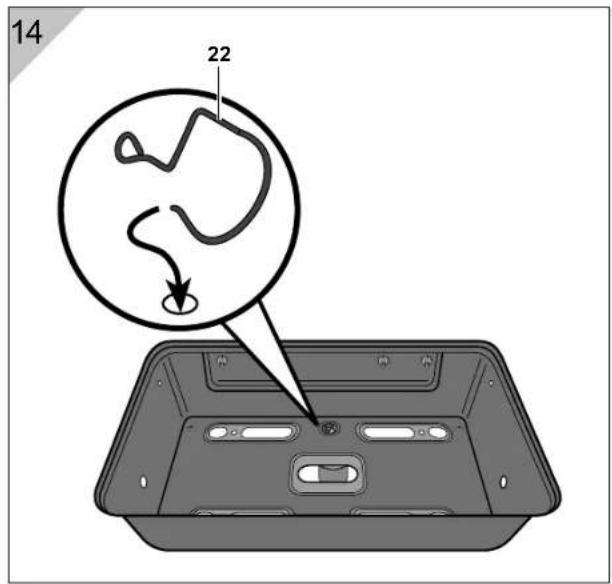

221	Oil cup holder
22a	1	O	i	l	c	u	p

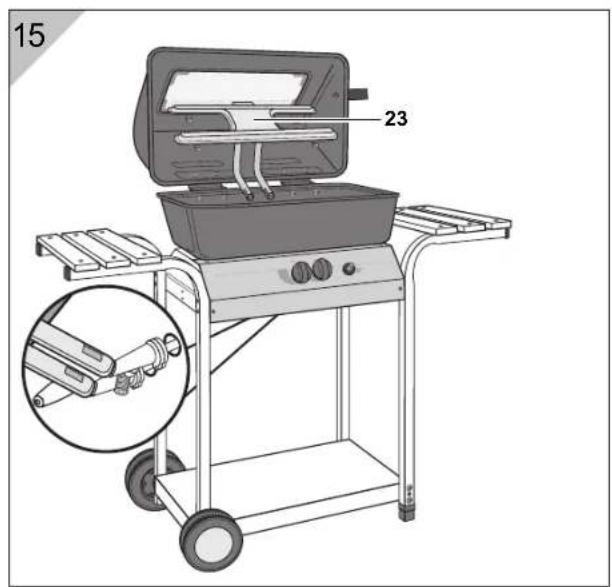

231	B	u	r	n	e	r

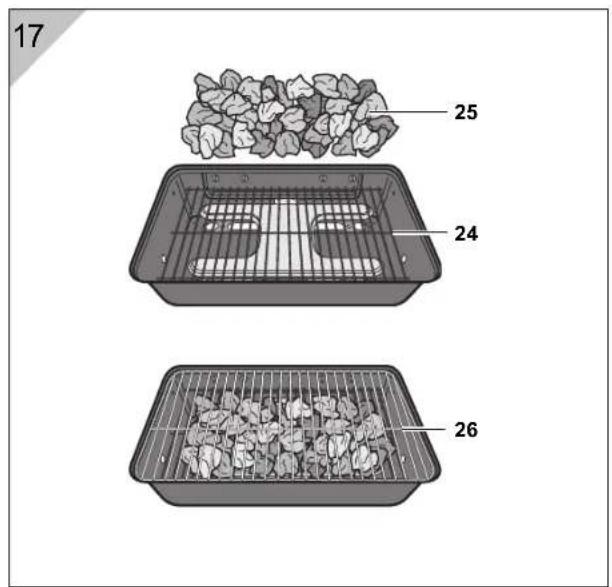

241	Lavastone grate
251	bag Lavastones
261	G	r	i	l	l	r	a	c k
271	Warming grate
281	G	a	s	h	o	s	e
291	Pressure regulator
30		Container valve of the gas container
31		Union nut of the pressure regulator
32		Textile cover
Bag with assembly materials:
A	1 bag	Assembly materials for base plate and supports
B	1 bag	Assembly materials for wood support boards
C	1 bag	Assembly materials for mounting the lid handle
D	1 bag	Assembly materials for axle, fitting, burner, front panel, grill pan
E	1 bag	Assembly materials for lid hinges
F	1 bag	Assembly materials for wheel caps

Please check that the product contents are complete and not damaged. If a part is missing or defective, please contact your vendor. No claims relating to damage or missing parts are rec-

For your safety

Signal symbols

Danger High Risk!

Failure to heed the warning may result in injury to life and limb.

Attention Moderate Risk!

Failure to heed the warning may cause damage to property

Caution Minor Risk!

Points to observe when handling the unit.

Safety notes

Danger of Explosion!

Leaking gas may form a highly explosive air/gas mixture that could cause a fire or explosion and could e-threatening injuries or death.

s- In general, you should have a fire extinguisher and first aid kit on hand and be prepared for an accident or fire.

• Do not use the grill if there is a gas leak.
• Do not in any case use an open flame to check for a gas leak. Make sure that no sparks or open flames can occur when checking for a gas leak.
• Do not loosen any gas connections, the gas hose or the pressure regulator when the lavastone gas grill is being used.
• Only use a hose connection between the device and the gas container, which does not exceed the recommended length of 1.5 m.
• In the event of a leak, turn off the grill, extinguish all open flames and open the lid. If the leak is persisting, check the device for damages, loose connections etc. Ask your local gas dealer if you are unable to solve the problem.
• Always check to make sure that the gas line has no leaks after connecting it. Use soap water for this (see section "Checking for gas leaks").
• Make sure that the gas hose has been firmly mounted and that the hose connection is always accessible along its entire length.
• Do not use any denatured alcohol, petrol or similar liquids to light or relight the grill.
• Do not store or use any petrol, denatured alcohol or other flammable gases or liquids in the grill's vicinity if it is in use.
• Never leave the gas container connected with the pressure

GB IE

regulator when it is disconnected from the gas hose.

- Making any changes to the product poses a considerable risk to safety and is prohibited. Do not tamper with the grill regulators, the gas connections, nozzles, valves etc. In the event of damage, repairs or other problems with the lavastone gas grill, please consult the service centre or a technician from your local gas dealer.

Danger Risk of fire/explosion/poisoning!

Defective gas containers or improper handling of gas containers may lead to fires or explosions which may cause life-threatening injuries or death. Leaked gas may lead to poisoning.

• An indented or rusty gas container may be dangerous and must be replaced. Do not use a gas canister with a defective bottle valve.
• Read and follow the operating instructions and safety notes for the gas container.
• Never connect the gas supply with the lavastone gas grill without a suitable pressure regulator.
• In general, you should place the gas container on a level, solid base next to or behind the grill. Never place the gas container on the grill's base plate and do not in any case place it on the grill.
• Do not place the gas container next to heat sources and also prevent exposure to direct sunlight.
• Make sure that no ignition sources such as fire, smouldering cigarettes, open flames etc. are nearby when changing the gas container.
• After grilling, always be sure to turn the gas container to the closed position and to turn the grill off.

- Always store the gas container in an upright position, never in a horizontal position in a well ventilated area and not below ground level (e.g. in the basement).

- Make sure that the gas hose is not kinked, thereby restricting the supply of gas. The gas hose may not be subjected to tension and may not come into contact with hot parts of the grill or other objects.

- Make sure that the pan's vents are free.

– Never change the setting of the pressure regulator.

– Never open components that have been sealed by the manufacturer.

Danger Risk of fire!

The grill becomes very hot during use and may start fires.

• Set up the grill so that it is at least 1m away from flammable materials such as awnings, wood terraces and balconies.
• Only set up the grill on a solid, level area with no wind exposure and only use it in wind-protected areas.
• Keep the power cord and gas supply hoses away from hot surfaces.
• Never cover more than 50% of the grilling surface with grill trays or the like as they reflect the heat back into the grill and may cause the grill to overheat as a result.
• Do not move the grill when in use.
• Do not fill the tray with flammable (e.g. charcoal) materials and materials that are not yet flammable.
• Do not in any case cover the gas burner with any objects. Never fill the tray with liquids (e.g. water).

- Some food produces flammable fats and juices. Clean the grill regularly, ideally every time after using it.

Danger Burn Hazard!

This device is not intended to be used by persons (including children) with impaired physical, sensory or mental abilities or who lack experience and/or knowledge.

- Advise this group of persons of the dangers associated with the device and have them supervised by a person responsible for their safety.

- Keep children and pets away from the device.

The grill becomes very hot during use such that any contact with it may cause serious burns.

– Always wear barbecuing or kitchen gloves when opening the cover or grilling.
- Do not touch any hot parts of the grill. Only open and close the grill lid by the handle.
- Do not wear any clothing with baggy arms.
– Always open the grill lid before lighting the burner. Otherwise, this may result in darting flames when opening.
- Allow the grill to cool off completely before cleaning and/or stowing it.

Danger of poisoning!

Carbon monoxide is produced when the gas grill is used. This gas is odourless and can be lethal in enclosed areas!

– Only use the grill outdoors.

Dangers for children!

Children can become trapped in the packing film when playing and suffocate.

• Do not allow children to play with the packing film.
• Make sure that children do not put small assembly parts in their mouth; they could swallow them and choke.

Danger Risk of injury

Some areas of the grill and individual parts have sharp edges.

• Handle the individual parts of the grill will care to prevent accidents or injury when assembling and using the grill. If necessary, wear protective gloves.
• Do not set up the grill close to entrances or highly frequented areas.
  – Always be very careful when grilling. If you are distracted, you may lose control of the device.
• Always be attentive and pay attention to what you are doing. Do not use the product if you are not concentrated or tired and/or under the influence of drugs, alcohol or medication. Even a single moment of inattentiveness when using the product may result in serious injury.

Attention

Never use the grill if the pane is damaged or not in place.

• During assembly, make sure that the window is firmly and properly seated. If this is not the case, do not in any case continue work. Instead correct the window seating.
• Do not use the grill when it is raining, in the vicinity of sprinklers, swimming pools or other areas that pose a risk of splashing or spills that could come into contact with the glass.

GB IE

Assembly

Preparation

Danger Risk of injury!

Failure to observe the instructions may result in problems and risks when using the lavastone gas grill.

– Always follow all assembly instructions provided.

1. First completely read through the assembly instructions.
2. If necessary, have another person assist you.
3. Take enough time for the assembly and clear a work area of two to three square meters.
4. Lay out any required tools so that they are within reach. Small parts such as handles may come preassembled.

Required tools

1 x pliers

1 x cross-slotted screwdriver

1 x size 10, size 14 and size 17 wrench

1 x hammer (preferably a rubber mallet)

Assembling the grill

1. Insert the two plastic feet (2) from the accessories bag in the bottom end of two support legs (1) (see Fig. 1).

2. Screw tighten the two support legs, which you have prepared as described above, onto the right side of the base plate (3). Screw tighten the two remaining support legs (1) onto the left side of the base plate (3). Use two screws, lock washers and nuts from the screw bag Ⓐ for each side (see Fig. 2).
   Attention: The closed side of the base plate is pointing up.

3. Insert the axle (4) on the left side of the base plate through the legs and the base plate.
   Push one wheel (5) onto each side of the axle.
   Screw both wheels in place using the size 14 socket wrench or wrench and the self-locking nuts from the screw bag Ⓓ. In the process, hold the axle in place with pliers.
   Attach the wheel caps (6) and fix them with the screws out of the screw bag Ⓔ (see Fig. 3).

4. Insert the 4 end caps (7) in the open profile ends of the support legs. If necessary, use a rubber mallet for this (see Fig. 4).

5. Mount three wood support boards (8) on each of the level, horizontal sides of the support legs. For this, use the 25 mm long screws from the screw bag (see Fig. 5). The wood support boards are made of farmed wood with high natural resistance against the influence of weather. Furthermore, they have been stained. However, as this is a natural product, there may be slight variations in colour in their final state.

6. Screw tighten the two supports (9) onto the support legs using 8 screws 6x35 mm, lock washers and nuts. You can find the assembly materials in the screw bag Ⓐ (see Fig. 6).

7. Insert the fitting (11) through the two larger holes on the front panel (10) from the back. Make sure that the round pin of the fitting is properly positioned in the hole between the two temperature controls (see Fig. 7).

Screw tighten the fitting onto the front panel with the cross-head screw 6x12 mm from the screw bag Ⓓ.

Insert the Piezo lighter (12) into the hole to the right of the fitting and screw it to the front panel from behind with the large speed nut (see Fig. 7).

1. Push the two temperature controls (13) onto the fitting pins in the front panel (see Fig. 8).
2. Screw tighten the front panel to the supports using 2 tapping screws 4x12 mm from the screw bag ^ID (see Fig. 9).
3. Mount the grill pan (15) on the supports. For this, use 4 spacer sleeves (14) and 4 screws 5x20 mm, lock washers and nuts from the screw bag Ⓓ (see Fig. 10).
4. Screw the two lid hinges (17) onto the back side of the grill pan with the screws, lock washers and nuts from the screw bag Ⓔ (see Fig. 11).
   Place the lid (16) on the grill pan and screw the other side of the lid hinges into the holes on the back side of the lid. Also use the screws, lock washers and nuts from the screw bag ⑤ for this (see Fig. 11).
5. Insert the screw from the screw bag © into the lid handle (18), then through the heat-resistant washer (19) and through the hole in the lid. Tighten the screw in place using a lock washer and nut from the screw bag © (see Fig. 12).

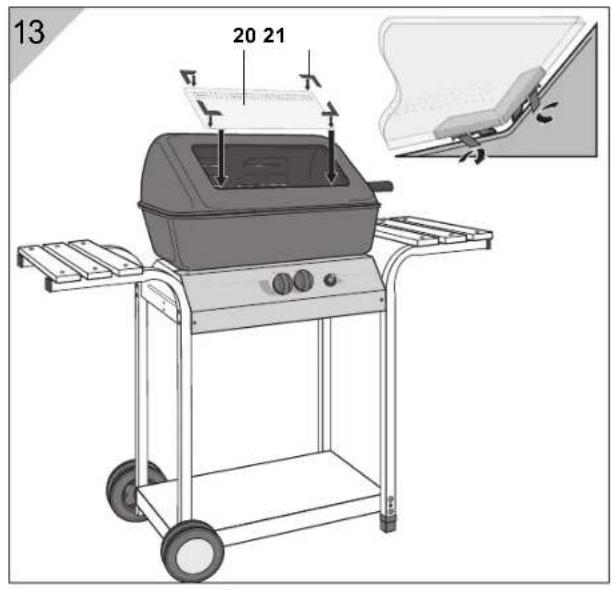

6. Push the four window holders (21) onto the corners of the viewing window (20). The clamps of the window holders must be located on the bottom side of the viewing window.
   Place the entire viewing window on the recess in the opened lid and carefully bend out the clamps of the window holders in the corners of the holders (see Fig. 13).

Attention

Never use the grill if the pane is damaged or not in place.

- When assembling the grill, make sure that the window is properly and securely seated. If this is not the case, do not in any case continue to work, instead repeat the above step and correct the seating of the window.

1. Run the fat container holder (22) through the rear, intermediate hole of the grill pan (see Fig. 14).

2. Remove the 4 tapping screws from the feet of the burner (23). In the process, hold the burner feet in place using pliers to prevent them from bending or being torn off. Then insert the burner (23), with the pipes down, from above through the opening in the pan (see Fig. 15).

Attention: The nozzles on the fitting must extend into the pipe ends of the burner.

The pipe ends are open above the nozzles. This gap is desired!

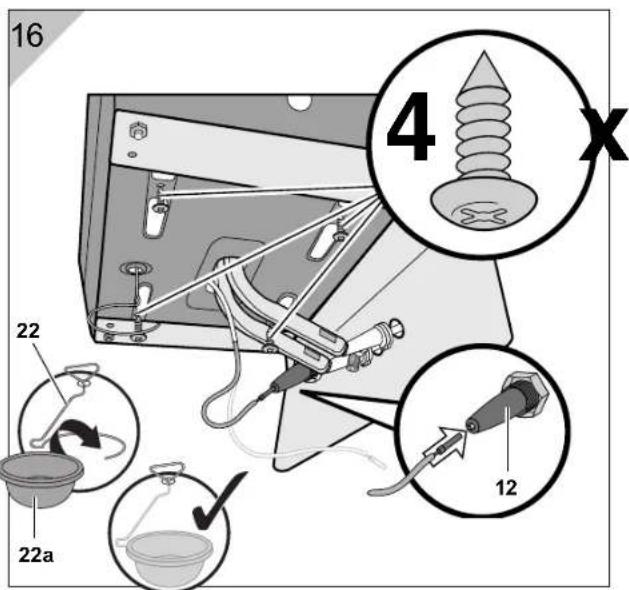

1. Screw the 4 feet of the burner to the grill pan using the previously removed tapping screws (see Fig. 16).

Insert the cable of the lighter box down through the pan, using the shortest route, and to the front. Attach the cable to the Piezo lighter (12) from the back.

GB IE

Clamp oil cup (22a) into the holder. When grilling, excess fat will accumulate in the grill base and run into the tin.

1. Place the black painted lavastone grate (24) on the bottom holders in the pan. Distribute the lavastones (25) evenly, in one layer on the lavastone grate. For best results when grilling, approximately 70–80 % of the grate should be covered.

Place the grill rack (26) on the top holders in the grill pan (see Fig. 17).

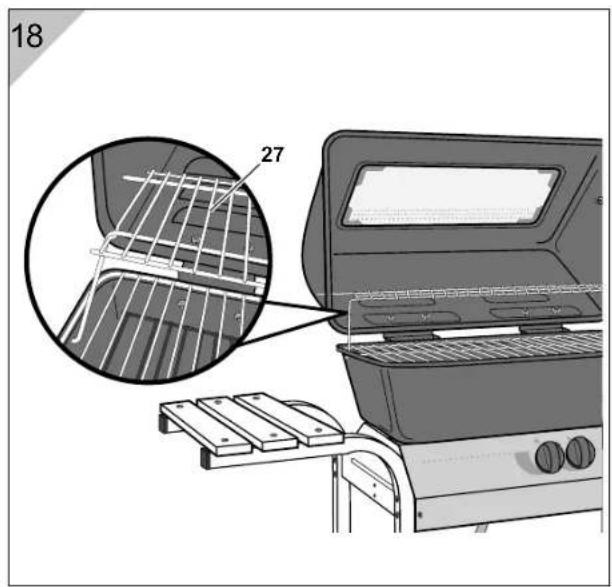

1. Clamp the warming grate (27) into the holes on the lid and in the grill pan as shown in Fig. 18.

Mounting the gas hose

Note: The gas container and gas tube have left-handed threading! If necessary, replace the hose if this is required by national regulations.

Danger Fire/explosion hazard!

Only use one hose connection between the device and the gas container, which does not exceed the recommended length of 1.5 m.

1. Screw tighten one end of the gas hose (28) onto the connection on the back of the control panel and tighten the union nut with a size 17 wrench (see Fig. 19). Lay the hose so that it does not kink or twist.
2. Screw tighten the other end of the gas hose (28) onto the enclosed pressure regulator (29) using a size 17 wrench (see Fig. 19).

Attaching the textile cover

- Attach the textile cover (32) to the two front support legs as shown in Fig. 21.

Setting up the grill

Attention Risk of damage!

Any screwed connections may gradually loosen during use and affect the stability of the grill.

- Before use, always check that the screws are secure. If necessary, tighten all screws again in order to ensure that the grill has a stable position.

1. Before use, place the grill on a level, solid base located outdoors.
2. Place the gas container next to or behind the grill and do not in any case place it on the support under the grill.
3. Check the gas container and the connections for leaks (see section "Checking for gas leaks").
4. Check the grill burner for any blockages if you have not used the barbecue for a prolonged period of time.

Connecting the gas container

In order to use this grill, you will need a commercially-available 5 kg or 11 kg propane or butane gas container.

Danger Risk of fire/explosion/poisoning!

Leaking gas may form a highly explosive air/gas mixture that could cause a fire or explosion and could result in life-threatening injuries or death.

• Never connect the gas supply to the gas grill without a pressure regulator that corresponds to the country-specific pressure.

• Make sure that the gas hose has been firmly mounted and that the hose connection is always accessible along its entire length.

• Turn both temperature controls to position ●(Off).

• Make sure that the gas container valve (30) of the gas container is closed.
• Screw the safety cap off of the container valve threading.
• Check for the presence and proper condition of the container valve threading gasket. Do not use any other gaskets!
• Screw the union nut (31) of the pressure regulator (29) onto the gas container valve threading by turning it counterclockwise (left-hand thread) and tighten it by hand. Do not use any tools as this could damage the gas container valve gasket so that it is no longer gas tight.

• Lay the gas hose so that it does not kink or twist.

• Check all connections for gas leaks (see section "Checking for gas leaks").

Checking for gas leaks

1. Turn both temperature controls to the position ●(Off).
2. Open the container valve.
3. Apply soap water to all screwed connections and the gas hose. If bubbles form, then a connection is loose or the gas hose is cracked and may no longer be used. Do not use the grill; instead immediately close the gas container valve.
4. Check the screwed connections and if necessary, tighten the nuts. Then repeat the check.
5. If there is still a gas leak, contact our customer service centre. You will find the contact data in the section "Distributor".
6. Close the container valve when you are not using the grill.

GB IE

Turning on/lighting

Danger of Explosion!

First read the following instructions on turning on/lighting the grill and all warning and safety notes beght the grill.

• Check the grill for cracks, puncturing or other damage before you use it.
• Stop using the grill if the gas hose is damaged or porous.
• Open the lid of the grill before lighting the burner. Otherwise this may result in explosive ignition that may result in several physical injury or death.

Ignition system – Igniting with a Piezo lighter

1. Open the lid.
2. Open the gas container valve (30) of the gas container. Do not bend over the grilling area.
3. Push the left temperature control on the grill, hold it down and in the process, turn it towards the large flame 🔒.
4. Push the Piezo lighter several times. You will hear a click in the process.
5. Once the left burner is lit, also turn the right temperature control towards the large flame 🔍. The right burner will light automatically.

Important! If the burner does not light, push the temperature control and turn it all the way to ● (Off) while also turning the container valve of the gas container to the closed position. Wait three minutes. You can then either repeat the process or light the burner using conventional means (see section “Conventional lighting with matches”).

Conventional lighting with matches

Danger Burn Hazard!

When using matches, always light the grill from the side, never from above.

1. Open the lid.
2. Open the gas container valve. Do not lean over the grilling surface.
3. Push and hold the temperature control on the grill while turning it to the position with the large flame 🔒.
4. Insert a lit, commercially-available fireplace match (extra long) into the pan through the ignition hole so that it is next to the burner.
5. Repeat the process with the second burner.

Preheating/regulating the flame

• Heat up the grill for 10 to 15 minutes at the highest setting before you grill. Keep the lid closed during the process.
• By turning the temperature control towards the small flame, you can reduce the power and the heat respectively.

Tips for saving energy:

• Do not keep the lid open for too long.
• Turn off the grill as soon as you are done grilling.
• Only heat up the grill for 10 to 15 minutes.
• Do not heat the grill longer than recommended.
• Do not set the burner higher than necessary.

Turning the grill off

• First turn the gas container valve to the closed position in order to burn off any leftover gas. Then turn the temperature control towards the large flame into the position ●(Off).
• After use, disconnect the gas container from the grill outdoors only!

Maintenance and cleaning

Your grill is made of high-quality materials. Please observe the following notes in order to clean and maintain the surfaces:

Danger Burn Hazard!

Allow the grill to cool off completely before cleaning it.

Danger Health hazard!

Do not use any dye solvents or thinners to remove stains. They are hazardous to health and must not

come in contact with food.

Attention Risk of damage!

Do not use any strong or abrasive solvents or scouring pads as they may attack and scratch the surfaces.

• Clean the grill regularly, ideally after every use.
• After grilling, turn the grill on for 10 to 15 minutes. This will burn any leftover fat off the grill rack. Then let the grill cool off completely.
• Remove any loose deposits with a wet sponge.
• Use a soft, clean cloth for drying. Do not scratch the surface by rubbing it in a dry state.
• Make sure that the burner vents and nozzles are not damaged when you clean them.
• In general, you should clean the grates, inner and outer surfaces with warm soap water.
• Check regularly to make sure the burner is free of insects, which could plug the gas system, thereby impairing the supply of gas. Also check all other areas in this respect. It is possible that e.g. spiders may inhabit the tubes.
• Clean the tubes carefully with a flexible brush.
• Regularly tighten all screws before using the grill to ensure that the grill has a stable position.

GB IE

Storage

• Always store the gas container in an upright position, never in a horizontal position in a well ventilated area and not below ground level (e.g. in the basement).
• Store the lavastone gas grill in a dry and dust-free state.
  • Cover the grill with a tarp.
• Before using the grill for the next time, check all parts and if applicable, tighten the screws.

Troubleshooting

The notes below serve to help you to resolve any problems. If you are still unable to resolve the problem, please contact Te-pro's customer service (see section "Distributor").

Problem Cause Solution
Smell of gas. A gas connection has a leak.		Immediately close the gas container. Check the gas supply (see section "Checking for gas leaks"). If necessary, contact the gas dealer or the customer service from Tepro.
Burner doesn't light.	Gas container is empty.	Replace the gas container with a full one.
	Gas valve is closed.	Open the gas valve of the gas container.
The burner doesn't develop any power.	Burner is dirty.	Clean the burner (see the section "Maintenance and cleaning").

Disposal

The packaging is made of environmentally-friendly materials that you can dispose of at local recycling depots. Do not in any case dispose of the grill in your normal old garbage!

Dispose of the device using an authorised disposal service or a waste disposal facility in your community. Observe the regulations currently in force. In the event t, contact the disposal facility in your area.

Note on the declaration of conformity

This product complies with applicable European and national directives. This is confirmed by the CE mark (corresponding declarations are kept with the manufacturer).

Technical data

Product: Product No. 3201, lavastone gas grill FGG 5.5 A1

Weight: 14.5 kg (without stones)

Consumption: 400 g/h

Total dimensions: (W x D x H) approx. 106.5 x 49 x 101 cm

Output: approx. 5.5 kW max. (2 x 2.75 kW) Grilling area: 51.5 x 30 cm

Burner: Twofold adjustable

Gas type: Liquefied gas (28-30 mbar butane / 37 mbar propane)

Ignition: Piezo lighter

Gas container: 5 kg/11 kg liquefied gas container

Nozzle: 0.84 mm (labelled with 0.84 or 66)

Configured for: Liquefied gas

Connection pressure: GB: 37 mbar / IE: 30 mbar

Device category: I_3+ (28-30/37)

Device type: A_1

Warranty

You have purchased a high-quality grill. TEPRO GARTEN GmbH offers a 36 (thirty six) month warranty on its grills and all parts covering defects and manufacturing errors for normal, private and non-commercial use from the purchase date.

The warranty does not cover any wearable parts such as grill racks and burners. The buyer is charged for all other costs including labour, transport, shipping and packaging.

The distributor reserves the right to choose between assuming any incurred costs itself or charging the buyer for them.

This warranty does not cover failure or user difficulties brought about by wilful damage, abuse, modification, improper or careless use, wear, incorrect assembly or improper maintenance.

Service

If you have technical questions, please contact our service team. This product was manufactured and packaged with care. If, however, you do have reason for a claim, our employees are happy to assist you.

You can reach one of our employees personally by calling the service number below. Technical changes and printing errors reserved.

Distributor

Tepro Garten GmbH

Carl-Zeiss-Strasse 8/4

D-63322 Rödermark

Phone: [phone]

Fax: [phone]

E-mail: [e-mail] or [e-mail]

Web: www.tepro-gmbh.de

FI

Sisältö

Sivu
