USER MANUAL IAN 113854 SILVERCREST
FR
Operation and safety notes
IAN322055
FR
FR
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
GB Operation and safety notes Page 45
Scope of supply......Page 47
Control elements......Page 47
Technical data Page 48
Safety Page 50
Safety advice Page 50
Safety instructions for batteries/rechargeable batteries......Page 51
Setting up Page 53
Preparing the remote control Page 53
Replacing the battery....Page 53
Setting up the remote controlled socket....Page 54
Setting-up operation Page 56
Using the radiocontrolled socket......Page 56
Using the remote-control Page 57
Troubleshooting Page 57
Cleaning Page 60
Guarantee and service......Page 61
Guarantee Page 61
Service address Page 62
Declaration of conformity......Page 62
Manufacturer Page 62
| Legend of pictograms used | |||
 | Volt (AC voltage) |  | Improper battery disposal harms the environment! |
 | Hertz (frequency) |  | Micro-switch with contact opening <3 mm |
 | Watt (effective power) |  | The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only. |
 | Observe warnings and safety instructions! |  | EU-compliant |
 | Beware of electric shock! Danger to life! |  | Protected against water spray and penetration by solid foreign bodies ≥ 1 mm diameter |
 | Do not dispose of electric appliances in household rubbish! | ||
Outdoor Wireless Socket Set
- Introduction
- Proper handling
The radio-controlled socket set is suitable for switching electrical devices outside on and off by remote control. Any modification to the device shall be considered as improper use and can lead to considerable risk of accident. The manufacturer will not accept liability for loss or damage arising from improper use. The appliance is not intended for commercial use.
- Scope of supply
After you have unpacked this set, please check to make sure all the contents are complete.
2 Remote-controlled sockets RCR DP3 3711-A IP44 FR 3726
1 Button cell CR 2032, lithium 3 V (in remote control)
1 Set of operating instructions

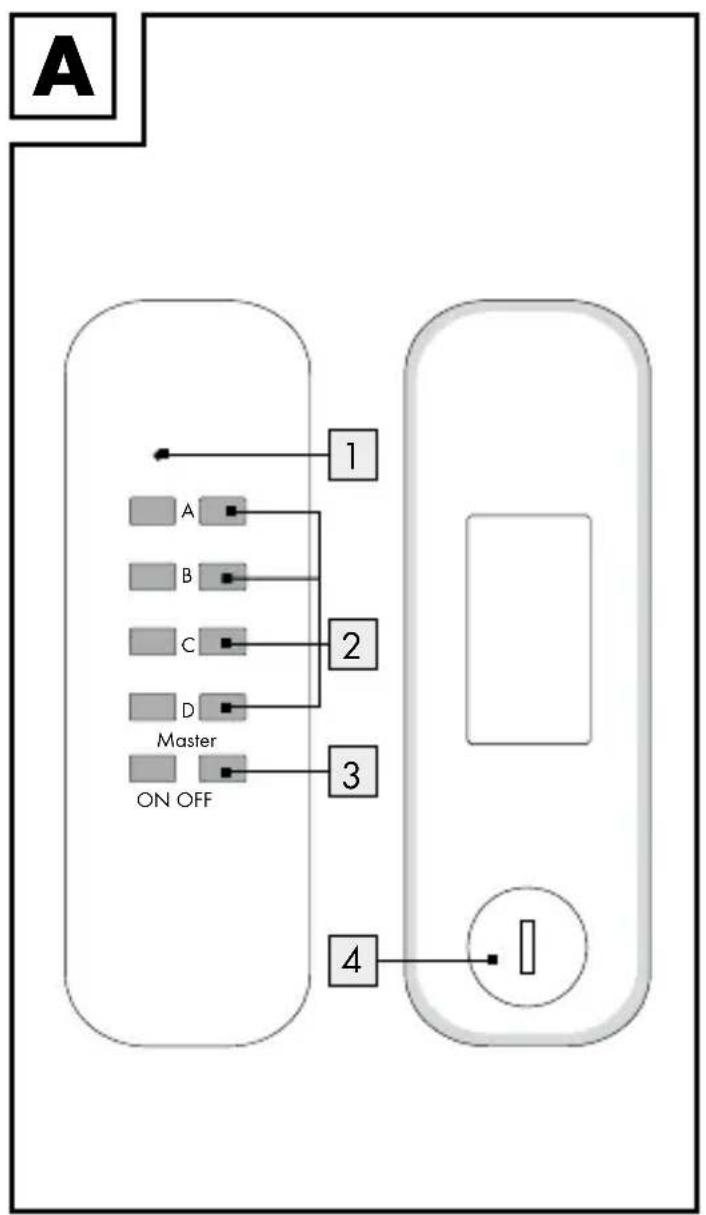

Control elements
1 Power indicator light
2 Channel ON/OFF button
Channel A, B, C, D
3 Master ON/OFF switch 4 Battery compartment lid

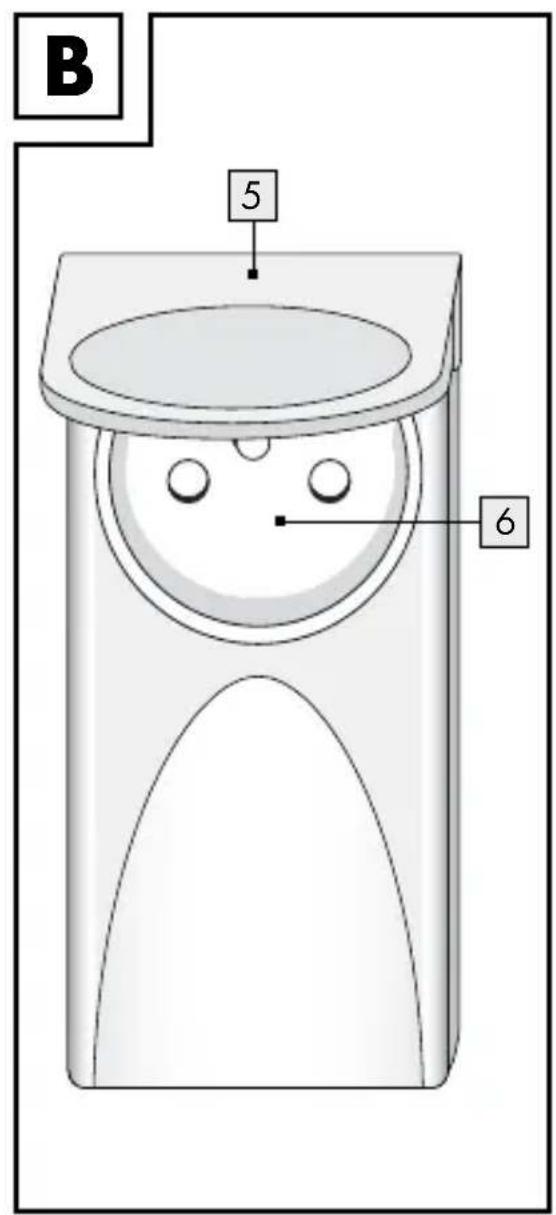

Remote-controlled socket RCR DP3 3711-A IP44 FR 3726 (Fig. B):
5 Cover 6 Child-protected socket
- Technical data
Wireless Socket Set RC DP3 0201-A FR 3726
Radio frequency: 433.92 MHz
Max. transmitting
power: 0 dBm
Licensing: The system is li-
censed for gen- eral use, is free of charge and does not require registration.
Range:Dependingon
the circumstances approx. 40 m under optimum circumstances.
Dimensions: 4.5 × 13.6 ×
1.1 cm (W x H x D)
Weight: 37g
Remote-controlled socket RCR DP3 3711-A IP44 FR 3726 suitable for outdoor use (IP 44):
Rated voltage: 230 V\~, 50 Hz
Breaking capacity: 16A, 3,680W
Standby power
consumption: < 0.7 W
Transmission
frequency: 433.92 MHz
Protection class: I
Protection level: IP44
Switching load: essentially resistive load
Switch type: single-pole, one load
Encoding: 1.2
Switching cycles: 1E4 (10000)
Ambient
temperature: T35 ( 0^ to 35^ C)
Surge withstand
voltage: 2500V
Shutdown type: (small contact opening)
Pollution degree: 2
Insulation material
group: llla
Creeping current
resistance: PTI175
Glow wire
temperature: 850°C (level 3
for parts in contact with electric cables)
Dimensions: 5.4 x 11.4 x
7.4 cm
(W x H x D)
Weight: 136g
Advice: The radio-controlled sockets have a child protection socket 6, which significantly increases safety at home. The contacts are protected in such a way that children cannot stick needles or other sharp objects into them and thus get an electric shock. Nevertheless, please keep the device out of the reach of children at all times.
● Safety
Safety advice
Read these operating instructions and safety advice carefully. Look at the diagram page and familiarise yourself with all functions of the device before starting it up for the first time.
Avoid danger to life from electric shock!
■ Connect remote-controlled sockets to earthed 230-volt mains electrical outlet sockets only.
- Avoid overloading the device. Overloading can cause a fire hazard or damage to the device. The maximum capacity is approx. 3,680 W per radio-controlled socket.
CAUTION! Do not expose
the device to direct sunlight.
- Please contact the service department immediately operational faults arise.
- Do not open the device on any account. All necessary repairs should only be carried out by the service department or a specialist electrical workshop.
■ Before cleaning always disconnect the device from the mains supply. In this case always remove the radio-controlled electrical outlet socket from the mains wall socket and remove all plugs from the device. - Do not have one radio-controlled electrical outlet socket inserted behind the other.
■ Only voltage-free when unplugged.
■ Do not use any additional child protection devices for the
radio-controlled sockets. The connection between the plug and the radio-controlled socket could be impaired and risk from overheating then arises. The radio-controlled sockets already have a child protection device which prevents children from putting any objects into the socket.
■ Ensure that the outlet is installed close to the connected product, is easily accessible and that the product is not operated while covered.
■ If the device malfunctions, switch it off immediately.
These instructions are a component of the device. If you pass the device on to a third party, these instructions must also be handed on.
- Do not switch the wireless sockets erratically or unattended.
Safety instructions for batteries/ rechargeable batteries
This product contains button cell batteries.
ATTENTION! Do not ingest battery; risk of burns due to dangerous substances.
- Keep new and used batteries away from children. If a button cell battery is swallowed, it can cause severe internal burns in just 2 hours and lead to death.
See a doctor immediately if a battery has been swallowed or is located in a part of the body.
If the battery compartment does not close securely, stop using the remote control and keep it away from children.
DANGER OF EX-
PLOSION! Never
recharge non-re-
chargeable batteries. Do not short-circuit batteries/re-chargeable batteries and/or open them. Overheating, fire or bursting can be the result.
■ Never throw batteries/re-chargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
- Avoid extreme environmental conditions and temperatures,
which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTEC-TIVE GLOVES!
Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries/rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
■ Only use the specified type of battery/rechargeable battery!
- Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
- Clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.
- Setting up
●Preparing the remote control
Note: The button cell is already in the battery compartment. Remove the contract strips by opening the battery compartment as described below.
- Replacing the battery
CAUTION! Danger of explosion in the case of improper battery replacement. Only
replace with the same or equivalent battery type.
- Open the battery compartment on the back of the remote control by turning the battery compartment cover 4 anti-clockwise with the aid of a coin or a screwdriver, then removing the lid (open).
- Replace the button cell type CR 2032. Make sure you fit the battery with the correct polarity (+ = up).
- Place the battery compartment cover 4 back on and lock it in place by turning it in a clockwise direction (close).
- Press one of the ON / OFF buttons 2 or 3 to test whether the remote control works; if it does, the power indicator light will come on 1.
- Setting up the remote controlled socket (fig. B)
- Plug the wireless socket into an earthed mains socket. You now have 30 seconds to complete steps 2 and 3.
Note: Always plug in the wireless socket in the direction indicated on the product label to maintain the splash water protection (arrow ↑ must point up).
Protection against water spray is only guaranteed when a socket of the same protection rating (classification IPX4) is connected.
- Point the remote control at the remote-controlled socket at a distance of approx. 50 cm.
- Push the respective ON button of the Channel ON / OFF
button 2 (A, B, C or D) on the remote control. You can now remotely switch a connected device on or off. Once assigned the process will complete.
- Repeat step 1 - 3 with the other wireless socket.
Note: You can switch several remote-controlled sockets on and off at the same time using the ON/OFF button 2 of one channel. In addition, you can programme six remote controls one after the other and use them for individual receivers. This means you can switch one appliance on and off from up to six different places. In this case, synchronise every remote-controlled socket with the channel of the remote control.
Note: The coding of the remote control is maintained when you change the battery.
Note: If you disconnect the remote-controlled socket from the power supply, the codings will be permanently stored.
However, the remote control cannot be used for at least 30 seconds after the connection is renewed, as this can cause new encoding to take place.
Deleting a code:
☐ First repeat steps 1 - 2 to delete a code.
☐ Then push the desired OFF button of the Channel ON/OFF button 2 (A, B, C or D) you wish to delete on the remote control during the 30 second timeframe.
☐ You will then again have 30 seconds to delete more or store a new code.
Deleting all codes:
☐ To delete all codes, first repeat step 1 - 2.
☐ Then push the MASTER-OFF button 3 on the remote control within the 30 second timeframe. All previously stored codes will be deleted immediately after pushing the Master OFF button 3 and the process will complete.
☐Preventinterference: Ensure the various sockets are spaced approx. 50 cm apart.
- Setting-up operation
- Using the radiocontrolled socket (fig. B)
- Put the radio-controlled socket into any shuttered socket and connect the appliance you want to operate.
- Switch the electrical appliance on. The radio-controlled socket can only perform its switching function when the device to be controlled is switched on.
ATTENTION! FIRE HAZARD!
Do not attach any appliances which could cause fires or other damaged if left unattended when switched on. The maximum load of every radio-controlled socket is approx.
3,680 W. Any overload could cause a risk of fire or damage
to the device.
- Using the remote-control (fig. A)
- Use the button ON / OFF 2 for the channel whose device you would like to switch on or off. The remote control controls up to 4 radio-controlled sockets (individually, in groups, or all at the same time).
- Use the ALL-ON / OFF button 3 to switch all radio-controlled sockets on or off at the same time.
Troubleshooting
If the remote control does not work, please check the following points:
| Problem | The operating indicator 1 on the remote control device illuminates but there is no reaction |
| Remedy | · Check that the current output from the battery is adequate. If necessary insert a new battery. |
| Problem | No indicator light1 on remote control when pressing “ON” or “OFF” |
| Remedy | · Check that the battery has been put in correctly.· Check if the battery has good contact, if necessary press down. |
| Problem | No reaction from consumer |
| Remedy | Check that the appliance is switched on.Assign a new code to the wireless socket (see “Setting up the wireless socket”).Check - by walking closer to it - that the range is correct for the desired location. |
| Problem | Range is too small |
| Remedy | · For the greatest range make sure that there are as few potential obstructions as possible (not only walls, furniture etc. but also trees, bushes etc.) between the remote controller and the remote-controlled socket. |
| Problem | Range is too small |
| Remedy | · If the range is too small at times, the reason could be a remote control which works on a similar frequency. Whenever this remote control is active, the range declines (e.g. wireless headphones, radio-controlled movement alarms, radio gongs etc.). |
- Cleaning
Before cleaning, always disconnect the radio-controlled socket from the wall socket and remove all power plugs from the device.
☐ Ensure that no liquids get into the inside of the device. Use a soft cloth to clean the housing. Never use petroleum, solvents or cleaners which corrode plastics.
- Disposal
Electrical appliances must not be disposed of with domestic waste.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
In accordance with Council Directive 2012/19/EC on waste electrical and electronic equipment (WEEE), used electrical appliances, lighting equipment and batteries have to be collected separately and recycled in an environmentally friendly way. Enquire at your city council or local government regarding the possibilities of disposing of electronic waste in a correct and environmentally friendly way.
The product packaging is made from recyclable materials. Please
dispose of these in an environmentally friendly way and ensure that they are sorted into the appropriate collection bins.
Environmental damage through incorrect disposal of the batteries!
Batteries should not be disposed of with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. That is why you should dispose of used batteries at a local collection point.
● Guarantee and service
Guarantee
This appliance comes with a 3-year guarantee commencing on the date of purchase. Please keep your receipt as proof of purchase. The appliance has been produced to the highest standards and thoroughly checked before dispatch. The guarantee only applies to faults in materials or workmanship when used properly. The guarantee lapses in cases of unauthorized tampering. This guarantee does not restrict your legal rights. If you wish to make a claim under the guarantee, please telephone the service centre. Only by doing so can we ensure that your appliance is returned free of charge.
- Service address
For further information, we recommend you visit the service section / FAQs of our home page
www.dvw-service.com.
There, you will also find these instructions for use as a PDF document.
IAN 322055
- Declaration of conformity
BAT declares that the wireless system model RC DP3 0201-A FR 3726 complies with EU directives 2014/53/EU and 2011/65/EU (incl. 2015/863/EU).
The full text of the EU declaration of conformity is available at: www.dvw-service.com/konformitaetserklaerung/ke_1008521706.pdf
Manufacturer
BAT
Lindenstraße 35
DE-72074 Tübingen
GERMANY
Last Information Update: 04 / 2019
