Brand	Briggs & Stratton
Model	Murray 18V
Product type	Charger for 18V lithium-ion battery
Input power	100-240 V ~ 50/60 Hz
Output voltage	20 V DC
Output current	3.0 A
USB port	Type A, 5 V / 1.0 A
Net weight (charger only)	0.55 kg
Power cord length	1.8 m
Intended use	Charge only Briggs & Stratton 18V Li-ion batteries
Protection	Double insulation (class II)
Recommended charging temperature	10 °C to 35 °C
Typical charging time (2.5 Ah battery)	55 minutes
Maintenance	Clean with a dry cloth; do not use solvents
Safety	Unplug before cleaning; do not expose to water; indoor use only
Spare parts	Use exclusively genuine Briggs & Stratton parts
Repairability	Refer to an authorized service center
Standards and certifications	CE, RCM, RoHS
Disposal	Do not dispose of with household waste; recycle at an authorized Li-ion center

Frequently Asked Questions - Murray 18V BRIGGS & STRATTON

What type of battery can I charge with this charger?

This charger is designed only for Briggs & Stratton 18V lithium-ion batteries. Do not charge other types of batteries.

How do I know if the battery is fully charged?

The charger has a charge indication panel. Consult the manual for the meaning of the colors (usually a solid green light indicates full charge).

Can I use the charger in the rain or outdoors?

No, the charger is intended for indoor use only. Do not expose it to rain or humidity.

What should I do if the battery does not charge?

Check that the battery is properly inserted and that the outlet is powered. If the battery is too hot, let it cool down between 10°C and 35°C. If the problem persists, the battery or charger may be defective.

The charger blinks red, what does that mean?

A red blinking light usually indicates a fault. Try removing and reinserting the battery, or unplug the charger and plug it back in. Consult the manual for more details.

Can I recharge batteries of another brand?

No, use only Briggs & Stratton batteries to avoid any risk of fire or damage.

How do I clean the charger?

Unplug the charger, then use a dry cloth or a soft brush to remove dust. Do not use solvents or harsh detergents.

What should I do if the battery is damaged or leaking?

Do not charge or use a damaged battery. Cover the terminals with adhesive tape and take it to an authorized lithium-ion recycling center. Avoid any contact with the liquid.

What is the USB output voltage?

The USB port provides 5 V / 1.0 A for charging mobile devices like smartphones or tablets.

Where can I find spare parts or get my charger repaired?

Contact an authorized Briggs & Stratton service center. Use only genuine parts to ensure safety.

USER MANUAL Murray 18V BRIGGS & STRATTON

18V LITHIUM-ION RECHARGEABLE BATTERY & CHARGER OWNER'S MANUAL

Original instructions 1-12

Thank you for purchasing your Briggs & Stratton product. Briggs & Stratton prides itself in the quality and performance of all its products.

This instruction manual will aid in the safe operation and maintenance of your product.

Please read the following warnings to ensure safety and the long life of your product.

WARNING

Do not attempt to operate this product until you have read thoroughly and understood completely all instructions, safety rules, etc, contained in this manual. Failure to comply may result in accidents involving electric shock, fire, and/or serious personal injury.

INTENDED USE

Battery: To power all compatible Briggs & Stratton product ONLY. Charger: To charge Briggs & Stratton batteries ONLY.

Do not use the product for any task, except for that which it is intended.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and user maintenance shall not be made by children without supervision.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

General Safety & Symbols (Battery)

Warning!

Read the directions for use before operating the battery.

Beware of electric shock hazard.

Caution corrosive materials May cause skin & eye damage.

Do not throw into water.

Keep away from heat and/or open flame.

Recycle

General Safety & Symbols (Charger)

Before charging, read the instructions
Should NOT be disposed of with household items.

T2.0A
For indoor use only.
Time-lag fuse - Single Charger 2A/250VAC, 20ms-150ms.

RoHS

Restriction of Hazardous Substances

Protect the machine from rain and damp.

Should NOT be disposed of with household items.

Batteries contain Li-ion, waste batteries should be sorted for eco-friendly. Do not dispose of waste batteries as unsorted municipal waste.

Class 9 'Lithium-ion' dangerous good. Contact local authorities for shipping requirements.

Caution contains material which maybe hazardous to your health.

Ambient temperature 45°C Max.

Class II Double Insulation.

Regulatory Compliance Mark (RCM)
E915

CE conformity mark

Time-lag fuse - Twin Charger 5A/250VAC, 20ms-150ms.

DC Voltage

Table of Content

Features & Definitions
Features & Supplied Items 4
Safety & Handling
	General Safety 5Battery & Charger Disposal 6	FirstLithium-ion&	AidPrecaution
Operating Instructions
	USB (Battery) 7Charging Procedure 8	BatteryUSB	Cap(Charge)
Maintenance & Care
Cleaning 9		Servicing	9
Troubleshooting
Troubleshooting		10
Technical Specifications
		Product	Spec

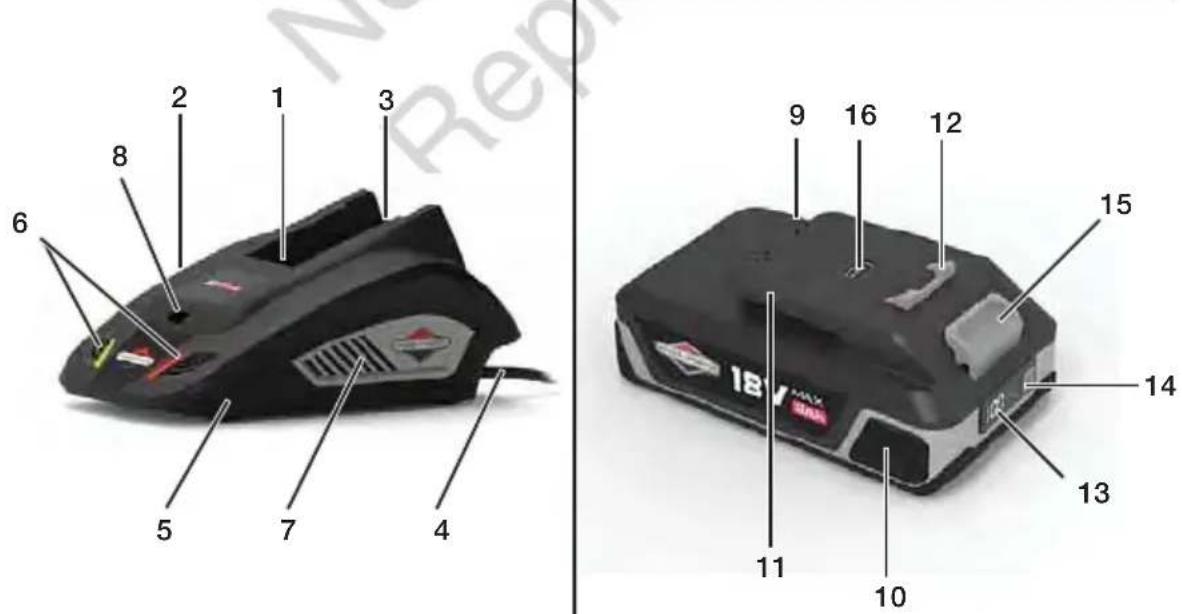

Featured & Supplied Items

Battery Charger

1	Battery	Terminals
2	Top	Housing
3	Battery	Lock
4	Electrical	Cord
5	Bottom	Housing
6	Charging Indication Panel
7	Ventilation Grill Charger
8	USB	Port

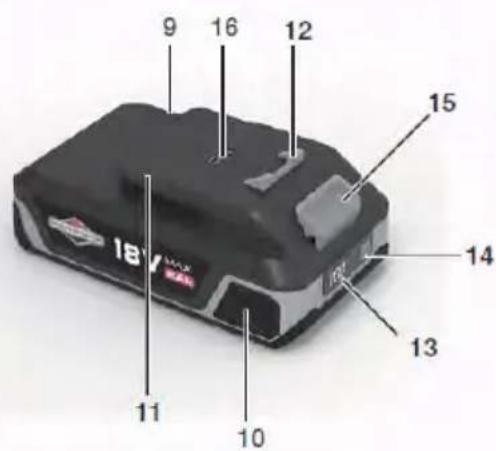

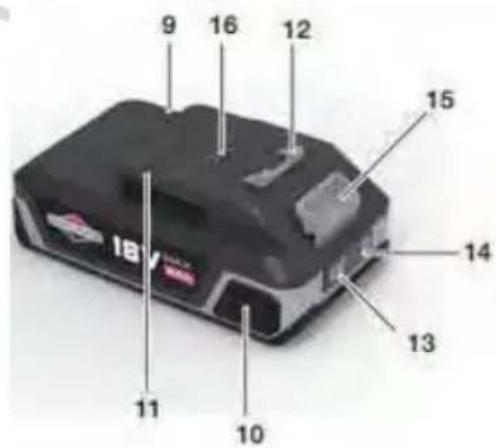

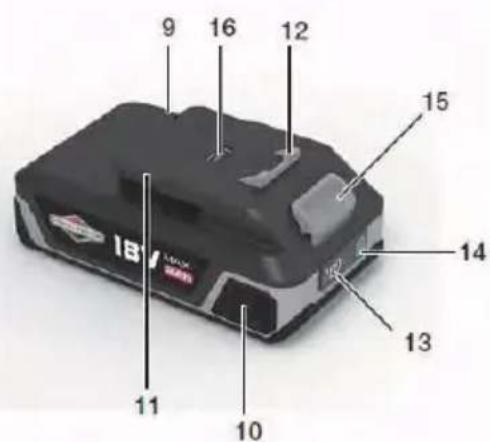

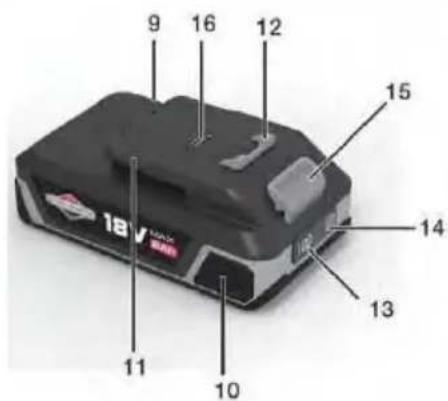

Lithium-ion Battery

9	Battery	Terminals
10	Ventilation Grills Battery
11	Engagement	Tab
12	Latch
13	Charge	Indication	Panel
14	Indication	Button
15	Release	Trigger
16	USB	Port

Battery Charger Lithium-ion Battery

First Aid

Each battery cell contains chemical materials that are stored in a hermetically sealed container designed to withstand temperatures and pressures encountered during normal use. As a result, during normal use, there is no physical danger of ignition or explosion and chemical danger of hazardous materials' leakage.

However, if exposed to a fire, added mechanical shocks, decomposed or added electric stress by miss-use, then hazardous materials maybe released. If this occurs please do the following:

Do not make contact with the leaking substance. If contact is made by a person apply the appropriate first aid as listed below:

Inhalation: If inhaled, remove to fresh air. Seek medical attention if not breathing or breathing problems develops.

Skin Contact: In case of skin contact, immediately remove contaminated clothing and wash affected areas with water and soap. Seek medical attention.

Eye Contact: In case of eye contact, rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Seek medical attention..

Ingestion: Seek immediate medical attention.

NOTE: This information is relevant only if the battery is broken and therefore results in a direct contact with the ingredients.

General Safety

For the proper use, maintenance and storage of this product, it is crucially important that you read and understand the instructions given in this manual.

To avoid serious injury, risk of fire, explosion and danger of electric shock or electrocution:

- Do not probe the charger with conductive materials.

- If any parts are cracked or damaged, do not use and replace.

- Do not charge the battery with any other type of charger.

- Do not attempt to charge non-specified batteries in the charger, including charging non rechargeable batteries.

- Do not allow liquid or any other debris to enter the battery or charger.

- Do not attempt to use the charger for any products other than listed.

- Do not short circuit any terminals of the battery.

- Do not modify or alter the battery or charger in any way.

- Do not use or charge the battery in rain or in wet conditions.

- Do not immerse the product, battery or charger in water or any other liquid.

- Do not allow the battery or charger to get warm. If they are warm, allow them to cool down for 1 hour before attempting to use or charge the battery again. Recharge only at room temperature (10 to 35°C).

- Do not cover the ventilation grill on the top of the charger or the sides of the battery.

- Do not place the charger on a soft surface i.e. blanket, pillow as ventilation grill may get blocked. Keep the ventilation grill of the product, battery & charger clear at all times.

- Do not allow metal items or material such as steel wool, aluminium foil, or other foreign particles into the battery or charger cavity or to come in contact with the terminals.

- Unplug the charger before cleaning and when not in use.

General Safety Cont'd

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

Battery & Charger Disposal

All items must be disposed of in a specified manner to prevent contamination of the environment. Take the batteries to a local recycling and/or disposal centre, certified for Lithium-ion disposal.

WARNING

If the battery cracks or breaks, with or without leaks, do not recharge it and do not use. Dispose of it and replace with a new battery. DO NOT ATTEMPT TO REPAIR DAMAGED BATTERIES.

To avoid injury and risk of fire, explosion, or electric shock, and to avoid damage to the environment:

• Cover the battery's terminals with heavy-duty adhesive tape.
- Do not attempt to remove or destroy any of the battery components.
- Do not attempt to open the battery or charger.
- If a leak develops, the released electrolytes are corrosive and toxic. Do not get the solution in the eyes or on skin, and do not swallow it.
- Do not place these batteries in your regular household trash.
- Do not incinerate.
- Do not place them in any waste landfill or municipal solid waste stream.
• Take them to a certified lithium-ion recycling or disposal centre.

BATTERY RECYCLING INITIATIVE

The Battery Recycling Initiative (ABRI) is a not-for-profit association established in 2008 to promote responsible environmental management of batteries at end of life. More information on battery recycling can be found on their website at www.batteryrecycling.org.au.

SAFE STORAGE

Used batteries are potentially hazardous, so they need to be stored and handled carefully. They need to be kept out of reach of children. Some of the materials inside batteries are toxic, so you need to be careful of damaged or leaking batteries. Batteries must be kept away from direct sunlight or heat. Store the battery at a temperature between 10°C to 35°C & between 40% to 85% relative humidity.

CORRECT DISPOSAL OF THE BATTERY & CHARGER

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Lithium-ion Hazard & Precautions

Undamaged Lithium-ion battery packs are safe to use, hazard & precautions only apply when battery pack is damaged & Lithium-ion cells are exposed.

Lithium-ion is harmful if swallowed or when in contact with skin.

Lithium-ion may cause serious eye damage.

Lithium-ion may cause an allergic skin reaction.

Lithium-ion may cause damage to organs through prolonged or repeated exposure.

Do not inhale Lithium-ion dust or vapours.

Avoid breathing Lithium-ion dust or vapours.

Wear personal protective equipment when handling damaged Lithium-ion battery pack.

Wash hands thoroughly after handling damaged Lithium-ion products.

Do not eat, drink or smoke when using Lithium-ion products.

Clothing with Lithium-ion contamination should be disposed of immediately.

OPERATING INSTRUCTIONS

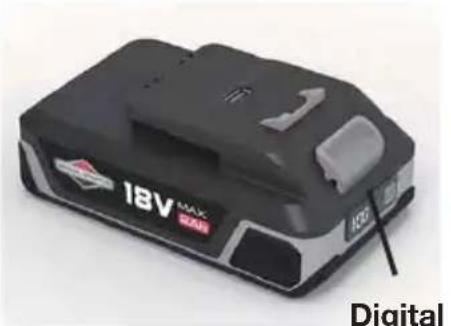

Battery Capacity

The percentage of power level will be displayed by pressing the button on the right of the digital display.

Digital Display

USB (Battery)

USB port for charging devices is available on both battery and charger. For Type, supply Voltage and other details of USB port, please refer product specifications in this manual.

Digital Display

3D rendered mechanical part with a vertical line and cutouts, no visible text or symbols

USB Port

OPERATING INSTRUCTIONS

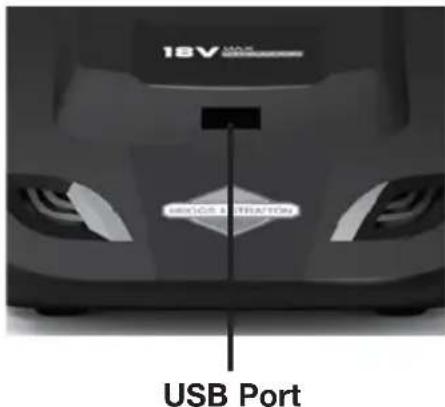

USB (Charger)

USB port for charging devices is available on both battery and charger. For Type, supply voltage and other details of USB port, please refer product specifications in this manual.

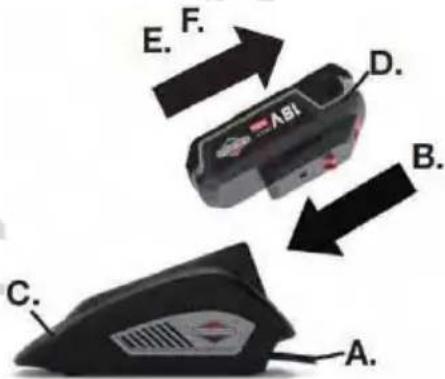

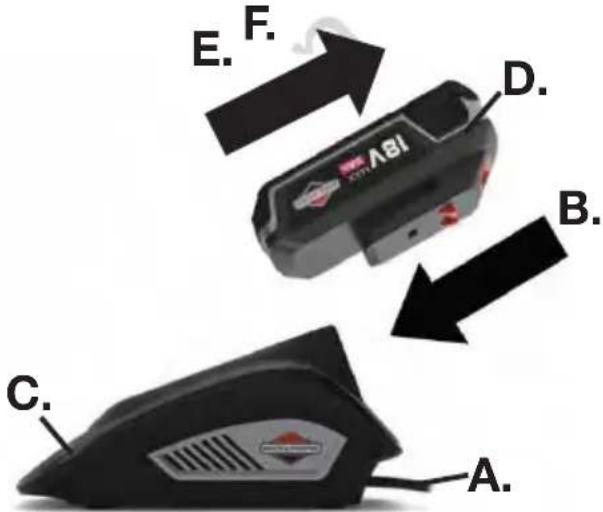

Charging Procedure

If the battery cannot fit into the charger properly, do not attempt to charge battery. Only charge Briggs & Stratton battery in Briggs & Stratton charger. If the battery is hot after use in the tool, let it cool down before charging.

A) Connect the charger to the mains.

B) Insert the battery into the charger, until it clicks into the locked position.

C) Frequently monitor the charger and battery while charging.

D) It takes about 1 hour to charge a fully discharged 2.5 Ah battery.

E) Remove the battery from the charger when it is fully charged and unplug the charger from the mains.

F) To remove the battery from the charger, press the release button on the battery and push the battery out.

G) Let the battery cool down before use.

NOTE: If the battery does not charge properly:

• Make sure that the power outlet is turned on.

- Check the current at the power outlet with another electrical device.

- Check that the charger contacts have not been shorted by debris or foreign material.

- If the surrounding air temperature is not normal room temperature, move the charger and battery pack to a location where the temperature is between 10 °C and 35°C.

WARNING

Do not leave the battery in the charger without the latch being locked in place to avoid accidental slips, drops or falls of the battery.

Be sure to check the colour of the charging indicator LEDs. If the battery does not seem to be charging or if the full charge indication is observed on the charger and the battery indicator shows a less than a full charge, perform the following:

• Remove the battery from charger and allow battery to cool for approximately 1 hour depending on the ambient conditions
• Attempt to recharge the battery. Continue this procedure until the battery has cooled sufficiently to begin charging.

Cleaning

To prevent serious personal injury, unplug the charger and remove the battery from the charger or product before servicing, cleaning, or removing debris.

• Use a dry cloth, brush or vacuum to remove dirt, grease, oil or other debris before and after each use.
• Do not use any strong detergents on the plastic housing or the handle. They can be damaged by certain aromatic oils such as pine and lemon, and by solvents such as kerosene.
• Moisture can cause a shock hazard. Wipe off any moisture with a soft dry cloth immediately.
• Use a small brush or the air discharge of a small vacuum cleaner to clean the air vents, terminals and connector on the battery, charger and product.
• Keep the air vents free of obstructions.

WARNING

Do not use solvents, strong detergents, certain aromatic oils such as pine and lemon when cleaning plastic parts. Many plastics are susceptible to damage from various types of chemicals and may be damaged by their use. When servicing use only identical replacement parts. Use of any other parts can create a hazard or cause product damage.

Service

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest authorized service centre for repair. When servicing, use only genuine replacement parts.

• Keep the handles dry, clean, and free of oil and grease.
• In order to reduce the risk of fire, keep the motor free of grass, leaves, and debris build-up.
• Never tamper with safety devices. Check them regularly for proper operation.

NOTE: Refer to warranty card supplied with this product for service contact details.

Troubleshooting

Battery:

Problem Possible	Cause Correction
Battery fails to charge.	Battery not properly inserted into battery charger.	Ensure battery and charger are firmly connected.
	Battery is too hot.	If the battery is hot after continuous use in charger, allow it to cool down to room temperature before charging.
	Battery is defective. Replace with a new battery.
	Charger is defective. Replace with a new charger.
Battery has reduced run time.	Battery is too old. Replace with a new battery.

Charger:

Problem Possible	Cause Correction
Charger doesn't work. Charger shows defective mode (LED flashes Red).	Battery pack or charger is defective or bad connection between that battery pack and the charged.	Try to remove and reinsert the battery pack in the charger.
		Try charging a different battery pack.
		Unplug the charger and wait until the red LED goes out, then replug the charger to the power supply.
Charger doesn't work. Charger shows evaluative mode (LED indicates Red solid ON).	Battery pack is too hot or too cold.	Allow the battery pack to reach temperature. Charging will begin when battery pack returns to 3°C - 42°C (37°F - 176°F).

PRODUCT SPECIFICATION	18V LI-ION RECHARGEABLE BATTERIES
Model No.	883251	883252	883253
Description	B&S 18V, 2.5AhBattery	B&S 18V, 4.0AhBattery	B&S 18V, 5.0AhBattery
Voltage	18V DC	18V DC	18V DC
Battery Amp Hours	2.5Ah	4.0Ah	5.0Ah
Battery Watt Hours	45Wh	72Wh	90Wh
Charge Time (100%)	55 Mins	90 Mins	110 Mins
USB Charger Type	Type A	Type A	Type A
USB Voltage	5.0V	5.0V	5.0V
USB Amperage	0.5A	0.5A	0.5A
Cell Type	Samsung 18650 25R	Samsung 18650 20R	Samsung 18650 25R
Cell Quantity	5	10	10
Battery Weight	0.45Kg 0.70Kg	0.75Kg

PRODUCT SPECIFICATION	18V LI-ION RECHARGEABLE BATTERY SINGLE CHARGER
Model No. 883248 1697083
Description B&S 18V, Charger (3A) - AU B&S 18V, Charger (3A) - EU
Input Voltage 100-240V ~ 50/60Hz 100-240V ~ 50/60Hz
Output Voltage 20V DC 20V DC
Output Amperage 3.0A 3.0A
Power Plug AU Type I - 7.5A/250V H03VVH2-F(2*0.75mm2) 80°C 300V		N.A
Power Plug EU N.A	Type C - 7.5A/250V H03VVH2-F(2*0.75mm2) 80°C 300V
Power Plug UK N.A	Type G - 7.5A/250V H03VVH2-F(2*0.75mm2) 80°C 300V
Cord Length	1.8m	1.8m
USB Charger Type	Type A	Type A
USB Voltage	5.0V	5.0V
USB Amperage	1.0A 1.0A
Charger Weight (Net)	0.55Kg	0.55Kg

TECHNICAL SPECIFICATIONS

PRODUCT SPECIFICATION	18V LI-ION RECHARGEABLE BATTERY TWIN CHARGER
Model No. 883249 1697084
Description B&S TWIN 18V, Charger (6A) - AU		B&S TWIN 18V, Charger (6A) - EU
Input Voltage 100-240V ~ 50/60Hz 100-240V ~ 50/60Hz
Output Voltage 20V DC 20V DC
Output Amperage 2 x 3.0A 2 x 3.0A
Power Plug AU Type I - 7.5A/250V H03VVH2-F(2*0.75mm2) 80°C 300V		N.A
Power Plug EU N.A Type C - 7.5A/250V H03VVH2-		F(2*0.75mm2) 80°C 300V
Power Plug UK N.A Type G - 7.5A/250V H03VVH2-		F(2*0.75mm2) 80°C 300V
Cord Length	1.8m	1.8m
USB Charger Type	Type A	Type A
USB Voltage	5.0V	5.0V
USB Amperage	1.0A	1.0A
Charger Weight (Net)	0.95Kg	0.95Kg

NOTAS IMPORTANTES

Detalles

Close-up of a dark surface with a white abstract shape and a black arrow pointing upward (no text or symbols)

Puerto USB

INSTRUCCIONES DE USO

USB (Cargador)

Primeiros Socorros

Black and white electronic device labeled 'IBV MAX 2.01' with a small cable, shown against a plain background (no readable text or symbols beyond branding)

Visor digital

USB (Bateria)

Microscopic view of a material surface with irregular white structures and a vertical measurement line (no text or symbols)

Porta USB

USB (Carregador)

Front view of a car's head with visible headlights and grille (no text or symbols)

Porta USB

SECURITE & MANUTENTION

Black and white photo of a device labeled 'IBV' with a small cable inserted, no visible text or symbols beyond the label.

Affichage numérique

USB (Batterie)

Close-up of a dark surface with a white abstract shape and a vertical black line, no visible text or symbols.

Port USB

INSTRUCTIONS DE FONCTIONNEMENT

USB (chargeur)

Close-up of a dark surface with a white abstract shape and a black vertical line (no text or symbols visible)

USB-Anschluss

USB (Ladegerät)

Primo soccorso

Close-up of a dark surface with a vertical line and abstract white shapes (no text or symbols)

Porta USB

ISTRUZIONI OPERATIVE

USB (Caricabatterie)

Black and white photo of a 12V MAX branded battery with visible branding and mounting features (no readable text beyond branding)

Digitálny displej

Microscopic view of a material surface with visible grain structure and a labeled arrow (no text or symbols)

USB vstup

NÁVOD NA POUŽÍVANIE

USB (nabíjačka)

Black and white electronic device labeled '18V MAX' with a small inset showing a button (no readable text beyond branding)

Digitální displej

USB (akumulátor)

Close-up of a dark surface with a white abstract shape and a black arrow pointing upward (no text or symbols visible)

USB port

PROVOZNÍ POKYNY

USB (nabíječka)

Close-up of a dark surface with a white abstract shape and a vertical line, no visible text or symbols.

USB port

Lithium-ion Batter

SAFETY HANDLING

Førstehjelp

Black and white photo of a 18V MAX battery with a screwdriver inserted (no visible text or symbols)

Digitalt Skjerm

USB (Batteri)

Close-up of a mechanical component with a white 3D arrow symbol and a black vertical rod (no text or labels visible)

USB-port

BRUKSANVISNING

USB (lader)

Front view of a car's front grille with visible logo and technical specifications (no readable text or symbols)

USB-port

Ladings prosedyre

SIGURNOST I RUKOVANJE

Prva pomoć

Svaka baterijska ćelija sadrži kemijske materijale koji se pohranjuju u hermetički zatvorenu posudu dizajniranu tako da izdrži temperature i tlakove na koje nailazi pri normalnoj uporabi. Kao rezultat toga, tijckom normalne uporabe, nema fizičke opasnosti od paljenja ili eksplozije i kemijske opasnosti od curenja opasnih materijala.

Black and white photo of a battery labeled '18V MAX' with a small cable inserted (no visible text beyond branding)

Digitalni zaslon

USB (Baterija)

USB priključak za uređaje za punjenje dostupan je na bateriji i punjaču. Za tip, napon napajanja i ostale pojedinosti USB priključka, molimo pogledajte specifikacije proizvoda u ovom priručniku.

3D rendered object with a vertical line and abstract shapes on a dark surface (no text or symbols)

USB priključak

UPUTE ZA UPORABU

USB (Punjač)

USB priključak za uređaje za punjenje dostupan je na bateriji i punjaču. Za tip, napon napajanja i ostale pojedinosti USB priključka, molimo pogledajte specifikacije proizvoda u ovom priručniku.

Front view of a car's front grille with '18V' branding and a diamond-shaped logo on the side (no readable text beyond branding)

USB priključak

Postupak punjenja

Ako se baterija ne može pravilno umetnuti u punjač, ne pokušavajte je puniti. Briggs & Stratton bateriju punite samo u Briggs & Stratton punjaču. Ako je baterija nakon upotrebe u uređaju vruća, prije punjenja neka se ohladi.

A. Spojite punjač na napajanje.
B. Umetnite bateriju u punjač dok ne klikne u zaključani položaj.
C. Često nadgledati punjač i bateriju za vrijeme punjenja.
D. Potrebno je oko 1 sat za punjenje potpuno ispražnjene baterije od 2,5 Ah.
E. Izvadite bateriju iz punjača kada je potpuno napunjena i iskopčajte punjač iz struje.
F. Da biste bateriju izvadili iz punjača, pritisnite gumb za otpuštanje na bateriji i izvucite bateriju.
G. Pustite da se baterija ohladi prije uporabe.

BILJEŠKA: Ako se baterija ne puni ispravno:

•Provjerite je li uključena je utičnica.
- Provjerite struju u utičnici s drugim električnim uređajem.

• Provjerite da kontakti punjača nisu kratko spojeni krhotinama ili stranim materijalima.

- Ako temperatura okolnog zraka nije normalna sobna temperatura, premjestite punjač i bateriju na mjesto gdje je temperatura između 10°C i 35°C.

UPOZORENJE!

Regulatory Compliance Mark (RCM)

OBS! GARANTI DETALJER SKALL INTE SKRIVAS INTE I DENNA ANVÄNDARHANDBOK.

Första hjälpen

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge
• if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  ● Children shall not play with the appliance.
  ● Cleaning and user maintenance shall not be made by children without supervision
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Close-up of a dark, textured surface with a vertical arrow pointing upward (no visible text or symbols)

USB Port

USB (Laddare)

Close-up of a vehicle's roof and side profile with a white arrow indicating direction (no text or symbols)

USB-portti

KÄYTTÖOHJEET

USB (laturi)

HUOMAUTUS: Jos akku ei lataudu kunnolla:

Grayscale aerial view of a coastal landscape with a vertical pole and distant structures (no visible text or symbols)

USB- Port

BRUGSVEJLEDNING

USB- (Lader)

Black and white electronic device with visible branding and a small black cable (no readable text or symbols)

Digitalni zaslon

USB (baterija)

USB vrata za napajanje naprav je na voljo na bateriji in polnilniku. Za tip, napajalno napetost in druge podrobnosti USB vrat glejte specifikacije izdelka v tem priročniku.

Close-up of a mechanical component with a pointed tip and textured surface (no visible text or symbols)

USB vrata

USB (polnilnik)

USB vrata za polnilne naprave je na voljo na obeh enotah, bateriji in polnilniku. Za tip, napajalno napetost in druge podrobnosti USB vrat glejte specifikacije izdelka v tem priročniku.

OPERATING INSTRUCTIONS

Front view of a black car with visible headlights and grille markings (no readable text or symbols)

USB vrata

Postopek polnjenja

Front view of a car's head with visible headlights and grille (no text or symbols)

Port USB

Procedura ładowania

©2019 Briggs & Stratton Corporation. All rights reserved.

No part of this booklet may be reproduced by any means without prior written permission.

All information herein is subject to change without notice.

Murray is a registered trademark of Briggs & Stratton Corporation.

WWW.MURRAY.COM

2278 Q	GS PB	PRODUCT SPECIFICATIONS ADDED 07/01/19
ECN ISS	DRN CKD DESCRIPTION DATE
