Brand	SilverCrest
Model	SSM 141 C3
Product Type	Shiatsu Massage Cushion
Dimensions (L x W x D)	Approx. 33 × 23 × 11 cm
Weight	Approx. 1.5 kg (estimated)
Power Supply	Input: 100-240 V~, 50/60 Hz, 0.5 A; Output: 12 V, 12 W (plug-in adapter)
Protection Class	II
Massage Heads	4 rotating heads (2 heated and illuminated)
Massage Directions	Clockwise and anti-clockwise rotation (switchable)
Heat Function	Yes, on 2 massage heads with switchable illumination
Massage Duration Limit	Max. 15 minutes per session (recommended)
Cover	Removable, machine-washable at 30°C delicate cycle
Intended Use	Massaging human body (back, legs) – private use only
Safety Features	Automatic shut-off? Not specified; safety instructions against water, overheating, and misuse
Warranty	3 years (faults in materials or manufacture)
Scope of Delivery	Shiatsu massage cushion, plug-in mains adapter, cover, operating instructions
Cleaning Instructions	Wipe with damp cloth; cover machine-washable (no bleach, no tumble dry, no dry clean)
Storage	Cool, dry place; do not place objects on top
Certification	CE marked

Frequently Asked Questions - SSM 141 C3 SILVERCREST

How long can I use the massage cushion continuously?

It is recommended to use the device for a maximum of 15 minutes per session to avoid over-stimulation and muscle tension.

Can I wash the cover?

Yes, the cover is removable and machine-washable on a delicate cycle at 30°C. Do not use bleach, tumble dry, or dry clean.

How do I activate the heat function?

Press the light and heat switch (3) during massage operation. Two of the massage heads will heat up and illuminate.

Can I use the cushion on my feet or face?

No, the cushion should not be used on the face, larynx, feet, or other sensitive body parts due to risk of injury.

What should I do if the massage heads stop moving?

First, check that the plug-in adapter is connected to the mains and the device is switched on. If still not working, contact customer service.

Is the cushion safe for people with pacemakers?

Consult your doctor and the pacemaker manufacturer before use. If you have a pacemaker, do not use the cushion around your heart.

Can I use the cushion while sleeping?

No, do not fall asleep while the cushion is on, as prolonged contact with heat may cause burns.

How do I change the massage direction?

Move the On/Off switch (1) up for anti-clockwise rotation or down for clockwise rotation.

What voltage does the adapter support?

The mains adapter accepts 100-240 V~, 50/60 Hz, making it suitable for worldwide use with appropriate plug adapter.

How should I store the cushion when not in use?

Let it cool down, then store in a dry place without placing heavy objects on top to prevent sharp creases.

USER MANUAL SSM 141 C3 SILVERCREST

Operation and Safety Notes

HU

SHIATSU MASSZÍROZÓ PÁRNA

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

PL

GB Operation and Safety Notes Page 5

Side profile illustration of a person seated in a chair, viewed from the side (no text or symbols)

Side profile illustration of a person seated in a chair, viewed from behind (no text or symbols)

Line drawing of a person lying on the foot with a small object placed on the leg (no text or symbols)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Table of Contents

Introduction

Intended use....Page 6

Description of parts....Page 7

Scope of delivery Page 7

Technical Data Page 7

Important safety instructions....Page 7

Bringing into service / operation Page 9

Troubleshooting Page 9

Cleaning and Care Page 9

Storage Page 10

Disposal Page 10

Warranty / Service centre Page 10

Declaration of conformity......Page 11

SILVERCREST®

GB 5

Introduction

The following pictograms are used in these operating instructions or on the shiatsu massage cushion:
	Read instruction manual!		Keep children away from the shiatsu massage cushion!
	Observe caution and safety notes! Do no needles into it!
	Volt (AC) Fire hazard!
	Watts (effective power)		The cover is machine-washable. Set the washing machine to a delicate wash cycle at 30 °C.
	Hertz (mains frequency) Do not use bleag
	Risk of burns! Warning - Hot surfaces. Do in a tumbler dryer.
	Caution - electric shock! Danger to life!		Do not iron.
	Safety class II Do not dry clean.
	Risk of loss of life by electric shock from damaged mains power cable or mains plug!		Dispose of the packaging and the shiatsu massage cushion in an environmentally friendly manner!

Shiatsu Massage Cushion

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. Please make

yourself familiar with the shiatsu massage cushion before preparing it for use or using it for the first time. Please read the following operating instructions and the important safety instructions carefully. Use the shiatsu massage cushion only as described and for the indicated purposes. Keep these instructions in a safe place. If you pass the shiatsu massage cushion on to anyone else, please ensure that you also pass on all the documentation.

Intendeduse

This shiatsu massage cushion is intended for massaging the human body. It can be used to massage to specific areas of the body. The shiatsu massage cushion is only for private use; it is not intended for medical or commercial purposes and is no substitute for medical treatment. In particular it must not be used to massage babies, infants, helpless persons, or animals. The shiatsu massage cushion is only suitable for use in dry indoor locations. Any other form of use or any modifications to the shiatsu massage cushion are not permitted and may result in injury and/or damage to the cushion. The manufacturer accepts no liability for any damage caused by improper use. The shiatsu massage cushion is not intended to be used for commercial purposes.

Introduction / Important safety instructions

• Description of parts

1 On/Off switch
2 Clockwise and anti-clockwise rotation
3 Light and heat switch
4 4 Massage heads (of which 2 are heated and illuminated), rotating in pairs
5 Cover

- Technical Data

Type: SSM 141 C3

Mains adapter input: 100-240V\~50/60Hz 0.5A

Mains adapter output: 12V---12W

Dimensions: approx. 33 × 23 × 11 cm (L x W x D)

Protection class: II/☐

- Scope of delivery

1 Shiatsu massage cushion
1 Plug-in mains adapter
1 Cover
1 Set of operating instructions

Manufacturer:

MGG Elektro GmbH

01099 Dresden, Germany

IMPORTANT ADVICE – KEEP THIS SAFE FOR FUTURE USE!

Important safety instructions

Failure to comply with the following instructions can cause personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is intended not only to protect your health and the health of others, but also protect the shiatsu massage cushion. Observe this safety advice. If you pass the shiatsu massage cushion on to anyone else, please pass on these operation instructions as well.

RISK OF WARNING!

FATAL INJURY AND ACCIDENT HAZARD FOR TODDLERS AND

SMALL CHILDREN! Never leave children unattended with the packaging material. Danger of suffocation.

WARNING! DANGER OF ELECTRIC

SHOCK! Ensure that the shiatsu massage cushion, switch, mains adapter and lead do

not come into contact with water, steam or other liquids. Use the shiatsu massage cushion only in dry indoor environments (e.g. never in the bath, sauna). If a shiatsu massage cushion falls into water, do not attempt to pick it up. Pull the mains adapter out of the mains socket immediately. There is a risk of electric shock.

Do not use the mains power cable

for purposes for which it was not intended, e.g. for hanging up the shiatsu massage cushion, carrying it or to pull the plug out of the mains socket. Do not allow the lead to become trapped, kinked or twisted. Keep the shiatsu massage cushion and mains power cable away from heat, oil and sharp edges. If the mains power cable is damaged or severed, do not touch the mains power cable, but pull the mains plug out of the mains socket immediately. Damaged or tangled mains power cables increase the risk of electric shock.

SILVERCREST®

GB 7

Important safety instructions

■ DANGER OF ELECTRIC

SHOCK! Do not insert needles or pointed objects into the shiatsu mas-on. There is a risk of electric shock.

■ Operate the shiatsu massage cushion:

- only with the supplied mains adapter and at the mains voltage indicated on the mains adapter and,

- never operate it during a thunderstorm.

WARNING! DANGER OF ELECTRIC

SHOCK AND INJURY! Do not subject the shiatsu massage cushion to shock and do not drop it. Before every use, check the shiatsu massage cushion carefully for signs of wear and/or damage. Do not use it if you see signs of wear and tear or damage or if the shiatsu massage cushion has been used incorrectly and switch it off immediately in case of defects or malfunction. In this case, return it to the dealer before using it again. There is a danger of electric shock and injury.

FIRE HAZARD! Do not cover the

shiatsu massage cushion during use (cushions, covers etc.). Never use

the shiatsu massage cushion near petrol or other readily flammable substances.

■ Ask your doctor and, if relevant, the

manufacturer of your heart pacemaker before you use this shiatsu

massage cushion. Under certain circumstances, the electrical and magnetic fields emitted from the shiatsu massage cushion could interfere with the proper functioning of your heart pacemaker. However, the parameters of the fields do not exceed the permitted limits.

WARNING! Do not use the shiatsu massage

cushion for massaging around the heart if you have a heart pacemaker. Otherwise there is a danger to life!

■ CAUTION! INJURY HAZARD!

Children or persons lacking knowledge or experience in handling the

shiatsu massage cushion or with limited physical, sensory or mental abilities must not use the cushion without supervision or instruction by a person responsible for their safety. Children

must never be allowed to play with the shiatsu massage cushion. Risk of injury.

CAUTION! INJURY HAZARD!

Do not use this shiatsu massage cushion on helpless people, on children, or people who are insensitive to heat (e.g. diabetics, people whose skin is affected by illness or who have scarred skin in the area where the heat will be applied) or animals. Do not use the shiatsu massage cushion during pregnancy, after taking painkilling medication or alcohol. Risk of injury.

Take care that you do not fall asleep

while the shiatsu massage cushion is in operation. There is a risk of receiving skin burns. Do not use the shiatsu massage cushion while driving.

RISK OF BURNS! The surface of the device becomes hot during operation. People who are insensitive

to heat must be careful while using the device. There is a risk of receiving skin burns.

Do not use the shiatsu massage cushion on swollen, burned, inflamed, diseased or injured parts or regions of the body or areas of skin. Risk of injury. If you are in doubt, seek medical advice before using the device, in particular:

• if you suffer from a serious illness or have had an operation on the upper part of your body,
• if you have a heart pacemaker, implant or other medical device,
• if you are suffering from thrombosis,
• if you suffer from pains with an undiagnosed cause.

■ CAUTION! RISK OF SHEAR-

ING OR CRUSHING INJURY!

Ensure that your fingers or other body parts do not get themselves between the rotating massage heads 4.

The shiatsu massage cushion must not be used on the face (e.g. eyes), on the larynx, the feet or other sensitive body parts. Risk of injury.
■ Repairs may only carried out only by qualified specialist personnel or in a workshop approved by the manufacturer. Unsatisfactory repairs can lead to considerable danger for the user.

Bringing into service / operation / Troubleshooting / Cleaning and Care

● Bringing into service / operation

■ Do not open the zip fastener on the

shiatsu massage cushion. It is provided for reasons connected with the manufacturing process only.

Note: The shiatsu massage cushion may give off an odour of plastic on first use. This odour will cease to develop after a short while.

Note: Use the shiatsu massage device for a maximum of 15 minutes. Longer use may lead to over-stimulation and hence tension in the muscles.

☐ Insert the connector plug into the socket in the massage device. Position the lead to avoid creating a trip hazard.

☐ If necessary pull the cover 5 over the shiatsu massage cushion.

Note: The shiatsu massage device can be used with or without a cover 5.

☐ Position the shiatsu massage cushion on the place you would like to have massaged e.g.:

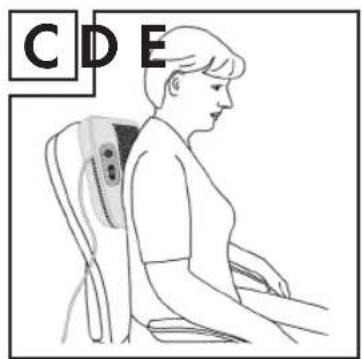

• upper back (see fig. C)

- lower back (see fig. D)

- legs (see fig. E).

☐ Switch on the shiatsu massage cushion with the On/Off switch 1.

☐ Move the On / Off switch 1 up or down to set the massage direction of the Shiatsu-heads: Up for anti-clockwise rotation and down for clockwise rotation.

☐ You can switch the light and heat function on or off with the light and heat switch 3.

The light and heat switch 3 can be activated during the massage operation as well as when the cushion is switched off. However, the illumination and heating function is only available during the massage operation.

Note: Two of the massage heads 4 are heated and illuminated during use.

☐ Press the body part carefully against the shiatsu massage cushion and gradually shift you weight towards the device.

Note: Do not lie, sit and stand with your full weight on the moving parts of the shiatsu massage cushion and do not place any objects on the cushion.

SILVERCREST®

Note: Ensure that you are experiencing the massage as pleasant and relaxing. If necessary, vary the pressure and / or your position. Stop the massage at once if it is painful or unpleasant.

☐ Switch on the shiatsu massage cushion with the On/Off switch 1.

- Troubleshooting

○ Problem

- Cause

Rectification

○ Massage heads rotate slower and slower

● Too much pressure on massage heads

- Reduce pressure on massage heads

○ Massage heads do not move

● Device is not connected to the mains supply

Insert the plug-in mains adapter and switch on the device.

Note: Contact your specialist dealer or the service address if your shiatsu massage cushion is still not functioning properly.

- Cleaning and Care

DANGER TO WARNING!

LIFE BY ELECTRIC SHOCK! AIways pull the plug-in mains adapter from the mains socket before cleaning the shiatsu massage cushion. Otherwise there is a risk of electric shock.

■ DANGER OF ELECTRIC

SHOCK! Ensure that the shiatsu massage cushion is completely dry before you connect the plug-in mains adapter to the cushion. Otherwise there is a risk of electric shock.

■ CAUTION! DANGER OF MATE-

RIAL DAMAGE! Do not use chemical cleaners or scouring agents for cleaning the shiatsu massage cushion. It may otherwise be damaged.

Cleaning and Care/ Storage/ Disposal/Warranty/ Service centre

■ Clean the shiatsu massage cushion only in the manner indicated. Under no circumstances must any liquid be allowed to enter the shiatsu massage cushion or the accessories.
☐ Small stains can be removed with a cloth or moist sponge and if necessary with a little mild detergent. Do not use solvent-containing cleaners.
Clean the cover 5 in accordance with the cleaning symbols on the label. It is machine-washable. Set the washing machine to a delicate wash cycle at 30 °C.
☐ Use a mild detergent at the dose recommended by the manufacturer.

Note: Non-observance of the following warnings may damage the shiatsu massage cushion.

Do not use bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
Do not dry in a tumbler dryer.
Do not use bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
☐ Do not dry in a tumbler dryer.
Do not dry in a tumbler dryer.

Do not dry clean.
Do not dry clean.

Storage

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Let the shiatsu massage cushion cool before putting it away. Otherwise material damage could occur.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! To prevent the shiatsu massage cushion from becoming sharply creased, do not place other objects on top of the cushion when it is stored. Otherwise material damage could occur.
☐ If you do not intend to use the shiatsu massage cushion for any length of time, store it in the

original packaging in a dry environment and without weighing it down.

- Disposal

The packaging and packaging material consist of environmentally friendly materials. They can be disposed of at your local recycling facility.

Do not dispose of electrical equipment in the household waste!

In accordance with European Directive 2002 / 96 / EC for waste electrical and electronic equipment and its transposition into national legislation, worn out electrical devices must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out shiatsu massage cushion.

● Warranty / Service centre

We provide a 3-year warranty covering faults in materials or manufacture of the shiatsu massage cushion from the purchase date.

The warranty does not cover:

• Damage resulting from improper use.
- For wear parts.
- For defects that were known to the customer at the time of purchase.
- Damage for which the customer was responsible.

This warranty does not affect the customer's legal rights.

The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Claims under the warranty are honoured by

SILVERCREST*

Warranty / Service centre / Declaration of conformity

for a period of 3 years after the date of purchase.

In the event of a warranty claim, the customer has the right to have the goods repaired by our own workshop or a workshop authorised by us. The shiatsu massage cushion must not be opened for any reason. Opening or modifying the cushion invalidates the warranty. This warranty does not grant any additional rights to the customer. Complaints are often initiated by difficulties encountered during use. Many of these complaints can be resolved by telephone or email. Please contact our Service Hotline in the first instance, before you return the shiatsu massage cushion to the manufacturer.

IAN 93137

GB

∅ 02030 249 050

● Declaration of conformity CE

This shiatsu massage cushion complies with the requirements of the relevant European and national guidelines. This is confirmed by the CE mark. The relevant declarations are held by the manufacturer.

CE

SILVERCREST®

11 GB

Spis zawartości

Wstep

01099 Dresden, Germany

ÖRIZZE MEG A FONTOS ÚTMUTATÁSOKAT – A KÉSŐBBI HASZNÁLATHOZ!

01099 Dresden, Germany

Lieferumfang
