| Product Type | Orbital Sander (Sanding Brush) |
| Model | PSR 310 A1 |
| Brand | Parkside |
| Rated Voltage | 230 V ~ 50 Hz |
| Rated Power Input | 310 W |
| Idle Speed | 1600–3000 min⁻¹ |
| Protection Class | II (Double Insulated) |
| Sound Pressure Level (LpA) | 82.1 dB(A) |
| Sound Power Level (LWA) | 93.1 dB(A) |
| Vibration Emission Value (ah) | 4.53 m/s² |
| Uncertainty (K) | 1.5 m/s² |
| Intended Use | Dry sanding and brushing of wood, plastic, spackle, painted surfaces |
| Adjustable Speed | Yes, via speed selection wheel |
| Dust Extraction | Adjustable dust extraction hood with external adapter |
| Spindle Lock | Yes, for tool change |
| Scope of Delivery | 1 sander, 2 slatted grinding discs (10 mm P80, 60 mm P80), 1 mounting shank, 1 sanding sleeve (60 mm P80), 1 hex key, 1 dust extraction adapter, manual |
| Warranty | 3 years |
| Service Contact (UK) | Tel: 0871 5000 720 (0.10 GBP/min), email: kompernass@lidl.co.uk |
| Weight | Not specified in manual |
Frequently Asked Questions - PSR 310 A1 PARKSIDE
User questions about PSR 310 A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Orbital sander in PDF format for free! Find your manual PSR 310 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PSR 310 A1 by PARKSIDE.
USER MANUAL PSR 310 A1 PARKSIDE
Operation and Safety Notes
Translation of the original instructions
PT
ROLO PARA LIXAR
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB Operation and Safety Notes Page 29
Introducción
Intended use......Page 30
Features Page 30
Scope of delivery....Page 30
Technical Data Page 30
General power tool safety warnings
-
Work area safety......Page 31
-
Electrical safety......Page 31
-
Personal safety......Page 31
-
Power tool use and care....Page 32
-
Service......Page 32
Safety instructions for all applications Page 32
Safety instructions for grinding rollers....Page 33
Start-up
Installing / replacing grinding tools......Page 34
Installing sanding sleeves....Page 34
Removing the sanding sleeves ......Page 34
Installing the dust extraction hood....Page 35
Adjusting the dust extraction hood ......Page 35
External extraction Page 35
Operation
Switching on/off Page 35
Selecting the grinding tool....Page 35
Working instructions Page 36
Presetting the speed....Page 36
Maintenance and Cleaning......Page 37
Service centre Page 37
Warranty Page 37
Disposal Page 38
Translation of the original declaration of conformity / Manufacturer....Page 38
Sanding brush PSR 310 A1
- Introduction
Congratulations on your purchase. You have selected a high quality product. The instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Use the product only as described and for the specified applications. When passing this product on to others please be sure to also include all of its documentation.
Intendeduse
This power tool is intended for dry grinding and brushing wood, plastic, spackle (e.g. plaster), as well as painted surfaces. It is particularly suitable for sanding uneven surfaces. The device is not intended for commercial use. Any other uses, and / or modifications to the tool are considered improper use and may result in serious hazards. The manufacturer is not liable for damage caused by improper use.
Features
1 Grinding spindle
2 Dust extraction hood
3 Suction nozzle
4 Clamping screw for attaching the dust extraction hood
5 Spindle lock
6 Handle (insulated gripping surface)
7 On/off switch
8 Speed selection wheel
9 Dust extraction adapter
10 Hexagonal key
11 Slatted grinding disc
12 Sanding sleeve
13 Sanding sleeve mounting shank
14 Clamping screw
15 Tool arm
16 Dust extraction hood fastening groove
17 Locking groove
- Scope of delivery
1 Sanding brush PSR 310 A1
1 Slatted grinding disc 10 mm, P80
1 Slatted grinding disc 60 mm, P80
1 Mounting shank for sanding sleeves 60 mm
1 Sanding sleeve 60 mm, P80
1 Hexagonal Key
1 Dust extraction adapter
1 Set of instructions for use
- Technical Data
Abrasive roll
Rated voltage: 230V\~50Hz
Rated power input: 310 W
Idle speed: n 1600–3000 min ^-1
Protection class: II/
Noise emission value:
Measured sound value determined according to EN 60745. The A-rated noise level of the power tool is typically:
Sound pressure level: I_pA = 82.1 dB(A)
Uncertainty KpA: 3 dB
Sound power level: L_WA = 93.1 dB(A)
Uncertainty KwA: 3 dB
Wear ear protection!
Total vibration values:
The total vibration (vector sum of three directions) is calculated in accordance with EN 60745:
Vibration emission value: a_h = 4.53 m/s^2
K = 1.5 m/s^2
Note: The vibration level given in these operating instructions has been measured in a procedure according to EN 60745 and can be used for the comparison of appliances. The vibration emission value specified can also serve as a preliminary assessment of the exposure.
Different uses of the device give rise to different vibration levels and in many cases they may exceed the values given in these instructions. It is easy to
underestimate the vibration load if the electrical power tool is used regularly in particular circumstances.
WARNING! If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.
● General power tool safety warnings
WARNING! Read all safety warnings and all instructions.
Failure to follow the warnings and in-
structions may result in electric shock, fire and / or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) ☑ not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and / or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of un-trained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
● Safety instructions for all applications
Common safety instructions for grinding, sanding:
a) This power tool is to be used as a grinder, sander. Please observe all safety instructions, instructions, illustrations and data included with the device. Failure to observe the following instructions may result in electric shock, fire and / or serious injuries. b) Do not use accessories not specifically specified or recommended by the manufacturer for use with this power tool. Simply because accessories can be attached to your power tool does not guarantee safe use.
c) The rated speed of the attachment must be at least the maximum speed specified on the power tool. Accessories turning faster than the rating can break and fly about.
d) The outside diameter and thickness of the attachment must correspond with the specifications of the power tool. In-correctly sized attachments cannot be properly shielded or controlled.
e) Grinding discs, flanges, disc wheels or other accessories must accurately fit the grinding spindle on your power tool. Attachments which do not accurately fit the grinding spindle will rotate unevenly, vibrate severely and can result in losing control.
f) Do not use damaged attachments. Before each use, check attachments such as grinding discs for chips and tears, disc wheels for tears, wear or severe abrasion. If the power tool or the attachment is dropped, check it for damage or use an undamaged attachment. After checking and installing the attachment, you and persons nearby should stay from the level of the rotating attachment, and allow the device to run at maximum speed for a minute. Damaged attachments typically break during this test time.
g) Wear personal protective equipment. Depending on the application, wear full face protection, eye protection or safety goggles. Where appropriate, wear a dust mask, ear protection, protective gloves or a special apron to deflect small grinding- and material particles. Protect the eyes from foreign objects flying about during various applications. Dust- or respirator masks must filter out the dust which arises during use. Exposure to loud noise for extended periods can result in hearing loss.
h) Be sure other persons keep a safe distance to your work area. Anybody entering the work area must wear personal protective equipment. Fragments from the work piece or broken attachments can
fly about and cause injuries, including outside the immediate work area.
i) Always hold the power tool by the insulated handle surfaces when performing work where the attachment may strikes hidden electric cables or the power cored. Contact with a live wire may also charge metal parts of the device and result in electric shock.
i) Keep the mains cable away from rotating attachments. Losing control of the device may result in the mains cable being cut or caught, pulling your hand or arm into the rotating attachment.
k) Never put down the power tool until the attachment has come to a complete stop. The rotating attachment can come into contact with the surface, resulting in a loss of control over the power tool.
Do not run the power tool whilst carrying it. Clothing may get caught in the rotating tool due to accidental contact and the tool pierce your body.
m) Regularly clean the ventilation slots on the power tool. The motor fan will suck dust into the housing, and a high accumulation of metal dust can result in electrical hazards.
n) Do not use the power tool near flammable materials. Sparks could ignite these materials.
o) Do not use attachments requiring liquid coolant. Using water or other liquid coolants can result in electric shock.
● Safety instructions for grinding rollers
- Hold the device by the insulated handle surfaces, as the sanding sleeve may strike the tool's mains cable. Damaging a live wire may charge metal parts of the device and result in electric shock.
RISK OF FIRE DUE TO SPARKS! Grinding metals produces sparking. Thus be very careful not to endanger persons, and that no flammables are near the work area.
General power tool safety warnings / Start-up
When working on wood, and especially when working on materials which could produce harmful dust, connect the device to a suitable external dust extraction.
■ Ensure adequate ventilation when working on plastics, paint, lacquer, etc.
The sanding brush is designed for dry grinding areas on wood, plastic, metal and spackle, as well as painted surfaces. Only use the device for dry grinding.
Do not work on materials containing asbestos. Asbestos is considered carcinogenic.
- XIVADUSING must from materials such as lead paint, some types of wood, minerals and metal, can be noxious.
■ Touching or inhaling this type of dust can present a danger to the user or persons nearby.
Wear safety glasses and a dust mask!
- Secure the work piece. Use clamps or a vice to secure the work piece. This is much safer than holding it in your hand.
■ Never place your hands next to or in front of the device and the surface you are working on, as slipping poses a risk of injury.
In the event of danger, immediately pull the mains plug out of the socket.
■ Always run the mains cable away from the appliance and toward the rear.
- Avoid contact with the sanding sleeve in motion.
Do not work on moistened materials or damp surfaces.
Always apply the device to the working surface when switched on. When the task is complete, lift the appliance off the work piece before switching it off.
Always firmly hold the device with both hands whilst working. Ensure you have a solid stance.
Allow the device to come to a complete stop and switch off before putting it down.
Always unplug from the mains socket before taking breaks, especially working on the device (e.g. replacing sandpaper) and during non-use.
- Start-up
WARNING! RISK OF INJURY! Always unplug from the mains before working on the sanding brush.

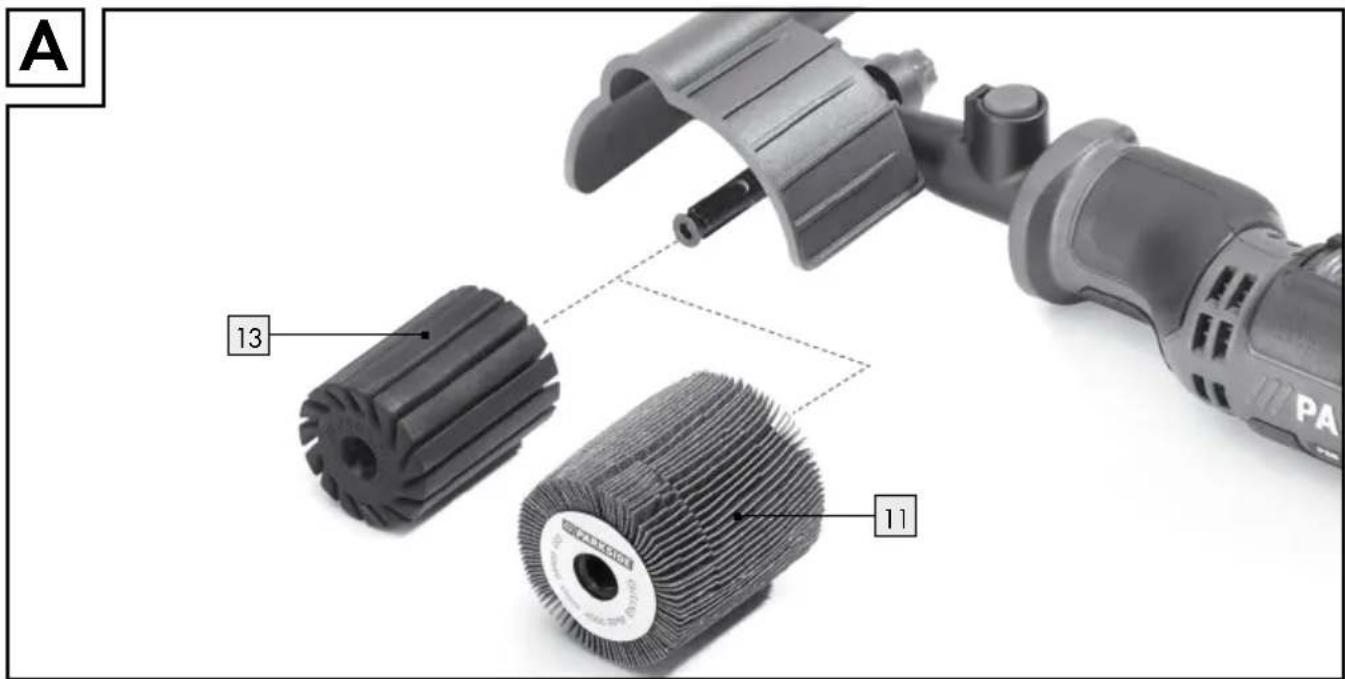

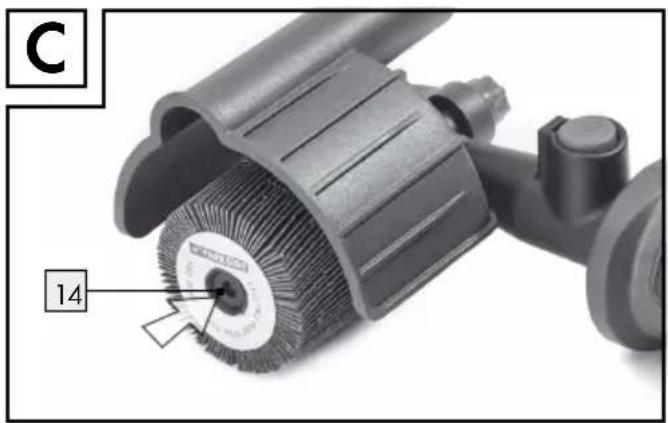

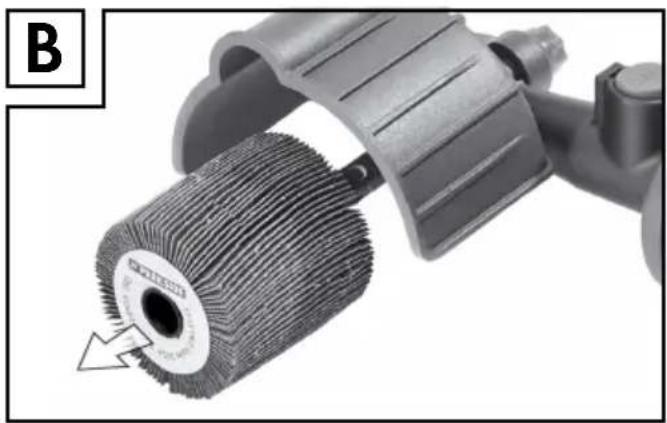

- Installing / replacing grinding tools (see Fig. A–C)
□ Activate the spindle lock (until it locks in) and use the hexagonal key 10 to loosen the clamping screw 14.
Now remove the clamping screw.
☐ Now remove the grinding tool.
☐ Install the respective grinding tool accordingly, in reverse order.
□ Activate the spindle lock (until it locks in) and use the hexagonal key 10 to tighten the clamping screw 14.
Attach the slatted grinding disc directly onto the grinding spindle 1.
☐ First mount the shank 13 into spindle 1, then insert the sanding sleeves 12 onto the shank.

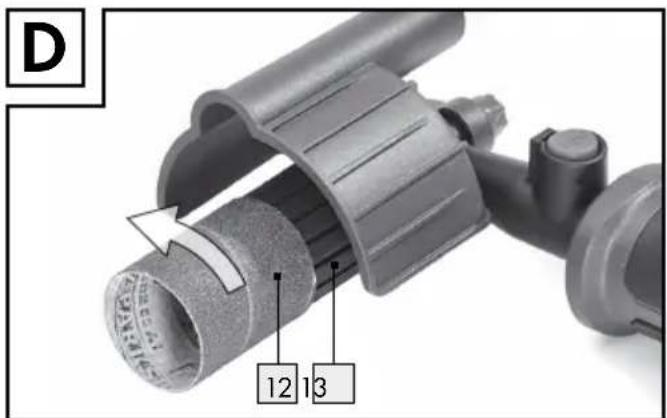

• Installing sanding sleeves (see Fig. D)
☐ Follow the direction of slats and turn the sanding sleeve 12 over the mounting shank 13 until the rubber slats are completely covered.
- Removing the sanding sleeves
Be sure the mounting share remains inside the spindle 1 during removal.
To replace or remove an old sanding sleeve, first activate the spindle lock 5 until it locks in.
Then using a rotating motion following the direction of the slats on the mounting shank 13 to pull off the sanding sleeve 12.

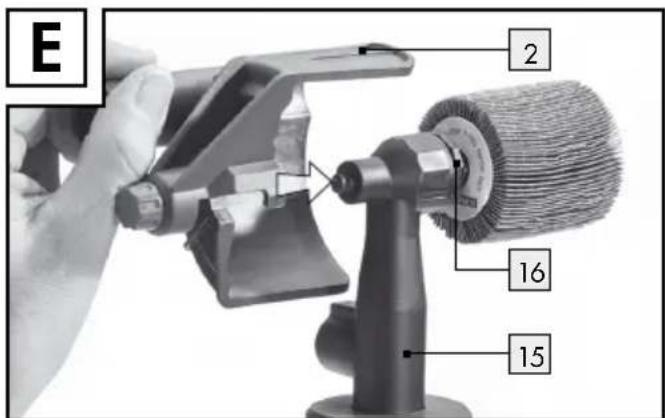

- Installing the dust extraction hood (see Fig. E)
☐ Insert the dust extraction hood into the two fastening grooves 16 on the tool arm 15 against slight resistance.
Tighten the clamping screw. The dust extraction hood 2 is now firmly installed on the tool arm 15.

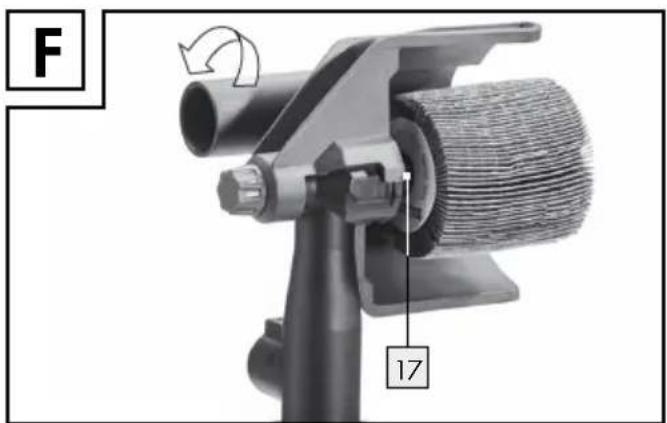

- Adjusting the dust extraction hood (see Fig. F)
Adjust the dust extraction hope so dust or sparks are not directed at the user.
The dust extraction hood can cover the grinding spindle from various angles. Use the locking grooves 17 for this purpose.
Following installation, rotate the dust extraction hood 2 toward the handle 6 according to the application and the work piece. The dust extraction hood 2 will lock into place in several positions.
Externalextraction
WARNING! EXPLOSION HAZARD!
A special dust extractor must be used for explosive dust/air mixtures.
FIRE HAZARD DUE TO SPARKING! Do not use dust extraction when working on metal.
WARNING! FIRE HAZARD! Using power tools which can be connected to a vacuum using a dust extraction poses a fire hazard! Unfavourable conditions, e.g. sparking - when grinding metal or metal pieces in wood - can ignite wood dust inside the vacuum bag. This can particularly occur if the wood dust is mixed with paint particles or other chemicals and the ground product is hot after long work periods. Therefore be sure to avoid the ground materials and the device from overheating and always empty the vacuum bag before taking breaks.
Wear a dust mask!
Connecting the dust extraction hose

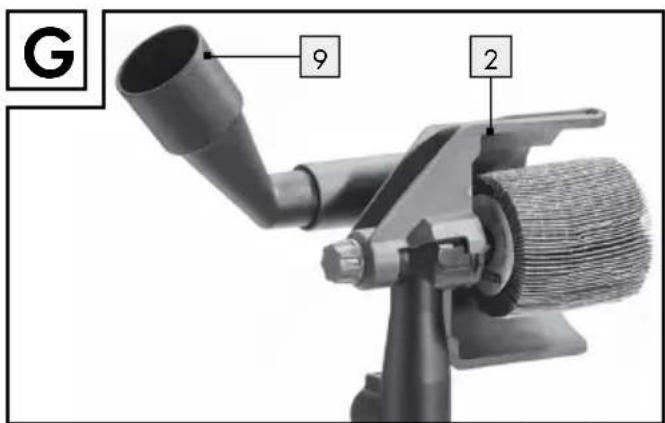

☐ Slide the vacuum adapter 9 into the connecting piece 3 (see Fig. G).
☐ Slide the hose from a reliable dust extraction (e.g. a workshop vacuum) into the vacuum adapter 9.
Removing the dust extractor hose
☐ Pull the hose out of the dust extraction unit.
Operation
WARNING! RISK OF INJURY! Always unplug from the mains before working on the sanding brush.
■ Firmly hold the power tool with both hands whilst working and ensure a solid stance. Holding the power tool with both hands is safer.
Note the mains voltage! The voltage of the power source must correspond with the specifications on the type plate of the power tool.
- Switching on/off
To switch on the power tool, slide the on / off switch 7 forward so the switch shows "1". To save power, only switch on the power tool when in use.
To switch off the power tool, slide the on / off switch 7 back so the switch shows "0".
☐ Check the grinding tool before use.
The grinding tool must be properly installed and rotate freely. Perform a test run of at least 1 minute without load. Do not use damaged, untrue vibrating grinding tools. Damaged grinding tools could burst and cause injuries.
- Selecting the grinding tool
Select the grinding tool according to the shape of surface to be worked on and the material to be sanded. Match the grit with the desired material removal.
| Grinding tool Surface shape Grit | |||
| Sanding sleeve | straight flat | medium 80 | |
| fine 120 | |||
| extra fine 240 | |||
| Slatted grinding disc (60 mm) | curved uneven | medium 80 | |
| fine 120 | |||
| extra fine 240 | |||
| Slatted grinding disc (10 mm) fluted | medium 80 | ||
| fine 120 | |||
- Workinginstructions
☐ The removal and the surface quality are essentially determined by the choice of grinding tool, the speed setting and the pressure applied.
☐ Only grinding tools in good working order will yield good grinding performance and be easy on the power tool.
☐ Only use original grinding accessories.
- Presetting the speed
Use the speed wheel 8 to also preselect the required speed during operation.
The ideal belt speed varies by work piece or material being worked. Always determine the respective best speed yourself on a test piece. The following table contains non-binding values to aid you with selection.
The specifications in the following table are recommended values:
| Usage Grit | (Rough grinding / finishing) | Speed setting |
| Sanding back lacquer | 180/240 | 2/3 |
| Repairing lacquer | 120/240 | 4/5 |
| Removing lacquer | 40/60 | 5 |
| Softwood | 40/240 | 5/6 |
| Hardwood | 60/240 | 5/6 |
| Veneer | 180/240 | 2-4 |
| Aluminium | 80/240 | 4/5 |
| Steel | 40/240 | 5 |
| Removing rust from steel | 40/120 | 6 |
| Stainless steel | 80/240 | 5 |
| Stone | 80/240 | 5/6 |
After working at slow speeds for extended periods you should allow the power tool to run at
maximum speed in idle for approx. 3 minutes to cool down.
Grinding
☐ Switch on the power tool, apply the entire sanding surface to the surface to be worked, and move it across the work piece using moderate pressure.
☐ Be sure to apply pressure evenly to extend the life of the grinding tools.
☐ Increasing the application pressure excessively will not yield high sanding performance but higher wear of the power tool and the grinding tools.
☐ Do not use a grinding tool which has been used for metal for other materials.
● Maintenance and Cleaning
WARNING! RISK OF INJURY!
Switch the device off and pull the plug out of the mains socket before carrying out any work on the device.
Do not use sharp objects to clean the device. Do not allow any liquids to enter the device. Ignoring this advice may damage the device.
□ Always have carbon brushes replaced by service or an authorised specialist workshop. The device is maintenance free other than this.
☐ Clean the device regularly, preferably always immediately after finishing work.
☐ Use a dry cloth to clean the housing. Under no circumstances should you use petrol, solvent or cleaners which attack plastic.
☐ You will need a vacuum to deep clean the device.
☐ Vents must always be clear.
☐ Use a brush to remove dust clinging to the device.
● Service centre
WARNING! Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.
WARNING! If the plug or mains lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.
Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre. Additional flap discs and grinding rollers are available at specialist stores.
Warranty
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.
The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.
GB Service Great Britain
Tel.: 0871 5000 720
(0.10 GBP / Min.)
e-mail: kompernass@lidl.co.uk
IAN 271263
- Disposal
The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.
Do not dispose of electric tools in the household waste!
In accordance with European Directive 2012/19/EU (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical power tools must be collected separately and taken for environmentally compatible recycling.
Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.
● Translation of the original declaration of conformity / Manufacturer CE
We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURGSTRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:
Machinery Directive
(2006 / 42 / EC)
Electromagnetic Compatibility
(2004 / 108 / EC)
RoHS Directive
(2011/65/EU)
Applicable harmonized standards
EN 60745-1:2009/A11:2010
EN 60745-2-4:2009/A11:2011
EN 55014-1:2006/A2:2011
EN 55014-2:1997/A2:2008
EN 61000-3-2:2014
EN 61000-3-3:2013
Type / Device description:
Sanding brush PSR 310 A1
Date of manufacture: 12-2015
Serial number: IAN 271263
Bochum, 31.12.2015
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical modifications in the course of product development.
Einleitung
WARNUNG! EXPLOSIONSGEFAHR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE21
44867BOCHUM
GERMANY
- ROLO PARA LIXAR
- DE AT CH
- Introducción
- General power tool safety warnings
- Start-up
- Operation
- Maintenance and Cleaning......Page 37
- Translation of the original declaration of conformity / Manufacturer....Page 38
- Sanding brush PSR 310 A1
- - Introduction
- Intendeduse
- Features
- - Scope of delivery
- - Technical Data
- Abrasive roll
- Noise emission value:
- Wear ear protection!
- Total vibration values:
- ● General power tool safety warnings
- WARNING! Read all safety warnings and all instructions.
- Save all warnings and instructions for future reference.
- Work area safety
- Electrical safety
- Personal safety
- Power tool use and care
- Service
- ● Safety instructions for all applications
- Common safety instructions for grinding, sanding:
- ● Safety instructions for grinding rollers
- General power tool safety warnings / Start-up
- Wear safety glasses and a dust mask!
- - Start-up
- Externalextraction
- WARNING! EXPLOSION HAZARD!
- Connecting the dust extraction hose
- Removing the dust extractor hose
- - Switching on/off
- - Selecting the grinding tool
- - Workinginstructions
- - Presetting the speed
- Grinding
- ● Maintenance and Cleaning
- WARNING! RISK OF INJURY!
- ● Service centre
- Warranty
- - Disposal
- Do not dispose of electric tools in the household waste!
- ● Translation of the original declaration of conformity / Manufacturer CE
- Machinery Directive
- Electromagnetic Compatibility
- RoHS Directive
- Applicable harmonized standards
- Type / Device description:
- Date of manufacture: 12-2015
- Einleitung
- WARNUNG! EXPLOSIONSGEFAHR!
- KOMPERNASS HANDELS GMBH
Brand : PARKSIDE
Model : PSR 310 A1
Category : Orbital sander
