Product type	Drip coffee maker
Brand	Bosch
Model	TKA8A683
Dimensions (W x H x D)	approx. 25 x 35 x 25 cm
Weight	approx. 2.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Carafe capacity	1.25 L (10 cups)
Water tank capacity	1.25 L
Filter type	Permanent filter or paper filter #4
Auto shut-off function	Yes, after approx. 40 minutes
Keep warm function	Yes, warming plate
Water level indicator	Yes, transparent
Anti-drip function	Yes, to remove carafe during brewing
Anti-scale filter	Integrated, replaceable
Cleaning and maintenance	Descaling recommended every 3 months
Safety	Auto shut-off, overheating protection
Spare parts available	Carafe, filter, tank, seal
Repairability	Repairability score: 7.2/10 (according to manufacturer data)
Color	Black and stainless steel
Included accessories	Carafe, permanent filter, measuring scoop

Frequently Asked Questions - TKA8A683 BOSCH

How to descale my Bosch TKA8A683 coffee maker?

Use a suitable descaling agent or diluted white vinegar (1/3 vinegar, 2/3 water). Pour into the tank, run a cycle without coffee, rinse with 2 cycles of clear water. Repeat every 3 months.

Why isn't the coffee hot enough?

Check that the warming plate is clean and the carafe is properly positioned. If the problem persists, descale the appliance. A serving temperature of about 80°C is normal.

What type of ground coffee to use?

Use a medium grind for drip coffee makers. Avoid too fine grinds that clog the filter. The recommended dose is about 7 g per cup.

How to clean the permanent filter?

Rinse the filter under hot water after each use. For deep cleaning, soak it in soapy water then brush it. Do not put in the dishwasher.

The coffee maker stops before the brewing is complete, what to do?

This may be due to excess limescale or a clogged filter. Descale the appliance and clean the filter. Also check that the tank is properly filled.

Can I use paper filters?

Yes, the coffee maker accepts size #4 paper filters. Place the filter in the filter holder before adding coffee. You can alternate with the permanent filter.

How to adjust the auto shut-off?

The auto shut-off is preprogrammed to about 40 minutes after the end of brewing. It is not adjustable. To extend the keep-warm function, use the manual keep-warm function if available.

The red light is flashing, what does it mean?

The red light usually flashes to indicate a need for descaling. Refer to the user manual for the descaling procedure specific to this model.

The carafe fills poorly, drip by drip?

Check that the anti-drip system is working properly. Clean the anti-drip valve under the filter holder. Also ensure that the carafe lid is properly in place.

Where can I find spare parts?

Spare parts (carafe, filter, seals) are available from authorized Bosch dealers or on the official website. Use the reference TKA8A683 to find compatible parts.

USER MANUAL TKA8A683 BOSCH

Filter coffee machine

TKA863. TKA8A68.

[en] Instruction manual Filter coffee machine 8

Illustration of a faucet dispensing water into a plastic bottle (no text or symbols)

Diagram of a hand pressing down on a mechanical component, labeled 'B' (no text or symbols on the diagram itself)

Mechanical assembly diagram showing a piston-cylinder mechanism with a hand adjusting the piston (no text or symbols present)

Illustration of a hand pouring granular substance into a stainless steel pot (no text or symbols visible)

Illustration of a Bosch coffee maker with a steaming cup and digital display (no text or symbols)

Illustration of a Bosch coffee maker with a steaming cup and a digital display (no text or symbols)

Digital timer icon with hour and minute hands, no text or symbols present

Illustration of a hand pressing down on a kitchen pot with a downward arrow indicating the process (no text or symbols present)

Diagram of a mechanical device with a gear and a cross symbol, no text or labels present

Sicherheitshinweise

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is intended for domestic use only.

⚠️Danger of electric shock!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.

Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Avoid spillage on the connector.

Never immerse the appliance or mains cable in water.

Never leave the appliance unattended while it is switched on!

Use only if power cord and appliance show no signs of damage.

Should a fault occur, pull the plug or disconnect from the mains immediately.

⚠️Risk of burns and fire!

A misuse of the appliance can potentially lead to injury. During operation of the appliance the temperature of exposed surfaces may become very high. During operation only grasp the parts of the appliance and the glass jug by the handles provided.

Do not place the appliance on or near hot surfaces, e.g. hobs. Avoid spatters of grease as the plastic may be damaged.

Never cover the parking zone for the jug. After the use the heating element surfaces and warming plate can be subjected to residual heat.

The appliance gets hot. Never operate the appliance in a cupboard.

⚠️Risk of suffocation!

Do not allow children to play with packaging material.

Caution! Cleaning surfaces which come into contact with foodstuffs!

Please note the special information on cleaning in the instructions.

Congratulations on purchasing this Bosch appliance. You have acquired a high-quality product that will bring you a lot of enjoyment.

This instruction manual describes two models:

TKA863.
Model with glass carafe
TKA8A68.
Model with thermos carafe

Parts and operating controls

1 Water tank with fill level indicator (removable)
2 Water tank cover (removable)
3 Filter housing (swivelling)
4 Filter holder (dishwasher-safe)
5 Drip stop
6 TKA863. Glass carafe with lid (dishwasher-safe)
TKA8A68. Thermos carafe with lid

7 ON/OFF switch ①

8 ☐ Low water indicator

9 start button

10 Descale button with indicator calc
11 Cable storage compartment
12 Clock
13 Programming button h
14 Programming button min
15 prog button
16 Display (automatic switch-off) auto off

TKA863. only

17 Hotplate

TKA8A68. only

18 Release switch (on carafe handle)

General information

■ Fill water tank with clean, cold water only. Never add milk or beverages such as tea or coffee since this will damage the appliance.
■ Never fill water tank above the marking "8 ☐" (TKA8A68.) or "10 ☐" (TKA863.).
■ Use coffee with a medium grind (approx. 6 g per cup).

■ Do not brew less than the minimum amount of three cups since the coffee will not have the desired strength and temperature (1 cup = approx. 125 ml).
■ Never remove the carafe while the machine is brewing coffee since this may cause the filter holder to overflow.
■ Make sure that carafe's lid is closed when you place the carafe on the coffee machine.
■ Do not use other carafes since the special drip protector will block the coffee from flowing into the receptacle.
■ Some water accumulation on the filter holder is normal; it does not indicate that the coffee machine is defective.

Before using for the first time

■ Remove any stickers or film.
■ Pull enough of the power cable out of the storage compartment and plug in.

■ Press ON/OFF switch ①; the display flashes.
■ Set the current time by pressing button h for the hour and button min for the minute.

Note: You can change the time. Press buttons h and min simultaneously and set the correct time.

■ To clean, fill water tank with 6 cups of water and replace it. Press the start button; cleaning program starts.
■ Repeat the cleaning process.

Note: You may notice a “new machine” smell; this is normal. If this is the case, fill with a vinegar solution (1 cup of vinegar for 5 cups of water) and run the cleaning program. Next, rinse the machine twice with 6 cups of water.

■ Clean the carafe thoroughly.

Brewing coffee

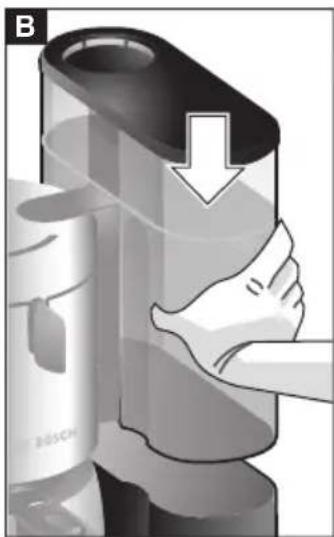

■ Remove the water tank, fill it with water and replace it.

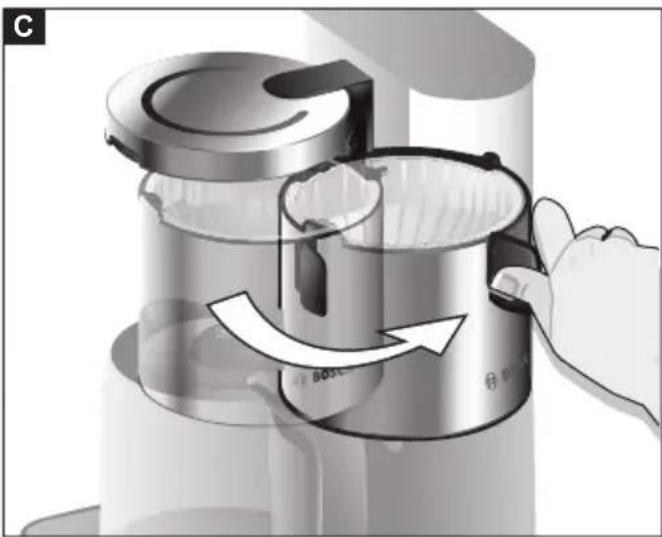

■ Flip out the filter housing.

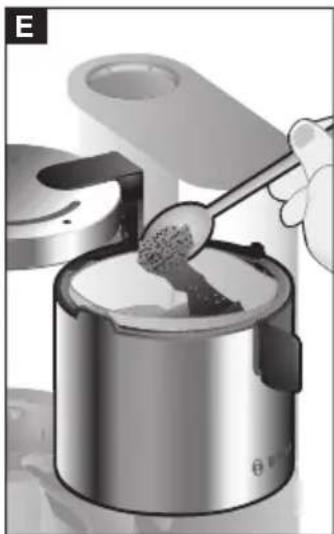

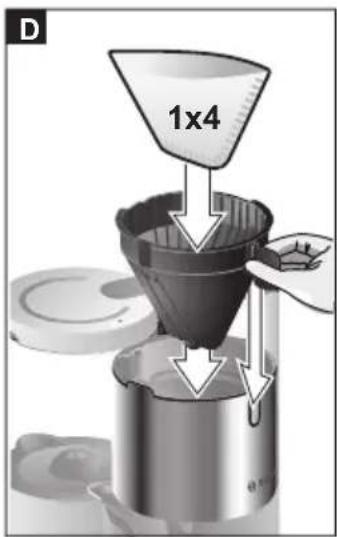

■ Insert a 1x4 paper filter in the filter holder and add the desired amount of coffee.

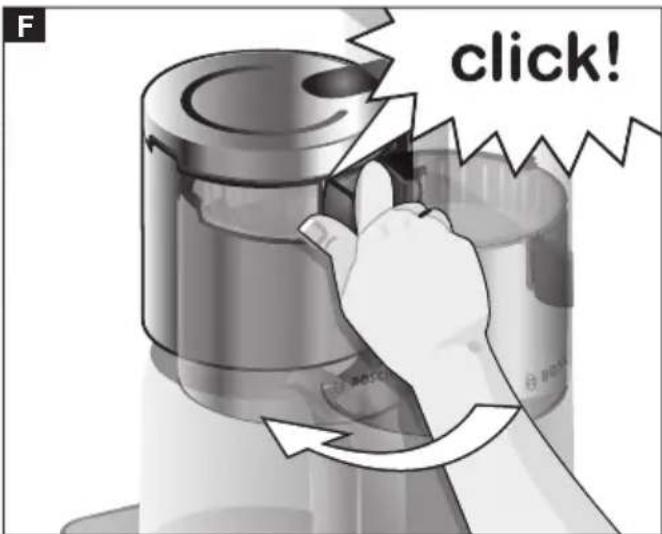

■ Flip back the filter housing until it engages.

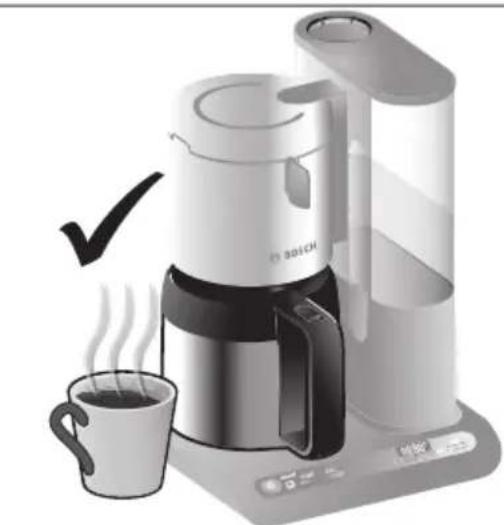

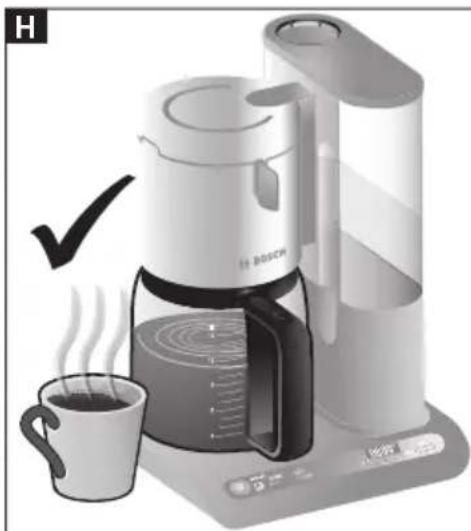

■ Place the carafe with the lid closed under the filter housing.

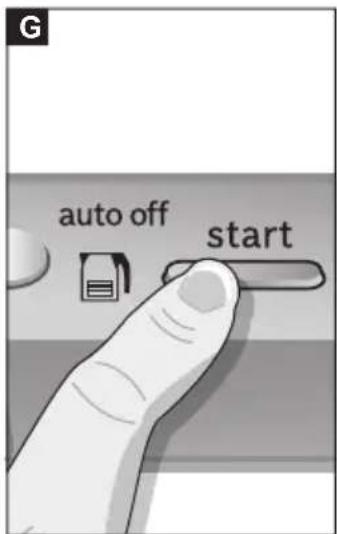

■ Press button start to begin the brewing process.
■ At the same time, the auto off function is activated; the display lights up.

TKA863. only

Info: The appliance has an automatic auto off (power save) function, which switches the appliance to power-saving mode around 40 minutes after the brewing process is complete.

TKA8A68. only

Info: The appliance has an automatic auto off (power save) function, which switches the appliance to power-saving mode a few minutes after the brewing process is complete.

Tip: If you rinse out the thermos carafe with hot water before use, the coffee will stay warm even longer.

Important: When the brewing process is complete, wait a moment until all the coffee has run through the filter and into the carafe.

Let the machine cool down for five minutes before brewing a fresh pot.

Timer function

This coffee machine is equipped with a timer. It lets you set the time at which the machine will automatically start the brewing process.
The timer works only if the machine is turned on or in power-save mode.

■ The clock must be set to the correct current time.

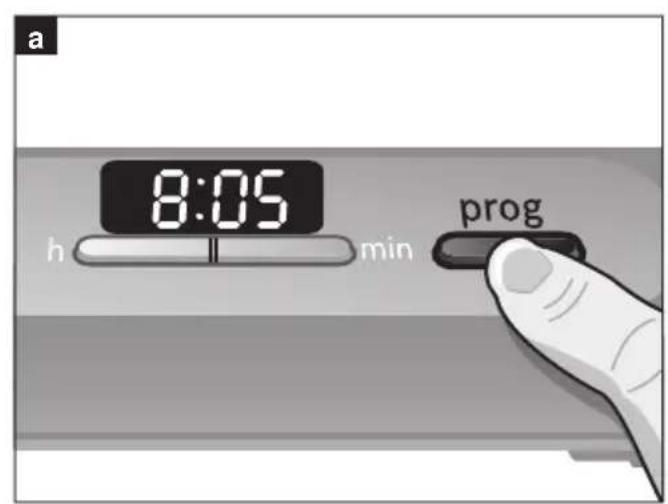

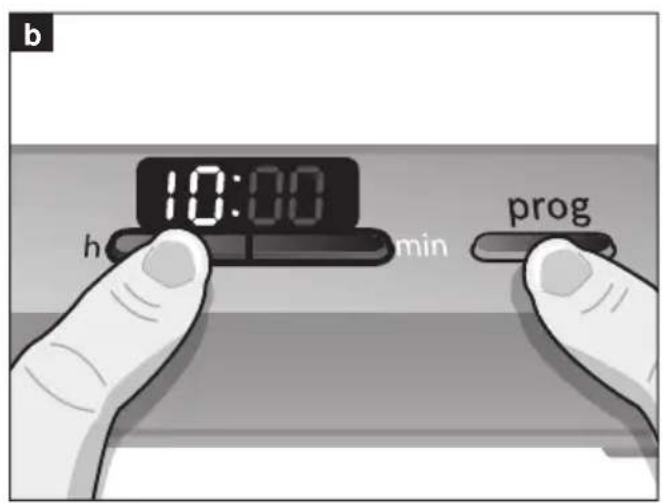

■ Press and hold down the button prog while programming the timer (Fig. a).

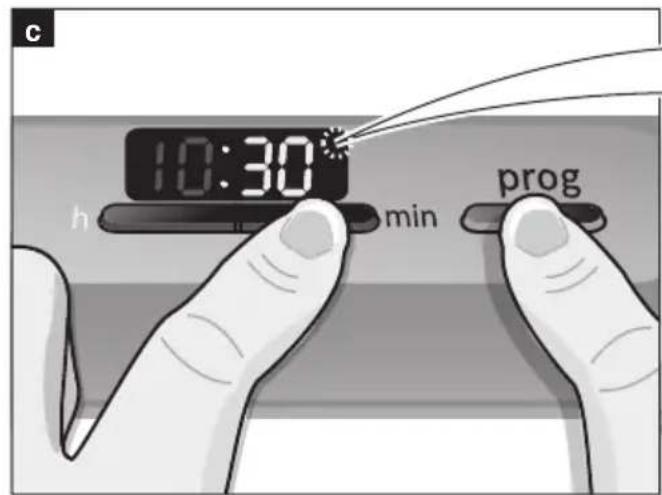

■ Use button h to set the hour and button min to set the minute at which you want the brewing to start (Figs. b and c).

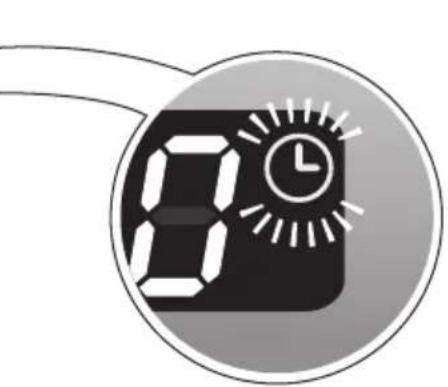

■ Release button prog to save the start time. The display shows a little clock to indicate that the timer function is activated.
■ Fill the machine with water and coffee as usual and place the carafe under the filter housing.

■ The brewing process will start automatically at the set time; the little clock disappears.

Note: To check the programmed time, press and hold down the button prog.

Turning the timer function on/off

Press button prog. If the little clock lights up, the timer function is on. If the little clock turns off, the timer function is off.

Note: If you turn off the coffee machine with ON/OFF switch ① or the power supply is interrupted (plug not plugged in, power failure), the clock and timer settings will be stored for approximately four days. If the power interruption lasts longer, you must reset the clock.

Tip: If you do not use the appliance for a longer period of time, turn it off with ON/OFF switch ①.

Low water indicator

This coffee machine senses if the water volume in the water tank is low (less than approx. 4 cups). If the water level is low,

lights up and the machine automatically increases the brewing time. This ensures that the coffee retains its ideal flavour.

Thermos carafe

TKA8A68. only

Important: Never use the carafe for keeping dairy products or baby food warm, because bacteria may form. Do not heat the carafe in the microwave or in a regular oven.

Never use the carafe to store or transport carbonated beverages. Carefully rinse the carafe after each use.

To keep the lid from permanently vacuum-sealing itself shut, it was designed to not close hermetically. Since the thermos carafe may leak, you should always store and transport it in an upright position. The thermos carafe holds approximately 8 cups.

The lid of the thermos carafe can be opened with the release switch.

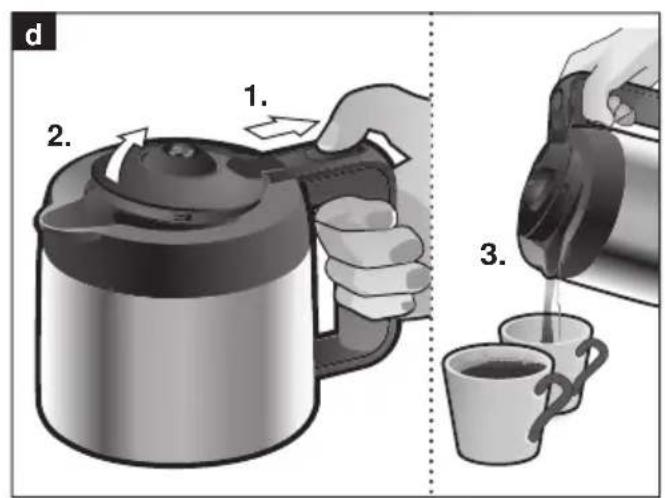

■ Open lid (Fig. d)

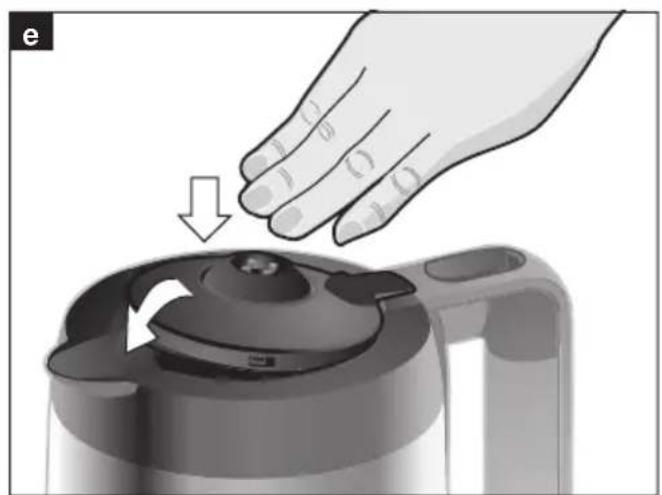

■ Close lid (Fig. e)

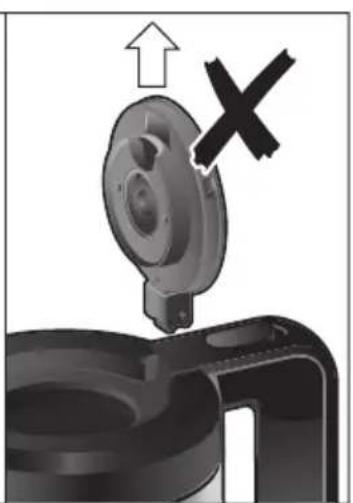

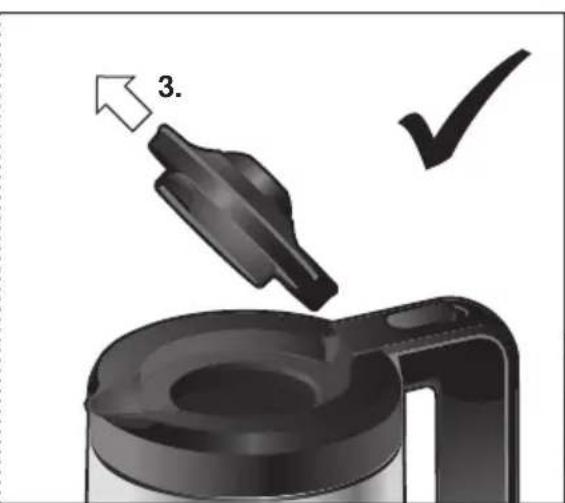

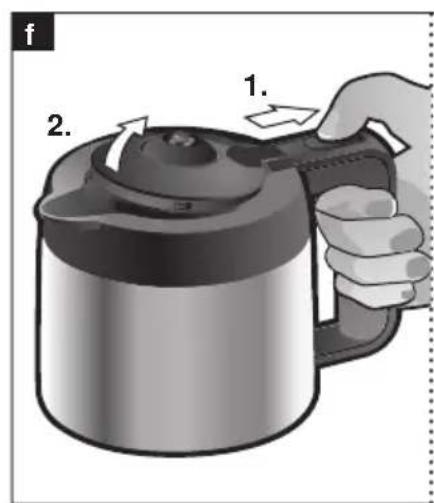

■ Remove lid (Fig. f)

Coffee-making tips

Store ground coffee in a cool place; you can also freeze it. Once a package of coffee has been opened, close it tightly to maintain its aroma.

How the coffee beans are roasted affects their taste and aroma.

Darker roast = more flavour

Lighter roast = more acidity

Cleaning

Never immerse the device in water or place it in the dishwasher! Don't steam-clean the appliance. Unplug the appliance before cleaning it.

■ Clean all parts that came into contact with coffee after each use.
- Clean the coffee machine's exterior with a damp cloth; do not use strong or abrasive cleaning agents.
- Clean the water tank under running water; don't use a firm brush.

TKA863. only

■ The glass carafe and its lid are dishwasher-safe.

TKA8A68. only

■ Rinse out the thermos carafe and lid and wipe its exterior clean with a damp cloth. Do not submerse the carafe in the dishwater or place it in the dishwasher.

Tip: Stubborn water deposits can be removed with a solution of baking soda, dishwasher powder or effervescent denture cleaning tablets.

■ To prevent bad odors and bacteria from forming, store the thermos carafe with the lid open.

Descaling

This appliance is equipped with an automatic descaling indicator. If calc indicator lights up, the machine needs to be descaled.

Regular descaling

■ makes your appliance last longer,
■ ensures proper function,
■ prevents excessive steam,
■ speeds up the brewing process,
■ saves energy.

Descale the machine with a commercial descaling agent.

■ The appliance must be switched on.
■ Make sure that carafe's lid is closed when you place the carafe on the coffee machine.
- Prepare the descaling solution according to the manufacturer's instructions and pour it into the water tank.

Warning: Do not fill with more than 6 cups.

■ Press and hold down the button descale calc for at least 2 seconds. The descaling process starts.

■ The program interrupts the process several times for a few minutes in order to let the descaling agent penetrate the deposits. The entire descaling process takes about 30 minutes. When the program is running, the display calc will blink.

■ When the descaling process is complete, the display calc will no longer light up. Operate the machine twice using clean water, without coffee. Do not fill the tank with more than 6 cups of water.

■ Carefully rinse all removable parts and the carafe.

Troubleshooting

The machine takes noticeably longer or switches itself off before the brewing process is complete.

– The machine needs descaling.

■ Descale the machine as per the instructions. To start the descaling program, press and hold button calc for at least two seconds.

Tip: If your water is very hard, descale the coffee machine more frequently than requested by the calc indicator.

The drip stop leaks.

– It needs to be cleaned.
■ Clean drip stop (in filter holder) under running water while cleaning it several times with your finger.

Technical data

Electrical connection 22	0-240 V~50/60 Hz
Power TKA863. 1160 W
	TKA8A68. 1100 W
Appliance height 355 mm
Appliance width 260 mm
Appliance depth 250 mm
Tank capacity TKA863.	1.375 L
	TKA8A68. 1.1 L

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

17 Plaque chauffante

Uniquement TKA8A68.

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

To arrange an engineer visit, to order

spare parts and accessories or for

product advice please visit

www.bosch-home.co.uk

or call Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor, North Block,

Skyway House, 3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone] (HK)

Toll free 0800 863 (Macao)

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for

product advice please call

Tel.: [phone]*

www.bosch-home.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KR Republic Korea,

Daehan Minguk,대한민국

Dong Suh Foods Corporation

Dongsuh Bldg., 324,

Dongmak-ro, Mapo-gu

Seoul 121-730

Tel.: [phone]

KZ Kazakhstan, Казақстан

BSH Home Appliances LLP

Dostyk 117/6,

Business Center "Khan Tengri"

Almaty

Hotline: 5454*

mailto:[e-mail]

* Toll free from mobile only

LB Lebanon

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

UAB Emtoservis

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

MV Raajjeyge Jumhooriyyaa,

Maledives

Lintel Investments and

Management Services Pvt. Ltd.

Ma. Maadheli, Majeedhee Magu

Malé

Tel.: [phone]

mailto:[e-mail]

www.lintel.com.mv

NL Nederlande, Netherlands

Level 3, Air NZ Building, Smales Farm

74 Taharoto Road, Takapuna

Auckland 0622

Tel.: [phone]*

mailto:[e-mail]

www.bosch-home.co.nz

Mo-Fr: 8.30 am to 5.00 pm

(exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia,

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.,

P.O. Box 7997

Jeddah 21472

Tel.: [phone]*

mailto:[e-mail]

www.aljelectronics.com.sa

* Sat-Thu: 8.00 am to 11.00 pm

(exclude public holidays)

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm (exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

Ital Thai Tower, 2034/31-39, 1st floor,

New Petchburi Road

Bangkapi, Huay Kwang

Bangkok, 10310

Tel.: [phone]*

www.bosch-home.com/th

* Mo-Sa: 8.00am to 6.00pm

(exclude public holidays)

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]*

mailto:[e-mail]

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

rr.Magjistralja Ferizaj Prishtine

70000 Ferizaj

Tel.: 00381 (0) 290 330 723

Tel.: [phone]

mailto:[e-mail]

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

[e-mail]

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.
