KD355K - Drill BLACK & DECKER - Free user manual and instructions

Product type	Corded electric drill
Brand	Black & Decker
Model	KD355K
Dimensions (L x W x H)	Approximately 25 x 20 x 8 cm
Weight	Approximately 1.5 kg
Power supply	Mains 230 V ~ 50 Hz
Rated power	550 W
No-load speed	0 - 2800 rpm
Chuck capacity	1 to 10 mm
Drilling capacity (steel)	10 mm
Drilling capacity (wood)	25 mm
Main functions	Drilling, screwdriving (with variable speed)
Rotation direction	Forward / reverse
Maintenance and cleaning	Clean ventilation slots with a brush; check carbon brushes
Safety	Use hearing protection; disconnect before changing accessories
Spare parts and repairability	Carbon brushes, chuck, switch
General information	Compact drill for household and DIY use

Frequently Asked Questions - KD355K BLACK & DECKER

How to change the drill bit on the Black & Decker KD355K?

First unplug the tool. Open the chuck by turning the collar counterclockwise. Insert the bit and tighten firmly by turning clockwise.

The drill does not start, what should I do?

Check that the plug is properly connected and that the mains supply is working. If the problem persists, the carbon brushes may be worn; they should be replaced by a professional.

How to adjust the drilling speed?

The speed is variable by the pressure on the trigger. A light pressure gives a slow speed, a strong pressure gives a fast speed.

Can the drill be used for screwdriving?

Yes, the drill has a variable speed and forward/reverse function, ideal for screwdriving. Use a suitable bit.

How to reverse the rotation direction?

Use the direction selector located above the trigger. Push it to the right for forward, to the left for reverse.

What regular maintenance is required?

Clean the ventilation slots with a soft brush to avoid overheating. Have the carbon brushes checked every 50 hours of use.

What safety precautions should be taken?

Wear safety glasses and ear protection. Do not wear loose clothing. Always disconnect before changing an accessory.

The chuck no longer tightens properly, what should I do?

Clean the chuck jaws. If the problem persists, the chuck must be replaced. Consult an authorized service.

What is the maximum drilling depth in wood?

With a 25 mm bit, you can drill up to about 25 mm depth in one pass. For deeper holes, use a drill bit extension.

Where to find spare parts for the KD355K model?

Spare parts are available from authorized Black & Decker dealers or on the official website. The carbon brushes and chuck are the most common parts.

USER MANUAL KD355K BLACK & DECKER

Line drawing of two electric drill motors (KD350 and KD354) with no visible text or symbols on the devices themselves.

KD350 KD354

KD351 KD355

KD352 KD356

KD353 KD455

Australia Black & Decker (A'asia) Pty Ltd Tel: [phone]-288 Maroondah Highway Fax: [phone]North Croydon, Victoria 3136
Belgique/België Black & Decker Belgium NV Tel: [phone]Weihoek 1, Nossegem, 1930 Zaventem-Zuid Fax: [phone]
Danmark Black & Decker AB Tlf: 70-20 15 10Hejrevang 26 B, 3450 Allerød Fax: [phone]
Deutschland Black & Decker GmbH Tel: [phone]Black & Decker Straße 40, 65510 Idstein Fax: [phone]
Ελλάς	Black & Decker (Ελλάς) AEΛεωφ. Συγγρού 154Αθήνα 176 71	Τηλ: 01 9242870-75Service: 01 9242876-7Fax: [phone]
España	Black & Decker de España SACtra. de Acceso a Roda de Bará, km 0,743883-Roda de Bará, Tarragona	Tel: [phone]Tlx: 56631 BLADE EFax: 977 802342
France	Black & Decker (France) Sarl Tel: [phone]Le Paisy69570 Dardilly, Lyon	Tlx: 300 250Fax: [phone]
Helvetia	Black & Decker AG ElektrowerkzeugeRütistraße 14, CH-8952 SchlierenSchweiz/Suisse	Tel: [phone]Tlx: 54462 BDZH CHFax: 01 730 70 67
Italia	Black & Decker Italia SpAViale Elvezia 2, 20052 Monza (Mi)	Tel: [phone]Fax: [phone]
Nederland	Black & Decker (Nederland) BVFlorijnstraat 10, 4879 AH Etten-Leur	Tel: [phone]Fax: [phone]
New Zealand	Black & Decker483 Great South Road, Penrose, Auckland	Tel: [phone]Fax: [phone]
Norge	Black & Decker (Norge) A/S Tel: [phone]Strømsveien 344, 1081 Oslo	Fax: [phone]
Österreich	Black & DeckerWerkzeugevertriebs GmbHErlaaerstraße 165, Postfach 69, 1230 Wien	Tel: [phone]Tlx: 13228 BLACK AFax: 0222 66 116 14
Portugal	Black & DeckerRua Egas Moniz 173, Apartado 19S. João do Estoril, 2768 Estoril, Codex	Tel: [phone]Tlx: 16 607 BLADEC PFax: 467 15 80
South Africa	Powerdek Tool Distributors22 Inglestone Road, Village DeepJohannesburg, South Africa	Tel: [phone]Fax: [phone]
Suomi	Black & Decker OyRälssitie 7 C, 01510 Vantaa	Puh: 358-0-825 4540Fax: [phone]
	Frälsevägen 7 C01510 Vanda	Tel: [phone]Fax: [phone]
Sverige	Black & Decker ABBox 603, 421 26 Västra FrölundaBesöksadr. Ekonomivägen 11	Tel: [phone]Fax: [phone]
United Kingdom	Black & Decker210 Bath RoadSloughBerkshire SL1 3YD Fax: [phone]	Tel: [phone]Tel: [phone]Tlx: 848317 BAND MH

KÆRE KUNDE,

On the purchase of your Black & Decker product. To ensure the best results from your power tool please read these safety and usage instructions carefully. If you have any questions or queries after reading this manual please do not hesitate to call your local service and information centre on 0345 230230 (UK only).

¡ENHORABUENA!

Illustration of hands holding a mechanical component with a threaded shaft and threaded end (no text or symbols)

Mechanical diagram of a motor or gear assembly with rotating shaft and directional arrow (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a cylindrical roller being inserted into a tube (no text or symbols)

Mechanical diagram showing a rotating motor with a cylindrical component and a downward arrow indicating rotation (no text or symbols)

Illustration of a hand using a handheld device to adjust a cylindrical component (no text or symbols visible)

Illustration of hands using a drill bit on a power tool (no text or symbols visible)

Hand pressing down on a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a tool with a black arrow pointing to a textured surface (no text or symbols)

For at aktivere Deres boremaskinen, trykkes på strømafbryderen. Deres boremaskine stopper når strøm afbryderen slippes.

Illustration of hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Hvis der er behov for fortsat drift, trykkes der på den låsbare knap, medens strøm afbryderen er trykket ned. For at stoppe

KD351RE, KD352, KD353, KD354E, KD355RE, KD355CRE,

KD356CRE, KD455CRE er i overensstemmelse med

89/392/EEC, 89/336/EEC, EN55014, 73/23/EEC,

EN55104, EN50144

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, United Kingdom

Illustration of hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

Mechanical diagram of a mechanical device with rotating shaft and housing (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a threaded shaft, showing rotational motion (no text or symbols)

Diagram of a mechanical assembly with a rotating motor and shaft, showing motion direction (no text or symbols)

Illustration of a hand using a handheld tool to adjust or install a cylindrical component (no text or symbols visible)

Zum

Illustration of hands using a drill bit on a power tool (no text or symbols visible)

Illustration of a hand turning a car interior with arrows indicating rotation (no text or symbols)

Illustration of two hands holding a tool, showing finger movement and force application (no text or symbols)

Brian Cooke - Director of Engineering Black & Decker, Spennymoor, Co Durham DL16 6JG UK

Illustration of hands performing a mechanical tool manipulation (no text or symbols visible)

Diagram of a mechanical device with rotating shaft and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a cylindrical roller being inserted, showing a downward arrow (no text or symbols)

Diagram of a mechanical assembly with a rotating motor and a cylindrical component, showing motion direction (no text or symbols)

Illustration of a hand using a handheld tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands using a power tool to adjust or install a component (no text or symbols visible)

Hand pressing down on a car's side panel with directional arrows indicating motion (no text or symbols)

Illustration of two hands holding a tool, showing finger movement and force application (no text or symbols)

Corded drills user manual

SAFETY INSTRUCTIONS

Warning! When using electric tools, the following basic safety precautions should always be taken to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate the product and save this booklet.

For safe operation:

• Keep the work area clean. Cluttered areas and benches invite injuries.
• Consider the work area environment. Do not expose the power tool to rain and do not use in damp or wet locations. Keep the work area well lit. Do not use the power tool where there is a risk to cause fire or explosion.
• Guard against electric shock. Avoid body contact, where possible, with earthed or grounded surfaces (e.g. pipes, radiators, ranges and refrigerators).
• Keep children away. Do not let visitors touch the tool or extension cord. All visitors should be kept away from the work area.
• Store idle tools. When not in use, tools should be stored in a dry, high or locked place, out of reach of children.
• Do not force the tool. It will do the job better and more safely at the rate for which it was intended.
• Use the right tool. Do not force small tools or attachments to do the job of a heavy duty tool. Do not use the tool for purposes not intended; for example, do not use a circular saw to cut tree limbs or logs.
• Dress properly. Do not wear loose clothing or jewellery as they can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
• Use safety glasses. Use a face or dust mask as well, if the operation is dusty or if the tool is being used in enclosed spaces.
• Connecting dust extraction equipment. If devices are provided for the connection of dust extraction and collection ensure these are connected and properly used, especially in confined areas.
• Do not abuse the cord. Never carry the tool by its cord or yank it to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges.
• Secure the work. Use clamps or a vice to hold the work. It is safer than using a hand and it frees both hands to operate the tool.

• Do not overreach. Keep proper footing and balance at all times.

• Maintain the tool with care. Keep a cutting tool sharp and clean for better and safer performance. Follow the instructions for lubricating and changing accessories. Inspect the tools cord periodically and, if damaged, have repaired by an authorised service facility. Inspect the extension cord periodically and replace if damaged. Keep the handles dry, clean and free from oil and grease.

• Disconnect the tool when not in use, before servicing and when changing accessories such as blades, bits and cutters.
• Remove adjusting keys and wrenches. Form the habit of checking to see that keys and adjusting wrenches are removed from the tool and replaced in the storage area before switching on.
• Avoid unintentional starting. Do not carry a plugged-in tool with a finger on the switch. Ensure the switch is off when plugging in.
• Use an outdoor extension cord. When a tool is used outdoors, only use an extension cord intended for outdoor use and so marked.
• Stay alert. Watch what you are doing, use common sense and do not operate the tool when tired.
• Check damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine whether it will operate properly and perform its intended function. Check for alignment of moving parts, free running of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorised service centre unless otherwise indicated in the product booklet. Have defective switches replaced by an authorised service centre. Do not use the tool if the switch does not turn it on and off.
• Warning! The use of any accessory or attachment, other than recommended in the product booklet, may present a risk of personal injury.
• Have the tool repaired by a qualified person. The electrical tool is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise, this may result in considerable danger to the user.

Save these instructions!

DOUBLE INSULATION

☐ The tool is double insulated. This means that all the external metal parts are electrically insulated

ENGLISH

from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed.

Note: Double insulation does not take the place of normal safety precautions when operating the tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

ELECTRICAL SAFETY

Be sure the supply is the same as the voltage given on the rating plate. The tool is fitted with a two-core cable and plug.

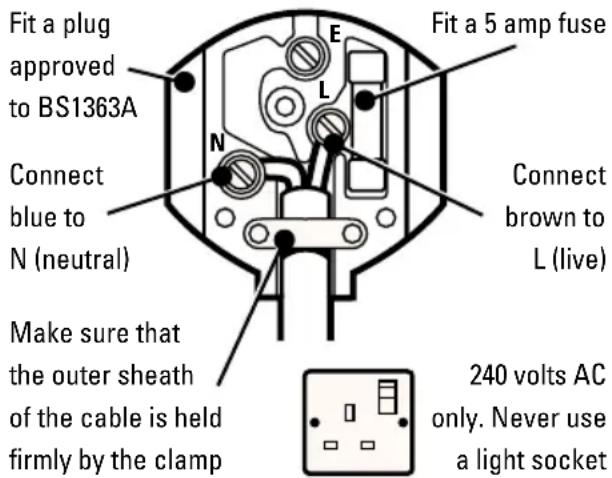

MAINS PLUG REPLACEMENT (UK ONLY)

Should the mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact a Black & Decker service centre or a qualified electrician.

• Disconnect the plug from the power supply.
• Cut off the plug and dispose of safely. A plug with bared copper conductors is very dangerous if engaged in a live socket outlet.
• Only fit BS1363A approved plugs fitted with the correctly rated fuse.

Note: Fuses do not give personal protection against electric shock.

- The cable wire colours, or a letter, will be marked at the connection point of most good quality plugs. Attach the wires to their respective points in the plug (see diagram). Brown is L (live) and blue is N (neutral).

- Before replacing the top cover of the plug ensure that the cable restraint is holding the outer sheath of the cable firmly and that the two leads are correctly

fixed at the terminal screws. If the fuse cover is missing or damaged do not use the plug. For replacement or detachable fuse covers, contact a Black & Decker service centre.

Warning! Never connect live or neutral wires to the earth pin marked E or 12

MAINS PLUG REPLACEMENT (AUSTRALIA AND NEW ZEALAND ONLY)

Should the mains plug or cordset of the product be damaged, it must only be replaced by an authorised Black & Decker service agent because special purpose tools are required.

EXTENSION CABLES

Up to 30m (100ft) of Black & Decker 2-core extension cable (or 3-core extension cordset, in Australia and New Zealand) can be used without undue loss of power.

Note: An extension cable should not be used unless absolutely necessary. Use of an improper extension cable could result in a risk of fire and electric shock. If an extension cable must be used, make sure it is properly wired, contains the correct rated fuse as recommended in its literature and is in good electrical condition.

UNWANTED TOOLS AND THE ENVIRONMENT

Should you find one day that the tool needs replacement or is of no further use, think of the protection of the environment. Black & Decker service centres will accept old tools and will dispose of them in an environmentally safe way.

THE BLACK & DECKER GUARANTEE (UK, AUSTRALIA AND NEW ZEALAND ONLY)

If the Black & Decker product becomes defective due to faulty materials and workmanship, within 24 months from the date of purchase, we guarantee to either replace all defective parts or at our discretion, replace the unit free of charge provided that:

- The product is returned to us or our authorised repairers with evidence of date of purchase.

- The product has not been used for trade, professional or hire purposes.

- The product has not been subjected to misuse or neglect.

- The product has not sustained any damage through foreign objects, substances or accidents.

• Repairs have not been attempted by anyone other than our own service staff or authorised repair distributors.

ENGLISH

This guarantee is offered as an extra benefit and is additional to the customers statutory rights.

AFTER SALES SERVICE FOR THE BLACK & DECKER PRODUCT (UK, AUSTRALIA AND NEW ZEALAND ONLY)

Black & Decker offers a nationwide after sales service through our company operated service centres and concessionaries on the Channel Islands and Isle of Man. It is our aim to offer excellent service, fast repairs, extensive parts availability and full accessory support. The use of other than genuine Black & Decker accessories and parts may damage or reduce the performance of your Black & Decker product and may also endanger the user. The terms and conditions of the warranty may also be effected.

THE AFTER SALES SERVICE POLICY (UK, AUSTRALIA AND NEW ZEALAND ONLY)

It is our aim that all Black & Decker customers should be totally satisfied with their Black & Decker product and after sales service, but if help or advice is needed please contact the local Black & Decker service centre manager who will be happy to help. Full details of our unique after sales service can be obtained from any of our Black & Decker service centres.

ACCESSORIES

The performance of any power tool is dependant upon the accessory used. Black & Decker accessories are engineered to high quality standards and are designed to enhance the performance of your tool. Buying a Black & Decker accessory will ensure that you get the very best from your Black & Decker tool.

TECHNICAL DATA

The level of sound pressure of the tool is in accordance with EEC legislation. It is recommended that you take appropriate measures for the protection of your hearing if the sound level seems uncomfortable. This normally equates to a sound pressure in excess of 85dB (A).

Note: This user manual also covers catalogue numbers ending with a letter suffix. Refer to your carton for details of your product.

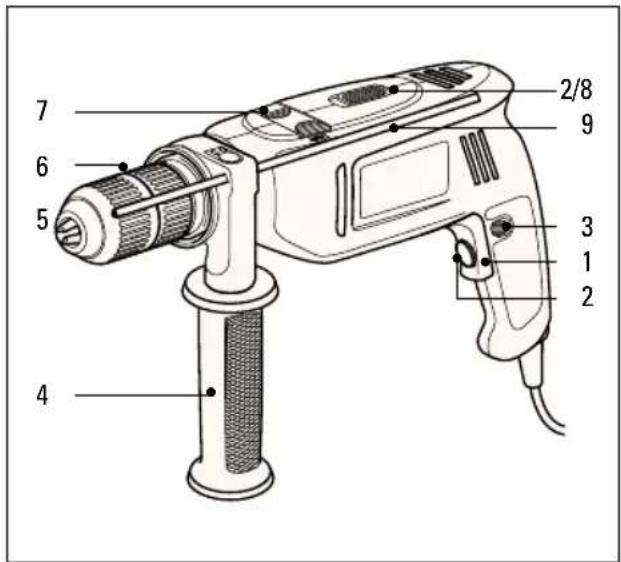

FEATURES

1. On/off switch
2. Speed control
3. Lock-on button
4. Side handle
5. Chuck jaws
6. Chuck

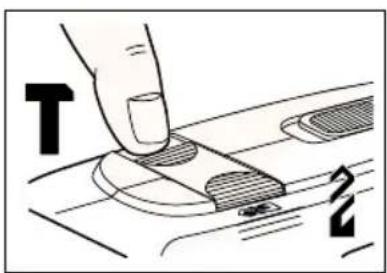

7. Hammer/drill switch
8. Forward/reverse switch
9. Adjustable depth stop

Your drill includes some or all of these features:

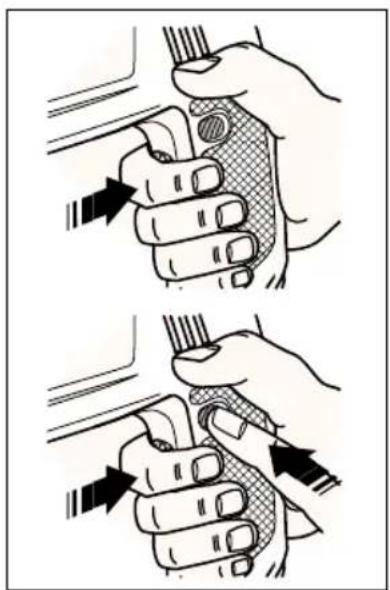

• The on/off switch is used to operate your drill in all modes of operation.
• The variable speed control provides optimal control of your drill for a wide range of tasks.
• On two-speed drills, the speed switch permits selection of the appropriate drilling speed.

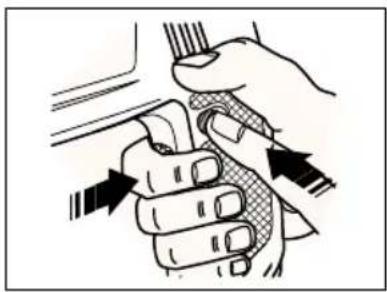

• The lock-on button provides continuous operation of your drill.

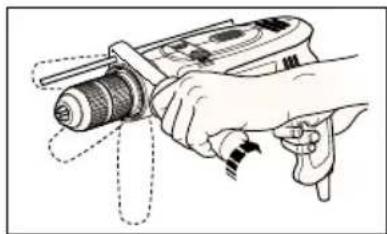

• The side handle gives a secondary gripping position for your drill.
• Your drill can operate as a hammer drill or a rotary drill depending on the setting of the hammer/drill switch.
• The forward/reverse switch controls the direction of rotation when your drill is used as a screwdriver, or when clearing a jammed drill bit.

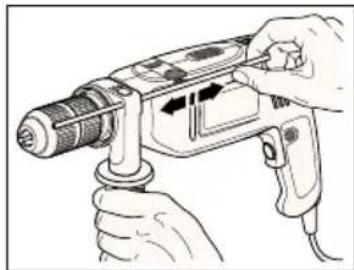

• The adjustable depth stop gives precise control of the hole depth, when you drill blind holes.

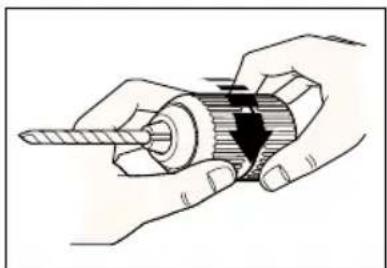

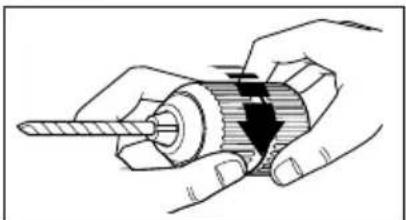

FITTING THE DRILL BIT (KEYLESS CHUCKS)

Proceed as follows:

Illustration of hands operating a mechanical shaft with a threaded end (no text or symbols)

Disconnect the plug from the electricity supply. While holding the rear section of the chuck, rotate the front section until the jaws of

the chuck are sufficiently open. Insert the drill bit in the jaws of the chuck. Hold the rear section of the chuck while tightening the front section. Twist the two sections firmly in opposite directions to securely grip the drill bit.

ENGLISH

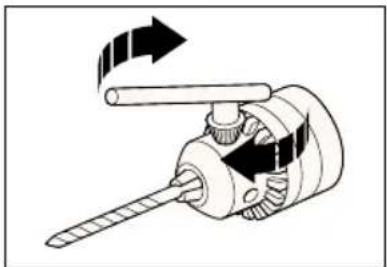

FITTING THE DRILL BIT (KEYED CHUCKS)

Proceed as follows:

Disconnect the plug from the electricity supply.

Mechanical diagram of a mechanical device with rotating shaft and directional arrows (no text or symbols)

Rotate the barrel of the chuck until the jaws are sufficiently open. Insert the drill bit in the jaws of the chuck. Insert the chuck key with

the end of the chuck key in one of the three holes in the body of the chuck and the head of the chuck key engaged with the barrel of the chuck. Turn the chuck key clockwise to tighten the jaws and securely grip the drill bit. Remove the chuck key.

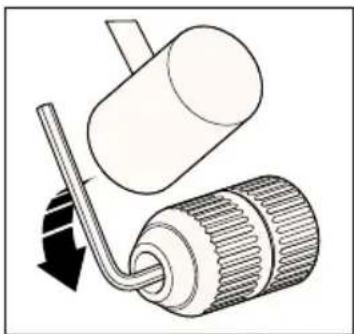

REMOVING THE CHUCK (KEYLESS CHUCKS)

Proceed as follows:

Diagram of a mechanical device with a cylindrical component and a threaded shaft, showing a curved arrow indicating rotation (no text or symbols present)

To remove the chuck, open the jaws, hold it firmly in one hand and with a screwdriver held in the other hand, turn the set-screw in the chuck clockwise approximately one turn, to loosen it. Place an allen key in

the chuck and tighten the jaws. Give the allen key a short powerful blow in an anti-clockwise direction with a hammer to loosen the chuck on the spindle. Remove the allen key. Use the screwdriver to turn the set-screw clockwise until it totally disengages from the spindle. Remove the chuck from the spindle by rotating it anti-clockwise. To fasten the chuck, put it on the thread and turn it clockwise until it stops. Put in the screw and turn it anti-clockwise until absolutely firm.

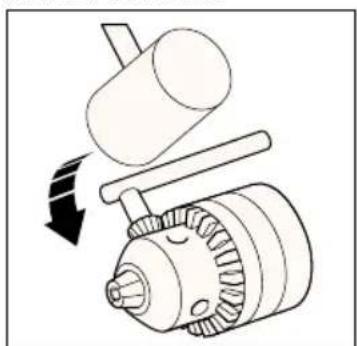

REMOVING THE CHUCK (KEYED CHUCKS)

Proceed as follows:

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

To remove the chuck, open the jaws of the chuck with the chuck key. Hold the chuck firmly in one hand, and with a screwdriver turn the screw set in the chuck clockwise with the other hand until it comes out.

Use only the correct chuck key. Place the chuck key into the chuck, and hold the drill firmly in one hand with the chuck pointing away from you. Rotate the chuck so that the chuck key is just above the horizontal position on the right hand side of the machine. Give the crossbar end of the key a sharp downward blow with a mallet or light hammer. The chuck should now be sufficiently loose to be unscrewed by hand.

FITTING THE SIDE HANDLE

Proceed as follows:

Illustration of a hand using a handheld tool to adjust a cylindrical component (no text or symbols visible)

Position the side handle on the body of your drill. Rotate the handle around the body of your drill until it is in the desired

position. Tighten the handle by turning clockwise.

SETTING THE ADJUSTABLE DEPTH STOP

Proceed as follows:

Fit the drill bit. Loosen the side handle.

Illustration of hands using a drill bit on a power tool (no text or symbols visible)

Slide the depth stop until the end of the depth stop aligns with the end of the drill bit. Slide the depth stop until the distance between the end of the depth

stop and the end of the drill bit is equal to the length of the screw you will fit. Tighten the side handle.

Fit the correct accessory for the job. Set the depth stop if required. Set the speed of your drill. On two-speed drills,

set the two-speed switch to '1' (low-speed) or '2' (high-speed), or set the variable speed control to the desired speed. As a general rule, for large size drill bits use low speeds and for smaller drill bits use high speeds.

Hand pressing a button on a car interior, showing motion arrows (no text or symbols)

Set the forward/ reverse switch to the desired direction of rotation. Never change the setting of the hammer switch,

ENGLISH

the speed switch or the forward/reverse when your drill is operating.

USING YOUR DRILL

Illustration of two hands holding a tool, showing finger movement and force application (no text or symbols)

To switch your drill on, depress the on/off switch. Your drill stops when the on/off switch is released. If continuous operation is required, depress the lock-on button while the on/off switch is depressed. To stop your drill when operation is continuous, depress the on/off switch

again and release. While your drill is in operation, do not touch the chuck.

HANDY HINTS

• Fit the correct size and type of drill or screwdriver bit.
• Set the correct drill speed.
  • Always hold your drill using the handle and the side handle.
  • Always hold your drill at right-angles to your work.

When drilling wood and metal, set the hammer switch to the drill mode ◀◀◀ When drilling masonry, set the hammer switch

to the hammer mode ☐ When screwdriving, set the hammer switch to the drill mode

• Set the forward/reverse switch to the correct direction.
• Never change the direction of rotation when your drill is in operation.
  • After use, remove the drill bit and gently tap the side of the chuck with a soft-faced hammer to remove the dust. This will extend the life of the chuck.

COOLING DOWN

If your drill becomes too hot in use, set the speed control to its highest setting and allow your drill to operate without load for 2 minutes.

OVERLOAD

Never use excessive force when using your drill. Too much pressure can reduce the speed of your drill and reduce its efficiency. This can result in an overload which can cause damage to the motor of your drill.

EC DECLARATION OF CONFORMITY

We declare that units: KD350RE, KD351RE, KD352, KD353, KD354E, KD355RE, KD355CRE, KD356CRE, KD455CRE conform to 89/392/EEC, 89/336/EEC, EN55014, 73/23/EEC, EN55104, EN50144

A weighted sound pressure 100dB (A)

A weighted sound power 113dB (A)

Hand/arm weighted vibration 8.7m/s²

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG United Kingdom

The Black & Decker policy is one of continuous improvement to our product and as such we reserve the right to change the product specification without prior notice.

Illustration of hands holding a mechanical component with a screw and shaft, showing a downward force arrow (no text or symbols)

Mechanical diagram of a motor or gear assembly with rotating shaft and gear mechanism (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a threaded shaft, showing rotational motion (no text or symbols)

Diagram of a mechanical device with rotating components and a downward arrow indicating motion (no text or symbols)

Illustration of a hand using a handheld tool to adjust or install a cylindrical component (no text or symbols visible)

Illustration of hands using a power tool to adjust or install a cylindrical component (no text or symbols visible)

Hand pressing down on a car's side panel with arrows indicating rotation (no text or symbols)

Illustration of two hands holding a tool, showing finger movement and adjustment arrows (no text or symbols)

Illustration of hands using a mechanical tool to adjust a cylindrical component (no text or symbols visible)

Mechanical diagram of a motor or gear assembly with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a threaded shaft, showing motion direction (no text or symbols)

Diagram of a mechanical assembly with a cylindrical component and rotating shaft (no text or symbols)

Illustration of a hand using a handheld tool to adjust or install a cylindrical component (no text or symbols visible)

Illustration of hands using a drill bit on a power tool (no text or symbols visible)

Hand pressing down on a car's side panel with motion arrows indicating clockwise rotation (no text or symbols)

Illustration of two hands holding a tool, showing finger movement and tool path (no text or symbols)

Illustration of hands holding a mechanical component with a threaded shaft and gear (no text or symbols)

Mechanical diagram of a mechanical device with rotating shaft and housing (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical body and threaded shaft (no text or symbols)

Mechanical diagram showing a rotating motor with a handle and gear mechanism, no text or symbols present

Illustration of a hand using a power tool to lift a propeller, with no visible text or symbols.

Hand pressing a button on a device with directional arrows indicating motion (no text or symbols)

Illustration of two hands demonstrating a finger manipulation technique (no text or symbols present)

sono conformi a 89/392/EEC, 89/336/EEC, EN55014, 73/23/EEC, EN55104, EN50144

Brian Cooke - Director of Engineering

Black & Decker, Spennymoor, Co. Durham DL16 6JG, UK

Illustration of hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

Mechanical diagram of a motor or gear assembly with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a cylindrical motor, showing a lever mechanism (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a separate oval housing (no text or symbols)

Illustration of a hand using a handheld tool to interact with a screwdriver (no text or symbols visible)

Hand pressing a button on a device with circular arrows indicating rotation (no text or symbols)

Illustration of a hand holding a finger with a finger pointing to the right side of the index finger (no text or symbols present)

Illustration of a hand performing a finger massage or grip technique with directional arrows (no text or symbols)

KD561, KD562, KD564RE, KD564CRE, KD661, KD662, KD664RE, KD664CRE in overeenstemming is met 89/392/EEC, 89/336/EEC, EN55014, 73/23/EEC, EN55104, EN50144

Brian Cooke - Hoofd Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Bruksanvisning for elektriske slagbormaskiner

SIKKERHETSINSTRUKSJONER

SETTE PÅ BITS (SELVSPENNEND CHUCK)

Gjør slik:

Illustration of hands holding a mechanical component with a screw and shaft (no text or symbols)

Diagram of a mechanical device with rotating shaft and gear mechanism (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

Åpne bakkene, hold chucken skikkelig med en hånd og skru løs festeskruen medurs (ca. 1 omdreining) med en skrutrekker.

Plasser en unbrakonøkkel i chucken og fest den.

Diagram of a mechanical assembly with rotating components and a curved arrow indicating motion (no text or symbols)

Illustration of a hand using a handheld power tool to adjust a motor (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with curved arrows indicating rotation (no text or symbols)

Illustration of two hands demonstrating a finger manipulation technique (no text or symbols present)

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Manual do utilizador de berbequins com fio

INSTRUÇÕES DE SEGURANÇA

COLOCAÇÃO DA BROCA (BUCHAS SEM CHAVE)

Illustration of hands holding a mechanical component with a threaded shaft (no text or symbols)

COLOCAÇÃO DA BROCA (BUCHAS COM CHAVE)

Mechanical diagram of a motor or gear assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical shaft and threaded shaft (no text or symbols)

Diagram of a mechanical assembly showing a rotating motor with a cylindrical component and a shaft, no text or symbols present.

Illustration of a hand using a power tool to adjust the blade, with no visible text or symbols.

Hand pressing a button on a mechanical component (no text or symbols visible)

Hand pressing a button on a device with directional arrows indicating rotation (no text or symbols)

Illustration of two hands demonstrating a finger manipulation technique (no text or symbols present)

Brian Cooke - Engenheiro respnsável Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Käyttöohje

TURVALLISUUSOHJEET

Illustration of hands using a mechanical tool to adjust a cylindrical component (no text or symbols visible)

Mechanical diagram of a mechanical device with rotating shaft and gear mechanism (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a threaded shaft, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a mechanical assembly with rotating components and a downward arrow indicating motion (no text or symbols)

Illustration of a hand using a handheld electric drill pen to adjust the propeller (no text or symbols present)

Diagram of a hand pressing down on a mechanical component with curved arrows indicating rotation (no text or symbols)

Illustration of two hands demonstrating a finger manipulation technique (no text or symbols present)

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Bruksanvisning

SÄKERHETSINSTRUKTIONER

Illustration of hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

Mechanical diagram of a motor or gear assembly with directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a threaded shaft, showing motion direction (no text or symbols)

Mechanical diagram showing a rotating motor with gear and shaft, no text or symbols present

Illustration of a hand using a handheld power tool to lift a motor, with no visible text or symbols.

Diagram of a hand pressing down on a mechanical component with curved arrows indicating rotation (no text or symbols)

Illustration of two hands demonstrating a finger manipulation technique (no text or symbols present)

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Indkøbsdato

Kaufdatum

Ημερομηνια αγοράσ

Date of purchase

Fecha de compra

Date d'achat

Data d'acquisto

Aankoopdatum

Innkjøpsdato

Data de compra

Ostopäivä

Inköpsdatum

Forhandler adresseHändleradresseΔιεύθυνση αντι ροσώ ουAddress of dealerDirección del detallistaCachet du revendeurIndirizzo del rivenditoreAdres van de dealerForhandlerens adresseMorada do revendedorJälleenmyyjän osoiteÅterförsäljarens adress

Navn/Name/Ovoq/Name/Nombre/Nom/Nome/Naam/Navn/Nome/Nimi/Namn:____Adresse/Adresse/ΔιεύθυνσηAddress/Dirección/Adresse/Indirizzo/Adres/Adresse/Morada/Osoite/Adress:________By/Wohnort/Πόλη/Town/Ciudad/Ville/Cittá/Plaats/By/Localidade/Paikkakunta/By:________Postnr./Postleitzahl/Kωδικόσ/Postcode/Code postal/Código/Codice postale/Postcode/Postnr./Código postal/Postinumero/Postnr.:________Er maskinen en gave?/Ist diese Maschine ein Geschenk?/Η μηχανή είναι δώρο?/Is this product a gift?/¿Ha recibido usted esta herramienta como regalo?/S’agit-il d’un cadeau?/Si tratto di un regalo?/Kreeg u deze

machine cadeau?/Er maskinen en gave?/Recebeu esta ferramenta como presente?/Ostitko koneen lahjaksi?/Är maskinen en gåva?□ Ja/Ja/Nau/Yes/Sí/Oui/Si/Ja/Ja/Sim/Kyllä/Ja□ Nej/Nein/Oχι/No/No/Non/No/Nee/Nei/Não/Ei/NejHvor meget kostede maskinen?/Was war der Preis dieses Werkzeuges?/Ποιά είναι η τιμή του εργαλείου αυτού?/What was the price of this tool?/¿Cual fue el precio de esta herramienta?/Prix payé?/Quanto ha pagato questo prodotto?/Wat was de prijs van dit produkt?/Hvor meget kostet maskinen?/Que preço pagou por esta ferramenta?/Paljonko kone maksoi?/Hur myket kostade maskinen?________Er dette din første B&D maskine?/Ist dieses Werkzeug-/Eivαι το εργαλείο αυτό-/Is this tool-/?Es esta herramienta que comprado-/Est-ce-/Questo prodotto è-/Is deze machine-/Er dette din første B&D maskin?/Esta ferramenta é-/Onko tämä ensimmäinen B&D-koneesi?/Är detta Din första B&D-velu?↑

□ Ja/ein Erstkauf?/η ρώτη σασ αγορά? / your first purchase?/la primera de este tipo?/un ler achat?/il suo primo acquisto?/uw eerste aankoop?/Ja/a sua primeira compra?/Kyllä/Ja□ Nej/Ersatzkauf?/για αντικατάσταση?/a replacement?/un reempalzo?/un achat de remplacement?/una sostituzione?/een vervanging?/Nei/uma substitução?/Ei/NejForhandler adresse/Händleradresse/Διεύθυνση αντι ροσώ ου /Address of dealer/Dirección del detallista/Cachet du revendeur/Indirizzo del rivenditore/Dealeradres/Forhandlerens adresse/Morada do revendedor/Jälleenmyyjän osoite/Äterförsäljarens adress:Cat. no. KD____/_ ____

□ • Venligst sæt kryds i ruden såfremt De ikke måtte ønske at modtage information fra anden virksomhed end Black & Decker.▪ Bitte ankreuzen, wenn Sie auch von anderen Firmen interessantes Informationsmaterial erhalten möchten. • Παρακαλείσθε να σημειώσετε εάν δέν θέλετε να άρετε ληροφορίεσ άλλησεταιρείασ εκτόσ τησ Black & Decker. • Data protection act: Tick the box if you prefer not to receive information from us or others. • Señale en la casilla sino quiere recibir información de otras empresas. • Si vous ne souhaitez pas recevoir d’informations de la part d’autres sociétés que Black & Decker, cochez cette case. • Barrate la casella se non desiderate ricevere informazioni da altre aziende.▪ A.u.b.dit vakje aankruisen indien u geen informatie wenst te ontvangen van andere bedrijven dan Black & Decker. • Vennligst kryss av dersom De ikke ønsker informasjon fra andre bedrifter enn Black & Decker. • Por favor, assinale com uma cruz se desejar receber informação de outras empresas, além da Black & Decker. • Merkitkää rasti ruutuun, mikäli ette halua vastaanottaa informaatiota muulta taholta kuin Black & Deckeriltä. • Vänligen kryssa för i rutan om Ni inte vill ha information från andra företag än Black & Decker.

Dänmark	Venligt klip denne del ud og send frankert til Black & Deckeridit land.	Per favore riagilate questa parte, insertela in unna busta confrancobollo e speditea subito dopo J'acquisito del prodottaoill'indirizzo della Black & Decker nella votstra nazione (vedi sopra).	Italieno	Italiano
Deutsch	Bitte schiniden Sie diesen Abschnitt ad, stecken ihn in einenblackerten umschlag und schicken ihn direkt an diefrankierten Umschlag und schicken ihn direkt an die	Nederlands	Knip dit gedelete uit, zend het in een gerfänkerde,geardresseerde envelop direct na uw aankoop naar het	Black & Decker-aders in uw land (zie boven).
Elianyika	Tappackau kohute auto to koupatti kcal TaxUpoplore tooquzowo utrd tvv ayopd tou poivoto cao otty bluzuvornto Black & Decker otnty elaldoa (Paz e cuw).	Norge Venligt klipp ut denne delen umiddelbart etter du har pakketut dit product og legg det i en adressent konvolutt itllBlack & Decker (Norge) A/S (se adresse over).Portugues	For favor, recorte esta parte, colouge-a num envelope selado eendressado e envie-0 logo apos a compra do seu produtprodt to the Black & Decker addresses in your country (above).If you live in Australia or New Zealand, please register by phone.	English
English	Please cut out this section, put into a stamped addressedenvelope and post immediately after the purchase of yourproduct to the Black & Decker addresses in your country (above).	Portugues
Español	Despues de haber comprado su herarmienta envié usted, porfavor, esta tarjeta a la central de Black & Decker en su pais.	Suomi Leikkaa ini tima osa, laita se ohiiseen kuoren ja positatakuori yllia olvean paikalliesen Black & Decker ositteeseen.	Vår vanlig klipp ur denna del. Skiry Ditt namn och adres passelt frankerat kuvert, och sind det genast till Black & Deckerseci immediatement agrees votre achat.	Frangais
Decoupez cette partie et envoyez-la sous enveloppre timbree atradesse de Black & Decker dans voite pays (voir ci-dessus), 'adresse de Black & Decker dans voite pays (voir ci-dessus),	Decoupez cette partie et envoyez-la sous enveloppre timbree a r'adresse de Black & Decker dans voite pays (voir ci-dessus),	Sverige	Kuori yllia olvean paikalliesen Black & Decker ositteeseen.	Frenchs

Australia	Call 1900 937766 (max. call charge 2.00 ex. tax)	Nederland	Floreinstraat 10, 4879 AH Etten-Leur	New Zealand	Call 0900 97766 (max. call charge2.00 ex. tax)
Belgium/Belgie	Welhoek 1, 1930 Zaventem	Norge	Strömsveien 344, 1081 Ostio	Österreich	Erläser Sträse 165, 1231 Wien
Deutschland	Black 8 Decker Star. 40, D-65510 Idstein	Portugal Rua Egas, Moniz 173, S. João do Estonia, 2768 Estonil Codex	South Africa	Black & Decker Oy, Ralssite 7C, 01510 Vantaa	Suomi
Espana	43883 Roda de Bara (Tarragona)	South Africa	After sales service, PO Box 5303, Johannesburg		UK & Ireland
France	BP21, 69571 Darilly Cedex	Somni	Black & Decker Oy, Ralssite 7C, 01510 Vantaa		Sverige
Helvetia	Ruitstrafe 14, 8952 Schlieren, Schweiz/Suisse	Swinge	Box 603, 421 26 Vistaa Frolundad		UK & Ireland
Italia	Viale Eluvezia 2, 20052 Monza (Mll)	UK & Ireland	PO Box 821, Slough, Berkshire, SL1 3AR

• GARANTI KORT • GARANTI EKARTE • KAPTA E°° YHZH • GUARANTEE CARD • TARJETA DE GARANITA • CARTE DE GARANITE • TAGILADO DI GARANIZA • GARANTIE-KART • GARANTI KORT • CARTO DE GARANITA • TAKUKORITI • GARANTIBEYS
