Product type	IP surveillance camera
Brand	ABUS
Model	TVIP82900
Resolution	Full HD 1080p (1920 x 1080 pixels)
Viewing angle	100° (diagonal)
Night vision	Yes, range up to 20 meters with IR LEDs
Power supply	PoE (Power over Ethernet) or 12V DC adapter
Connectivity	Ethernet RJ45 10/100 Mbps
Video compression	H.264, H.265
Motion detection	Yes, with customizable zones
Audio	Built-in microphone, built-in speaker
Protection rating	IP67 (dust and water resistant)
Operating temperature	-20°C to 50°C
Mounting	Wall or ceiling with included bracket
Dimensions	70 mm x 70 mm x 120 mm
Weight	300 g
Local storage	microSD card up to 128 GB
Protocols	RTSP, ONVIF, HTTP, DHCP
Smart features	Motion detection, email notification
Maintenance	Clean with a soft dry cloth
Security	SSL/TLS encryption, password authentication
Spare parts	Ethernet cable, 12V adapter, mounting kit
Repairability	Repairability index not provided
Warranty	2 years

Frequently Asked Questions - TVIP82900 ABUS

How to reset the camera to factory settings?

To reset the camera, press and hold the Reset button on the back of the device for about 10 seconds until the LED lights flash. The camera will restart with default settings.

How to access the camera remotely from a smartphone?

Download the ABUS IP Camera app on your smartphone. Create an account, then scan the camera's QR code or add it manually via its IP address. Make sure the camera is connected to the Internet via Ethernet.

Is the camera compatible with voice assistants?

Yes, the TVIP82900 camera is compatible with Amazon Alexa and Google Assistant. You can display the video stream on a connected screen via voice command.

How to install a microSD memory card?

Open the rubber cover on the back of the camera. Insert a microSD card (up to 128 GB) into the dedicated slot, then close the cover. Format the card via the camera's web interface.

What to do if the image is blurry?

Check that the lens focus ring is properly adjusted. Clean the camera glass with a soft cloth. If the problem persists, adjust the focus settings in the configuration menu.

How to activate motion detection?

Log in to the camera's web interface. Go to Settings > Detection and enable motion detection. You can define sensitive zones and configure email or app notifications.

Does the camera work without Wi-Fi?

Yes, the camera works only with an Ethernet connection (RJ45 cable). It does not have a built-in Wi-Fi module. For wireless use, you need a PoE adapter or a network cable.

How to connect the camera's power?

You can power the camera via an Ethernet cable with a PoE injector or use the included 12V power adapter. Connect the adapter to the camera's DC port, then plug it into a power outlet.

How to update the camera's firmware?

Download the latest firmware from the ABUS website. Log in to the camera's web interface, go to System > Update, select the downloaded file and click 'Update'. Do not power off during the process.

How to protect the camera from weather?

The camera has a IP67 rating, making it dust and water resistant. Make sure the connector cover is properly closed. For outdoor installation, use the included wall mount.

USER MANUAL TVIP82900 ABUS

White ARUS surveillance camera with lock indicator (no text or symbols on device body)

D Bedienungsanleitung
GB User guide
F Notice d'utilisation
NL Gebruikershandleiding
DK Betjeningsvejledning
PL Instrukcja obsługi
RUS Инструкция по эксплуатации
E Manual de instrucciones
① Istruzioni per l'uso
s Bruksanvisning

D	Diese Bedienungsanleitung enthält wichtige Hinweise zur Inbetriebnahme und Handhabung.Achten Sie hierauf, auch wenn Sie dieses Produkt an Dritte weitergeben.Heben Sie deshalb diese Bedienungsanleitung zum Nachlesen auf!Eine Auflistung der Inhalte finden Sie im Inhaltsverzeichnis mit Angabe der entsprechenden Seitenzahlen auf Seite 7.	PL	Niniejsza instrukcja obsługi zawiera ważne wskazówki dotyczące uruchamiania i obsługi. Pamiętaj o tym, także przekazując produkt osobie trzeciej. Zachowaj instrukcję do wykorzystania w przyszłości!Wykaz treści znajdziesz w spisie treści z podaniem odpowiednich liczb stron na stronie317.
GB	This user guide contains important information on starting operation and using the device.Make sure that this user guide is handed over when the product is given to other persons.Keep this user guide to consult later.A list of contents with the corresponding page number can be found in the index on page 68.	RUS	Данная инструкция по эксплуатации содержит важные указания по вводу в эксплуатацию и обращению с продуктом. Примите это во внимание, также при передаче продукта в пользование третьим лицам.По этой причине сохраните данную инструкцию для повторного прочтения!Вся информация отражена в Содержании с указанием соответствующих номеров страниц на Странице 379.
F	Les recommandations contenues dans cette notice d'utilisation sont importantes pour la mise en service et l'utilisation du produit.Nous vous prions de bien vouloir les respecter. Si vous étiez amené à revendre le produit, nous vous prions de bien vouloir transmettre cette notice au nouvel acquéreur.Nous vous recommandons également de conserver cette notice d'utilisation afin de pouvoir la consulter à tout moment.Vous trouverez le récapitulatif des indications du contenu á la table des matières avec mention de la page correspondante á la page 130.	E	Este manual de instrucciones contiene indicaciones importantes para la puesta en funcionamiento y para la utilización.Tenga esto en cuenta, también cuando transfiera este aparato a terceras personas. Por este motivo, guarde este manual para poder consultarlo cuando lo necesite.El listado de los contenidos figura en el índice junto a las páginas correspondientes en la página 443.
NL	Deze gebruiksaanwijzing hoort bij dit product.Er staan belagrijke aanwijzingen in betreffende ingebruikname en gebruik, ook als u dit product doorgeeft aan derden. Bewaar deze hendeiding zorgvuldig, zodat u deze later nog eens kunt nalezen!U vindt een opsomming van de inhoud in de inhoudsopgave met aanduiding van de paginanummers op pagina 192.	I	Le presenti istruzioni per l'uso contengono note importanti sulla messa in funzione e sull'utilizzo.Vanno osservate anche in caso di cessione del prodotto a terzi.La preghiamo pertanto di conservare le presenti istruzioni per l'uso in vista di una consultazione futura.Un elenco dei contenuti con l'indicazione delle pagine corrispondenti è riportato nell'indice a pagina 505.
OK	Denne manual hører sammen med dette produkt. Den indeholder vigtig information som skal bruges under opsætning og efterfølgende ved service. Dette skal huskes også når produkter gives videre til anden part.Læs derfor denne manual grundigt igennem også for fremtiden.Indholdet kan ses med sideanvisninger kan findesi indekset på side 255.	S	Denna bruksanvisning innehåller viktiga anvisningar för idrifttagande och användning.Dessa anvisningar ska observerad även om denna produkt överlämnas till tredje part.Förvara denna bruksanvisning för framtida referens!På sidan 567 finns finns en innehållsförteckning med sidoreferenser.

TVIP82900

White ARIS air conditioner with black lens and 'LOCK' label (no additional text or symbols)

Bedienungsanleitung

Line drawing of a circular mechanical component with concentric layers and a labeled 'ABUS' (no other text or symbols)

Line drawing of a coiled spring device with no text or symbols on the device itself

Line drawing of a broadband cable with two connectors (no text or symbols)

Illustration of a hand using a tool to clean or inspect the laptop screen, with a magnifying glass and pencil icon nearby (no text or symbols)

Line drawing of a hand inserting a USB into a network device connected to a laptop (no text or symbols present)

User interface panel with navigation and playback controls (no text or symbols)

Konto-Informationen hinterlegen:

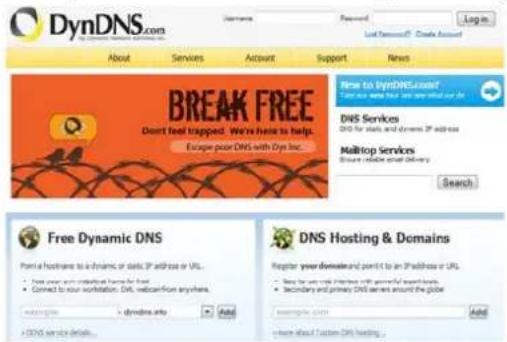

DynDNS.com

Links: niedrige Empfindlichkeit.

Aktivierungszeit

White ARIS air conditioner with black lens and 'LOCK' label (no additional text or symbols)

User manual

You can find important information and FAQs about this and other products online at:

www.abus.com

Introduction

Dear Customer,

Thank you for purchasing this product.

This device complies with the requirements of the applicable EU directives. The declaration of conformity can be obtained from:

To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe this user manual.

Read the entire user manual carefully before putting the product into operation, and pay attention to all operating instructions and safety information.

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

If you have any questions, please contact your specialist installation contractor or specialist dealer.

Data storage is subject to national data privacy guidelines.

Warning as required by §201 StGB (German Criminal Code):

Whosoever unlawfully makes an audio recording of the privately spoken words of another, and uses or makes a recording thus produced accessible to a third party, shall be liable to imprisonment or a fine. Whosoever unlawfully overhears with an eavesdropping device the privately spoken words of another not intended for his attention, or publicly communicates, verbatim or the essential content of, the privately spoken words of another, recorded or overheard, shall incur the same penalty.

Disclaimer

This user manual has been produced with the greatest of care. Should you discover any omissions or inaccuracies, please contact us in writing at the address provided above.

ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user manuals at any time and without prior warning.

ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No form of guarantee is assumed for the contents of this document.

Explanation of symbols

	The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock).
	The triangular warning symbol indicates important notes in this user manual which must be observed.
	This symbol indicates special tips and notes on the operation of the device.

Important safety information

	All guarantee claims are invalid in the event of damage caused by non-compliance with this user manual. We cannot be held liable for resulting damage.
	We cannot be held liable for material or personal damage caused by improper operation or non-compliance with the safety information. All guarantee claims are void in such cases.

The following safety information and hazard notes are not only intended to protect your health, but also to protect the device from damage. Please read the following points carefully:

• There are no components inside the product that require servicing. Dismantling the product invalidates the CE certification and the guarantee/warranty.
  • The product may be damaged if it is dropped, even from a low height.
• Install the device so that the image sensor is not exposed to direct sunlight. Pay attention to the installation instructions in the corresponding section of this user manual.
• The device is designed for indoor use.

Avoid the following adverse conditions during operation:

• Moisture or excess humidity
  • Extreme heat or cold
• Direct sunlight
• Dust or flammable gases, vapours or solvents
• Strong vibrations
  • Strong magnetic fields (e.g. next to machines or loudspeakers)
• The camera must not be installed on unstable surfaces.

General safety information:

• Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc. can pose a danger to children if played with.
• The video surveillance camera contains small parts which could be swallowed and must be kept out of the reach of children for safety reasons.
• Do not insert any objects into the device through the openings.
• Only use replacement devices and accessories that are approved by the manufacturer. Do not connect any non-compatible products.
• Please pay attention to the safety information and user manuals for the other connected devices.
• Check the device for damage before putting it into operation. Do not put the device into operation if you identify any damage.
• Adhere to the normal voltage limits specified in the technical data. Higher voltages could destroy the device and pose a health risk (electric shock).

Safety information

1. Power supply: Power supply unit 100–240 V AC, 50/60 Hz / 5 V DC, 1 A (included in the scope of delivery)

Only operate this device through a power source which supplies the mains power specified on the type plate. If you are unsure of the available power supply, contact your utility company.

Disconnect the device from the power supply before carrying out maintenance or installation work.

1. Overloading

Avoid overloading electrical sockets, extension cables and adapters, as this can result in fire or electric shock.

1. Cleaning

Only use a damp cloth to clean the device. Do not use corrosive cleaning materials.

Disconnect the device from the power supply before cleaning.

Warnings

Observe all safety and operating instructions before putting the device into operation for the first time.

1. Observe the following information to avoid damage to the power cable and plug:

2. Do not modify or manipulate the power cable or plug.

3. Do not bend or twist the power cable.
4. Do not pull the cable when disconnecting the device from the power – always take hold of the plug.

5. Ensure that the power cable is positioned as far away as possible from any heating equipment, as this could otherwise melt the plastic coating.

6. Follow these instructions. Non-compliance with these instructions could lead to electric shock:

7. Never open the housing or power supply unit.

8. Do not insert any metallic or flammable objects into the device.

9. Use surge protection to prevent damage caused by overvoltage (e.g. in electrical storms).

10. Disconnect defective devices from the power immediately and contact your specialist dealer.

When installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the mains power circuit and low-voltage circuit.

If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the power supply system or domestic installations puts both you and others at risk.Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.

Unpacking the device

Handle the device with extreme care when unpacking it.

If the original packaging has been damaged, you must start by inspecting the device. If the device shows signs of damage, return it in the original packaging and inform the delivery service.

Contents

1. Intended use....71
2. Scope of delivery 71
3. Features and functions....71
4. Camera description 72
5. Description of the connections 72
6. Mounting/installation....73

6.1. Mounting the camera....73
6.2. Orientation of the camera 73

1. Initial start-up 74
2. Accessing the network camera for the first time....75
3. Password prompt....76
4. User functions....77

10.1. Menu bar....77
10.2. Live image display 78
10.3. Audio/video control 78
10.4. Camera control 79

10.4.1. PTZ control 79
10.4.2. Preset settings 79

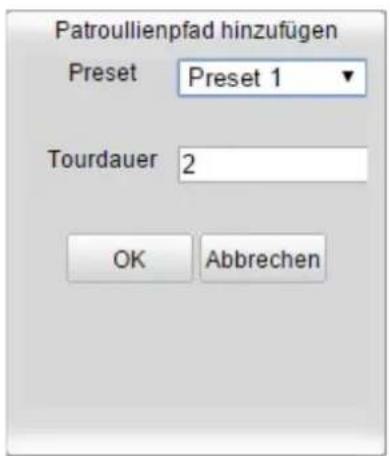

10.4.3. Patrol settings 80

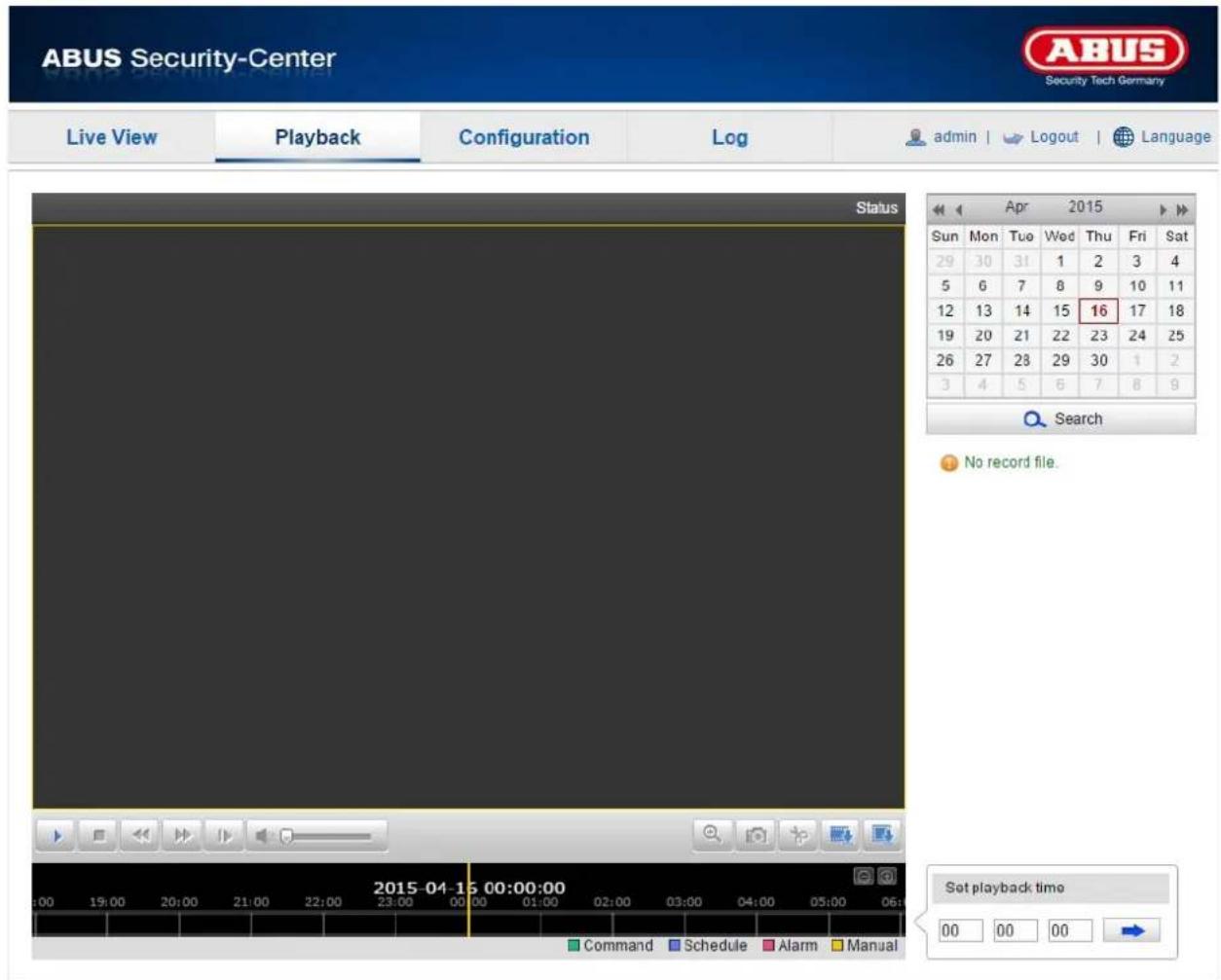

1. Playback 81
2. Configuration 82

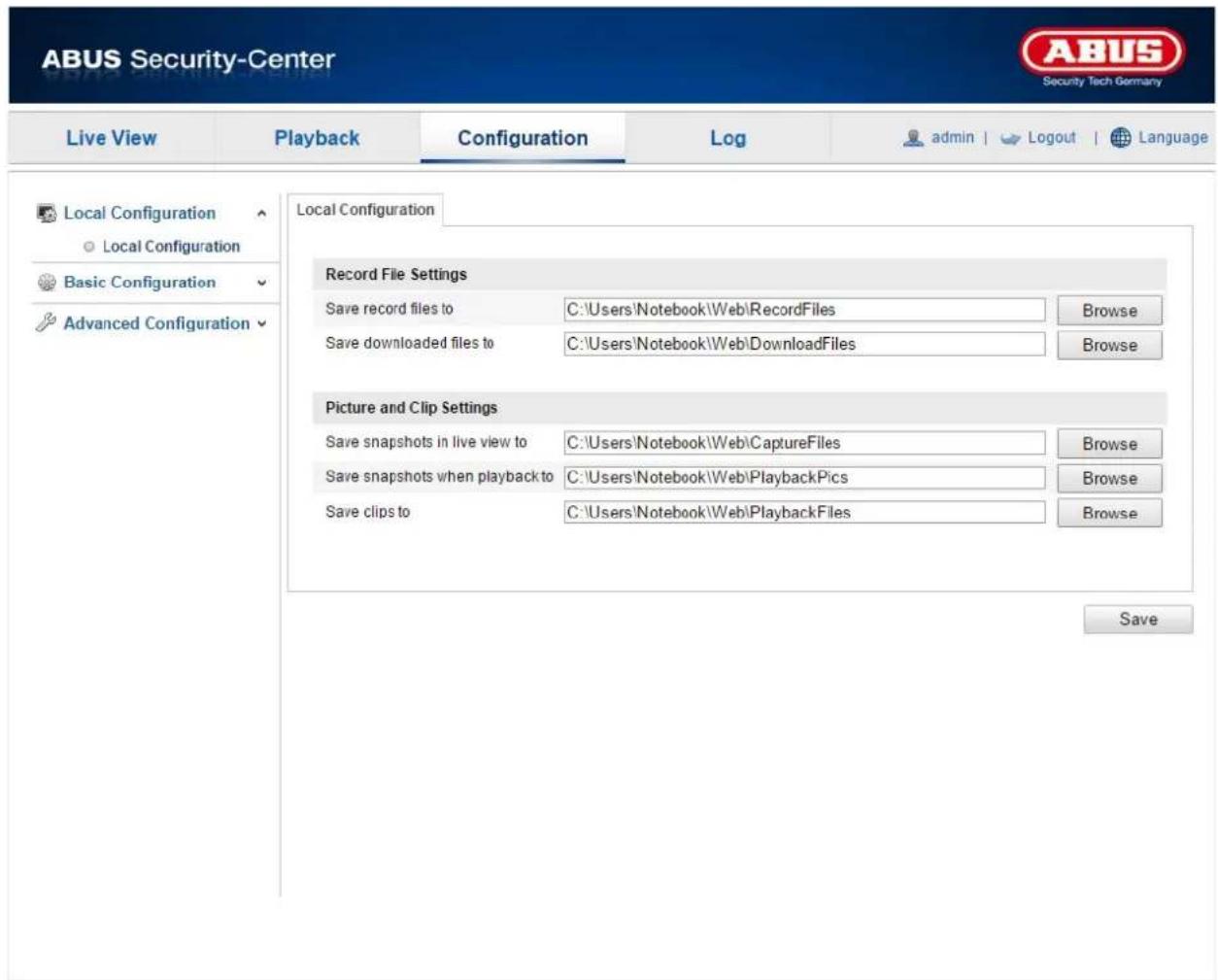

12.1. Local Configuration....82
12.2. Basic Configuration.... 84
12.3. Advanced configuration 85

12.3.1. System 85

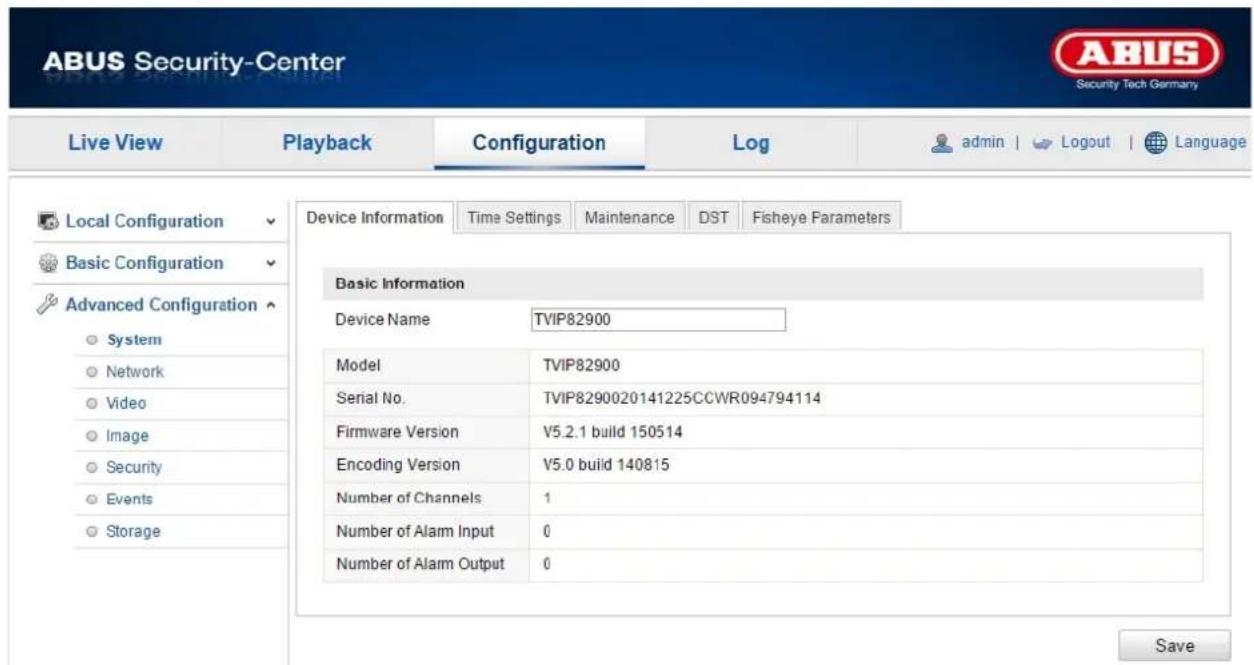

12.3.1.1. Device Information....86

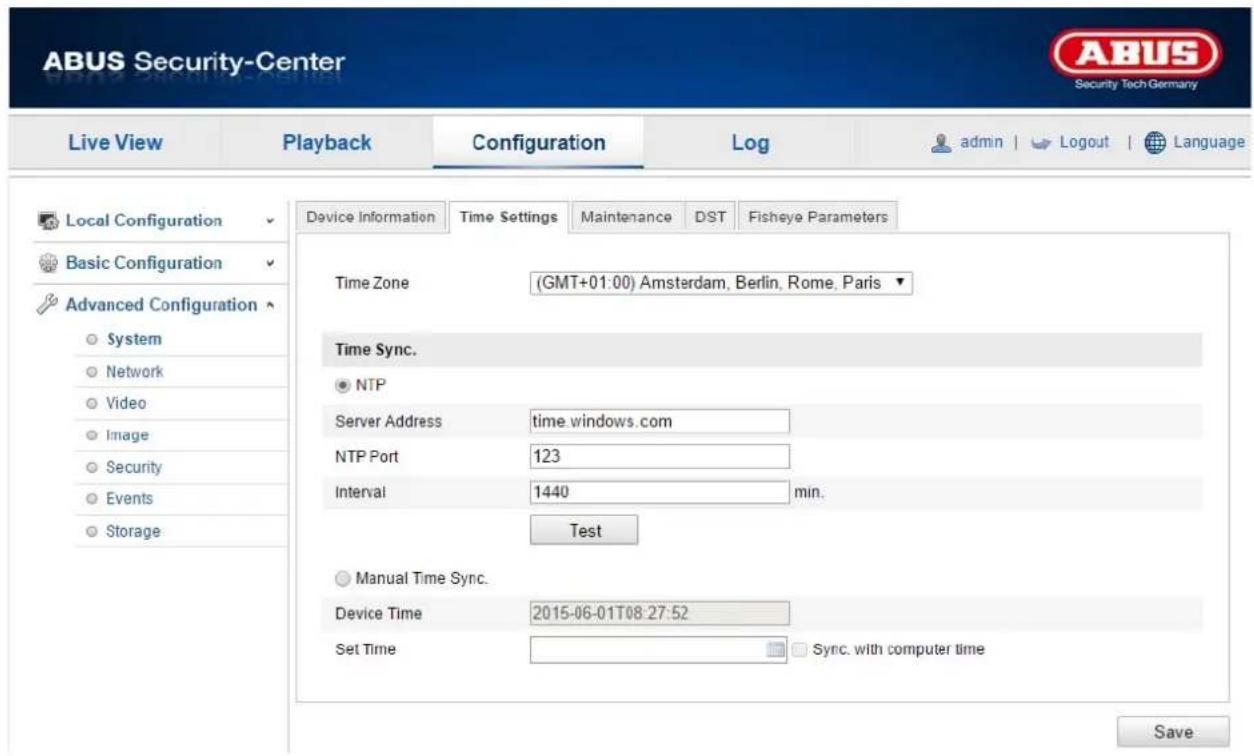

12.3.1.2. Time Settings....87
12.3.1.3. Maintenance 88
12.3.1.4.DST 90
12.3.1.5. Fisheye Parameters ...... 91

12.3.2. Network....92

12.3.2.1. TCP/IP 93
12.3.2.2. Port 95

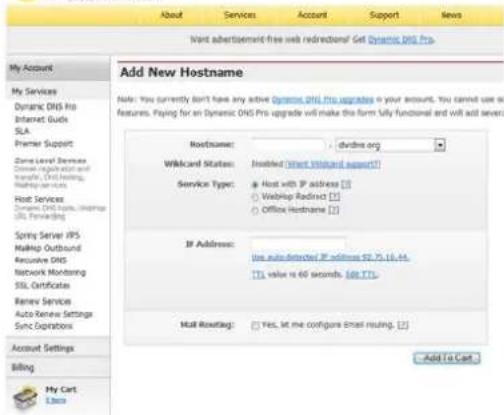

12.3.2.3. DDNS 96

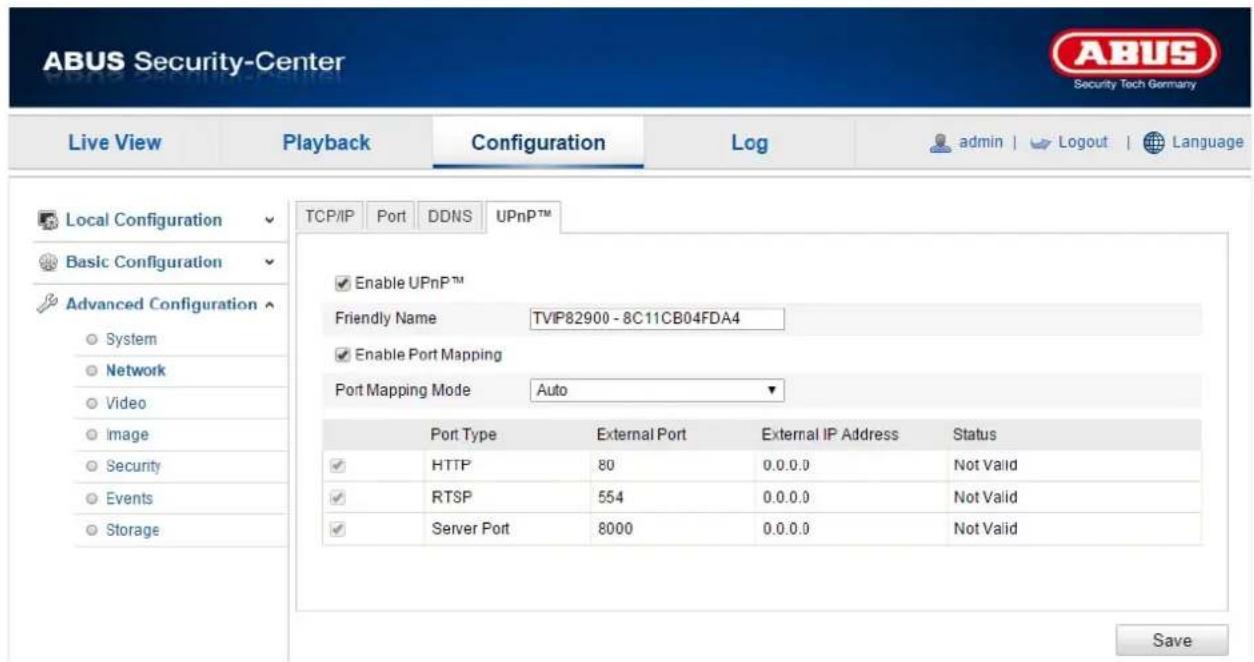

12.3.2.4. UPnP™ 99

12.3.3. Video.... 101

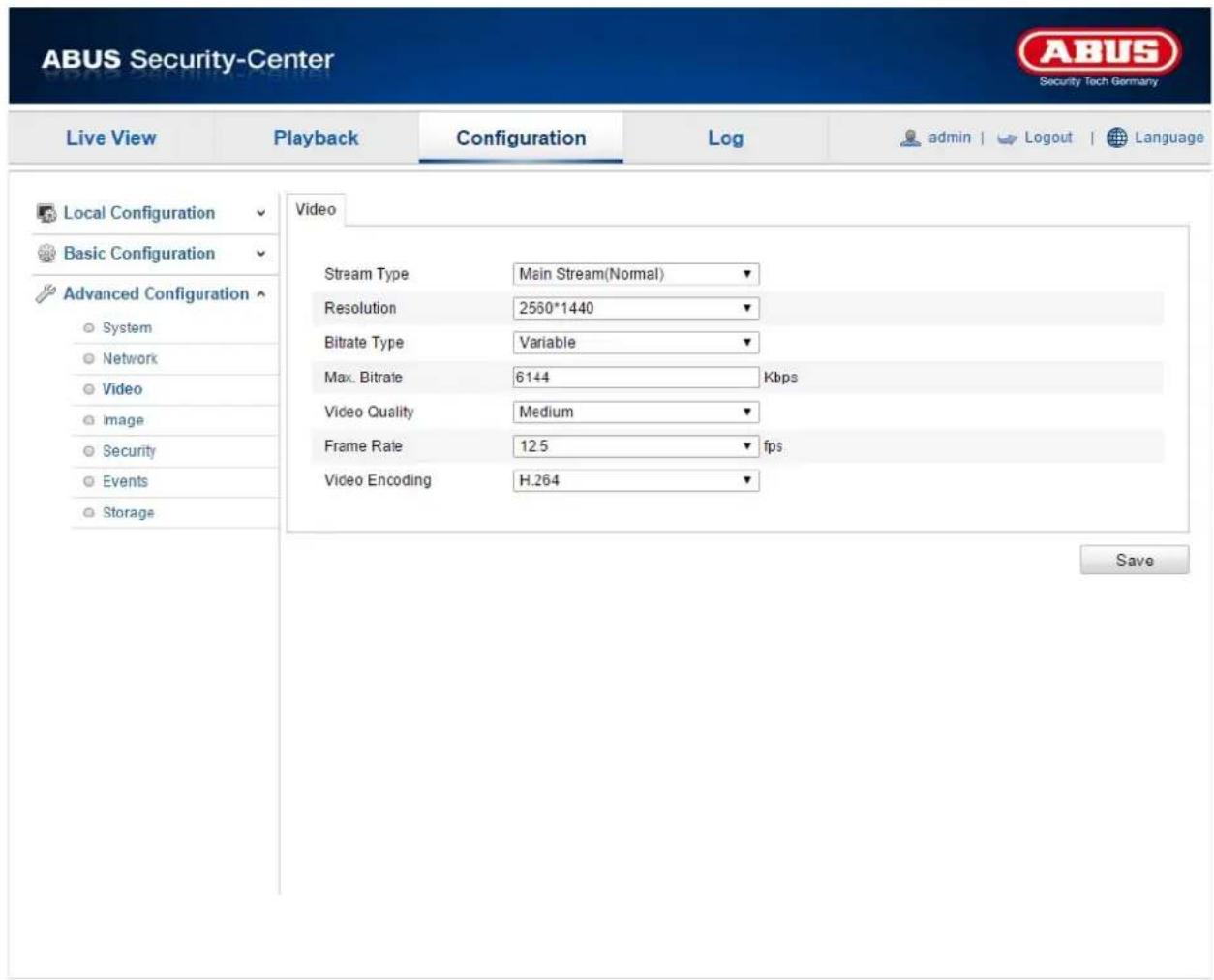

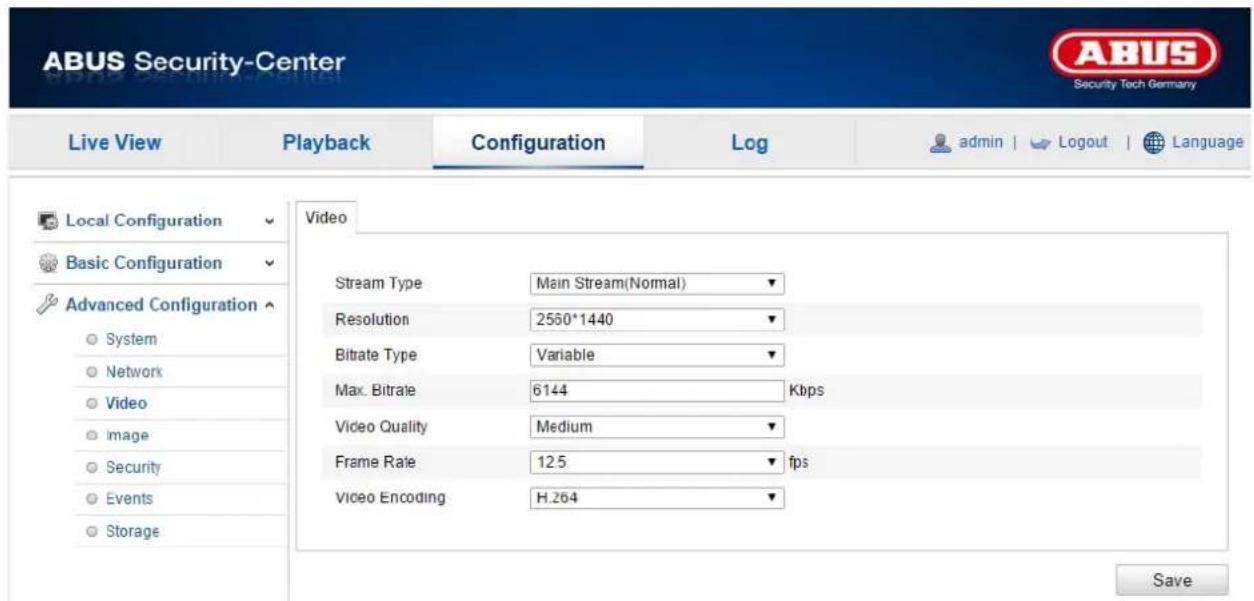

12.3.3.1. Video....102

12.3.4. Image.... 103

12.3.4.1. Display Settings 104
12.3.4.2. OSD Settings 107
12.3.4.3.Text Overlay 108
12.3.4.4. Privacy Mask 109

English

12.3.5. Security 110

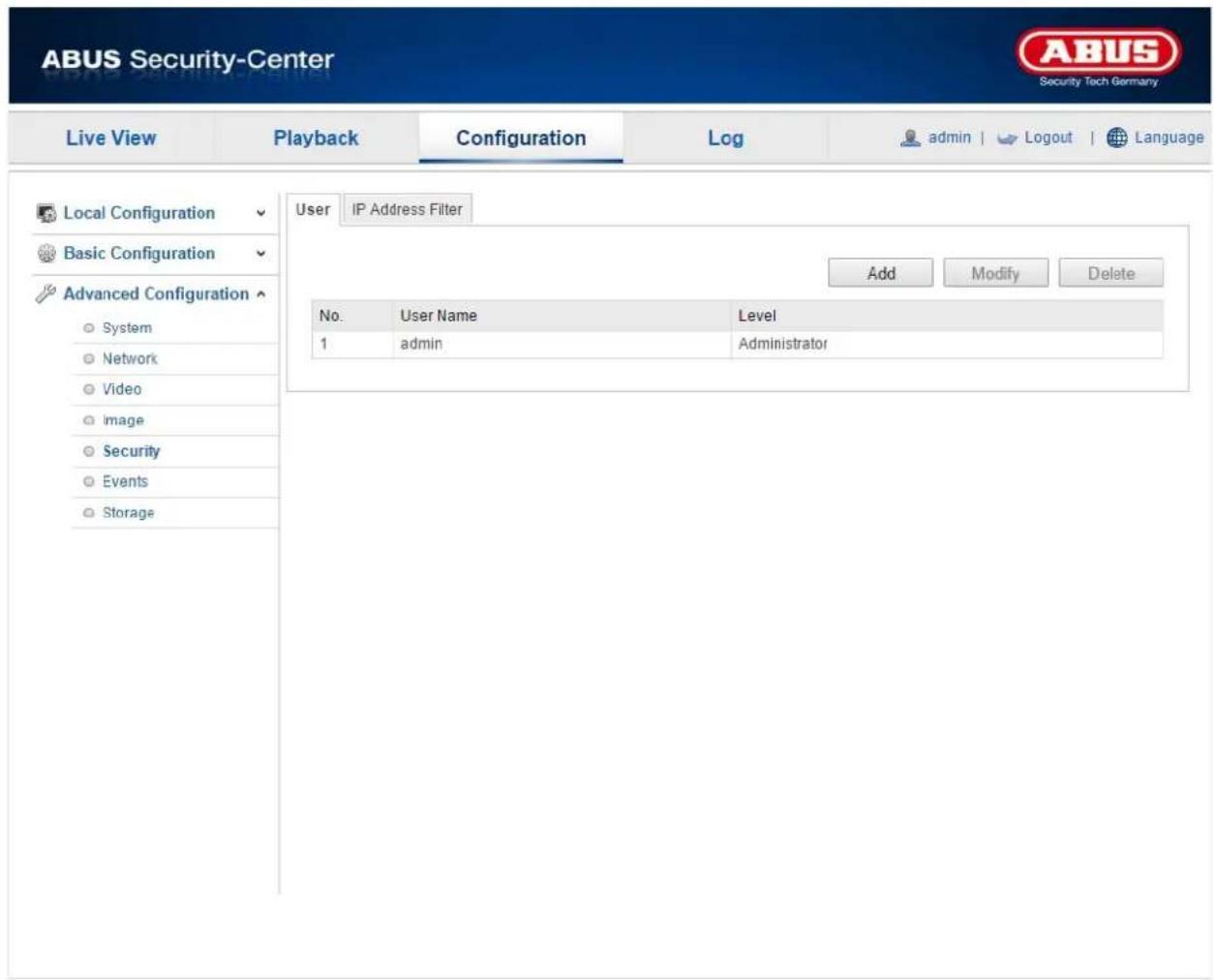

12.3.5.1.User 111
12.3.5.2.IP Address Filter 112

12.3.6. Basic Event 113

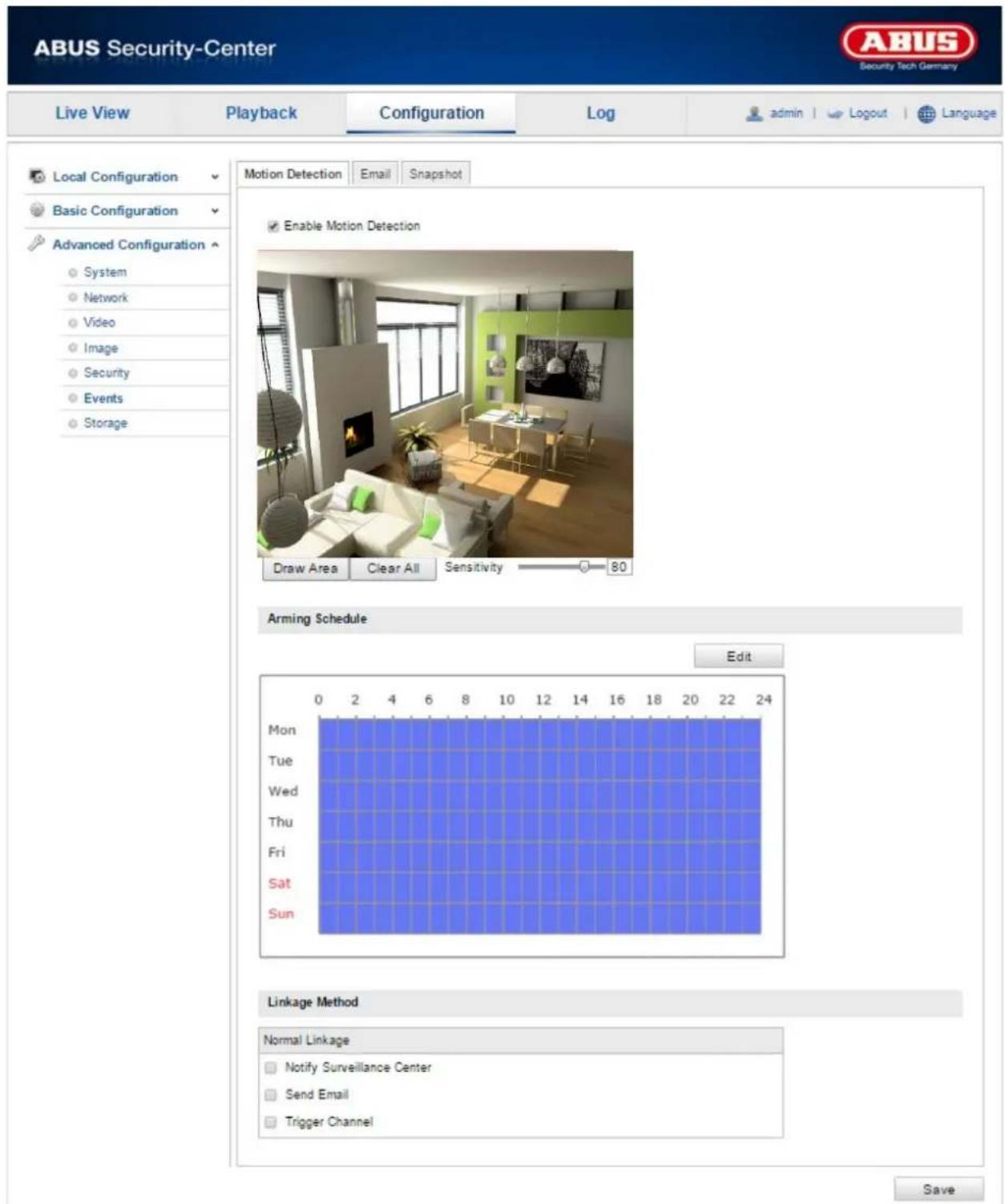

12.3.6.1. Motion detection 114
12.3.6.2. Email 116

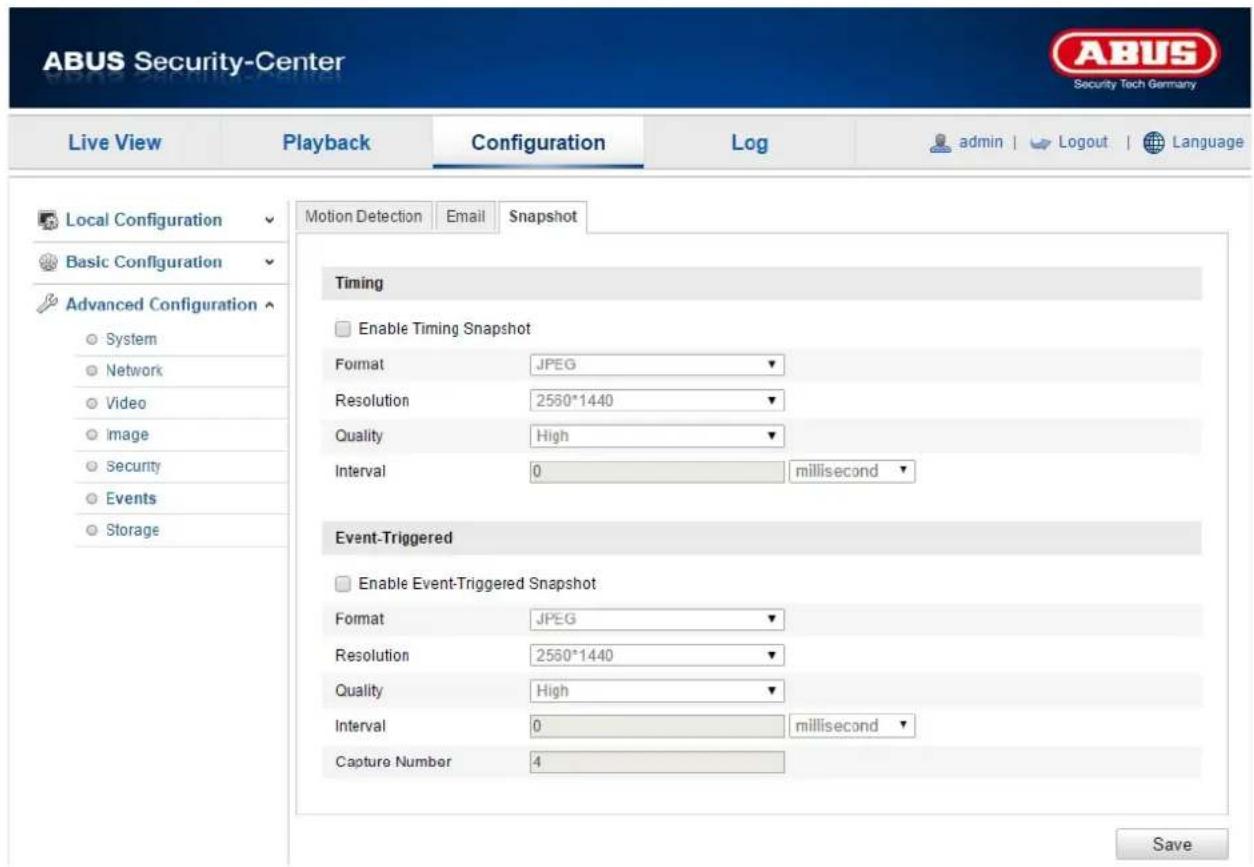

12.3.6.3. Snapshot.... 118

12.3.7. Storage 120

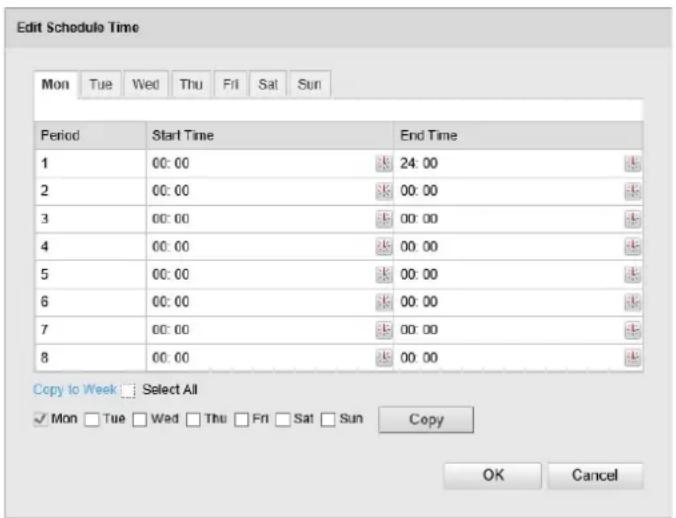

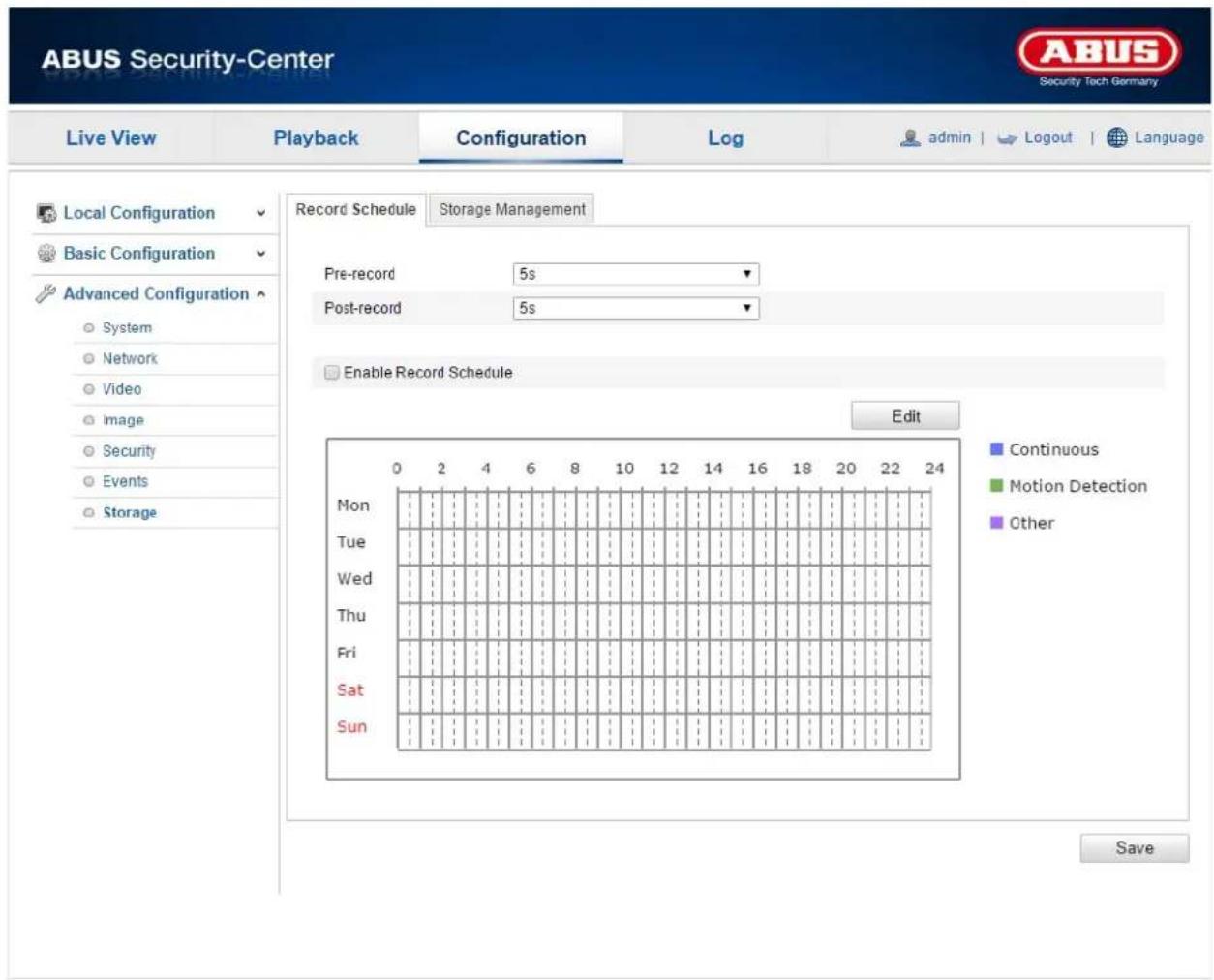

12.3.7.1. Recording plan.... 121
12.3.7.2. Storage Management.... 123

1. Log.... 124
2. Maintenance and cleaning.... 125

14.1. Maintenance 125
14.2. Cleaning.... 125

1. Disposal 125
2. Technical data 126
3. GPL license information 126

1. Intended use

The compact two megapixel fisheye indoor IP camera offers an uninterrupted 186° field of vision, thus opening up new possibilities for use, and making it the ideal camera solution for a wide range of environments. If mounted on the ceiling, the camera allows a room to be monitored from above. Thanks to PoE (Power over Ethernet), it is possible to power the camera using the network cable with no additional cable required.

The surveillance camera provides detailed images with a resolution of up to 1920 x 1080 p at a rate of 25 images per second.

Live videos can be streamed to your smartphone or tablet directly using the ABUS IPCam app. The integrated microSD card slot is used for internal data storage, which functions as a back-up solution.

There are a number of image display options: a 186° fisheye view, a panorama view, a 186° fisheye view with three or seven freely configurable positions, as well as a panorama view with either three or seven freely configurable positions.

The camera is easy to operate using the online interface:

A wall bracket (TVAC31510) is available as an extra accessory.

2. Scope of delivery

Line drawing of a circular object with concentric rings and a labeled 'ABUS' (no other text or symbols)

WLAN HD 720p pan/tilt Indoor camera with alarm function

Two types of electrical connectors: a coiled spring device and a multi-core cable, both labeled EU, AU, UK (no additional text or symbols)

Power supply unit 1 m network cable

Two abstract geometric diagrams: a circular cross-section with internal lines and a concentric circle (no text or symbols)

Ceiling bracket CD

Quick start guide

Installation material

3. Features and functions

• 186° views with a resolution of up to 2 MPx
• Discreet appearance thanks to its compact design
• Built-in motion sensor system
• Detailed high resolution, with 1920x960 pixels at 25 frames/second
• Web and mobile access to live images using the IPCam app and a browser
• Capacity to send images by email
- Integrated microSD card slot for internal data storage, which functions as a back up solution
• Power is supplied via the network cable (Power over Ethernet – PoE)

4. Camera description

No	Description
1	WPS button & microSD card slot
2	Lens

5. Description of the connections

①

②

No	Description
1	Power supply 12 V DC(Round plug 5.5 x 2.1 mm)
2	Network access (RJ45)The network access includes a cover, which can be used if necessary. This cover provides additional protection for the plug-in connector. When using the cover, the network cable must only be connected (crimped) to the network plug once it has been passed through the cover. In addition, the connections (as well as the power supply connection) can be sealed with insulation tape.

6. Mounting/installation

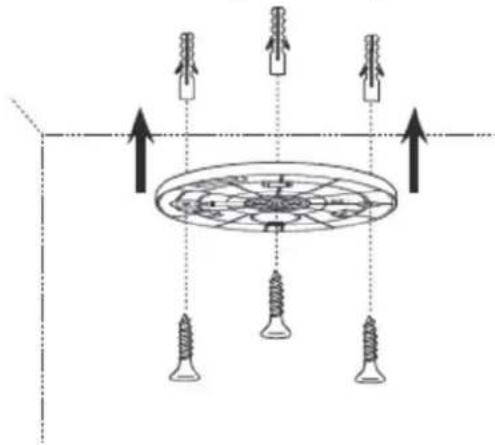

6.1. Mounting the camera

IMPORTANT!

The camera must be disconnected from the power supply during installation.

Use the accompanying drilling template or mount for drilling the mounting holes.

Drill the holes in advance and insert the accompanying screw anchor.

Use the accompanying screws to fasten the ceiling bracket in place.

Please note that the arrow and the label "FRONT" on the ceiling bracket points in the right direction.

6.2. Orientation of the camera

Now place the camera onto the ceiling bracket, bearing in mind that the arrow on the camera must be lined up with the arrow on the ceiling bracket. Latch the camera in place by rotating it clockwise. In order to remove the camera from the ceiling bracket, you need to press the button on the side of the camera.

7. Initial start-up

The network camera automatically detects whether a direct connection between the PC and camera should be established. A crossover network cable is not required for this. You can use the supplied patch cable for direct connection for initial start-up.

Connecting the network camera directly to a PC/laptop

1. Ensure that a CAT 5 network cable is used.
2. Connect the cable to the Ethernet interface of the PC/laptop and the network camera.
3. Connect the network camera to the power supply.
4. Configure the network interface of your PC/laptop to the IP address 192.168.0.2 and the default gateway to 192.168.0.1.
5. Proceed to point 8 to finish the initial set-up and establish the connection to the network camera.

Illustration of a hand using a probe to connect a device to a laptop screen, with no visible text or symbols.

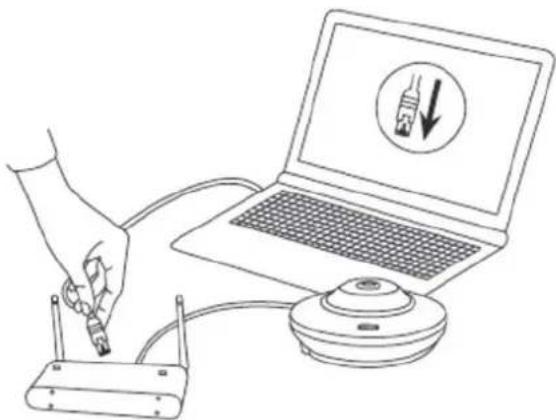

Connecting the network camera to a router/switch

1. Ensure that a CAT 5 network cable is used for the connection.
2. Connect the PC/laptop to the router/switch.
3. Connect the network camera to the router/switch.
4. Connect the network camera to the power supply.
5. If a DHCP server is available on your network, set the network interface of your PC/laptop to "Obtain an IP address automatically".
6. If no DHCP server is available, configure the network interface of your PC/laptop to 192.168.0.2 and the default gateway to 192.168.0.1.
7. Proceed to point 8 to finish the initial set-up and establish the connection to the network camera.

Line drawing of a hand inserting cables into a network device connected to a laptop (no text or symbols present)

8. Accessing the network camera for the first time

The network camera is accessed for the first time using the ABUS IP Installer.

After the installation wizard is started, it searches for all connected ABUS network cameras and video servers on your network.

You can find the program on the CD-ROM included. Install the program on your PC and then run it.

If a DHCP server is available on your network, the IP address is assigned automatically for both the PC/laptop and the network camera.

If no DHCP server is available, the network camera automatically sets the following IP address: 192.168.0.100.

Your PC system must be located in the same IP subnetwork to establish communication with the network camera (PC IP address: e.g. 192.168.0.2).

The default setting for the network camera is "DHCP". If no DHCP server is in operation on your network, we recommend setting the IP address manually to a fixed value following initial access to the network camera.

9. Password prompt

An administrator password is defined for the network camera prior to delivery. For reasons of security, however, the administrator should select a new password immediately. After this administrator password has been saved, the network camera asks for the user name and password every time it is accessed.

The administrator account is set up in the factory as follows: user name "admin" and password "12345". Each time the network camera is accessed the browser displays an authentication window and asks for the user name and password. Should your individual settings for the administrator account no longer be accessible, please contact our technical support team.

To enter a user name and password, proceed as follows:

Open Internet Explorer and enter the camera's IP address (e.g. "http://192.168.0.100").

You will then be presented with the following authentication prompt:

-> You are now connected to the network camera and can already see a video stream.

10. User functions

Open the network camera home page. The interface is divided into the following main areas:

10.1. Menu bar

Make a selection by clicking on the appropriate tab: "Live View", "Playback", "Configuration" or "Log".

Button Description
admin	Display of the user logged on
Logout	User logout
Language	Selection of the desired language

10.2. Live image display

You can select from the various live view modes using the buttons on the left-hand side.

Button View Description
	Fisheye 186°	view with fisheye effect.
	Panorama	186° view. The fisheye effect is straightened out, meaning that the outer edges of the images in this view are slightly distorted.
	PTZ Linking	PTZ is a single image section from the fisheye view, with the option to pan, tilt and zoom.The zoom function is digital.Presets and patrols can be set up and triggered within a PTZ view.

You can access the full screen view by double clicking on an image window.

Button Description
	Activate 4:3 view
	Activate 16:9 view
	Display original size
	Automatically adjust view to browser
Sub-Stream Main Stream	Selection of the streaming type for the live view

10.3. Audio/video control

Button	Description
	Disable live view
	Enable live view
	Disable/enable audio, adjust volume
	Microphone on/off, If the microphone is activated, then two-way communication from the PC to the camera is possible. (Audio output on the camera)
	Instant image (snapshot)
[D4DD]	Start/stop manual recording
	Digital zoom on/off
	Start/stop 3D zoom

10.4. Camera control

10.4.1. PTZ control

To display the PTZ control, click on the field in the live view. PTZ control is only possible in PTZ live view mode.

User interface panel with navigation and playback controls (no text or symbols)

Button Description
	Arrow buttons:Control the pan and tilt movements
	Zoom in/outPress the button to increase the level of digital zoom and the button to decrease the level of digital zoom.
	Adjust the PT speed
	Start/stop 360° rotation

10.4.2. Preset settings

Select the Preset tab 📄 to be able to call up, set and delete up to 32 preset positions. Use the PTZ control buttons to select the desired position.

The preset settings are only available in PTZ live view mode.

Click on the button to create the preset.

Button Description
	Select the desired preset position. The selected position has a blue background
[0XCW]	Call up the position
	Create the position
	Delete the position

10.4.3. Patrol settings

Select the Patrol tab to be able to start, configure and delete up to 32 patrols.

The patrol settings are only available in PTZ live view mode.

Button Description
Pfad 01	Select the desired patrol
	Start the patrol
	Stop the patrol
	Save the patrol
	Delete the patrol

Click on the button below to add a preset to the patrol.

Then select the presets you would like to add to the patrol. Under Duration, set the number of seconds for which the preset should be triggered.

Click on the ✗ button next to a preset to remove it from the patrol.

Add the desired presets and then press the button to save the patrol.

It is only ever possible to start one patrol for a PTZ view.

11. Playback

In playback, you can play back data that is recorded on the microSD card. Select the desired day in the calendar and click on "Search".

The recordings for the selected day are shown in the timeline. The coloured labelling indicate the nature of the event that triggered the recording.

You can set the time of the desired recording under playback time.

12. Configuration

12.1. Local Configuration

Under the "Local Configuration" menu item, you can select settings for file paths of the recordings and snapshots.

Record File Settings

You can define the file size for recordings, the recording path and the path for downloaded files here.

Save record files to

You can determine the file path that is to be used for manual recordings here.

The following path is set by default: C:\\\Web\RecordFiles

Save downloaded files to

You can store the file path for downloaded videos here.

The following path is set by default: C:\\\Web\DownloadFiles

Image and Clip Settings

Here you can store the paths for instant images, snapshots taken during playback, and video clips.

Save snapshots in live view to

Select the file path for instant images from the live view.

The following path is set by default: C:\\\Web\CaptureFiles

Save snapshots during playback to

You can store the path for saving snapshots taken during playback here.

The following path is set by default: C:\\\Web\PlaybackPics

Save clips to

You can specify the save path for storing edited video clips here.

The following path is set by default: C:\\\Web\PlaybackFiles

Apply the settings by clicking "Save".

12.2. Basic Configuration

All settings located under "Basic Configuration" can also be found under the menu item "Advanced Configuration". Please note the "Available in mode" column in the descriptions of the "Advanced Configuration".

12.3. Advanced configuration

12.3.1. System

Menu item	Description	Available in mode
Device Information	Display of device information	Basic Configuration, Advanced Configuration
Time Settings	Configuration of the time specification Basic Configuration, Advanced Configuration
Maintenance	Configuration of system maintenance settings	Basic Configuration, Advanced Configuration
DST	Configuration of the automatic daylight saving time switch	Advanced Configuration
Fisheye Parameters	Configuration for selecting the installation type	Advanced Configuration

12.3.1.1. Device Information

Basic Information

Device Name:

You can specify a device name for the camera here.

Model:

Model number display

Serial No.:

Serial No. display

Firmware Version:

Firmware version display

Encoding Version:

Encoding version display

Number of Channels:

Display of the number of channels

Number of Alarm Input:

Displays the alarm inputs

Number of Alarm Output:

Displays the alarm outputs

Apply the settings by clicking "Save".

12.3.1.2. Time Settings

Time Zone

Time zone selection (GMT).

Time Sync.

NTP

Using the Network Time Protocol (NTP), it is possible to synchronise the time of the camera with a time server.

Enable NTP to use this function.

Server Address

IP server address of the NTP server.

NTP Port

Network port number of the NTP service (default: port 123)

Interval

The interval for synchronising the time is entered here in minutes.

Click on "Test" to start a test run.

Manual Time Sync.

Device Time

Computer device time display.

Set Time

Display of the current time using the time zone setting.

Click on "Sync. with computer time" to adopt the device time on the computer.

Apply the settings by clicking "Save".

Reboot

Click "Reboot" to reboot the device.

Default

Restore

Click on "Restore" to reset all the parameters, except the IP parameters and user information, to the default settings.

Default

Select this item to restore all parameters to default settings.

Import Config. File

Config File

Select a file path to import a configuration file here.

Status

Display of the import status.

Export Config. File

Click "Export" to export a configuration file.

Remote Upgrade

Firmware

Select the path to upgrade the camera with new firmware.

Status

Display of the upgrade status.

12.3.1.4. DST

DST

Enable DST

Select "Enable DST" to adjust the system time automatically to daylight saving time.

Start Time

Specify the time for switching to daylight saving time.

End Time

Specify the time for switching to standard time.

DST Bias

Set the time difference in minutes here.

Apply the settings by clicking "Save".

12.3.1.5. Fisheye Parameters

Mount type

Changing the installation type also affects live view modes, image effects, PTZ control and preset scenes.

Ceiling

Select "Ceiling" for a ceiling mount.

Wall

Select "Wall" for a flush mount.

Table

Select "Table" for a table mount.

Apply the settings by clicking "Save".

12.3.2. Network

Menu item	Description	Available in mode
TCP/IP	Settings for the TCP/IP data	Basic Configuration, Advanced Configuration
Port	Settings for the used ports Basic Configuration,	Advanced Configuration
DDNS	Settings for the DDNS data	Advanced Configuration
UPnPTM	Settings for the UPnP data	Advanced Configuration

12.3.2.1. TCP/IP

To be able to operate the camera via a network, the TCP/IP settings must be configured correctly.

NIC Settings

DHCP

If a DHCP server is available, click on "DHCP" to apply an IP address and other network settings automatically. The data is transferred automatically from the server and cannot be changed manually.

If no DHCP server is available, please enter the following data manually.

IPv4 Address

Setting of the IP address for the camera

IPv4 Subnet Mask

Manual setting of the subnet mask for the camera

IPv4 Default Gateway

Setting of the default router for the camera

IPv6 Mode

Manual: Manual configuration of IPv6 data.

DHCP: The IPv6 connection data is provided by the DHCP server.

Route Advertisement: The IPv6 connection data is provided by the DHCP server (router) in connection with the ISP (Internet Service Provider).

IPv6 Address

Display of the IPv6 address. The address can be configured in the IPv6 "manual" mode.

IPv6 Subnet Mask

Display of the IPv6 subnet mask.

IPv6 Default Gateway

Display of the IPv6 default gateway (default router).

MAC Address

The IPv4 hardware address of the camera is displayed here. This cannot be changed.

MTU

Setting of the transmission unit. Select a value between 500 and 9676. 1500 is set by default.

DNS Server

Preferred DNS Server

DNS server settings are required for some applications (for example, sending emails). Enter the address of the preferred DNS server here.

Alternative DNS Server

If the preferred DNS server cannot be reached, this alternative DNS server is used. Please store the address of the alternative DNS server here.

Apply the settings by clicking "Save".

12.3.2.2. Port

If you wish to enable external access to the camera, the following ports must be configured.

HTTP Port

The default port for HTTP transmission is 80. This port can alternatively be assigned a value in the range of 1024\~65535. If several cameras are located on the same subnetwork, each camera should have its own unique HTTP port.

RTSP Port

The default port for RTSP transmission is 554. This port can alternatively be assigned a value in the range of 1024\~65535. If several cameras are located on the same subnetwork, each camera should have its own unique RTSP port.

HTTPS Port

The standard port for HTTPS transmission is 443.

SDK Port (control port)

The standard port for SDK transmission is 8000. Communication port for internal data. As an alternative, this port can be assigned a value in the range 1025 \~ 65535. If several IP cameras are located in the same subnetwork, each camera should have its own unique server port.

Apply the settings by clicking "Save".

12.3.2.3. DDNS

DynDNS or DDNS (dynamic domain name system entry) is a system that can update domain name entries in real time. The network camera is equipped with an integrated DynDNS client that updates the IP address independently via a DynDNS provider.

The following diagram offers an overview of accessing/updating the IP address using a DynDNS service.

② 195.184.21.78

Internet

① 192.168.0.3

③ DynDNS access data

④ 195.184.21.78 → name.dyndns.org

LA WAN

DynDNS.org Name Server

Enable DDNS

Enable or disable the DDNS function.

DDNS Type

Select the DDNS type. You can choose between "DynDNS" and "ABUS DDNS".

Server Address

Select a DDNS service provider. You must have registered access to this DDNS service provider (e.g. www.dyndns.org).

If you select "ABUS DDNS" as the DDNS type, the server address is stored automatically.

Domain

Enter the registered domain name (host service) here (e.g. myIPcamera.dyndns.org).

Port

Store the port for port forwarding here.

User name

User ID of your DDNS account.

Password

Password of your DDNS account.

Confirm

You must confirm your password here.

Setting up a DDNS account

Set up a new account under DynDNS.org:

Store your account information:

DynDNS.com

Note down your user data and enter this into the configuration of the network camera.

Accessing the network camera via DDNS

If the network camera is located behind a router, access via DynDNS must be configured in the router. On the ABUS Security-Center homepage www.abus-sc.com, you can find a description of the DynDNS router configuration for common router models.

The following diagram offers an overview of accessing a network camera behind a router via DynDNS.org.

Port forwarding of all relevant ports (at least RTSP + HTTP) must be set up in the router in order to use DynDNS access via the router.

Apply the settings by clicking "Save". If the network configuration is changed, the camera must be rebooted (System/Maintenance/Reboot).

ABUS DDNS

1. To be able to use the ABUS DDNS function, you first need to set up an account at www.abus-server.com. Please read the FAQs on this topic on the website.
2. Select the "Enable DDNS" checkbox and select "ABUS DDNS" as the DDNS type.

Apply the settings by clicking "Save".

12.3.2.4. UPnP ^TM

The UPnP (Universal Plug and Play) function makes it easy to control network devices in an IP network. This allows the network camera to be seen in the Windows network environment (e.g. as a network device).

Enable UPnP ^TM

For enabling or disabling the UPnP function.

Friendly Name

Display the UPnP name in the network.

Port Mapping

Enable Port Mapping

This enables Universal Plug and Play port forwarding for network services. If your router supports UPnP, then port forwarding for video streams is enabled automatically on the router for the network camera using this option.

Port Mapping Mode

Select here whether you wish to conduct port mapping automatically or manually.

Protocol Name:

HTTP

The default port for HTTP transmission is 80. As an alternative, this port can be assigned a value in the range 1025 \~ 65535. If several IP cameras are located on the same subnetwork, each camera should have its own unique HTTP port.

RTSP

The default port for RTSP transmission is 554. As an alternative, this port can be assigned a value in the range 1025 \~ 65535. If several IP cameras are located on the same subnetwork, each camera should have its own unique RTSP port.

Server Port (control port)

The standard port for SDK transmission is 8000. Communication port for internal data. As an alternative, this port can be assigned a value in the range 1025 \~ 65535. If several IP cameras are located in the same subnetwork, each camera should have its own unique server port.

External Port

You can only change ports manually here if the "Port Mapping Mode" was set to manual.

External IP Address

Display the external IP address for mobile access.

Status

Displays whether the external port entered is valid or not valid.

Apply the settings by clicking "Save".

12.3.3. Video

Menu item	Description	Available in mode
Video	Settings for video output	Basic Configuration, Advanced Configuration

12.3.3.1. Video

Stream Type

Select the stream type for the camera. Select "Main Stream (Normal)" for recording and live view with good bandwidth. Select "Sub Stream" for live view with restricted bandwidth.

Resolution

Set the resolution of the video data here. Depending on the camera model you can choose between 1280*720p and 1280*960;

Bitrate Type

Specifies the bitrate of the video stream. The video quality can differ depending on the intensity of movement. You have the choice between a constant bitrate and a variable bitrate.

Max. Bitrate

The bitrate of the video stream is set to a certain value. Set a max. bitrate of between 32 and 16384 Kbps. A higher value means better video quality, but this requires a larger bandwidth.

Video Quality

This menu item is only available if you have selected a variable bitrate. Set the video quality of the video data here. The video quality can differ depending on the intensity of movement. You can choose from six different levels of video quality: "Lowest", "Lower", "Low", "Medium", "Higher" or "Highest".

Frame Rate

Specifies the frame rate in frames per second.

Video Encoding

Select a default for video encoding. You can choose between H.264 and MJPEG.

Apply the settings by clicking "Save".

12.3.4. Image

Menu item	Description	Available in mode
Display Settings	Displaying parameter settings	Basic Configuration, Advanced Configuration
OSD Settings	Setting the date and time format Advanced Configuration
Text Overlay	Adding text fields	Advanced Configuration
Privacy Masking	Adding privacy masking Advanced Configuration

12.3.4.1. Display Settings

You can use this menu item to set the picture quality of the camera, including brightness, sharpness, contrast, etc.

Please note:

The display setting parameters can vary depending on the model.

Day and night switching

Here, you have the option between automatic day & night switch and the scheduled switch. A start and end time must be saved for the day mode here.

The following settings can be made individually for the day or night mode.

Brightness

Image brightness settings. A value between 0 and 100 can be set.

Contrast

Image contrast settings. A value between 0 and 100 can be set.

Saturation

Image saturation settings. A value between 0 and 100 can be set.

Hue

Setting for the image hue. A value between 0 and 100 can be set.

Sharpness

Image sharpness settings. A higher sharpness value can increase image noise.

A value between 0 and 100 can be set.

Exposure Time

Setting the maximum exposure time. This setting is dependent on iris mode.

Day/Night Switch

Day/Night Switch Provides options for Auto, Day and Night time schedule and triggered by alarm input.

Auto

Depending on the light conditions, the camera switches between day and night mode automatically. The sensitivity can be set between "0 and 7", where 7 is the highest sensitivity level.

Day

In this mode, the camera only outputs colour pictures.

Please note:

Only use this mode if the light conditions remain constant.

Night

In this mode, the camera only outputs black/white pictures.

Please note:

Only use this mode if the light conditions are poor.

Schedule

In this mode, you can set the start and end time for day operation. Outside of the set interval, the camera switches to black/white mode.

Triggered by Alarm Input

The camera is triggered by the alarm input and changes to colour or black/white mode if there is a change in status.

Status

Choose night, so that the camera switches to black/white mode if the alarm input is triggered. Choose day, if the should switch to colour mode if the alarm input is triggered.

Sensitivity

Setting for the switching threshold for automatic day/night switching (0–7).

A lower value means that there is a lower lighting level for switching to night mode.

Filtering Time

Setting a delay time between recognising that a switching is required and carrying out the process.

BLC Area (Backlight Compensation)

Objects in front of a bright background can be shown more clearly with the aid of the backlight compensation. The exposure of the objects is corrected, however the background is not shown in focus.

WDR

With the aid of the WDR function, the camera can return clear pictures even in disadvantageous backlight conditions. If there are both very bright and very dark areas in the picture area, the brightness level of the overall picture is balanced to provide a clear, detailed image.

Click on the checkbox to enable or disable the WDR function.

Set the Wide Dynamic Level higher to enhance the WDR function.

White balance

Here you select the lighting conditions in which the camera is installed.

You can choose between the options "AWB1", "Locked WB", "Incandescent Lamp", "Warm Light Lamp", "Natural Light", "Fluorescent Lamp".

AWB1

In AWB1 mode, the camera retains the colour balance automatically depending on the current colour temperature.

Locked WB

The white balance is performed once and saved.

Other

Use the additional white balance options to adjust the function to the light level (incandescent lamp, warm light lamp, natural light, fluorescent lamp).

Noise Reduction Level

Set the level for noise reduction here.

Mirror

If the mirror function is active, the image is mirrored horizontally.

Video Standard

Regulation of the exposure frequency

50 Hz: Fixed setting to 50 Hz network frequency

60 Hz; Fixed setting to 60 Hz network frequency

12.3.4.2. OSD Settings

You can use this menu item to select the format of the date and time displayed in the live picture.

Display Name

Activate this checkbox if you wish to display the camera name.

Display Date

Activate this checkbox if you wish to display the date in the camera image.

Display Week

Activate this checkbox if you wish to display the day of the week.

Camera Name

Enter the camera name that is to be displayed in the image here.

Time Format

Choose here whether you would like to display the time in 24-hour or 12-hour format.

Date Format

Select the format for the date display here. (D = day; M = month, Y = year)

Display Mode

Here you can select the display mode for the elements displayed.

You have the following options: "Transparent & Flashing", "Transparent & Not Flashing", "Not Transparent & Flashing", "Not Transparent & Not Flashing".

OSD Size

The on-screen display size can be set here. (16x16, 32x32, 48x48, 64x64, auto)

In the auto option, the size is adjusted according to the resolution set. The OSD size setting can only be applied to the first video stream (main stream).

Apply the settings by clicking "Save".

12.3.4.3. Text Overlay

You have the option to display up to four texts in the camera image. The maximum length is 45 characters. To display the text, please activate the checkbox.

You can move the text window with the mouse button.

Apply the settings by clicking "Save".

12.3.4.4. Privacy Mask

You can use privacy masks to hide certain areas in the live view to prevent these areas from being recorded and viewed in the live view. A maximum of four rectangular privacy masks can be set up in the video image.

To set up a privacy mask, proceed as follows. Select the checkbox

"Enable Privacy Mask". To add a privacy mask, click "Draw Area". You can now select an area on the camera image using your mouse. You can then select three additional areas. By clicking on "Clear All", you can delete all configured privacy masks.

Apply the settings by clicking "Save".

12.3.5. Security

Menu item	Description	Available in mode
User	User administration	Basic Configuration, Advanced Configuration
IP Address Filter	Filtering IP addresses to gain access for controlling the camera	Advanced Configuration

12.3.5.1.User

With this menu item, you can add, edit or delete users.

To add or modify a user, click "Add" or "Modify".

A new window with the data and authorisations appears.

User name

Here you assign the user name that needs to be entered for access to the camera.

Level

Select an individual user type for the user ID.

You can choose between two predefined levels: "Operator" or "User".

As an operator, the following remote functions are available to you: Live view, PTZ control, manual recording, playback, two-way audio, browse/query operating status.

As a user, the following remote functions are available to you: playback, browse/query operating status.

To add further functions, select the corresponding checkbox.

Password

Here you assign the password that the corresponding user must enter to access the camera.

Confirm

Confirm the password by entering it again.

Apply the settings by clicking "OK".

Click "Cancel" to discard the data.

12.3.5.2. IP Address Filter

Enable IP Address Filter

Ticking the selection box enables the filter function.

IP Address Filter Type

Allowed: The IP addresses detailed further below can be used to access the camera.

Forbidden: The IP addresses detailed further below are blocked. An IP is entered in the format xxx.xxx.xxx.xxx.

Apply the settings by clicking "Save".

12.3.6. Basic Event

Menu item	Description	Available in mode
Motion detection	Settings for motion detection	Advanced Configuration
Email	Email send setting Advanced Configuration
Snapshot	Setting for the snapshot action Advanced Configuration

12.3.6.1. Motion detection

Area Settings

Activate motion detection by clicking the "Enable Motion Detection" checkbox.

To select an area, click on the "Draw Area" button. The entire area is selected by default. To discard this selection, click on "Clear All".

Drag the mouse pointer over the desired area. Set the sensitivity using the regulation control bar. To apply the setting for the area, click on "Stop Drawing".

Sensitivity

Right: high sensitivity.

Left: low sensitivity.

Arming Schedule

To save a schedule for motion-controlled recording, click on "Edit".

A new window appears. Specify here on which days of the week and at which times motion-controlled recording should take place.

Now select a day of the week for motion-controlled recording. To store particular time periods, enter a start and end time. To set up all-day motion detection, select 00:00 as the start time and 24:00 as the end time.

To apply motion detection for all days of the week, click the "Select All" checkbox. To copy motion detection to other days of the week, select the day of the week and click on "Copy".

To apply the changes, click "OK" and to discard them click "Cancel".

Apply the settings made by clicking "Save".

Connection methods

Notify Surveillance Centre Notify Surveillance Center

Send email: You receive an email as notification; check the checkbox to activate this.

Trigger Channel: Enables recording to the internal microSD card.

Other Linkage

None available

Apply the settings by clicking "Save".

12.3.6.2. Email

You can apply the settings for sending emails here.

Sender

Sender

Enter a name here to be displayed as the sender.

Sender's Address

Enter the email address of the sender here.

SMTP Server

Enter the IP address or host name of the SMTP server here. (For example: smtp.googleapis.com)

SMTP Port

Enter the SMTP port here. This is configured as 25 by default.

Enable SSL

Select the SSL function if the SMTP server requires this.

Interval

Set the interval between sending emails with attached images here.

Attached Image

Enable this function if images are to be attached to the email in the event of an alarm.

Authentication

If the email server in use requires authentication, enable this function to be able to log onto the server with authentication.

User names and passwords can only be entered once this function has been enabled.

User name

Enter the user name of the email account here. This is the part before the @ symbol.

Password

Enter the password of the email account here.

Confirm

Confirm the password by entering it again.

Receiver

Receiver1/Receiver2/Receiver3

Enter the name of the receiver here.

Receiver1's Address/Receiver2's Address/Receiver3's Address

Enter the email address of the person to be informed here.

Click on "Test" to send a test email.

Apply the settings by clicking "Save".

12.3.6.3. Snapshot

Here, you can set the configuration for time and event-triggered snapshots in order to be able to save them to the microSD card.

Timing

Enable Timing Snapshot

Enable this function to save pictures at certain intervals.

Format

The format for the pictures is preconfigured as JPEG.

Resolution

Set the resolution of the picture here.

Quality

Select the quality for the saved pictures here.

Interval

Set the interval to occur between the saving of two pictures here.

Event-Triggered

Enable Event-Triggered Snapshot

Enable this function to save event-triggered pictures.

Format

The format for the pictures is preconfigured as JPEG.

Resolution

Set the resolution of the picture here.

Quality

Select the quality for the saved pictures here.

Interval

Set the interval to occur between the saving of two pictures here.

Capture Number

Set the number of images that should be saved for an event here.

Apply the settings by clicking "Save".

12.3.7. Storage

Menu item	Description	Available in mode
Record Schedule	Set up a scheduled recording Advanced Configuration
Storage Management	Management of the SD card Advanced Configuration

12.3.7.1. Recording plan

#

Here, you can set the configuration for time and event-triggered recordings in order to be able to save them to an SD card.

Pre-record

Set the duration for recording of the image data before a basic event here.

Post-record

Set the duration for recording of the image data after a basic event here.

Enable Record Schedule

Enable the schedule to store the desired schedule.

To store the schedule, click "Edit". A new window opens.

Now select a day of the week for the recording to take place. To store particular time periods, enter a start and end time. To set up all-day monitoring, select 00:00 as the start time and 24:00 as the end time.

To apply the settings for all days of the week, click the "Select All" checkbox. To copy the settings to other days of the week, select the day of the week and click on "Copy".

Under Record Type, select the recording mode for the desired schedule. You can

choose between the following record types:

Normal: permanent recording.

Motion detection: motion-controlled recording

Please note that the motion detection mask must be configured.

To apply the changes, click "OK" and to discard them click "Cancel".

Apply the settings by clicking "Save".

12.3.7.2. Storage Management

Here you can format the inserted micro SD card and display its properties.

Percentage of Picture

Enter the percentage that should be taken up by snapshot images here.

Percentage of Record

Enter the percentage that should be taken up by recordings here.

Please format the SD card before using it for the first time!

Apply the settings by clicking "Save".

13. Log

Camera parameters, such as alarm, exceptions, operation and information can be saved in the log files. The files can be exported if necessary.

1. Click on Log in the menu bar to call up the search dialogue.
2. Specify the search criteria, including Major Type, Minor Type, Start Time and End Time.
3. Click on Search to search for log files. The corresponding log files are displayed in the log dialogue.
4. Click on Save Log to export the log files and save them on your computer.

14. Maintenance and cleaning

14.1. Maintenance

Regularly check the technical safety of the product, e.g. check the housing for damage.

If it appears to no longer be possible to operate the product safely, stop using it and secure it to prevent unintentional use.

It is likely that safe operation is no longer possible in the event that:

• the device shows signs of visible damage
• the device no longer works correctly

Please note:

You do not need to perform any maintenance on the product. There are no components to service and nothing inside the product to check. Never open it.

14.2. Cleaning

Clean the product with a clean, dry cloth. The cloth can be dampened with lukewarm water to remove stubborn dirt.

Do not allow any liquids to enter the device.

Do not use any chemical cleaning products as they could damage the surface of the housing and screen (discolouration).

15. Disposal

Important: EU Directive 2002/96/EC regulates the proper return, treatment and recycling of used electronic devices. This symbol means that in the interest of environmental protection, the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable local legal guidelines. Used devices can be disposed of at official recycling centres in your country. Obey local regulations when disposing of material. Further details on returns (also for non-EU countries) can be obtained from your local authority. Separate collection and recycling conserves natural resources and ensures that all the provisions for protecting health and the environment are observed when recycling the product.

16. Technical data

Model number	TVIP82900
Dimensions (WxHxD)	120x41 mm
Danger detection	Email, recording on SD card
Connections	1xRJ45, 1xDC
Number of parallel streams	2
Resolution modes	Main Stream: 2560x1440, 1920x1080, 1280x720Sub Stream: 704 x 576, 640 x 480, 352 x 288, 320 x 240
Motion detection	Yes (3 zones)
Image sensor	1/3" progressive scan CMOS sensor
Pixels (effective)	2560 (H)x1440 (V)
Image overlay	Date, camera name, private zones
Frame rate	25 fps
Focal length	1.6 mm, F1.6
Dynamic range (WDR)	Digital WDR
Electronic shutter regulation	1/25 s-1/100,000 s
Backlight compensation	BLC, DWDR
Simultaneous network access	Yes
Horizontal angle of view	186°
Camera type	Day/night
Camera type	Fisheye
Max. resolution @ frame rate	2560x1440 @ 15 fps
Max. operating temperature	40°C
Max. humidity	95%
Min. operating temperature	-10°C
Minimum illumination colour	0.01 Lux @ (F1.2, AGC On)
Minimum illumination B/W	0.001 Lux @ (F1.2, AGC ON)
LAN network access	RJ-45 Ethernet 10/100 Base-T
Video network bandwidth	32 kBit/s - 8 MBit/s
Network camera protocols	Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
ONVIF	Profile S
Private zones	Yes (4)
Noise reduction	DNR
IP protection class	54
Power supply	12 (+/-10%), PoE
Storage medium	microSD card (up to 64 GB)
Language of instructions	DE, UK, FR, NL, DK, ES, IT, PL, RU, SWE
OSD language	DE, UK, FR, NL, DK, ES, IT, PL, RU, SWE
Power consumption	Max. 470 mA
Day/night switching	Electromechanically removable IR cut filter (ICR)
Supported browsers	Mozilla Firefox, Safari or Internet Explorer 6.x and higher
Supported software	ABUS VMS Express, IPCam App (iOS/Android)
Encryption	64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Video compression	H.264, MJPEG
White balance	AWB
Certifications	CE, RoHS, REACH

17. GPL license information

We wish to inform you that the TVIP82900 network surveillance cameras, amongst others, include open source software licensed exclusively under the GNU General Public Licence (GPL). To ensure that your use of the programs conforms with GPL, please refer to the GPL license conditions.

TVIP82900

White ARIS air conditioner unit with black lens and 'LOCK' label (no readable text beyond branding)

Line drawing of a circular mechanical component with concentric layers and a label 'ABUS' on the top (no other text or symbols)

Line drawing of a coiled spring device with labeled terminals (EU, AU, UK), no additional text or symbols present.

Bloc d'alimentation

Line drawing of a broadband cable with two connectors (no text or symbols)

Câble réseau 1 m

Line drawing of a hand using a tool to connect a device to a laptop screen, with no visible text or symbols.

Line drawing of a hand inserting cables into a router connected to a laptop (no text or symbols present)

User interface panel with navigation and playback controls (no text or symbols)

White ARIS air conditioner with black lens and 'LOCK' label (no additional text or symbols)

Line drawing of a circular mechanical component with concentric layers and a labeled 'ABUS' (no text or symbols beyond label)

Two line drawings of electrical connectors: a coil device and a coiled cable, both labeled EU, AU, UK (no additional text or symbols)

Voeding 1m netwerkkabel

Two simple geometric diagrams: a circular shape with internal lines and a concentric circle, both without any text or symbols.

Plafondsteun CD

Illustration of a hand using a probe to clean or inspect the laptop screen with a magnified device (no text or symbols)

Illustration of a hand inserting a router to a laptop with a warning symbol (no text or labels present)

User interface panel with navigation and playback controls (no text or symbols)

Accountgegevens invullen:

DynDNS.com

Port Mapping activeren

Links: lage gevoeligheid.

Activeringstijd

Timing-snapshot activeren

White ARIS air conditioner with black lens and 'LOCK' label (no additional text or symbols)

Line drawing of a circular object with concentric rings and a small protrusion, labeled 'ABUS' at the top (no other text or symbols)

Line drawing of a mechanical component with no text or symbols

Strømforsyning

Line drawing of a broadband cable with two connectors (no text or symbols)

1 m netværkskabel

Loftsbeslag Cd

Kvikguide

Diagram of a mechanical assembly with three screws and two upright pins, no text or symbols present

Illustration of a hand using a probe to clean or inspect the laptop screen, with a magnifying glass nearby (no text or symbols)

Illustration of a hand inserting a router to a laptop with a warning symbol (no text or labels)

User interface panel with navigation and playback controls (no text or symbols)

Lagring af konto-informationer:

DynDNS.com

White ARIS air conditioner unit with black lens and 'LOCK' label (no readable text beyond branding)

Instrukcja obsługi

Line drawing of a circular mechanical component with concentric layers and a small protrusion (no text or symbols)

Two line drawings of electrical connectors: a coil and a coiled cable, both labeled EU, AU, UK (no additional text or symbols)

Simple line drawing of a circular object with internal components and a concentric circle (no text or symbols)

Line drawing of a hand inserting a USB into a network device connected to a laptop (no text or symbols present)

User interface panel with navigation and playback controls (no text or symbols)

Odbiorca1/Odbiorca2/Odbiorca3

White ARIS air conditioner with black lens and 'LOCK' label (no additional text or symbols)

Line drawing of a circular object with concentric layers and a labeled 'ABUG' (no other text or symbols)

Line drawing of a cylindrical device with coiled spring and a terminal connector, labeled EU, AU, UK (no text on device itself)

Line drawing of a broadband cable with two connectors (no text or symbols)

Illustration of a hand using a probe to connect a device to a laptop screen, with no visible text or symbols.

Line drawing of a hand inserting a USB into a network device connected to a laptop (no text or symbols present)

White ARIS air conditioner with black lens and 'LOCK' label (no additional text or symbols)

Line drawing of a circular object with concentric rings and a small protrusion, labeled 'ABUS' at the top (no other text or symbols)

Line drawing of a coiled spring device with no text or symbols on the device itself

Line drawing of a broadband cable with two connectors (no text or symbols)

Cable de red de 1 m

Soporte de techo CD

Line drawing of a hand using a tool to connect a device to a laptop screen, with no visible text or symbols.

Line drawing of a hand inserting a USB into a network device connected to a laptop (no text or symbols present)

User interface panel with navigation and playback controls (no text or symbols)

White ARIS air conditioner with black lens and 'LOCK' label (no additional text or symbols)

Line drawing of a circular device with a labeled 'ABUS' on the top surface (no other text or symbols)

Two types of electrical connectors: a cylindrical capacitor with a terminal and a coiled cable with two connectors, labeled EU, AU, UK (no text or symbols on the diagrams themselves)

Illustration of a hand using a probe to interact with a laptop, showing a magnified device (no text or symbols present)

Line drawing of a hand inserting a router to a laptop, with a device connected nearby (no text or symbols)

Sub-Stream Main Stream

10.3. Comando audio/video

User interface panel with navigation and playback controls (no text or symbols)

White ARIS air conditioner with black lens and 'LOCK' label (no additional text or symbols)

Bruksanvisning

Line drawing of a circular mechanical component with concentric layers and a labeled 'ABUS' (no other text or symbols)

WLAN 720p panorering/lutning Inomhuskamera med larmfunktion

Two types of electrical connectors: a coiled spring device and a multi-core cable, both labeled EU, AU, UK (no additional text or symbols)

Two abstract geometric diagrams: a circular cross-section with internal lines and a concentric circle (no text or symbols)

Takfäste CD

Snabbguide

Fästmaterial

Line drawing of a hand using a probe to interact with a laptop, showing a magnified device (no text or symbols present)

Illustration of a hand inserting a router to a laptop with a warning symbol (no text or labels)

User interface panel with navigation and playback controls (no text or symbols)

NTP-servers IP-adress.

NTP-port

Lägga in kontoinformation:

DynDNS.com

These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher.

The operating instructions reflect the current technical specifications at the time of print.

We reserve the right to change the technical or physical specifications.

Note de l'éditeur

© Copyright 06/2015 by ABUS Security-Center
