USER MANUAL STEAMJET SSN1700 HOOVER

MODEL:SSN1700 220-240V~50Hz 1500-1700W

steamjet cover 1 copy.pdf

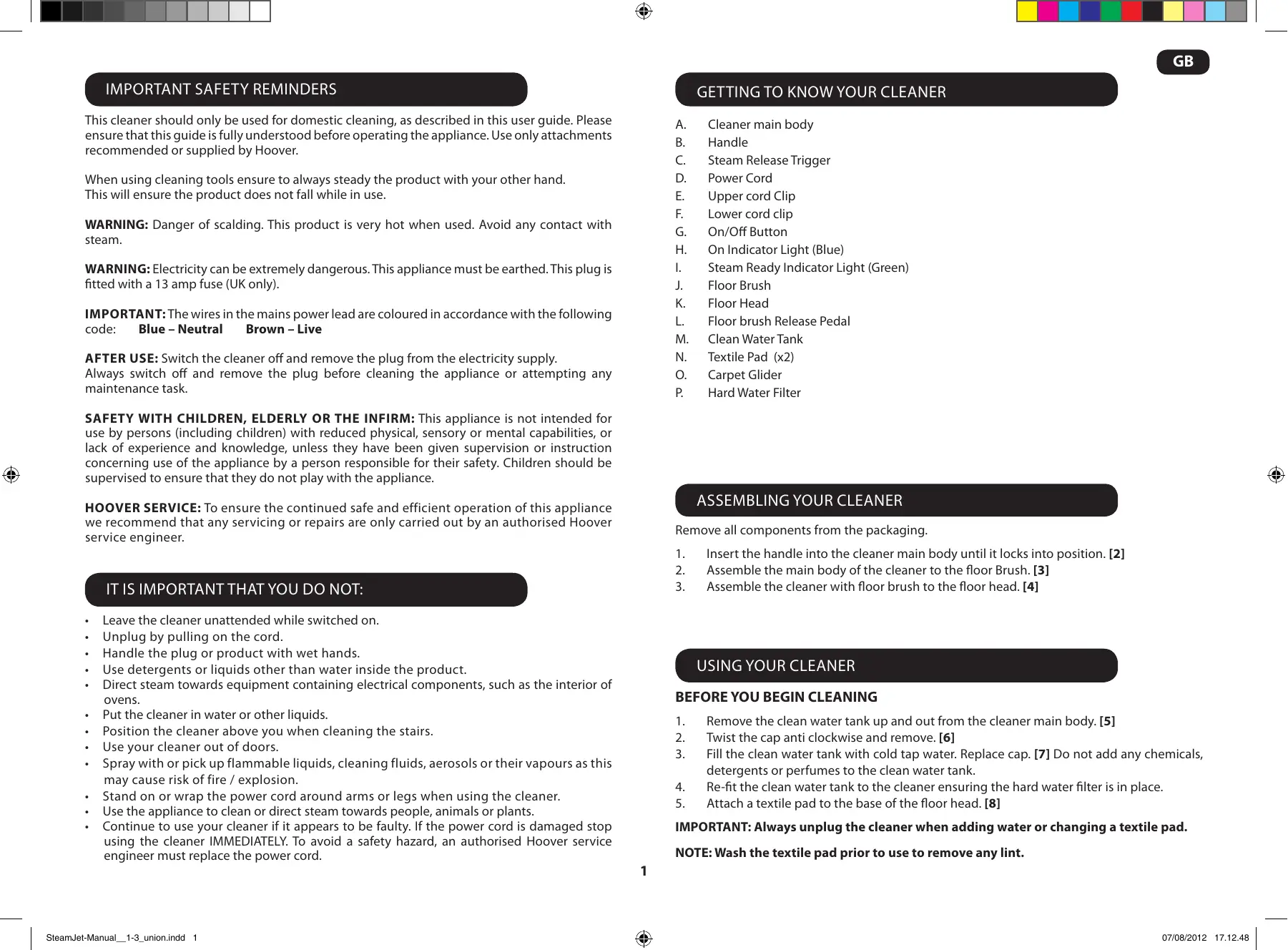

IMPORTANT Safety reminders Getting to know your cleaner This cleaner should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Use only attachments recommended or supplied by Hoover.

When using cleaning tools ensure to always steady the product with your other hand. This will ensure the product does not fall while in use.

WARNING: Danger of scalding. This product is very hot when used. Avoid any contact with

Warning: Electricity can be extremely dangerous. This appliance must be earthed. This plug is

fitted with a 13 amp fuse (UK only). Important: The wires in the mains power lead are coloured in accordance with the following code: Blue – Neutral Brown – Live AFTER USE: Switch the cleaner off and remove the plug from the electricity supply. Always switch off and remove the plug before cleaning the appliance or attempting any maintenance task. Cleaner main body Handle Steam Release Trigger Power Cord Upper cord Clip Lower cord clip On/Off Button On Indicator Light (Blue) Steam Ready Indicator Light (Green) Floor Brush Floor Head Floor brush Release Pedal Clean Water Tank Textile Pad (x2) Carpet Glider Hard Water Filter Safety with children, elderly or the infirm: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Assembling your Cleaner HOOVER SERVICE: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer. Remove all components from the packaging.

it is important that you do not:

Leave the cleaner unattended while switched on. Unplug by pulling on the cord. Handle the plug or product with wet hands. Use detergents or liquids other than water inside the product. Direct steam towards equipment containing electrical components, such as the interior of ovens. Put the cleaner in water or other liquids. Position the cleaner above you when cleaning the stairs. Use your cleaner out of doors. Spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours as this may cause risk of fire / explosion. Stand on or wrap the power cord around arms or legs when using the cleaner. Use the appliance to clean or direct steam towards people, animals or plants. Continue to use your cleaner if it appears to be faulty. If the power cord is damaged stop using the cleaner IMMEDIATELY. To avoid a safety hazard, an authorised Hoover service engineer must replace the power cord. Insert the handle into the cleaner main body until it locks into position. [2] Assemble the main body of the cleaner to the floor Brush. [3] Assemble the cleaner with floor brush to the floor head. [4] Remove the clean water tank up and out from the cleaner main body. [5] Twist the cap anti clockwise and remove. [6] Fill the clean water tank with cold tap water. Replace cap. [7] Do not add any chemicals, detergents or perfumes to the clean water tank. Re-fit the clean water tank to the cleaner ensuring the hard water filter is in place. Attach a textile pad to the base of the floor head. [8] IMPORTANT: Always unplug the cleaner when adding water or changing a textile pad. NOTE: Wash the textile pad prior to use to remove any lint.

Steam cleaning hard floors

NOTE: Always sweep or vacuum the floor prior to use to remove any loose dirt or debris. IMPORTANT: Do not use the cleaner without a textile pad attached to the floor head. Recline the cleaner by placing a foot on the floor head and lowering the main body towards the floor. [9] To produce steam press the Steam Trigger Button. [10] Move the cleaner slowly backwards and forwards paying particular attention to high traffic areas. [11] NOTE: Do not use the carpet glider when cleaning hard floors.

Plug the steam cleaner into the main power. The blue ON light will illuminate. After a few seconds the green Steam Ready light will illuminate indicating the cleaner is ready for use. Recline the cleaner by placing a foot on the floor head and lowering the main body towards the floor. [9] To produce steam press the Steam Trigger Button. [10] Move the cleaner slowly backwards and forwards paying particular attention to high traffic areas. [11] Empty the water tank

Steam cleaning hard floor - intensive clean Use the triangular floor brush on hard floors that require deep cleaning. Please note that there is no mop to allow the steam to be aimed directly at the surface to clean more intensely. The area will have to be mopped separately. Unplug the cleaner from the main power and ensure the unit has cooled. Remove the clean water tank for the main body of the cleaner. [5] Twist the cap anti-clockwise and remove. [6] Empty any excess water from the tank. [16] Replace the cap and return to the cleaner. Removing and cleaning the textile pad NOTE: Always sweep or vacuum the floor prior to use to remove any loose dirt or debris.

Remove the floor brush from the floor head by pressing the release pedal at the rear. Lift the cleaner with floor brush attached out of the floor head. [12] Plug the steam cleaner into the main power. The blue ON light will illuminate. After a few seconds the green Steam Ready light will illuminate indicating the cleaner is ready for use. Recline the cleaner by placing a foot on the floor brush and lowering the main body towards the floor. [13] To produce steam press the Steam Trigger Button. [10] Move the cleaner slowly backwards and forwards paying particular attention to high traffic areas. [14] Unplug the cleaner from the main power and ensure the unit has cooled. If necessary remove the carpet glider, then peel the textile pad from the floor base. [17] Wash the textile pad in a washing machine with a mild detergent at max temperature 40°C. IMPORTANT: Do not use bleach or fabric softener when washing the textile pad. Replacing the hard water filter The cleaner is fitted with a hard water filter. If you live in an area of hard water the filter will discolour over time. Depending on the water hardness and frequency of use the filter should be changed every 6 months.

Refreshing carpets NOTE: Always sweep or vacuum the floor prior to use to remove any loose dirt or debris. IMPORTANT: Do not use the cleaner without a textile pad attached to the floor head. Attach the carpet glider to the floor head. [15] Plug the steam cleaner into the main power. The blue ON light will illuminate. After a few seconds the green Steam Ready light will illuminate indicating the cleaner is ready for use. Unplug the cleaner from the main power and ensure the unit has cooled. Remove the clean water tank for the main body of the cleaner. [5] Lift the hard water filter out of the cleaner. [18] Replace with new filter. Reassemble the clean water tank to your cleaner. Note: The condition of the filter will affect the cleaner performance.

How often should I replace the mop? It depends on different factors above all how hard the floor is. The best way to understand when to change the mop is when the mop is still dirty after having washed it or if you notice that it doesn’t perform like before. Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service. The steam stick will not switch on.

• Check the unit is plugged in.
• Check the power cord. The steam stick is not producing steam.
• There may be no water in the clean water tank.
• The tank may not be fitted correctly. Important Information Hoover spares and Consumables Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number. The textile pad won’t pick up dirt.
• The cleaning pad may already be saturated with dirt and needs to be washed. Refer to the Maintenance section. Hoover Service Should you require service at any time, please contact your local Hoover Service Office. CLEANING FAQS Quality Hoover’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001. When is steamjet ready? In approximately 30 seconds. Can I use steamjet on all floor surfaces? On all hard floors like marble, ceramic, stone, linoleum, sealed hardwood floors and parquet. The Environment: This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. Does steamjet emit steam automatically? No, to produce steam you should press the steam/ sweep trigger button under the handle. Can I use it vertically? No, steamjet can be used only on horizontal floor surfaces. The symbol on the product indicates that this product may not be treated as houshold waste. Instead it shall be handed over to the appliance collection point for recycling of electrical and electronic equipment. Disposal must be carried out in accordance with the local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Can I put detergents or other chemicals inside the tank? No, you would damage the product. What if in the city where I live the water is very hard? You can use filtered water or you will have to change the filter cassette more often. If you find very weak steam, check steam orifice,you can descale it by inserting small tools into steam orifice if necessary. Your Guarantee When is it time to change the filter cassette? How do you notice it? It depends on the water hardness. Normally 6 months. You will notice that the colour of yellow resin inside the filter cassette becomes a bit dull. The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice. How long will one tank of water last before needing to be refilled? Approximately 20 minutes if you press continuously the trigger. Is the mop washable? Yes, it can be washed by hand or in the washing machine with a mild detergent at max temperature 40°c. Do not use bleach or fabric softener.

BLI KJENT MED STØVSUGEREN DIN

DET ER VIKTIG AT DU IKKE:

VEDLIKEHOLD AV STØVSUGEREN

VIKTIG: PASS ALLTID PÅ AT INGEN FORM FOR VEDLIKEHOLD UTFØRES FØR RENSEREN ER HELT NEDKJØLT.

POMEMBNA VARNOSTNA OPOZORILA
